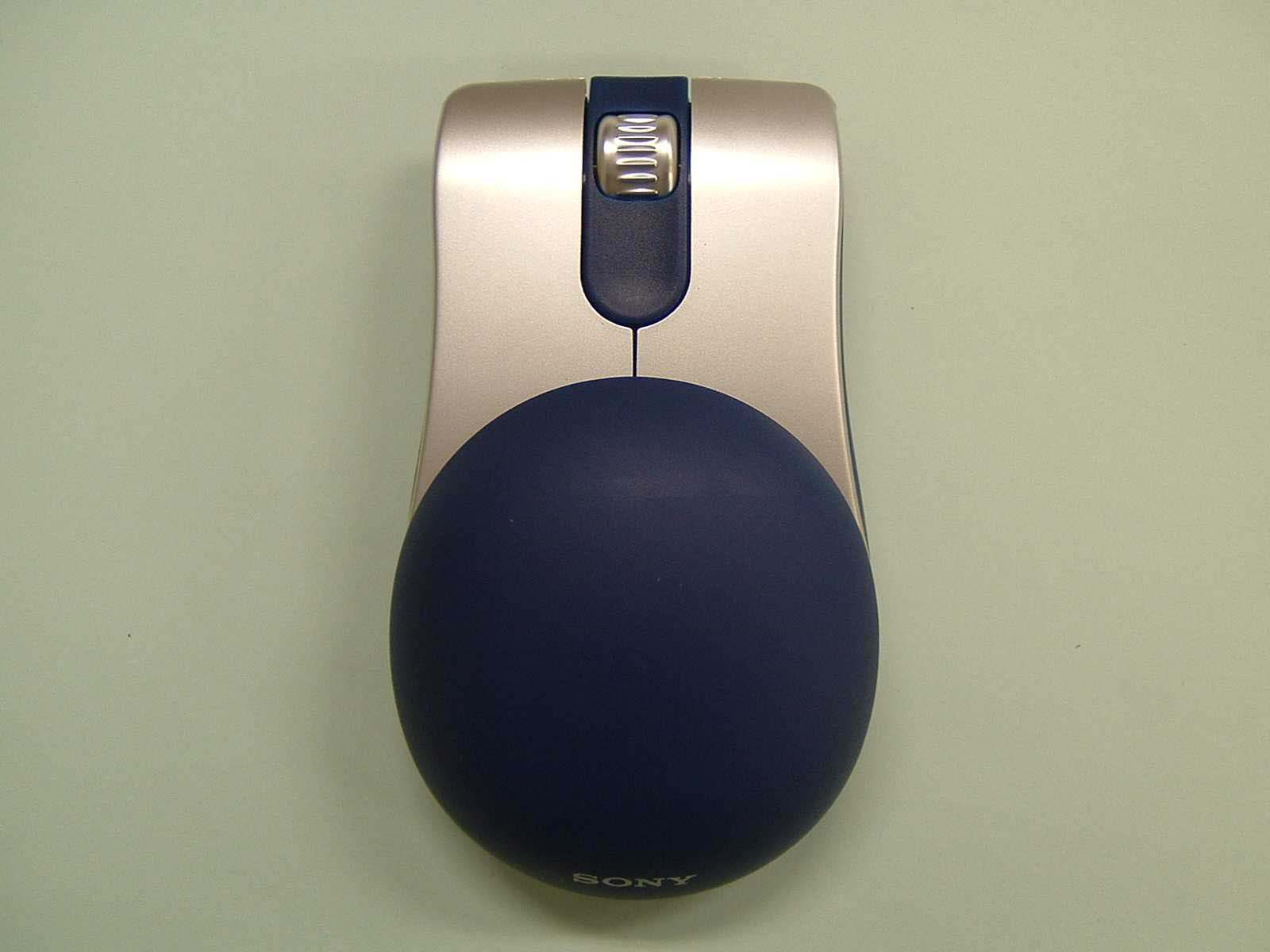

Sony Corporation FCC ID: AK8WCM2-WCL2 (External photos) Front of SMU- W C L2 Sony Corporation FCC ID: AK8WCM2-WCL2 Rear of SMU- W C L2 Sony Corporation FCC ID: AK8WCM2-WCL2 Front of SMU- W C M2 Sony Corporation FCC ID: AK8WCM2-WCL2 Rear of SMU- W C M2

Sony Corporation FCC ID: AK8WCM2-WCL2 Label drawing Label position

Sony Corporation FCC ID: AK8WCM2-WCL2 (Internal photos) Cover Opened (SMU-WCL2) Sony Corporation FCC ID: AK8WCM2-WCL2 Cover Opened (SMU-WCM2) Sony Corporation FCC ID: AK8WCM2-WCL2 Front Intern al Circu it Sony Corporation FCC ID: AK8WCM2-WCL2 Rear Interna l Circu it

Test report No. : 25DE0134-HO-3 Page : 2 of 13 Issued date : December 1, 2004 FCC ID : AK8WCM2-WCL2 Revised date : December 7, 2004 Revised date : December 14, 2004 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) CONTENTS PAGE SECTION 1: Client information .................................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.)................................................................................................ 3 SECTION 3: Test specification, procedures & results ................................................................................ 4 SECTION 4: Operation of E.U.T. during testing ......................................................................................... 6 SECTION 5: Radiated emission (Fundamental and Spurious Emission) ................................................... 7 APPENDIX 1: Photographs of test setup ...................................................................................................... 8 Spurious Emission (Radiated) SMU-WCL2 ..........................................................................................................8 Worst Case Position (Y-axis:Horizontal / Y-axis:Vertical)....................................................................................9 APPENDIX 2:Test instruments .................................................................................................................... 10 APPENDIX 3: Data of EMI test.................................................................................................................... 11 Radiated Emission.................................................................................................................................................. 11 20dB Bandwidth&99% Occupied Bandwidth .....................................................................................................13 Test report No. : 25DE0134-HO-3 Page : 3 of 13 Issued date : December 1, 2004 FCC ID : AK8WCM2-WCL2 Revised date : December 7, 2004 Revised date : December 14, 2004 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 1: Client information Company Name : Sony Corporation Address : 6-7-35 Kitashinagawa Shinagawa-ku, Tokyo 141-0001 Japan Telephone Number : +81-3-5795-5506 Facsimile Number : +81-3-5795-7955 Contact Person : Hitoshi Tanabe SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Optical USB Wireless Mouse Model No. : SMU-WCL2 Serial No. : 1 Rating : DC3V Country of Manufacture : China Receipt Date of Sample : November 24, 2004 Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) 2.2 Product Description The difference in SMU-WCL2 and SMU-WCM2 (Series models) Case size Clock frequency 27.045MHz Equipment Type Transceiver Frequency of Operation 27.045MHz Type of Modulation FSK Antenna Type Integral Mode of Operation Simplex ITU code F1D Operating temperature + 5deg.C. to +35deg.C. <Receiver> Equipment Type Receiver Frequency of Operation 27.045MHz Local Ocsilator frequency 26.590MHz Intermediate frequency 455kHz Operating temperature + 5deg.C. to +35deg.C. FCC 15.31 (e) This test was performed with the New Battery (DC 3V) and the constant voltage was supplied to this EUT during the tests. Therefore, this EUT complies with the requirement. FCC Part 15.203 Antenna requirement It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. Test report No. : 25DE0134-HO-3 Page : 4 of 13 Issued date : December 1, 2004 FCC ID : AK8WCM2-WCL2 Revised date : December 7, 2004 Revised date : December 14, 2004 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part15 Subpart C : 2004 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.227 Operation within the band 26.96 – 27.28MHz: 2004 Section 15.209 Radiated emission limits, general requirements: 2004 Section 15.215 Additional provisions to the general radiated emission limitations 3.2 Procedures and results No. Item Test Procedure Specification Remarks DeviationWorst margin*0) Results 1 Fundamental Spurious Emission ANSI C63.4:2003 13. Measurement of intentional radiators Section 15.227 (b) RSS-210 8.6.1 Radiated N/A 24.9dB 27.042MHz AV Complied 2 Spurious Emission ANSI C63.4:2003 13. Measurement of intentional radiators Section 15.227 (b) RSS-210 8.6.1 Radiated N/A 9.0dB 189.284MHz Horizontal QP Complied 3 20dB Bandwidth ANSI C63.4:2003 13. Measurement of intentional radiators Section 15.215 (c) RSS-210 8.6.1 Radiated N/A N/A N/A Note: UL Apex’s EMI Work Procedures No.QPM05. *0) The result is rounded off to the second decimal place. Therefore, there may be 0.1 difference for the result. Uncertainty: *In case of the margin below the EMC Head Office’s uncertainty. The data listed in this report meets the limits unless the uncertainty is taken into consideration. Spurious Emission (Radiated) The measurement uncertainty (with a 95% confidence level) for this test using Biconical antenna is ±4.5dB(3m)/ ±4.7dB(10m). The measurement uncertainty (with a 95% confidence level) for this test using Logperiodic antenna is ±5.2dB(3m)/ ±3.8dB(10m). The measurement uncertainty (with a 95% confidence level) for this test using Horn antenna is ±6.6dB. *These tests were also referred to "Guidance on Measurement for Digital Transmission Systems Section15.247". *Thes…

Text truncated - open the document above for the full version.

Test report No. : 25DE0134-HO-3 Page : 8 of 14 Issued date : December 1, 2004 FCC ID : AK8WCM2-WCL2 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) APPENDIX 1: Photographs of test setup Spurious Emission (Radiated) Front Rear Test report No. : 25DE0134-HO-3 Page : 9 of 14 Issued date : December 1, 2004 FCC ID : AK8WCM2-WCL2 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Worst Case Position (Y-axis:Horizontal / Y-axis:Vertical) X-axis Y-axis Z-axis
