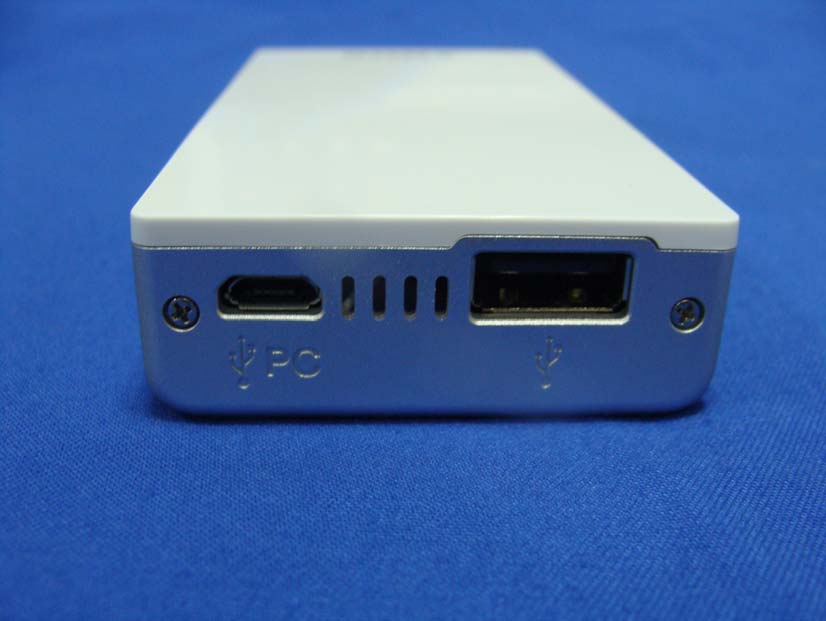

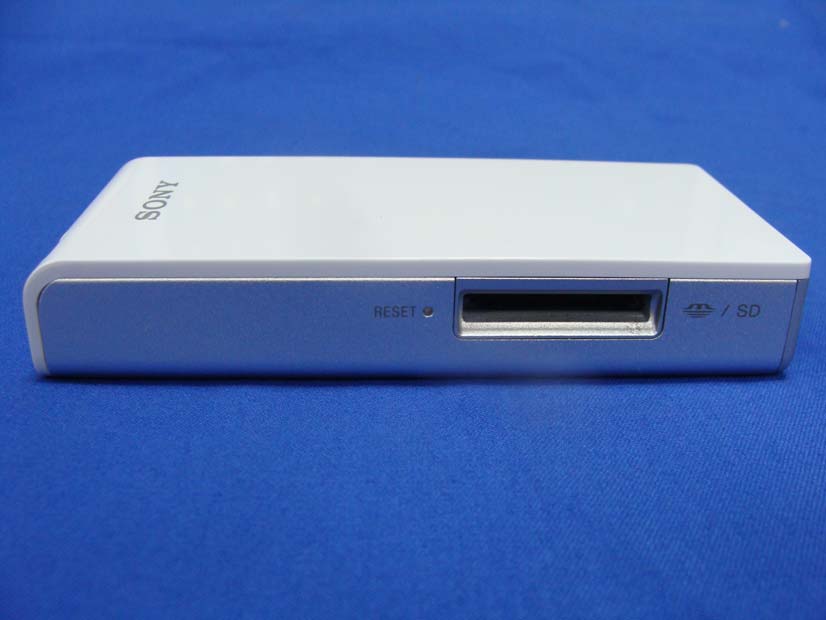

Report No.: 131229R-RFUSP42V01 Page : 1 of 12 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 131229R-RFUSP42V01 Page : 2 of 12 (3) EUT Photo (4) EUT Photo

SONY Corporation FCC ID.: AK8WG-C10N 1-7-1 Konan, Minato-ku, Tokyo 108-0075Tel : +81-3-6748-2569 FCC ID Label

SONY Corporation FCC ID.: AK8WG-C10 1-7-1 Konan, Minato-ku, Tokyo 108-0075Tel : +81-3-6748-2569 The FCC ID and DoC will be placed on the equipment as shown in the photograph below.

Report No.: 131229R-RFUSP42V01 Page : 3 of 12 (5) EUT Photo (6) EUT Photo Report No.: 131229R-RFUSP42V01 Page : 4 of 12 (7) EUT Photo (8) EUT Photo Report No.: 131229R-RFUSP42V01 Page : 5 of 12 (9) EUT Photo (10) EUT Photo Report No.: 131229R-RFUSP42V01 Page : 6 of 12 (11) EUT Photo (12) EUT Photo Report No.: 131229R-RFUSP42V01 Page : 7 of 12 (13) EUT Photo (14) EUT Photo Report No.: 131229R-RFUSP42V01 Page : 8 of 12 (15) EUT Photo (16) EUT Photo Report No.: 131229R-RFUSP42V01 Page : 9 of 12 (17) EUT Photo (18) EUT Photo Report No.: 131229R-RFUSP42V01 Page : 10 of 12 (19) EUT Photo (20) EUT Photo Report No.: 131229R-RFUSP42V01 Page : 11 of 12 (21) EUT Photo (22) EUT Photo Report No.: 131229R-RFUSP42V01 Page : 12 of 12 (23) EUT Photo

Report No：131229R-HPUSP09V01 Page: 1 of 23 FCC SAR Test Report Product Name：Portable Wireless Server Model No. ： WG-C10 Applicant ： SONY Corporation Address ： 1-7-1 Konan, Minato-ku, Tokyo 108-0075 Date of Receipt ：2013/01/09 Issued Date ：2013/02/25 Report No. ：131229R-HPUSP09V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of Quie Tek Corporation. Report No：131229R-HPUSP09V01 Page: 2 of 23 Test Report Certification Issued Date: 2013/02/25 Report No.: 131229R-HPUSP09V01 Product Name ： Portable Wireless Server Applicant ： SONY Corporation Address ： 1-7-1 Konan, Minato-ku, Tokyo 108-0075 Manufacturer ： SONY Corporation Model No. ： WG-C10 Trade Name ： SONY FCC ID ： AK8WG-C10 Applicable Standard： FCC Oet65 Supplement C June 2001g IEEE Std. 1528-2003 47CFR § 2.1093 Measurement procedures ： KDB 447498 , KDB 248227, KDB 865664 Test Result ： Max. SAR Measurement (1g) 0.392 W/kg Application Type ： Certification The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of Quie Tek Corporation. Documented By ： (Adm. Assistant / April Chen) Tested By ： (Engineer / Wen Lee) Approved By ： (Manager / Vincent Lin) Report No：131229R-HPUSP09V01 Page: 3 of 23 TABLE OF CONTENTS Description Page 1. General Information.............................................................................. 5 1.1 EUT Description ............................................................................................................5 1.2 Antenna List ................................................................................................................... 5 1.3 Test Environment ...........................................................................................................6 2. SAR Measurement System .................................................................. 7 2.1 DASY5 System Description .......................................................................................... 7 2.1.1 Applications ................................................................................................................ 8 2.1.2 Area Scans................................................................................................................... 8 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 8 2.1.4 Uncertainty of Inter-/Extrapolation and Averaging .................................................... 8 2.2 DASY5 E-Field Probe ................................................................................................... 9 2.2.1 Isotropic E-Field Probe Specification ......................................................................... 9 2.3 Boundary Detection Unit and Probe Mounting Device ............................................... 10 2.4 DATA Acquisition Electronics (DAE) and Measurement Server ............................... 10 2.5 Robot ............................................................................................................................ 11 2.6 Light Beam Unit........................................................................................................... 11 2.7 Device Holder ..............................................................................................................12 2.8 SAM Twin Phantom .................................................................................................... 12 3. Tissue Simulating Liquid ................................................................... 13 3.1 The composition of the tissue simulating liquid .......................................................... 13 3.2 Tissue Calibration Result ............................................................................................. 13 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 14 4. SAR Measurement Procedure ........................................................... 15 4.1 SAR System Check ...................................................................................................... 15 4.1.1 Dipoles ...................................................................................................................... 15 4.1.2 System Check Result ................................................................................................ 15 4.2 SAR Measurement Procedure ...................................................................................... 16 5. SAR Exposure Limits ......................................................................... 17 6. Test Equipment List............................................................................ 18 7. Measurement Uncertainty .................................................................. 19 8. Conducted Power Measurement ....................................................... 20 9. Test Results......................................................................................... 21 9.1 SAR Test Results Summary ......................................................................................... 21 10. SAR measurement variability ............................................................ 22 Appendix ............................................................................................................................ 23 Report No：131229R-HPUSP09V01 Page: 4 of 23 Appendix A. SAR System Check Data Appendix B. SAR measurement Data Appendix C. Test Setup Photographs & EUT Photographs Appendix D. Probe Calibration Data Appendix E. Dipole Calibration Data Report No：131229R-HPUSP09V01 Page: 5 of 23 1. General Information 1.1 EUT Description Product Name Portable Wireless Server Trade Name SONY Model No. WG-C10 FCC ID AK8WG-C10 TX Frequency 2412MHz~2462MHz Type of Modulation DSSS/OFDM/BPSK/QPSK/16QAM/64QAM Antenna Type PIFA Device Category Portable RF Expo…

Text truncated - open the document above for the full version.

Report No.: 131229R-RFUSP42V01 Page : 1 of 129 FCC Test Report Product Name Portable Wireless Server Model No WG-C10 FCC ID. AK8WG-C10 Applicant SONY Corporation Address 1-7-1 Konan, Minato-ku, Tokyo 108-0075 Date of Receipt Jan. 09, 2013 Issue Date Feb. 21, 2013 Report No. 131229R-RFUSP42V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No.: 131229R-RFUSP42V01 Page : 2 of 129 Test Report Certification Issue Date: Feb. 21, 2013 Report No.: 131229R-RFUSP42V01 Product Name Portable Wireless Server Applicant SONY Corporation Address 1-7-1 Konan, Minato-ku, Tokyo 108-0075 Manufacturer SONY Corporation Model No. WG-C10 FCC ID. AK8WG-C10 EUT Rated Voltage DC 3.7V (Power by battery) EUT Test Voltage AC 120V/60Hz Trade Name SONY Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2012 ANSI C63.4: 2003, ANSI C63.10: 2009 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Senior Adm. Specialist / Rita Huang ) Tested By : ( Engineer / Alan Chen ) Approved By : ( Manager / Vincent Lin ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No.: 131229R-RFUSP42V01 Page : 3 of 129 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility .................................................................................................................................10 2. Conducted Emission.................................................................................................................. 11 2.1. Test Equipment............................................................................................................................11 2.2. Test Setup ....................................................................................................................................11 2.3. Limits ..........................................................................................................................................12 2.4. Test Procedure .............................................................................................................................12 2.5. Uncertainty ..................................................................................................................................12 2.6. Test Result of Conducted Emission.............................................................................................13 3. Peak Power Output ...................................................................................................................15 3.1. Test Equipment............................................................................................................................15 3.2. Test Setup ....................................................................................................................................15 3.3. Limits ..........................................................................................................................................15 3.4. Test Procedure .............................................................................................................................15 3.5. Uncertainty ..................................................................................................................................15 3.6. Test Result of Peak Power Output...............................................................................................16 4. Radiated Emission .....................................................................................................................20 4.1. Test Equipment............................................................................................................................20 4.2. Test Setup ....................................................................................................................................21 4.3. Limits ..........................................................................................................................................22 4.4. Test Procedure .............................................................................................................................23 4.5. Uncertainty ..................................................................................................................................23 4.6. Test Result of Radiated Emission................................................................................................24 5. RF antenna conducted test........................................................................................................40 5.1. Test Equipment............................................................................................................................40 5.2. Test Setup ..........................…

Text truncated - open the document above for the full version.

Report No.: 131229R-RFUSP42V01 Page : 101 of 129 7. Occupied Bandwidth 7.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2012 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2012 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2012 Note: 1. All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. 2. The test instruments marked with “X” are used to measure the final test results. 7.2. Test Setup 7.3. Limits The minimum bandwidth shall be at least 500 kHz. 7.4. Test Procedure The EUT was setup according to ANSI C63.10: 2009; tested according to DTS test procedure of ANSI C63.10: 2009 for compliance to FCC 47CFR 15.247 requirements. Set RBW = 1-5% of the emission bandwidth, VBW≥3*RBW 7.5. Uncertainty ± 150Hz SMA EUT Spectrum Analyzer RF Cable Report No.: 131229R-RFUSP42V01 Page : 102 of 129 7.6. Test Result of Occupied Bandwidth Product : Portable Wireless Server Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (2412MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2412 12300 >500 Pass Figure Channel 1: Report No.: 131229R-RFUSP42V01 Page : 103 of 129 Product : Portable Wireless Server Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 6 2437 12300 >500 Pass Figure Channel 6: Report No.: 131229R-RFUSP42V01 Page : 104 of 129 Product : Portable Wireless Server Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (2462MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 11 2462 12300 >500 Pass Figure Channel 11: Report No.: 131229R-RFUSP42V01 Page : 105 of 129 Product : Portable Wireless Server Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) (2412MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2412 16450 >500 Pass Figure Channel 1: Report No.: 131229R-RFUSP42V01 Page : 106 of 129 Product : Portable Wireless Server Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 6 2437 16400 >500 Pass Figure Channel 6: Report No.: 131229R-RFUSP42V01 Page : 107 of 129 Product : Portable Wireless Server Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) (2462MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 11 2462 16450 >500 Pass Figure Channel 11: Report No.: 131229R-RFUSP42V01 Page : 108 of 129 Product : Portable Wireless Server Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n MCS0 7.2Mbps 20M-BW) (2412MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2412 17600 >500 Pass Figure Channel 1: Report No.: 131229R-RFUSP42V01 Page : 109 of 129 Product : Portable Wireless Server Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n MCS0 7.2Mbps 20M-BW) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 6 2437 17600 >500 Pass Figure Channel 6: Report No.: 131229R-RFUSP42V01 Page : 110 of 129 Product : Portable Wireless Server Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n MCS0 7.2Mbps 20M-BW) (2462MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 11 2462 17550 >500 Pass Figure Channel 11: Report No.: 131229R-RFUSP42V01 Page : 111 of 129 Product : Portable Wireless Server Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 4: Transmit (802.11n MCS0 15Mbps 40M-BW) (2422MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 3 2422 36000 >500 Pass Figure Channel 1: Report No.: 131229R-RFUSP42V01 Page : 112 of 129 Product : Portable Wireless Server Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 4: Transmit (802.11n MCS0 15Mbps 40M-BW) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 6 2437 36200 >500 Pass Figure Channel 4: Report No.: 131229R-RFUSP42V01 Page : 113 of 129 Product : Portable Wireless Server Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 4: Transmit (802.11n MCS0 15Mbps 40M-BW) (2452MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 9 2452 36100 >500 Pass Figure Channel 7: Report No.: 131229R-RFUSP42V01 Page : 114 of 129 8. Power Density 8.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2012 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2012 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2012 Note: 1. All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. 2. The test instruments marked with “X” are used to measure the final test results. 8.2. Test Setup 8.3. Limits The transmitted power density averaged over any 1 second interval shall not be greater +8dBm in any 3kHz bandwidth. 8.4. Test Procedure The EUT was setup according to ANSI C63.10: 2009; tested according to DTS test procedure of ANSI C63.10: 2009 for compliance to FCC 47CFR 15.247 requirements. Set RBW= 100 kHz, VBW≥300KHz, SPAN to 5-30 % greater than the EBW, Scale the observed power level to an equivalent value in 3 kHz by adjusting (reducing) the measured power by a bandwidth correction factor (BWCF) where BWCF = 10log (3 kHz/100 kHz = -15.2 dB). 8.5. Uncertainty ± 1.27 dB SMA EUT Spectrum An…

Text truncated - open the document above for the full version.

Report No.: 131229R-RFUSP42V01 Page : 1 of 3 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 131229R-RFUSP42V01 Page : 2 of 3 Front View of Radiated Test Back View of Radiated Test Report No.: 131229R-RFUSP42V01 Page : 3 of 3 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)

Report No：131229R-HPUSP09V01 Page: 1 of 14 Appendix C. Test Setup Photographs & EUT Photographs Test Setup Photographs EUT Front EUT Top Touch Touch Report No：131229R-HPUSP09V01 Page: 2 of 14 EUT Back EUT Left-Side Touch Touch Report No：131229R-HPUSP09V01 Page: 3 of 14 EUT Right-Side Depth of the liquid in the phantom-Zoom In Note: The positions used in the measurements were according to IEEE 1528-2003. Touch
