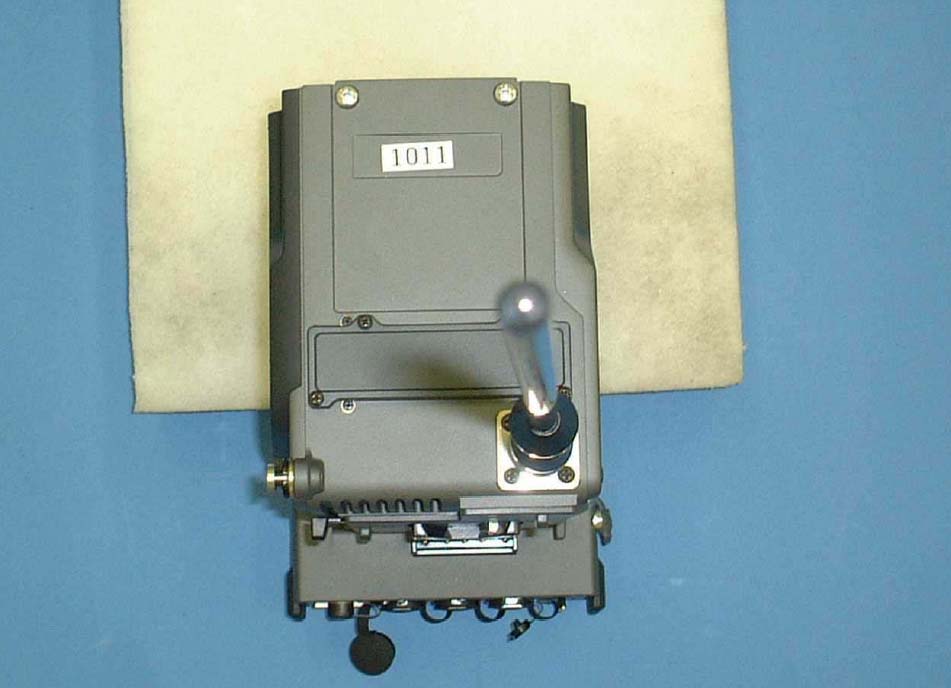

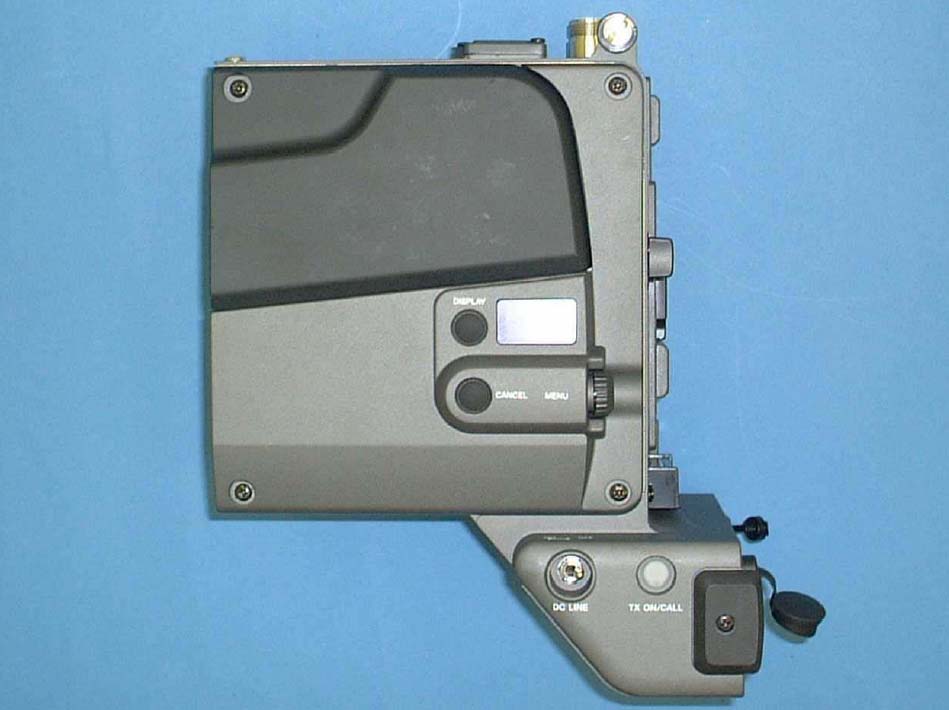

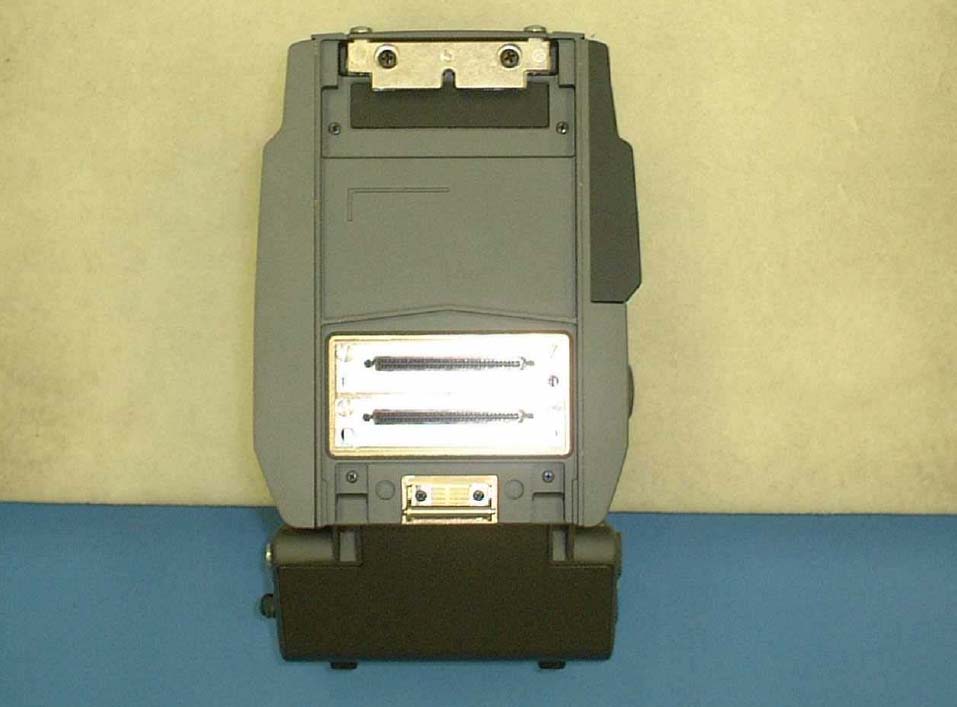

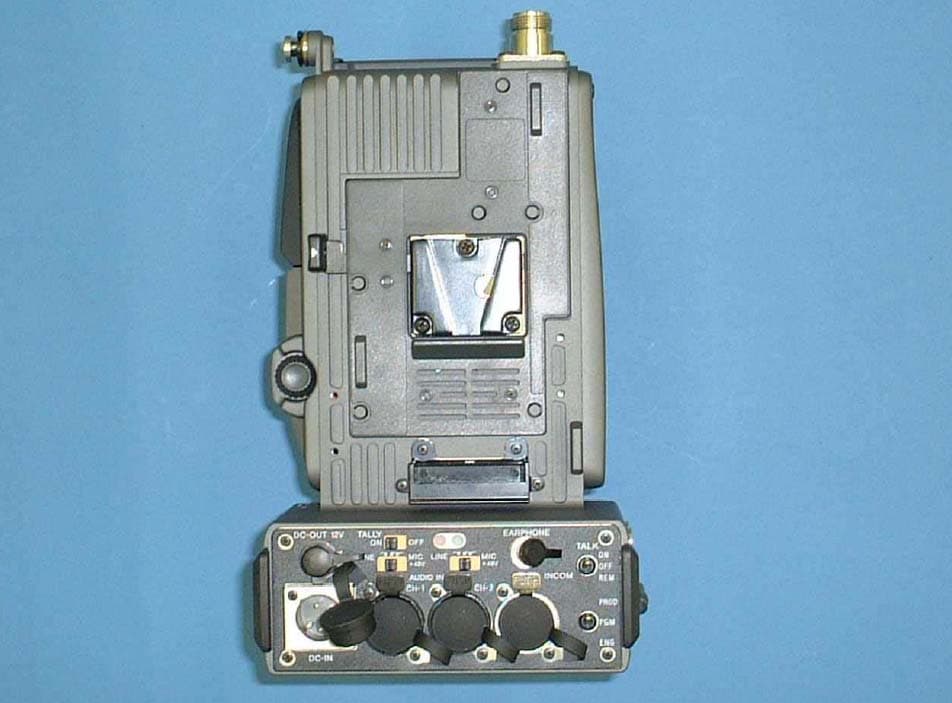

External Photo Sony Corporation Model: WLL-CA55 FCC ID: AK8WLLCA55 Front View of Wireless Transmitter Rear View of Wireless Transmitter External Photo Sony Corporation Model: WLL-CA55 FCC ID: AK8WLLCA55 Left hand Side of Wireless Transmitter Right hand Side of Wireless Transmitter External Photo Sony Corporation Model: WLL-CA55 FCC ID: AK8WLLCA55 Top View of Wireless Transmitter Top View of Camera with Wireless Transmitter External Photo Sony Corporation Model: WLL-CA55 FCC ID: AK8WLLCA55 Front View of Camera with Wireless Transmitter Right Hand Side of Camera with Wireless Transmitter External Photo Sony Corporation Model: WLL-CA55 FCC ID: AK8WLLCA55 Rear View of Camera with Wireless Transmitter
Internal Photo Sony Corporation Model: WLL-CA55 FCC ID: AK8WLLCA55 RF Module with Shield Inside the Shield Internal Photo Sony Corporation Model: WLL-CA55 FCC ID: AK8WLLCA55 RF Module (Front View) Over View Internal Photo Sony Corporation Model: WLL-CA55 FCC ID: AK8WLLCA55 Wireless Transmitter with Circuit Board
Test report No. : 24CE0006-HO-1 Page : 1 of 68 Issued date : October 30, 2003 FCC ID : AK8WLLCA55 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 MF058b(10.04.03) SAR EVALUATION REPORT Report No. : 24CE0006-HO-1 Applicant : Sony Corporation Type of Equipment : WIRELESS CAMERA TARANSMITTER Model No. : WLL-CA55 FCC ID : AK8WLLCA55 Test standard : FCC47CFR 2.1093 FCC OET Bulletin 65, Supplement C Test Result : Complied Max SAR Measured : 1.19W/kg( Head, 16QAM, 2466MHz) 1. This test report shall not be reproduced except full or partial, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with above regulation. We hereby certify that the data contain a true representation of the SAR profile. 4. The test results in this test report are traceable to the national or international standards. Date of test : October 21 and 22 , 2003 Tested by : Miyo Ikuta Head Office EMC Lab. Approved by : Tetsuo Maeno Site Manager of Head Office EMC Lab. Test report No. : 24CE0006-HO-1 Page : 2 of 68 Issued date : October 30, 2003 FCC ID : AK8WLLCA55 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 CONTENTS PAGE SECTION 1 : Client information ................................................................................................................. 3 SECTION 2 : Equipment under test (E.U.T.) ............................................................................................. 4 SECTION 3 : Requirements for compliance testing defined by the FCC ................................................ 5 SECTION 4 : Dosimetry assessment setup .................................................................................................. 5 SECTION 5 : Test system specifications...................................................................................................... 9 SECTION 6 : Test setup of EUT ................................................................................................................ 10 SECTION 7 : Measurement uncertainty ................................................................................................... 12 SECTION 8 : Simulated tissue liquid parameter...................................................................................... 13 SECTION 9 : System validation data ........................................................................................................ 15 SECTION 10 : Evaluation procedure ........................................................................................................ 16 SECTION 11 : Exposure limit .................................................................................................................... 17 SECTION 12 : SAR Measurement results................................................................................................. 18 SECTION 13 : Equipment & calibration information ............................................................................. 20 SECTION 14 : References........................................................................................................................... 21 APPENDIX 1 : Photographs of test setup ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 22 APPENDIX 2 : SAR Measurement dataยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 25 APPENDIX 3 : Validation Measurement data ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท43 APPENDIX 4 : System Validation Dipole (D2450V2,S/N: 713)ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 46 APPENDIX 5 : Dosimetric E-Field Probe Calibration (ET3DV6,S/N: 1684)ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 55 Test report No. : 24CE0006-HO-1 Page : 3 of 68 Issued date : October 30, 2003 FCC ID : AK8WLLCA55 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 SECTION 1 : Client information Company Name : Sony Corporation Brand Name : SONY Address : 6-7-35 Kitashinagawa, Shinagawa-ku, Tokyo, 141-0001 Japan Telephone Number : +81-3-5795-5506 Facsimile Number : +81-3-5795-7955 Contact Person : Hitoshi Tanabe Test report No. : 24CE0006-HO-1 Page : 4 of 68 Issued date : October 30, 2003 FCC ID : AK8WLLCA55 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 SECTION 2 : Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Applicant : Sony Corporation Type of Equipment : WIRELESS CAMERA TARANSMITTER Model No. : WLL-CA55 Serial No. : 1011 Country of Manufacture : JAPAN Receipt Date of Sample : October 17,2003 Condition of EUT : Production prototype Battery option : Only one model with EUT Category Identified : Portable device 2.2 Product Description Tx Frequency : 2406MHz~2466MHz Modulation : 16QAM-OFDM, QPSK-OFDM Power supply : DC 11.0 โ 17.0 V Max.Output Power Tested : 25.2 dBm Peak Conducted Antenna Type : Dipole Antenna Position of Antenna : See photograph of following Transmitting antenna Test report No. : 24CE0006-HO-1 Page : 5 of 68 Issued date : October 30, 2003 FCC ID : AK8WLLCA55 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 SECTION 3 : Requirements for compliance testing defined by the FCC The US Federal Communications Commission has released the report and order โGuidelines for Evaluating the Environmental Effects of RF Radiation", ET Docket No. 93-62 in August 1996. The order requires routine SAR evaluation prior to equipment authorization of portable transmitter devices, including portable telephโฆ
Text truncated - open the document above for the full version.
Test report No. : 24CE0006-HO-1 Page : 22 of 68 Issued date : October 30, 2003 FCC ID : AK8WLLCA55 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 APPENDIX 1 : Photographs of test setup Test report No. : 24CE0006-HO-1 Page : 23 of 68 Issued date : October 30, 2003 FCC ID : AK8WLLCA55 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Side of antenna Test report No. : 24CE0006-HO-1 Page : 24 of 68 Issued date : October 30, 2003 FCC ID : AK8WLLCA55 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Top of antenna
January 7, 2004 Federal Communications Commission FCC Equipment Authorization Branch Attention : Mr. Steven Dayhoff Subject : Reply to your comment on 1/6/2004 Applicant : Sony Corporation FCC ID : AK8WLLCA55 Correspondence Reference Number: 26170 731 Confirmation Number: EA502171 Dear Mr. Steven Dayhoff We have confirmed your comments which we received on January 6, 2004 and they were completed. Please confirm the following matters. 1) Please explain if and how antenna in contact with phantom represents normal operating position. A1) This equipment is normally used near bodies and heads, therefore, we tested with the antenna in position which this equipment is most likely to be used. We uploaded the drawing on your web site, please confirm โAppendix-1โ on your web site. 2) Please explain steps taken to ensure that antenna in contact with phantom is maximum SAR, rather than for example 5-10mm gap, etc. A2) Although the spread of SAR hot spot due to close coupling is supposed, our experiment has shown that the 0 gap condition was the highest SAR value from 0 cm gap to 3 cm gap this time. This experiment data is submitted as SAR experiment. pdf files. Also we can explain the 0 gap condition was worst SAR value by using the evaluation report of .DSS LAN card. We uploaded SAR data on your web site, please confirm โAppendix-2โ and โAppendix-3โ on your web site. Therefore, our evaluation data shows the most severe SAR condition is the 0 gap in this application. If you have any questions, please donโt hesitate to contact us. Sincerely yours, Hisayuki Kioka UL Apex Co., Ltd. Head Office EMC Lab. EMC Service Dept. E-mail: [email protected]
Appendix-1 Drawing of EUT position The equipment is usually used in a situation as shown in the following figure. [For right handed person] [For left handed person] This situation is worst position to RF expose.
Page : 23 of 37 A-PEX International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 APPENDIX 2 : SAR Measurement data
Page : 36 of 37 A-PEX International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 APPENDIX 3 : Validation Measurement data
FCC ID : AK8WLLCA55 Test report No. : 24BE0112-YK-1 Page : 2 of 66 Issued date : October 23, 2003 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(10.04.03) Table of Contents Page 1 GENERAL INFORMATION 3 1.1 Tested Methodology 3 1.2 Test Facility 3 2 PRODUCT DESCRIPTION 4 3 SYSTEM TEST CONFIGURATION 5 3.1 Justification 5 3.2.Configuration of Tested System 6 4 MEASUREMENT UNCERTAINTY 7 5 SUMMARY OF TEST 8 5.1 ยง 15.207 Conducted Emissions 8 5.2 ยง 15.247(a)(2) 6dB Bandwidth (Antenna port Conducted) 8 5.3 ยง 15.247(b)(3) Maximum Peak Out Put Power (Antenna port Conducted) 8 5.4 ยง 15.247(c) Out of Band Emissions (Radiated) 9 5.5 ยง 15.247(c) Out of Band Emissions (Antenna Port Conducted) 9 5.6 ยง 15.247(d) Power Density (Antenna Port Conducted) 9 Contents of Appendixes 10 APPENDIX 1: Photographs of test setup 11 APPENDIX 2: Test Data 14 APPENDIX 3: Test instruments 66 FCC ID : AK8WLLCA55 Test report No. : 24BE0112-YK-1 Page : 3 of 66 Issued date : October 23, 2003 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(10.04.03) 1 GENERAL INFORMATION Applicant Company Name : Sony Corporation Brand Name : SONY Address : 6-7-35 Kitashinagawa, Shinagawa-ku, Tokyo 141-0001, JAPAN Telephone Number : +81 3 5795 5506 Facsimile Number : +81 3 5795 7955 Contact Person : Satoshi Yamamoto Type of Equipment : Wireless Camera Transmitter Model No. : WLL-CA55 Serial No. : 1011 Rating : DC9.0V (Battery: DC11-17V)/ (AC Adaptor: AC100-240V) Receipt Date of Sample : October 1, 2003 Condition of EUT : Production prototype Regulation(s) : FCC Part15 Subpart C, Section 15.247 Test Site : UL Apex No.2 Open Test Site 1.1 Tested Methodology The measurements were performed according to the procedures in ANSI C63.4 (2001). These tests were also referred to FCC 97-114 โGuidance on Measurement for Direct Spread Spectrum Systemsโ. 1.2 Test Facility This site has been fully described in a report submitted to FCC office, and accepted on December 8, 2000 (Registration No.: 99354). NVLAP Lab. code : 200441-0 FCC ID : AK8WLLCA55 Test report No. : 24BE0112-YK-1 Page : 4 of 66 Issued date : October 23, 2003 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(10.04.03) 2 PRODUCT DESCRIPTION Sony Corporation, Model: WLL-CA55 (referred to as the EUT in this report) is a Wireless Camera Transmitter. The clock frequencies used in EUT : 18.285714MHz (Signal) 20MHz (CPU) 27MHz (Signal) 30MHz (CPU) Frequency characteristics : 2406MHz through 2466MHz Number of channels/ channel spacing : 65 channels/ 1MHz step and 12MHz spacing Modulation : 16QAM-OFDM, QPSK-OFDM Antenna type : Dipole Antenna Gain : 4.0dBi Operating Voltage : DC9.0V (Battery: DC11-17V)/ (AC Adaptor: AC100-240V) WLL-CA55 is a wireless transmitter for portable camera, and provides high quality picture and audio. WLL-CA55 consists of MPEG-2 encoder, digital modulator using COFDM technology, and RF up-converter. *FCC Part15.31 (e) WLL-CA55 (Wireless Camera Transmitter) provides the Transmitter module with stable power supply (DC9.0V), and the power is not changed when voltage of the WLL-CA55 (Wireless Camera Transmitter) (DC11-17V) is varied. Therefore, the Transmitter module complies power supply regulation. *FCC Part15.203 The antenna of WLL-CA55 doesnโt use a standard antenna jack or electrical connector, therefore the Wireless camera transmitter complies FCC Part15.203 Antenna requirement. FCC ID : AK8WLLCA55 Test report No. : 24BE0112-YK-1 Page : 5 of 66 Issued date : October 23, 2003 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(10.04.03) 3 SYSTEM TEST CONFIGURATION 3.1 Justification The system was configured in typical fashion (as a customer would normally use it) for testing. Test mode: 16QAM-OFDM 1. High power mode Transmitting Low channel : 2406MHz Middle channel : 2442MHz High channel : 2466MHz 2. Low power mode Transmitting Low channel : 2406MHz Middle channel : 2442MHz High channel : 2466MHz The EUT was tested in all three orthogonal planes in order to determine worst case emissions. Channels at 2406 MHz, 2442 MHz and 2466 MHz were tested and investigated from 30 MHz to 26 GHz. Data for all three channels are presented in this report. The COFDM system employed in the EUT has an ability to provide two different data rates by using QPSK and 16 QAM modulations. These two modulation schemes did not change spectrum envelopes of the EUT at conducted measurement at the antenna terminal. As a result the 16 QAM-OFDM modulation with highest data rate was used for final measurements. FCC ID : AK8WLLCA55 Test report No. : 24BE0112-YK-1 Page : 6 of 66 Issued date : October 23, 2003 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(10.04.03) 3.2 Configuration of Tested System Front View *Cabling was taken into consideration and test data was taken under worse case conditions. Top View *Cabling was taken into consideration and test data was taken under worse case conditions. Description of EUT and support equipment No. Item Model number Serial number Manufacturer FCC ID Remarks A Wireless Camera Transmitter WLL-CA55 1011 Sony CorporationAK8WLLCA55 EUT B AC Adaptor AC-550 14562 Sony Corporation - - C Digital Camcorder BVP-570 15913 Sony Corporation - - List of cables used No. Name Length (m) Shield Backshell material 1 AC Cable 2.0 Unshielded Polyvinyl chloride 2 DC Cable 2.1 Unshielded Polyvinyl chloride C A B 2 1 AC120V/60Hz 2 1 B A C AC120V/60Hz FCC ID : AK8WLLCA55 Teโฆ
