AK8WRT807B1UHF Synthesized Wireless Microphone

1 Helen Zhao Subject: FW: Sony Corporation, FCC ID: AK8WRT807B1, Assessment NO.: AN06T6118, Notice#1 Exhibit D1-Label_R1.pdf Exhibit -Technical_Descript Exhibit L1-Manual_R1.pdf Exhibit M1-Test Report_R1.pdf Exhibit P1-FCC AUTHORIZATION.p.. From: miura Sent: Tuesday, September 12, 2006 2:28 AM To: Helen Zhao Subject: Re: Sony Corporation, FCC ID: AK8WRT807B1, Assessment NO.: AN06T6118, Notice#1 Dear Helen Thank you very much for your early. We are writing to you in reply to your e-mail of September 9, 2006. #1: I added the descriptions of Emission designator and Necessary Bandwidth to the test report. Please confirm file number "Exhibit M1-Test Report_R1". #2: I got the following information from applicant. The applicant changes the specification of the product. The applicant does not commercialize the product used 608 - 614 MHz. Please confirm files, file number "Exhibit D1-Label_R1", "Exhibit E1-Technical_Descriptions_R1" and "Exhibit L1-Mannual_R1". #3: I got the following information from applicant. The product used 757.875 - 805.875 MHz has been approved before under FCC ID: AK8WRT807B. (Please confirm file number "Exhibit P1-FCC AUTHORIZATION".) The purpose is to expand the range of the use frequency of the approved product. #4: I changed the description of RF Power Output of the test report. Please confirm file number "Exhibit M1 Test Report_R1". Sincerely yours, Katsunori Miura -----Original Message----- Sent: Friday, September 08, 2006 5:59 PM Subject: Sony Corporation, FCC ID: AK8WRT807B1, Assessment NO.: AN06T6118, Notice#1 Question #1: The emission designator must include the necessary bandwidth 2M+2D, where M is the maximum modulation frequency (about 15 kHz) and D is the maximum deviation(40khz) both from the test data. In the test report, please provide actual number and indicate clearly where 110K comes from, not 2 just saying "from manufacturer". Question #2: 608-614MHz is a restricted band, this is not one of the authorized frequency bands specified in FCC74.802. The proposed FCC ID label format shows one model bears "590.125-613.875MHz", which violates the rule. Please verify whether the device is capable to operate within 608-614MHz. If the answer is Yes, this device may not be allowed to market in US, otherwise, please update your documents to clearly indicate the device can not be tuned in 608-614MHz. Please also provide mechanism how to achieve this. Question #3: The user manual in this filing indicates "Carrier frequency: 566.125 - 805.875MHz", but the device in this filing can only operate 566.125-757.875MHz. Please explain why there is discrepancy. Question #4: The test report does not indicate the measurement of RF power output is ERP or conducted. Please specify in the test report. If it is ERP, please list correction factor, antenna factor, etc. Best Regards, Helen Zhao The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

External Photographs Model No.: WRT-807B

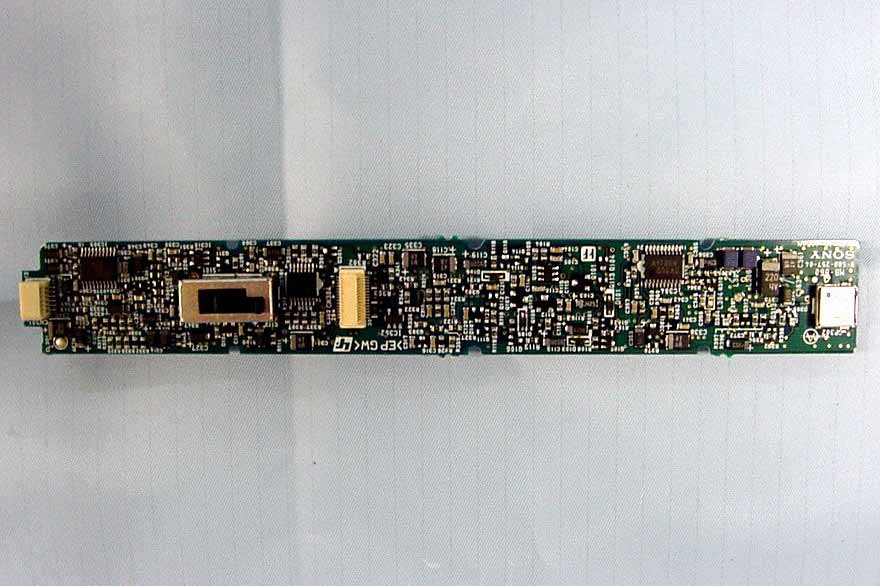

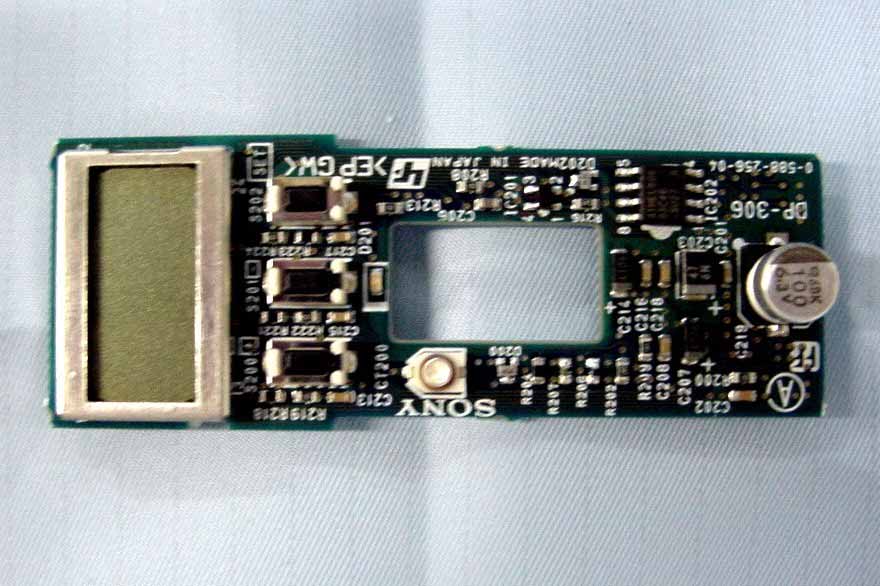

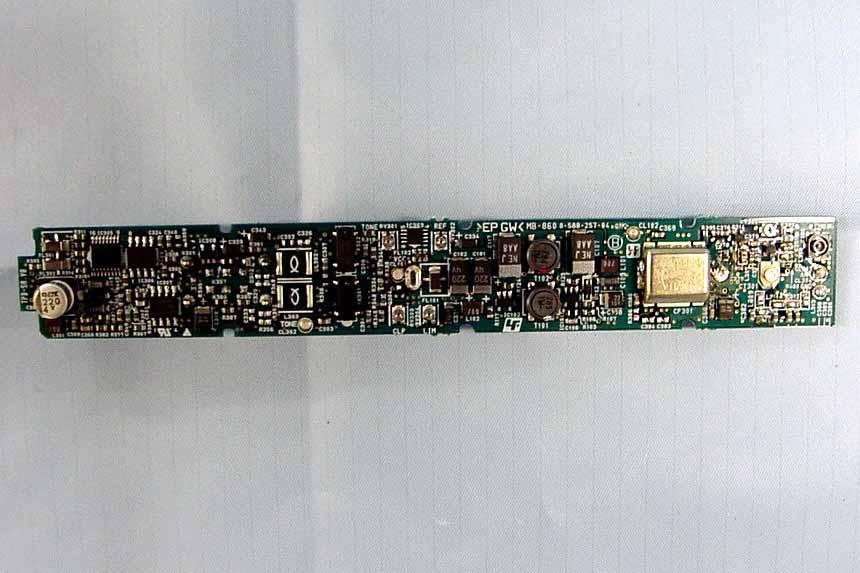

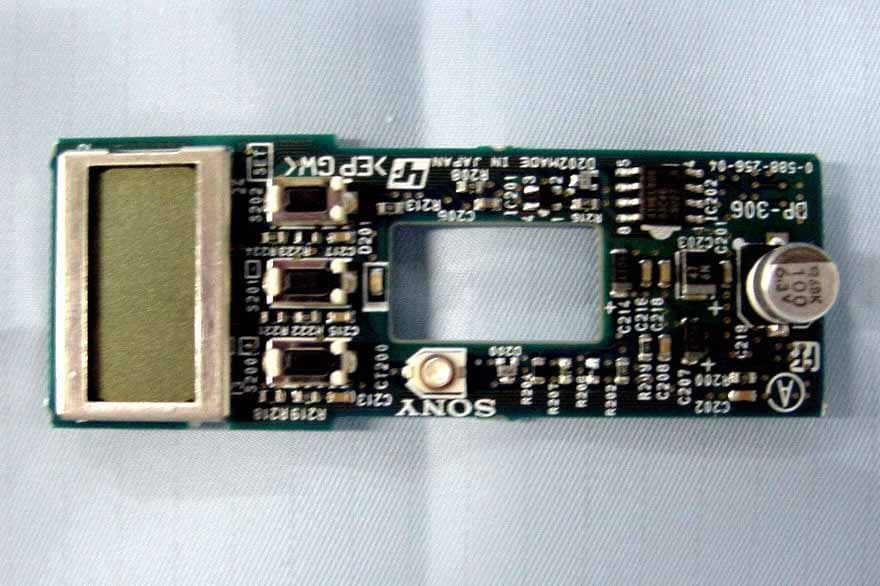

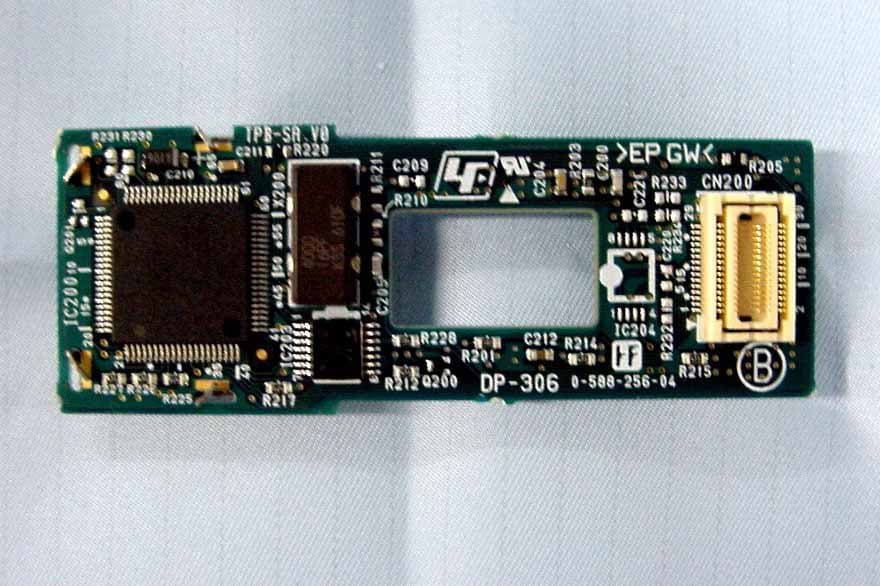

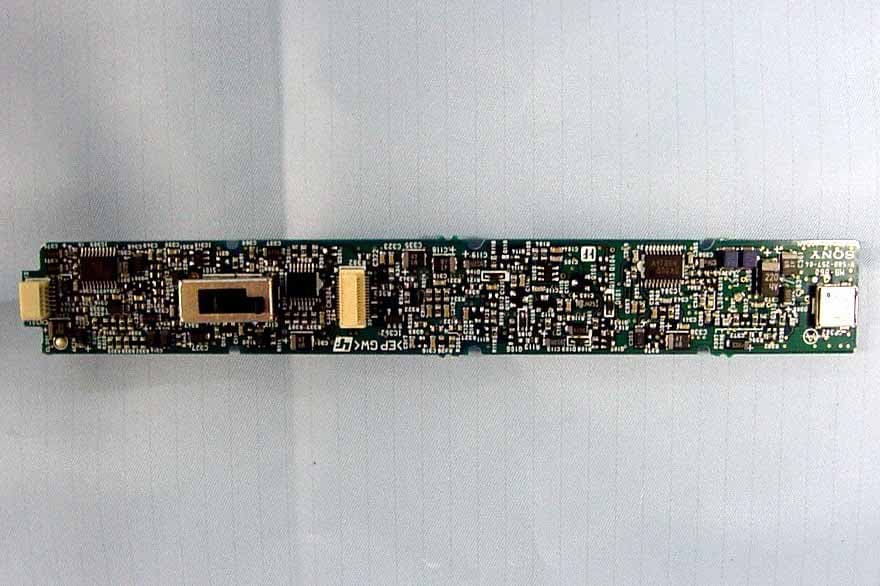

Internal Photographs Model No.: WRT-807B

JAPAN QUALITY ASSURANCE ORGANIZATION 21-25, KINUTA 1-CHOME, SETAGAYA-KU, TOKYO 157-8573 JAPAN PHONE (03) 3416-0111, JQA J FAX (03) 3416-9691 JQA File No. : 400-60302 Issue Date : September 4, 2006 Page 1 of 38 EMI TEST REPORT JQA File No. : 400-60302 Model No. : WRT-807B Type of Equipment : UHF Synthesized Wireless Microphone Regulations Applied : CFR 47 FCC Rules and Regulations Part 74 FCC ID : AK8WRT807B1 Applicant : Sony Corporation Address : 6-7-35, Kitashinagawa, Shinagawa-ku, Tokyo 141-0001, Japan Manufacturer : Sony EMCS Corporation Senmaya TEC. Address : 14-43, Higashidai, Ichinoseki-shi, Iwate-ken, 021-0822, Japan Received date of EUT : August 2, 2006 Test Result : Passed Test results in this report are obtained in use of equipment that is traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and Communication Research Laboratory (CRL) of Japan. The test results only respond to the tested sample. This report should not be reproduced except in full, without the written approval of JQA EMC Engineering Dept. Testing Div. COPY JQA File No. :400-60302 FCC ID :AK8WRT807B1 Model No. :WRT-807B Issue Date :September 4, 2006 Standard :CFR 47 FCC Rules Part 74 Page 2 of 38 TABLE OF CONTENTS Page 1 Documentation 1.1 Test Regulation 3 1.2 General Information 3 1.3 Test Condition 4 – 6 1.4 EUT Modifications / Deviation from Standard 7 1.5 Test results 8 1.6 Summary 9 1.7 Test Configuration / Operation of EUT 10 1.8 EUT Arrangement(Drawing) 11 1.9 Preliminary Test and Test-setup (Drawings) 12 – 17 1.10 EUT Arrangement (Photographs) 18 2 Test Data 2.1 RF Power Output 19 2.2 Modulation Characteristics 20 – 26 2.3 Radiated Emissions 27 – 28 2.4 Occupied Bandwidth 29 – 32 2.5 Frequency Stability 33 - 34 3 Appendix Test instruments List 35 – 38 COPY JQA File No. :400-60302 FCC ID :AK8WRT807B1 Model No. :WRT-807B Issue Date :September 4, 2006 Standard :CFR 47 FCC Rules Part 74 Page 3 of 38 1 DOCUMENTATION 1.1 TEST REGULATION FCC Rules and Regulations Part 74 Subpart H Low Power Auxiliary Stations Test procedure : RF power output, modulation characteristics, occupied bandwidth, field strength of spurious radiation and frequency stability tests were performed according to the procedures in FCC Rules and Regulations Part 2. 1.2 GENERAL INFORMATION 1.2.1 Test facility : 1) Test Facility located at EMC Engineering Dept. Testing Div. : - No.2 and 3 Anechoic Chambers(3 meters Site). - Shielded Enclosure. 2) EMC Engineering Dept. Testing Div. is accredited under the National Voluntary Laboratory accreditation Program for satisfactory compliance established in title 15, Part 285 Code of Federal Regulations. NVLAP Lab Code : 200189-0 (Effective through : June 30, 2007) 1.2.2 Description of the Equipment Under Test (EUT) : 1) Type of Equipment : UHF Synthesized Wireless Microphone 2) Product Type : Prototype 3) Category : Broadcast Transmitter Held to Face 4) EUT Authorization : Certification 5) FCC ID : AK8WRT807B1 6) Trade Name : SONY 7) Model No. : WRT-807B 8) Operating Frequency Range : 566.125 MHz – 757.875 MHz 9) Highest Frequency Used in the EUT : 757.875 MHz 10) Necessary Bandwidth : 110 kHz (=2M+2D) (M: Maximum modulation = 15 kHz D: Peak frequency deviation = 40 kHz) * Peak frequency deviation is designed by manufacturer. 11) RF Output Power : 10 mW (Manufacturer defined) 12) Emission Designator : 110KF3E 13) Serial No. : None 14) Date of Manufacture : None 15) Power Rating : DC 1.5V(Battery) 16) EUT Grounding : None 1.2.3 Definitions for symbols used in this test report : x - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. COPY JQA File No. :400-60302 FCC ID :AK8WRT807B1 Model No. :WRT-807B Issue Date :September 4, 2006 Standard :CFR 47 FCC Rules Part 74 Page 4 of 38 1.3 TEST CONDITION 1.3.1 The measurement of the RF power output the Radiated Emission(30 MHz – 1000 MHz) x - was performed in the following test site. - was not applicable. Test location : Safety & EMC Center EMC Engineering Dept. Testing Div. 21-25, Kinuta 1-chome, Setagaya-ku, Tokyo 157-8573, Japan x - Anechoic Chamber A (3 meters) - Anechoic Chamber B (3 meters) Validation of Site Attenuation : 1) Last Confirmed Date :March, 2006 2) Interval :1 year Used test instruments : Type Number of test instruments (Refer to Appendix) Test Receiver 11 Cable 38 Antenna 22, 24, 26, 28 RF Amplifier N/A Signal Generator 60 Power Meter 65 Power Sensor 66 COPY JQA File No. :400-60302 FCC ID :AK8WRT807B1 Model No. :WRT-807B Issue Date :September 4, 2006 Standard :CFR 47 FCC Rules Part 74 Page 5 of 38 1.3.2 The measurement of the Radiated Emission(Above 1000 MHz) x - was performed in the following test site. - was not applicable. Test location : Safety & EMC Center EMC Engineering Dept. Testing Div. 21-25, Kinuta 1-chome, Setagaya-ku, Tokyo 157-8573, Japan x - Anechoic Chamber A (3 meters) - Anechoic Chamber B (3 meters) Validation of Site Attenuation : 1) Last Confirmed Date :March, 2006 2) Interval :1 year Used test instruments : Type Number of test instruments (Refer to Appendix) Test Receiver 13 Spectrum Analyzer N/A Cable 46, 50 Antenna 31 RF Amplifier 54 Band Reject Filter N/A High Pass Filter N/A COPY JQA File No. :400-60302 FCC ID :AK8WRT807B1 Model No. :WRT-807B Issue Date :September 4, 2006 Standard :CFR 47 FCC Rules Part 74 Page 6 of 38 1.3.3 The measurement of the Modulation Characteristics and the Occupied Bandwidth x - was performed. - was not applicable. Used test instruments : Type Number of test instruments (Refer to Appendix) Test Receiver 13 Spectrum Analyzer N/A Function Generator 58 FM Linear Detector 68 Level Meter 69 Cable 47 Attenuator 82 Antenna 24 1.3.4 The measurement of the Frequency Stability x - was performed. - was not applicable. Used test instruments : Type Number of test instruments (Refer to Appendix) Frequency Counter 75 Antenna 24 Cable 47 …

Text truncated - open the document above for the full version.

JQA File No. :400-60302 FCC ID :AK8WRT807B1 Model No. :WRT-807B Issue Date :September 4, 2006 Standard :CFR 47 FCC Rules Part 74 Page 18 of 38 1.10 TEST ARRANGEMENT (PHOTOGRAPHS) PHOTOGRAPHS OF EUT CONFIGURATION FOR RADIATED EMISSIONS MEASUREMENT Photograph present configuration with maximum emission COPY
