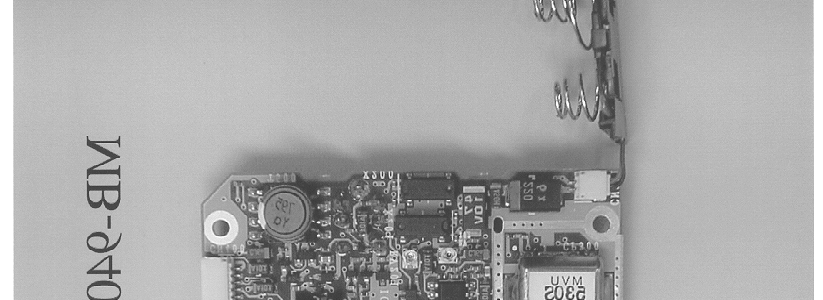

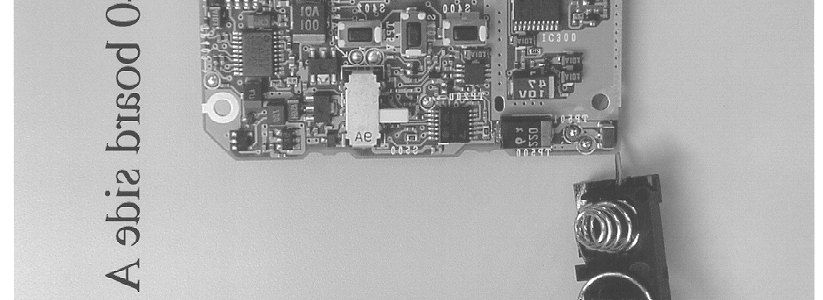

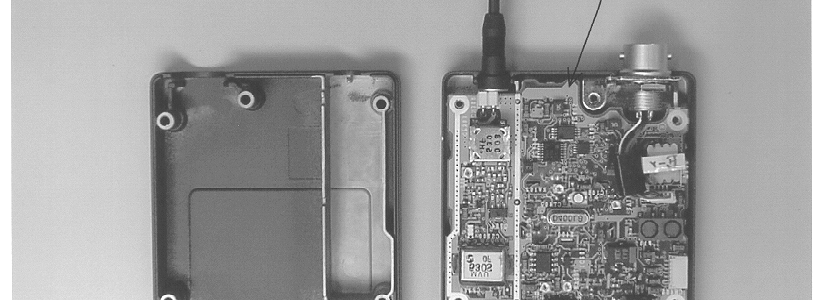

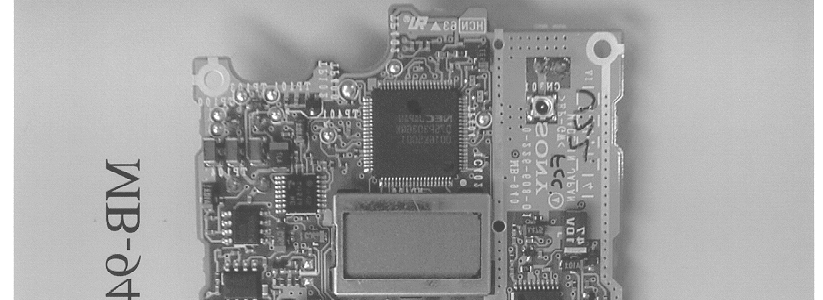

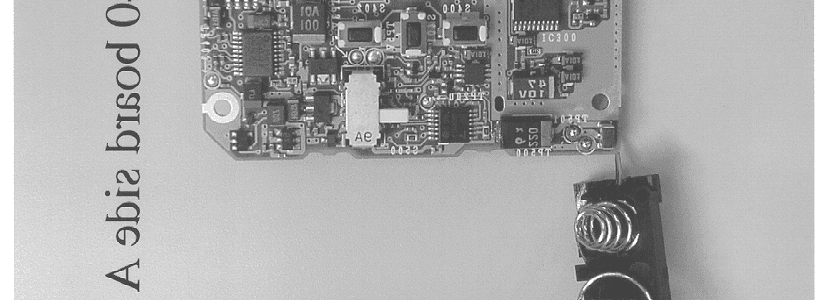

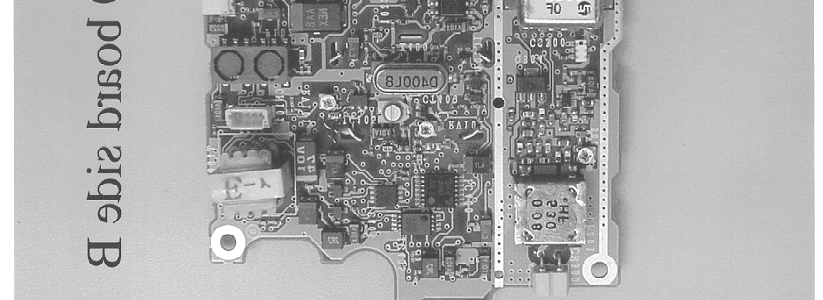

AK8WRT822B1UHF Synthesizrd Transmitter

JAPAN QUALITY ASSURANCE ORGANIZATION 21-25, KINUTA 1-CHOME, SETAGAYA-KU, TOKYO 157-8573 JAPAN PHONE (03) 3416-0111, TELEX 242-2531 JQA J FAX (03) 3416-9691 JQA APPLICATION NO.: 400-00396 Issue Date : November 1, 2000 Page 1 of 47 EMI TEST REPORT JQA APPLICATION NO. : 400-00396 Model No. : WRT-822B Type of Equipment : UHF Synthesized Transmitter Regulations Applied : CFR 47 FCC Rules and Regulations Part 74 FCC ID : AK8WRT822B1 Applicant : Sony Corporation Address : 6-7-35, Kitashinagawa, Shinagawa-ku, Tokyo 141-0001, Japan Manufacture : Sony Sound Communications Inc. Address : 4-14-1, Asahi-cho, Atsugi-shi, Kanagawa-ken 243-0014, Japan Received date of EUT : September 26, 2000 Final Judgment : Passed TEST RESULTS IN THIS REPORT are obtained in use of equipment that is traceable to Electrotechnical Lab. of MITI Japan and Communications Research Lab. of MPT Japan. The test results only respond to the tested sample. It is not allowed to copy this report even partly without the allowance of JQA EMC Engineering Dept. Testing Div. C O P Y JQA Application No. :400-00396 FCC ID :AK8WRT822B1 Model No. :WRT-822B Issue Date :November 1, 2000 Standard :CFR 47 FCC Rules Part 74 Page 2 of 47 JAPAN QUALITY ASSURANCE ORGANIZATION TABLE OF CONTENTS Page 1 Documentation 1.1 Test Regulation 3 1.2 General Information 3 1.3 Test Condition 4 – 6 1.4 EUT Modifications / Deviation from Standard 7 1.5 Test results 8 1.6 Summary 9 1.7 Test Configuration / Operation of EUT 10 1.8 EUT Arrangement(Drawing) 11 1.9 Preliminary Test and Test-setup (Drawings) 12 – 17 1.10 EUT Arrangement (Photographs) 18 - 19 2 Test Data 2.1 RF Power Output 20 2.2 Modulation Characteristics 21 – 33 2.3 Radiated Emissions 34 – 38 2.4 Occupied Bandwidth 39 – 45 2.3 Frequency Stability 46 - 47 C O P Y JQA Application No. :400-00396 FCC ID :AK8WRT822B1 Model No. :WRT-822B Issue Date :November 1, 2000 Standard :CFR 47 FCC Rules Part 74 Page 3 of 47 JAPAN QUALITY ASSURANCE ORGANIZATION 1 DOCUMENTATION 1.1 TEST REGULATION FCC Rules and Regulations Part 74 Subpart H Low Power Auxiliary Stations Test procedure : RF power output, modulation characteristics, occupied bandwidth, field strength of spurious radiation and frequency stability tests were performed according to the procedures in FCC Rules and Regulations Part 2. 1.2 GENERAL INFORMATION 1.2.1 Test facility : 1) Test Facility located at EMC Engineering Dept. Testing Div. : - No.2 and 3 Anechoic Chambers(3 meters Site). - Shielded Enclosure. Expiration date of FCC test facility filing : June 04, 2002 2) EMC Engineering Dept. Testing Div. is recognized under the National Voluntary Laboratory accreditation Program for satisfactory compliance established in title 15, Part 285 Code of Federal Regulations. NVLAP Lab Code : 200189-0 (Effective through : June 30, 2001) 1.2.2 Description of the Equipment Under Test (EUT) : 1) Type of Equipment : UHF Synthesized Transmitter 2) Product Type : Prototype 3) Category : Broadcast Transmitter held to face 4) EUT Authorization : Certification 5) FCC ID : AK8WRT822B1 6) Trade Name : SONY 7) Model No. : WRT-822B 8) Operating Frequency Range : 470.125 MHz – 565.875 MHz 9) Highest Frequency Used in the EUT : 565.875 MHz 10) Bandwidth : 110 kHz 11) RF Output Power : 20 mW 12) Serial No. : 1107/1109/1108 13) Date of Manufacture : August, 2000 14) Power Rating : DC 3.0(Battery) 15) EUT Grounding : None 1.2.3 Definitions for symbols used in this test report : x - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. C O P Y JQA Application No. :400-00396 FCC ID :AK8WRT822B1 Model No. :WRT-822B Issue Date :November 1, 2000 Standard :CFR 47 FCC Rules Part 74 Page 4 of 47 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3 TEST CONDITION 1.3.1 The measurement of the RF power output the Radiated Emission(30 MHz – 1000 MHz) x - was performed in the following test site. - was not applicable. Test location : Safety Testing Center EMC Engineering Dept. Testing Div. 21-25, Kinuta 1-chome, Setagaya-ku, Tokyo 157-8573, Japan x - Anechoic Chamber No. 2 (3 meters) - Anechoic Chamber No. 3 (3 meters) Validation of Site Attenuation : 1) Last Confirmed Date :March, 2000 2) Interval :1 year Used test instruments : Type Model No. Manufacturer Serial No. Last Cal. Interval - Test Receiver ESH-2 Rohde & Schwarz 880370/016 Sep. 1999 1 Year - Test Receiver ESV Rohde & Schwarz 872148/039 May 2000 1 Year - Test Receiver ESVS10 Rohde & Schwarz 826148/002 June 2000 1 Year x - Test Receiver ESVP Rohde & Schwarz 881487/004 May 2000 1 Year - Test Receiver ESVP Rohde & Schwarz 881487/005 May 2000 1 Year x - Antenna KBA-511A Kyoritsu Electrical 0-170-1 Nov. 1999 1 Year x - Antenna KBA-511A Kyoritsu Electrical 0-201-13 Nov. 1999 1 Year x - Antenna KBA-611 Kyoritsu Electrical 0-147-14 Nov. 1999 1 Year x - Antenna KBA-611 Kyoritsu Electrical 0-210-5 Nov. 1999 1 Year - Biconical Antenna BBA9106 Schwarzbeck VHA91031150 May 2000 1 Year - Biconical Antenna BBA9106 Schwarzbeck 11905078E0 May 2000 1 Year - Log-Periodic Antenna UHALP9107 Schwarzbeck 11905079E0 May 2000 1 Year - Log-Periodic Antenna UHALP9107 Schwarzbeck 11905110 May 2000 1 Year x - RF Cable 5D-2W Fujikura 155-21-001E0 Feb. 2000 1 Year - RF Cable 5D-2W Fujikura 155-21-002E0 Feb. 2000 1 Year x - Power Meter 436A Hewlett Packard 1725A01930 May 2000 1 Year x - Power Sensor 8482A Hewlett Packard 1650A00140 May 2000 1 Year x - Signal Generator 6061A Gigatronics 5130593 Mar. 2000 1 Year C O P Y JQA Application No. :400-00396 FCC ID :AK8WRT822B1 Model No. :WRT-822B Issue Date :November 1, 2000 Standard :CFR 47 FCC Rules Part 74 Page 5 of 47 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3.2 The measurement of the Radiated Emission(Above 1000 MHz) x - was performed in the following test site. - was not applicable. Test location : Safety Testing Center EMC Engineering Dept. Testing Div. 21-25, Kinuta 1-chome, Setagaya-ku, Tokyo 157-8573…

Text truncated - open the document above for the full version.

EXHIBIT G2 : Explanation for part of the test data This is in reply to your e-mail, Correspondence Reference Number 17752. The audio frequency response data that was submitted for the application was measured including pre-emphasis characteristic and compander characteristic. So, it is matter of course that the modulation sensitivity of the audio frequency response gets greater in proportion to heighten the frequency. Also, because of the measurement method of the audio frequency response, it plots the audio input level to get 50% of maximum frequency deviation (+/-40kHz) at each frequency. And the compander characteristic is 2:1. For these reasons, the difference of the audio input level appears 2 times. Therefore the difference of modulation sensitivity of "1kHz" and "15kHz" appears approx.27dB, which is the correct result. Incidentally, standard pre-emphasis characteristic is 13.4dB as the difference of modulation sensitivity of "1kHz" and "15kHz". (excluding compander) END
