AK8WRT8B1UHF Synthesized Transmitter

1 Mike Kuo From: Takahashi Masanori [[email protected]] Sent: Thursday, October 27, 2005 7:56 PM To: Mike Kuo Cc: Mika Kaneko Subject: Re: Sony Corporation, FCC ID: AK8WRT8B1, Assessment NO.: AN05T5212, Notice#1 Attachments: specification in manual.pdf; List.pdf specification in manual.pdf (4... List.pdf (7 KB) Dear Mr. Mike Kuo Hello, I am sorry for spending time many times. I would like to answer for your additional questions. Reply to Question #1: Please provide 120kHz justification by using carson rules ( 2M+2DK ). Answer 1: The attachment is the one having sent it to you as a part of manual of EUT. I calculated as follows; Description of Emission : Sound broad casting Formula : Bn = 2M + 2DK , K = 1 (typically) M = Maximum modulation frequency = 40kHz D = Peak frequency deviation = 20kHz Therefore, Bandwidth = 120kHz , Designation of emission = 120KF3E Reply to Question #2: Please provide spectrum plots to support the RF conducted output power. Please make sure to include the cable loss that used. If it is measured with power meter, please provide manufacturer/model name of power meter. Answer 1: I measured with power meter. Please refer to attach. Please correspond as soon as possible. Sincerely yours, ------------------------------------------------------------- JAPAN QUALITY ASSURANCE ORGANIZATION EMC Engineering Dept. Testing Div. Masanori Takahashi Tel: +81-3-3416-0193 Fax: +81-3-3416-8290 E-mail: [email protected] ------------------------------------------------------------ ----- Original Message ----- From: "Mike Kuo" <[email protected]> 2 To: "Takahashi Masanori" <[email protected]> Cc: "Mika Kaneko" <[email protected]> Sent: Friday, October 28, 2005 10:14 AM Subject: RE: Sony Corporation, FCC ID: AK8WRT8B1, Assessment NO.: AN05T5212, Notice#1 Hi Takahashi : Reply to Question #1: Please provide 120kHz justification by using carson rules ( 2M+2DK ). Reply to Question #2: Please provide spectrum plots to support the RF conducted output power. Please make sure to include the cable loss that used. If it is measured with power meter, please provide manufacturer/model name of power meter. Best Regards Mike Kuo Compliance Certification Services 561F Monterey Road Morgan Hill CA 95037 Tel: (408)463-0885 x: 105 Fax: (408)463-0888 e-mail:[email protected] http://www.ccsemc.com -----Original Message----- From: Takahashi Masanori [mailto:[email protected]] Sent: Thursday, October 27, 2005 1:10 AM To: Mike Kuo Cc: Mika Kaneko Subject: Re: Sony Corporation, FCC ID: AK8WRT8B1, Assessment NO.: AN05T5212, Notice#1 Dear Mr. Mike Kuo Hello, I would like to answer for your questions. Question 1: Please provide emission designator and justify necessary bandwidth by using carson rules. Please refer to section 2.201 and 2.202 as guideline. Answer 1: Sorry, I forgot to describe it with your application. emission designator is "120KF3E". necessary bandwidth is "120kHz" Question 2: RF Power output section 2.1 of test report, the measured output power is listed as ERP. Is it a RF conducted output power ? if yes, what is the cable loss ? If not, please provide unmodulated RF conducted output power. Answer 2: ERP was measured by radiated. I report to you the value of unmodulated RF conducted output power. Frequency Power setting Conducted RF Power 470.125MHz 50mW 3 47.3mW 10mW 8.0mW 589.875MHz 50mW 39.8mW 10mW 7.8mW 709.875MHz 50mW 42.7mW 10mW 9.8mW Please correspond as soon as possible. Sincerely yours, ---------------------------------------------------------- JAPAN QUALITY ASSURANCE ORGANIZATION EMC Engineering Dept. Testing Div. Masanori Takahashi Tel: +81-3-3416-0193 Fax: +81-3-3416-8290 E-mail: [email protected] --------------------------------------------------------- ----- Original Message ----- From: "Mike Kuo" <[email protected]> To: <[email protected]> Cc: "Mika Kaneko" <[email protected]> Sent: Thursday, October 27, 2005 9:21 AM Subject: FW: Sony Corporation, FCC ID: AK8WRT8B1, Assessment NO.: AN05T5212, Notice#1 -----Original Message----- From: Compliance Certification Services [mailto:[email protected]] Sent: Wednesday, October 26, 2005 5:11 PM To: Mike Kuo Subject: Sony Corporation, FCC ID: AK8WRT8B1, Assessment NO.: AN05T5212, Notice#1 Question 1: Please provide emission designator and justify necessary bandwidth by using carson rules. Please refer to section 2.201 and 2.202 as guideline. Question 2: RF Power output section 2.1 of test report, the measured output power is listed as ERP. Is it a RF conducted output power ? if yes, what is the cable loss ? If not, please provide unmodulated RF conducted output power. Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. 4

FCC ID: AK8WRT8B1 IC: 409B-WRT8B Transmitter 1 : Operating range from 470.125MHz to 493.875MHz Front side Rear side Front side(UP) Rear side(UP) Left side Right side Top side Bottom side FCC ID: AK8WRT8B1 IC: 409B-WRT8B Transmitter 2 : Operating range from 566.125MHz to 589.875MHz Front side Rear side Front side(UP) Rear side(UP) Left side Right side Top side Bottom side FCC ID: AK8WRT8B1 IC: 409B-WRT8B Transmitter 3 : Operating range from 686.125MHz to 709.875MHz Front side Rear side Front side(UP) Rear side(UP) Left side Right side Top side Bottom side

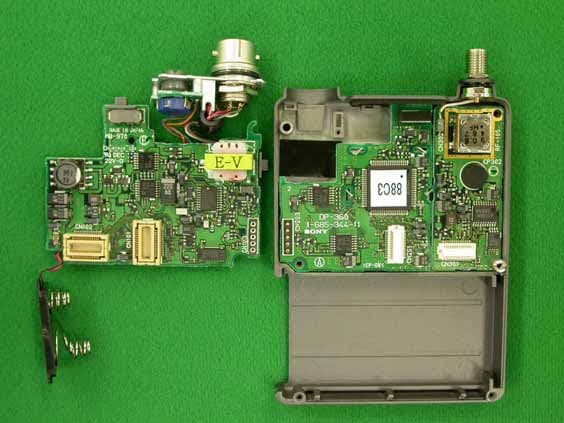

FCC ID: AK8WRT8B1 IC: 409B-WRT8B Internal photograph (Model: WRT-8B) FCC ID: AK8WRT8B1 IC: 409B-WRT8B MB-970 Board VR-281 Board DP-360 Board RF-105 Board FCC ID: AK8WRT8B1 IC: 409B-WRT8B MB-970 & VR-281 Board DP-360 & RF-105 Board DP-360 & RF-105 Board DP-360 Board RF-105 Board

JAPAN QUALITY ASSURANCE ORGANIZATION 21-25, KINUTA 1-CHOME, SETAGAYA-KU, TOKYO 157-8573 JAPAN PHONE (03) 3416-0111, JQA J FAX (03) 3416-9691 JQA File No. : 400-50410 Issue Date : September 28, 2005 Page 1 of 51 EMI TEST REPORT JQA File No. : 400-50410 Model No. : WRT-8B Type of Equipment : UHF Synthesized Transmitter Regulations Applied : CFR 47 FCC Rules and Regulations Part 74 FCC ID : AK8WRT8B1 Applicant : Sony Corporation Address : 6-7-35, Kitashinagawa, Shinagawa-ku, Tokyo 141-0001, Japan Manufacturer : Sony EMCS Corporation. Senmaya TEC. Address : 254 Aza-Shimokomaba, Senmaya, Senmaya-cho, Ichinoseki-shi, Iwate-ken, 020-0803 Japan Received date of EUT : September 6, 2005 Final Judgment : Passed Test results in this report are obtained in use of equipment that is traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and Communication Research Laboratory (CRL) of Japan. The test results only respond to the tested sample. This report should not be reproduced except in full, without the written approval of JQA EMC Engineering Dept. Testing Div. JQA File No. :400-50410 FCC ID :AK8WRT8B1 Model No. :WRT-8B Issue Date :September 28, 2005 Standard :CFR 47 FCC Rules Part 74 Page 2 of 51 JQA QUALITY ASSURANCE ORGANIZATION TABLE OF CONTENTS Page 1 Documentation 1.1 Test Regulation 3 1.2 General Information 3 1.3 Test Condition 4 – 6 1.4 EUT Modifications / Deviation from Standard 7 1.5 Test results 8 1.6 Summary 9 1.7 Test Configuration / Operation of EUT 10 1.8 EUT Arrangement(Drawing) 11 1.9 Preliminary Test and Test-setup (Drawings) 12 – 17 1.10 EUT Arrangement (Photographs) 18 - 19 2 Test Data 2.1 RF Power Output 20 2.2 Modulation Characteristics 21 – 27 2.3 Radiated Emissions 28 – 31 2.4 Occupied Bandwidth 32 – 44 2.5 Frequency Stability 45 - 46 3 Appendix Test instruments List 47 – 51 JQA File No. :400-50410 FCC ID :AK8WRT8B1 Model No. :WRT-8B Issue Date :September 28, 2005 Standard :CFR 47 FCC Rules Part 74 Page 3 of 51 JQA QUALITY ASSURANCE ORGANIZATION 1 DOCUMENTATION 1.1 TEST REGULATION FCC Rules and Regulations Part 74 Subpart H Low Power Auxiliary Stations Test procedure : RF power output, modulation characteristics, occupied bandwidth, field strength of spurious radiation and frequency stability tests were performed according to the procedures in FCC Rules and Regulations Part 2. 1.2 GENERAL INFORMATION 1.2.1 Test facility : 1) Test Facility located at EMC Engineering Dept. Testing Div. : - No.2 and 3 Anechoic Chambers(3 meters Site). - Shielded Enclosure. 2) EMC Engineering Dept. Testing Div. is recognized under the National Voluntary Laboratory accreditation Program for satisfactory compliance established in title 15, Part 285 Code of Federal Regulations. NVLAP Lab Code : 200189-0 (Effective through : June 30, 2006) 1.2.2 Description of the Equipment Under Test (EUT) : 1) Type of Equipment : UHF Synthesized Transmitter 2) Product Type : Prototype 3) Category : Broadcast Transmitter worn body 4) EUT Authorization : Certification 5) FCC ID : AK8WRT8B1 6) Trade Name : SONY 7) Model No. : WRT-8B 8) Operating Frequency Range : 470.125 MHz – 709.875 MHz 9) Highest Frequency Used in the EUT : 709.875 MHz 10) Bandwidth : 120 kHz 11) RF Output Power : 50/10 mW selectable 12) Serial No. : 2101/2102/2103 13) Date of Manufacture : August, 2005 14) Power Rating : DC 3.0(Battery) 15) EUT Grounding : None 1.2.3 Definitions for symbols used in this test report : x - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. JQA File No. :400-50410 FCC ID :AK8WRT8B1 Model No. :WRT-8B Issue Date :September 28, 2005 Standard :CFR 47 FCC Rules Part 74 Page 4 of 51 JQA QUALITY ASSURANCE ORGANIZATION 1.3 TEST CONDITION 1.3.1 The measurement of the RF power output the Radiated Emission(30 MHz – 1000 MHz) x - was performed in the following test site. - was not applicable. Test location : Safety & EMC Center EMC Engineering Dept. Testing Div. 21-25, Kinuta 1-chome, Setagaya-ku, Tokyo 157-8573, Japan x - Anechoic Chamber No. 2 (3 meters) - Anechoic Chamber No. 3 (3 meters) Validation of Site Attenuation : 1) Last Confirmed Date :March, 2005 2) Interval :1 year Used test instruments : Type Number of test instruments (Refer to Appendix) Test Receiver TR05 Cable CA01 Antenna AN02, AN04, AN06, AN08 RF Amplifier N/A Signal Generator SG03 Power Meter AU03 Power Sensor AU04 JQA File No. :400-50410 FCC ID :AK8WRT8B1 Model No. :WRT-8B Issue Date :September 28, 2005 Standard :CFR 47 FCC Rules Part 74 Page 5 of 51 JQA QUALITY ASSURANCE ORGANIZATION 1.3.2 The measurement of the Radiated Emission(Above 1000 MHz) x - was performed in the following test site. - was not applicable. Test location : Safety & EMC Center EMC Engineering Dept. Testing Div. 21-25, Kinuta 1-chome, Setagaya-ku, Tokyo 157-8573, Japan x - No. 2 site (3 meters) - No. 3 site (3 meters) Validation of Site Attenuation : 1) Last Confirmed Date :March, 2005 2) Interval :1 year Used test instruments : Type Number of test instruments (Refer to Appendix) Test Receiver TR07 Spectrum Analyzer N/A Cable CA11, CA13 Antenna AN10, AN12 RF Amplifier AM09 Band Reject Filter N/A High Pass Filter N/A JQA File No. :400-50410 FCC ID :AK8WRT8B1 Model No. :WRT-8B Issue Date :September 28, 2005 Standard :CFR 47 FCC Rules Part 74 Page 6 of 51 JQA QUALITY ASSURANCE ORGANIZATION 1.3.3 The measurement of the Modulation Characteristics and the Occupied Bandwidth x - was performed. - was not applicable. Used test instruments : Type Number of test instruments (Refer to Appendix) Test Receiver TR07 Spectrum Analyzer N/A Function Generator SG01 FM Linear Detector AU06 Level Meter AU07 Cable CA10 Attenuator AU20 Antenna N/A 1.3.4 The measurement of the Frequency Stability x - was performed. - was not applicable. Used test instruments : Type Number of test instruments (Refer to Appendix) Frequency Counter AU13 Antenn…

Text truncated - open the document above for the full version.

JQA File No. :400-50410 FCC ID :AK8WRT8B1 Model No. :WRT-8B Issue Date :September 28, 2005 Standard :CFR 47 FCC Rules Part 74 Page 18 of 51 JQA QUALITY ASSURANCE ORGANIZATION 1.10 TEST ARRANGEMENT (PHOTOGRAPHS) PHOTOGRAPHS OF EUT CONFIGURATION FOR RADIATED EMISSIONS MEASUREMENT Photograph present configuration with maximum emission - Front view (X axis) - - Front view (Y axis) - JQA File No. :400-50410 FCC ID :AK8WRT8B1 Model No. :WRT-8B Issue Date :September 28, 2005 Standard :CFR 47 FCC Rules Part 74 Page 19 of 51 JQA QUALITY ASSURANCE ORGANIZATION PHOTOGRAPHS OF EUT CONFIGURATION FOR RADIATED EMISSIONS MEASUREMENT Photograph present configuration with maximum emission - Front view (Z axis) -
