AK8WS001Wireless Module

[For U.S.A] This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. The following FCC statement applies only to the version of this The following statement must be described on the user manual of the host device of this module. The following FCC statement applies only to the version of this model manufactured for sale in the U.S.A. Other versions may not comply with FCC technical regulations. Compliance with FCC requirement 15.407(c) Data transmission is always initiated by software, which is the passed down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets are initiated by the MAC. These are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets is being transmitted. In other words, this device automatically discontinue transmission in case of either absence of information to transmit or operational failure. Frequency Tolerance: ±20 ppm or less 5.15-5.25GHz band is restricted to indoor operations only. This equipment must not be co-located or operated in conjunction with any other antenna or transmitter. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. dŚŝƐĞƋƵŝƉŵĞŶƚƐŚŽƵůĚďĞ ŝŶƐƚĂůůĞĚĂŶĚŽƉĞƌĂƚĞĚŬĞĞƉŝŶŐƚŚĞƌĂĚŝĂƚŽƌĂƚůĞĂƐƚϮϬĐŵŽƌŵŽƌĞ ĂǁĂLJĨƌŽŵƉĞƌƐŽŶ͛ƐďŽĚLJŝŶŶŽƌŵĂůƵƐĞƉŽƐŝƚŝŽŶ͘ [For Canada] This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. 5.15-5.25GHz band is restricted to indoor operations only. This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has the IC radio frequency (RF) Exposure rules. This equipment ƐŚŽƵůĚďĞŽƉĞƌĂƚĞĚŬĞĞƉŝŶŐƚŚĞƌĂĚŝĂƚŽƌĂƚůĞĂƐƚϮϬĐŵŽƌŵŽƌĞ ĂǁĂLJĨƌŽŵƉĞƌƐŽŶ͛ƐďŽĚLJŝŶŶŽƌŵĂůƵƐĞƉŽƐŝƚŝŽŶ͘ Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L‘exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l‘utilisateur de l’appareil doit accepter tout brouillageradioélectrique subi, même si le brouillage est susceptible d'en compromettrele fonctionnement. [Pour le Canada] La bande 5 150-5 250 MHz est restreints à une utilisation à l’intérieur. Cet équipement est conforme aux limites d’exposition aux Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. ĞƚĠƋƵŝƉĞŵĞŶƚĚŽŝƚġƚƌĞ ŝŶƐƚĂůůĠĞƚƵƚŝůŝƐĠĞŶŐĂƌĚĂŶƚƵŶĞĚŝƐƚĂŶĐĞĚĞϮϬĐŵŽƵƉůƵƐĞŶƚƌĞ ůĞĚŝƐƉŽƐŝƚŝĨƌĂLJŽŶŶĂŶƚĞƚůĞĐŽƌƉƐĞŶƵƚŝůŝƐĂƚŝŽŶŶŽƌŵĂůĞ͘ Labeling of End products The following information must be indicated on the host device of this module; [For U.S.A.] Contains FCC ID : AK8WS001 or Contains Transmitter module FCC ID : AK8WS001 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.interference that may cause undesired operation. [For Canada] Contains IC : 409B-WS001 or Contains Transmitter module IC : 409B-WS001

Sony EMCS CorporationKisarazu SITE 8-4 Shiomi Kisarazu City, Chiba Pref., 292-0834 Japan Product Safety Section1, Quality Assurance Department1 Telephone +81-438-37-4703 Fax +81-438-36-4705 Letter of Authorization Date: October 24, 2013 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021Japan FCC ID:AK8WS001 Applicant:Sony Corporation To whom it may concern: Please beadvised weauthorize Yoshinobu Asaiof Application Section, WiSE Japan, UL Verification Service,UL Japan, Inc. to act on our behalf, until otherwise notified, for applications submitted for Federal Communication Commission Radio equipment applications submitted to UL Japan, Inc. We certify that we are not subjectto denial of federal benefits,that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. The application for the subject equipment has not been submitted to another TCB for certification. Thank you for your attention to this matter. Sincerely, Hideo Nomura Senior Manager Sony EMCS Corporation Kisarazu Site

Sony EMCS Corporation Kisarazu SITE 8-4 Shiomi Kisarazu City, Chiba Pref., 292-0834 Japan Product Safety Section 1, Quality Assurance Department 1 Telephone +81-438-37-4703 Fax +81-438-36-4705 Request forLimited Modular Transmitter Approval November 7, 2013 FCC ID : AK8WS001 Applicant: Sony Corporation This transmitter, model: WS001 is designed by us. It complies with the modular transmitters basic requirements (Item 1 to 8) in FCC Part 15 Subpart C Section 15.212 as indicated below: Modular Approval Checklist: Modular approval requirementYesNo (1) Have its own RF shielding. (2) Have buffered modulation/data inputs. (3) Have its own power supply regulation. The stable voltage (3.3Vdc) is constantly provided from the host device. (4) Comply with the antenna and transmission system requirements of § 15.203, 15.204(b) and 15.204(c). (5) Tested in a stand-alone configuration. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in FCC § 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module. The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available. (6) Equipped with either a permanently affixed label or must be capable of electronically displaying its FCC ID. If the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. (7) Comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. (8) Comply with any applicable RF exposure requirements in its final configuration: The modular transmitter complies with FCC radiation exposure requirement. ＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿ Hideo Nomura Senior Manager Sony EMCS Corporation Kisarazu Site

Sony EMCS CorporationKisarazu SITE 8-4 Shiomi Kisarazu City, Chiba Pref., 292-0834 Japan Product Safety Section1, Quality Assurance Department1 Telephone +81-438-37-4703 Fax +81-438-36-4705 Request for Confidentiality Date: October 24, 2013 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021Japan FCC ID:AK8WS001 Applicant:Sony Corporation To whom it may concern: Please be advised that the following information is to be held confidential on behalf ofus, referring to the FCC rules 0.457 and 0.459: Block Diagram Theory of Operation Schematics Parts List The application contains technical information which wedeemto be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Hideo Nomura Senior Manager Sony EMCS Corporation Kisarazu Site

Sony EMCS CorporationKisarazu SITE 8-4 Shiomi Kisarazu City, Chiba Pref., 292-0834 Japan Product Safety Section1, Quality Assurance Department1 Telephone +81-438-37-4703 Fax +81-438-36-4705 Request for Short-Term Confidentiality Date: October 24, 2013 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021Japan FCC ID:AK8WS001 Applicant:Sony Corporation To whom it may concern: Please be advised that the following information is to be held in confidence for 120days from the date of the Grant of Equipment Authorization and behalf ofus, referring to the FCC rules 0.457 and 0.459: External Photos Internal Photos Test Setup Photos User Manual The application contains technical information, which wedeem to be trade secrets and proprietary. If made public, the information might be used to the disadvantageof the applicant in the market place. Thank you for your attention to this matter. Sincerely, ____________________________________ HideoNomura Senior Manager Sony EMCS Corporation Kisarazu Site

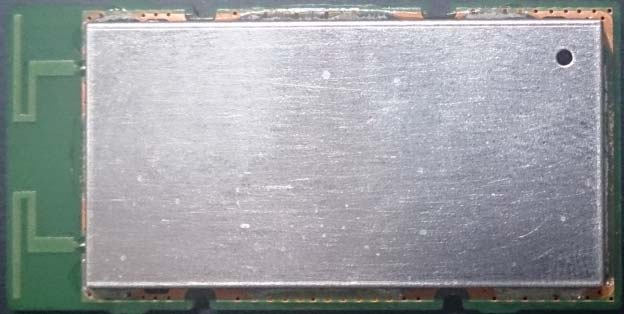

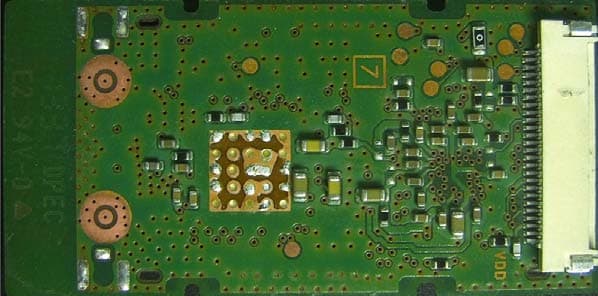

Wireless Module (WS001) Pictures Side A (with shield) Side B

Wireless Module(WS001) Label attachment position

Wireless Module (WS001) Pictures Side A (without shield) Side B Antenna A Antenna B

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Applica nt: S ony Corporation T ype of Equipment : W ireless Module Model No. : WS001 FCC ID: AK 8W S001 Sony C orporation declares that M odel : W ireless M odule complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091. RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “W S001“ as calculated from FCC Part 1, §1.1310, TABLE 1 (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 9.53 mW (M aximum peak output power) G = 1.29 Numerical Antenna gain; equal 1.10 dBi r =20.0 cm For: W S001S = 0.00244 mW/cm 2 No. : 10064467S-F RF Ex posure / SAR Statement

Test report No. : 10064467S-F-R1 Page : 1 of 34 Issued date : November 29, 2013 FCC ID : AK8WS001 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 RADIO TEST REPORT Test Report No.: 10064467S-F-R1 Applicant : Sony Corporation Type of Equipment : Wireless Module Model No. : WS001 FCC ID : AK8WS001 Test regulation : FCC Part15 Subpart E: 2013 Test result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by any agency of the Federal Government. 6. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. 7. This report is a revised version of 10064467S-F. 10064467S-F is replaced with this report. Date of test: September 6 to 16, 2013 Tested by: Shinichi Takano Engineer of WiSE Japan, UL Verification Service Approved by : Toyokazu Imamura Leader of WiSE Japan, UL Verification Service RTL02610 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". 13-EM-F0429 Test report No. : 10064467S-F-R1 Page : 2 of 34 Issued date : November 29, 2013 FCC ID : AK8WS001 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 10064467S-F Revision Test report No. Date Page revised Contents - (Original) 10064467S-F October 1, 2013 - - 1 10064467S-F-R1 October 29, 2013 Full revision Addition of Comparison sheet of Antennas Test report No. : 10064467S-F-R1 Page : 3 of 34 Issued date : November 29, 2013 FCC ID : AK8WS001 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ..................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ....................................................................... 4 SECTION 3: Test specification, procedures & results ......................................................... 6 SECTION 4: Operation of E.U.T. during testing ................................................................. 9 SECTION 5: Conducted emission ...................................................................................... 10 SECTION 6: Radiated emission ......................................................................................... 11 SECTION 7: Antenna terminal conducted tests ................................................................ 13 Contents of APPENDIXES ................................................................................................... 14 APPENDIX 1: Data of Radio tests ...................................................................................... 15 APPENDIX 2: Test instruments ......................................................................................... 30 APPENDIX 3: Photographs of test setup ........................................................................... 32 Test report No. : 10064467S-F-R1 Page : 4 of 34 Issued date : November 29, 2013 FCC ID : AK8WS001 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : Sony EMCS Corporation Address : 8-4 Shiomi Kisarazu-shi, Chiba, 292-0834 Japan Telephone Number : +81-438-37-3982 Facsimile Number : +81-438-37-4705 Contact Person : Kazuhiko Nagano SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Wireless Module Model Number : WS001 Serial Number : Refer to 4.2 in this report. Rating : DC3.3V Country of Mass-production : Philippines Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Receipt Date of Sample : September 5, 2013 Modification of EUT : No modification by the test lab. 2.2 Product description Model: WS001 (referred to as the EUT in this report) is a Wireless Module. Clock frequency(ies) in the system : 44MHz Test report No. : 10064467S-F-R1 Page : 5 of 34 Issued date : November 29, 2013 FCC ID : AK8WS001 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Radio specification: Equipment type : Transceiver Frequency of operation *1) : 5180-5240MHz, 5736-5814MHz Bandwidth : 17MHz Channel spacing : 30MHz Type of modulation : DSSS, QPSK Antenna type : Printed antenna Antenna gain : Antenna A: 5.2GHz band:1.1dBi (max), 5.8GHz band: 0.8dBi (max) Antenna B: 5.2GHz band:0.5dBi (max), 5.8GHz band: 0.1dBi (max) Antenna connector type : None ITU code : G1D *1) Refer to the test report 10064467S-D for FCC 15.247. Operation temperature range : -10 to +60 deg.C FCC 15.31 (e) The module is provided the stable voltage (DC3.3V) from the host device. Therefore, the equipment complies with the requirement. FCC 15.203 The antenna is not removable from the EUT. Therefore, the equipment complies with the requirement. Test report No. : 10064467S-F-R1 Page : 6 of 34 Issued date : November 29, 2013 FCC ID : AK8WS001 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 3: Test specification, procedures & results 3.1 Test specific…

Text truncated - open the document above for the full version.

Test report No. : 10005707S-A Page : 21 of 23 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Conducted emission Front Side Test Report No 10064467S-F-R1 32 of 34 Test report No. : 10005707S-A Page : 22 of 23 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Radiated emission Front Rear (below 1GHz) Rear (above 1GHz) Test Report No 10064467S-F-R1 33 of 34 Test report No. : 10005707S-A Page : 23 of 23 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Pre-check of the worst position X-axis Y-axis Z-axis END OF REPORT Test Report No 10064467S-F-R1 34 of 34
