AK8XAVAX5110AV Receiver

F:\Works-G\5005637411\5005637411XAVAX511LA\00COV-XAVAX511LA\010COV.fmmasterpage: Cover 5-005-637-41(1) XAV-AX5110 5-005-637-41(1) D AV RECEIVER To switch the FM/AM tuning step, see page 15. Para cambiar el paso de sintonización de FM/AM, consulte la página xx. Operating Instructions GB Manual de instrucciones ES 010COV.book Page 1 Thursday, September 24, 2020 4:11 PM 2GB F:\Works-G\5005637411\5005637411XAVAX511LA\01GB-XAVAX511LA\020INT.fmmasterpage: Left XAV-AX5110 5-005-637-41(1) Warning The nameplate indicating operating voltage, etc., is located on the bottom of the chassis. WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF). This equipment has very low levels of RF energy. If you have any questions about this product: Visit: https://www.sony.com/electronics/support Contact: Sony Customer Information Service Center at 1-800-222-7669 Write: Sony Customer Information Service Center 12451 Gateway Blvd., Fort Myers, FL 33913 Supplier’s Declaration of Conformity Trade Name: SONY Model: XAV-AX5110 Responsible Party: Sony Electronics Inc. Address: 16535 Via Esprillo, San Diego, CA 92127 U.S.A. Telephone Number: 858-942-2230 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For the State of California, USA only Perchlorate Material – special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate Disclaimer regarding services offered by third parties Services offered by third parties may be changed, suspended, or terminated without prior notice. FOR THE CUSTOMERS IN THE USA. NOT APPLICABLE IN CANADA, INCLUDING IN THE PROVINCE OF QUEBEC. POUR LES CLIENTS AUX ÉTATS-UNIS. NON APPLICABLE AU CANADA, Y COMPRIS LA PROVINCE DE QUÉBEC. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. 010COV.book Page 2 Thursday, September 24, 2020 4:11 PM 3GB F:\Works-G\5005637411\5005637411XAVAX511LA\01GB-XAVAX511LA\020INT.fmmasterpage: Right XAV-AX5110 5-005-637-41(1) Caution IN NO EVENT SHALL WE BE LIABLE FOR ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES OR OTHER DAMAGES INCLUDING, WITHOUT LIMITATION, LOSS OF PROFITS, LOSS OF REVENUE, LOSS OF DATA, LOSS OF USE OF THE PRODUCT OR ANY ASSOCIATED EQUIPMENT, DOWNTIME, AND PURCHASER’S TIME RELATED TO OR ARISING OUT OF THE USE OF THIS PRODUCT, ITS HARDWARE AND/OR ITS SOFTWARE. Dear customer, this product includes a radio transmitter. Please check your vehicle operation manual or contact the manufacturer of your vehicle or your vehicle dealer, before you install this product into your vehicle. Emergency calls This BLUETOOTH car handsfree and the electronic device connected to the handsfree operate using radio signals, cellular, and landline networks as well as user-programmed function, which cannot guarantee connection under all conditions. Therefore do not rely solely upon any electronic device for essential communications (such as medical emergencies). On BLUETOOTH communication • Microwaves emitting from a BLUETOOTH device may affect the operation of electronic medical devices. Turn off this unit and other BLUETOOTH devices in the following locations, as it may cause an accident. – where inflammable gas is present, in a hospital, train, airplane, or petrol station – near automatic doors or a fire alarm • This unit supports security capabilities that comply with the BLUETOOTH standard to provide a secure connection when the BLUETOOTH wireless technology is used, but security may not be enough depending on the setting. Be careful when communicating using BLUETOOTH wireless technology. • We do not take any responsibility for the leakage of information during BLUETOOTH communication. Important notice 010COV.book Page 3 Thursday, September 24, 2020 4:11 PM 4GB F:\Works-G\5005637411\5005637411XAVAX511LA\01GB-XAVAX511LA\030TOC.fmmasterpage: Left XAV-AX5110 5-005-637-41(1) Table of Contents Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Getting Started Guide to Parts and Controls . . . . . . . . . . . . . . . . . . . 5 Performin…

Text truncated - open the document above for the full version.

Sony Corporation Japan, and Sony Group Companies 2-10-1 Osaki, Shinagawa-ku, Tokyo 141-8610 Japan Letter of Authorization Date: October 14, 2020 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC ID : AK8XAVAX5110 Applicant : Sony Corporation To whom it may concern: Please be advised we authorize Akiko Nishimura of Consumer Technology Division, UL Japan, Inc. to act on our behalf, until otherwise notified, for applications submitted for Federal Commun ication Commission Radio equipment applications submitted to UL Japan, Inc. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no part y, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. The application for the subject equipment has not been submitted to another TCB for certification. Thank you for your attention to this matter. Sincerely , Takeshi Kobayashi Sony Home Entertainment & Sound Product Inc.

Sony Corporation Japan, and Sony Group Companies 2-10-1 Osaki, Shinagawa-ku, Tokyo 141-8610 Japan Request for Confidentiality Date: September 29, 2020 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC ID : AK8XAVAX5110 Applicant : Sony Corporation To whom it may concern: Please be advised that the following information is to be held confidential on behalf of us, referring to the FCC rules 0.457 and 0.459: Block Diagram Theory of Operation Schematics The application contains technical information which we deem to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Takeshi Kobayashi Sony Home Entertainment & Sound Product Inc.

Sony Corporation Japan, and Sony Group Companies 2-10-1 Osaki, Shinagawa-ku, Tokyo 141-8610 Japan Request for Short-Term Confidentiality Date: September 29, 2020 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC ID : AK8XAVAX5110 Applicant : Sony Corporation To whom it may concern: Please be advised that the following information is to be held in confidence for 180 days from the date of the Grant of Equipment Authorization and behalf of us, referring to the FCC rules 0.457 and 0.459: External Photos Internal Photos Test Setup Photos User Manual The application contains technical information, which we deem to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Takeshi Kobayashi Sony Home Entertainment & Sound Product Inc.

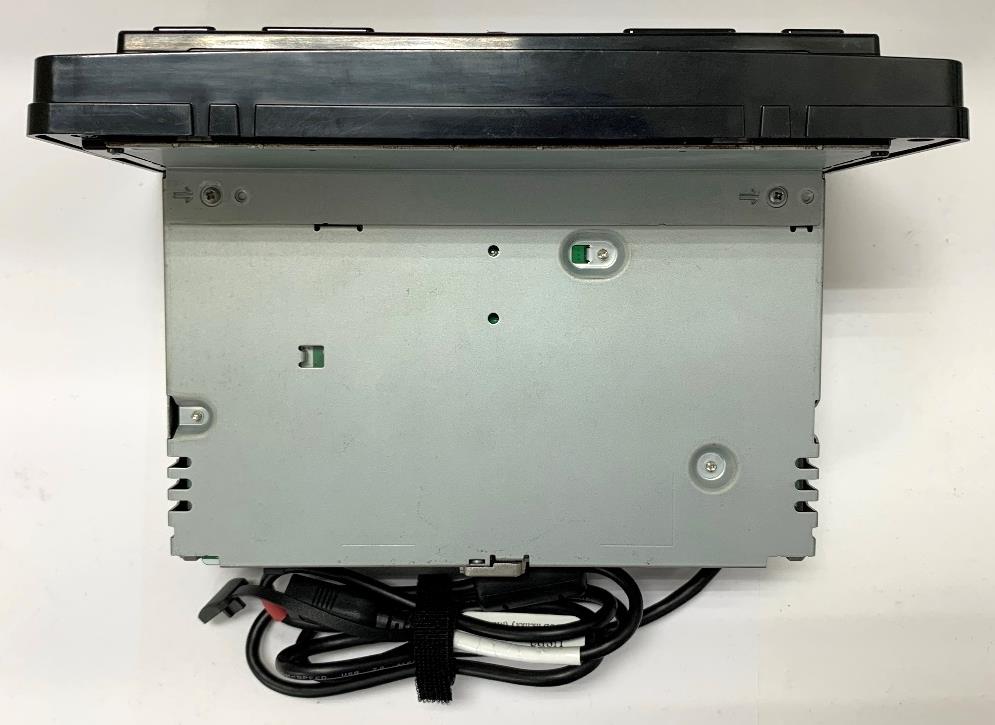

FRONT SIDE BACK SIDE XAV-AX5110//Q2(LA) RIGHT SIDE LEFT SIDE XAV-AX5110//Q2(LA) TOP SIDE BOTTOM SIDE XAV-AX5110//Q2(LA)

MODEL : DC:12 V NEGATIVE GROUND(10 A) MADE IN THAILAND / HECHO EN TAILANDIA XAV-AX5110 AV RECEIVER SPEAKER IMPEDANCE 4 Ω TO 8 Ω X 4 REAR USB: 5 V REM OUT: 12 V cc 12 V 10 A FRONT USB: 5 V THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2)THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. SERIAL NO. FCC ID: AK8XAVAX5110 RCPS0XXXX-XXXX 5-027-293-01 Sólo para México: Homologación No:

INSIDE PRODUCT FOR MAIN UNIT XAV-AX5110//Q2(LA) INSIDE PRODUCT FOR FRONT UNIT XAV-AX5110//Q2(LA) BT Module mount in the product XAV-AX5110 BT Module Photo of Bluetooth Module XAV-AX5110 Shield case TOP Bottom Inside

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 2020/10/30 FCC ID: AK8XAVAX5110 To whom it may concern, We, UL Japan, Inc., hereby declare that AV Receiver, model : XAV-AX5110 (FCC ID: AK8XAVAX5110) of Sony Corporation, Japan and Sony Group Companies is exempt from RF exposure SAR evaluation with RF") Exposure Compliance requirements of the KDB 447498 D01 General RF Exposure Guidance. (It is necessary to comply of FCC section 2.1093 in reality, however, it is exempted by KDB 447498 D01.) KDB 447498D01 has the following exclusion for portable devices: The 1g and 10g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances < 50 mm are determined by: [(measured maximum average output power(mW))/(Minimum separation distance(mm))]•[ √ f (GHz)] < 3.0 for 1g SAR and < 7.5 for 10g extremity SAR where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is < 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. This device f = 2.48 GHz, distance = 5mm (minimum separation distance: 5 mm was used in the calculation) and the measured maximum average output power (Time average) was 0.4 mW So for this device: 0.4 mW [measured maximum average output power] / 5 mm [minimum separation distance] * ( √ 2.48) = 0.1 (This value was calculated as a reference since maximum average output power was less than 1 mW.) *This is less than 3.0, so no SAR is required. Even taking into account the tolerance, this device can be satisfied with the limits. Thank you for your attention to this matter. Akio Hayashi Leader Consumer Technology Division

Test report No. : 13540585S-A-R1 Page: 1 of 50 Issued date : November 11, 2020 F CC ID : AK8XAVAX5110 UL Japan, Inc. Shonan EM C Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401Report Cover Page - 13-EM-F0429 Issue # 17.0 CERTIFICATE 1266.03 RADIO TEST REPORT Test Report No. : 13540585S-A-R1 Applicant : Sony Corporation, Japan and Sony Group Companies Type of EUT : AV Receiver Model Number of EUT : XAV-AX5110 FCC ID : AK8XAVAX5110 Test regulation : FCC Part 1 5 Subpart C: 2020 Test Result : Complied (Refer to SECTION 3.2) 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above re gulation. 4.The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorseme nt by the A2LA accreditation bod y. 6. This test report covers Radio te chnical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requirement s. (if applicable) 7. The all test items in this test report are conducted b y UL Japan, Inc. Shonan EMC Lab. 8.The opinions and the interpretations to the result of the description in this report are outside scopes wh ere UL Japan has been accredit ed. 9. The information provided from the customer for this report is identified in SECTION 1. 10. This report is a revised version of 13540585S-A. 13540585S- A is replaced with this report. Da te of test: October 15 to 18, 2020 Representative test engineer: Yohsuke Matsuzawa Engineer Consumer Technology Division Appr oved by: Akio Hayashi Leader Consumer Technology Division The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". Test report No. : 13540585S-A-R1 Page : 2 of 50 Issued date : November 11, 2020 FCC ID : AK8XAVAX5110 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 13540585S-A Revision Test report No. Date Page revised Contents - (Original) 13540585S-A October 29, 2020 - - 1 13540585S-A-R1 November 11, 2020 P.11 Correction of Configuration and peripherals from to Test report No. : 13540585S-A-R1 Page : 3 of 50 Issued date : November 11, 2020 FCC ID : AK8XAVAX5110 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Reference: Abbreviations (Including words undescribed in this report) A2LA The American Association for Laboratory Accreditation MCS Modulation and Coding Scheme AC Alternating Current MRA Mutual Recognition Arrangement AFH Adaptive Frequency Hopping N/A Not Applicable AM Amplitude Modulation NIST National Institute of Standards and Technology Amp, AMP Amplifier NS No signal detect. ANSI American National Standards Institute NSA Normalized Site Attenuation Ant, ANT Antenna NVLAP National Voluntary Laboratory Accreditation Program AP Access Point OBW Occupied Band Width ASK Amplitude Shift Keying OFDM Orthogonal Frequency Division Multiplexing Atten., ATT Attenuator P/M Power meter AV Average PCB Printed Circuit Board BPSK Binary Phase-Shift Keying PER Packet Error Rate BR Bluetooth Basic Rate PHY Physical Layer BT Bluetooth PK Peak BT LE Bluetooth Low Energy PN Pseudo random Noise BW BandWidth PRBS Pseudo-Random Bit Sequence Cal Int Calibration Interval PSD Power Spectral Density CCK Complementary Code Keying QAM Quadrature Amplitude Modulation Ch., CH Channel QP Quasi-Peak CISPR Comite International Special des Perturbations Radioelectriques QPSK Quadri-Phase Shift Keying CW Continuous Wave RBW Resolution Band Width DBPSK Differential BPSK RDS Radio Data System DC Direct Current RE Radio Equipment D-factor Distance factor RF Radio Frequency DFS Dynamic Frequency Selection RMS Root Mean Square DQPSK Differential QPSK RSS Radio Standards Specifications DSSS Direct Sequence Spread Spectrum Rx Receiving EDR Enhanced Data Rate SA, S/A Spectrum Analyzer EIRP, e.i.r.p. Equivalent Isotropically Radiated Power SG Signal Generator EMC ElectroMagnetic Compatibility SVSWR Site-Voltage Standing Wave Ratio EMI ElectroMagnetic Interference TR Test Receiver EN European Norm Tx Transmitting ERP, e.r.p. Effective Radiated Power VBW Video BandWidth EU European Union Vert. Vertical EUT Equipment Under Test WLAN Wireless LAN Fac. Factor FCC Federal Communications Commission FHSS Frequency Hopping Spread Spectrum FM Frequency Modulation Freq. Frequency FSK Frequency Shift Keying GFSK Gaussian Frequency-Shift Keying GNSS Global Navigation Satellite System GPS Global Positioning System Hori. Horizontal ICES Interference-Causing Equipment Standard IEC International Electrotechnical Commission IEEE Institute of Electrical and Electronics Engineers IF Intermediate Frequency ILAC International Laboratory Accreditation Conference ISED Innovation, Science and Economic Development Canada ISO International Organization for Standardization JAB Japan Accreditation Board LAN Local Area Network LIMS Laboratory Information Management System Test report No. : 13540585S-A-R1 Page : 4 of 50 Issued date : November 11, 2020 FCC ID : AK8XAVAX5110 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 CONTENTS PAGE SECTION 1: Customer information ....................................................................................................... 5 SECTION 2: Equipment under test (EUT) ............................................................................................ 5 SECTION 3: Test specificatio…

Text truncated - open the document above for the full version.

Test report No. : 13540585S-A-R1 Page : 49 of 50 Issued date : November 11, 2020 FCC ID : AK8XAVAX5110 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Radiated Spurious Emission Below 1 GHz Above 1 GHz Test report No. : 13540585S-A-R1 Page : 50 of 50 Issued date : November 11, 2020 FCC ID : AK8XAVAX5110 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Antenna Terminal Conducted Tests Photo 1 Photo 2 End of Report
