AK8XAVAX8100AV Receiver

F:\Works-G\5025709111\5025709111XAVAX810UC\00COV-XAV-AX810UC\010COV.fmmasterpage: Cover XAV-AX8100 5-025-709-11(1) XAV-AX8100 5-025-709-11(1) AV RECEIVER Owner’s Record The model and serial numbers are located on the bottom of the unit. Record the serial number in the space provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product. Model No. XAV-AX8100 Serial No. Operating Instructions GB Mode d’emploi FR Manual de instrucciones ES To cancel the demonstration (Demo) display, see page 7. For the connection/installation, see page 11. Pour annuler l’affichage de démonstration (Démo), reportez- vous à la page 7. Pour le raccordement/l’installation, reportez-vous à la page 11. Para cancelar la pantalla de demostración (Demostración), consulte la página 7. Para la conexión/instalación, consulte la página 12. 010COV.book Page 1 Tuesday, October 13, 2020 11:20 AM 2GB XAV-AX8100 5-025-709-11(1) F:\Works-G\5025709111\5025709111XAVAX810UC\01GB-XAV-AX810UC\020INT.fmmasterpage: Left Warning The nameplate indicating operating voltage, etc., is located on the bottom of the chassis. The validity of the CE marking is restricted to only those countries where it is legally enforced, mainly in the countries EEA (European Economic Area) and Switzerland. WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. This device complies with part 15 of FCC Rules and Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This equipment complies with FCC/ISED radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the ISED radio frequency (RF) Exposure rules as this equipment has very low levels of RF energy. If you have any questions about this product: Visit: https://www.sony.com/electronics/support Contact: Sony Customer Information Service Center at 1-800-222-7669 Write: Sony Customer Information Service Center 12451 Gateway Blvd., Fort Myers, FL 33913 Supplier’s Declaration of Conformity Trade Name: SONY Model: XAV-AX8100 Responsible Party: Sony Electronics Inc. Address: 16535 Via Esprillo, San Diego, CA 92127 U.S.A. Telephone Number: 858-942-2230 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For the State of California, USA only Perchlorate Material – special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate For safety, be sure to install this unit in the dashboard of the car as the rear side of the unit becomes hot during use. For details, see “Connection/Installation” (page 11). FOR THE CUSTOMERS IN THE USA. NOT APPLICABLE IN CANADA, INCLUDING IN THE PROVINCE OF QUEBEC. POUR LES CLIENTS AUX ÉTATS-UNIS. NON APPLICABLE AU CANADA, Y COMPRIS LA PROVINCE DE QUÉBEC. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. 010COV.book Page 2 Tuesday, October 13, 2020 11:20 AM 3GB F:\Works-G\5025709111\5025709111XAVAX810UC\01GB-XAV-AX810UC\020INT.fmmasterpage: Right XAV-AX8100 5-025-709-11(1) WARNING: Do not ingest battery, Chemical Burn Hazard. The remote commander contains a coin/ button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. Note on the lithium battery Do not expose the battery to excessive heat such as direct sunlight, fire or the like. Disclaimer regarding services offered by third parties Services offered by third parties may be changed, suspended, or terminated without prior notice. Sony does not bear any responsibility in these sorts of situations. Caution IN NO EVENT SHALL SONY BE LIABLE FOR ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES OR OTHER DAMAGES INCLUDING, WITHOUT LIMITATION, LOSS OF PROFITS, LOSS OF REVENUE, LOSS OF DATA, LOSS OF USE OF THE PRODUCT OR ANY ASSOCIATED EQUIPMENT, DOWNTIME, AND PURCHASER’S TIME RELATED TO OR ARISING OUT OF THE USE OF THIS PRODU…

Text truncated - open the document above for the full version.

Sony Corporation Japan, and Sony Group Companies 2-10-1 Osaki, Shinagawa-ku, Tokyo 141-8610 Japan Letter of Authorization Date: December 4, 2020 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 Applicant: Sony Corporation FCC ID: AK8XAVAX8100 To whom it may concern: We, the undersigned, hereby authorize Akiko Nishimura of Consumer Technology Division, UL Japan, Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Japan, Inc. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. The application for the subject equipment has not been submitted to another TCB for certification. Sincerely Yours, Takeshi Kobayashi Sony Home Entertainment & Sound Product Inc.

Sony Corporation Japan, and Sony Group Companies 2-10-1 Osaki, Shinagawa-ku, Tokyo 141-8610 Japan Request for Short-Term Confidentiality Date: December 4, 2020 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 FCC ID : AK8XAVAX8100 Applicant : Sony Corporation To whom it may concern: Please be advised that the following information is to be held in confidence for 180 days from the date of the Grant of Equipment Authorization and behalf of us, referring to the FCC rules 0.457 and 0.459: External Photos Internal Photos Test Setup Photos User Manual The application contains technical information, which we deem to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, ____________________________________ Takeshi Kobayashi Sony Home Entertainment & Sound Product Inc.

Sony Corporation Special Power of Attorney I, Kazuyuki Hori of Sony Corporation, hereby appoint Takeshi Kobayashi of Sony Home Entertainment & Sound Products Inc. to represent me to act on my behalf to do any and all of the following. Sign on my behalf the agency, anti-drug and confidentiality cover letters and apply to FCC for the products. The rights, powers and authority in fact to exercise any and all of the rights and powers herein granted shall commence and be in full force from December 1, 2020 and continue to be effective unless specifically terminated by either party. Dated December 1, 2020 Kazuyuki Hori Company: Sony Corporation Country: Japan

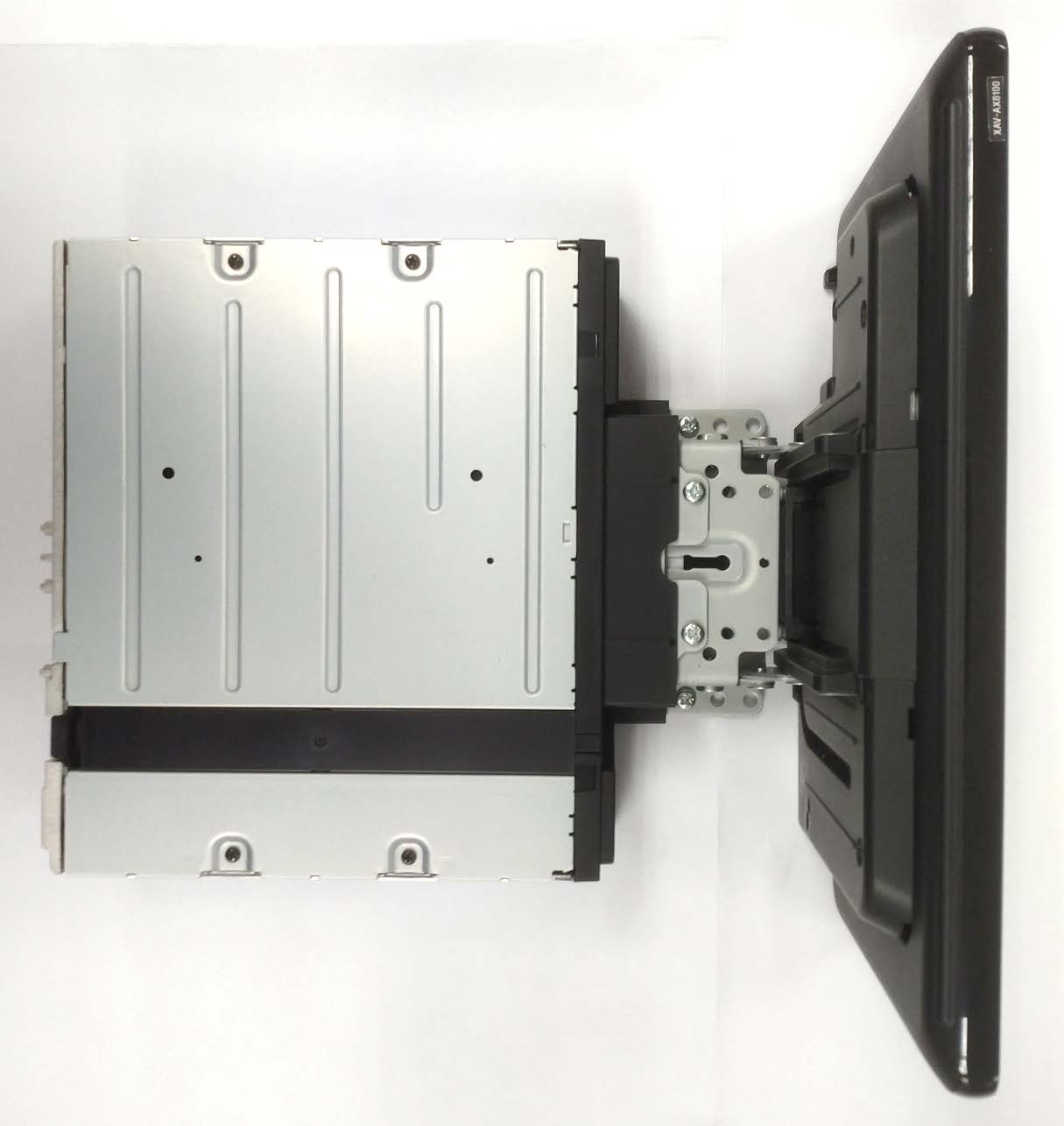

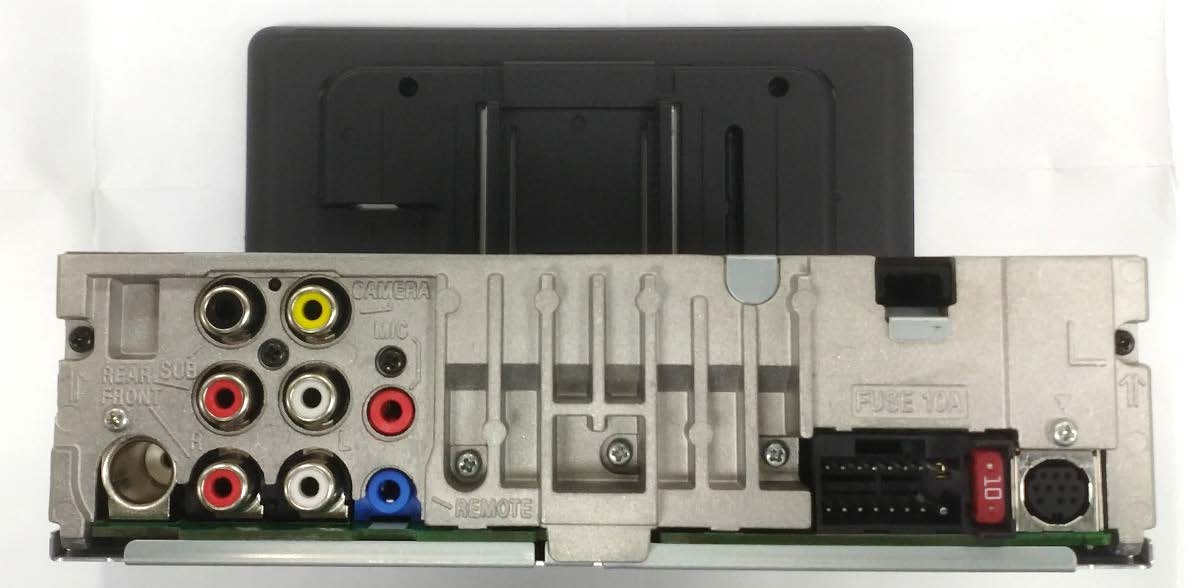

XAV-AX8100//Q(UC) FRONT SIDE BACK SIDE TOP UNIT XAV-AX8100//Q(UC) Bottom UNIT XAV-AX8100//Q(UC) LEFT SIDE RIGHT SIDE XAV-AX8100//Q(UC)

XAV-AX8100//Q(UC) INSIDE MAIN XAV-AX8100//Q(UC) INSIDE FRONT Photo of Bluetooth Module XAV-AX8 1 00 Shield case TOP Bottom Inside BT Module mount in the product XAV-AX8100

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 FCC ID: AK8XAVAX8100 To whom it may concern, We, UL Japan, Inc., hereby declare that AV Receiver, model : XAV-AX8100 (FCC ID: AK8XAVAX8100) of Sony Corporation, Japan and Sony Group Companies is exempt from RF exposure SAR evaluation with RF") Exposure Compliance requirements of the KDB 447498 D01 General RF Exposure Guidance. (It is necessary to comply of FCC section 2.1093 in reality, however, it is exempted by KDB 447498 D01.) KDB 447498D01 has the following exclusion for portable devices: The 1g and 10g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances < 50 mm are determined by: [(measured maximum average output power(mW))/(Minimum separation distance(mm))]•[ √ f (GHz)] < 3.0 for 1g SAR and < 7.5 for 10g extremity SAR where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is < 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. This device f = 2.48 GHz, distance = 5mm (minimum separation distance: 5 mm was used in the calculation) and the measured maximum average output power (Time average) was 0.4 mW So for this device: 0.4 mW [measured maximum average output power] / 5 mm [minimum separation distance] * ( √ 2.48) = 0.1 (This value was calculated as a reference since maximum average output power was less than 1 mW.) *This is less than 3.0, so no SAR is required. Even taking into account the tolerance, this device can be satisfied with the limits. Thank you for your attention to this matter. Akio Hayashi Manager Consumer Technology Division UL Japan, Inc.

Test report No. : 13566128S-A-R1 Page: 1 of 50 Issued date : December 10, 2020 F CC ID : AK8XAVAX8100 UL Japan, Inc. Shonan EM C Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401Report Cover Page - 13-EM-F0429 Issue # 17.0 CERTIFICATE 1266.03 RADIO TEST REPORT Test Report No. : 13566128S-A-R1 Applicant : Sony Corporation, Japan and Sony Group Companies Type of EUT : AV Receiver Model Number of EUT : XAV-AX8100 FCC ID : AK8XAVAX8100 Test regulation : FCC Part 1 5 Subpart C: 2020 Test Result : Complied (Refer to SECTION 3.2) 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above re gulation. 4.The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorseme nt by the A2LA accreditation bod y. 6. This test report covers Radio te chnical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requirement s. (if applicable) 7. The all test items in this test report are conducted b y UL Japan, Inc. Shonan EMC Lab. 8.The opinions and the interpretations to the result of the description in this report are outside scopes wh ere UL Japan has been accredit ed. 9. The information provided from the customer for this report is identified in SECTION 1. 10.This report is a revised version of 13566128S-A. 13566128S- A is replaced with this report. Da te of test: November 18 to 21, 2020 Representative test engineer: Makoto Hosaka Engineer Consumer Technology Division Appr oved by: Akio Hayashi Manager Consumer Technology Division The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". Test report No. : 13566128S-A-R1 Page : 2 of 50 Issued date : December 10, 2020 FCC ID : AK8XAVAX8100 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 13566128S-A Revision Test report No. Date Page revised Contents - (Original) 13566128S-A December 2, 2020 - - 1 13566128S-A-R1 December 10, 2020 P.12 Modification of “Description of EUT and support equipment”: from to Test report No. : 13566128S-A-R1 Page : 3 of 50 Issued date : December 10, 2020 FCC ID : AK8XAVAX8100 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Reference: Abbreviations (Including words undescribed in this report) A2LA The American Association for Laboratory Accreditation MCS Modulation and Coding Scheme AC Alternating Current MRA Mutual Recognition Arrangement AFH Adaptive Frequency Hopping N/A Not Applicable AM Amplitude Modulation NIST National Institute of Standards and Technology Amp, AMP Amplifier NS No signal detect. ANSI American National Standards Institute NSA Normalized Site Attenuation Ant, ANT Antenna NVLAP National Voluntary Laboratory Accreditation Program AP Access Point OBW Occupied Band Width ASK Amplitude Shift Keying OFDM Orthogonal Frequency Division Multiplexing Atten., ATT Attenuator P/M Power meter AV Average PCB Printed Circuit Board BPSK Binary Phase-Shift Keying PER Packet Error Rate BR Bluetooth Basic Rate PHY Physical Layer BT Bluetooth PK Peak BT LE Bluetooth Low Energy PN Pseudo random Noise BW BandWidth PRBS Pseudo-Random Bit Sequence Cal Int Calibration Interval PSD Power Spectral Density CCK Complementary Code Keying QAM Quadrature Amplitude Modulation Ch., CH Channel QP Quasi-Peak CISPR Comite International Special des Perturbations Radioelectriques QPSK Quadri-Phase Shift Keying CW Continuous Wave RBW Resolution Band Width DBPSK Differential BPSK RDS Radio Data System DC Direct Current RE Radio Equipment D-factor Distance factor RF Radio Frequency DFS Dynamic Frequency Selection RMS Root Mean Square DQPSK Differential QPSK RSS Radio Standards Specifications DSSS Direct Sequence Spread Spectrum Rx Receiving EDR Enhanced Data Rate SA, S/A Spectrum Analyzer EIRP, e.i.r.p. Equivalent Isotropically Radiated Power SG Signal Generator EMC ElectroMagnetic Compatibility SVSWR Site-Voltage Standing Wave Ratio EMI ElectroMagnetic Interference TR Test Receiver EN European Norm Tx Transmitting ERP, e.r.p. Effective Radiated Power VBW Video BandWidth EU European Union Vert. Vertical EUT Equipment Under Test WLAN Wireless LAN Fac. Factor FCC Federal Communications Commission FHSS Frequency Hopping Spread Spectrum FM Frequency Modulation Freq. Frequency FSK Frequency Shift Keying GFSK Gaussian Frequency-Shift Keying GNSS Global Navigation Satellite System GPS Global Positioning System Hori. Horizontal ICES Interference-Causing Equipment Standard IEC International Electrotechnical Commission IEEE Institute of Electrical and Electronics Engineers IF Intermediate Frequency ILAC International Laboratory Accreditation Conference ISED Innovation, Science and Economic Development Canada ISO International Organization for Standardization JAB Japan Accreditation Board LAN Local Area Network LIMS Laboratory Information Management System Test report No. : 13566128S-A-R1 Page : 4 of 50 Issued date : December 10, 2020 FCC ID : AK8XAVAX8100 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 CONTENTS PAGE SECTION 1: Customer information ....................................................................................................... 5 SECTION 2: Equipment under test (EUT) ............................................................................................ 5 SECTION 3: Test…

Text truncated - open the document above for the full version.

Test report No. : 13566128S-A-R1 Page : 28 of 50 Issued date : December 10, 2020 FCC ID : AK8XAVAX8100 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Radiated Spurious Emission Report No. 13566128S-A-R1 Test place Shonan EMC Lab. Semi Anechoic Chambe r 3 3 Date November 20, 2020 Novem ber 21, 2020 Tem perature / Humidity 24 deg.C, 52 %RH 23 deg.C, 52 %RH Enginee r Makoto Hosaka Takahiro Kawakami ( 30 MHz -1 GHz ) ( 1 GHz -26.5 GHz ) Mode Tx, Hopping Off, DH5 2402 MHz *These results have sufficient margin without taking account Duty cycle correction factor. (* P K: P eak, AV: Average, QP : Quasi-P eak) Polarit yFrequencyDet ect orReadingAnt .Fac.LossGainDist anceResultLimitMarginHeightAngle Remark [MHz][dBuV][dB/m][dB][dB]Factor [dB] [dBuV/m][dBuV/m][dB][cm][deg] Ho ri.137.606 QP44.2014.307.5332.090.0033.9443.59.522761 - Ho ri.139.338 QP43.7014.337.5732.090.0 033.5143.59.922956 - Ho ri.825.021 QP33.4020.9610.5831.490.0 033.4546.012.5110147 - Ho ri.960.02 4QP33.1022.1511.0230.540.0035.7353.918.1100191 - Ho ri.2390.00 0PK47.9228.4114.2241.662.1751.0673.922.8221154- Ho ri.4804.00 0PK51.3231.606.8242.922.1748.9973.924.9145213 - Ho ri.7206.00 0PK49.0937.608.4043.392.1753.8773.920.01500- Ho ri.9608.00 0PK49.6638.929.5543.142.1757.1673.916.71500- Ho ri.2390.00 0AV35.3328.4114.2241.662.1738.4753.915.4221154VBW :360 Hz Ho ri.4804.00 0AV41.1731.606.8242.922.1738.8453.915.0145213 VBW :360 Hz Ho ri.7206.00 0AV36.9037.608.4043.392.1741.6853.912.21500VBW :360 Hz Ho ri.9608.00 0AV37.2138.929.5543.142.1744.7153.99.11500VBW :360 Hz Vert.32.211 QP38.2017.696.5 032.180.0030.2140.09.710028 - Vert.32.656 QP37.9017.496.5 032.180.0029.7140.010.21008- Vert.56.752 QP37.909.0 06.6632.160.0021.4040.018.610045 - Vert.137.606 QP46.9014.3 07.5332.090.0036.6443.5 6.8 100102 - Vert.139.308 QP45.9014.337.5732.090.0 035.7143.57.7100108 - Vert.2390.00 0PK47.4828.4114.2241.662.1750.6273.923.2169132 - Vert.4804.00 0PK51.9731.606.8242.922.1749.6473.924.2153158 - Vert.7206.00 0PK50.0137.608.4043.392.1754.7973.919.11500- Vert.9608.00 0PK50.0238.929.5543.142.1757.5273.916.31500- Vert.2390.00 0AV35.4128.4114.2241.662.1738.5553.915.3169132 VBW :360 Hz Vert.4804.00 0AV44.0631.606.8242.922.1741.7353.912.1153158 VBW :360 Hz Vert.7206.00 0AV37.0737.608.4043.392.1741.8553.912.01500VBW :360 Hz Vert.9608.00 0AV37.1938.929.5543.142.1744.6953.99.21500VBW :360 Hz 10 GHz - 40 GHz : 20log (1.0 m / 3.0 m) = -9.54 dB 20 dBc Data S heet (RBW 100 kHz, VBW 300 kHz) Polarit yFrequencyDet ect orReadingAnt .Fac.LossGainDist anceResultLimitMargin Remark [MHz][dBuV][dB/m][dB][dB]Factor [dB] [dBuV/m][dBuV/m][dB] Ho ri.2402.000 PK79.7328.3814.2341.672.1782.84-- Carrier Ho ri.2400.00 0PK39.3928.3814.2241.672.1742.4962.820.3 - Vert.2402.00 0PK79.5028.3814.2341.672.1782.61-- Carrier Vert.2400.000PK38.8628.3814.2241.672.1741.9662.620.6 - 10 GHz - 40 GHz : 20log (1.0 m / 3.0 m) = -9.54 dB Result = Reading + Ant.Fac. + Loss (Cable+(Attenuator or Filter)(below 18 GHz)) - Gain(Amp lifier) + Distance factor Distance factor : 1 GHz - 10 GHz : 20log (3.85 m / 3.0 m) = 2.17 dB Result = Reading + Ant.Fac. + Loss (Cable+(Attenuator or Filter)(below 18 GHz)) - Gain(Amp lifier) + Distance factor Distance factor : 1 GHz - 10 GHz : 20log (3.85 m / 3.0 m) = 2.17 dB Test report No. : 13566128S-A-R1 Page : 29 of 50 Issued date : December 10, 2020 FCC ID : AK8XAVAX8100 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Radiated Spurious Emission (Reference Plot for band-edge) Report No. 13566128S-A-R1 Test place Shonan EMC Lab. Semi Anechoic Chamber 3 Date November 21, 2020 Tem perature / Humidity 23 deg.C, 52 %RH Enginee r Takahiro Kawakami ( 1 GHz -26.5 GHz ) Mode Tx, Hopping Off, DH5 2402 MHz Horizontal Restricted-band band-edge Plot Authorized-band band-edge Plot Trace Green : Peak Plot Trace Purple : Average Plot 20dBc Plot Vertical Restricted-band band-edge Plot Authorized-band band-edge Plot Trace Green : Peak Plot Trace Purple : Average Plot 20dBc Plot * The measurement was conducted for a sufficiently long enough time to detect any possible spurious emissions. Final result of restricted band edge was shown in tabular data. Test report No. : 13566128S-A-R1 Page : 30 of 50 Issued date : December 10, 2020 FCC ID : AK8XAVAX8100 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Radiated Spurious Emission Report No. 13566128S-A-R1 Test place Shonan EMC Lab. Semi Anechoic Chambe r 3 3 Date November 21, 2020 November 21, 2020 Tem perature / Humidity 22 deg.C, 54 %RH 23 deg.C, 52 %RH Enginee r Kazuya Noda Takahiro Kawakami ( 30 MHz -1 GHz ) ( 1 GHz -26.5 GHz ) Mode Tx, Hopping Off, DH5 2441 MHz (* P K: P eak, AV: Average, QP : Quasi-P eak) Polarit yFrequencyDet ect orReadingAnt .Fac.LossGainDist anceResultLimitMarginHeightAngle Remark [MHz][dBuV][dB/m][dB][dB]Factor [dB] [dBuV/m][dBuV/m][dB][cm][deg] Ho ri.141.011 QP45.4114.387.6032.090.0035.3043.58.222776 - Ho ri.142.729 QP45.0114.517.6 432.090.0035.0743.58.4230225 - Ho ri.825.018 QP33.3120.9610.5831.490.0 033.3646.012.6109143 - Ho ri.960.023 QP32.2822.1511.0230.5 40.0034.9153.918.9100190- Ho ri.4882.00 0PK50.7131.636.8742.932.1748.4573.925.4149126 - Ho ri.7323.00 0PK48.0837.718.4743.492.1752.9473.920.91500- Ho ri.9764.00 0PK48.2639.199.6542.962.1756.3173.917.51500- Ho ri.4882.00 0AV40.0531.636.8742.932.1737.7953.916.1149126 VBW :360 Hz Ho ri.7323.00 0AV36.8137.718.4743.492.1741.6753.912.21500VBW :360 Hz Ho ri.9764.00 0AV37.0039.199.6542.962.1745.0553.98.81500VBW :360 Hz Vert.39.553 QP35.6415.066.6332.170.0 025.1640.014.8100154- Vert.56.442 QP35.859.086.6732.160.0 019.4440.020.51004- Vert.139.296 QP47.1214.337.5732.090.0 036.9343.5 6.5 100101 - Vert.141.026 QP45.4714.387.6 032.090.0035.3643.58.110098 - Vert.142.745 QP44.6314.…

Text truncated - open the document above for the full version.

Test report No. : 13566128S-A-R1 Page : 49 of 50 Issued date : December 10, 2020 FCC ID : AK8XAVAX8100 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Radiated Spurious Emission Below 1 GHz Above 1 GHz Test report No. : 13566128S-A-R1 Page : 50 of 50 Issued date : December 10, 2020 FCC ID : AK8XAVAX8100 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Antenna Terminal Conducted Tests Photo 1 Photo 2 End of Report
