AK8XAVW650BTAV Center

F:\#Sagyou\0713\4577696111\4577696111XAVW650BTUC\01GB-XAVW650BTUC\010COV.fmmasterpage: Cover XAV-W650BT/XAV-V630BT 4-577-696-11(1) XAV-W650BT/XAV-V630BT 4-577-696-11(1) AV Center Owner’s Record The model and serial numbers are located on the bottom of the unit. Record these numbers in the space provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product. Model No. Serial No. To cancel the demonstration (Demo) display, see page 20. For the connection/installation, see page 33. Pour annuler l’affichage de demonstration (Demo), reportez- vous a la page 22. Pour le raccordement/l’installation, reportez-vous à la page 37. Para cancelar la pantalla de demostracion (Demostración), consulte la página 22. Para la conexión/instalación, consulte la página 36. Operating Instructions GB Mode d’emploi FR Manual de instrucciones ES 010COV.fm Page 1 Monday, July 13, 2015 4:28 PM 2GB F:\#Sagyou\0713\4577696111\4577696111XAVW650BTUC\01GB-XAVW650BTUC\020INT.fmmasterpage: Left XAV-W650BT/XAV-V630BT 4-577-696-11(1) The nameplate indicating operating voltage, etc., is located on the bottom of the chassis. Warning To prevent fire or shock hazard, do not expose the unit to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. This device complies with Part 15 of the FCC Rules and Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including Interference that may cause undesired operation of the device. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20 cm or more away from person’s body. CAUTION The use of optical instruments with this product will increase eye hazard. As the laser beam used in this CD/DVD player is harmful to eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only. For the State of California, USA only Perchlorate Material – special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate Note on the lithium battery Do not expose the battery to excessive heat such as direct sunlight, fire or the like. Disclaimer regarding services offered by third parties Services offered by third parties may be changed, suspended, or terminated without prior notice. Sony does not bear any responsibility in these sorts of situations. For safety, be sure to install this unit in the dashboard of the car as the rear side of the unit becomes hot during use. For details, see “Connection/Installation” (page 33). This manual contains instructions for XAV- W650BT and XAV-V630BT. XAV-W650BT is the model representatively used for illustration purposes. FOR THE CUSTOMERS IN THE USA. NOT APPLICABLE IN CANADA, INCLUDING IN THE PROVINCE OF QUEBEC. POUR LES CLIENTS AUX ÉTATS-UNIS. NON APPLICABLE AU CANADA, Y COMPRIS LA PROVINCE DE QUÉBEC. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ˋReorient or relocate the receiving antenna. ˋIncrease the separation between the equipment and receiver. ˋConnect the equipment into an outlet on a circuit different from that to which the receiver is connected. ˋConsult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. Warning if your car’s ignition has no ACC position After turning the ignition off, be sure to press and hold HOME on the unit until the display disappears. Otherwise, the display does not turn off and this causes battery drain. 010book.book Page 2 Monday, July 13, 2015 4:36 PM 3GB F:\#Sagyou\0713\4577696111\4577696111XAVW650BTUC\01GB-XAVW650BTUC\020INT.fmmasterpage: Right XAV-W650BT/XAV-V630BT 4-577-696-11(1) Caution IN NO EVENT SHALL SONY BE LIABLE FOR ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES OR OTHER DAMAGES INCLUDING, WITHOUT LIMITATION, LOSS OF PROFITS, LOSS OF REVENUE, LOSS OF DATA, LOSS OF USE OF THE PRODUCT OR ANY ASSOCIATED EQUIPMENT, DOWNTIME, AND PURCHASER’S TIME RELATED TO OR ARISING OUT OF THE USE OF THIS PRODUCT, ITS HARDWARE AND/OR ITS SOFTWARE. Dear customer, this product includes a radio transmitter. Please check your vehicle operation manual or contact the manufacturer of your vehicle or your vehicle dealer, before you install this product into your vehicle. Emergency calls This BLUETOOTH car handsfree and the electronic device connected to the handsfree operate using radio signals, cellular, and landline networks as well as user-programmed function, which cannot guarantee connection under all conditions. Therefore do not rely solely upon any electronic device for essential communications (such as medical eme…

Text truncated - open the document above for the full version.

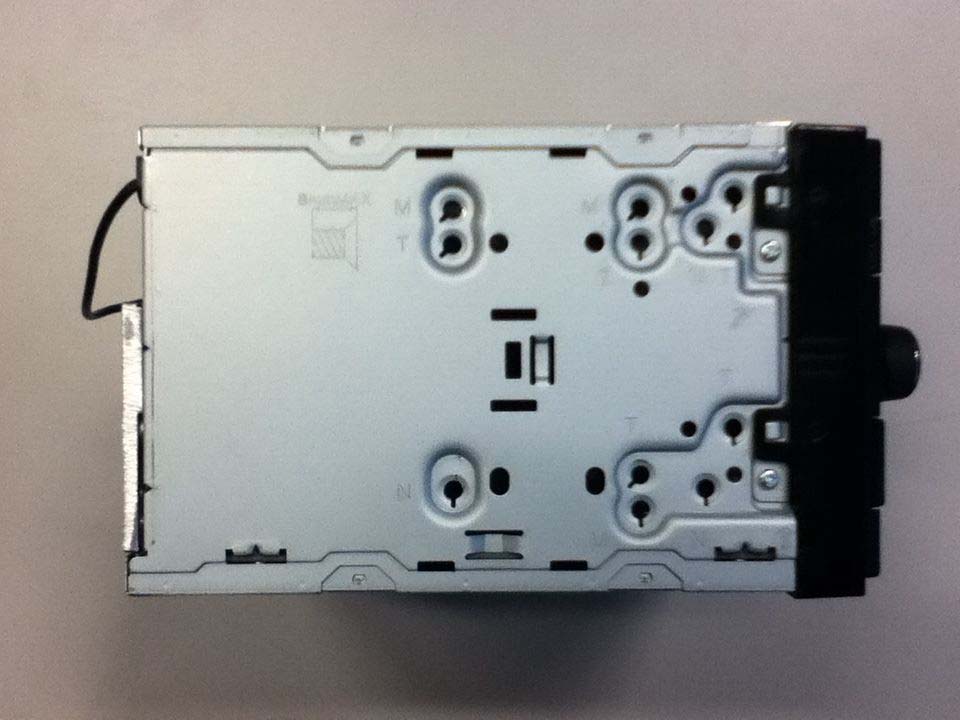

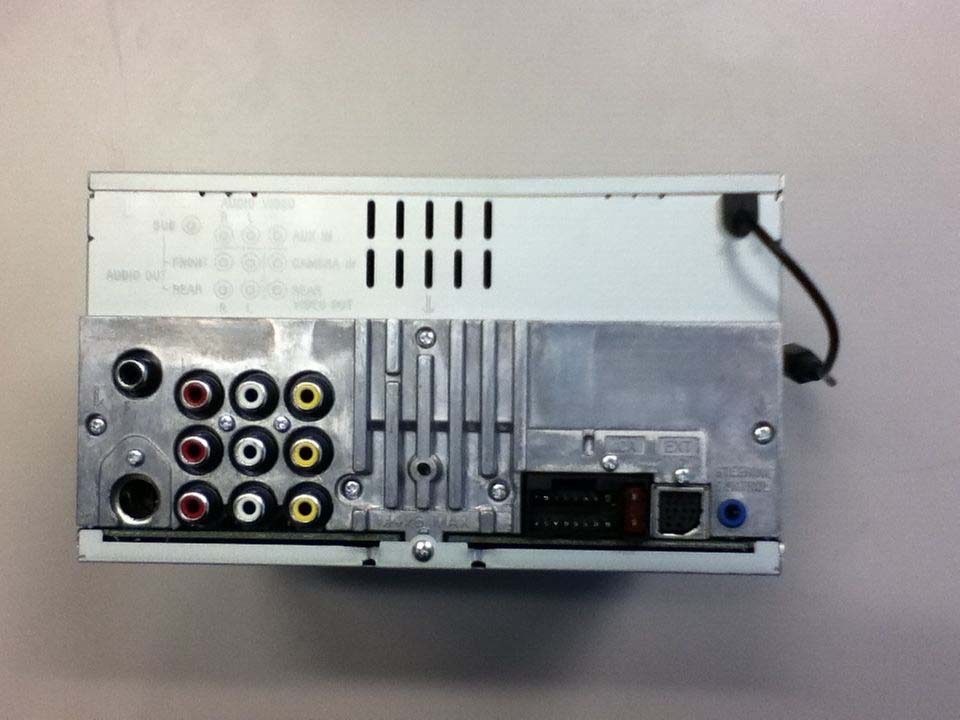

Photo Photo Photo

Label position Label

Photo Antenna Photo Antenna Connector Photo Photo

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 July 10, 2015 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC ID: AK8XAVW650BT To whom it may concern, We, UL Japan, Inc., hereby declare that AV Center, model : XAV-W650BT (FCC ID: AK8XAVW650BT) of Sony Corporation is exempt from RF exposure SAR evaluation as its output power meets the exclusion limits stated in FCC Part 2 §2.1093. KDB 447498D01(v05r02) has the following exclusion for portable devices: The 1g and 10g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances < 50 mm are determined by: [(measured maximum average output power (Burst power)(mW))/(Minimum separation distance(mm))]•[ √ f (GHz)] < 3.0 for 1g SAR and < 7.5 for 10g extremity SAR where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is < 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. This device f = 2.48 GHz, distance = 5mm (minimum separation distance: 5 mm was used in the calculation) and the measured maximum average output power (Burst power) was 1 mW So for this device: 1 mW [measured maximum average output power (Burst power)] / 5 mm [minimum separation distance] * ( √ 2.48) = *This is less than 3.0, so no SAR is required. Even taking into account the tolerance, this device can be satisfied with the limits. Thank you for your attention to this matter. Akio Hayashi Leader Consumer Technology Division

Test report No. : 10832565S-E Page : 1 of 42 Issued date : July 10, 2015 FCC ID : AK8XAVW650BT UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 13-EM-F0429 RADIO TEST REPORT Test Report No. : 10832565S-E Applicant : Sony Corporation Type of Equipment : AV Center Model No. : XAV-W650BT FCC ID : AK8XAVW650BT Test regulation: FCC Part 15 Subpart C: 2015 Test result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the above regulation. 4. The test results in this report are traceable to the national or international standards. 5. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. 6. This test report covers Radio technical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requirements. (if applicable) Date of test: June 14 to 28, 2015 Representative test engineer: Shinichi Takano Engineer Consumer Technology Division Approved by: Toyokazu Imamura Leader Consumer Technology Division RTL02610 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". Test report No. : 10832565S-E Page : 2 of 42 Issued date : July 10, 2015 FCC ID : AK8XAVW650BT UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 10832565S-E Revision Test report No. Date Page revised Contents - (Original) 10832565S-E July 10, 2015 - - Test report No. : 10832565S-E Page : 3 of 42 Issued date : July 10, 2015 FCC ID : AK8XAVW650BT UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 CONTENTS PAGE SECTION 1: Customer information ....................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ......................................................................................... 4 SECTION 3: Test specification, procedures & results .......................................................................... 5 SECTION 4: Operation of E.U.T. during testing .................................................................................. 8 SECTION 5: Radiated Spurious Emission .......................................................................................... 11 SECTION 6: Antenna Terminal Conducted Tests .............................................................................. 12 APPENDIX 1: Test data ........................................................................................................................ 13 20dB Bandwidth and Carrier Frequency Separation ......................................................................... 13 Number of Hopping Frequency ........................................................................................................ 16 Dwell time ......................................................................................................................................... 18 Maximum Peak Output Power .......................................................................................................... 21 Average Output Power ...................................................................................................................... 22 Radiated Spurious Emission ............................................................................................................. 24 Conducted Spurious Emission .......................................................................................................... 31 Conducted Emission Band Edge compliance ................................................................................... 37 99%Occupied Bandwidth ................................................................................................................. 39 APPENDIX 2: Test instruments ........................................................................................................... 41 APPENDIX 3: Photographs of test setup ............................................................................................. 42 Radiated Spurious Emission ............................................................................................................. 42 Test report No. : 10832565S-E Page : 4 of 42 Issued date : July 10, 2015 FCC ID : AK8XAVW650BT UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : Sony Corporation Address : 2-10-1 Osaki, Shinagawa-ku, Tokyo 141-8610 Japan Telephone Number : +81-50-3750-7634 Facsimile Number : +81-50-3750-6574 Contact Person : Kazunaga Kinjo SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : AV Center Model No. : XAV-W650BT Serial No. : Refer to Section 4, Clause 4.2 Rating : DC 12 V (car battery) Receipt Date of Sample : June 7, 2015 Country of Mass-production : China Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab. 2.2 Product Description Model: XAV-W650BT (referred to as the EUT in this report) is an AV Center. General Specification Clock frequency(ies) in the system : 27 MHz, 26 MHz, 8 MHz, 37.05 MHz Radio Specification Radio Type : Transceiver Frequency of Operation : 2402 MHz - 2480 MHz Modulation : FHSS Power Supply (radio part input) : DC 3.3 V Antenna type : Wire Antenna Antenna Gain : -…

Text truncated - open the document above for the full version.

Test report No. : 10832565S-E Page : 42 of 42 Issued date : July 10, 2015 FCC ID : AK8XAVW650BT UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Radiated Spurious Emission Front Rear (below 1 GHz) Rear (above 1 GHz) End of Report
