AK8XT0011IoT Network device

EN Instructions for safe and efficient use These instructions are for your own safety and to prevent device malfunction. Failure to follow these may void your warranty and risk injury or harm. No medical use The intended use of this product is to offer end-to-end security for data com- munication and is applicable to many different use cases, as further described in Leaflet 2. This product is not a medical device and is therefore not intended for medical purposes, like diagnosis, treatment or prevention of illness. Safe use and taking care of your device • Do not use a damaged device. It may cause injury or harm. If your device is damaged or you aren’t sure if it is working properly, contact your provider to have it checked and repaired. • Use Sony original accessories and spare parts. Non-Sony batteries, chargers, and spare parts may pose increased safety risks, such as fire, explosion, leak- age, or chemical burns. Sony’s warranty does not cover failures or damage caused by non-Sony batteries, chargers, or spare parts. • Do not expose the device to excessive pressure or impact. Doing so may damage your device. • Use your device within its IP rating. Conditions where IP rating limits might be exceeded include environments with excessive humidity, water depths, liquid pressure and dust exposure. • Use a soft damp cloth to clean your device. • To clean the device, and after exposure to salt- or chlorinated water, rinse it gently in tap water. • Treat the device with care and do not expose it to extreme high or low temperatures. Do not expose your device to temperatures below -10°C (+14°F) or above +35°C (+95°F). • Do not expose your device to flames or lit tobacco products. • Do not attempt to disassemble or modify your device. This device is equipped with an eSIM: do not attempt to modify it. • Do not cover the device with your hand as this affects quality and power levels and can shorten communication and standby times. • Follow others’ instructions about disabling radio transmitters, engaging Flight Mode, and/or turning off your device. If only Bluetooth is permitted it can be enabled separately while the device is in Flight Mode. • This device contains magnets and radio transmitters, which may interfere with pacemakers, defibrillators, programmable shunt valves, or other medical devices or equipment. Do not place this device close to such medical devices or persons who use such medical devices (minimum 15 cm (6 inches) between your device and the medical device). Consult your doctor before using this device if you use any such medical device. Turn off your device if you suspect interference. • This device and charger may contain small parts that could create a choking hazard or intestinal injuries. Keep this device away from children or other supervised individuals. If you know or suspect that you or anyone has swal- lowed a small part, seek medical attention immediately. • This device does not support voice calls, including emergency voice calls. The SAR values and test distances differ depending on the measuring method, the device tested, but only the highest SAR values are presented. The WHO (World Health Organization) has stated that current scientific infor- mation does not indicate the need for special precautions regarding the use of tablets and phones. For more information on this topic, please visit who.int/ emf and refer to Fact sheet No.193 who.int/mediacentre/factsheets/fs193 Elec- tromagnetic fields and public health: mobile phones. Additional SAR-related information can also be found on the Mobile Manufacturers Forum EMF website at emfexplained.info. For further region specific information about exposure to radio waves (SAR), please see below: USA, Guam, Puerto Rico & Virgin Islands (US, GU, PR, VI) This device has been certified in compliance with the government ́s require- ments for exposure to radio waves. In the United States and Canada, the Extremity SAR limit for devices used by the public is 4 watts/kilogram (W/kg) averaged over ten grams of body tissue. The standard incorporates a margin of safety to give additional protection for the public and to account for any variations in measurements. Before a device is available for sale to the public in the US, it must be tested and certified by the Federal Communications Commission (FCC) that it does not exceed the limit established by the government-adopted requirement for safe exposure. The tests are performed in positions and locations (i.e., by the ear and worn on the body) as required by the FCC for each model. The FCC has granted an Equipment Authorisation for this device with all reported SAR levels eval- uated as in compliance with the FCC RF exposure guidelines. While there may be differences between the SAR levels of various devices, all devices granted an FCC equipment authorisation meet the government requirement for safe exposure. SAR information on this device is on file at the FCC and can be found by entering the FCC ID of your device at: transition.fcc.gov/oet/ea/fccid/. The FCC ID of this device is: AK8XT0011. Canada The available scientific evidence does not show that any health problems are associated with using low power wireless devices. There is no proof, however, that these low power wireless devices are absolutely safe. Low power Wireless devices emit low levels of radio frequency energy (RF) in the microwave range while being used. Whereas high levels of RF can produce health effects (by heating tissue), exposure of low-level RF that does not produce heating effects causes no known adverse health effects. Many studies of low-level RF expo- sures have not found any biological effects. Some studies have suggested that some biological effects might occur, but such findings have not been confirmed by additional research. This equipment has been tested and found to comply with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Expos…

Text truncated - open the document above for the full version.

ChargingOverview Overview Charging 45min < ~ 100% 50% 1 User guide mHealth & Safety Wearable Power onReset 3sec Reset 3sec BARCODE AREA BARCODE NUMBERS © 2019 Sony Mobile Communications Inc. XXXX-XXXX.X Printed in XXX (Printers code)

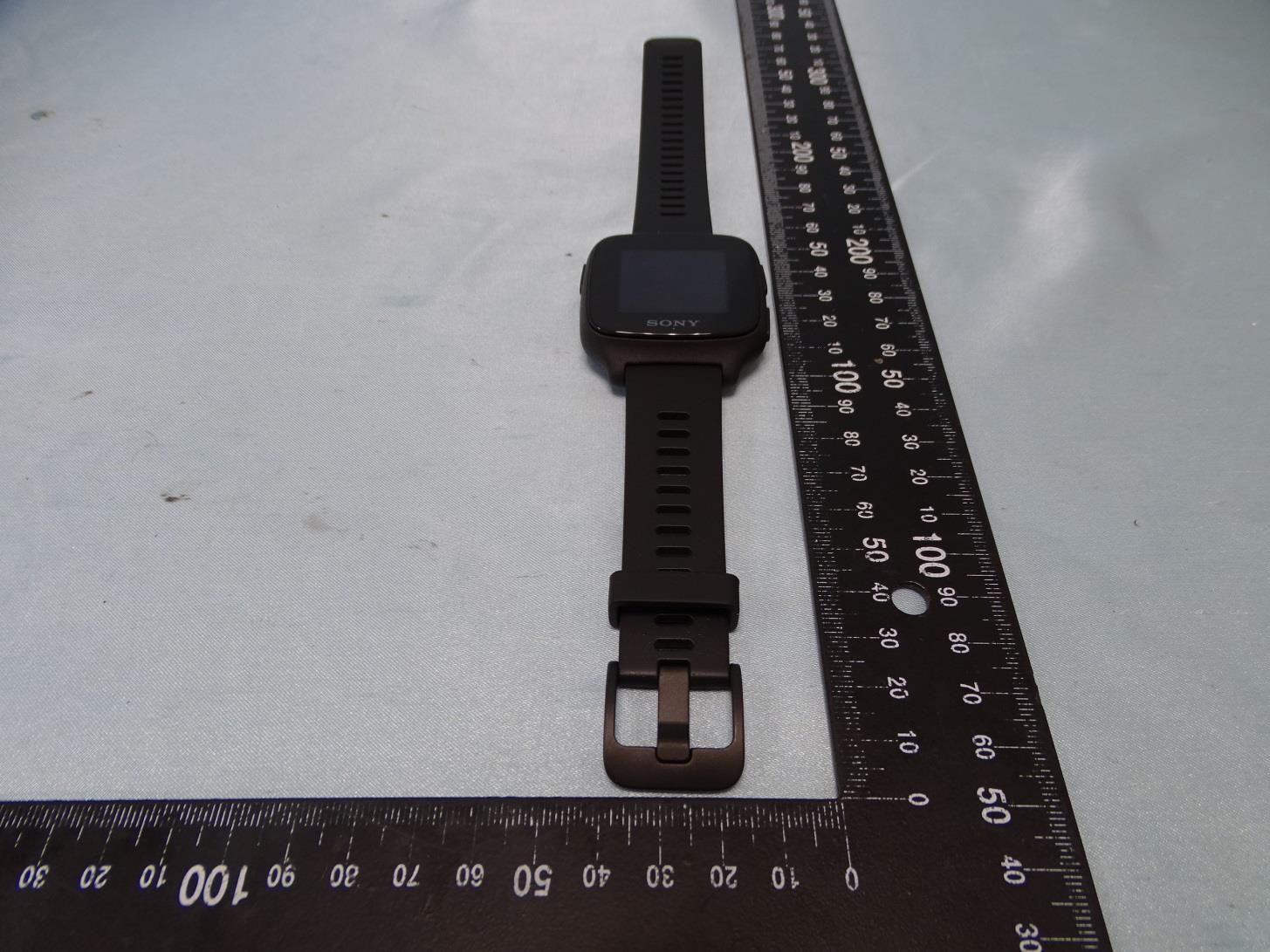

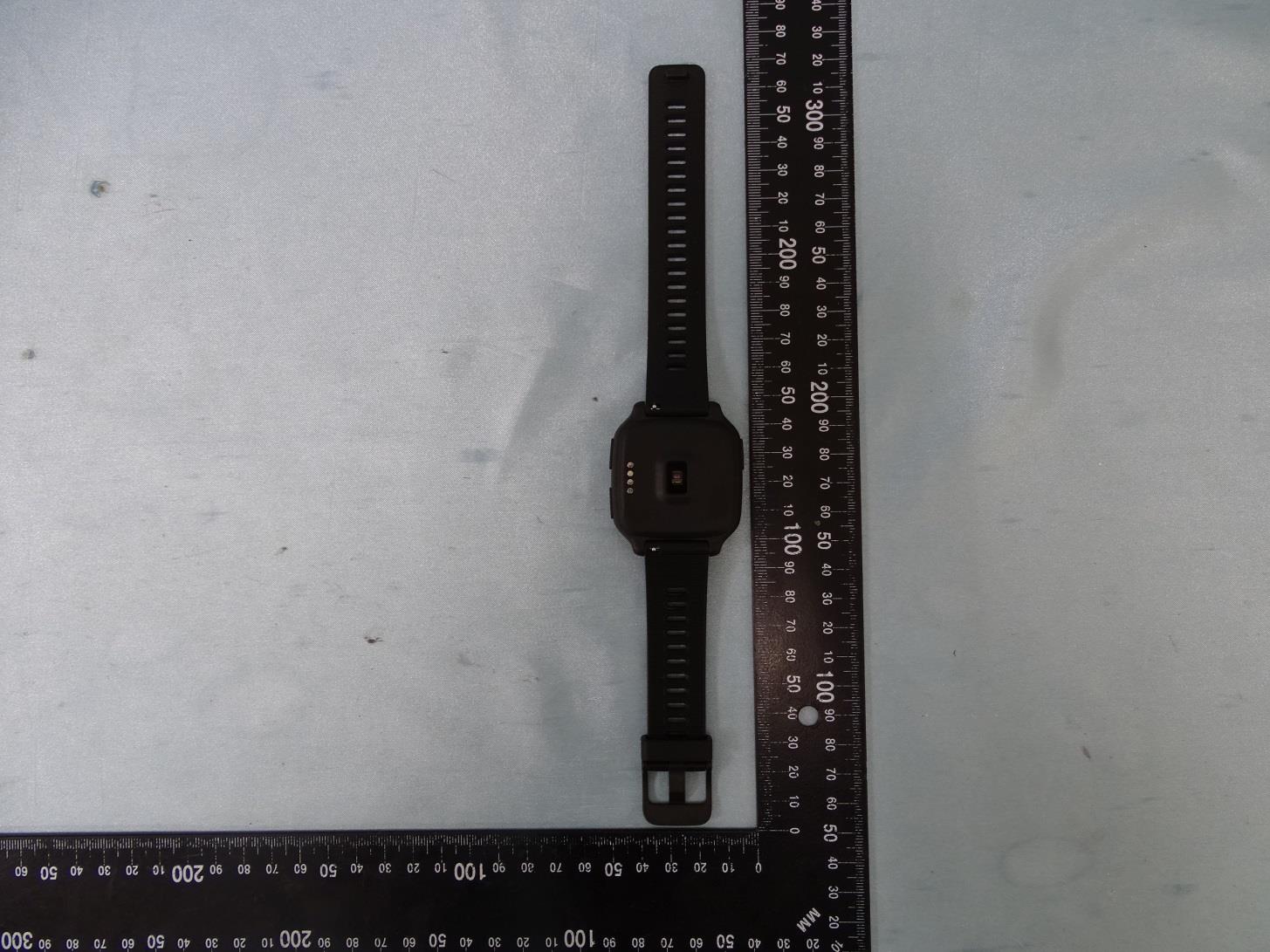

PHOTOGRAPHS OF EUT Report No.: EP971044-02 Brand Name: Sony TEL : 886-3-327-3456 Page Number : 1 of 10 FAX : 886-3-328-4978 Issued Date : Nov. 08, 2019 Report Version : 01 1. External Photograph of EUT PHOTOGRAPHS OF EUT Report No.: EP971044-02 Brand Name: Sony TEL : 886-3-327-3456 Page Number : 2 of 10 FAX : 886-3-328-4978 Issued Date : Nov. 08, 2019 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP971044-02 Brand Name: Sony TEL : 886-3-327-3456 Page Number : 3 of 10 FAX : 886-3-328-4978 Issued Date : Nov. 08, 2019 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP971044-02 Brand Name: Sony TEL : 886-3-327-3456 Page Number : 4 of 10 FAX : 886-3-328-4978 Issued Date : Nov. 08, 2019 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP971044-02 Brand Name: Sony TEL : 886-3-327-3456 Page Number : 5 of 10 FAX : 886-3-328-4978 Issued Date : Nov. 08, 2019 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP971044-02 Brand Name: Sony TEL : 886-3-327-3456 Page Number : 6 of 10 FAX : 886-3-328-4978 Issued Date : Nov. 08, 2019 Report Version : 01

Label and Label Location FCC ID: AK8XT0011

PHOTOGRAPHS OF EUT Report No.: EP971044-02 Brand Name: Sony TEL : 886-3-327-3456 Page Number : 7 of 10 FAX : 886-3-328-4978 Issued Date : Nov. 08, 2019 Report Version : 01 2. Internal Photograph of EUT PHOTOGRAPHS OF EUT Report No.: EP971044-02 Brand Name: Sony TEL : 886-3-327-3456 Page Number : 8 of 10 FAX : 886-3-328-4978 Issued Date : Nov. 08, 2019 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP971044-02 Brand Name: Sony TEL : 886-3-327-3456 Page Number : 9 of 10 FAX : 886-3-328-4978 Issued Date : Nov. 08, 2019 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP971044-02 Brand Name: Sony TEL : 886-3-327-3456 Page Number : 10 of 10 FAX : 886-3-328-4978 Issued Date : Nov. 08, 2019 Report Version : 01 ─────THE END──── 720510

TEL : 886-3-327-3456 Page 1 of 30 FAX : 886-3-328-4978 Issued Date : Jan. 06, 2020 Form version: 181113 FCC SAR TEST REPORT Report No. : FA971044-02 FCC SAR TEST REPORT FCC ID : AK8XT0011 Brand Name : Sony Applicant : Sony Corporation 1-7-1 Konan Minato-ku, Tokyo, 108-0075 Japan Manufacturer : Sony Corporation 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan Standard : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2013 The product was received on Oct. 09, 2019 and testing was started from Oct. 10, 2019 and completed on Dec. 31, 2019. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the test procedures and has been in compliance with the applicable technical standards. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any agency of government. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) Approved by: Cona Huang / Deputy Manager TEL : 886-3-327-3456 Page 2 of 30 FAX : 886-3-328-4978 Issued Date : Jan. 06, 2020 Form version: 181113 FCC SAR TEST REPORT Report No. : FA971044-02 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Guidance Applied .......................................................................................................................................................... 4 3. Equipment Under Test (EUT) Information ................................................................................................................... 5 3.1 General Information ............................................................................................................................................... 5 3.2 Device Serial Number ............................................................................................................................................ 5 3.3 General LTE SAR Test and Reporting Considerations ........................................................................................... 6 4. RF Exposure Limits....................................................................................................................................................... 7 4.1 Uncontrolled Environment ...................................................................................................................................... 7 4.2 Controlled Environment .......................................................................................................................................... 7 5. Specific Absorption Rate (SAR) ................................................................................................................................... 8 5.1 Introduction ............................................................................................................................................................ 8 5.2 SAR Definition ........................................................................................................................................................ 8 6. System Description and Setup .................................................................................................................................... 9 6.1 E-Field Probe ........................................................................................................................................................10 6.2 Data Acquisition Electronics (DAE) .......................................................................................................................10 6.3 Phantom ................................................................................................................................................................ 11 6.4 Device Holder........................................................................................................................................................12 7. Measurement Procedures ...........................................................................................................................................13 7.1 Spatial Peak SAR Evaluation ................................................................................................................................13 7.2 Power Reference Measurement............................................................................................................................14 7.3 Area Scan .............................................................................................................................................................14 7.4 Zoom Scan ............................................................................................................................................................15 7.5 Volume Scan Procedures ......................................................................................................................................15 7.6 Power Drift Monitoring ...........................................................................................................................................15 8. Test Equipment List .....................................................................................................................................................16 9. System Verification ......................................................................................................................................................17 9.1 Tissue Simulating Liquids ......................................................................................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2019/10/10 System Check_Head_750MHz DUT: D750V3-1107 Communication System: CW ; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750_191010 Medium parameters used: f = 750 MHz; σ = 0.894 S/m; ε r = 43.4; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN7346; ConvF(10.19, 10.19, 10.19) @ 750 MHz; Calibrated: 2019/4/25 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn853; Calibrated: 2019/7/18 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:1477 - Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.04 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 57.52 V/m; Power Drift = -0.14 dB Peak SAR (extrapolated) = 3.32 W/kg SAR(1 g) = 2.13 W/kg; SAR(10 g) = 1.42 W/kg Maximum value of SAR (measured) = 2.86 W/kg 0 dB = 2.86 W/kg = 4.56 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2019/12/31 System Check_Head_750MHz DUT: D750V3-1107 Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750_191231 Medium parameters used: f = 750 MHz; σ = 0.892 S/m; ε r = 43.013; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3925; ConvF(10.33, 10.33, 10.33) @ 750 MHz; Calibrated: 2019/9/20 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1311; Calibrated: 2019/8/27 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:1477 - Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.90 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 59.57 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 3.26 W/kg SAR(1 g) = 2.2 W/kg; SAR(10 g) = 1.47 W/kg Maximum value of SAR (measured) = 2.91 W/kg 0 dB = 2.91 W/kg = 4.64 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2019/10/24 System Check_Head_1750MHz DUT: D1750V2-1112 Communication System: CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: HSL_1750_191024 Medium parameters used: f = 1750 MHz; σ = 1.36 S/m; ε r = 40.746; ρ = 1000 kg/m 3 Ambient Temperature：23.8 °C; Liquid Temperature：22.8 °C DASY5 Configuration: - Probe: EX3DV4 - SN7346; ConvF(8.5, 8.5, 8.5) @ 1750 MHz; Calibrated: 2019/4/25 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn853; Calibrated: 2019/7/18 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:1477 - Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 14.6 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 101.7 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 15.8 W/kg SAR(1 g) = 8.81 W/kg; SAR(10 g) = 4.74 W/kg Maximum value of SAR (measured) = 13.3 W/kg 0 dB = 13.3 W/kg = 11.24 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2019/10/10 System Check_Head_2450MHz DUT: D2450V2-736 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_191010 Medium parameters used : f = 2450 MHz; σ = 1.803 S/m; ε r = 39.149; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN7346; ConvF(7.5, 7.5, 7.5) @ 2450 MHz; Calibrated: 2019/4/25 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn853; Calibrated: 2019/7/18 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:1477 - Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Pin=250mW/Area Scan (71x71x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 20.7 W/kg Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 111.5 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 24.7 W/kg SAR(1 g) = 12.5 W/kg; SAR(10 g) = 5.91 W/kg Maximum value of SAR (measured) = 20.3 W/kg 0 dB = 20.3 W/kg = 13.07 dBW/kg

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2019/10/24 #01_LTE Band 4_20M_QPSK_3_0_Back_0mm_Ch20175 Communication System: LTE; Frequency: 1732.5 MHz;Duty Cycle: 1:1 Medium: HSL_1750_191024 Medium parameters used: f = 1733 MHz; σ = 1.344 S/m; ε r = 40.822; ρ = 1000 kg/m 3 Ambient Temperature：23.8 °C; Liquid Temperature：22.8 °C DASY5 Configuration: - Probe: EX3DV4 - SN7346; ConvF(8.5, 8.5, 8.5) @ 1732.5 MHz; Calibrated: 2019/4/25 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn853; Calibrated: 2019/7/18 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:1477 - Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Area Scan (51x51x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.63 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 41.59 V/m; Power Drift = -0.17 dB Peak SAR (extrapolated) = 2.65 W/kg SAR(1 g) = 1.43 W/kg; SAR(10 g) = 0.790 W/kg Maximum value of SAR (measured) = 1.99 W/kg 0 dB = 1.99 W/kg = 2.99 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2019/12/31 #02_LTE Band 12_10M_QPSK_3_0_Back_0mm_Ch23095 Communication System: LTE; Frequency: 707.5 MHz;Duty Cycle: 1:1 Medium: HSL_750_191231 Medium parameters used: f = 707.5 MHz; σ = 0.856 S/m; ε r = 43.71; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3925; ConvF(10.33, 10.33, 10.33) @ 707.5 MHz; Calibrated: 2019/9/20 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1311; Calibrated: 2019/8/27 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:1477 - Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Area Scan (51x51x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0767 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.693 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 0.0850 W/kg SAR(1 g) = 0.036 W/kg; SAR(10 g) = 0.019 W/kg Maximum value of SAR (measured) = 0.0588 W/kg 0 dB = 0.0588 W/kg = -12.31 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2019/10/10 #03_LTE Band 13_10M_QPSK_3_0_Back_0mm_Ch23230 Communication System: LTE; Frequency: 782 MHz;Duty Cycle: 1:1 Medium: HSL_750_191010 Medium parameters used: f = 782 MHz; σ = 0.924 S/m; ε r = 42.99; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN7346; ConvF(10.19, 10.19, 10.19) @ 782 MHz; Calibrated: 2019/4/25 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn853; Calibrated: 2019/7/18 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:1477 - Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Area Scan (51x51x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0803 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.544 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.122 W/kg SAR(1 g) = 0.056 W/kg; SAR(10 g) = 0.030 W/kg Maximum value of SAR (measured) = 0.0833 W/kg 0 dB = 0.0833 W/kg = -10.79 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2019/12/31 #04_LTE Band 14_10M_QPSK_3_0_Back_0mm_Ch23330 Communication System: LTE; Frequency: 793 MHz;Duty Cycle: 1:1 Medium: HSL_750_191231 Medium parameters used: f = 793 MHz; σ = 0.937 S/m; ε r = 42.525; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3925; ConvF(10.33, 10.33, 10.33) @ 793 MHz; Calibrated: 2019/9/20 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1311; Calibrated: 2019/8/27 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:1477 - Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Area Scan (51x51x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.216 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.08 V/m; Power Drift = 0.15 dB Peak SAR (extrapolated) = 0.255 W/kg SAR(1 g) = 0.112 W/kg; SAR(10 g) = 0.057 W/kg Maximum value of SAR (measured) = 0.180 W/kg 0 dB = 0.180 W/kg = -7.45 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2019/10/10 #05_Bluetooth_1Mbps_Back_0mm_Ch0 Communication System: Bluetooth; Frequency: 2402 MHz;Duty Cycle: 1:1 Medium: HSL_2450_191010 Medium parameters used : f = 2402 MHz; σ = 1.767 S/m; ε r = 39.149; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN7346; ConvF(7.5, 7.5, 7.5) @ 2402 MHz; Calibrated: 2019/4/25 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn853; Calibrated: 2019/7/18 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:1477 - Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Area Scan (61x61x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.0420 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.605 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.0420 W/kg SAR(1 g) = 0.033 W/kg; SAR(10 g) = 0.026 W/kg Maximum value of SAR (measured) = 0.0386 W/kg 0 dB = 0.0386 W/kg = -14.13 dBW/kg

~, In Collaboratio w1 -TTL s P e a g ~ CALIBRATION l!.ABORATORY Add: No.51 Xueyuan Road, Haidian District, Beijing, 100191, China Tel: +86-10-62304633-2079 Fax: +86-10-62304633-2504 E-mail: [email protected] http://www.chinattl.cn Client Sporton Certificate No: 219-60054 CALIBRATION CERTIFICATE Object D750V3 - SN: 1107 Calibration Procedure(s) FF-211-003-01 Calibration Procedures for dipole validation kits Calibration date: March 8, 2019 This calibration Certificate documents the traceability to national standards, which realize the physical units of measurements(SI). The measurements and the uncertainties with confidence probability are given on the following pages and are part of the certificate. All calibrations have been conducted in the closed laboratory facility: environment temperature(22±3)'C and humidity<70%. Calibration Equipment used (M&TE critical for calibration) Primary Standards Power Meter NRP2 Power sensor NRP8S Reference Probe EX3DV4 DAE4 Secondary Standards Signal Generator E4438C NetworkAnalyzer E5071 C Calibrated by: Reviewed by: Approved by: ID# Cal Date(Calibrated by, Certificate No.) Scheduled Calibration 106277 20-Aug-18 (CTTL, No.J18X06862) Aug-19 104291 20-Aug-18 (CTIL, No.J18X06862) Aug-19 SN 3617 31-Jan-19(SPEAG,No.EX3-3617 _Jan19) Jan-20 SN 1331 06-Feb-19(SPEAG,No.DAE4-1331_Feb19) Feb-20 ID# Cal Date(Calibrated by, Certificate No.) MY49071430 23-Jan-19 (CTTL, No.J19X00336) MY46110673 24-Jan-19 (CTTL, No.J19X00547) Name Function Zhao Jing SAR Test Engineer Yu Zongying SAR Test Engineer Qi Dianyuan SAR Project Leader Scheduled Calibration Jan-20 Jan-20 ·· . Sigriature ·:_·'.Ji~---- . ~ tfh?0> _ -- ~ Issued: March 10, 2019 This calibration certificate shall not be reproduced except in full without written approval of the laboratory. Certificate No: Z19-60054 Page 1 of8 In Collaboratio ~ i s p e a g CALI~ ON LABORATORY Add: No.SI Xueyuan Road, Haidian District, Beijing, 100191, China Tel: +86-l 0-62304633-2079 Fax: +86-10-62304633-2504 E-mail: [email protected] http://www.chinattl.cn Glossary: TSL ConvF N/A tissue simulating liquid sensitivity in TSL / NORMx,y,z not applicable or not measured Calibration is Performed According to the Following Standards: a) IEEE Std 1528-2013, "IEEE Recommended Practice for Determining the Peak Spatial-Averaged Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques", June 2013 b) IEC 62209-1, "Measurement procedure for assessment of specific absorption rate of human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices-Part 1: Device used next to the ear (Frequency range of 300MHz to 6GHz)", July 2016 c) IEC 62209-2, "Procedure to measure the Specific Absorption Rate (SAR) For wireless communication devices used in close proximity to the human body (frequency range of 30MHz to 6GHz)", March 2010 d) KDB865664, SAR Measurement Requirements for 100 MHz to 6 GHz Additional Documentation: e) DASY4/5 System Handbook Methods Applied and Interpretation of Parameters: • Measurement Conditions: Further details are available from the Validation Report at the end of the certificate. All figures stated in the certificate are valid at the frequency indicated. • Antenna Parameters with TSL: The dipole is mounted with the spacer to position its feed point exactly below the center marking of the flat phantom section, with the arms oriented parallel to the body axis. • Feed Point Impedance and Return Loss: These parameters are measured with the dipole positioned under the liquid filled phantom. The impedance stated is transformed from the measurement at the SMA connector to the feed point. The Return Loss ensures low reflected power. No uncertainty required. • Electrical Delay: One-way delay between the SMA connector and the antenna feed point. No uncertainty required. • SAR measured: SAR measured at the stated antenna input power. • SAR normalized: SAR as measured, normalized to an input power of 1 Wat the antenna connector. • SAR for nominal TSL parameters: The measured TSL parameters are used to calculate the nominal SAR result. The reported uncertainty of measurement is stated as the standard uncertainty of Measurement multiplied by the coverage factor k=2, which for a normal distribution Corresponds to a coverage probability of approximately 95%. Certificate No: Zl 9-60054 Page 2 of8 In Collaboratio w1 •TTL s p e a g CALIBRATION lABORATOllY Add: No.SI Xueyuan Road, Haidian District, Beijing, 100191, China Tel: +86-10-62304633-2079 Fax: +86-10-62304633-2504 E-mail: [email protected] http://www.chinattl.cn Measurement Conditions S f f 1 DA Y system con iguration, as ar as not a1ven on oage DASY Version DASY52 52.10.2.1495 Extrapolation Advanced Extrapolation Phantom Triple Flat Phantom 5.1 C Distance Dipole Center -TSL 15 mm with Spacer Zoom Scan Resolution dx, dy, dz = 5 mm Frequency 750 MHz ± 1 MHz Head TSL parameters Th f II . d I I . e o owing parameters an ca cu at1ons were aoo 1e . r d Temperature Permittivity Conductivity Nominal Head TSL parameters 22.0 °C 41.9 0.89 mho/m Measured Head TSL parameters (22.0 ± 0.2) °C 43.1 ± 6 % 0.86 mho/m ± 6 % Head TSL temperature change during test <1.0 °C ---- ---- SAR result with Head TSL SAR averaged over 1 cm 3 (1 g) of Head TSL Condition SAR measured 250 mW input power 2.02 W/kg SAR for nominal Head TSL parameters normalized to 1 W 8.32 W/kg ± 18.8 % (k=2) SAR averaged over 10 cm 3 (10 g) of Head TSL Condition SAR measured 250 mW input power 1.37 W/kg SAR for nominal Head TSL parameters normalized to 1W 5.61 W/kg ± 18.7 % (k=2) Body TSL parameters Th f I . d I I . e o lowing parameters an ca cu ations were aoo11e . r d Temperature Permittivity Conductivity Nominal Body TSL parameters 22.0 °C 55.5 0.96 mho/m Measured Body TSL parameters (22.0 ± 0.2) °C 54.8 ±6 % 0.94 mho/m ± 6 % Body TSL temperature change during test <1.0 °C ---- ---- SAR It "th B d TSL resu WI O IY SAR averaged over 1 cm 3 (1 g) of…

Text truncated - open the document above for the full version.

TEL : 886-3-327-3456 Page Number : 1 of 36 FAX : 886-3-328-4978 Issued Date : Jan. 16, 2020 Report Template No.: BU…
