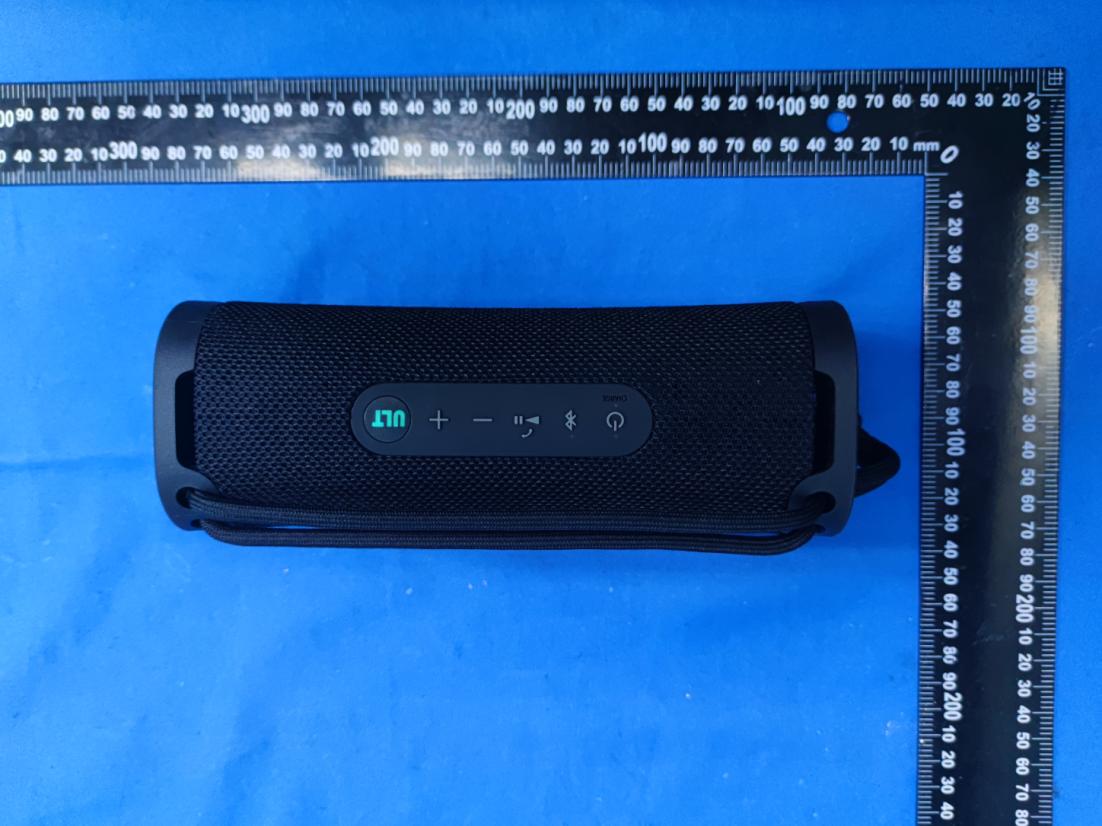

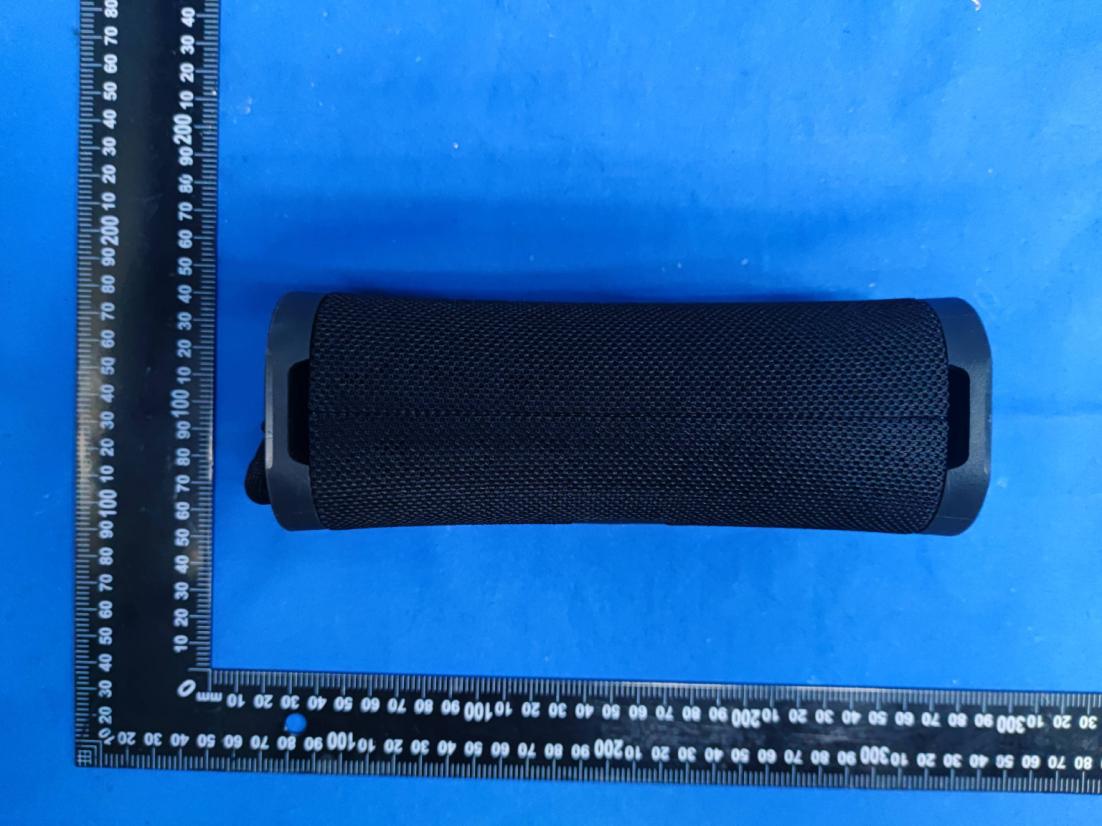

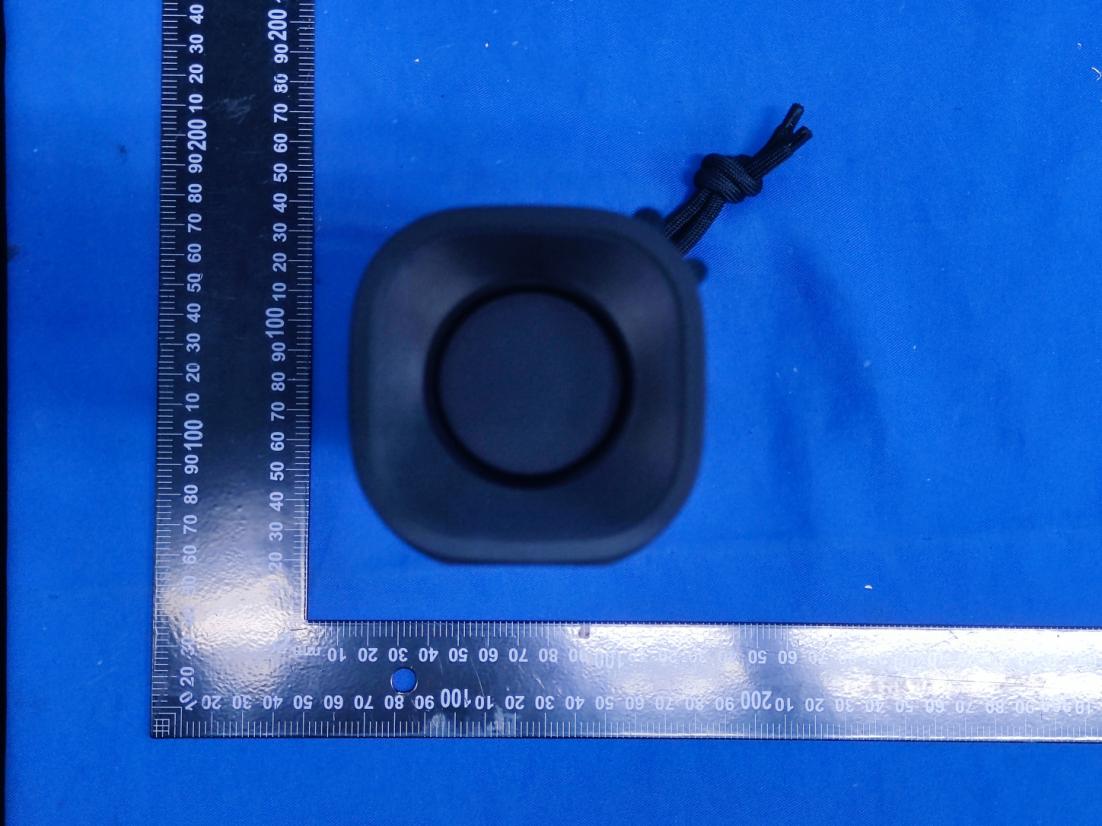

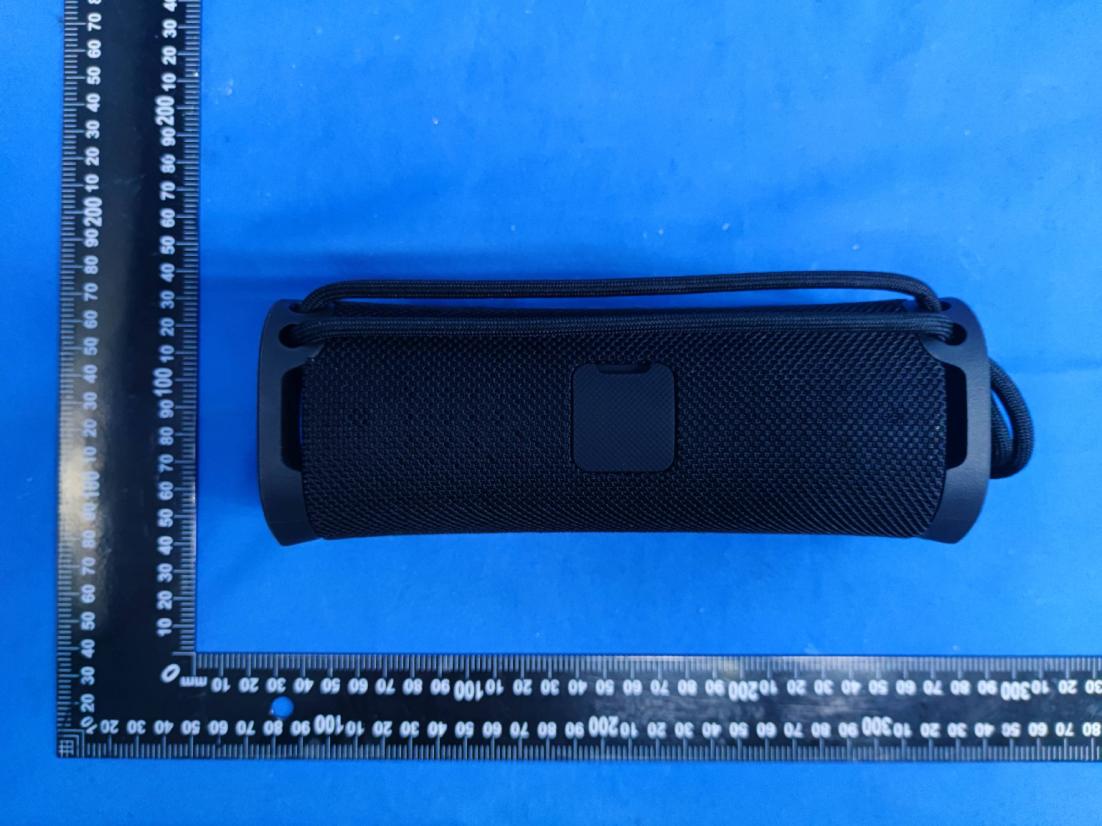

AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. Page D1 of D4 Appendix B. Photographs of EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. Page D2 of D4 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. Page D3 of D4 Figure 5 General Appearance of the EUT Figure 6 General Appearance of the EUT AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. Page D4 of D4 Figure 7 General Appearance of the EUT THE END

FCC ID Location CAP FCC ID: AK8YY7862E Back of the product CAP INSIDE

AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. Page D1 of D11 Appendix C. Photographs of EUT Figure 1 Inside Configuration of the EUT Figure 2 Inside Configuration of the EUT AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. Page D2 of D11 Figure 3 Inside Configuration of the EUT Figure 4 Inside Configuration of the EUT AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. Page D3 of D11 Figure 5 Inside Configuration of the EUT Figure 6 Inside Configuration of the EUT AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. Page D4 of D11 Figure 7 Inside Configuration of the EUT Figure 8 Inside Configuration of the EUT AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. Page D5 of D11 Figure 9 Inside Configuration of the EUT Figure 10 Inside Configuration of the EUT AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. Page D6 of D11 Figure 11 Inside Configuration of the EUT Figure 12 Inside Configuration of the EUT AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. Page D7 of D11 Figure 13 Inside Configuration of the EUT Figure 14 Inside Configuration of the EUT AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. Page D8 of D11 Figure 15 Inside Configuration of the EUT Figure 16 Inside Configuration of the EUT AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. Page D9 of D11 Figure 17 Inside Configuration of the EUT Figure 18 Inside Configuration of the EUT AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. Page D10 of D11 Figure 19 Inside Configuration of the EUT Figure 20 Inside Configuration of the EUT AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. Page D11 of D11 Figure 21 USB A-C Cable THE END

Audix Technology (Shenzhen) Co., Ltd. Tel: 0755 26639496 No. 6, Kefeng Road, Science & Technology Park, Fax: 0755 26632877 Nanshan District , Shenzhen, Guangdong, China Maximum Permissive Exposure FCC ID: AK8YY7862E Product Name: Wireless Speaker M/N: YY7862E 1. According to FCC CFR 47 §1.1310, the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b). Table 1 Limits for Maximum Permissible Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational / Control Exposures (f = frequency) 30-300 61.4 0.163 1.0 6 300-1500 --- --- f/300 6 1500-100,000 --- --- 5.0 6 (B) Limits for General Population / Uncontrolled Exposures (f = frequency) 30-300 27.5 0.073 0.2 30 300-1500 --- --- f/1500 30 1500-100,000 --- --- 1.0 30 2. MPE Calculation We declares that the product described above has been evaluated and found to comply with the RF exposure limits for humans, as specified based on ANSI/FCC recommendation. RF Exposure Calculations: S = (P * G) / (4* π * r^2) or r = √(P * G) / (4 * π * S) Audix Technology (Shenzhen) Co., Ltd. Tel: 0755 26639496 No. 6, Kefeng Road, Science & Technology Park, Fax: 0755 26632877 Nanshan District , Shenzhen, Guangdong, China 2.1. Estimation Result EUT: Wireless Speaker M/N: YY7862E Test date: 2023-09-25 Pressure: 102.4±1.0 kpa Humidity: 54.7±3.0% Tested by: Carl Test site: RF site Temperature: 23.6±0.6 °C Test Mode Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Antenna Gain (Linear) MPE BDR 8.743 7.49 1.77 1.50 0.0022 EDR 8.836 7.65 1.77 1.50 0.0023 BLE-1Mbps 4.938 3.12 1.77 1.50 0.0009 BLE-2Mbps 4.946 3.12 1.77 1.50 0.0009 Based on safety distance (r) 20cm, the antenna gain (G) numerical as below: and the EDR highest power output (P) is 7.65mW; the EDR power density (S) is 0.0023 mW/cm 2 .

深圳市丰禾原电子科技有限公司 SUNITECENTERPRISECO.,LTD. ANTENNASPECIFICATION Client： FINEMOST Project： SR-7862 Antennatype： PCBLayoutAntenna Version： V1.0 IssuedDate： 10-Sep-23 THISDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFSUNITEC ENTERPRISECO.,LTD.ANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION PAGE1OF6 Contents 1.RevisionHistory 2.Introduction 3.ElectricalCharacteristics THISDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFSUNITEC ENTERPRISECO.,LTD.ANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION PAGE2OF6 1.RevisionHistory Rev.NoIssuedDateDescriptionSummary V1.010-Sep-23initialrelease 2.Introduction 2.1IntroductionofProduct ThisproductisaBluetoothantennawithLayoutonPCB 2.2Dimension 3.ElectricalCharacteristics 3.1Testequipment: VECTORNETWORKANALYZER AgilentE5071c AntennaMeasurementSystem ETS-LindgrenAntennaMeasurementSystem THISDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFSUNITEC ENTERPRISECO.,LTD.ANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION PAGE3OF6 3.2AntennaS11parameters 3.3AntennaTestSettings: 3.43DRadiationPattern: THISDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFSUNITEC ENTERPRISECO.,LTD.ANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION PAGE4OF6 2402MHz 2441MHz 2480MHz THISDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFSUNITEC ENTERPRISECO.,LTD.ANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION PAGE5OF6 3.5ElectricalCharacteristics: AntennaModelNamePCBLayoutAntenna WorkingFrequencyRange 2450±50MHz Impedance50Ω MaxEfficiency(%)60.38%@2464MHz MaxpeakGain(dBi)1.77dBi@2470MHz Frequency(MHz)Efficiency(%) PeakGain(dBi) 240255.880.95 244155.801.48 248057.201.59

AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:AK8YY7862E Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F23185 Page 1 of 80 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Sony Group Corporation Wireless Speaker YY7862E FCC ID: AK8YY7862E SONY Prepared for : Sony Group Corporation 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Kefeng Road, Science & Technology Park, Nanshan District , Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F23185 Date of Test ： Sep.25~Oct.17, 2023 Date of Report ： Oct.23, 2023 TESTING NVLAP LAB CODE 200372-0 AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:AK8YY7862E Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F23185 Page 2 of 80 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS ............................................................. 5 1.1. Description of Standards and Results ..................................................................................... 5 2. GENERAL INFORMATION ............................................................................................. 6 2.1. Description of Equipment Under Test .................................................................................... 6 2.2. Feature of Equipment Under Test ........................................................................................... 7 2.3. Tested Supporting System Details .......................................................................................... 8 2.4. Block Diagram of connection between EUT and simulators .................................................. 8 2.5. Test information ...................................................................................................................... 8 2.6. Test Facility ............................................................................................................................ 9 2.7. Measurement Uncertainty (95% confidence levels, k=2) ....................................................... 9 3. POWER LINE CONDUCTED EMISSION TEST ........................................................ 10 3.1. Test Equipments .................................................................................................................... 10 3.2. Block Diagram of Test Setup ................................................................................................ 10 3.3. Power Line Conducted Emission Test Limits ...................................................................... 10 3.4. Configuration of EUT on Test .............................................................................................. 10 3.5. Operating Condition of EUT ................................................................................................ 11 3.6. Test Procedure ...................................................................................................................... 11 3.7. Power Line Conducted Emission Test Results ..................................................................... 11 4. RADIATED EMISSION MEASUREMENT .................................................................. 16 4.1. Test Equipments .................................................................................................................... 16 4.2. Block Diagram of Test Setup ................................................................................................ 17 4.3. Radiated Emission Limits Standard: ..................................................................................... 18 4.4. EUT Configuration on Test .................................................................................................. 18 4.5. Operating Condition of EUT ................................................................................................ 18 4.6. Test Procedure ...................................................................................................................... 19 4.7. Radiated Emission Test Results ............................................................................................ 19 5. CONDUCTED SPURIOUS EMISSIONS ....................................................................... 49 5.1. Test Equipments .................................................................................................................... 49 5.2. Block Diagram of Test Setup ................................................................................................ 49 5.3. Limit ...................................................................................................................................... 49 5.4. Test Procedure ...................................................................................................................... 49 5.5. Test result .............................................................................................................................. 49 6. 6DB & 99% BANDWIDTH TEST ................................................................................... 56 6.1. Test Equipments .................................................................................................................... 56 6.2. Block Diagram of Test Setup ................................................................................................ 56 6.3. Limit ...................................................................................................................................... 56 6.4. Test Procedure ...................................................................................................................... 56 6.5. Test Results ........................................................................................................................... 57 7. MAXIMUM PEAK OUTPUT POWER TEST ............................................................... 62 7.1. Test Equipments .................................................................................................................... 62…

Text truncated - open the document above for the full version.

AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:AK8YY7862E Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F23185 Page 61 of 80 GFSK 2404MHz 2440MHz 2478MHz --- --- AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:AK8YY7862E Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F23185 Page 62 of 80 7. MAXIMUM PEAK OUTPUT POWER TEST 7.1. Test Equipments Item Equipment Manufacturer Model No. Serial No. Last Cal. Cal. Interval 1. PXA Signal Analyzer Agilent N9030A MY51380221 Apr.01,23 1 Year 2. Power meter Anritsu ML2487A 6K00002472 Jun.26,23 1 Year 3. Power sensor Anritsu MA2491A 032516 Jun.26,23 1 Year 4. RF Cable HUBER+SUHNER SUCOFLE X-106 505238/6 Apr.02,23 1 Year 7.2. Limit For systems using digital modulation in the 2400—2483.5MHz, The Peak out put Power shall not exceed 1W(30dBm). 7.3. Test Procedure Use the test method descried in ANSI C63.10 clause 11.9.1.3: For Peak output power: Connected the EUT's Antenna port to PXA signal analyzer; For Average power: Connected the EUT's Antenna port to Power sensor and power meter; 7.4. Test Results EUT: Wireless Speaker M/N: YY7862E Test date: 2023-09-25~26 Pressure: 102.4±2.0 kpa Humidity: 54.7±3.0% Tested by: Carl Test site: RF site Temperature: 23.6±0.6°C BLE-1Mbps: Test Mode Frequency (MHz) Power Setting Peak output Power （dBm） Average Power （dBm） Limit (dBm) GFSK 2402 48 4.938 4.480 30 2440 48 4.814 4.550 30 2480 48 4.836 4.400 30 Conclusion: PASS BLE-2Mbps: Test Mode Frequency (MHz) Power Setting Peak output Power （dBm） Average Power （dBm） Limit (dBm) GFSK 2404 48 4.946 4.440 30 2440 48 4.829 4.310 30 2780 48 4.848 4.110 30 Conclusion: PASS AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:AK8YY7862E Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F23185 Page 63 of 80 BLE-1Mbps: GFSK 2402MHz 2440MHz 2480MHz --- --- AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:AK8YY7862E Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F23185 Page 64 of 80 BLE-2Mbps: GFSK 2404MHz 2440MHz 2478MHz --- --- AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:AK8YY7862E Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F23185 Page 65 of 80 8. BAND EDGE COMPLIANCE TEST 8.1. Test Equipments Item Equipment Manufacturer Model No. Serial No. Last Cal. Cal. Interval 1. 3mChamber(Svswr) AUDIX N/A N/A Aug.09,22 3Year 2. 3mChamber(SE) AUDIX N/A N/A Sep.16,22 3Year 3. Signal Analyzer Rohde & Schwarz FSV30 104050 Apr.01,23 1 Year 4. Amplifier EMCI EMC0518A45SE 980965 Aug.25,23 1 Year 5. RF Cable Shanghaichaoyu SFT205-NMSM- 10.00M 689241 Aug.25,23 1 Year 6. Test Software AUDIX e3 6.100913a N/A N/A 7. Horn Antenna ETC MCTD 1209 DRH15F03006 Aug.23,23 1 Year Note: N/A means Not applicable. 8.2. Limit All the lower and upper band-edges emissions appearing within 2310MHz to 2390MHz and 2483.5MHz to 2500MHz restricted frequency bands shall not exceed the limits shown in 15.209, all the other emissions outside operation frequency band 2400MHz to 2483.5MHz shall be at least 20dB below the fundamental emissions, or comply with 15.209 limits. 8.3. Test Produce Use the test method descried in ANSI C63.10 clause 6.10: For upper band emissions that are up to two bandwidths(2MHz) away (2483.5MHz to 2485.5MHz）from …

Text truncated - open the document above for the full version.
