AK8ZTXM01DIGITAL WIRELESS MICROPHONE

E:\#works_2\120800937_DWZ- M50_B30GB\120800937_4445504122_GB\4445504122 \4445504122DWZM50UC\01GB01COV.fm masterpage:Right DWZ-M50/B30GB 4-445-504-12 (2) 4-445-504-12 (2) © 2012 Sony Corporation Digital Wireless Package Operating Instructions Before operating the unit, please read this manual thoroughly and retain it for future reference. DWZ-M50 DWZ-B30GB The supplied CD-ROM includes the Operating Instructions (English, French, German, Italian, and Spanish versions) in PDF format. For more details, see “Using the CD-ROM manual” on page 19. 00DWZ.book Page 1 Friday, August 31, 2012 11:50 AM E:\#works_2\120700180_DWZ- M50_B30GB\120700180_4445504111_GB\4445504111 \4445504111DWZM50UC\01GB02REG.fm masterpage:Left DWZ-M50/B30GB 4-445-504-11 (1) 2 For the ZTX-M01/B01 Transmitters Owner’s Record The model and serial numbers are located at the rear or on the bottom of the unit. Record the model and serial numbers in the space provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product. Model No. _____________________ Serial No. ______________________ WARNING Batteries shall not be exposed to excessive heat such as sunshine, fire or the like. If the transmitter develops an abnormally high temperature, a burning odor or smoke during use, remove the battery holder and stop using the transmitter immediately. Take care not to burn your fingers when removing the battery holder as the batteries may be very hot at this time. AVERTISSEMENT N’exposez pas les batteries à une chaleur excessive, au soleil ou près d’un feu par exemple. Si l’émetteur dégage une température anormalement élevée, une odeur de brûlé ou de la fumée pendant son utilisation, enlevez le support de piles et arrêtez toute utilisation immédiatement. Attention à ne pas vous brûler les doigts lorsque vous retirez le support de piles car celles–ci peuvent être brûlantes. WARNUNG Akkus dürfen keinesfalls übermäßiger Wärmeeinwirkung ausgesetzt werden, wie z.B. Sonneneinstrahlung, Feuer o. ä. Wenn der Sender eine abnorm hohe Temperatur, einen Geruch nach Verbranntem oder Rauch entwickelt, entnehmen Sie den Batterie-Halter und stoppen Sie sofort den Betrieb des Senders. Achten Sie bei der Entnahme des Batterie- Halters darauf, sich nicht die Finger zu verbrennen, denn die Batterien könnten sehr heiß zu diesem Zeitpunkt sein. For the customers in the U.S.A. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. All interface cables used to connect peripherals must be shielded in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules. If you have any questions about this product, you may call ; 00DWZ.book Page 2 Wednesday, August 15, 2012 3:38 PM E:\#works_2\120800937_DWZ- M50_B30GB\120800937_4445504122_GB\4445504122 \4445504122DWZM50UC\01GB02REG.fm masterpage:Right DWZ-M50/B30GB 4-445-504-12 (2) 3 Sony Customer Information Service Center 1-800-222-7669 or http://www.sony.com/ IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate this device. This device complies with FCC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This device has very low levels of RF energy that it is deemed to comply without testing of specific absorption ratio (SAR). This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. For the customers in Canada This Class B digital apparatus complies with Canadian ICES-003. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met. This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption ratio (SAR). Pour les clients au Canada Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout br…

Text truncated - open the document above for the full version.

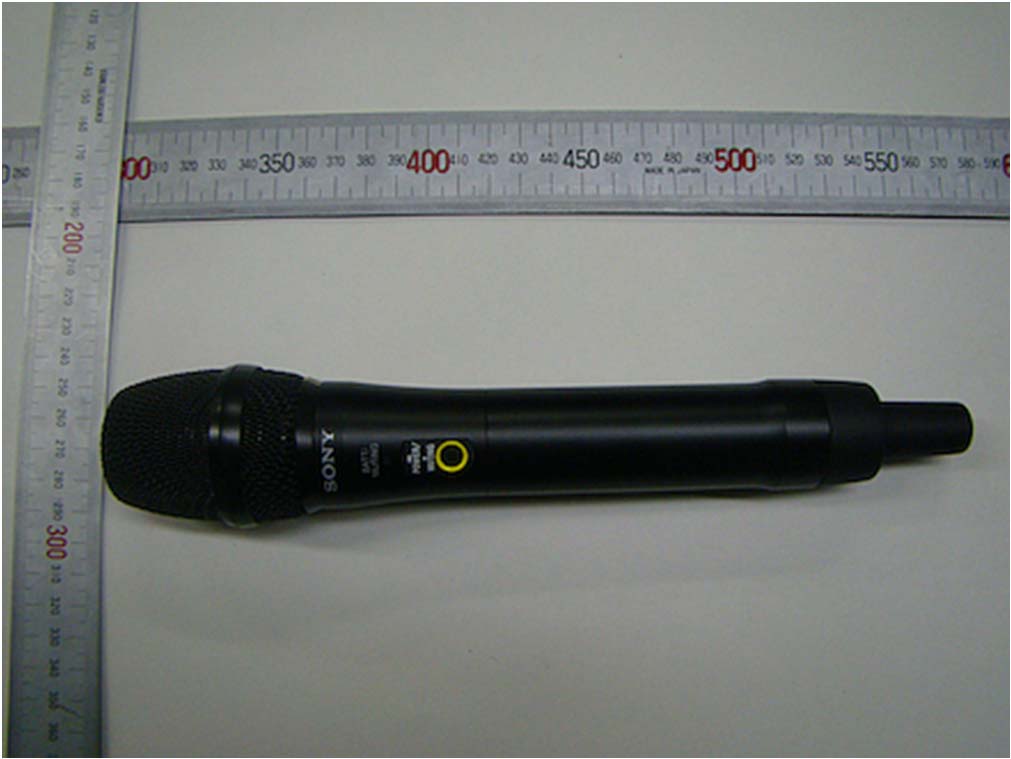

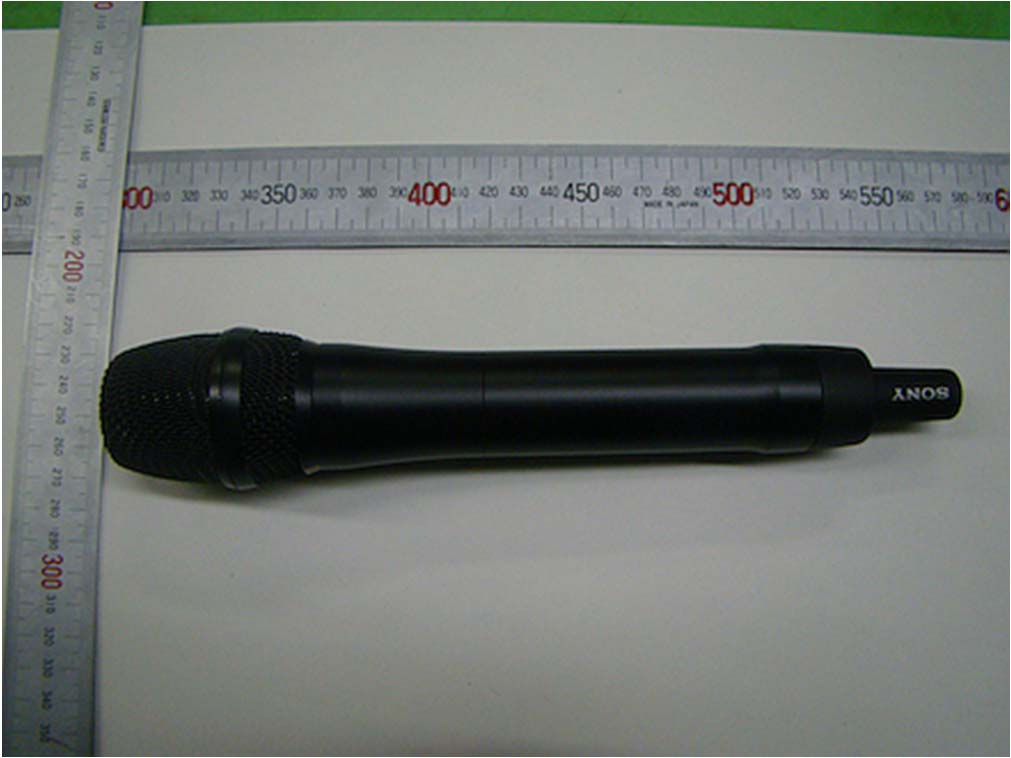

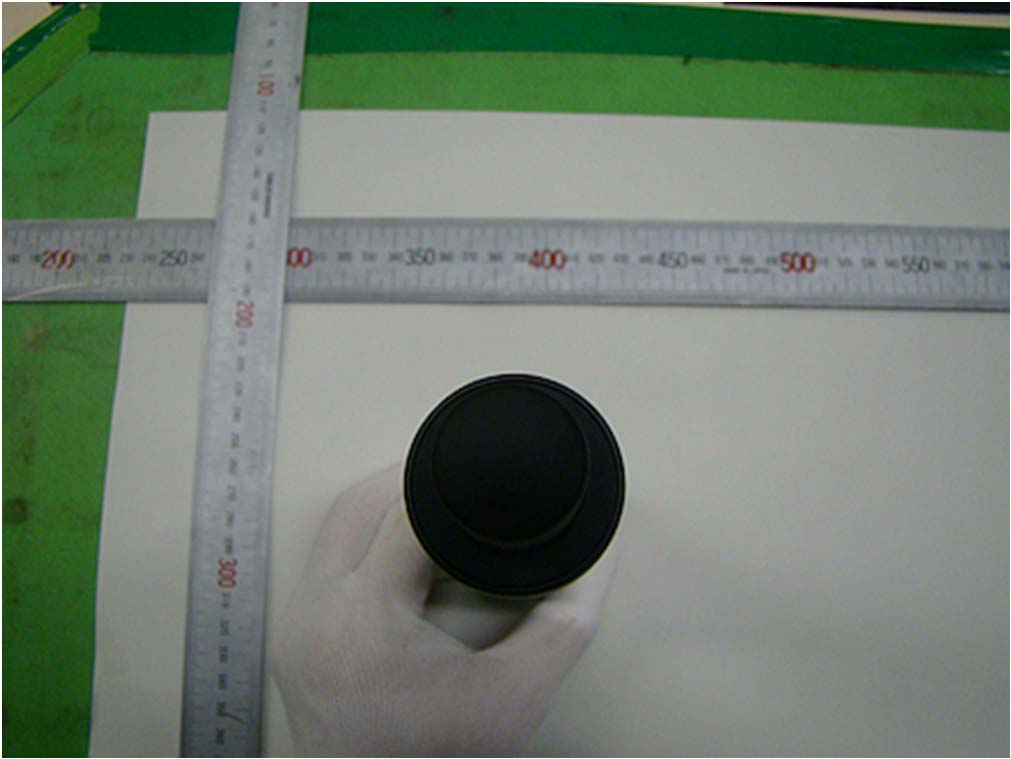

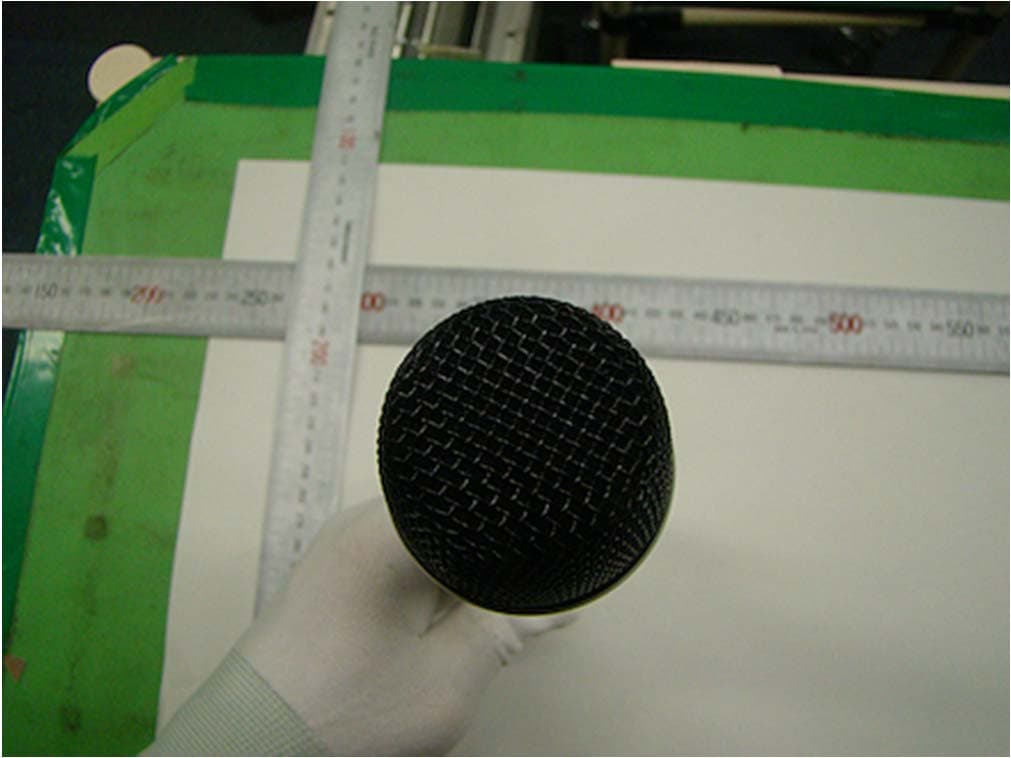

ZTX ‐ M01 Outline Front Rear ZTX ‐ M01 Outline Bottom Top

NamePlate

ZTX ‐ M01 Internal Structure [1] Detached Board CN ‐ 3526 and the Grip from the Bottom Case. Detached the Microphone Capsule. ZTX ‐ M01 Internal Structure [2] Opposite side. Detached the Upper Grip. ZTX ‐ M01 Internal Structure [3] Opposite side. Detached the Frame Cover and Antenna Cover. ZTX ‐ M01 Internal Structure [4] Opposite side. Detached the Battery Frame. ZTX ‐ M01 Internal Structure [5] Side A of Board DTX ‐ 12. ZTX ‐ M01 Internal Structure [6] Side B of Board DTX ‐ 12. ZTX ‐ M01 Internal Structure [7] Side A of Board CN ‐ 3526. ZTX ‐ M01 Internal Structure [8] Side B of Board CN ‐ 3526.

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 August 23, 2012 UL Japan, Inc. FCC ID: AK8ZTXM01 To whom it may concern, We, UL Japan, Inc, hereby declare that DIGITAL WIRELESS MICROPHONE, model: ZTX- M01 (FCC ID: AK8ZTXM01) of Sony Corporation is exempt from RF exposure SAR evaluation as its output power meets the exclusion limits stated in FCC Part 2 §2.1093 and FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. Thank you for your attention to this matter. Sincerely, Akio Hayashi Engineer of WiSE Japan, UL Verification Service UL Japan, Inc.

Test report No. : 32KE0024-HO-01-A Page : 1 of 31 Issued date : August 23, 2012 FCC ID : AK8ZTXM01 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 RADIO TEST REPORT Test Report No. : 32KE0024-HO-01-A Applicant : Sony Corporation Type of Equipment : DIGITAL WIRELESS MICROPHONE Model No. : ZTX-M01 FCC ID : AK8ZTXM01 Test regulation : FCC Part15 Subpart C: 2012 Test result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by any agency of the Federal Government. 6. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. 7. Some test items have been performed at UL Japan, Inc., Yamakita EMC lab. as a subcontractor, in accordance with ISO/IEC 17025. Date of test: August 8 to 10, 2012 Representative test engineer: ______________________________ Akio Hayashi Engineer of WiSE Japan, UL Verification Service Approved by : ______________________________ Go Ishiwata, Manager of WiSE Japan, UL Verification Service RTL02610 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". 13-EM-F0429 Test report No. : 32KE0024-HO-01-A Page : 2 of 31 Issued date : August 23, 2012 FCC ID : AK8ZTXM01 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 32KE0024-HO-01-A Revision Test report No. Date Page revised Contents - (Original) 32KE0024-HO-01-A August 23, 2012 - - Test report No. : 32KE0024-HO-01-A Page : 3 of 31 Issued date : August 23, 2012 FCC ID : AK8ZTXM01 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ..................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ....................................................................... 4 SECTION 3: Test specification, procedures & results ......................................................... 5 SECTION 4: Operation of E.U.T. during testing ................................................................. 8 SECTION 5: 6dB bandwidth & Occupied bandwidth (99%) ............................................. 9 SECTION 6: Maximum peak output power ......................................................................... 9 SECTION 7: Spurious emission (Antenna port conducted) ................................................ 9 SECTION 8: Radiated emission .......................................................................................... 10 SECTION 9: Peak Power density ........................................................................................ 11 Contents of APPENDIXES ................................................................................................... 12 APPENDIX 1: Data of radio tests ....................................................................................... 13 APPENDIX 2: Test instruments .......................................................................................... 29 APPENDIX 3: Photographs of test setup ............................................................................ 30 Test report No. : 32KE0024-HO-01-A Page : 4 of 31 Issued date : August 23, 2012 FCC ID : AK8ZTXM01 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : Sony Corporation Address : 1-7-1 Konan, Minato-ku, Tokyo 108-0075, Japan Telephone Number : +81-53-577-1012 Facsimile Number : +81-53-577-3489 Contact Person : Youhei Hisano SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : DIGITAL WIRELESS MICROPHONE Model No. : ZTX-M01 Serial No. : Refer to 4.2 in this report. Rating : DC3V Receipt Date of Sample : July 31 and August 10, 2012 Country of Mass-production : Korea Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. 2.2 Product description Model: ZTX-M01 (referred to as the EUT in this report) is a DIGITAL WIRELESS MICROPHONE. Clock frequency(ies) in the system : 600kHz, 850kHz, 1.3MHz, 4MHz, 12MHz, 26MHz Radio specification Equipment type : Transmitter Frequency of operation : 2402-2478.5MHz Bandwidth & channel spacing : 1MHz & 4.5MHz Type of modulation : GFSK Antenna type : /4 Monopole Antenna connector type : None Antenna gain with cable loss : 0 dBi ITU code : F1D, F1E Operation temperature range : 0 to +50 deg.C. FCC 15.31 (e) The RF transmitter is provided the stable power supply (DC1.2V, DC2.7V, DC5.0V), therefore, the equipment complies with the requirement. FCC 15.203 The equipment and its antenna comply with this requirement since this antenna is built in the equipment and it cannot be replaced by end users. Test report No. : 32KE0024-HO-01-A Page : 5 of 31 Issued date : August 23, 2012 FCC ID : AK8ZTXM01 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 3: Test specification, procedures & results 3.1 Test specification Test specification : FCC Part 15 Subpart C: 2012, fin…

Text truncated - open the document above for the full version.

Test report No. : 32KE0024-HO-01-A Page : 30 of 31 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Radiated emission Front view Rear view (below 1GHz) Rear view (above 1GHz) Test report No. : 32KE0024-HO-01-A Page : 31 of 31 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Pre-check of the worst position X-axis Y-axis Z-axis END OF REPORT
