AMGWATCHKEYOCLUSB Token

WatchKEY USB Token User manual Watchdata Technologies Pte Ltd Admirax 8 Admiralty Street #02‐07/08, Singapore 757438 www.watchdata.com 1. Introduction 1.1. Cryptographic Smart Card  TIMECOS  Employ 32‐bit microprocessor security chip design capable of making USB communications.  FIPS140‐2(US Federal Information Processing Standards) compatible.  Highly secured, supports 1024‐bit and 2048‐bit RSA asymmetrical encryption algorithm, and generates RSA key pairs inside card.  Supports with the ability to produce 1024‐bit and 2048‐bit RSA signature, verify, encryption, decryption.  Provides multiple Security Algorithms: DES, 3DES, MAC, SHA‐1, SHA‐256 , AES optional.  Supports 64KB EEPROM  Complies to USB1.1 standard and USB 2.0 full speed 1.2. Software/Middleware  Support X.509V3 certificate format  Supports ISO7816 part4 file structures: transparent, linear fixed, linear variable, cyclic.  Supports ISO7816 part8/9 security related interindustry commands and security attributes.  Supports PC/SC protocol or USB Mass Storage.  Supports Microsoft CAPI2.0, PKCS#11 v2.11, PKCS#1,7,8,10 and12, PKCS#15  Supports Windows98/2000/XP/2003/Vista/Win7 environment.  Supports Internet Explorer 5 or above, Mozilla Firefox and Netscape. 1.3. Specifications Supported operating systems Windows 2000/XP/Vista/2003/Windows 7 Supported browsers Internet Explorer 5.0+; Firefox 3.0+ ; Netscape WatchKEY USB Token User manual Watchdata Technologies Pte Ltd Admirax 8 Admiralty Street #02‐07/08, Singapore 757438 www.watchdata.com API & standards support PKCS#11 v2.01, Microsoft CAPI 2.0, PC/SC, X.509 v3 certificate SSL v3, Memory Size 64K On board security algorithms RSA 1024‐bit and 2048‐bit, DES, 3DES (Triple DES), MAC , AES SHA‐1, SHA‐256 Security certifications smart card chip: FIPS 140‐2 ISO specification support Support for ISO 7816‐1 to 4 ,8/9 specifications Operating temperature 0° C to 70° C (32° F to 158° F) Storage temperature ‐40° C to 85° C (‐40° F to 185° F) Humidity rating 0‐100% without condensation Connector USB type A; supports USB 1.1 and 2.0 (full speed and high speed) Memory data retention At least 10 years Memory cell rewrites At least 500,000 Weight and Size Approx. 8g , 78mm*23mm*9mm 2. WatchSAFE ND 3.4 Installation AutoRun supported ND (No Driver) USBKey integrated installation program inside itself. In OS (Operating System) which allows CD automatic running, the installation of management tool will automatically run when USBKey plugged in. For other ND USBKey, a management tool installation from CD is needed. In this chapter, the installation and uninstall of WatchSAFE ND 3.4 will be illustrated. 2.1 Install WatchSAFE ND 3.4 At the first time of plugging in ND USBKey, the auto‐run supported product will automatically install certificate management tool in the OS which allows CD automatic running. For using other USBKeys, it is necessary to install the tool from CD at first. Installation process: At the first time of inserting USBKey, an installation window like figure 2.1.1 will pop out. In a few seconds, you will find a window displaying successfully installed. WatchKEY USB Token User manual Watchdata Technologies Pte Ltd Admirax 8 Admiralty Street #02‐07/08, Singapore 757438 www.watchdata.com Figure 2.1.1 WD Ukey User Tool auto‐installation 2.2 Uninstall WatchSAFE ND 3.4 There’re two methods for uninstalling the tool: 1. In ‘Control Panel’, using ‘Add/Remove Programs’ to delete ‘WD Ukey Tool v3.4 User’. 2. Using the ‘Uninstall’ option in the subcategory of ‘Start’ ‐> ‘All Programs’ ‐> ‘WD Ukey Tool v3.4’. Step 1: upon select ‘uninstall’, a window like figure 2.2.1 appears. Figure 2.2.1 First page of USBkey uninstall Step2: click the ‘Uninstall’ button, then a new window like figure 2.2.2 will come out. Click the ‘OK’ button to finish uninstall operation. WatchKEY USB Token User manual Watchdata Technologies Pte Ltd Admirax 8 Admiralty Street #02‐07/08, Singapore 757438 www.watchdata.com Figure 2.2.2 Complete uninstalled 3. WatchSAFE ND 3.4 user’s tool WatchSAFE ND 3.4 user’s tool is mainly used to achieve the following functions:  Modify UKey password  Check system  Modify UKey Label  Show certificate  Register certificate  Unregister certificate In this chapter, the operations to implement the above functions will be illustrated. 3.1 Start WatchSAFE ND 3.4 user’s tool WatchSAFE ND 3.4 user’s tool can be started by click ‘WD UKey User Tool v3.4’ in the route of ‘Start’ ‐> ‘All Programs’ ‐> ‘WD UKey Tool v3.4’. It is also available by double‐click the shortcut on desktop. When WatchSAFE ND 3.4 user’s tool is running, the label of the tool will be displayed at the right bottom corner as figure 3.1.1. WatchKEY USB Token User manual Watchdata Technologies Pte Ltd Admirax 8 Admiralty Street #02‐07/08, Singapore 757438 www.watchdata.com Figure 3.1.1 running label of WatchSAFE ND 3.4 user’s tool 3.2 Exit WatchSAFE ND 3.4 user’s tool Click the ‘close’ button at upper right corner to exit WatchSAFE ND 3.4 User Interface. 3.3 The use of WatchSAFE ND 3.4 user’s tool 3.3.1 Multi-Key operation When more than one USBKeys plugged in, you can select a device as you need. It is illustrated in figure 3.3.1.1 that there are two available USBKeys: WatchSAFE_UKEYa and WatchSAFE_UKEY. Figure 3.3.1.1 the UI of multi-key 3.3.2 Modify UKey Password The function of modify UKey password provides a better security for the key’s holder and prevents embezzlement. WatchKEY USB Token User manual Watchdata Technologies Pte Ltd Admirax 8 Admiralty Street #02‐07/08, Singapore 757438 www.watchdata.com Figure 3.3.2.1 the UI of change password For example, the PIN of USBKey is initially set as ‘111111’. But, for security purpose, it should be changed into a secret PIN which is only known by the user. If wrong PIN is entered, a prompt will appear and display the number of available PIN retry times. If PIN is retried more than the maximum, the USBKey will be automatically locked. Then, the USBKey can only be unlo…

Text truncated - open the document above for the full version.

Beijing Watchsmart Technologies Co.，Ltd Qi Ming International Mansion, No.101 Li Ze Zhong Yuan, Wangjing, Chaoyang District, Beijing www.watchdata.com Authority to Act as Agent Date: Dec 29, 2011 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: ____China Telecommunication Technology Labs （CTTL） is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: Dec 28,2012 By: MaJianjun_____ ________________________ (Signature 1 ) (Print name) Title: _____product engineer ____________________ On behalf of: ____ Beijing Watchsmart Technologies Co.，Ltd __ _________ (Company Name) Telephone: ___（+86）10 6472 2288 Extension: __ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead. Beijing Watchsmart Technologies Co.，Ltd Qi Ming International Mansion, No.101 Li Ze Zhong Yuan, Wangjing, Chaoyang District, Beijing www.watchdata.com Request for Confidentiality Date: Dec 29, 2011 Subject: Confidentiality Request for: _____ AMGWATCHKEYOCL _____ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 2 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ _____ Beijing Watchsmart Technologies Co.，Ltd __ ______ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 3 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: ________ __MaJianjun_____ _______________ (Signature/Title 4 ) (Print name) 2 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 3 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 4 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

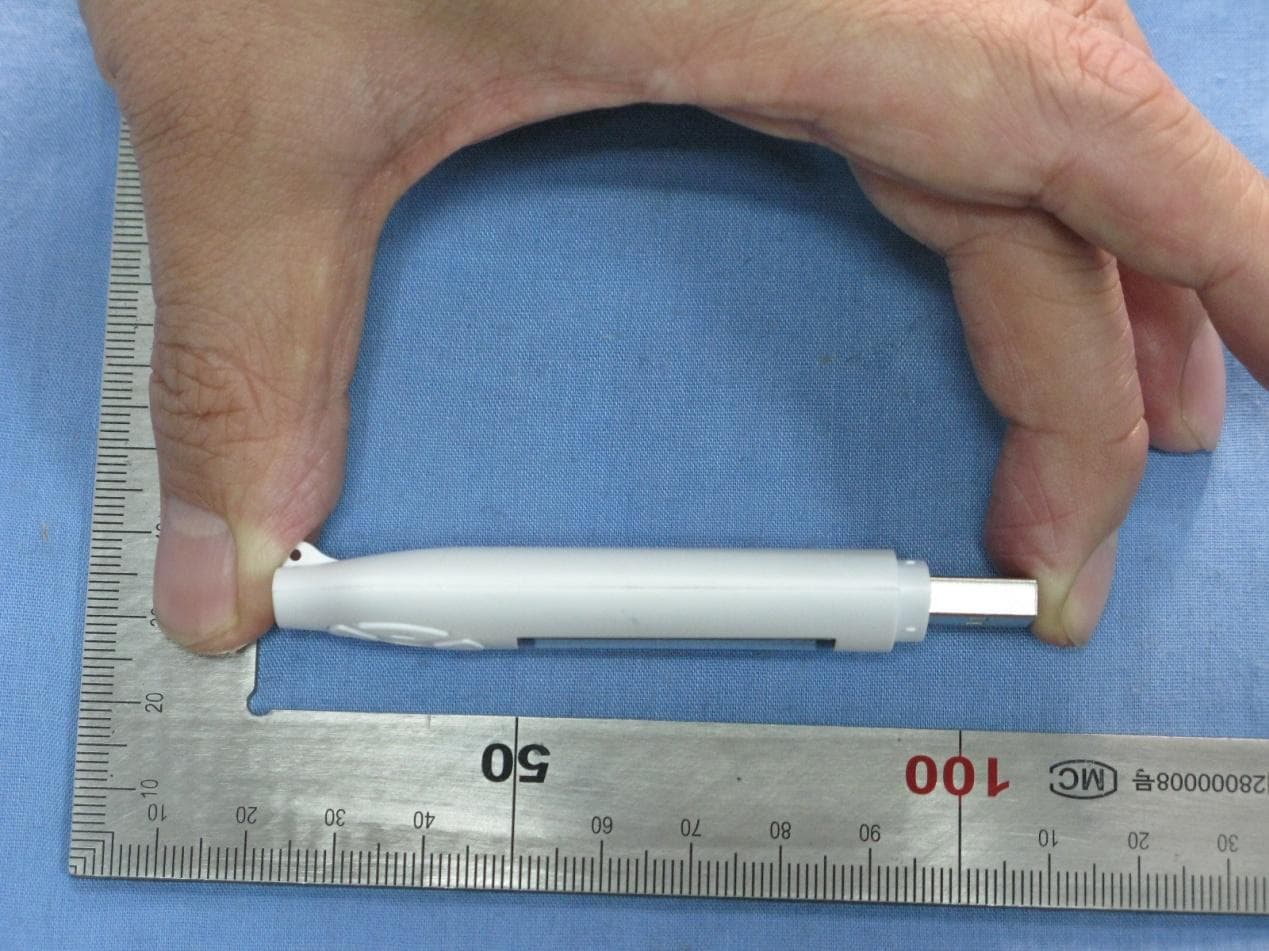

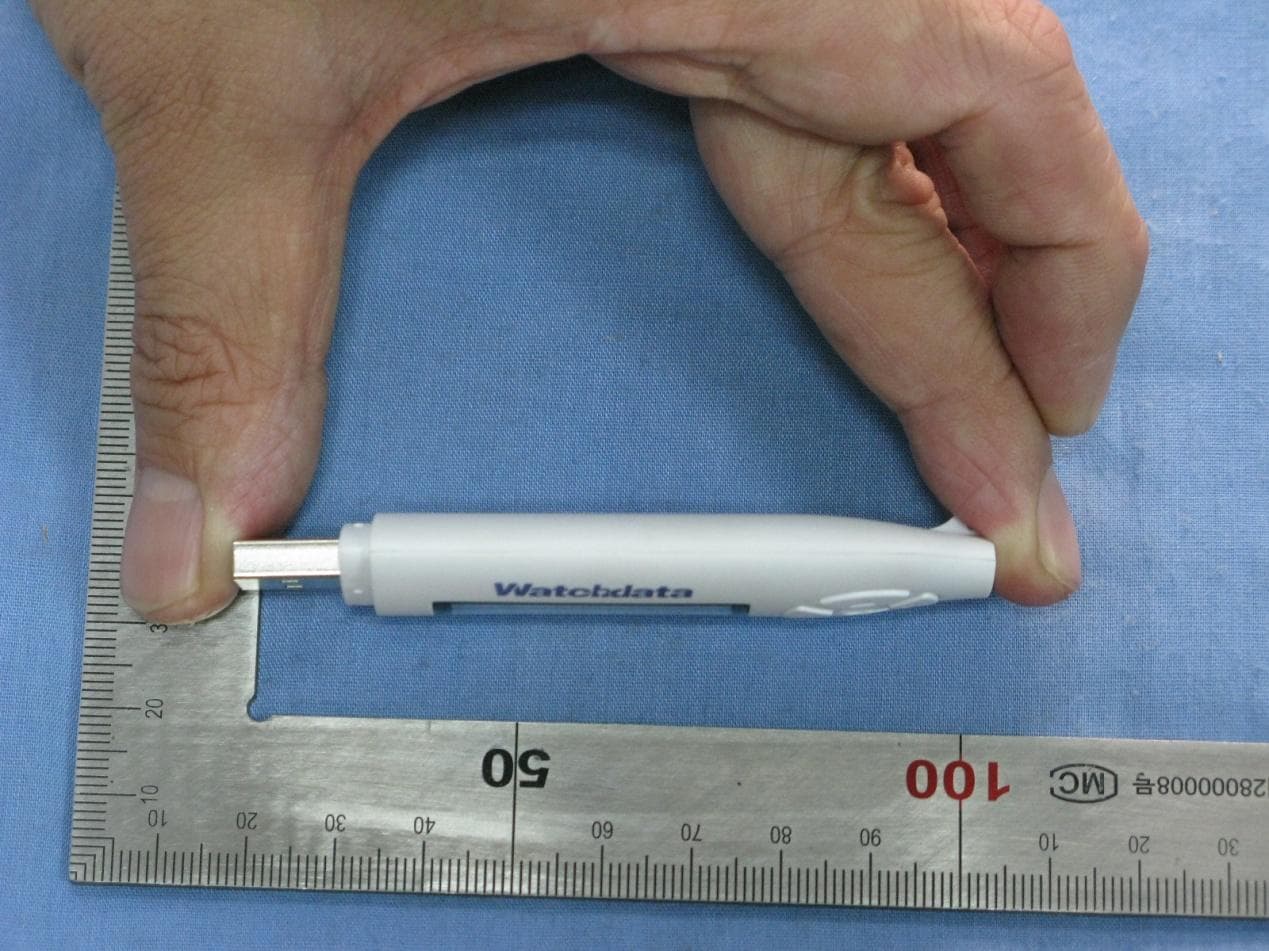

External Photos Face Back USB Interface Side face 1 Side face 2 Side face 3

Internal Photos PCB front side PCB back side

China Telecommunication Technology Labs. ® TEST REPORT REPORT NUMBER: I12MQ0009-FCC-PART15B_Rev1 ON Type of Equipment: USB token Type of Designation: A4 Manufacturer: Beijing Watchsmart Technologies Co.，Ltd ACCORDING TO Part 15B: Radio Frequency Devices, Oct 1, 2011 China Telecommunication Technology Labs. Month date, year Mar 1, 2012 Signature He Guili Director FCC Part 15B Equipment: A4 REPORT NO.: I12MQ0009-FCC-PART15B_Rev1 Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Page 2 of 21 China Telecommunication Technology Labs. ® FCC ID: AMGWATCHKEYOCL Report Date: 2012-03-01 Test Firm Name: China Telecommunication Technology Labs Registration Number: 840587 Statement The measurements shown in this report were made in accordance with the procedures described on test pages. All reported tests were carried out on a sample equipment to demonstrate limited compliance with FCC CFR 47 Parts 15B. The sample tested was found to comply with the requirements defined in the applied rules. FCC Part 15B Equipment: A4 REPORT NO.: I12MQ0009-FCC-PART15B_Rev1 Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Page 3 of 21 China Telecommunication Technology Labs. ® CONTENTS 1 GENERAL INFORMATION ....................................................................... 4 1.1 NOTES ................................................................................................ 4 1.2 TESTERS .............................................................................................. 5 1.3 TESTING LABORATORY INFORMATION ............................................................. 6 1.4 DETAILS OF APPLICANT OR MANUFACTURER ...................................................... 7 2 TEST ITEM ............................................................................................. 8 2.1 GENERAL INFORMATION ............................................................................ 8 2.2 OUTLINE OF EUT .................................................................................... 8 2.3 MODIFICATIONS INCORPORATED IN EUT ......................................................... 8 2.4 EQUIPMENT CONFIGURATION ...................................................................... 8 2.5 OTHER INFORMATION ............................................................................... 8 3 SUMMARY OF TEST RESULTS ................................................................. 9 4 TEST RESULTS ..................................................................................... 10 4.1 RADIATED EMISSION .............................................................................. 10 4.2 CONDUCTED EMISSION ........................................................................... 14 ANNEX A EXTERNAL PHOTOS ................................................................. 19 ANNEX B INTERNAL PHOTOS .................................................................. 20 ANNEX C DEVIATIONS FROM PRESCRIBED TEST METHODS .................... 21 FCC Part 15B Equipment: A4 REPORT NO.: I12MQ0009-FCC-PART15B_Rev1 Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Page 4 of 21 China Telecommunication Technology Labs. ® 1 General Information 1.1 Notes All reported tests were carried out on a sample equipment to demonstrate limited compliance with FCC CFR 47 Parts 15B. The test results of this test report relate exclusively to the item(s) tested as specified in section 2. The following deviation from, additions to, or exclusions from the test specifications have been made. See Annex C. China Telecommunication Technology Labs.(CTTL) authorizes the applicant or manufacturer (see section 1.4) to reproduce this report provided, and the test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of CTTL Mr. He Guili. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. CTTL accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. FCC Part 15B Equipment: A4 REPORT NO.: I12MQ0009-FCC-PART15B_Rev1 Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Page 5 of 21 China Telecommunication Technology Labs. ® 1.2 Testers Name: Lu Ke Position: Engineer Department: Department of EMC test Signature: Editor of this test report: Name: Yuan Yuan Position: Engineer Department: Department of EMC test Date: 2012-03-01 Signature: Technical responsibility for area of testing: Name: Zou Dongyi Position: Manager Department: Department of EMC test Date: 2012-03-01 Signature: FCC Part 15B Equipment: A4 REPORT NO.: I12MQ0009-FCC-PART15B_Rev1 Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Page 6 of 21 China Telecommunication Technology Labs. ® 1.3 Testing Laboratory information 1.3.1 Location Name: China Telecommunication Technology Labs. Address: No. 11, Yue Tan Nan Jie, Xi Cheng District BEIJING P. R. CHINA, 100083 Tel: +86 10 68094053 Fax: +86 10 68011404 Email: [email protected] 1.3.2 Details of accreditation status Accredited by: China National Accreditation Service for Conformity Assessment (CNAS) Registration number: CNAS Registration No. CNAS L0570 Standard: ISO/IEC 17025:2005 1.3.3 Test location, where different from section 1.3.1 Name: ------ Street: ------ City: ------ Country: ------ Telephone: ------ Fax: ------ Postcode: ------ FCC Part 15B Equipment: A4 REPORT NO.: I12MQ0009-FCC-PART15B_Rev1 Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 Web:http://www.chinattl.com Page 7 of 21 China Telecommunication…

Text truncated - open the document above for the full version.

Test Setup Photos Figure 1: Radiated Emission Figure 2: Radiated Emission ports Figure 3: Conducted Emission Figure 4: Conducted Emission Ports
