Gametel Device List Gametel Device List Select Device Pair Bluetooth Gametel 88:94:F9:00:08:0A Pair Auto ~3 secs S EL EC T S T A R T ~2 min inactivity Market Gametel Gametel 1 2 3 Gametel 20 Gametel Gametel Touch Input Gametel Device List 4 5 6 ~3 secs S EL EC T S T A R T 8 9 10 7 Android: Initial installation (once only) Insert phone User Guide Select input method Touch Input Gametel In use ü ~10 min inactivity 1/1 1/1 1/5 ~3 secs S EL EC T S T A R T Auto USB A micro (not supplied) ü Off On 1 2 ð www.gametel.se ð New game releases S E L E C T S T A R T Android: Initial installation (to install the driver and establish a Bluetooth link) 1 Go to Android Market. 2 Search for “Gametel”. 3 Download and install the Gametel app. 4 Run the Gametel app. 5 When asked to choose the input method, select “Gametel”. 6 Press the back button on your phone to return to the device list. 7 Press and hold the START button on the Gametel for 3 seconds to switch it on and make it visible to your phone. After some initial flashes, the green indicator should light continuously to show that the Gametel is not yet paired to a phone. 8 Tap the icon in the device list to add the Gametel. 9 If the Gametel is located, it will be added to the list. Tap the entry to select it. 10 When prompted, tap “Pair” to establish a Bluetooth link between the Gametel and your phone. Your phone and the Gametel are now linked and will work together each time they are both switched on and within range of each other. The green indicator on the Gametel will flash slowly to show that it is paired with your phone. Insert phone On the Gametel, carefully pull out the sprung phone arm and insert your phone so that it is firmly held in place between the two rubber clamps. Tip: You can also use the Gametel up to 10 metres away from your phone (depending on Bluetooth range). Useful if, for instance, your phone is linked to a TV screen. For more information and a list of recommended games, please go to www.gametel.se In use Once the Gametel has been linked with your phone, to switch it on: Press and hold the START button for 3 seconds until the green indicator responds. The green indicator on the Gametel will flash slowly to show that it is paired. On your phone, select “Gametel” as the input method and you are ready to start playing. To switch off the Gametel: Press and hold the START button for 3 seconds until the green indicator goes dark. To charge the Gametel, use a standard USB phone charger (or link it to a USB port on a computer). The red indicator will be on when power is applied. To conserve battery power, the Gametel will automatically power off when it is not being used. Auto power off will occur after 10 minutes of inactivity un- less it is not paired with your phone, in which case auto power off will occur after 2 minutes. Press and hold START to switch Gametel on again. Release 2.0a-eng AppStore Gametel Gametel EC Declaration of Conformity FCC Compliance Statement Disposal of Electrical & Electronic Equipment (WEEE) Please Note!Product development This product was developed in Lund, Sweden by Svep Design Center AB on commission from Fructel AB. The Gametel clamp should hold your phone securely, but please check the fit before tilting the Gametel. Whilst gaming is fun, taking a short break every hour is advisable. Keep your Gametel away from high humidity and wet conditions as it might harm the electronics. Do not use your Gametel while driving or operating any machinery! Electronic Equipment and Batteries should not be treated as household waste. It should be handed in at the appropriate collection point for recycling. Do not try to remove internal batteries, they should only be removed by trained professionals at recycling centres. Please help protect the environment by recycling this product properly. We, Fructel AB, Box 1233, 221 05 Lund, Sweden, declare under our sole responsibility that our product Gametel is in conformity with the appropriate standards EN300328, EN 301489-1/-17, EN 60950 : 2006 + A1:2010 + A11:2009 + A12:2011 following the provisions of Radio Equipment and Telecommuncation Terminal Equpment Directive 1999/5/EC. This device complies with part 15 of the FCC and Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.” Lund, December 2011 Bo Nyman, CEO, Fructel AB iOS: Initial installation 1 Go to AppStore 2 Search for “Gametel” 3 Download and install the Gametel app 4 Run the Gametel app 5 In the app there is a Manual tab where you can read the details on how to set up your iOS device to run with Gametel. 14 25 3 Gametel

Invoice Address Telephone Number Bank Giro Service Internet Fructel AB +46 46 192700 755-1617 www.fructel.com Box 1233 221 05 Lund Registered Office Corporate Identity No E-mail Lund 556851-3229 [email protected] To whom it may concern Authorization Letter for FCC / IC certification The company 7layers AG has been contracted by Fructel AB to obtain “FCC and IC certification” for the following electronic component manufactured and/or released by Fructel AB: Gametel The following persons at 7 layers AG will be authorized: - Carsten Steinroeder - Thomas Hirschfeld - Torsten Lohoff Unless future correspondence from Fructel AB directs otherwise, please extend your full cooperation to 7 layers regarding matters to the above mentioned products for the period beginning 12 January 2012 through end of the project date. Thank you. Signature Bo Nyman CEO, Fructel AB

7 layers AG Borsigstr.11 40880 Ratingen Germany Attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 CONFIDENTIALITY REQUEST FOR “GAMETEL” FCC-ID: ANRGAMETELA Sirs, In accordance with FCC Rule Section 0.457 and 0.459 of CFR 47, 7 layers AG (authorized by FRUCTEL AB) hereby requests the following documentation as Long-term confidential: - Schematic diagrams - Block diagrams - Operational Description Short-term confidential (until 20. April 2012): - Internal Photos - Test Setup Photos - User Manual These documents contain detailed system and equipment description and related information about the product, which FRUCTEL AB considers to be proprietary. This information should never get into the possession of competitors, which would be harmful for our business. Do not hesitate to contact me if you have any additional questions. Carsten Steinroeder Ratingen, 26/01/2012

EXTERNAL PHOTOS

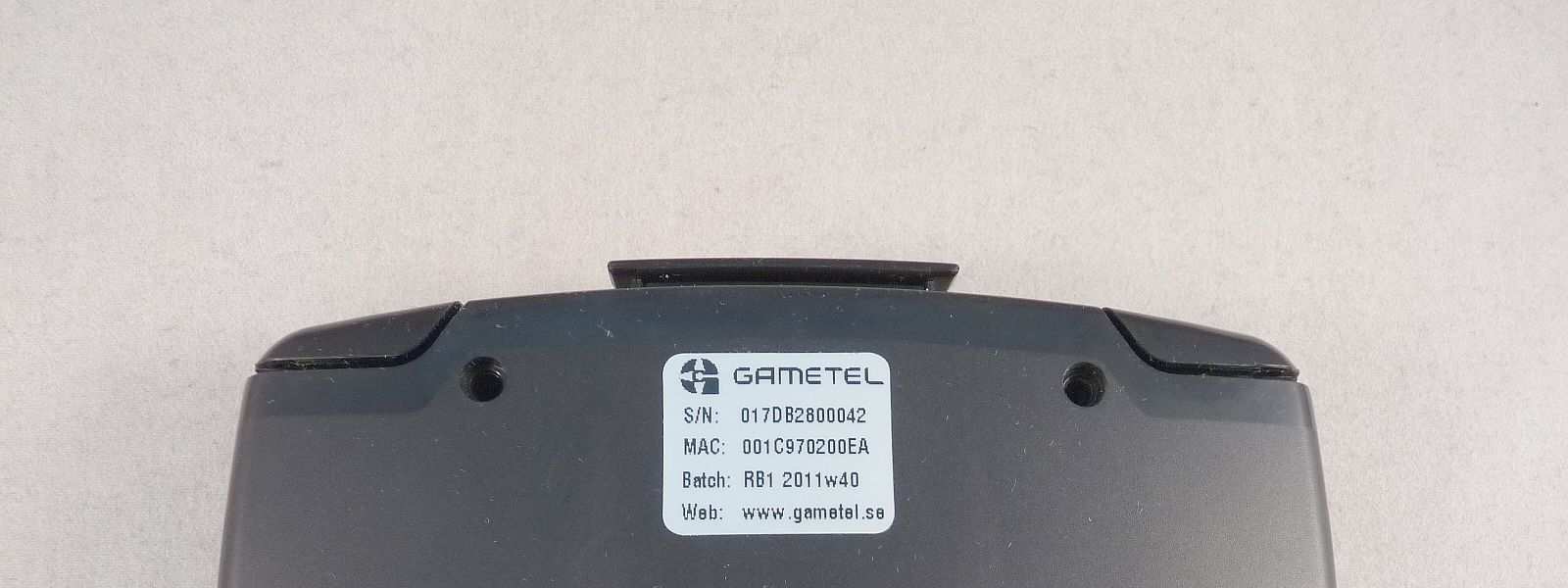

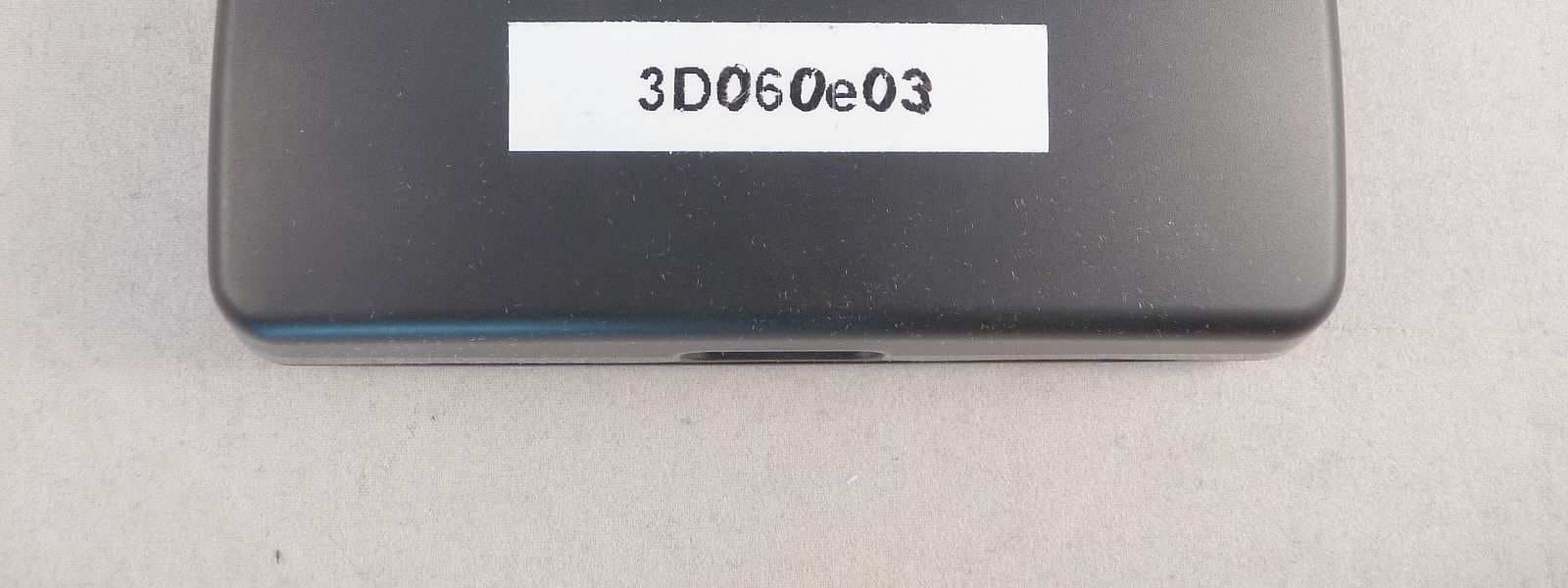

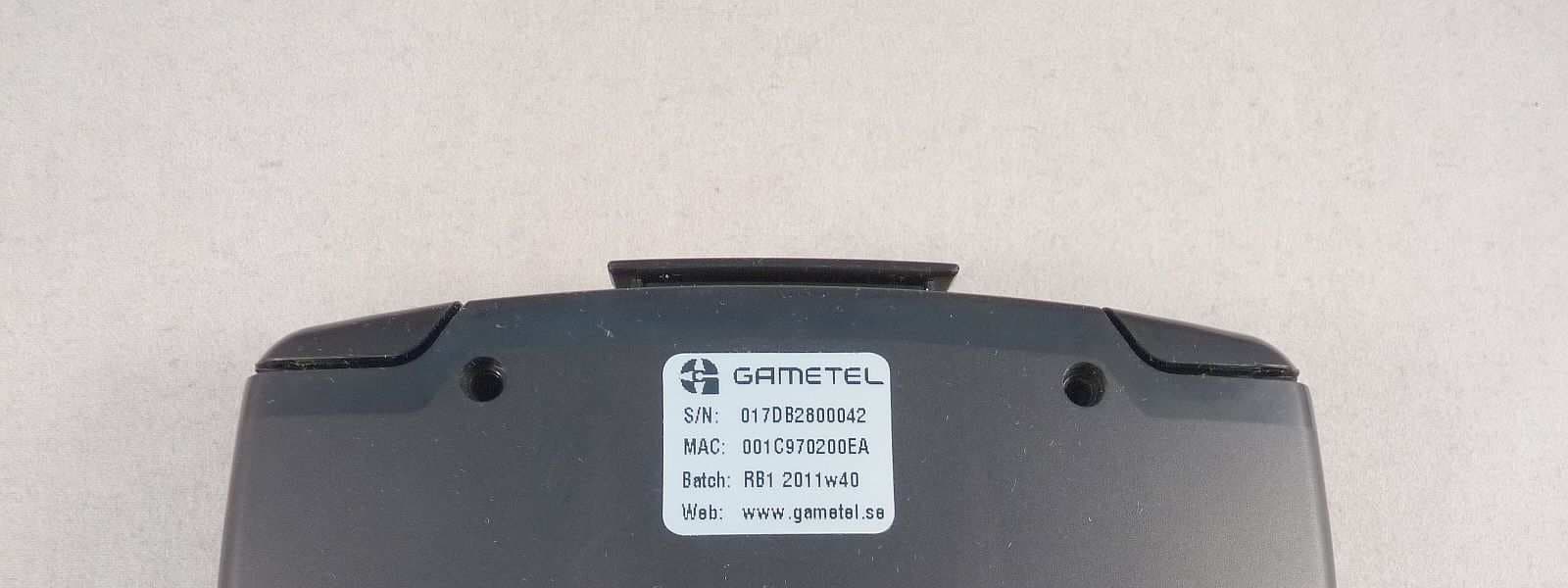

LABEL & LOCATION

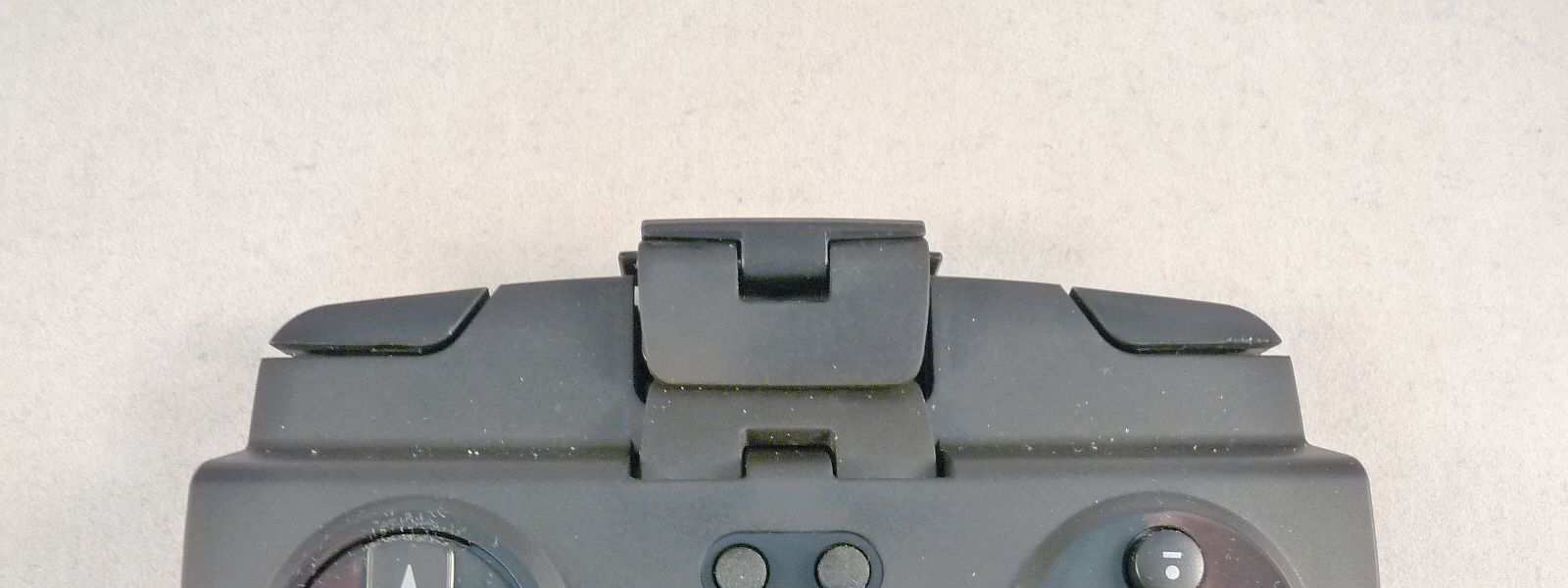

INTERNAL PHOTOS
