APIBOOSTTVPOWERED SPEAKER SYSTEM

Quick Start Guide Quick Start Guide Guide de démarrage rapide What’s in the box BLUETOOTH TV Quick Start Guide Guide de démarrage rapide Top Buttons Remote Control Buttons Harman Display Surround Power JBL Connect Power BluetoothTV Input / JBL SoundShift Audio FeedbackJBL Connect Volume DownVolume Up Mute Harman Display Surround Volume Down Volume Up TV Input / JBL SoundShift Bluetooth BLUETOOTH TV Quick Start Guide Guide de démarrage rapide Connections JBL BOOST TV Service / Updates only OR Bluetooth * Press the Bluetooth button to pair up to 3 wireless devices. Long-press to disconnect all paired devices. or BLUETOOTH TV Quick Start Guide Guide de démarrage rapide JBL SoundShift ™ 1) 2) ✦ BOOST TV is connected to TV and it is playing TV Sound. Press TV Button, TV button light turns blue (SoundShift ON). ★ Press play on a Bluetooth-paired phone, BOOST TV will auto switch to play phone sound. BLUETOOTH TV OR LED BEHAVIOR TV Source, Soundshift is off TV Source, Soundshift is on ◆ Press the JBL Connect button on all desired speakers to begin pairing. All connected speakers will play the same Bluetooth audio from the same wireless device. Quick Start Guide Guide de démarrage rapide ✤ Wirelessly links multiple JBL Connect compatible speakers together. JBL Connect LED BEHAVIOR Seeking JBL Connect Speaker Paired with JBL Connect Speaker Quick Start Guide Guide de démarrage rapide TV Remote Learning 1) Learn Power2) LED BEHAVIOR Command is learned TV SOURCE Enter Learning Mode 1. Press button on device 2. Press button on remote Quick Start Guide Guide de démarrage rapide Learn Volume Up3) TV SOURCE LED BEHAVIOR Command is learned Learn Volume Down4) LED BEHAVIOR Command is learned TV SOURCE 1. Press button on device 2. Press button on remote 1. Press button on device 2. Press button on remote Quick Start Guide Guide de démarrage rapide Learn Mute5) LED BEHAVIOR Command is learned TV SOURCE Exit Learning Mode6) 1. Press button on device 2. Press button on remote ✦ La BOOST TV est connectée au téléviseur et diffuse le son du téléviseur. Appuyez sur le bouton TV, celui-ci devient bleu (SoundShift actif). / BOOST TV está conectado a un televisor y reproduciendo el sonido del televisor. Pulse el botón TV. La luz del botón TV se vuelve de color azul (SoundShift ON). / BOOST TV está conectado a uma TV e reproduzindo o sinal de som da TV. Pressione o botão TV. Ele acenderá em azul, ligando o SoundShift. / BOOST TV ist an den Fernseher angeschlossen und spielt den TV-Sound ab. Drücke die TV-Taste. Die Tastenbeleuchtung wechselt zu blau (SoundShift EIN). / BOOST TV è collegato al TV e sta riproducendo il suono del TV Premere il pulsante TV, il pulsante TV diventa blu (SoundShift ON). / BOOST TV is aangesloten op de TV en het TV-geluid wordt afgespeeld. Druk op de TV-toets. Het lampje van de TV-toets gaat blauw branden (SoundShift AAN). / BOOST TV kobles til TV-en og spiller av TV-lyd. Trykk på TV-knappen, TV-knappen lyser blått (SoundShift PÅ). / BOOST TV on liitetty TV:n kanssa ja toistaa TV:n ääntä. Paina TV-painiketta, TV-painikkeen valo muuttuu siniseksi (SoundShift PÄÄLLÄ). / BOOST TV подключен к те левизору и воспроизводит звук с него. При нажатии кнопки TV кнопка начинает светиться синим (SoundShift ВКЛ.). / BOOST TV är ansluten till TV:n och spelar upp TV-ljudet. Tryck på TV-knappen. Lampan på TV-knappen tänds och lyser blå (SoundShift ON). / BOOST TV er forbundet til tv'et og afspiller tv'ets lyd. Tryk på knappen TV. Knappen begynder at lyse blåt (SoundShift TIL). / BOOST(ブースト) TVはTVに接続してTVサウン ドを再生します。 TVボタンを押すと、TVボタンのライトが青に変わります(サウンド シフトON)。 / Głośnik BOOST TV jest podłączony do telewizora i odtwarza jego dźwięk. Naciśnij przycisk TV – kontrolka przycisku TV zaświeci się na niebiesko (funkcja SoundShift jest teraz wł.). / BOOST TV는 TV에 연결되어 TV 사운드를 재생합니다. TV 버튼을 누르면 TV 버튼 라이트가 파란색이 됩니다(SoundShift ON). / BOOST TV 已连接至电视且正 在播放电视声音。 按下电视按钮后，其指示灯将呈蓝色亮起（指明 SoundShift 已开启）。 / Quick Start Guide Guide de démarrage rapide BOOST TV 連接到 TV 後，可播放 TV 的聲音。 按 TV 按鈕，TV 按鈕燈會變藍色 (SoundShift 開啟）。 / BOOST TV tersambung pada TV dan sedang memainkan Suara TV. Tekan Tombol TV, tombol TV menyala biru (PergantianSuara AKTIF). / ★ Activez la lecture sur un téléphone Bluetooth associé, la BOOST TV commute automatiquement sur la lecture du son du téléphone. / Pulse el botón de reproducción en un teléfono emparejado mediante Bluetooth. BOOST TV cambiará automáticamente para reproducir el sonido del teléfono. / Se o botão play for pressionado em um telefone Bluetooth emparelhado, o BOOST TV passará automaticamente a reproduzir o som do telefone. / Drücke auf die 'Wiedergabe' auf einem via Bluetooth gepairten Telefon. BOOST TV schaltet automatisch um und spielt die Audioinhalte vom Telefon ab. / Premere Play su un telefono Bluetooth abbinato, BOOST TV commuterà automaticamente per riprodurre l'audio del telefono. / Druk op aFSPELEN (Play) op een Bluetooth- gekoppeldde telefoon. BOOST TV zal automatisch naar het geluid van de telefoon schakelen. / Trykk på avspillingsknappen på en telefon som er tilkoblet med Bluetooth, BOOST TV vil bytte til å spille av lyd fra telefonen. / Paina toistoa Bluetooth-parimuodostetussa puhelimessa, BOOST TV automaattisesti kytkeytyy toistamaan puhelimen ääntä. / При н ажатии кнопки воспроизведения на телефоне, сопряженном по Bluetooth, BOOST TV авт оматически переключится на воспроизведение звука с телефона. / Tryck på spela på en Bluetooth-ansluten telefon så växlar BOOST TV automatiskt över och spelar ljudet från telefonen. / Tryk på afspil på en Bluetooth-parret telefon. BOOST TV overgår automatisk til at afspille telefonens lyd. / Bluetoothでペアになったスマートフォンで再生を押すと 、BOOST(ブースト) TVは自動でスマートフォンのサウンド再生に切り替わります。 / Naciśnij przycisk odtwarzania na powiązanym smartfonie Bluetooth – głośnik BOOST TV zacznie automatycznie odtwarzać dźwięki ze smartfona. / Bluetooth가 페어링된 휴대폰의 재생을 누르면 BOOST TV는 휴대폰 사운드 재생으로 자동 전환됩니다. / 按下已通过蓝牙配 对的手机上的播放按钮后，BOOST TV 将自动切换为播放手机的声音。 / 按 Bluetooth 配對的手機上的播放鈕，BOOST TV 將自動切換為播放…

Text truncated - open the document above for the full version.

Harman International Industries, Inc Date: 2015-07-21 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: APIBOOSTTV To Whom It May Concern: This letter is to ascertain that Harman International Industries, Inc Product：POWERED SPEAKER SYSTEM MODEL No.: BOOST TV The USB port is used for download the program by manufacturer, If you have any question or concerns, pls. contact us. Sincerely, Harman International Industries, Inc (signature) Tim Song/Manager 2015-07-21

Harman International Industries, Inc Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2015-07-21 SUBJECT: FCC Application for APIBOOSTTV To Whom It May Concern: We, the undersigned, hereby authorize Lisa Wang at SHENZHEN EMTEK CO., LTD. on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by SHENZHEN EMTEK CO., LTD. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Harman International Industries, Inc Tim Song/Manager 2015-07-21

Harman International Industries, Inc August 04, 2015. Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: APIBOOSTTV To whom it may concern: Short-term confidentiality Pursuant to DA 04-1705 of the Commission’s pubic notice, in order to comply with the marketing regulations in 47CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until Jan 1, 2016→(release date be set to less than 180 days from grant date): Exhibit Type File Name Internal Photos Internal Photos.pdf User’s Manual User Manual.pdf External Photos External Photos.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Should you require any further information, please contact the undersigned. Thanks for your consideration in this matter. Yours Sincerely, Harman International Industries, Inc (signature) Tim Song/Manager 2015-08-04

Rev 11/20/07 Harman International Industries, Inc Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: APIBOOSTTV Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Schematic Diagram Circuit Description BlcokDiagram.pdf SchematicDiagram.pdf CircuitDescription.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Harman International Industries, Inc (signature) Tim Song/Manager 2015-08-04

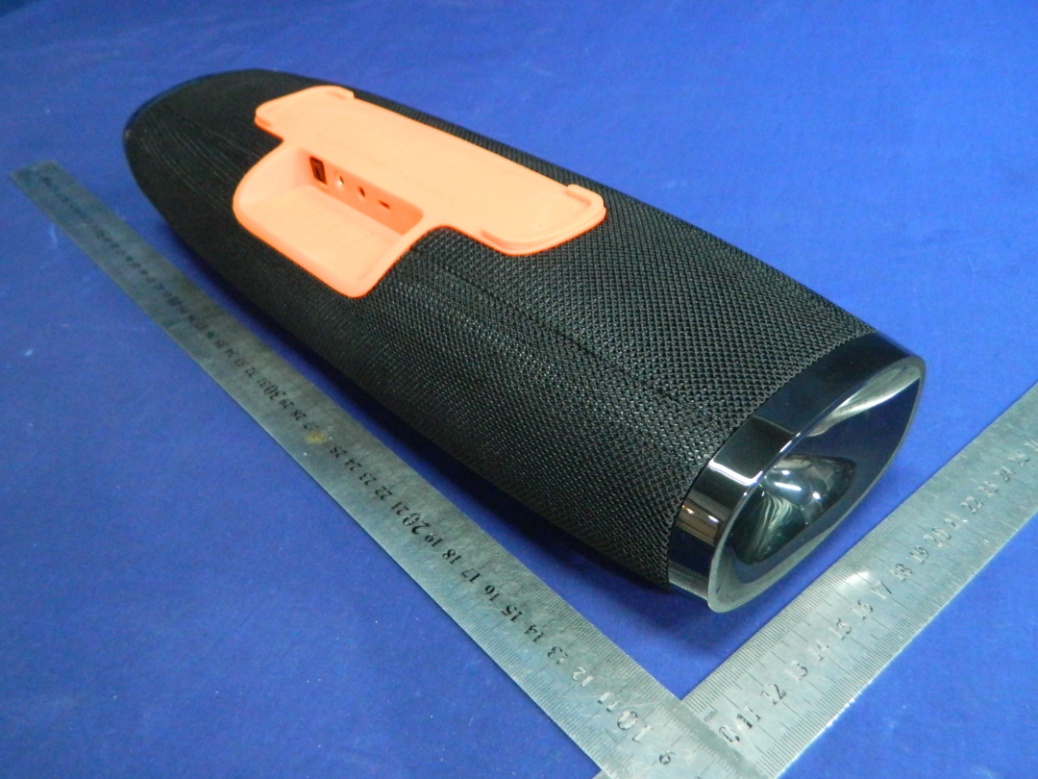

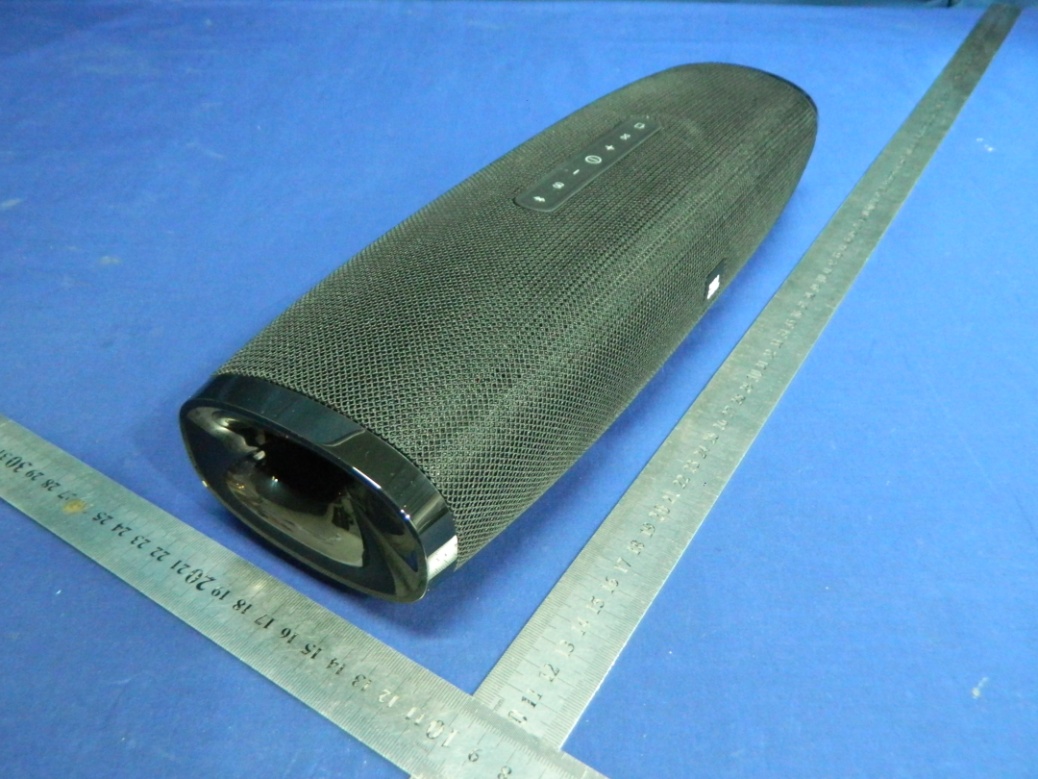

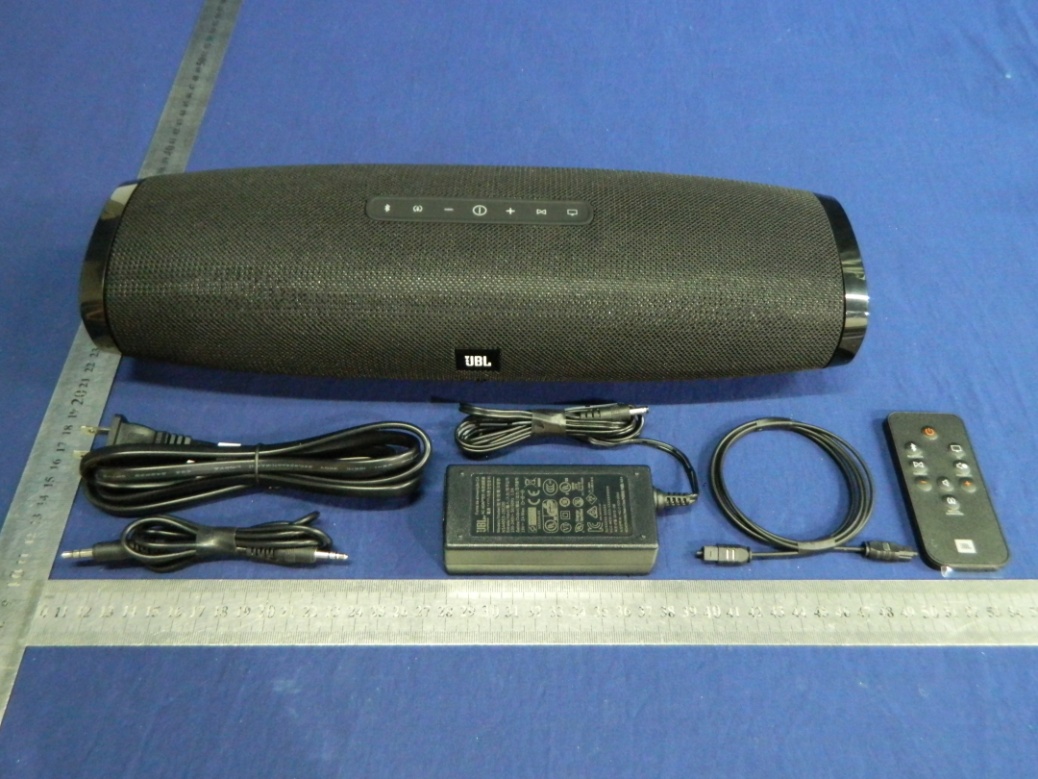

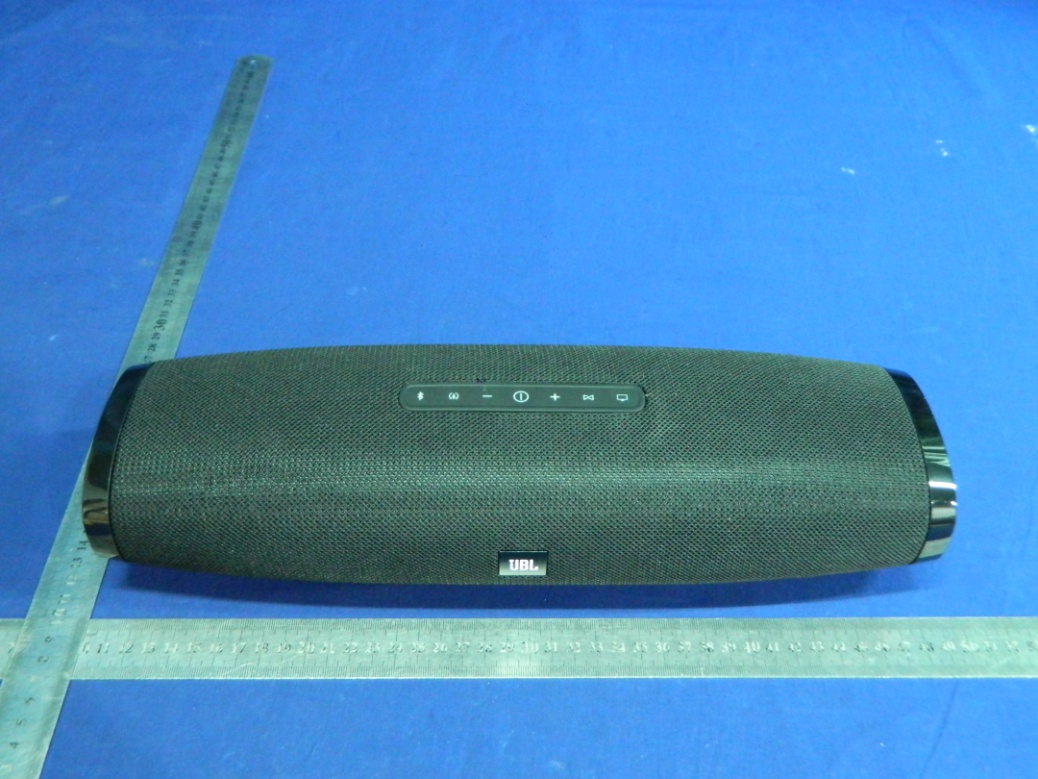

External Photos

PROJECT: BOOST TV DOCUMENT: ARTWORK_V15 DOCUMENT HISTORY: V12_2015-07-29_Update V13_2015-07-30_Modified Rubber Feet line drawing. V14_2015-07-30_Trash can logo, APIBOOSTTV Text, Date of manufacture added, Made in China text. V15_2015-07-31_Removed all “XXXXX” from compliance. TOP VIEW_BOOST TV LASER ETCHED ICON BOTTOM VIEW_ REMOTE - BOOST TV COMPLIANCE ICONS COLOUR: PANTONE 172 C FINISHING: MATTE BOTTOM VIEW_BOOST TV TYPE: SILKSCREEN COLOUR: TRANSPARENT T605-7-5 FINSIHING: MATTE TOP VIEW_ REMOTE - BOOST TV THANK YOU

FCC ID : APIBOOSTTV RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the followi ng table shall be used to evaluat e the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 11.1 Friis transmission form ula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm 2 . If we know the maximum gain of the nd total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. 11.2 Measurement Result BT DSS Channel Freq. (MHz) modulation conducted power (mW) conducted power (dBm) Tune-up power (dBm) Max tune- up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 2402 GFSK 4.12 6.151 5dBm to 7dBm 7dBm 1.5 0.00150 1 2441 GFSK 4.06 6.086 5dBm to 7dBm 7dBm 1.5 0.00150 1 2480 GFSK 3.66 5.637 5dBm to 7dBm 7dBm 1.5 0.00150 1 2402 π /4 - DQPSK 2.25 3.517 3dBm to 5dBm 5dBm 1.5 0.00095 1 2441 π /4- DQPSK 2.36 3.731 3dBm to 5dBm 5dBm 1.5 0.00095 1 2480 π /4- DQPSK 2.07 3.168 3dBm to 5dBm 5dBm 1.5 0.00095 1 2402 8DPSK 2.59 4.136 3dBm to 5dBm 5dBm 1.5 0.00095 1 2441 8DPSK 2.64 4.216 3dBm to 5dBm 5dBm 1.5 0.00095 1 2480 8DPSK 2.30 3.617 3dBm to 5dBm 5dBm 1.5 0.00095 1 BT DTS: Channel Freq. (MHz) modulation conducted power (mW) conducted power (dBm) Tune-up power (dBm) Max tune- up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 2402 GFSK 3.07 4.872 3dBm to 5dBm 5 1.5 0.00095 1 2440 GFSK 3.16 4.998 3dBm to 5dBm 5 1.5 0.00095 1 2480 GFSK 2.84 4.526 3dBm to 5dBm 5 1.5 0.00095 1

TRF No.:FCC 15.247/A Page 1 of 40 Report No.: ES150616208E2 Ver.1.0 Access to the World FCC 47 CFR PART 15 SUBPART C CERTIFICATION TEST REPORT For POWERED SPEAKER SYSTEM MODEL No.: BOOST TV FCC ID: APIBOOSTTV Trademark: JBL REPORT NO.: ES150616208E2 ISSUE DATE: July 21, 2015 Prepared for Harman International Industries, Inc 8500 Balboa Blvd, Northridge, CA 91329, UNITED STATES Prepared by SHENZHEN EMTEK CO., LTD. Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China TEL: 86-755-26954280 FAX: 86-755-26954282 TRF No.:FCC 15.247/A Page 2 of 40 Report No.: ES150616208E2 Ver.1.0 Access to the World Table of Contents 1 TEST RESULT CERTIFICATION ............................................................................................................. 3 2 EUT TECHNICAL DESCRIPTION ........................................................................................................... 4 3 SUMMARY OF TEST RESULT ................................................................................................................ 5 4 TEST METHODOLOGY ........................................................................................................................... 6 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS ................................................................ 6 4.2 MEASUREMENT EQUIPMENT USED .......................................................................................... 6 4.3 DESCRIPTION OF TEST MODES ................................................................................................. 7 5 FACILITIES AND ACCREDITATIONS ..................................................................................................... 8 5.1 FACILITIES .................................................................................................................................... 8 5.2 LABORATORY ACCREDITATIONS AND LISTINGS ..................................................................... 8 6 TEST SYSTEM UNCERTAINTY .............................................................................................................. 9 7 SETUP OF EQUIPMENT UNDER TEST ............................................................................................... 10 7.1 RADIO FREQUENCY TEST SETUP 1 ......................................................................................... 10 7.2 RADIO FREQUENCY TEST SETUP 2 ......................................................................................... 10 7.3 CONDUCTED EMISSION TEST SETUP ..................................................................................... 11 7.4 SUPPORT EQUIPMENT ............................................................................................................. 12 8 TEST REQUIREMENTS ......................................................................................................................... 13 8.1 DTS 6DB BANDWIDTH ............................................................................................................... 13 8.2 MAXIMUM PEAK CONDUCTED OUTPUT POWER ................................................................... 16 8.3 MAXIMUM POWER SPECTRAL DENSITY ................................................................................. 17 8.4 UNWANTED EMISSIONS IN NON-RESTRICTED FREQUENCY BANDS ................................. 20 8.5 RADIATED SPURIOUS EMISSION ............................................................................................. 25 8.6 CONDUCTED EMISSIONS TEST ............................................................................................... 37 8.7 ANTENNA APPLICATION ............................................................................................................ 40 TRF No.:FCC 15.247/A Page 3 of 40 Report No.: ES150616208E2 Ver.1.0 Access to the World 1 TEST RESULT CERTIFICATION Applicant: Harman International Industries, Inc Manufacturer: Harman International Industries, Inc Product Description: POWERED SPEAKER SYSTEM Model Number: BOOST TV File Number: ES150616208E2 Date of Test: June 16 2015 to July 21, 2015 Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C PASS The above equipment was tested by SHENZHEN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2 and Part 15.247 The test results of this report relate only to the tested sample identified in this report Date of Test : June 16 2015 to July 21, 2015 Test by : KingKong /Tester Prepared by : Yaping Shen/Editor Approve & Authorized Signer : Lisa Wang/Manager TRF No.:FCC 15.247/A Page 4 of 40 Report No.: ES150616208E2 Ver.1.0 Access to the World 2 EUT TECHNICAL DESCRIPTION Characteristics Description Data Rate DSS: 1Mbps for GFSK modulation 2Mbps for pi/4-DQPSK modulation 3Mbps for 8DPSK modulation DTS: 1Mbps for GFSK modulation Modulation: DSS: GFSK modulation (1Mbps) pi/4-DQPSK modulation (2Mbps) 8DPSK modulation (3Mbps) DTS: GFSK modulation (1Mbps) Operating Frequency Range(s): 2402-2480MHz Number of Channels: 79 channels for DSS 40 channels for DTS Transmit Power Max: 6.151 dBm for DSS; 4.998 dBm for DTS; Antenna Type : PCB Antenna Antenna Gain: 1.77 dBi; Power supply: DC supply: Adapter supply: Model: NSA40ED-190200 Input: 100-240V, 50/60Hz, 1.0A Output: 19V, 2A MAX Temperature Range -10°C ~ +55°C Note: for more details, please refer to the User’s manual of the EUT. TRF No.:FCC 15.247/A Page 5 of 40 Report No.: ES150616208E2 Ver.1.0 Access to the World 3 SUMMARY OF TEST RESULT FCC Part Clause Test Parameter Verdict Remark 15.247(a)(2) DTS (6dB) Bandwidth PASS 15.247(b)(3) Maximum Peak Conducted Output Power PASS 15.247(e) Maximum Power Spectral Density Level PASS 15.2…
