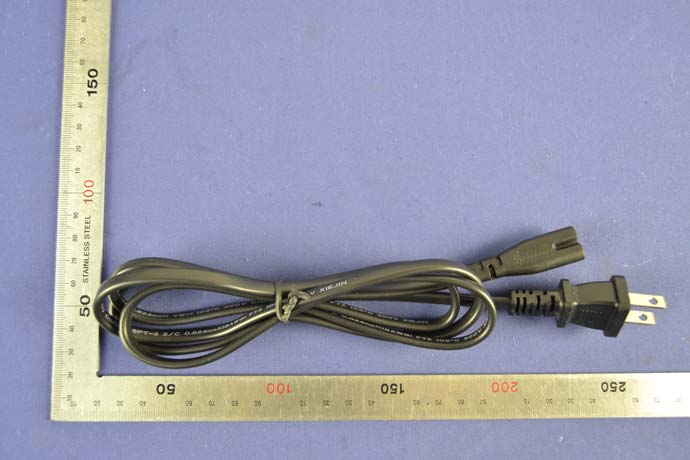

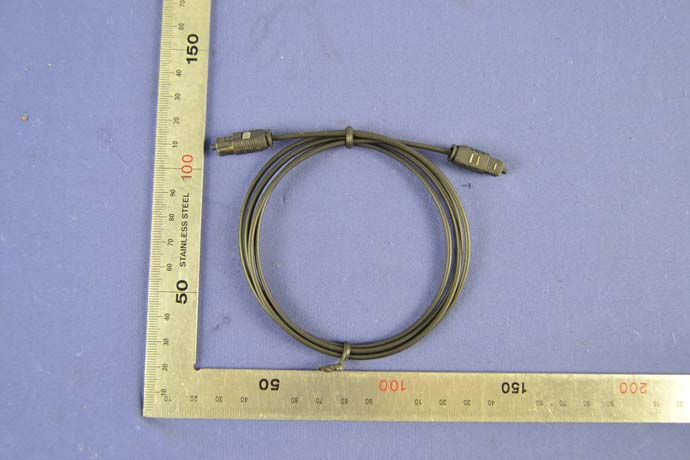

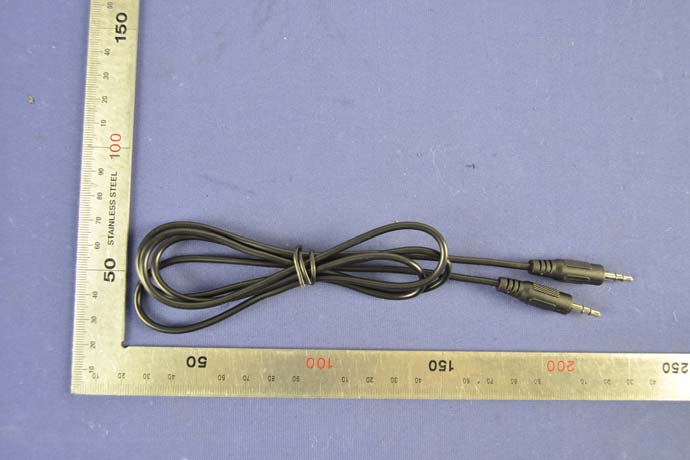

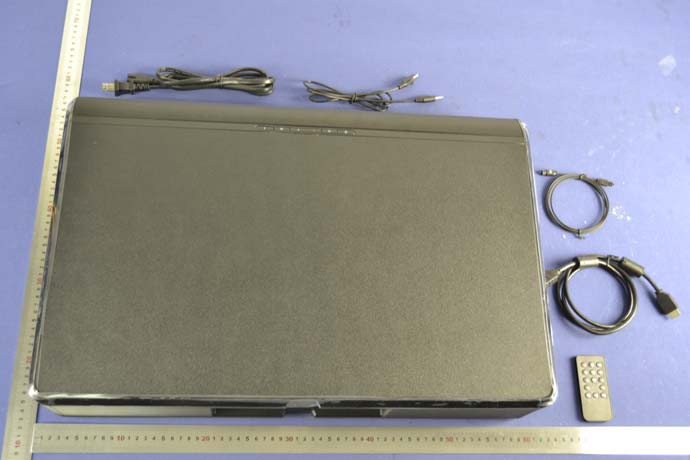

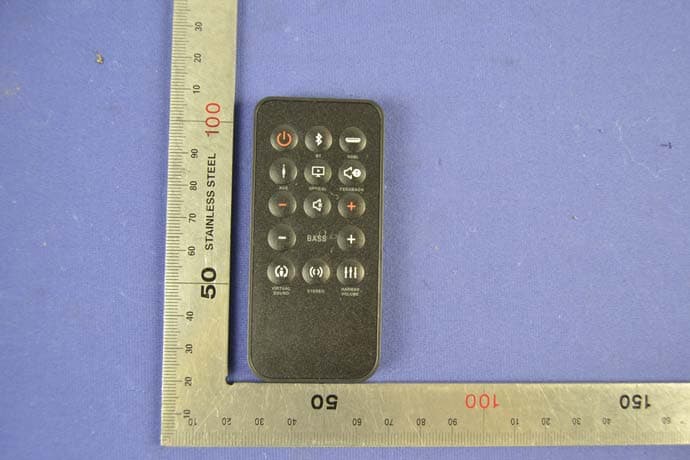

JBL CINEMA TM BASE LIGHT GREY Note: For complete information about using your JBL Cinema Base download the complete Owner's Manual from www.jbl.com Quick Start Guide Quick Start Guide Guide de démarrage rapide JBL CINEMA ™ BASE What’s in the box 1 x 1 x 1 x 1 x 1 BASS Cinema Base Remote Optical cable Analog aux cable x 1 x 1 HDMI cable Power cable BASS Quick Start Guide Guide de démarrage rapide JBL CINEMA ™ BASE 2b. Cinema Base top panel 1) Power on / Stand by 2) Source selection 3) Volume +/- 4) Surround mode 5) Bluetooth source / Pairing 2a. Remote control Buttons and Controls 2 3 2 5 7 11 6 8 9 12 1) Power on / Stand by 2) Bluetooth 3) HDMI ARC 4) Aux-in 5) Optical 6) Audio feedback on/off 7) Mute 8) Volume +/- 9) Bass volume +/- 10) Harman Display Surround 11) Stereo 12) Harman volume 1 4 10 Note: Before using the remote control, remove the plastic tab protecting the battery at the bottom of the remote control. 1 2453 Optical audio in Aux-in Analog HDMI TV (ARC) LED Color Source LED behavior Quick Start Guide Guide de démarrage rapide JBL CINEMA ™ BASE Connections 3 Note: Please ensure your television features HDMI Audio Return Channel (ARC) before using the HDMI connection. Refer to your television owner's manual to activate the feature. If you are not getting audio while using HDMI on your television, please use an optical or analog connection instead. Note: After you are done with your installation and source connections, please ensure the power switch on the soundbase is on before operating the system. HDMI TV (ARC) Power Input AC Aux-inOptical Subwoofer (cable not included) Power switch 2c. Cinema Base rear panel Remove Caps Bluetooth pairing 4 JBL CINEMA BASE JBL CINEMA BASE LED behavior Pairing mode No device connected Device connected Stereo / Harman Display surround 5 Harman Display Surround Stereo mode LED behavior Quick Start Guide Guide de démarrage rapide JBL CINEMA ™ BASE 23" (585mm) 13.5" (342mm) Quick Start Guide Guide de démarrage rapide JBL CINEMA ™ BASE TV placement 6 Note: Maximum TV Stand Size (L x W): 23" x 13.5" (585mm x 342mm). TV stands are recommended to fit within the designated area. Cinema Base supports TVs with weights up to 50lbs (22.6kg) Warning Note: Please be careful while placing/moving the TV foot. It may scratch/damage the leather casing at the top of your Cinema Base. Quick Start Guide Guide de démarrage rapide JBL CINEMA ™ BASE Charging external devices 7 The Cinema Base has the ability to learn the volume control and power infrared (IR) codes of your IR TV remote control. Get your Cinema Base to control TV Volume (in operational mode) using this simple procedure: 1. Press and hold the top panel 'Surround' key until the system enters learning mode (the LED will blink orange). 2. VOLUME + : Press 'Volume +' on the soundbar and then press 'Volume +' on the TV remote control. 3. VOLUME − : Press 'Volume –' on the soundbar and then press 'Volume –' on the TV remote control. 4. MUTE: Press 'Volume +' and 'Volume –' together on the soundbar and then press 'Mute' on the TV remote control. 5. POWER: Power On your soundbar by pressing the 'Power' key on the soundbar and then pressing the 'Power' key on the TV remote control. Note: After each TV IR code is successfully learned the blinking orange LED will turn white for 1 second. The Cinema Base is ready to learn the next key after the white LED disappears and the blinking orange LED restarts. Press and hold the panel 'Surround' key again to exit learning mode (The orange LED will stop blinking). Remote learning feature 8 USB Note: USB is designed for charging and software updates only. USB will not support direct-connect audio streaming. Quick Start Guide Guide de démarrage rapide JBL CINEMA ™ BASE • Frequency response: 45Hz – 20kHz • Maximum SPL: 100dB • Total amplifier power: 240W • Speakers: left and right 2.5" (65mm) full range drivers and dual 3.5" (90mm) subwoofers • Dolby ® Digital Decoding • One HDMI ® output with Audio Return Channel (ARC) • Bluetooth ® connectivity • One stereo analog-audio input • One optical digital input • One USB port for device charging and software update • One subwoofer output (optional external subwoofer not included) • Dimensions: (L x W x H): 23.6" x 15.8" x 4" (600 x 401.6 x 102mm) • Weight: 22.3lb (10.1kg) • Maximum TV weight: 150lbs (68kg) • Maximum TV stand size: (L x W): 23" x 13.5" (585 x 342mm) EN • Réponse en fréquences : 45 Hz – 20 kHz • Pression sonore max. : 100 dB • Puissance totale de l'amplificateur : 240 W • Haut-parleurs : haut-parleurs gauches et droits pleine gamme de 65 mm (2,5") et deux haut-parleurs de graves de 90 mm (3,5") • Décodage Dolby ® Digital • Une sortie HDMI ® avec canal de retour audio (ARC, Audio Return Channel) • Connectivité Bluetooth ® • Une entrée audio analogique stéréo • Une entrée numérique optique • Une prise USB pour la charge d'appareils et les mises à jour de logiciel • Une sortie de caisson de graves (caisson de graves externe en option non inclus) • Dimensions : (L x P x H) : 600 x 401,6 x 102 mm (23,6" x 15,8" x 4") • Poids : 10,1 kg (22,3 lb) • Poids maximal du téléviseur : 68 kg (150 lb) • Dimensions max. du pied du téléviseur : (L x P) : 585 x 342 mm (23" x 13,5") FR Quick Start Guide Guide de démarrage rapide JBL CINEMA ™ BASE • Intervalo de frecuencias: 45 Hz – 20 kHz • SPL máximo: 100 dB • Potencia del amplificador total: 240 W • Altavoces: Unidades de gama completa izquierda y derecha de 2,5" (65 mm) y subwoofers duales de 3,5" (90 mm) • Descodificación Dolby ® Digital • Una salida HDMI ® con canal de retorno de audio (ARC) • Conectividad Bluetooth ® • Una entrada de audio analógica estéreo • Un entrada óptica digital • Un puerto USB para cargar el dispositivo y actualizar el software • Una salida de subwoofer (subwoofer externo opcional no incluido) • Dimensiones: (Ancho x Alto x Profundidad): 600 x 401,6 x 102 m • Peso: 10,1 kg • Peso máximo del televisor: 68 kg • Tamaño máximo del soporte del televisor: (Largo…

Text truncated - open the document above for the full version.

FCC INFORMATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. Industry Canada Statement: This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: 1) this device may not cause interference and 2) this device must accept any interference, including interference that may cause undesired operation of the device. This class B digital apparatus complies with Canadian ICES-003 IC Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. Avis d’Industrie Canada: Cet appareil est conforme à la norme CNR-210 des règlements d’Industrie Canada. Son fonctionnement est sujet aux deux conditions suivantes: 1) Cet appareil ne doit pas provoquer d’interférences et 2) Cet appareil doit accepter toutes les interférences, y compris celles pouvant entraîner son dysfonctionnement. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada Avis d’Industrie Canada sur l’exposition aux Rayonnements: Cet appareil est conforme aux limites d’exposition aux rayonnements d’Industrie Canada pour un environnement non contrôlé.

Harman International Industries, Inc 8500 Balboa Boulevard NorthridgeCalifornia United States FCC Confidentiality Request Number: CF303 Version: V05 Date: 21-05-2012 (Permanent or also called long term confidentiality is the normal method to keep certain docuements confidential, and may apply to schematics, block diagrams, operational description and bill of materials.) To: Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Harman International Industries,Inc. Address 8500 Balboa Boulevard City Northridge California Country United States request for this certification filing under: Grantee Code Product Number FCC ID: API CINEMABASE to maintain permanent confidentiality for the following documents submitted within this application: (please cross what is applicable, or add other documents, provide the file name and description) Exhibit File Name Description Operational Description explaining the functioning of the block diagram Block Diagrams showing the systematic building blocks of the EUT Schematics Diagrams showing components, their values and interconnection Bill of Materials List of components used on the PCB’s of the EUT Above materials crossed contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. The documents indicated as confidential above, are not publicly available elsewhere. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Northridge United States 2014-07-17 Mille Ran Director Global Quality

Harman International Industries, Inc 8500 Balboa Boulevard Northridge California United States FCC Authorization Letter Number: CF304 Version: V03 Date: 07-11-2013 We, (the approval holder) Company name Harman International Industries, Inc Address 8500 Balboa Boulevard City Northridge California Country United States declare that the following representative (agent): Name (person) Ruby.zhang Company name Compliance Certification Services Inc. Address No.10-1 Mingkeda Logistics park, No.18 Huanguan South Road. Guan Lan Town, Baoan District, Shenzhen, China City Shenzhen, Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description POWERED SOUNDBASE SPEAKER SYSTEM Type or Model(s) CINEMA BASE Tradename or Brand(s) JBL We also authorize Teleconformity (Mr. M. Koop, Manager Certification, Address: Rietven 31, 7534NH Enschede, the Netherlands) to apply and sign this application for certification, registration or filing on our behalf (as representative agent or certifier). Attestation: City and Country: Date: Name: (this must be a person) Function:Signature: (or official company stamp) Northridge United States 2014-07-17 Mille Ran Director Global Quality

Harman International Industries, Inc 8500 Balboa Boulevard Northridge California United States Date: 2014-08-04 Subject: USB port To Whom it may concern: The USB port is only used for Charging, it cannot stream data/mucic from USB stick or a Computer. Yours Sincerely, M. Koop (authorized agent)

Report No: C140619Z01 Page 1 / 6 External Photos of EUT Report No: C140619Z01 Page 2 / 6 Report No: C140619Z01 Page 3 / 6 Report No: C140619Z01 Page 4 / 6 Report No: C140619Z01 Page 5 / 6 Report No: C140619Z01 Page 6 / 6

Label location

CINEMA BASE V17E 01 AMERICA, EMEA, BRAZIL, ASIA ,JAPAN CINEMABASE COMPLAINCE TYPE: LABEL COLOUR: PANTONE BLACK C FINISHING: MATTE TEXT COLOUR: PANTONE COOL GREY 1C FINISHING: MATTE TYPE: LABEL COLOUR: PANTONE BLACK C FINISHING: MATTE TEXT COLOUR: PANTONE COOL GREY 1C FINISHING: MATTE 02 CHINA CINEMABASE COMPLAINCE

Report No.: C140619Z01 Page 1/14 Internal Photos of EUT Report No.: C140619Z01 Page 2/14 Report No.: C140619Z01 Page 3/14 Report No.: C140619Z01 Page 4/14 Report No.: C140619Z01 Page 5/14 Report No.: C140619Z01 Page 6/14 Report No.: C140619Z01 Page 7/14 Report No.: C140619Z01 Page 8/14 Report No.: C140619Z01 Page 9/14 Report No.: C140619Z01 Page 10/14 Report No.: C140619Z01 Page 11/14 Report No.: C140619Z01 Page 12/14 Report No.: C140619Z01 Page 13/14 Bluetooth Module Bluetooth Antenna Report No.: C140619Z01 Page 14/14

FCC RF Exposure FCC ID: APICINEMABASE Frequency: 2402-2480 MHz (79 Ch) Modulation: FHSS (79 Ch: GFSK, π/4-DQPSK, 8DPSK) Mid-Channel or highest-measured Peak Power, Conducted: 5.80 dBm = 3.80 mW Antenna Gain: G = 3.78 dBi Peak, Radiated = 3.80 dBm + 3.78 dBi = 7.58dBm = 5.73 mW SAR Test Exclusion Thresholds specified in KDB447498 Appendix A: Evaluation: The Calculated Radiated Peak output power is taken as worst case, and this emission level appears to be under the maximum allowed emission level at even the closest distance for 2.4G device specified in this table. Conclusion: The emitted power appears to be (far) below the required limit, so PASS.

Report No.: C140619Z01-RP1 FCC ID: APICINEMABASE Page 1 / 65 FCC 47 CFR PART 15 SUBPART C TEST REPORT For POWERED SOUNDBASE SPEAKER SYSTEM Model: CINEMA BASE Brand: JBL Test Report Number: C140619Z01-RP1 Prepared for Harman International Industries, Inc. 8500 Balboa Blvd, Northridge, CA 91329, UNITED STATES Prepared by COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. No.10-1, Mingkeda Logistics Park, No.18, Huanguan South Rd., Guan Lan Town, Baoan District, Shenzhen China TEL: 86-755-28055000 FAX: 86-755-28055221 Issued Date: July 16, 2014 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST or any government agencies. The test result of this report relate only to the tested sample identified in this report. 检 测 CNAS L4818 Report No.: C140619Z01-RP1 FCC ID: APICINEMABASE Page 2 of 65 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 July 16, 2014 Initial Issue ALL Sabrina Wang Report No.: C140619Z01-RP1 FCC ID: APICINEMABASE Page 3 of 65 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .....................................................................................4 2. EUT DESCRIPTION..........................................................................................................5 3. TEST METHODOLOGY....................................................................................................6 3.1 DESCRIPTION OF TEST MODES ................................................................................6 4. FACILITIES AND ACCREDITATIONS .............................................................................7 4.1 FACILITIES....................................................................................................................7 4.2 ACCREDITATIONS .......................................................................................................7 4.3 MEASUREMENT UNCERTAINTY ................................................................................7 5. SETUP OF EQUIPMENT UNDER TEST ..........................................................................8 5.1 SETUP CONFIGURATION OF EUT .............................................................................8 5.2 SUPPORT EQUIPMENT .............................................................................................8 6. FCC PART 15.247 REQUIREMENTS ..............................................................................9 6.1 20dB BANDWIDTH........................................................................................................9 6.2 PEAK POWER.............................................................................................................14 6.3 PEAK POWER SPECTRAL DENSITY ........................................................................15 6.4 BAND EDGES MEASUREMENT ................................................................................21 6.5 FREQUENCY SEPARATION ......................................................................................31 6.6 NUMBER OF HOPPING FREQUENCY ......................................................................32 6.7 TIME OF OCCUPANCY (DWELL TIME) .....................................................................35 6.8 SPURIOUS EMISSIONS .............................................................................................44 6.9 POWERLINE CONDUCTED EMISSIONS ..................................................................55 Report No.: C140619Z01-RP1 FCC ID: APICINEMABASE Page 4 of 65 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. TEST RESULT CERTIFICATION Product: POWERED SOUNDBASE SPEAKER SYSTEM Model: CINEMA BASE Brand: JBL Tested: June 19~July 14, 2014 Applicant: Harman International Industries, Inc. 8500 Balboa Blvd, Northridge, CA 91329, UNITED STATES Manufacturer: Harman International Industries, Inc. 8500 Balboa Blvd, Northridge, CA 91329, UNITED STATES Factory: Shenzhen Fenda Technology Co., Ltd. Fenda Hi-Tech Park, Zhoushi Road, Shiyan Town, Baoan District., Shenzhen City, Guangdong 518108 P.R.China APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4:2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Sunday Hu Supervisor of EMC Dept. Compliance Certification Service Inc. Ruby Zhang Supervisor of Report Dept. Compliance Certification Service Inc. Report No.: C140619Z01-RP1 FCC ID: APICINEMABASE Page 5 of 65 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2. EUT DESCRIPTION Product POWERED SOUNDBASE SPEAKER SYSTEM Model Number CINEMA BASE Brand JBL Model Discrepancy N/A Identify Number C140619Z01-RP1 Power Supply AC100-240V 50/60Hz 120W Received Date June 19, 2014 Frequency Range 2402 ~ 2480 MHz Transmit Power GFSK : 5.80dBm 8DPSK : 4.80dBm Modulation Technique FHSS (GFSK for 1Mbps, π/4-DQPSK for 2Mbps, 8DPSK for 3Mbps) N…
