APIDP2USPersonal FM Broadcast Band Transmitter

The Drive + Play 2 system Instruction Manual The Harman Kardon Drive + Play 2 is the premier product for in-car connectivity of portable music players and digital devices, including the Apple iPod, Microsoft Zune, USB flash memory drives, and many other music players. Equipped with a sleek dash-mounted color display and wireless ergonomic control wheel, the DP2 and your portable combine to give you the most sophisticated and elegant music experience on the road today.DP2 is also the first device to utilize Harman’s new rev-net interface, which allows you to mix and match additional portables -- such as Bluetooth phones and satellite radio tuners -- all on the same display. The rev-net software quickly and intuitively organizes all of your digital content and creates “channels” for your music, allowing for a simply superior entertainment experience. Display Control Wheel Lighter Hub most every portable music player Bluetooth phones Sirius Portable tuners w i t h e x p a n s i o n kit s 54mm • Control the screen without looking at your hand!• Full rotation control wheel with smooth detents• 1 year battery life• Easily sticks or screws to any surface • All digital audio system and expansion port housed in a cigarette lighter• Intelligent iPod charging circuit • Built-in FM modulator and high quality line-level outputs • Cigarette lighter stalk snaps off to reveal switched power, battery, and ground connections• Easily hidden in the dash for a clean professional installation rev-net expansion line and FM- level outputs display connector portable device connector • Shortcuts let you quickly transition to an artist or album without browsing through menus • High performance 200MHz processor• 3.5” Color Screen• rev-net compatible for future-proof expansion• Anti-aliased fonts• Sound effects•Skinning• Album art• Easy, elegant installation on dashboard or windshield • Automatically makes ‘channels’ of music, grouped according to your taste and habits • Totally change the appearance with built-in themes, or download additional themes from the web FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undersired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/ TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment.

Attestation To Whom It May Concern: We, Harman Kardo Inc. would like to apply a FCC ID for below product. FCC ID: APIDP2US Product name: Vehicle device wireless audio device Product Model: DP2US Here is the product description. The Harman KardonDrive + Play 2 is the premier product for in-car connectivity of portable music players and digital devices, including the Apple iPod, Microsoft Zune, USB flash memory drives, and many other music players. Equipped with a sleek dash-mounted color display and wireless ergonomic control wheel, the DP2 and your portable combine to give you the most sophisticated and elegant music experience on the road today. DP2 is also the first device interface, which allows you to mix and match additional portables --such as Bluetooth phones and satellite radio tuners --all on the same display. The rev-net software quickly and intuitively organizes all of your digital content and creates “channels” for your music, allowing for a simply superior entertainment experience. The EUT is a Vehicle device wireless audio device. The operation frequency is from 88.1 to 107.5MHz with FM modulation. 98 manually selectable channels were built in the EUT. The channels are separated by 200kHz. FM modulates the signals. RF signals are transmitted from the monopole antenna. DC 12V shall be provided for EUT operation. This product doesn’t need to do any special installation, only user need to do is open the power. Pls kindly refer to below photo to see antenna location. Below is the product test procedure description. 1) EUT power on. 2) Connect iPod to the EUT. 3) Open test channel (88-108MHz). 4) Start testing And this product doesn’t perform the test in vehicle, so there’s no car node test data can provide. This test report is compliance FCC part 15.239; pls refer to Quietek report to see the test data and result. The test laboratory, Quietek Corporation, has informed we the tuning range must be 88.1-107- 9MHz. The bandwidth has properly tested with maximum audio input. Sincerely,

Harman Kardon Inc 250 Crossways Park Drive Woodbury, NY 11797 Tel : 516-682-6489 FCC ID.: APIDP2US 250 Crossways Park Drive Woodbury, NY 11797 . Tel : 516-682-6489 Federal Communications Commission Mar. 28 , 2007 Authorization and Evaluation Division ATTESTATION FCC ID: APIDP2US Product: Vehicle device wireless audio device Model: DP2US We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, Mcarroll / Director of product Engineering Harman Kardon Inc

Harman Kardon Inc 250 Crossways Park Drive Woodbury, NY 11797 Tel : 516-682-6489 FCC ID.: APIDP2US 250 Crossways Park Drive Woodbury, NY 11797 Tel : 516-682-6489 Harman Kardon Inc 250 Crossways Park Drive Woodbury, NY 11797 Tel : 516-682-6489 Fax: 516-682-3556 Federal Communications Commission Mar. 28 , 2007 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics, Block Diagram The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Mcarroll / Director of product Engineering Harman Kardon Inc

RF_160, Issue 01 Harman Kardon Inc 250 Crossways Park Drive Woodbury, NY 11797 Declaration of Authorization We Name: Harman Kardon Inc Address: 250 Crossways Park Drive Woodbury, NY 11797 City: .................................................................. . Country: ........................................................................... . Declare that: Name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan R.O.C. is authorized to apply for Certification of the following product(s): Product description: Vehicle device wireless audio device ..................... . Type designation: DP2US ........................ . Trademark: harman kardon on our behalf. Date: ...... 2007/03/28 ............... .. City: ...... NY. ........................ .. Name: ...... Mcarroll ........................ .. Signature: ......... ................

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 April 9, 2007 RE: Harmon Kardon, Inc. FCC ID: APIDP2US I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. 1.) Please show only the pieces which are covered under this FCC ID in the External Photographs. There appears to be a Radio Shack power supply which may not have been intended to be included in these photos. 2.) Please remove the 20cm RF Exposure statement in the manual for this device. In general, only Unlicensed Part 15C transmitter devices which are approved under 15.247 are required to have any RF Exposure declarations – all others within Part 15C are much too low in RF power to ever case any concern. 3.) Please add the 15.19(a)(3) statements to the Manual. If I have missed it – my apologies. Please show me where this 2-part statement lives. 4.) The schematic appears to be for the wrong device. I have attached it with this email. Please review and correct as necessary. 5.) Please review Page 18 of the Test Report. FCC does not allow harmonics to be higher than the fundamental emission – ever. Please review and retest as necessary. 6.) Your microscopic plots in Section 4.5 are going to kill my eyes. Please provide full size plots and not the “itty-bitty” tiny graphics seen in this section. As a general rule, I would encourage you to provide plots that are only one to a page, and no smaller than 16cm in their longest dimension. Thanks in advance. 7.) Your test of maximum occupied bandwidth does not supply me with any information about how this device was modulated. Please note that it appears this device is capable of accepting both analog and digital modulation. As such, you are required to show compliance in both situations. Please provide appropriate test data and descriptions. 8.) Please note that low power personal FM broadcast bands transmitters are part of the FCC’s “Permit But-Ask” procedure. We will need to seek guidance from FCC before we are able to issue any Grant for this type of device. Extra charges may apply as necessary. A please find a copy of this FCC procedure and specific instructions on 15.239 devices. William H. Graff President and Director of Engineering mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. z Page 2 April 9, 2007 Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

FCC Home | Search | Updates | E-Filing | Initiatives | For Consumers | Find People Office of Engineering and Technology FCC > FCC E-filing > Inquiry System Home Page > Inquiry Confirmation FCC Site Map OET Home Page Site Options Knowledge DataBase Search Detail Criteria Search Submit An Inquiry Reply to an Inquiry Response Category List FAQ Search View Instructions Related Sites Equipment Authorization System (EAS) Telecommunications Certification Bodies (TCB) Your inquiry has been submitted to the Laboratory Division of the FCC Office of Engineering and Technology. You will receive a response within two business days. Please be sure to retain the inquiry tracking number displayed for future reference and questions concerning the status of this inquiry. Inquiry Tracking Number: 437730 Date of Submission: 05/23/2007 Subject: 15.239 In-Car Personal Music Player Question: Gentlemen, AmericanTCB seeks guidance on a persanal FM broadcast band transmitter. This device is designed exclusively to be vehicle mounted and can interface with a wide variety of digital music sources. The Applicant has provided a seperate response letter for your review, and a Test Report and Manual are provided for your consideration. Kindly review at your first opportunity. Best Regards, Bill Please send any comments or suggestions for this site to OET Systems Support Federal Communications Commission 445 12th Street, SW Washington, DC 20554 More FCC Contact Information... Phone: 888-CALL-FCC (225-5322) TTY: 888-TELL-FCC (835-5322) Fax: 202-418-0232 E-mail: [email protected] - Privacy Policy - Web Policies & Notices - Customer Service Standards - Freedom of Information Act

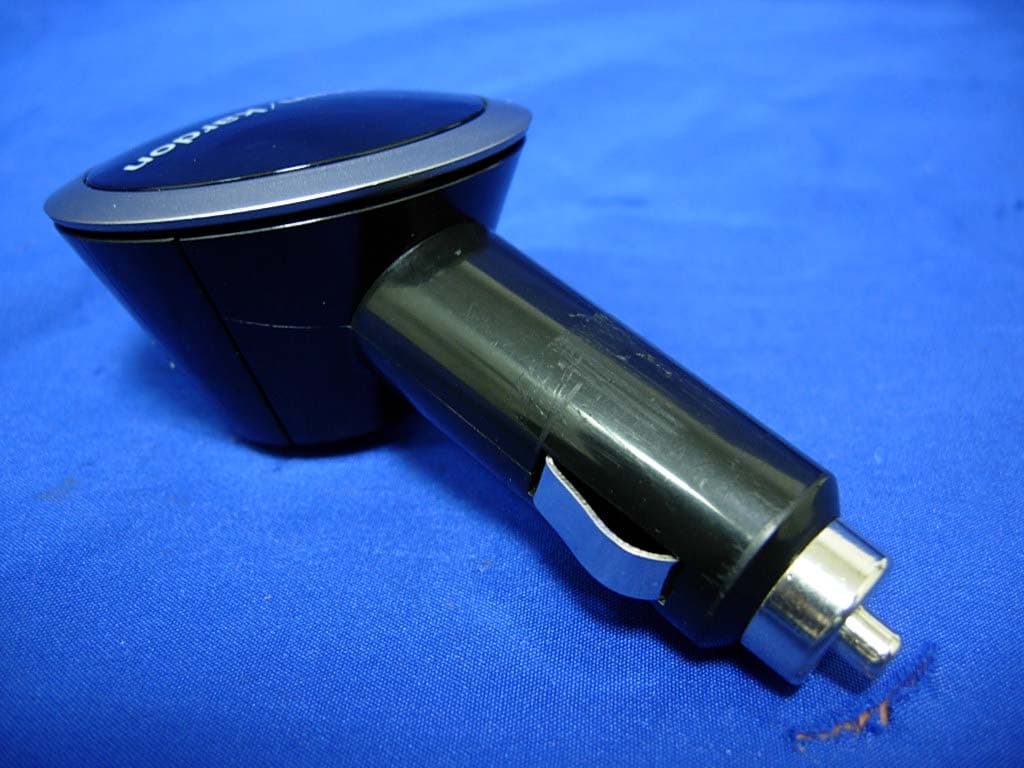

Report No.: 071L127-RFUSP02V01 Page : 1 of 8 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

Harman Kardon Inc 250 Crossways Park Drive Woodbury, NY 11797 Tel : 516-682-6489 FCC ID.: APIDP2US 250 Crossways Park Drive Woodbury, NY 11797 . Tel : 516-682-6489 FCC ID AND IC Label The FCC ID will be placed on the equipment as shown in the photograph below.

Report No.: 071L127-RFUSP02V01 Page : 2 of 8 Version:1.0 (3) EUT Photo (4) EUT Photo Report No.: 071L127-RFUSP02V01 Page : 3 of 8 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 071L127-RFUSP02V01 Page : 4 of 8 Version:1.0 (7) EUT Photo (8) EUT Photo Report No.: 071L127-RFUSP02V01 Page : 5 of 8 Version:1.0 (9) EUT Photo (10) EUT Photo Report No.: 071L127-RFUSP02V01 Page : 6 of 8 Version:1.0 (11) EUT Photo (12) EUT Photo Report No.: 071L127-RFUSP02V01 Page : 7 of 8 Version:1.0 (13) EUT Photo (14) EUT Photo Report No.: 071L127-RFUSP02V01 Page : 8 of 8 Version:1.0 (15) EUT Photo (16) EUT Photo

Report No. 071L127-RFUSP02V01 Page: 6 of 32 Version:1.0 1.2. Operation Description The EUT is an Vehicle device wireless audio device. The operation frequency is from 88.1 to 107.5MHz with FM modulation. 98 manually selectable channels were built in the EUT. The channels are separated by 200kHz. The signals are modulated by FM. RF signals are transmitted from the monopole antenna. DC 12V shall be provided for EUT operation.

Report No. 071L127-RFUSP02V01 Page: 1 of 33 Version:1.0 Test Report Product Name : Vehicle device wireless audio device Model No. : DP2US FCC ID : APIDP2US Applicant : Harman Kardon Inc Address : 250 Crossways Park Drive Woodbury, NY 11797 Date of Receipt : Jan. 24, 2007 Issued Date : Feb. 14, 2007 Report No. : 071L127-RFUSP02V01 The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 071L127-RFUSP02V01 Page: 2 of 33 Version:1.0 Test Report Certification Test Date : Feb. 14, 2007 Report No. : 071L127-RFUSP02V01 Product Name : Vehicle device wireless audio device Applicant : Harman Kardon Inc Address : 250 Crossways Park Drive Woodbury, NY 11797 Manufacturer : Kinpo Electronics, Inc. Model No. : DP2US FCC ID. : APIDP2US Rated Voltage AC 120V/60Hz Working Voltage : DC 11.8 - 23V Trade Name : harman kardon Measurement Standard : FCC CFR Title 47 Part 15 Subpart C: 2005 Measurement Procedure : ANSI C63.4: 2003 Test Result : Complied The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Michelle Lin ) Tested By : ( Dino Chen ) Approved By : (Gene Chang ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 071L127-RFUSP02V01 Page: 3 of 33 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ...............................................................................................................4 1.1. EUT Description............................................................................................................................4 1.2. Operation Description ...................................................................................................................6 1.3. Test System Details .......................................................................................................................7 1.4. Configuration of Tested System ....................................................................................................7 1.5. EUT Exercise Software .................................................................................................................7 1.6. Test Facility ...................................................................................................................................8 2. Conducted Emission ..............................................................................................................................9 2.1. Test Equipments ............................................................................................................................9 2.2. Test Setup ......................................................................................................................................9 2.3. Limits ............................................................................................................................................9 2.4. Test Procedure .............................................................................................................................10 2.5. Uncertainty ..................................................................................................................................10 2.6. Test Result of Conducted Emission.............................................................................................10 3. Radiated Emission ............................................................................................................................... 11 3.1. Test Equipment............................................................................................................................11 3.2. Test Setup ....................................................................................................................................11 3.3. Limits ..........................................................................................................................................12 3.4. Test Procedure .............................................................................................................................13 3.5. Uncertainty ..................................................................................................................................13 3.6. Test Result of Radiated Emission................................................................................................14 4. Occupied Bandwidth ...........................................................................................................................22 4.1. Test Equipment............................................................................................................................22 4.2. Test Setup ....................................................................................................................................22 4.3. Limits ..........................................................................................................................................22 4.4. Uncertainty ..................................................................................................................................22 4.5. Test Result of Occupied Bandwidth ............................................................................................23 5. Band Edge ............................................................................................................................................25 5.1. Test Equipment............................................................................................................................25 5.2. Test Setup ...........................................................................…

Text truncated - open the document above for the full version.

Report No.: 071L127-RFUSP02V01 Page : 1 of 2 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Radiated Test Back View of Radiated Test Report No.: 071L127-RFUSP02V01 Page : 2 of 2 Version:1.0 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
