APIHKCT200Wireless Speaker
Harman International Industries, Inc
Click to zoom
Application Details
- Equipment Class
- DSS - Part 15 Spread Spectrum Transmitter
- Date of Grant
- Jun 28, 2020
- Application Purpose
- Original Equipment
- Date of Application
- Jun 28, 2020
- Equipment Note
- Wireless Speaker
- Frequency Range
- 2402.00000000 - 2480.00000000
- Country
- United States
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Users Manual
CITATION 200 1 APP The Google Assistant setup Google Home Download the Google Home app and set up your Citation 200. All product features will be set up. AirPlay setup SettingsWi-Fi Wi-Fi Citation 200 XXX SET UP NEW AIRPLAY SPEAKER... (iOS) For AirPlay only users, skip the Google Home app; on your iOS device, go to Settings > Wi-Fi and select “Citation 200” under SET UP NEW AIRPLAY SPEAKER ... Follow the onscreen instructions to complete setup. Google Voice Assistant and Chromecast will require additional set up with the Google Home app. 2 PRODUCT TOUR Citation 200 Regional power cord (varies depending on country) X1 X1 Charging cradleX1 Back Wi-Fi status indicator Microphone mute/unmute FrontTop Lights when active Microphones Bluetooth Power on/off Volume Play/Pause; stop timers, alarms and responses Push to talk to Google Assistant <2s >2s Reset: >5s 3 CHARGING Low battery Press to check battery level Charging in progress Charging complete Plug in the power 4 GET STARTED (Android/iOS) Google Home Google Home Wi-Fi status indicator Excellent Recommended Weak or disconnected Add Citation 200 to your home Wi-Fi network: Download and run the Google Home app on a phone or tablet. Follow the instructions on the touch screen and Google Home app to finish the setup. * Enable Bluetooth (iPhone / iPad). 5 CHROMECAST Step 1: Open Chromecast supported app. Step 2: Play Music. Step 3: Tap the cast icon and select “Citation 200”. e.g. Spotify Pandora TuneIn Deezer Google Play Music * Device can support multi-room control provided by Chromecast built-in, more details you can refer to Google Home app. 6 AirPlay Step 1: On an iOS device, enter the Control Center. Step 2: Tap to select “Citation 200” as speaker. Step 3: Start audio streaming from an app. Music Citation 200 iPhone 7 GOOGLE ASSISTANT MuteUnmute “Hey Google”/ “Ok Google” Microphone muted: Mute the microphone to stop Google Assistant from listening. 8 OWNER’S MANUAL Download the full owner’s manual from harmankardon.com DA: Hent den fulde brugervejledning på harmankardon.com DE: Laden Sie die vollständige Bedienungsanleitung von harmankardon.com herunter ES: Descárgate el Manual de usuario completo en: harmankardon.com FR: Téléchargez le mode d’emploi complet sur harmankardon.com IT: Scarica il manuale dell’utente integrale da harmankardon.com NL: Download de complete gebruikershandleiding van harmankardon.com NO: Last ned hele brukerhåndboken fra harmankardon.com SV: Ladda ner hela bruksanvisningen från harmankardon.com RU: Загрузите полное руководство пользователя с сайта harmankardon.com ID: Unduh Buku Petunjuk Pemilik yang lengkap dari harmankardon.com/wireless JP: 『Owner’s Manual』（取扱説明書）（全文）をharmankardon.com からダウンロードしてください KO: harmankardon.com 에서 사용자 매뉴얼 전체를 다운로드하십시오 9 SPECIFICATIONS • Model Name: CITATION 200 • Power supply: 100 - 240 V ~ 50 / 60Hz • Output power: 210 W RMS • Bluetooth version: 4.2 • Bluetooth transmitter frequency range: 2402 – 2480 MHz • Bluetooth transmitter power: <10 dBm (EIRP) • Bluetooth transmitter modulation: GFSK,π/4 DQPSK, 8DPSK • Wireless network: 802.11a/b/g/n/ac (2.4GHz/5GHz) • 2.4G Wi-Fi transmitter frequency range: 2412 – 2472 MHz (2.4GHz ISM Band, USA and Canada 11 Channels, Europe and others 13 Channels) • 2.4G Wi-Fi transmitter power: <20 dBm (EIRP) • 2.4G Wi-Fi modulation: DBPSK, DQPSK, CCK, QPSK,BPSK,16QAM, 64QAM • 5G Wi-Fi transmitter power: < 23 dBm (EIRP) • 5G Wi-Fi modulation: QPSK, BPSK, 16QAM, 64QAM, 256QAM • 5G Wi-Fi transmitter frequency range: 5.15 - 5.35GHz, 5.470 - 5.725GHz, 5.725 - 5.825GHz 1. Information on power consumption. This equipment complies with European Commission Regulation (EC) No 1275/2008 and (EU) No 801/2013. Off (all wireless connections are deactivated) 0.5 Watt Networked standby 2.0 Watt 2. The period of time after which the power management function switches the equipment automatically into: OffShort press power key Networked standby If the device is connected with Bluetooth or Wi-Fi the device shall enter 2.0 Watt networked Standby automatically in 20 minutes. 3. If this equipment has wireless network connections: How to activate wireless network connections: • Set up the product according to instructions; • Switch into wireless mode (Bluetooth or Wi-Fi); • Connect with energy using product(s). How to deactivate wireless network connections; • Short press power key to turn off the device. This device complies with Part 15 of the FCC rules and Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAN ICES-3 (B) / NMB-3 (B). IC Caution: User should also be advised that: (i) the device for operation in the band 5150 - 5250 MHz is only for indoor use to reduce the potential for harmful interference to co- channel mobile satellite systems; (ii) the maximum antenna gain permitted for devices in the bands 5250 - 5350 MHz and 5470 - 5725 MHz shall comply with the e.i.r.p. limit: and (iii) the maximum antenna gain permitted for devices in the band 5725 - 5825 MHz shall comply with the e.i.r.p. limits specified for point- to-point and non point-to-point operation as appropriate. (iv) Users should also be advised that high-power radars are allocated as primary users (i.e. priority users) of the bands 5250 - 5350 MHz and 5650 - 5850 MHz and that these radars could cause interference and/ or damage to LE-LAN devices. FPO Les utilisateurs devraient aussi être avisés que (i) les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux; (ii) le gain maximal d’antenne permis pour les dispositifs utilisant les bandes 5 250-5 350 MHz et 5 470-5 725 MHz doit se conformer à la limite de p.i.r.e.; (iii…
Text truncated - open the document above for the full version.
Cover Letter(s)
Harman International Industries, Inc. Agent Authorization Company: Harman International Industries, Inc. Address: 8500 Balboa Boulevard, Northridge, CA 91329, UNITED STATES Product Name: Wireless Speaker Model Number(s): CITATION 200 Product Description: Wireless Speaker with Bluetooth, 2.4G WiFi, 5G WiFi function We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020/05/20 Name: Tim Song Title: Manager Company: Harman International Industries, Inc.
Cover Letter(s)
Harman International Industries, Inc. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020/06/16 Subject; Request for Confidentiality FCC ID: APIHKCT200 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure FCC Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Tim Song Title: Compliance Manager
External Photos

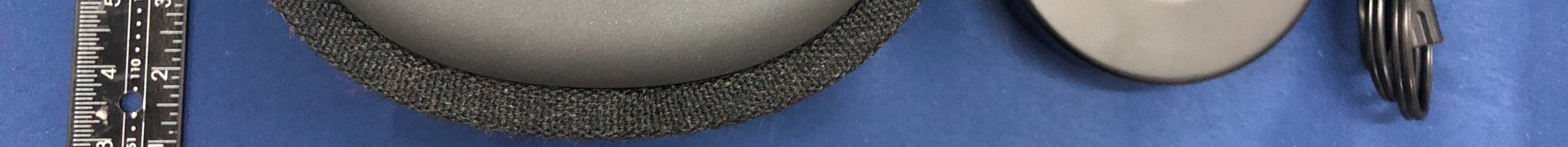

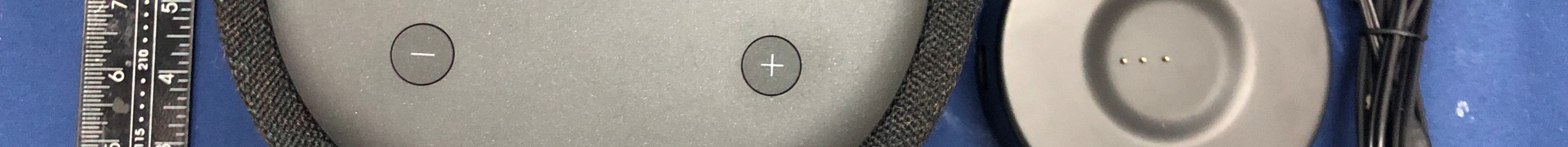

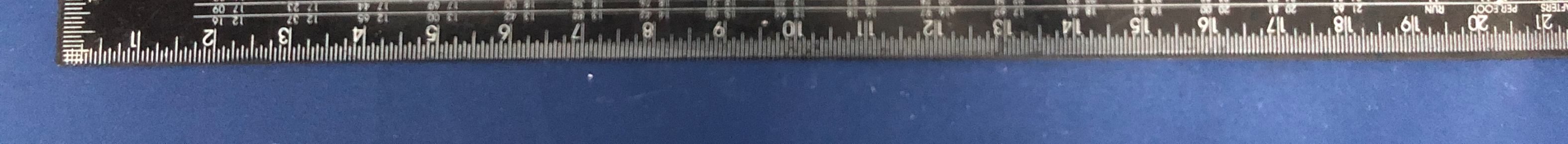

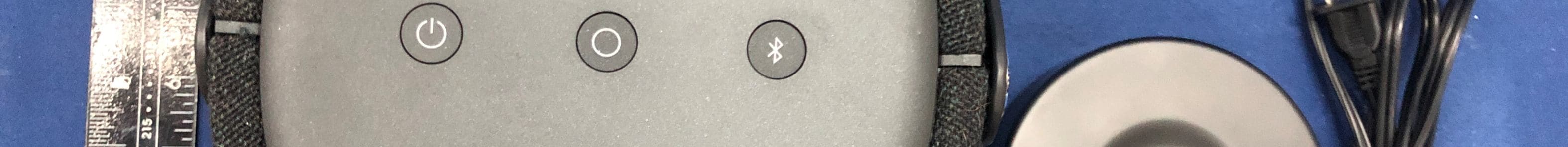

Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R20032021-1E9 Page 113 of 136 16. Photos of The EUT Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R20032021-1E9 Page 114 of 136 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R20032021-1E9 Page 115 of 136 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R20032021-1E9 Page 116 of 136
