Quick Start Guide Guide de demarrage rapide Buttons Connections What’s in the box x1 x1 Bluetooth® AUX input source HK OMNI 10 HK OMNI 10 WPS 1 2 APP harmankardon.com/HK Omni10 H/K Connect H/K Connect 1s Multi-room music streaming 1s Single button Play / Stop functionality Setup and Control your Harman Kardon wireless system with the required HK Connect app. 3s Party Mode AUX HK OMNI 10 Full owners manual Bluetooth® paring mode Bluetooth® reconnecting Bluetooth® connected, no streaming Bluetooth® connected, streaming LED StatusLED Behaviors Slash - Blue blinking Ring - Blue blinking Slash - Blue blinking Ring - Off Slash - Solid Blue Ring - Off Slash - Solid Blue Ring - Solid Blue Aux active Inactive LED StatusLED Behaviors Slash - Solid White Ring - Solid Green Slash - Solid White Ring - Off Network streaming Source switching LED StatusLED Behaviors 1x Slash - Solid White Ring - Solid White Ring - Multicolor blinking Party Mode LED StatusLED Behaviors 3s Ring - Multicolor blinking Out of the box (Restore Factory Setting) LED StatusLED Behaviors Slash - White blinking Ring - Off Mute LED StatusLED Behaviors FPO FCC Information and Copyright This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Example of Agents letter (for TCB – TCB approval): Harman International Industries, Incorporated. Date (2014-06-24) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Dear Sir or Madam, We, Harman International Industries, Incorporated., 8500 Balboa Blvd, Northridge, CA 91329, United States , hereby authorize Brown Lu Shenzhen NTEK Testing Technology Co., Ltd. , 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China 0755-61156547 to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 6 months duration. Type of equipment: Streaming wireless speaker Model name: HK OMNI 10 FCC ID: APIHKOMNI10 This authorization expires on 6 months duration. Sincerely, Company Officer: Fernando reyes/ Director Telephone Number: 818-895-8173 Email: [email protected]
Harman International Industries, Incorporated 8500 Balboa Blvd, Northridge, CA 91329 UNITED STATES Date: 2014/6/24 TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: APIHKOMNI10 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Harman International Industries, Incorporated hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation Harman International Industries, Incorporated also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of 180 days: External photos Internal Photos Test Setup Photos User Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Fernando Reyes /Director, Global Quality Telephone Number: 818-895-8173 Email: [email protected]

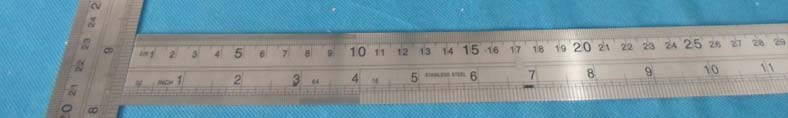

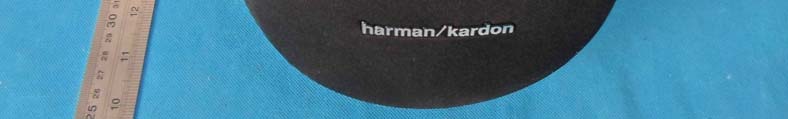

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5
FC1_Compliance_2014-04-11_V1 WPSAudio In Power Reset In Mold_debossed 0.2mm In Mold_debossed 0.2mm Silk Printing_ Black CMF : Black Glossy White CMF: White Glossy Silk Printing_ Black CMF : Cool Gray 5C White CMF: Cool Gray 5C ( 1 ) T h i s d e v i c e m a y n o t c a u s e h a r m f u l i n t e r f e r e n c e , a n d ( 2 ) t h i s d e v i c e m u s t a c c e p t a n y i n t e r f e r e n c e r e c e i v e d , i n c l u d i n g i n t e r f e r e n c e t h a t m a y c a u s e u n d e s i r e o p e r a t i o n . C a n I C E S - 0 0 3 ( B ) / N M B - 0 0 3 ( B ) . T h i s d e v i c e c o m p l i e s w i t h P a r t 1 5 o f t h e F C C r u l e s a n d I n d u s t r y C a n a d a l i c e n s e ‐ e x e m p t R S S ‐ G e n . O p e r a t i o n i s s u b j e c t t o t h e f o l l o w i n g t w o c o n d i t i o n s : H a r m a n I n t e r n a t i o n a l I n d u s t r i e s , I n c o r p o r a t e d : APIHKOMNI10
APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 WIFI ANT BT ANT Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14
FCC ID: APIHKOMNI10 FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: APIHKOMNI10 Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density FCC ID: APIHKOMNI10 MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna TEST RESULTS WIFI: Ant A Mode Maximum peak output power (dBm) Output power to antenna (mW) (Antenna Gain) numeric Power Density (S) (mW/ cm 2 ) Limit of Power Density (S) (mW/ cm 2 ) Result 802.11b 9.53 8.97 1.77(2.47dBi)0.0032 1 Pass 802.11g 8.67 7.36 1.77(2.47dBi)0.0026 1 Pass 802.11n-HT20 7.84 6.08 1.77(2.47dBi)0.0021 1 Pass WIFI: Ant B Mode Maximum peak output power (dBm) Output power to antenna (mW) (Antenna Gain) numeric Power Density (S) (mW/ cm 2 ) Limit of Power Density (S) (mW/ cm 2 ) Result 802.11b 9.54 8.99 1.93(2.86dBi)0.0035 1 Pass 802.11g 8.56 7.18 1.93(2.86dBi)0.0028 1 Pass 802.11n-HT20 7.51 5.64 1.93(2.86dBi)0.0022 1 Pass BT: Mode Maximum peak output power (dBm) Output power to antenna (mW) (Antenna Gain) numeric Power Density (S) (mW/ cm 2 ) Limit of Power Density (S) (mW/ cm 2 ) Result 1Mbps 1.906 1.55 2.34(3.7dBi) 0.0007 1 Pass 2Mbps 1.446 1.40 2.34(3.7dBi) 0.0006 1 Pass 3Mbps 1.807 1.52 2.34(3.7dBi) 0.0007 1 Pass Note: Note: The assess distance is 20cm.
FCC RADIO TEST REPORT FCC ID: APIHKOMNI10 Product: Streaming wireless speaker Trade Name: harman/kardon Model Name: HK OMNI 10 Serial Model: N/A Report No.: NTEK-2014DC0512019F2 Prepared for Harman International Industries, Incorporated. 8500 Balboa Blvd, Northridge, CA 91329, United States Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 73 Report No.: NTEK-2014DC0512019F2 TEST RESULT CERTIFICATION Applicant’s name............. Harman International Industries, Incorporated. Address ............................. 8500 Balboa Blvd, Northridge, CA 91329, United States Manufacture's Name........ Harman International Industries, Incorporated. Address ............................. 8500 Balboa Blvd, Northridge, CA 91329, United States Product description Product name ......................Streaming wireless speaker Model and/or type reference .......................... HK OMNI 10 Serial Model: N/A Standards......................... FCC Part15.247 : Oct. 1, 2013 Test procedure ..................... ANSI C63.4-2003 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test........................................ Date (s) of performance of tests ......... 12 May 2014 ~18 Jun. 2014 Date of Issue....................................... 18 Jun. 2014 Test Result........................................... Pass Testing Engineer : (Kyle Xu) Technical Manager : (Brown Lu) Authorized Signatory : (Bill Yao) Page 3 of 73 Report No.: NTEK-2014DC0512019F2 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 9 2.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.5 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS (BELOW 30 MHZ) 21 3.2.7 TEST RESULTS (BETWEEN 30M – 1000 MHZ) 22 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 23 4 . NUMBER OF HOPPING CHANNEL 33 4.1 APPLIED PROCEDURES / LIMIT 33 4.1.1 TEST PROCEDURE 33 4.1.2 DEVIATION FROM STANDARD 33 4.1.3 TEST SETUP 33 4.1.4 EUT OPERATION CONDITIONS 33 4.1.5 TEST RESULTS 34 5 . AVERAGE TIME OF OCCUPANCY 35 5.1 APPLIED PROCEDURES / LIMIT 35 Page 4 of 73 Report No.: NTEK-2014DC0512019F2 Table of Contents Page 5.1.1 TEST PROCEDURE 35 5.1.2 DEVIATION FROM STANDARD 35 5.1.3 TEST SETUP 36 5.1.4 EUT OPERATION CONDITIONS 36 5.1.5 TEST RESULTS 37 6 . HOPPING CHANNEL SEPARATION MEASUREMENT 43 6.1 APPLIED PROCEDURES / LIMIT 43 6.1.1 TEST PROCEDURE 43 6.1.2 DEVIATION FROM STANDARD 43 6.1.3 TEST SETUP 43 6.1.4 EUT OPERATION CONDITIONS 43 6.1.5 TEST RESULTS 44 7 . BANDWIDTH TEST 50 7.1 APPLIED PROCEDURES / LIMIT 50 7.1.1 TEST PROCEDURE 50 7.1.2 DEVIATION FROM STANDARD 50 7.1.3 TEST SETUP 50 7.1.4 EUT OPERATION CONDITIONS 50 7.1.5 TEST RESULTS 51 8 . PEAK OUTPUT POWER TEST 57 8.1 APPLIED PROCEDURES / LIMIT 57 8.1.1 TEST PROCEDURE 57 8.1.2 DEVIATION FROM STANDARD 57 8.1.3 TEST SETUP 57 8.1.4 EUT OPERATION CONDITIONS 57 8.1.5 TEST RESULTS 58 9 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 64 9.1 DEVIATION FROM STANDARD 64 9.2 TEST SETUP 64 9.3 EUT OPERATION CONDITIONS 64 9.4 TEST RESULTS 65 10 . ANTENNA REQUIREMENT 73 10.1 STANDARD REQUIREMENT 73 10.2 EUT ANTENNA 73 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 73 Report No.: NTEK-2014DC0512019F2 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(a)(1) Hopping Channel Separation PASS 15.247(b)(1) Peak Output Power PASS 15.247(c) Radiated Spurious Emission PASS 15.247(a)(iii) Number of Hopping Frequency PASS 15.247(a)(iii) Dwell Time PASS 15.247(a)(1) Bandwidth PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 73 Report No.: NTEK-2014DC0512019F2 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U,where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2,providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 73 Report No.: NTEK-2014DC0512019F2 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Streaming wireless speaker Trade Name harman/kardon Model Name HK OMNI 10 Serial Model N/A Model Difference N/A Product Description The EUT is a Streaming wireless speaker Operation Freq…
Text truncated - open the document above for the full version.
Page 74 of 75 Report No.: NTEK-2014DC0512019F2 11. EUT TEST PHOTO Radiated Measurement Photos Page 75 of 75 Report No.: NTEK-2014DC0512019F2 CONDUCTED EMISSION Photo
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.40 GHz - 2.48 GHz | 2.00 mW |
