APIJBLCHARGE5HPortable Bluetooth Speaker

WHAT’S IN THE BOX Bluetooth pairing APP 2. Play chargING POWERBANK Charge 5 ×2 ×1 ON quick START GUIDE SettingsBluetooth Bluetooth DEVICES JBL Charge 5 Now Discoverable Connected 1. Partyboost JBL PORTABLE Use the JBL PORTABLE app for speaker congura- tion and software upgrade. 100% 50% 20% IP67 WATERPROOF DUSTPROOF IP67 1m 30 mins 2. ×1 1. TECH SPEC Transducer: 52 mm x 90 mm woofer, 20 mm tweeter Rated output power: 30 W RMS for woofer, 10 W RMS for tweeter Frequency response: 65 Hz - 20 kHz Signal-to-noise ratio: > 80 dB Battery type: Li-ion polymer 27 Wh (equivalent to 3.6 V/ 7500 mAh) Battery charge time: 4 hours (5 V / 3 A) Music play time: up to 20 hours (dependent on volume level and audio content) USB port: Type C USB rating: 5 V / 2 A (maximum) Bluetooth® version: 5.1 Bluetooth® profile: A2DP 1.3, AVRCP 1.6 Bluetooth® transmitter frequency range: 2400 MHz - 2483.5 MHz Bluetooth® transmitter power: ≤ 10 dBm (EIRP) 2.4GHz SRD frequency range: 2407 MHz - 2475 MHz SRD transmitter power: < 10 dBm (EIRP) Dimensions (W x H x D): 223 x 96.5 x 94 mm / 8.7 x 3.76 x 3.67 inch Weight: 0.98 kg / 2.16 lbs JBL_Charge 5_QSG_SOP_V7.indd 1JBL_Charge 5_QSG_SOP_V7.indd 111/17/2020 12:07:45 PM11/17/2020 12:07:45 PM To protect battery lifespan, fully charge at least once every 3 months. Battery life will vary due to usage patterns and environmental conditions. Do not expose the JBL Charge 5 to liquids without removing cable connection. Do not expose JBL Charge 5 to water while charging. After a liquid spill, do not charge your speaker until it’s completely dry and clean. Charging when wet may result in permanent damage to the speaker or power source. When using an external adapter or USB-C cable, the speaker performance will be affected during charging. Активная акустическая система Изготовитель: Харман Интернешнл Индастриз Инкорпорейтед, США, 06901 Коннектикут, г.Стэмфорд, Атлантик Стрит 400, офис 1500 Сделано в Китае Импортер: OOO “ХАРМАН РУС СиАйЭс“, Россия, 127018, г.Москва, ул. Двинцев, д.12, к. 1 Гарантийный период: 1 год Срок службы: 2 года Информация о сервисных центрах: www.harman.com/ru Техническая поддержка: 8 (800) 700 0467 Организация, уполномоченная на принятие претензий потребителей: OOO “ХАРМАН РУС СиАйЭс“ Товар сертифицирован Дата изготовления устройства определяется по двум буквенным обозначениям из второй группы символов серийного номера изделия, следующих после разделительного знака «-». Кодировка соответствует порядку букв латинского алфавита, начиная с января 2010 года: 000000- MY0000000, где «M» - месяц производства (А - январь, B - февраль, C - март и т.д.) и «Y» - год производства (A - 2010, B - 2011, C - 2012 и т.д.). PA_JBL_Charge 5_QSG_SOP_V7 DA For at beskytte batteriets levetid skal du oplade fuldt ud mindst en gang 3 måned. Batteriets levetid varierer på grund af brugsmønstre og miljøforhold. Udsæt ikke JBL Charge 5 for væsker uden at fjerne kabelforbindelsen. Udsæt ikke JBL Charge 5 for vand under opladning. Efter et væskespild må højttaleren ikke oplades, før den er helt tør og ren. Opladning, når den er våd, kan medføre permanent beskadigelse af højttaleren eller strømkilden. Når du bruger en ekstern adapter eller et USB-C-kabel, påvirkes højttalerens ydeevne under opladningen. NL Voor een optimale levensduur de batterij minstens om de 3 maanden volledig opladen. De levensduur van de batterij is afhankelijk van gebruikspatronen en omgevingscondities. Stel de JBL Charge 5 niet bloot aan vloeistoffen zonder de kabelverbinding te verwijderen. Stel de JBL Charge 5 tijdens het opladen niet bloot aan water. Na een vloeistoflek uw luidspreker niet opladen totdat deze volledig droog en schoon is. Als het apparaat nat wordt opgeladen, kan dit leiden tot permanente schade aan de luidspreker of stroombron. De prestaties van de luidspreker worden tijdens het opladen beïnvloed als u een externe adapter of USB-C-kabel gebruikt. zh-TW 為保護電池的使用壽命，請至少每 3 個月對電池充滿一次電。電池續航時 間因使用模式和環境條件而異。 請勿在不拆除纜線連接的情況下使 JBL Charge 5 接觸液體。充電期間也不要 讓 JBL Charge 5 接觸水。被溢出的液體打 濕後，須等待喇叭完全乾燥和乾淨後 再為其充電。打濕時充電可能對喇叭 或電源造成永久性損壞。 當使用外部適配器或 USB-C 纜線時，喇 叭效能在充電期間會受影響。 HU Az akkumulátor élettartamának védelme érdekében teljesen töltse fel 3 havonta legalább egyszer. Az akkumulátor élettartama a használattól, és a környezeti feltételektől függ. A JBL Charge 5 készüléket ne tegye ki folyadékoknak a kábelcsatlakozás eltávolítása nélkül. A JBL Charge 5 készüléket ne tegye ki víznek töltés közben. Folyadék kiömlése esetén csak akkor töltse a hangszórót, amikor az teljesen megszáradt és tiszta. Ha nedvesen tölti, akkor az áramforrás maradandóan megsérülhet. Külső adapter vagy USB-C kábel használata esetén a töltés hatással van a hangszóró teljesítményére. RU Чтобы продлить срок службы аккумулятора, полностью заряжайте его по меньшей мере раз в 3 месяца. Срок службы аккумулятора зависит от способов использования и условий окружающей среды. Не подвергайте колонку JBL Charge 5 воздействию жидкостей при имеющемся подключении по кабелю. Не подвергайте колонку JBL Charge 5 воздействию воды во время зарядки. Если на колонку попала жидкость, не заряжайте ее, пока устройство не будет полностью сухим и чистым. Зарядка промокшей колонки может привести к необратимым повреждениям колонки или источника питания. При использовании внешнего адаптера или кабеля USB-C зарядка будет влиять на рабочие характеристики колонки. على ً واحدة ً مرة بالكامل اشحنها البطارية، عمر لحية AR أاط بسبب البطارية عمر ويختلف .أشهر 3 كل الأقل .البيئية والظروف الاستخدام كبل إزالة دون للسوائل JBL Charge 5 تعريض تجنب أثناء للء JBL Charge 5 تعريض وتجنب .التوصيل تجنب سوائل، لانسكاب الصوت مكبر ض ّ تعر وإذا .الشحن على شحنه يؤدي فقد .ا ً ©ام ونظافته جفافه بعد إلا شحنه .الطاقة مصدر أو الصوت ¬كبر دائم ضرر إلى الحالة هذه أداء سيتأثر ،USB-C كبل أو خارجي محول استخدام عند .الشحن أثناء الصوت مكبر DE Lade zum Schutz der Batterie diese mindestens einmal alle 3 Monate vollständig auf. Die Batterielebensdauer kann aufgrund von Nutzungsverhalten und Umgebungsbedingungen variieren…

Text truncated - open the document above for the full version.

and FCC limits may The equipment et États-Unis

Harman International Industries, Inc. 8500 Balboa Boulevard, Northridge, CA 91329, UNITED STATES DATE : Nov. 17, 2020 Harman International Industries, Inc. 8500 Balboa Boulevard, Northridge, CA 91329, UNITED STATES Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint below company and person: Name Damon Hu Position Manager Company Name Dongguan Dongdian Testing Service Co.,Ltd. Address 17, Zongbu Road 2, Songshan Lake Sci&Tech, Industry Park, Dongguan City, Guangdong Province, China, 523808 Tel / Fax Tel: +86-0769-38826678-850 E-Mail [email protected] to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by CETECOM GmbH, still resides with: Applicant name Harman International Industries, Inc. Address 8500 Balboa Boulevard, Northridge, CA 91329, UNITED STATES Yours sincerely, Signatory Name Tim Song Position Manager, Compliance Company Name Harman International Industries, Inc. Address 8500 Balboa Boulevard, Northridge, CA 91329, UNITED STATES Tel / Fax 818-895-8173/818-892-0325 E-Mail [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 <11/17/2020> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b) (4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name APIJBLCHARGE5H CHARGE5H For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos 180 days Internal Photos 180 days Block Diagram Schematics Test Setup Photos 180 days User’s Manual 180 days Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, (Signed) Name: Tim Song Company: Harman International Industries, Inc Address: 8500 Balboa Boulevard, Northridge, CA 91329, UNITED STATES Phone:818-895-8173 Fax: 818-892-0325 E-Mail: [email protected]

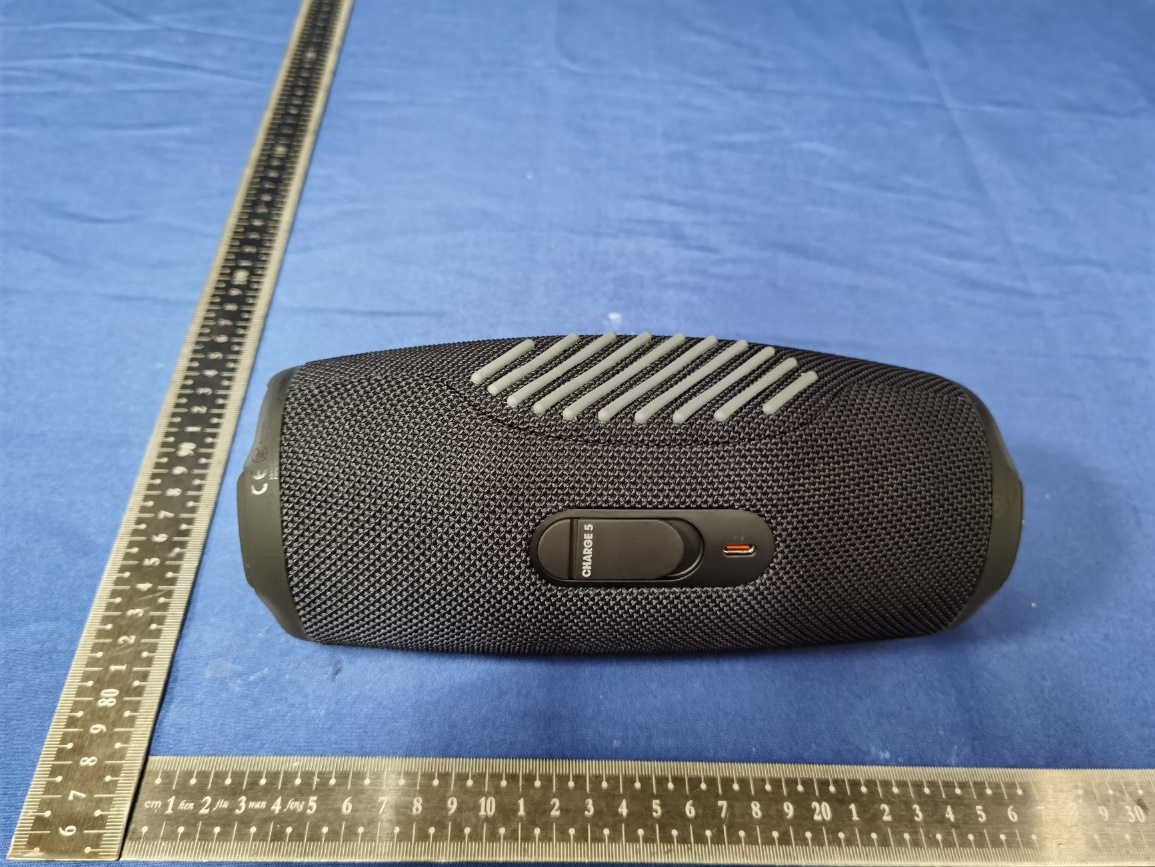

Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R20070616-1E4 Page 75 of 88 16. Photos of the EUT Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R20070616-1E4 Page 76 of 88 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R20070616-1E4 Page 77 of 88 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R20070616-1E4 Page 78 of 88

T h i s d e v i c e c o m p l i e s w i t h P a r t 1 5 o f t h e F C C r u l e s a n d I n d u s t r y C a n a d a l i c e n s e - e x e m p t R S S s t a n d a r d ( s) . P o r t a b l e B l u e t o o t h S p e a k e r / 便 携 式 蓝 牙 音 箱 / А к т и в н а я а к у с т и ч е с к а я с и с т е м а t - M o d e l / 型 号 : C H A R G E 5H H a r m a n I nt e r n a t i o n a l I n d u s t r i e s , I n c o r p o r a t e d - 8 5 0 0 B a l b o a B l v d , N o r t h r i d g e , C A 9 1 3 2 9 , U N I T E D S T A T E S O p e r a t i o n i s s u b j e c t t o t h e f o l l o w i n g t w o c o n d i t i o n s : ( 1 ) T h i s d e v i c e m a y n o t c a u s e h a r m f u l i n t e r f e r e n c e , a n d ( 2 ) t h i s d e v i c e X XXX X - X X-X XX X X 215-JCD097 4943-355-20 :처락연 S /A XXXXXXXXXXXXXX m u s t a c c e p t a n y i n t e r f e r e n c e r e c e i v e d , i n c l u d i n g i n t e r f e r e n c e t h a t m a y c a u s e u n d e s i r e d o p e r a t i o n . C A N I C E S -3 ( B ) / N M B - 3 ( B ) . 22 R-R-SEC- CHARGE5H IS XXX/IEC XXXXX R-XXXXXXXX www.bis.gov.in 仅供非热带气候条件下安全使用 12.3 66.5 22 C M I I T I D : X X X X X X X X X X X X X X X / S D P P I / X X X X / X X X X Max M a d e i n C hina / Сделано в Китае / 中 国 制 造

Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R20070616-1E4 Page 78 of 88 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R20070616-1E4 Page 79 of 88 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R20070616-1E4 Page 80 of 88 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R20070616-1E4 Page 81 of 88 BT Antenna Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R20070616-1E4 Page 82 of 88 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R20070616-1E4 Page 83 of 88 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R20070616-1E4 Page 84 of 88 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R20070616-1E4 Page 85 of 88 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R20070616-1E4 Page 86 of 88 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R20070616-1E4 Page 87 of 88 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R20070616-1E4 Page 88 of 88 END OF REPORT

AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF20031 Page 1 of 30 SAR TEST REPORT for Harman International Industries, Inc. Portable Bluetooth Speaker Model No.: CHARGE5H FCC ID: APIJBLCHARGE5H IC: 6132A-JBLCHARGE5H The MAX SAR(1g) Body SAR 0.1694W/Kg Prepared for : Harman International Industries, Inc. 8500 Balboa Boulevard, Northridge, CA 91329, UNITED STATES Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Kefeng Road, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26639496 Fax: (0755) 26632877 Report Number ： ACS-SF20031 Date of Test ： Nov.12, 2020 Date of Report ： Nov.19, 2020 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF20031 Page 2 of 30 TABLE OF CONTENTS Description Page Test Report Verification 3 1. GENERAL INFORMATION ...................................................................................................... 4 1.1. Description of Equipment Under Test ............................................................................................... 4 1.2. Feature of Equipment Under Test ..................................................................................................... 5 2. GENERAL DESCRIPTION ........................................................................................................ 6 2.1. Product Description For EUT ............................................................................................................ 6 2.2. Applied Standards ............................................................................................................................. 6 2.3. Device Category and SAR Limits ..................................................................................................... 6 2.4. Test Conditions .................................................................................................................................. 6 2.5. Exposure Positions Consideration ..................................................................................................... 7 2.6. Standalone SAR Test Exclusion Considerations ............................................................................... 8 2.7. EUT Configuration and operation conditions for test. .................................................................... 10 2.8. Test Equipments .............................................................................................................................. 10 2.9. Laboratory Environment ................................................................................................................. 11 2.10. Measurement Uncertainty ............................................................................................................... 11 3. MEASURE PROCEDURES ...................................................................................................... 14 3.1. General description of test procedures ............................................................................................ 14 4. SAR MEASUREMENTS SYSTEM .......................................................................................... 15 4.1. SAR Measurement Set-up ............................................................................................................... 15 4.2. ELI Phantom .................................................................................................................................... 16 4.3. Device Holder for SAM Twin Phantom .......................................................................................... 17 4.4. DASY5 E-field Probe System ......................................................................................................... 18 4.5. E-field Probe Calibration ................................................................................................................. 19 4.6. Scanning procedure ......................................................................................................................... 20 5. DATA STORAGE AND EVALUATION ................................................................................. 22 5.1. Data Storage .................................................................................................................................... 22 5.2. Data Evaluation by SEMCAD ......................................................................................................... 22 6. SYSTEM CHECK ...................................................................................................................... 24 7. TEST RESULTS ......................................................................................................................... 26 7.1. Output power ................................................................................................................................... 26 7.2. System Check for Head Tissue simulating liquid ........................................................................... 28 7.3. Test Results ..................................................................................................................................... 29 ANNEX A: SYSTEM CHECK RESULTS ANNEX B: TEST PLOTS ANNEX C: DASY CABLIBRATION CERTIFICATE ANNEX D: TEST SETUP PHOTOS AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF20031 Page 4 of 30 1. GENERAL INFORMATION 1.1. Description of Equipment Under Test Applicant Harman International Industries, Inc. 8500 Balboa Boulevard, Northridge, CA 91329, UNITED STATES Manufacturer Harman International Industries, Inc. 8500 Balboa Boulevard, Northridge, CA 91329, UNITED STATES Product Portable Bluetooth Speaker Model No. CHARGE5H FCC ID APIJBLCHARGE5H IC 6132A-JBLCHARGE5H Sample Type Prototype production Date of Receipt Nov.12, 2020 Date of Test Nov.12, 2020 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. AC…

Text truncated - open the document above for the full version.

Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R20070616-1E4 Page 1 of 72 FCC AND ISED CERTIFICATION TEST REPORT FOR Issued By: Dongguan Dongdian Testing Service Co., Ltd. Add.: No. 17, Zongbu Road 2, Songshan Lake Sci&Tech, Industry Park, Dongguan City, Guangdong Province, China, 523808 Tel.: +86-0769-38826678, E-mail: [email protected], http://www.dgddt.com Applicant : Harman International Industries, Inc. Address : 8500 Balboa Boulevard, Northridge, CA 91329, UNITED STATES Equipment under Test : Portable Bluetooth Speaker Model No. : CHARGE5H Trade Mark : JBL FCC ID : APIJBLCHARGE5H IC : 6132A-JBLCHARGE5H Manufacturer : Harman International Industries, Inc. Address : 8500 Balboa Boulevard, Northridge, CA 91329, UNITED STATES ■Report No.: DDT-R20070616-1E4 ■Issued Date: Nov. 05, 2020 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R20070616-1E4 Page 2 of 72 Table of Contents Test report declares.......................................................................................................4 1. Summary of Test Results ............................................................................................... 6 2. General Test Information ............................................................................................... 7 2.1. Description of EUT ......................................................................................................... 7 2.2. Accessories of EUT ........................................................................................................ 8 2.3. Assistant equipment used for test .................................................................................. 8 2.4. Block diagram of EUT configuration for test .................................................................. 8 2.5. Deviations of test standard............................................................................................. 8 2.6. Test environment conditions .......................................................................................... 9 2.7. Test laboratory ............................................................................................................... 9 2.8. Measurement uncertainty ............................................................................................... 9 3. Equipment Used During Test ....................................................................................... 10 4. Maximum Peak Output Power ..................................................................................... 12 4.1. Block diagram of test setup .......................................................................................... 12 4.2. Limits ............................................................................................................................ 12 4.3. Test procedure ............................................................................................................. 12 4.4. Test result ..................................................................................................................... 12 4.5. Original test data .......................................................................................................... 13 5. 20 dB Bandwidth and 99% Bandwidth ......................................................................... 16 5.1. Block diagram of test setup .......................................................................................... 16 5.2. Limits ............................................................................................................................ 16 5.3. Test procedure ............................................................................................................. 16 5.4. Test result ..................................................................................................................... 16 5.5. Original test data .......................................................................................................... 17 6. Carrier Frequency Separation ...................................................................................... 20 6.1. Block diagram of test setup .......................................................................................... 20 6.2. Limits ............................................................................................................................ 20 6.3. Test procedure ............................................................................................................. 20 6.4. Test result ..................................................................................................................... 20 6.5. Original test data .......................................................................................................... 21 7. Number of Hopping Channel ....................................................................................... 22 7.1. Block diagram of test setup .......................................................................................... 22 7.2. Limits ............................................................................................................................ 22 7.3. Test procedure ............................................................................................................. 22 7.4. Test result ..................................................................................................................... 22 7.5. Original test data .......................................................................................................... 22 8. Dwell Time .................................................................................................................... 24 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R20070616-1E4 Page 3 of 72 8.1. Block diagram of test setup .......................................................................................... 24 8.2. Limits .................................................…

Text truncated - open the document above for the full version.

Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R20070616-1E6 Page 1 of 72 FCC AND ISED CERTIFICATION TEST REPORT FOR Issued By: Dongguan Dongdian Testing Service Co., Ltd. Add.: No. 17, Zongbu Road 2, Songshan Lake Sci&Tech, Industry Park, Dongguan City, Guangdong Province, China, 523808 Tel.: +86-0769-38826678, E-mail: [email protected], http://www.dgddt.com Applicant : Harman International Industries, Inc. Address : 8500 Balboa Boulevard, Northridge, CA 91329, UNITED STATES Equipment under Test : Portable Bluetooth Speaker Model No. : CHARGE5H Trade Mark : JBL FCC ID : APIJBLCHARGE5H IC : 6132A-JBLCHARGE5H Manufacturer : Harman International Industries, Inc. Address : 8500 Balboa Boulevard, Northridge, CA 91329, UNITED STATES ■Report No.: DDT-R20070616-1E6 ■Issued Date: Nov. 05, 2020 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R20070616-1E6 Page 2 of 72 Table of Contents Test report declares.......................................................................................................4 1. Summary of Test Results ............................................................................................... 6 2. General Test Information ............................................................................................... 7 2.1. Description of EUT ......................................................................................................... 7 2.2. Accessories of EUT ........................................................................................................ 8 2.3. Assistant equipment used for test .................................................................................. 8 2.4. Block diagram of EUT configuration for test .................................................................. 8 2.5. Deviations of test standard............................................................................................. 8 2.6. Test environment conditions .......................................................................................... 9 2.7. Test laboratory ............................................................................................................... 9 2.8. Measurement uncertainty ............................................................................................... 9 3. Equipment Used During Test ....................................................................................... 10 4. Maximum Peak Output Power ..................................................................................... 12 4.1. Block diagram of test setup .......................................................................................... 12 4.2. Limits ............................................................................................................................ 12 4.3. Test procedure ............................................................................................................. 12 4.4. Test result ..................................................................................................................... 12 4.5. Original test data .......................................................................................................... 13 5. 20 dB Bandwidth and 99% Bandwidth ......................................................................... 16 5.1. Block diagram of test setup .......................................................................................... 16 5.2. Limits ............................................................................................................................ 16 5.3. Test procedure ............................................................................................................. 16 5.4. Test result ..................................................................................................................... 16 5.5. Original test data .......................................................................................................... 17 6. Carrier Frequency Separation ...................................................................................... 20 6.1. Block diagram of test setup .......................................................................................... 20 6.2. Limits ............................................................................................................................ 20 6.3. Test procedure ............................................................................................................. 20 6.4. Test result ..................................................................................................................... 20 6.5. Original test data .......................................................................................................... 21 7. Number of Hopping Channel ....................................................................................... 22 7.1. Block diagram of test setup .......................................................................................... 22 7.2. Limits ............................................................................................................................ 22 7.3. Test procedure ............................................................................................................. 22 7.4. Test result ..................................................................................................................... 22 7.5. Original test data .......................................................................................................... 22 8. Dwell Time .................................................................................................................... 24 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R20070616-1E6 Page 3 of 72 8.1. Block diagram of test setup .......................................................................................... 24 8.2. Limits .................................................…

Text truncated - open the document above for the full version.

AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF20031 Annex D ANNEX D: TEST SETUP PHOTOS Back Side Top Side AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF20031 Annex D Right Side THE END

Dongguan Dongdian Test…
