APIJBLFLIP6CPortable Bluetooth Speaker

Harman International Industries, Inc

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: Aug 11, 2021
Application Purpose: Original Equipment
Date of Application: Aug 11, 2021
Equipment Note: Portable Bluetooth Speaker
Frequency Range: 2407.00000000 - 2475.00000000
Company: Harman International Industries, Inc
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Safety Instruction and Warranty Card *Product registration may not be available for all countries PRODUCT REGISTRATION register.jbl.com Register your product • Registriere dein produkt • Registro del producto • Enregistrez votre produit • Registro de Produto • 製品登録 • Registrer dit produkt • RekisteröI tuotteesi • Rejestracja produktu • Registrera din produkt • Registreer je product SIGN UP & STAY TUNED SSA2020-002_JBL_Non HP_Safety Sheet_(150 x 80mm)_V2.indb 1SSA2020-002_JBL_Non HP_Safety Sheet_(150 x 80mm)_V2.indb 13/17/2021 12:11:09 PM3/17/2021 12:11:09 PM SSA2020-002_JBL_Non HP_Safety Sheet_(150 x 80mm)_V2.indb 2SSA2020-002_JBL_Non HP_Safety Sheet_(150 x 80mm)_V2.indb 23/17/2021 12:11:09 PM3/17/2021 12:11:09 PM ENGLISH Download the full warranty Card and safety information and other helpful information from our website: www.jbl.com/warrantyandsafetybooks SUOMI Lataa täydellinen takuukortti ja turvallisuustiedot, sekä muut hyödylliset tiedot verkkosivuiltamme: www.jbl.com/warrantyandsafetybooks NEDERLANDS Download de volledige garantiekaart en veiligheidsinformatie en andere nuttige informatie van onze website: www.jbl.com/warrantyandsafetybooks SVENSKA Ladda ner hela garantikortet och säkerhetsinformation och annan användbar information från vår webbplats: www.jbl.com/warrantyandsafetybooks 한국어 전체 품질보증서와 안전 정보를 비롯해 기타 유용한 정보를 다음 당사 웹 사이트에서 다운로드하십시오. www.jbl.com/warrantyandsafetybooks ČEŠTINA Úplný záruční list, bezpečnostní pokyny a další užitečné informace lze stáhnout z našeho webu: www.jbl.com/warrantyandsafetybooks FRANÇAIS Téléchargez la carte de garantie et les informations de sécurité complètes ainsi que d’autres informations utiles sur notre site Web : www.jbl.com/warrantyandsafetybooks NORSK Last ned det komplette garantikortet, sikkerhetsinformasjon og annen nyttig informasjon fra nettstedet vårt: www.jbl.com/warrantyandsafetybooks TÜRKÇE Komple garanti kartını ve güvenlik bilgilerini ve yardımcı bilgileri websitemizden indirin: www.jbl.com/warrantyandsafetybooks العربية السلامة ومعلومات الكاملة الضمان بطاقة بتنزيل قم :الإنترنت على موقعنا على من المفيدة المعلومات من وغيرها www.jbl.com/warrantyandsafetybooks DANSK Hent det komplette garantiark og sikkerhedsoplysninger og andre nyttige oplysninger fra vores hjemmeside: www.jbl.com/warrantyandsafetybooks HRVATSKI Preuzmite punu jamstvenu karticu, sigurnosne informacije i ostale korisne informacije s našeg web mjesta: www.jbl.com/warrantyandsafetybooks POLSKI Prosimy pobrać kartę gwarancyjną, informacje o bezpieczeństwa oraz inne przydatne informacje z naszej strony internetowej: www.jbl.com/warrantyandsafetybooks БЪЛГАРСКИ Изтеглете пълната гаранционна карта и информация за безопасност и друга полезна информация от нашия уебсайт: www.jbl.com/warrantyandsafetybooks עברית הנוסח המלא של תעודת את להוריד ניתן האחריות ומידע בנושא בטיחות, כמו גם מידע שימושי נוסף, מאתר האינטרנט שלנו: www.jbl.com/warrantyandsafetybooks DEUTSCH Lade die vollständige Garantiekarte und Sicherheitsinformationen sowie weitere hilfreiche Informationen von unserer Website herunter: www.jbl.com/warrantyandsafetybooks MAGYAR Töltse le a teljes garanciakártyát, a biztonsági információkat és egyéb hasznos információkat a weboldalunkról: www.jbl.com/warrantyandsafetybooks PORTUGUÊS Descarregue por completo o Cartão de garantia e informações de segurança e outras informações úteis no nosso site: www.jbl.com/warrantyandsafetybooks EESTI Laadige alla täielik garantiikaart, ohutusteave ja muu kasulik teave meie veebisaidilt: www.jbl.com/warrantyandsafetybooks ITALIANO Scarica la scheda di garanzia completa, le informazioni sulla sicurezza e altre informazioni utili dal nostro sito Web: www.jbl.com/warrantyandsafetybooks PORTUGUÊS (BRASIL) O Cartão de Garantia, informações de segurança e outras informações úteis estão disponíveis no site www.jbl.com/warrantyandsafetybooks ΕΛΛΗΝΙΚΆ Κατεβάστε την πλήρη κάρτα εγγύησης και πληροφορίες ασφάλειας και άλλες χρήσιμες πληροφορίες από τον ιστότοπό μας: www.jbl.com/warrantyandsafetybooks LIETUVIŲ KALBA Atsisiųskite visą garantijos kortelę ir saugos informaciją bei kitą naudingą informaciją iš mūsų svetainės: www.jbl.com/warrantyandsafetybooks ROMÂNĂ Descărcați fișa completă de garanție, informații de siguranță și alte informații de ajutor de pe site-ul web: www.jbl.com/warrantyandsafetybooks ESPAÑOL Descarga la tarjeta de garantía completa, la información de seguridad y otra información útil de nuestro sitio web: www.jbl.com/warrantyandsafetybooks LATVISKI Lejupielādējiet pilnu garantijas karti, informāciju par drošību un citu noderīgu informāciju mūsu vietnē: www.jbl.com/warrantyandsafetybooks SLOVENŠČINA Prenesite celoten garancijski list in varnostne informacije ter druge koristne napotke z naše spletne strani: www.jbl.com/warrantyandsafetybooks РУССКИЙ Загрузите полностью гарантийный талон, информацию по технике безопасности и другую полезную информацию с нашего веб-сайта: www.jbl.com/warrantyandsafetybooks 简体中文请登陆我公司网站下载完整的保修卡和安全信息及其他有用信息： www.jbl.com/warrantyandsafetybooks ��中文從我們的�站下載完整的�固卡和� ��訊�其��用�訊� www.jbl.com/warrantyandsafetybooks 日本語下�のウェブサイトから保�書、 ��情�、その他の��つ情�をダウンロードしてください� www.jbl.com/warrantyandsafetybooks SSA2020-002_JBL_Non HP_Safety Sheet_(150 x 80mm)_V2.indb 3SSA2020-002_JBL_Non HP_Safety Sheet_(150 x 80mm)_V2.indb 33/17/2021 12:11:09 PM3/17/2021 12:11:09 PM ENGLISH IMPORTANT SAFETY INSTRUCTIONS For all products: 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Clean only with a dry cloth. 6. Do not block any ventilation openings. Install this apparatus in accordance with the manufacturer’s instructions. 7. Do not install this apparatus near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat. 8. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a thi…

Text truncated - open the document above for the full version.

Users Manual

WHAT’S IN THE BOX Bluetooth pairing FLIP 6 ON quick START GUIDE SettingsBluetooth Bluetooth DEVICES JBL Flip 6 Now Discoverable Connected APP 2. 1. JBL PORTABLE Use the JBL PORTABLE app for speaker configuration and software upgrade. ×2 ×1 Play partyboost chargING 20%50%100% WATERPROOF DUSTPROOF IP67 IP67 1m 30 mins 12 TECH SPEC Transducers: 45 x 80 mm woofer / 1.75 x 3”, 16 mm tweeter / 0.6” Output power: 20 W RMS for woofer, 10 W RMS for tweeter Frequency response: 63 Hz - 20 kHz Signal-to-noise ratio: > 80 dB Battery type: Li-ion polymer 17.28 Wh (equivalent to 3.6 V / 4800 mAh) Battery charge time: 2.5 hours (5 V / 3 A) Music play time: up to 12 hours (dependent on volume level and audio content) Cable type: USB – C charging cable Cable length: 1.2 m / 47.2” Bluetooth® version: 5.1 Bluetooth® profile: A2DP 1.3, AVRCP 1.6 Bluetooth® transmitter frequency range: 2400 MHz - 2483.5 MHz Bluetooth® transmitter power: ≤ 10 dBm (EIRP) Bluetooth® transmitter modulation: GFSK, π/4 DQPSK, 8DPSK 2.4GHz SRD frequency range: 2407 MHz - 2475 MHz SRD transmitter power: < 10 dBm (EIRP) Product dimensions (W x H x D): 178 x 68 x 72 mm / 7.0 x 2.6 x 2.8” Net weight: 0.55 kg / 1.21 lbs Packaging dimensions (W x H x D): 216 x 106 x 99 mm / 8.5 x 4.2 x 3.9” Gross weight: 0.92 kg / 2.05 lbs Maximum operation temperature: 45 °C FR DADE EL CONTENU DE LA BOÎTE / APPAIRAGE BLUETOOTH / JOUEZ / APPLICATION (Utilisez l’application JBL PORTABLE pour la configuration des enceintes et la mise à jour du logiciel.) / RECHARGE / ÉTANCHÉITÉ À L’EAU ET À LA POUSSIÈRE IP67 DET ER DER I ÆSKEN / BLUETOOTH-PARRING / AFSPIL / APP (Brug JBL PORTABLE-appen til højttalerkonfiguration og softwareopgradering.) / OPLADNING / VANDTÆT STØVTÆT IP67 LIEFERUMFANG / BLUETOOTH-KOPPLUNG / PLAY / APP (Verwende die JBL PORTABLE-APP für die Lautsprecherkonfiguration und für Software-Upgrades.) / LADEVORGANG / WASSER- UND STAUBDICHT IP67 ΤΙ ΕΙΝΑΙ ΣΤΟ ΚΟΥΤΙ / ΖΕΥΞΗ BLUETOOTH / ΑΝΑΠΑΡΑΓΩΓΗ / ΕΦΑΡΜΟΓΗ (Χρησιμοποιήστε την εφαρμογή JBL PORTABLE για διαμόρφωση ηχείων και αναβάθμιση λογισμικού.) / ΦΟΡΤΙΣΗ / ΦΟΡΤΙΣΤΗΣ ΜΠΑΤΑΡΙΑΣ / ΑΔΙΑΒΡΟΧΟ, ΑΝΘΕΚΤΙΚΟ ΣΤΗ ΣΚΟΝΗ IP67 CARACTÉRISTIQUES TECHNIQUES Transducteurs :Haut-parleur grave 45 x 80 mm / 1,75 x 3", haut- parleur aigu 16 mm / 0,6" Puissance de sortie :20 W RMS pour les basses fréquences, 10 W RMS pour les hautes fréquences Réponse en fréquence :63 Hz - 20 kHz Rapport signal sur bruit :> 80 dB Type de batterie :Li-ion polymère 17,28 Wh (équivalente à 3,6 V / 4800 mAh) Temps de charge de la batterie :2,5 heures (5 V / 3 A) Autonomie de lecture de musique : Jusqu’à 12 heures (selon le niveau du volume et le contenu audio) Type de câble :Câble de charge USB–C Longueur du câble :1,2 m / 47,2" Version Bluetooth® :5.1 Profils Bluetooth® :A2DP 1.3, AVRCP 1.6 Plage de fréquences de l'émetteur Bluetooth® :2400 MHz - 2483,5 MHz Puissance de l'émetteur Bluetooth® :≤ 10 dBm (PIRE) Modulation de l'émetteur Bluetooth® :GFSK, π/4 DQPSK, 8DPSK Plage de fréquences SRD 2,4 GHz : 2407 MHz - 2475 MHz Puissance de l'émetteur SRD : < 10 dBm (PIRE) Dimensions du produit (L x H x P) : 178 mm x 68 mm x 72 mm / 7,0" x 2,6" x 2,8" Poids net :0,55 kg / 1,21 lbs Dimensions de l’emballage (L x H x P) : 216 mm x 106 mm x 99 mm / 8,5" x 4,2" x 3,9" Poids brut : 0,92 kg / 2,05 lbs Température de fonctionnement maximale : 45 °C TEKNISKE SPECIFIKATIONER Transducere:45 x 80 mm woofer, 16 mm diskant Udgangseffekt:20W RMS for woofer, 10W RMS for diskant Frekvensområde:63 Hz - 20 kHz Signal-til-støj-forhold:> 80 dB Batteritype:Li-ion polymer 17,28 Wh (svarende til 3,6 V / 4800 mAh) Batteriopladningstid:2,5 Timer (5 V / 3 A) Musik-spilletid:op til 12 timer (afhængig af lydstyrkeniveau og lydindhold) Kabeltype:USB-C-ladekabel Kabellængde:1,2 m Bluetooth®-version:5.1 Bluetooth®-profil:A2DP 1.3, AVRCP 1.6 Bluetooth®- senderfrekvensområde:2400 MHz - 2483,5 MHz Bluetooth®-sendereffekt:≤ 10 dBm (EIRP) Bluetooth®-sendemodulation: GFSK, π/4 DQPSK, 8DPSK 2,4 GHz SRD-frekvensområde: 2407 MHz - 2475 MHz SRD-sendereffekt: < 10 dBm (EIRP) Mål af produkt (B x H x D): 178 mm x 68 mm x 72 mm Nettovægt:0,55 kg Mål af emballage (B x D x H): 216 mm x 106 mm x 99 mm Bruttovægt: 0,92 kg Maksimal driftstemperatur:45 °C TECHNISCHE DATEN Lautsprechertreiber:45 x 80-mm-Tieftöner, 16-mm-Hochtöner Ausgangsleistung:20 W RMS für Tieftöner, 10 W RMS für Hochtöner Frequenzbereich:63 Hz – 20 kHz Rauschabstand:> 80 dB Akku-Typ:Lithium-Ionen-Polymer 17,28 Wh (gleichwertig zu 3,6 V / 4800 mAh) Akkuladedauer:2,5 Stunden (5 V / 3 A) Musikwiedergabezeit:Bis zu 12 Stunden (abhängig von Lautstärke und Audioinhalt) Kabeltyp:USB-C-Ladekabel Kabellänge:1,2 m Bluetooth®-Version:5.1 Bluetooth®-Profil:A2DP 1.3, AVRCP 1.6 Frequenzbereich für die Bluetooth®-Übertragung:2400 MHz – 2483,5 MHz Bluetooth®- Übertragungsleistung:≤ 10 dBm (EIRP) Bluetooth®- Übertragungsmodulation:GFSK, π/4 DQPSK, 8DPSK 2,4 GHz SRD-Frequenzbereich: 2407 MHz – 2475 MHz SRD-Sendeleistung: < 10 dBm (EIRP) Produktabmessungen (B x H x T):178 mm x 68 mm x 72 mm Nettogewicht:0,55 kg Verpackungsabmessungen (B x H x T): 216 mm x 106 mm x 99 mm Gesamtgewicht: 0,92 kg Maximale Betriebstemperatur:45 °C ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ Μετατροπείς:45 x 80 mm γούφερ / 1,75 x 3", 16 mm τουίτερ / 0,6" Ισχύς εξόδου:20 W RMS για το γούφερ, 10 W RMS για το τουίτερ Συχνότητα απόκρισης:63 Hz - 20 kHz Αναλογία σήματος προς θόρυβο:> 80 dB Τύπος μπαταρίας:Πολυμερών ιόντων λιθίου 17,28 Wh (ισοδύναμο με 3,6 V / 4800 mAh) Χρόνος φόρτισης μπαταρίας:2,5 ώρες (5 V / 3 A) Διάρκεια αναπαραγωγής μουσικής: έως 12 ώρες (διαφέρει ανάλογα με την ένταση ήχου και το περιεχόμενο μουσικής) Τύπος καλωδίου:USB – C καλώδιο φόρτισης Μήκος καλωδίου:1,2 m / 47,2" Έκδοση Bluetooth®:5.1 Προφίλ Bluetooth®:A2DP 1.3, AVRCP 1.6 Εύρος ζώνης συχνοτήτων του πομπού Bluetooth®:2400 MHz - 2483,5 MHz Ισχύς πομπού Bluetooth®:≤ 10 dBm (EIRP) Διαμόρφωση πομπού Bluetooth®:GFSK, π/4 DQPSK, 8DPSK Εύρος συχνότητας 2,4GHz SRD: 2407 MHz - 2475 MHz Ισχύς πομπού SRD: < 10 dBm (EIRP) Διαστάσει…

Text truncated - open the document above for the full version.

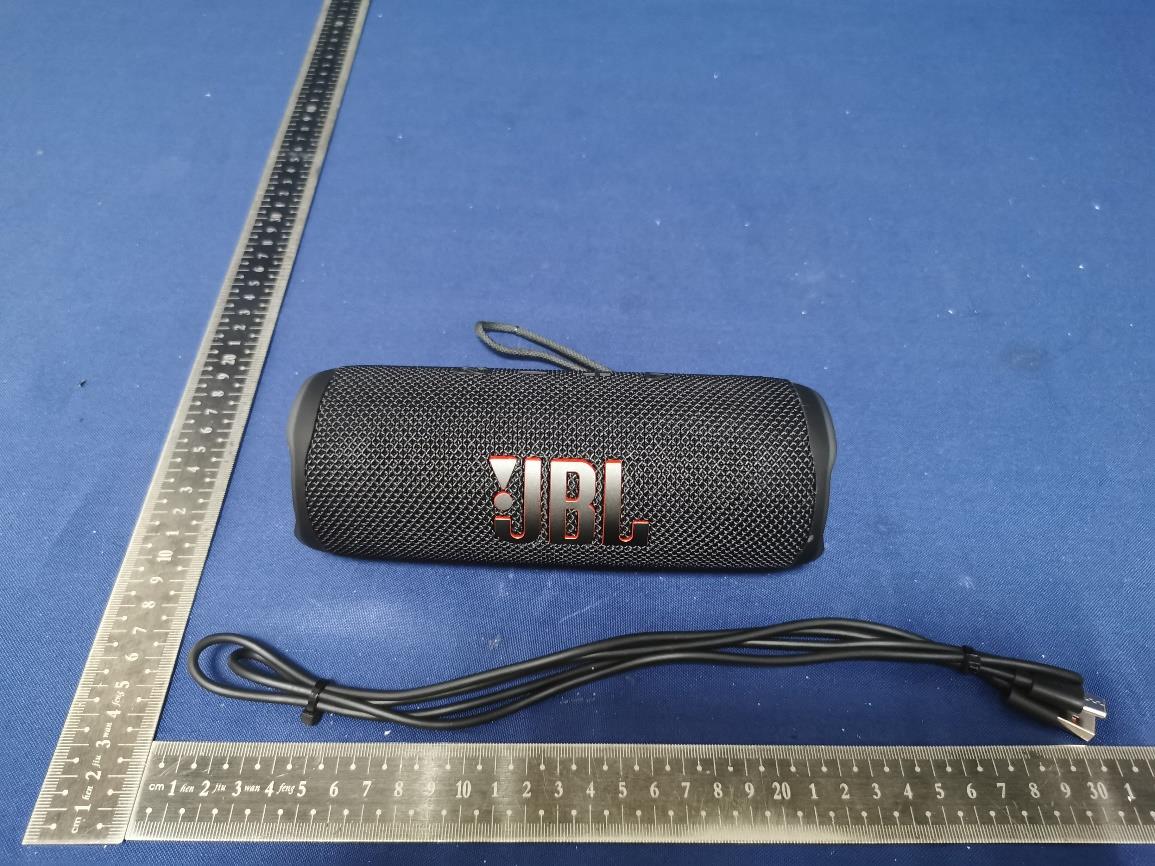

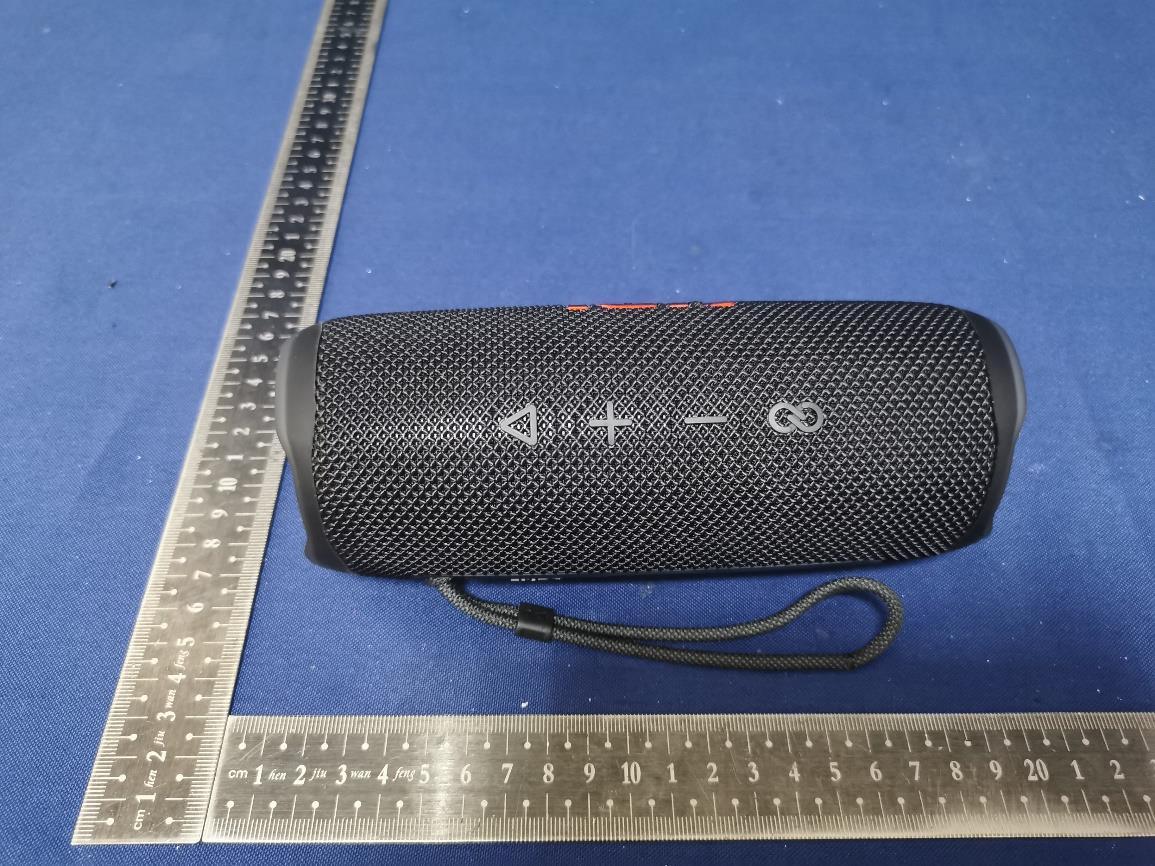

External Photos

Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R21061513-2E01 Page 77 of 113 16. Photos of the EUT Battery: GSP-1S2P-F6D Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R21061513-2E01 Page 78 of 113 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R21061513-2E01 Page 79 of 113 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R21061513-2E01 Page 80 of 113 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R21061513-2E01 Page 94 of 113 Battery: GSP-1S2P-F6A Bluetooth&SRD Antenna Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R21061513-2E01 Page 95 of 113 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R21061513-2E01 Page 96 of 113 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R21061513-2E01 Page 97 of 113

ID Label/Location Info

JBL FLIP6 / COMPLIANCE Meterial : UV Print finished : Semi high gloss reference : CHARGE5 color : Transparent Compliance Serial number & TEXT>> finished : Laser etching Artworks - Unit: mm - 07-JUNE-2021 Harman International. Confidential. Copyright © 2021. FLIP6C for COSONIC N100023 NJ0000012 T h i s d e v i c e c o m p l i e s w i t h P a r t 1 5 o f t h e F C C r u l e s a n d Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including int e r f e r e n c e t h a t m a y c a u s e u n d e s i r e d o p e r a t i o n . C A N I C E S-003(B)/NMB-003(B). Harman International Industries, Incorporated - 8500 Balboa Blvd, Northridge, CA 91329, UNITED STATES 便携式蓝牙音箱 / Активная акустическая система / Portable Bluetooth Speaker - Model/型号: FLIP6C Input/额定输入: 5V 3.0A M a d e i n C h i n a / Сдел ан о в Кита е / 中国制造 A/ S 연 락 처 : 0 2 - 5 5 3 - 3 4 9 4 X X X X X / S D P PI/ X X XX /X XXX CMII T ID : X XX X X X X X X X I C : 6 1 3 2 A - J B L F L I P 6 C F C C I D : A P I J B L F L IP 6 C XXXXXXXXXXXXXX X X X - X X X X X X R - R - S E C - J B L F L I P 6 C X X X X X - X X - X X X X X

Internal Photos

Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R21061513-2E01 Page 98 of 113 Battery: GSP-1S2P-F6A Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R21061513-2E01 Page 99 of 113 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R21061513-2E01 Page 100 of 113 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R21061513-2E01 Page 101 of 113 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R21061513-2E01 Page 102 of 113 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R21061513-2E01 Page 103 of 113 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R21061513-2E01 Page 104 of 113 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R21061513-2E01 Page 105 of 113 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R21061513-2E01 Page 106 of 113 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R21061513-2E01 Page 107 of 113 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R21061513-2E01 Page 108 of 113 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R21061513-2E01 Page 109 of 113 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R21061513-2E01 Page 110 of 113 Bluetooth&SRD Antenna Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R21061513-2E01 Page 111 of 113 Bluetooth&SRD Antenna Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R21061513-2E01 Page 112 of 113 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R21061513-2E01 Page 113 of 113 END OF REPORT

Internal Photos

Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R21061513-2E01 Page 80 of 113 Battery: GSP-1S2P-F6D Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R21061513-2E01 Page 81 of 113 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R21061513-2E01 Page 82 of 113 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R21061513-2E01 Page 83 of 113 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R21061513-2E01 Page 84 of 113 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R21061513-2E01 Page 85 of 113 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R21061513-2E01 Page 86 of 113 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R21061513-2E01 Page 87 of 113 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R21061513-2E01 Page 88 of 113 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R21061513-2E01 Page 89 of 113 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R21061513-2E01 Page 90 of 113 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R21061513-2E01 Page 91 of 113 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R21061513-2E01 Page 92 of 113 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R21061513-2E01 Page 93 of 113 Bluetooth&SRD Antenna Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R21061513-2E01 Page 94 of 113 Bluetooth&SRD Antenna

RF Exposure Info

AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF21016 Page 1 of 29 SAR TEST REPORT for Harman International Industries, Inc. Portable Bluetooth Speaker Model No.: FLIP6C FCC ID: APIJBLFLIP6C IC: 6132A-JBLFLIP6C The MAX SAR(1g) Body SAR 0.1739W/Kg Prepared for : Harman International Industries, Inc. 8500 Balboa Boulevard, Northridge, CA 91329, UNITED STATES Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Kefeng Road, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26639496 Fax: (0755) 26632877 Report Number ： ACS-SF21016 Date of Test ： Jul.22, 2021 Date of Report ： Aug.11, 2021 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF21016 Page 2 of 29 TABLE OF CONTENTS Description Page Test Report Verification 3 1. GENERAL INFORMATION .................................................................................................. 4 1.1. Description of Equipment Under Test .......................................................................................... 4 1.2. Feature of Equipment Under Test ................................................................................................ 5 2. GENERAL DESCRIPTION .................................................................................................... 6 2.1. Product Description For EUT ...................................................................................................... 6 2.2. Applied Standards ....................................................................................................................... 6 2.3. Device Category and SAR Limits ................................................................................................ 6 2.4. Test Conditions ........................................................................................................................... 6 2.5. Exposure Positions Consideration ................................................................................................ 7 2.6. Standalone SAR Test Exclusion Considerations ........................................................................... 8 2.7. EUT Configuration and operation conditions for test...................................................................10 2.8. Test Equipments .........................................................................................................................10 2.9. Laboratory Environment .............................................................................................................11 2.10. Measurement Uncertainty ...........................................................................................................11 3. MEASURE PROCEDURES .................................................................................................. 14 3.1. General description of test procedures .........................................................................................14 4. SAR MEASUREMENTS SYSTEM ...................................................................................... 15 4.1. SAR Measurement Set-up ...........................................................................................................15 4.2. ELI Phantom ..............................................................................................................................16 4.3. Device Holder for SAM Twin Phantom ......................................................................................17 4.4. DASY5 E-field Probe System .....................................................................................................18 4.5. E-field Probe Calibration ............................................................................................................19 4.6. Scanning procedure ....................................................................................................................20 5. DATA STORAGE AND EVALUATION.............................................................................. 22 5.1. Data Storage ...............................................................................................................................22 5.2. Data Evaluation by SEMCAD ....................................................................................................22 6. SYSTEM CHECK .................................................................................................................. 24 7. TEST RESULTS .................................................................................................................... 26 7.1. Output power ..............................................................................................................................26 7.2. System Check for Head Tissue simulating liquid ........................................................................27 7.3. Test Results ................................................................................................................................28 ANNEX A: SYSTEM CHECK RESULTS ANNEX B: TEST PLOTS ANNEX C: DASY CABLIBRATION CERTIFICATE ANNEX D: TEST SETUP PHOTOS AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF21016 Page 4 of 29 1. GENERAL INFORMATION 1.1. Description of Equipment Under Test Applicant Harman International Industries, Inc. 8500 Balboa Boulevard, Northridge, CA 91329, UNITED STATES Manufacturer Harman International Industries, Inc. 8500 Balboa Boulevard, Northridge, CA 91329, UNITED STATES Product Portable Bluetooth Speaker Model No. FLIP6C FCC ID APIJBLFLIP6C IC 6132A-JBLFLIP6C Sample Type Prototype production Date of Receipt Jul.20, 2021 Date of Test Jul.22, 2021 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF21016 Page 5 of 29 1.2. Feature of Equipment Under Test Product Feature & Specification Product Portable Bluetooth Speaker Model No. FLIP6C FCC ID APIJBLFLIP6C IC 613…

Text truncated - open the document above for the full version.

RF Exposure Info

AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF21016 Annex B AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF21016 Annex B AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF21016 Annex B AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF21016 Annex C ANNEX C: DASY CABLIBRATION CERTIFICATE AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF21016 Annex C AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF21016 Annex C AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF21016 Annex C AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF21016 Annex C AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF21016 Annex C AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF21016 Annex C AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF21016 Annex C AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF21016 Annex C AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF21016 Annex C AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF21016 Annex C AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF21016 Annex C AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF21016 Annex C AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF21016 Annex C AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF21016 Annex C AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF21016 Annex C AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF21016 Annex C AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF21016 Annex C AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF21016 Annex C AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF21016 Annex C AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF21016 Annex C

Test Report

Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R21061513-2E01 Page 1 of 113 FCC AND ISED CERTIFICATION TEST REPORT FOR Issued By: Dongguan Dongdian Testing Service Co., Ltd. Add.: No. 17, Zongbu Road 2, Songshan Lake Sci&Tech, Industry Park, Dongguan City, Guangdong Province, China, 523808 Tel.: +86-0769-38826678, E-mail: [email protected], http://www.dgddt.com Applicant : Harman International Industries, Inc. Address : 8500 Balboa Boulevard, Northridge, CA 91329, UNITED STATES Equipment under Test : Portable Bluetooth Speaker Model No. : FLIP6C Trade Mark : JBL FCC ID : APIJBLFLIP6C IC : 6132A-JBLFLIP6C Manufacturer : Harman International Industries, Inc. Address : 8500 Balboa Boulevard, Northridge, CA 91329, UNITED STATES ■Report No.:DDT-R21061513-2E01 ■Issued Date: Jul. 26, 2021 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R21061513-2E01 Page 2 of 113 Table of Contents Test report declares........................................................................................................4 1. Summary of Test Results............................................................................................... 6 2. General Test Information ............................................................................................... 7 2.1. Description of EUT ......................................................................................................... 7 2.2. Accessories of EUT ....................................................................................................... 8 2.3. Assistant equipment used for test.................................................................................. 8 2.4. Block diagram of EUT configuration for test .................................................................. 8 2.5. Deviations of test standard ............................................................................................ 9 2.6. Test environment conditions .......................................................................................... 9 2.7. Test laboratory ............................................................................................................... 9 2.8. Measurement uncertainty ............................................................................................ 10 3. Equipment Used During Test ....................................................................................... 11 4. Maximum Peak Output Power ..................................................................................... 13 4.1. Block diagram of test setup ......................................................................................... 13 4.2. Limits ............................................................................................................................ 13 4.3. Test procedure ............................................................................................................. 13 4.4. Test result ..................................................................................................................... 13 4.5. Original test data .......................................................................................................... 14 5. 20 dB Bandwidth and 99% Bandwidth ........................................................................ 17 5.1. Block diagram of test setup ......................................................................................... 17 5.2. Limits ............................................................................................................................ 17 5.3. Test procedure ............................................................................................................. 17 5.4. Test result ..................................................................................................................... 17 5.5. Original test data .......................................................................................................... 18 6. Carrier Frequency Separation ..................................................................................... 21 6.1. Block diagram of test setup ......................................................................................... 21 6.2. Limits ...........................................................................................................…

Text truncated - open the document above for the full version.
