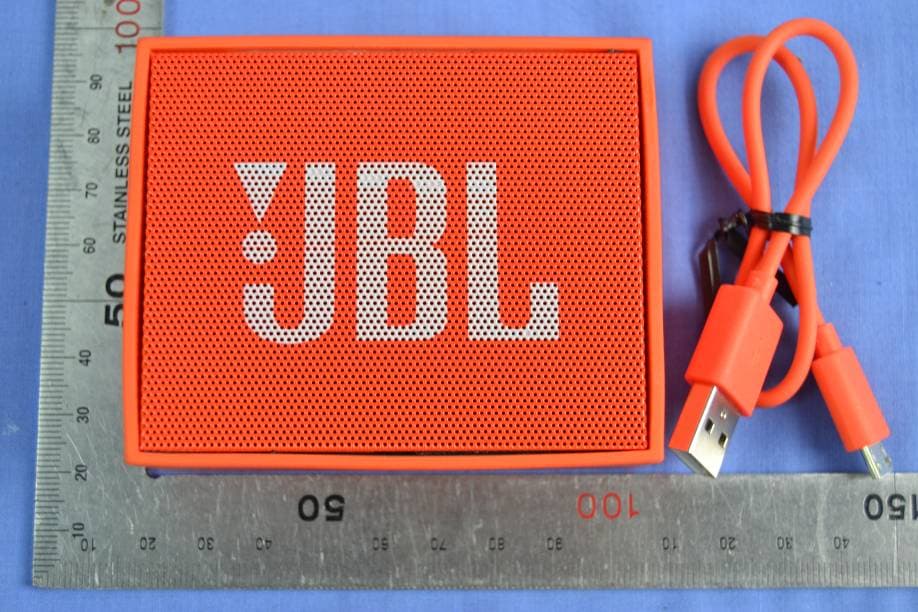

APIJBLGONRPORTABLE BLUTOOTH SPEAKER

Quick Start Guide Guide de démarrage rapide What’s in the box 1 x 1 x 1 Quick Start Guide Guide de démarrage rapide Buttons 2 Connections 3 VOLUME -/+SPEAKERPHONEON / OFFBLUETOOTH AUX-IN POWER MIC IN Bluetooth 1. Bluetooth connection 2. Music control 4 JBL Go PLAY / PAUSE BACKWARD/NEXT Quick Start Guide Guide de démarrage rapide Speakerphone 5 LED indication 6 Pairing mode / Incoming call Not connectedSlow blinking StatusLED indication Fast blinking OnConnected Low Power Blinking OnCharging Quick Start Guide Guide de démarrage rapide ENFR • Bluetooth ® version: 4.0 • Support: A2DP V1.2, AVRCP V1.4 (iOS 7 compatible), HFP V1.6, HSP V1.2 • Transducer: 1 x 40 mm • Rated power: 3.0 W • Frequency response: 160 Hz – 20 kHz • Signal-to-noise ratio: ≥80 dB • Battery type: Lithium-ion polymer (3.7 V, 600 mAh) • Battery charge time: 1.5 hrs @ 0.5 A • Music playing time: up to 5 hours (varies by volume level and audio content) • Bluetooth ® transmitter power: 0–4 dBm • Bluetooth ® transmitter frequency range: 2.402–2.480 GHz • Bluetooth ® transmitter modulation: GFSK, π/4-DQPSK, 8DPSK • Dimensions (H x W x D): 67.91 x 82.50 x 29.95 (mm) • Weight: 150 g • Version Bluetooth ® : 4.0 • Support : A2DP V1.2, AVRCP V1.4 (compatible iOS 7), HFP V1.6, HSP V1.2 • Transducteur : 1 x 40 mm • Puissance nominale : 3,0 W • Réponse en fréquence : 160 Hz – 20 kHz • Rapport signal sur bruit : ≥80 dB • Type de batterie : Lithium-ion polymère (3,7 V, 600 mAh) • Temps de charge de la batterie : 1,5 h à 0,5A • Durée de lecture de la musique : jusqu’à 5 heures (fonction du niveau du volume et du contenu audio) • Puissance de l'émetteur Bluetooth ® : 0–4 dBm • Bande de fréquences de l'émetteur Bluetooth ® : 2,402–2,480 GHz • Modulation de l'émetteur Bluetooth ® : GFSK, π/4-DQPSK, 8DPSK • Dimensions (H x L x P) : 67,91 x 82,50 x 29,95 (mm) • Poids : 150 g ESPT • Versión Bluetooth ® : 4.0 • Compatibilidad: A2DP V1.2, AVRCP V1.4 (compatible con iOS 7), HFP V1.6, HSP V1.2 • Transductor: 1 x 40 mm • Potencia nominal: 3,0 W • Intervalo de frecuencias: 160 Hz – 20 kHz • Relación señal ruido: ≥80 dB • Tipo de batería: Ion litio polimérica (3,7 V, 600 mAh) • Tiempo de carga de la batería: 1,5 h a 0,5 A • Tiempo de reproducción de música: hasta 5 horas (depende del nivel de volumen y el contenido del audio) • Potencia del transmisor Bluetooth ® : 0–4 dBm • Alcance de frecuencia del transmisor Bluetooth ® : 2,402–2,480 GHz • Modulación del transmisor Bluetooth ® : GFSK, π/4-DQPSK, 8DPSK • Dimensiones (ancho x alto x prof.): 67,91 x 82,50 x 29,95 (mm) • Peso: 150 g • Versão do Bluetooth ® : 4.0 • Suporte a: A2DP V1.2, AVRCP V1.4 (compatível com iOS 7), HFP V1.6, HSP V1.2 • Transdutor: 1 x 40 mm • Potência nominal: 3,0 W • Resposta de frequência: 160 Hz a 20 kHz • Relação sinal-ruído: ≥80 dB • Tipo de bateria: Polímero de íon de lítio (3,7 V, 600 mAh) • Tempo de carregamento da bateria: 1,5 h a 0,5 A • Tempo de reprodução de música: até 5 horas (varia com o nível do volume e o conteúdo de áudio) • Potência do transmissor Bluetooth ® : 0–4 dBm • Faixa de frequência do transmissor Bluetooth ® : 2,402 a 2,480 GHz • Modulação do transmissor Bluetooth ® : GFSK, π/4-DQPSK, 8DPSK • Dimensões (A x L x P): 67,91 x 82,50 x 29,95 (mm) • Peso: 150 g Quick Start Guide Guide de démarrage rapide DEIT • Bluetooth ® -Version: 4.0 • Kompatibilität: A2DP V1.2, AVRCP V1.4 (kompatibel mit iOS 7), HFP V1.6, HSP V1.2 • Signalumwandler: 1 x 40 mm • Nennleistung: 3,0 W • Frequenzabhängigkeit: 160Hz – 20kHz • Rauschabstand: ≥80 dB • Batterie: Lithium-Ionen-Polymer (3.7V, 600mAh) • Batterieladezeit: 1,5 Stunden @ 0.5A • Musikwiedergabedauer: bis zu 5 Stunden (abhängig von der Lautstärke und dem Audioinhalt) • Bluetooth ® -Übertragungsleistung: 0–4 dBm • Frequenzbereich der Bluetooth ® - Übertragung: 2.402–2.480 GHz • Bluetooth ® -Übertragungsmodulation: GFSK, π/4-DQPSK, 8DPSK • Abmessungen (H x B x T): 67,91 x 82,50 x 29,95 (mm) • Gewicht: 150g • Bluetooth ® versione: 4.0 • Supporto: A2DP V1.2, AVRCP V1.4 (compatibile con iOS 7), HFP V1.6, HSP V1.2 • Trasduttore: 1 x 40 mm • Potenza nominale: 3,0 W • Risposta di frequenza: 160Hz – 20kHz • Rapporto segnale-rumore: ≥80 dB • Tipo di batteria: Polimeri di litio (3,7 V, 600 mAh) • Tempo di carica della batteria: 1,5 ore a 0,5A • Durata in riproduzione musica: fino a 5 ore (varia a seconda del livello del volume e dei contenuti audio) • Potenza del trasmettitore Bluetooth ® : 0–4 dBm • Intervallo di frequenza del trasmettitore Bluetooth ® : 2,402–2,480 GHz • Modulazione del trasmettitore Bluetooth ® : GFSK, π/4 DQPSK, 8DPSK • Dimensioni (alt. x largh. x prof.): 67,91 x 82,50 x 29,95 (mm) • Peso: 150g NLNO • Bluetooth ® versie: 4.0 • Ondersteunt: A2DP V1.2, AVRCP V1.4 (iOS 7 compatibel), HFP V1.6, HSP V1.2 • Transducer: 1 x 40 mm • Nominaal vermogen: 3.0 W • Frequentiebereik: 160Hz – 20kHz • Signaal-ruisverhouding: ≥80 dB • Type batterij: Lithium-ion polymeer (3.7V, 600mAh) • Oplaadtijd batterij: 1,5 uur @ 0.5A • Muziek speelduur: maximaal 5 uur (verschilt per volumeniveau en audio-inhoud) • Bluetooth ® transmitter vermogen: 0–4 dBm • Bluetooth ® transmitter frequentiebereik: 2.402–2.480 GHz • Bluetooth ® transmitter modulatie: GFSK, π/4 DQPSK, 8DPSK • Afmetingen (B x H x L): 67,91 x 82,50 x 29,95 (mm) • Gewicht: 150g • Bluetooth ® -versjon: 4.0 • Støtte: A2DP V1.2, AVRCP V1.4 (kompatibel med iOS 7), HFP V1.6, HSP V1.2 • Transduser: 1 x 40 mm • Nominell effekt: 3.0 W • Frekvensrespons: 160Hz – 20kHz • Signal-til-lyd-ratio: ≥80 dB • Batteritype: Litium-ion-polymer (3,7 V, 600 mAh) • Ladetid for batteri: 1,5 timer @ 0,5 A • Musikk spilletid: opptil 5 timer (varierer avhengig lydnivå og -innhold) • Strøm for Bluetooth ® -sender: 0–4 dBm • Frekvensområde for Bluetooth ® -sender: 2,402–2,480 GHz • Modulasjon for Bluetooth ® -sender: GFSK, π/4-DQPSK, 8DPSK • Dimensjoner (H x B x D): 67,91 x 82,50 x 29,95 (mm) • Vekt: 150 g Quick Start Guide Guide de démarrage rapide FIRU • Bluetooth ® versio: 4.0 • Tuki: A2DP V1.2, AVRCP V1…

Text truncated - open the document above for the full version.

RSS standard(s). Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L 'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. AVERTISSEMENT : N e pas ingérer BATTERIE, BURN RISQUE CHIMIQUE [La télécommande fournie avec] Ce produit contient une pile pièce / bouton. Si la pile pièce / bouton est avalé, il peut causer des brûlures internes graves en seulement 2 heures et peut conduire à la mort. Gar dez piles neuves et usagées de portée des enfants . Si vous pensez que les batt eries pourraient avoir ét é avalé ou placé à l'intérieur d'une partie du corps, consulter immédiatement un médecin.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 2015-1-14 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name APIJBLGONR JBL GO NR For the product stated above, we request permanent confidentiality for exhibits which contain Operational Description, Block Diagram, Schematics, Parts Lists or Tune Up Information. The above exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact me at the address shown below. Sincerely, (signed) Name: Mille Ran Company: Harman International Industries, Inc Address: 8500 Balboa Blvd. Northridge, CA 91329 United States Phone: 818 895 8173 Fax: 818 892 0325 Email: [email protected]

Report No: C141119Z01 Page 1 / 3 External Photos of EUT Report No: C141119Z01 Page 2 / 3 Report No: C141119Z01 Page 3 / 3

Label location 80*30mm

Report No.: C141119Z01 Page 1/4 Internal Photos of EUT Report No.: C141119Z01 Page 2/4 Report No.: C141119Z01 Page 3/4 Antenna RF Module Report No.: C141119Z01 Page 4/4 Battery

FCC RF Exposure FCC ID: APIJBLGONR Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Portable Device Refer Standard: KDB 447498 D01 General RF Exposure Guidance v05r02 FCC Part 2 §2.1093 Evaluation method According to KDB447498 D01 General RF Exposure Guidance v05r01Section 4.3.1 Standalone SAR test exclusion considerations:“ Unless specifically required by the published RF exposure KDB procedures, standalone 1‐g head or body and 10‐g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source‐based time‐averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune‐up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two‐way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune‐up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. Conducted Power Results Bluetooth Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK‐BLE 00 2402 ‐0.015 19 2440 2.680 39 2480 2.658 GFSK 00 2402 5.71 39 2441 7.05 78 2480 6.85 8DPSK 00 2402 3.51 39 2441 6.41 78 2480 7.04 π/4DQPSK 00 2402 4.07 39 2441 5.74 78 2480 5.81 Manufacturing tolerance Bluetooth GFSK‐BLE (Peak) Channel Channel 00 Channel 19 Channel 39 Target (dBm) 0.0 3.0 3.0 Tolerance ±(dB) 1.0 1.0 1.0 GFSK (Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) 6.0 8.0 7.0 Tolerance ±(dB) 1.0 1.0 1.0 8DPSK (Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) 4.0 7.0 8.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) 5.0 6.0 6.0 Tolerance ±(dB) 1.0 1.0 1.0 Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune‐up tolerance) SAR Te st Exclusion Threshold SAR Te st Exclusion dBm mW BT* 2.450 0 9.00 7.9433 2.5<3.0 Yes BT*‐BT including BLE (lower power BT) Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v05r02. .......................End of Report.........................

Report No.: C141119Z01-RP1-2 FCC ID: APIJBLGONR Page 1 / 43 FCC 47 CFR PART 15 SUBPART C for PORTABLE BLUETOOTH SPEAKER Model: JBL GO NR Brand: JBL Test Report Number: C141119Z01-RP1-2 Issued for Harman International Industries, Inc. 8500 Balboa Blvd, Northridge, CA 91329, UNITED STATES Issued by: Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST, CNAS or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services (Shenzhen) Inc. No.10-1, Mingkeda Logistics Park, No.18 Huanguan South Rd., Guan Lan Town, Baoan District, Shenzhen, China TEL: 86-755-28055000 FAX: 86-755-28055221 Issued Date: December 26, 2014 检 测 CNAS L4818 Report No.: C141119Z01-RP1-2 FCC ID: APIJBLGONR Page 2 / 43 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Data Revisions Effect Page Revised By 00 November 29, 2014 Initial Issue ALL Sabrina Wang Report No.: C141119Z01-RP1-2 FCC ID: APIJBLGONR Page 3 / 43 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1 TEST CERTIFICATION.............................................................................................. 4 2 TEST RESULT SUMMARY........................................................................................ 5 3 EUT DESCRIPTION ................................................................................................... 6 4 TEST METHODOLOGY ............................................................................................. 7 4.1. DESCRIPTION OF TEST MODES ...................................................................................... 7 5 SETUP OF EQUIPMENT UNDER TEST.................................................................... 8 5.1. DESCRIPTION OF SUPPORT UNITS................................................................................. 8 5.2. CONFIGURATION OF SYSTEM UNDER TEST ................................................................. 8 6 FACILITIES AND ACCREDITATIONS ...................................................................... 9 6.1. FACILITIES .......................................................................................................................... 9 6.2. ACCREDITATIONS ............................................................................................................. 9 6.3. MEASUREMENT UNCERTAINTY....................................................................................... 9 7 FCC PART 15.247 REQUIREMENTS...................................................................... 10 7.1. POWER LINE CONDUCTED EMISSIONS MEASUREMENT........................................... 10 7.2. SPURIOUS EMISSIONS MEASUREMENT....................................................................... 15 7.3. 6dB BANDWIDTH MEASUREMENT ................................................................................. 28 7.4. PEAK OUTPUT POWER ................................................................................................... 31 7.5. BAND EDGES MEASUREMENT....................................................................................... 34 7.6. PEAK POWER SPECTRAL DENSITY MEASUREMENT.................................................. 40 Report No.: C141119Z01-RP1-2 FCC ID: APIJBLGONR Page 5 / 43 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2 TEST RESULT SUMMARY APPLICABLE STANDARDS Standard Test Type ResultRemark 15.247(a)(2) 6dB Bandwidth Measurement Pass Meet the requirement of limit. 15.247(b)(3) 15.247(b)(4) Peak Power Measurement Pass Meet the requirement of limit. 15.247(d) Band Edges Measurement Pass Meet the requirement of limit. 15.247(e) Peak Power Spectral Density Pass Meet the requirement of limit. 15.247(d) 15.209(a) z Spurious Emissions z Conducted Measurement z Radiated Emissions Pass Meet the requirement of limit. 15.207(a) Power line Conducted Emissions Pass Meet the requirement of limit. Note: 1. The statements of test result on the above are decided by the request of test standard only; the measurement uncertainties are not factored into this compliance determination. 2. The information of measurement uncertainty is available upon the customer’s request. Report No.: C141119Z01-RP1-2 FCC ID: APIJBLGONR Page 6 / 43 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 3 EUT DESCRIPTION Product PORTABLE BLUETOOTH SPEAKER Model JBL GO NR Brand JBL Model Discrepancy A model corresponding to the multiple colors. Identify Number C141119Z01-RP1-2 Received Date November 19, 2014 Power Supply DC3.7V 60mAh 2.22Wh supply by the battery or DC5V supplied by PC Battery Manufacturer /Model No. DESAY / P682634 01 O/P: 3.7Vdc, 600mAh 2.22Wh Frequency Range 2402-2480 MHz Transmit Power 2.68dBm Modulation Technique GFSK for 1Mbps Number of Channels 40 Channels Antenna Specification PCB antenna with 2.1dBi gain (Max) Temperature Range 0°C ~ +40°C Hardware Version V0.5 Software Version V0.3 Note: 1. The sample selected for test was engineering sample that approximated to production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: APIJBLGONR filing to comply with Section 15.207, 15.209 and 15.247of the FCC Part 15, Subpart C Rules. Report No.: C141119Z01-RP1-2 FCC ID: APIJBLGONR Page 7 / 43 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 4 TEST METHODOLOGY 4.…
