OWNER’S MANUAL JBL AUTHENTICS QI USB POWERED WIRELESS CHARGER Power: 5VDC by USB Operation Frequency: 106 KHz This is a Plug and play USB powered wireless charger, the use case is very simple and convenient. How to operate Place your phone or other compatible device on the wireless charging area on top of JBL AUTHENTICS QI. The charging indicator lights turn white and flash on and off while charging. Adjust the position of your phone if the charging indicator lights blink quickly. When your phone is fully charged, the charging indicator lights go off immediately. Note: make sure locate your phone on below red area. FCC AND IC INFORMATION FOR USERS This device complies with Part 15 of the FCC rules, operation is subject to the following two conditions: (1) This device may not cause harmful interference; and (2)This device must accept any interference received, including interference that may cause undesired operation. Caution: Changes or modifications not expressly approved by HARMAN could void the user’s authority to operate the equipment. To ensure proper use of this product, please read the owner’s manual carefully and retain it for future use. Should the unit require maintenance or repair, please contact your local JBL service center. Refer servicing to qualified personnel only. The product may cause potential interference to your home electronic product. Keeps this equipment operating with minimum distance 20cm between the product and other electronic product. Please unplug the product from USB port if you don’t use it. Troubleshooting: Adopt following measures by the user itself once the product is interfered. 1, Unplug USB cable and plug USB cable again. 2, If the product is getting high temperature, please stop using it, let it be colder and re-use again. HARMAN International hereby declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC and RoHS 2011/65/EU Directive The declaration of conformity may be consulted in the support section of our Web site, accessible from www.jbl.com. © 2013 HARMAN International Industries, Incorporated. All rights reserved. JBL is a trademark of HARMAN International Industries, Incorporated, registered in the United States and/or other countries. Features, specifications and appearance are subject to change without notice. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not canse harmful interference, and (2)this device must accept any interference received,including interference that may cause undesired operation. Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. JBL Authentics Qi

Nov 11,2013

Harman International Industries, Inc. 8500 Balboa Blvd, Nothridge, CA 91329 UNITED STATES 022311 – 6 Request for Confidentiality Date: _ Nov 11, 2013__ _ Subject: Confidentiality Request for: __ ___ __ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term √ Permanent Block Diagrams √ Short Term Permanent External Photos √ Short Term Permanent* 2 Internal Photos Short Term √ Permanent Operation Description/Theory of Operation Short Term √ Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term √ Permanent Schematics √ Short Term Permanent Test Setup Photos √ Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ __ Harman International Industries, Inc. __ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of __90 _ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: __________________________ ____ Fernando Reyes_ ____ (Signature/Title 3 ) (Print name) 2 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate

External photos

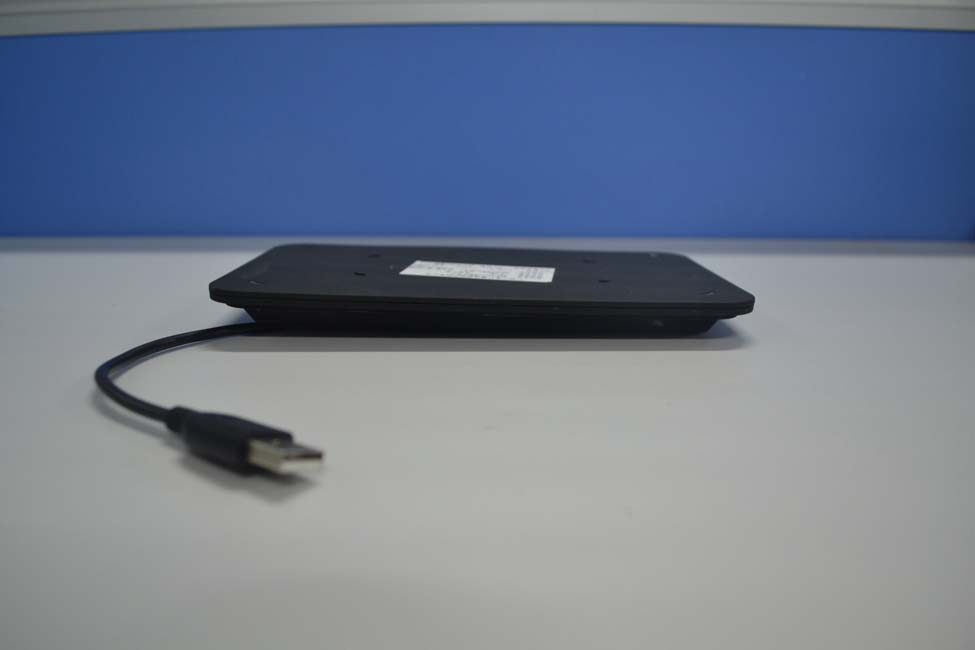

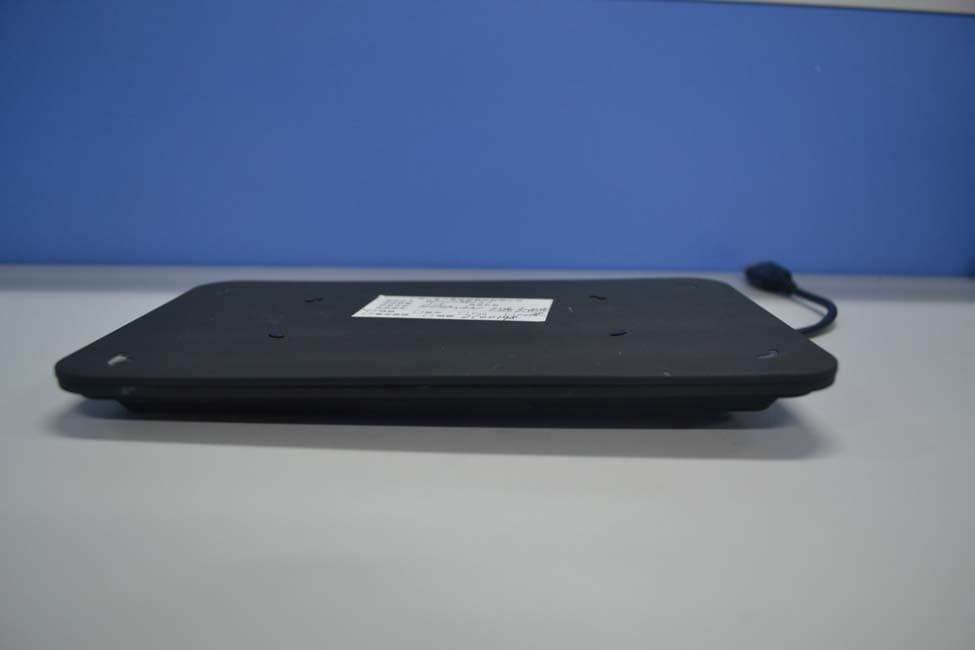

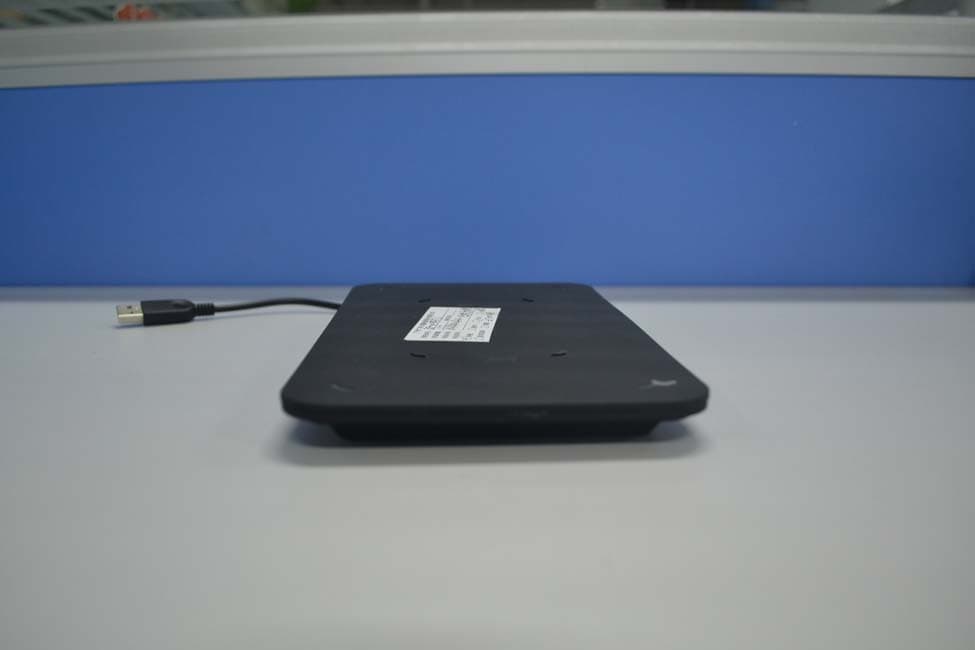

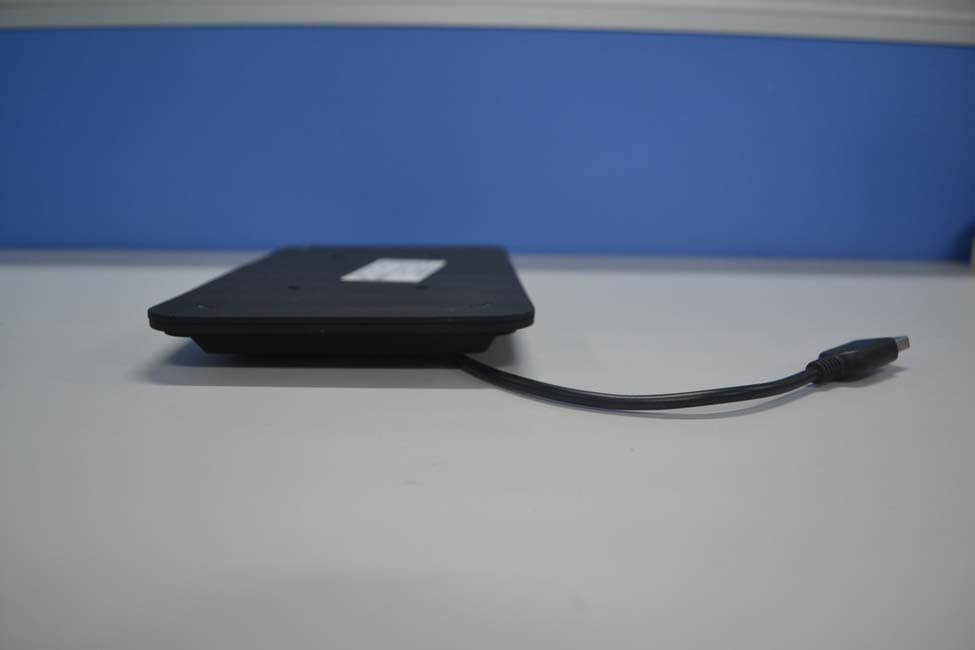

label location Model: JBL AUTHENTICS QI 200mm 120mm 5VUSB Label (position: on the back of pad) Charging position

Internal photos --------------------This is the last page of the report. -----------------------

Page 1 of 17 TEST REPORT Report No.: EM201300810-5 Application No.: ZJ00034131 Client: Harman International Industries, Incorporated Address: 8500 Balboa Blvd, Northridge, CA 91329, UNITED STATES Sample Description: USB POWERED WIRELESS CHARGER Model: JBL AUTHENTICS QI Adding Model: / Test Specification: FCC Part 1 §1.1310 Test Date: 2013-09-20 to 2013-10-25 Issue Date: 2013-10-25 Test Result: Pass. Prepared By: Reviewed By: Approved By: Lynn Xiao / Test Engineer Jane Cao / Test Engineer Gavin Wu / Manager Date:2013-10-25 Date:2013-10-25 Date:2013-10-25 Other Aspects: None Abbreviations: ok / P = passed; fail / F = failed; n.a. / N = not applicable The test result in this test report refers exclusively to the presented test sample. This report shall not be reproduced except in full, without the written approval of GRGT. GRG Metrology and Test Co., Ltd. Address: 163, Pingyun Road, West of Huangpu Avenue, Guangzhou, Guangdong, P.R. China Tel:+86-20-38699960 Fax:+86-20-38695185 Email: [email protected] http://www.grgtest.com Ver.:2.0/ 01. Jan. 2012 Report No.: EM201300810-5 Application No.: ZJ00034131 Page 2 of 17 DIRECTIONS OF TEST 1. This station carries out test task according to the national regulation of verifications which can be traced to National Primary Standards and BIPM. 2. The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. 3. If there is any objection concerning the test, the client should inform the laboratory within 15 days from the date of receiving the test report. Report No.: EM201300810-5 Application No.: ZJ00034131 Page 3 of 17 Table of Contents 1. TEST RESULT SUMMARY ................................................................................................................................. 4 2. GENERAL DESCRIPTION OF TUT ................................................................................................................... 5 2.1 APPLICANT ...................................................................................................................................................... 5 2.2 MANUFACTURER ........................................................................................................................................... 5 2.3 BASIC DESCRIPTION OF EQUIPMENT UNDER TEST ............................................................................... 5 2.4 LOCAL SUPPORTIVE INSTRUMENTS ......................................................................................................... 5 3. LABORATORY AND ACCREDITATIONS ....................................................................................................... 6 3.1 LABORATORY ................................................................................................................................................. 6 3.2 ACCREDITATIONS .......................................................................................................................................... 6 3.3 MEASUREMENT UNCERTAINTY ................................................................................................................. 6 3.4 LIST OF USED TEST EQUIPMENT AT GRGT ............................................................................................... 7 4. RF EXPOSURE EVALUATION ........................................................................................................................... 8 4.1 TEST SETUP ......................................................................................................................................................... 8 4.2 ENVIRONMENTAL EVALUATION AND EXPOSURE LIMIT ....................................................................................... 9 4.3 TEST RESULT ..................................................................................................................................................... 10 4.3.1 ELECTRIC FIELD STRENGTH AT 10 CM FROM THE EDGES SURROUNDING THE EUT ......................................... 10 4.3.2 MAGNETIC-FIELD STRENGTH AT 10 CM FROM THE EDGES SURROUNDING THE EUT ...................................... 10 APPENDIX A: PHOTOGRAPH OF THE TEST ARRANGEMENT ................................................................. 11 APPENDIX B: PHOTOGRAPH OF THE EUT .................................................................................................... 14 Report No.: EM201300810-5 Application No.: ZJ00034131 Page 4 of 17 1. TEST RESULT SUMMARY FCC PART 1.1310&KDB 680106 D01 Standard Item Limit / Severity Result FCC PART 1.1310&KDB 680106 D01 RF exposure compliance 1.1310 PASS Report No.: EM201300810-5 Application No.: ZJ00034131 Page 5 of 17 2. GENERAL DESCRIPTION OF TUT 2.1 APPLICANT Name: Harman International Industries, Incorporated Address: 8500 Balboa Blvd, Northridge, CA 91329, UNITED STATES 2.2 MANUFACTURER Name: Harman International Industries, Incorporated Address: 8500 Balboa Blvd, Northridge, CA 91329, UNITED STATES 2.3 BASIC DESCRIPTION OF EQUIPMENT UNDER TEST Equipment: USB POWERED WIRELESS CHARGER Model No.: JBL AUTHENTICS QI Trade Name: JBL Power supply: USB DC 5V Mode: Wireless Charging Wireless charging Operation frequency 106kHz Sample submitting way: ■Provided by customer □Sampling Note: / 2.4 LOCAL SUPPORTIVE INSTRUMENTS Name of Equipment Manufacturer Model Serial Number Wireless charge load ConvenientPower / / adapter Harman / / Report No.: EM201300810-5 Application No.: ZJ00034131 Page 6 of 17 3. LABORATORY AND ACCREDITATIONS 3.1 LABORATORY The tests and measurements refer to this report were performed by EMC Laboratory of Guangzhou GRG Metrology and Test Co,. Ltd. Add. : 163 Pingyun Rd, West of Huangpu Ave, Guangzhou, 510656, P. R. China Telephone: +86-20-38699959, 38699960, 38699961 Fax : +86-20-38695185 3.2 ACCREDITATIONS Our laboratories are accredited and approved by the following approval agencies according to ISO/IEC 17025. USA FCC Li…
