APJ9Q607001Microwave Oven

Owner's Manual Microwave Oven Keep instructions for future reference. Be sure manual stays with microwave. Contents Important Safety Information .............. 3 Installation .......................................... 5 Displays and Features ........................ 6 Utensil Recommendations .................. 7 Using the Oven Control ...................... 8 Programming the Oven Control .......... 9 User Options .................................... 10 Care and Cleaning ............................ 11 Troubleshooting ................................ 12 Amana Warranty .............................. 13 2 Recognize Safety Symbols, Words, Labels DANGER ! DANGER—Immediate hazards which WILL result in severe personal injury or death. WARNING ! WARNING—Hazards or unsafe practices which COULD result in severe personal injury or death. CAUTION ! CAUTION—Hazards or unsafe practices which COULD result in minor personal injury or product or property damage. What You Need to Know about Safety Instructions Warning and Important Safety Instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur. Common sense, caution, and care must be exercised when installing, maintaining, or operating cooktop. Always contact your dealer, distributor, service agent, or manufacturer about problems or conditions you do not understand. Please take the time to complete the registration card and return promptly. If registration card is missing, call Amana Consumer Affairs Department. When contacting Amana, provide product information from serial plate located on the back of the unit. For more information on this and other Amana products, visit our Web site www.amana.com or call Consumer Affairs Department at 1-800-843-0304 Asure ô Extended Service Plan Amana Appliances offers long-term service protection for this new microwave. Asure ™ Extended Service Plan, covering functional parts, labor, and travel charges, is specially designed to supplement a strong warranty. Call 1-800-528-2682 for information. Parts and Accessories Purchase replacement parts and additional accessories by phone. To order accessories for your Amana product, call 1-800-843-0304 inside USA or 319-622-5511 outside USA. Save Time and Money If something seems unusual, please check “Troubleshooting” section, which is designed to help you solve problems before calling service. If you have a question, call us at (800) 843-0304 or write us at: Consumer Affairs Department Amana Appliances 2800 - 220th Trail Amana, Iowa 52204 Remember to include model number of your appliance and your phone number. Thank you for buying an Amana Microwave! Model Number __________________________________ Manufacturing (P) Number _________________________ Serial Number (S/N) ______________________________ Purchase Date __________________________________ Dealer Name ___________________________________ Dealer Address _________________________________ Dealer Phone ___________________________________ Keep this manual and your sales receipt together in a safe place for future reference or if warranty service is required. For answers to questions or to locate an authorized servicer, call 1-800-NAT-LSVC (1-800-628-5782) inside USA or 319-622-5511 outside USA. Warranty service must be performed by an authorized servicer. Amana Appliances also recommends contacting an authorized servicer if service is required after warranty expires. 3 IMPORTANT SAFETY INFORMATION SAVE THESE INSTRUCTIONS WARNING ! To avoid risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy: •Read all instructions before using your oven. •Do not allow children to use this oven without close supervision. •Read and follow the specific PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY found on page 4. •This appliance must be grounded. Connect only to properly grounded outlet. See ELECTRICAL REQUIREMENTS found on page 5. •Install or locate this appliance only in accordance with the provided installation instructions. •Some products such as whole eggs and sealed containers—for example, closed glass jars—may explode and should not be heated in this oven. •Use this appliance only for its intended use as described in the manual. •Do not use corrosive chemicals or vapors in this appliances. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use. •Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. •This appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for examination, repair or adjustment. •Do not cover or block any openings on the appliance. •Do not store this appliance outdoors. Do not use product near water—for example, near a kitchen sink, in a wet basement, or near a swimming pool and the like. •Do not immerse cord or plug in water. •Keep cord away from heated surfaces. •Do not let cord hang over edge of table or counter. •See door surface cleaning instructions in Care and Cleaning on page 11. WARNING ! To avoid risk of fire in the oven cavity: a. Do not overcook food. Carefully attend appliance if paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking. b. Remove wire twist-ties from paper or plastic bags before placing in the oven. c. If materials inside the oven should ignite, keep oven door closed, turn oven off, and disconnect the power cord, or shut off power at the fuse or circuit breaker panel. d. Do not use the oven cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use. In case of fire If a fire should start: • Keep the oven door closed. • Turn the oven off. • Disconnect the power cord or shut off the power at the fuse or circuit breaker panel. 4 IMPORTANT SAFETY INFORMATION SAVE THESE INSTRUCTION…

Text truncated - open the document above for the full version.

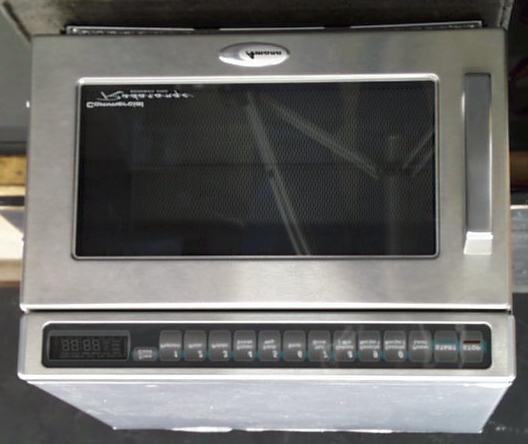

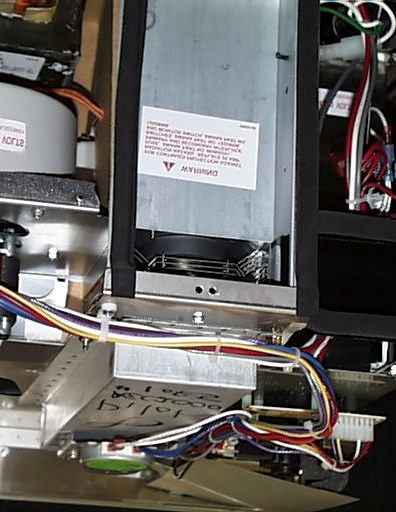

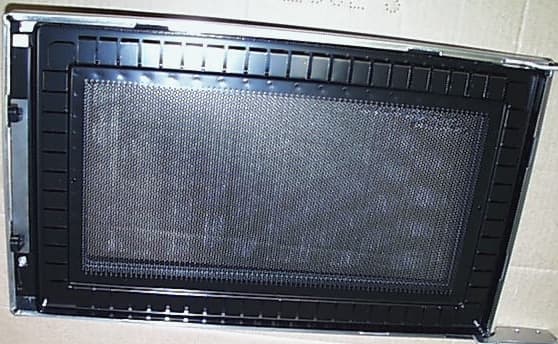

5/15/2000 AEC2000 APJ 9Q607001 1 MAGNETRON AND WAVEGUIDE 5/15/2000 AEC2000 APJ 9Q607001 2 MAGNETRON AND TCO TERMINATIONS 5/15/2000 AEC2000 APJ 9Q607001 3 CHOKE FINGER 5/15/2000 AEC2000 APJ 9Q607001 4 DOOR CHOKE 5/15/2000 AEC2000 APJ 9Q607001 5 INNER DOOR INNER DOOR RETAINER SCREWS 5/15/2000 AEC2000 APJ 9Q607001 6 INSIDE CAVITY AND ANTENNA 5/15/2000 AEC2000 APJ 9Q607001 7 FRONT VIEW

FCC ID LABEL LOCATED ON UNIT BACK PANEL

D:\Ready_To_Convert\Doc\101853.DOC AEC2000 Schematic FCC ID APJ9Q607001

18.207 Technical Report a.Description of measurement facilit ies sent to FCC Labs August 20, 1993 (Charles Cobb). b. See Data Sheets for operating instructions. c. See Form 731 for Manufacturer d. See Form 731 for FCC ID e. Photographs enclosed: f. Measurement report enclosed. Frequency range investigated was from 2000 MHz to 10,000 MHz. Microwave Oven Tests Model: AEC 2000 Serial Number: Lab # R2671/0500 Tested for: Amana Appliances Address: 2800 220 th Tra il PO Box 8901 Amana, IA 52204-0001 Date: 5/3/00 Tested by: Tom Miller Power Measurements E line: 120 V rms: 60 Hz I line : 16.3 A P line: 1900 W P out: 908 W Operating Instructions 1. Insert 1000 ml load in nalgene plastic beaker into oven. 2. Press numbered pads to enter predetermined times and start unit. 3. To turn oven off; a. Let cooking time expire b. Open door c. Press stop pad Microwave Oven Frequency Measurements Fundamental Test Procedure MP-5 Magnetron type: Toshiba 2m248K(A) Oven: AEC 2000 1. Variation with time Operate unit from room temperature until 20% of water has evaporated. Load: 1000 ml watervoltage: 120 V Time (minutes)Frequency (Mhz) 0 2455 22454 42454 62453 82454 102454 122453 142453 16 2452 182450 20 2456 2. Variation with line voltage Load: 1000 ml water with 10 minute warm up Line (Vrms)Frequency (Mhz) 96 2465 1022464 108 2464 1142464 120 2465 1262459 1322455 1382461 144 2464 150 2465 Radiated Emissions FCC Data Sheet HP8572A EMI Receiver Date: 5-3-00FCC ID No: APJ9Q607001 Model: AEC 2000Serial No: Lab # R2671/0500 Magnetron: 2M248K(A)Measured Oven Output Power: 908 W Field Intensity Limit (300m): 33.68 μV/m Resolution Bandwidth: 3 MHz Video Bandwidth: 300 Khz25 X SQRT(908/500) Sweep time: 25ms Input Attenuation: 10 dBField Intensity Limit (dBμV/m): 30.54 HP8449-H02 AntennaPre AmpWater Gain (dB)Gain (dB)Load 2450 MHz: 7.8 -----700 ml 4900 Mhz: 8.4 36.0700 ml & 300 ml 7350 Mhz: 9.8 35.8700 ml & 300 ml 9800 Mhz: 10.0 35.2700 ml Maximum Readings for a ll loads and Positions Freque ncyMeasure me ntConversion Pre A mp 300 m Co nv.Field Inte nsity (MHz)@3m (dB μ V) Factor (dB)Gain (dB) Factor (dB μ V) 2423 31.94 30.1 --- -40 22.0 2487 31.2 30.3 --- -40 21.5 4295 46.12 34.5 -36.0 -40 4.6 7360 42.93 37.7 -35.8 -40 4.8 9823 39.71 40.0 -35.2 -40 4.5
