ATI9R3OHM9100210.2" DIGITAL AUDIO VIDEO PLAYER

ONAUTOOFF OPERATION MANUAL 128-8826 VOH10FR 10.2" OVERHEAD LCD MONITOR Important Notice Installation of overhead products requires careful planning and preparation. Be extremely careful when working on a vehicle with side curtain air bags. Do not route wires near any portion of the side curtain air bag assemblies. This includes any anchor points in A, B, C or D pillars of the vehicle. Routing wires in these areas or running wires by the side curtain air bags can prevent the side curtain air bag from fully deploying which can result in personal injury to vehicle occupants. If you have any questions regarding wire routing in a vehicle, please contact Audiovox Technical Support at 1-800-225-6074. When connecting power and ground in a mobile video installation ensure that the ACC wire is fused at the point where it is connected to the vehicle ACC wiring. Failure to do so can result in damage to the vehicle if a short circuit develops between the vehicle connection point and the mobile video product. An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle is in “park” or when the vehicle's parking brake is applied. An LCD panel or video monitor used for television reception, video or DVD play that operates when the vehicle is in gear or when the parking brake is not applied must be installed to the rear of the driver's seat where it will not be visible, directly or indirectly, to the operator of the motor vehicle. Warnings •Do not use any solvents or cleaning materials when cleaning the video monitor. •Do not use any abrasive cleaners, they may scratch the screen. •Use only a lightly dampened lint free cloth to wipe the screen if it is dirty. •Lock the LCD screen in the fully closed position when not in use. •Before putting on headphones always adjust the volume setting to the lowest position. •Remember to leave the dome light switch in the off or auto positions when the vehicle is unattended, as the dome lights, if left on, can drain the vehicle's battery. •Do not put pressure on the screen. •Caution children to avoid touching or scratching the screen, as it may become dirty or damaged. Licensed under one or more of the following patents, Patent NOS. 5,775,762 , 5,927,784 and 6,678,892 I II FEATURES Congratulations Congratulations on your purchase of the AUDIOVOX VOH10FR DVD Player with Drop-Down Video / Monitor. The VOH10FR has been designed to give you and your family many years of video entertainment in the mobile environment. Please read the directions that follow to familiarize yourself with the product to ensure that you obtain the best results from your equipment. Please note: Installation options vary, see the individual owner's manuals for each component in your system to obtain a full understanding of each component's operation. Safety Precaution For safety reasons, when changing video media it is recommended that the vehicle is not in motion, and that you do not allow children to unfasten seat-belts to change video media or make any adjustments to the system. System adjustments can be accomplished using the remote control, while seat-belts remain fastened. Enjoy your AUDIOVOX entertainment system but remember the safety of all passengers remains the number one priority. • 10.2” TFT (Thin Film Transistor) Active Matrix LCD (Liquid Crystal Display) Monitor. • OSD (On Screen Display) for Control of Picture Quality and Functions. • • Five Audio/Video Source Inputs (FLO TV, USB, CMPT, AV and AUX). • Dome Lights with Built-in Three Way Switch. • Built-in 16 Channel Wireless FM Modulator. • • • • 1 • FLO TV Ready. Single Channel Infrared Transmitter for IR Wireless Headphones. AV Output via RCA Pigtail. Screen Mode Selection (4:3, 16:9). Full Function Remote Control. Backlit Controls. ONAUTOOFF 1 2 3 4 5 6 7 8 9 10 11 12 13 1 CONTROLS AND INDICATORS DIAGRAM (FRONT VIEW) 1.FLO TV Control This control is direct local key The mode LED will change from white to purple when the FLO TV is connected. 2.Infrared Transmitter and Sensor Transmits audio to wireless headphones, allows the remote control to operate the VOH10FR and to control other accessories in the system. 3.Dome Lights Provide additional interior illumination. 4.POWER ( ) Control Used to turn the system on/off. 5.Source Select Use to select one of the five sources: FLO TV, USB, CMPT, AV and AUX. 6.PLAY (u) / PAUSE Button (II) / BACK ( )Control a.) PLAY (u) This control is used to start playback of a multimedia file. b.) PAUSE Button (II) Press to pause playback. Pressing the PAUSE button again or pressing the PLAY Button will resume normal playback. c.) BACK Button ( ) Press and hold the button when user back one screen. to function with FLO TV. 1234 CONTROL FUNCTION DESCRIPTION (SIDE VIEW) 1.USB INPUT FOR USB MEMORY DEVICE Allows for the connection of an USB or memory device.. 2.Auxiliary Video Input 3.Auxiliary Audio Left Input 4.Auxiliary Audio Right Input 2 7.CURSOR uControl a.) • Press and hold the (P) button to • Use these buttons for channel changing (up), navigating menus and selecting items in FLO TV mode. b.) CURSOR (u) Control This button is only active for USB mode. Selecting your favorite by cursor (u) and press “OK” button on your remote control or press ( ) button on unit. Information slide show will begin while playing your favorite file. 8.CURSOR qControl a.) • Press and hold the (P) button to • Use these buttons for channel changing (down), navigating menus and selecting items in FLO TV mode. b.) CURSOR (q) Control This button is only active for USB mode. Selecting your favorite by cursor (q) and press “OK” button on your remote control or press ( ) button on uni…

Text truncated - open the document above for the full version.

ACTION ELECTRONICS CO.,LTD.. 2480,TINGKAT PERUSAHAAN ENAM,PRAO FREE TRADE ZONE,13600,PERAI,PENANG,MALAYSIA Declaration Letter Date:2010-Aug-25 FCC ID:ATI9R3OHM91002 Product 10.2”DIGITAL AUDIO VIDEO PLAYER Model Name:VOH10PFR,VOH10SFR,ADVM10PFR, ADVM10SFR,OHM91002 Trade Name:AUDIOVOX,ADVENT,AXTION Dear Sir, We,the undersigned, hereby indicate our product modification are approved by the grantee and will be implemented to the production line. Sincerely your LL TAN/RD Manager ACTION ELECTRONICS CO.,LTD. 2480,TINGKAT PERUSAHAAN ENAM,PRAO FREE TRADE ZONE,13600,PERAI,PENANG,MALAYSIA

910805 2 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize ELECTRONICS TESTING CENTER, TAIWAN, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by ELECTRONICS TESTING CENTER, TAIWAN on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing ELECTRONICS TESTING CENTER, TAIWAN as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; 910805 3 e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, (signature) LL TAN / RD MANAGER ACTION INDUSTRIES (M) SDN BHD

Date:20/05/2010 Federal Communications Commission Authorization and Evaluation Division FCC ID: ATI9R3OHM91002 Product Name: 10.2” DIGITAL AUDIO VIDEO PLAYER Model Name: VOH10PFR, VOH10SFR, ADVM10PFR, ADVM10SFR, OHM91002 Trade Name: AUDIOVOX , ADVENT,AXTION Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, LL TAN RD ASSISTANT MANAGER ACTION INDUSTRIES (M) SDN BHD (Tel.):604-3997600 (Fax): 604-3997604

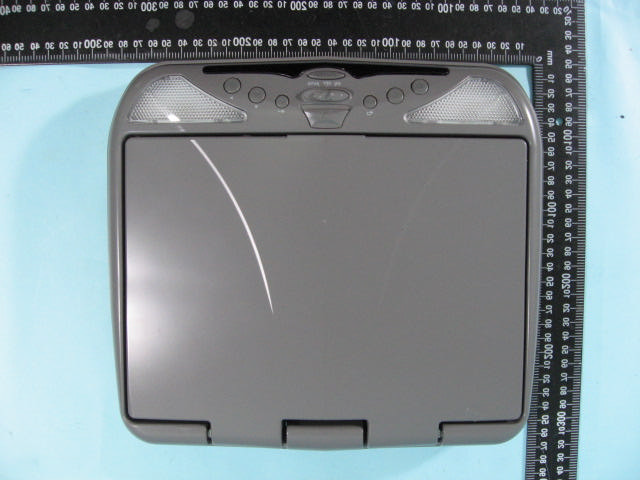

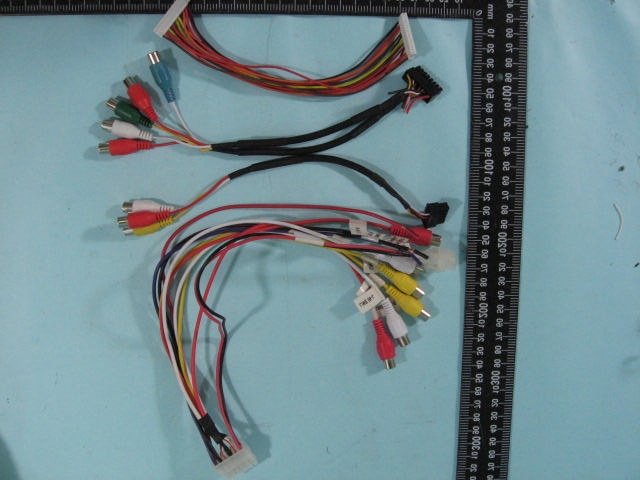

ETC Report No.: 10-04-RBF-104-02 Sheet 1 of 9 Sheets FCC ID.: ATI9R3OHM91002 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 1. Top View of EUT 2. Front View of EUT ETC Report No.: 10-04-RBF-104-02 Sheet 2 of 9 Sheets FCC ID.: ATI9R3OHM91002 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 3. Side View of EUT 4. Rear View of EUT ETC Report No.: 10-04-RBF-104-02 Sheet 3 of 9 Sheets FCC ID.: ATI9R3OHM91002 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 5. Side View of EUT 6. Bottom View of EUT ETC Report No.: 10-04-RBF-104-02 Sheet 4 of 9 Sheets FCC ID.: ATI9R3OHM91002 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 7. Cable View of EUT

CUSTOMER : REVISION : MODEL: DESCRIPTION : VOH10PFR/SFR LABEL LOCATION FOR PRODUCT0 ADVENT DATE: PAGE: OF 1 10/03/10 1 BACK VIEW 1. CHASSIS/ FCC/ FDA/ PATENT LABEL (52 x 80MM) a.)ADVM10PFR (P/N: 50-2A-10030G) 1 2 This device complies with FCC Rules Part 15. Operation is subject to the following two conditions : (1) This device may not cause harmful interference and (2) This device must accept any interference that may be received, including interference that may cause undesired operation. FCC ID : ATI9R3OHM91002 Licensed under one or more of the following patents, Patent NOS. 5,775,762 , 5,927,784 and 6,678,892 2. BC S/N LBL 136-XXXX-POD a.)ADVM10PFR (P/N: 90-2A-07030G) WARRANTY VOID IF LABEL REMOVED 100400000113600000 b.)ADVM10SFR (P/N: 50-2A-10040G) This device complies with FCC Rules Part 15. Operation is subject to the following two conditions : (1) This device may not cause harmful interference and (2) This device must accept any interference that may be received, including interference that may cause undesired operation. FCC ID : ATI9R3OHM91002 Licensed under one or more of the following patents, Patent NOS. 5,775,762 , 5,927,784 and 6,678,892 b.)ADVM10SFR (P/N: 90-2A-07040G) WARRANTY VOID IF LABEL REMOVED 100400000113600000 Made in Malaysia 132-XXXX To 2-Pin Connector 12-Pin Harness LAMP-AUTO VIO/BRN BLK/RED LAMP-COMMON RED/BLK LAMP-ON Signal Name Color RED BLACK POWER +12v (SW) POWER GROUND Inspected By : RED (RCA) WHITE (RCA) RED (RCA) WHITE (RCA) LINE IN-RIGHT LINE IN-LEFT YELLOW (RCA) VIDEO OUTPUT LINE OUT-RIGHT LINE OUT-LEFT YELLOW (RCA) VIDEO INPUT GND- 150 Marcus Blvd., Hauppauge, NY 11788 Technical Assistance: 1-800-225-6074 R MODEL NO. : ADVM10SFR Made in Malaysia 132-XXXX To 2-Pin Connector 12-Pin Harness LAMP-AUTO VIO/BRN BLK/RED LAMP-COMMON RED/BLK LAMP-ON Signal Name Color RED BLACK POWER +12v (SW) POWER GROUND Inspected By : RED (RCA) WHITE (RCA) RED (RCA) WHITE (RCA) LINE IN-RIGHT LINE IN-LEFT YELLOW (RCA) VIDEO OUTPUT LINE OUT-RIGHT LINE OUT-LEFT YELLOW (RCA) VIDEO INPUT GND- 150 Marcus Blvd., Hauppauge, NY 11788 Technical Assistance: 1-800-225-6074 R MODEL NO. : ADVM10PFR CUSTOMER : REVISION : MODEL: DESCRIPTION : VOH10PFR/SFR LABEL LOCATION FOR PRODUCT0 AUDIOVOX DATE: PAGE: OF 1 10/03/10 1 BACK VIEW 1. CHASSIS/ FCC/ FDA/ PATENT LABEL (52 x 80MM) a.)VOH10PFR (P/N: 50-2A-10010G) 1 2 Made in Malaysia 132-XXXX To 2-Pin Connector 12-Pin Harness Inspected By : MODEL No.: VOH10PFR 150 Marcus Blvd., Hauppauge, NY 11788 Technical Assistance: 1-800-225-6074 ELECTRONICS CORP . ® LAMP-AUTO VIO/BRN BLK/RED LAMP-COMMON RED/BLK LAMP-ON Signal Name Color RED BLACK POWER +12v (SW) POWER GROUND RED (RCA) WHITE (RCA) RED (RCA) WHITE (RCA) LINE IN-RIGHT LINE IN-LEFT YELLOW (RCA) VIDEO OUTPUT LINE OUT-RIGHT LINE OUT-LEFT YELLOW (RCA) VIDEO INPUT GND FCC ID : ATI9R3OHM91002 Licensed under one or more of the following patents, Patent NOS. 5,775,762 , 5,927,784 and 6,678,892 - 2. BC S/N LBL 136-XXXX-POD a.)VOH10PFR (P/N: 90-2A-07010G) WARRANTY VOID IF LABEL REMOVED 100400000113600000 b.)VOH10SFR (P/N: 50-2A-10020G) Made in Malaysia 132-XXXX To 2-Pin Connector 12-Pin Harness Inspected By : MODEL No.: VOH10SFR 150 Marcus Blvd., Hauppauge, NY 11788 Technical Assistance: 1-800-225-6074 ELECTRONICS CORP . ® LAMP-AUTO VIO/BRN BLK/RED LAMP-COMMON RED/BLK LAMP-ON Signal Name Color RED BLACK POWER +12v (SW) POWER GROUND RED (RCA) WHITE (RCA) RED (RCA) WHITE (RCA) LINE IN-RIGHT LINE IN-LEFT YELLOW (RCA) VIDEO OUTPUT LINE OUT-RIGHT LINE OUT-LEFT YELLOW (RCA) VIDEO INPUT GND FCC ID : ATI9R3OHM91002 Licensed under one or more of the following patents, Patent NOS. 5,775,762 , 5,927,784 and 6,678,892 - b.)VOH10SFR (P/N: 90-2A-07020G) WARRANTY VOID IF LABEL REMOVED 100400000113600000 This device complies with FCC Rules Part 15. Operation is subject to the following two conditions : (1) This device may not cause harmful interference and (2) This device must accept any interference that may be received, including interference that may cause undesired operation. This device complies with FCC Rules Part 15. Operation is subject to the following two conditions : (1) This device may not cause harmful interference and (2) This device must accept any interference that may be received, including interference that may cause undesired operation.

ETC Report No.: 10-04-RBF-104-02 Sheet 5 of 13 Sheets FCC ID.: ATI9R3OHM91002 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 8. Internal View of EUT ETC Report No.: 10-04-RBF-104-02 Sheet 6 of 13 Sheets FCC ID.: ATI9R3OHM91002 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 9. Internal View of EUT ANT ETC Report No.: 10-04-RBF-104-02 Sheet 7 of 13 Sheets FCC ID.: ATI9R3OHM91002 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 10. Internal View of EUT 11. Internal View of EUT ETC Report No.: 10-04-RBF-104-02 Sheet 8 of 13 Sheets FCC ID.: ATI9R3OHM91002 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 12. Component View of PCB ETC Report No.: 10-04-RBF-104-02 Sheet 9 of 13 Sheets FCC ID.: ATI9R3OHM91002 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 13. Solder View of PCB ETC Report No.: 10-04-RBF-104-02 Sheet 10 of 13 Sheets FCC ID.: ATI9R3OHM91002 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 14. Component View of PCB ETC Report No.: 10-04-RBF-104-02 Sheet 11 of 13 Sheets FCC ID.: ATI9R3OHM91002 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 15. Solder View of PCB ETC Report No.: 10-04-RBF-104-02 Sheet 12 of 13 Sheets FCC ID.: ATI9R3OHM91002 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 16. Component View of PCB ETC Report No.: 10-04-RBF-104-02 Sheet 13 of 13 Sheets FCC ID.: ATI9R3OHM91002 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 17. Solder View of PCB

Rev. No 2.0 FCC Part 15 Subpart C TEST REPORT of E.U.T. :FM Transmitter (built-in 10.2” OVERHEAD LCD MONITOR) FCC ID. :ATI9R3OHM91002 MODEL :VOH10PFR, VOH10SFR, ADVM10PFR,ADVM10SFR, OHM91002 Working Frequency : 88.1~91.1 MHz for APPLICANT : ACTION INDUSTRIES (M) SDN BHD ADDRESS : 2480,TINGKAT PERUSAHAAN ENAM,PRAI FREE TRADE ZONE, 13600,PERAI,PENANG,MALAYSIA. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5. DINGFU TSUEN, LINKOU SHIANG TAIPEI COUNTY, TAIWAN, 24442, R.O.C. http://www.etc.org.tw ; e-mail : [email protected] Tel:(02)26023052 Fax:(02)26010910 Report Number: 10-04-RBF-104-02 ETC Report No.:10-04-RBF-104-02 FCC ID.: ATI9R3OHM91002 Rev. No 2.0 TEST REPORT CERTIFICATION Applicant : ACTION INDUSTRIES (M) SDN BHD 2480,TINGKAT PERUSAHAAN ENAM,PRAI FREE TRADE ZONE, 13600,PERAI,PENANG,MALAYSIA. Manufacturer : ACTION INDUSTRIES (M) SDN BHD 2480,TINGKAT PERUSAHAAN ENAM,PRAI FREE TRADE ZONE, 13600,PERAI,PENANG,MALAYSIA. Description of EUT : a) Type of EUT : FM Transmitter (built-in 10.2” OVERHEAD LCD MONITOR) b) Trade Name : AUDIOVOX, ADVENT, AXTION c) Model No : VOH10PFR, VOH10SFR, ADVM10PFR,ADVM10SFR, OHM91002 d) Working Frequency : 88.1~91.1 MHz e) Power Supply : DC 12V Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2009) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Issued Date : Jun. 02, 2010 Test Engineer : ( Vincent Chang, Engineer ) Check By : (Charles Wang, Supervisor ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:10-04-RBF-104-02 FCC ID.: ATI9R3OHM91002 Rev. No 2.0 Table of Contents 1. GENERAL INFORMATION..................................................................................................1 1.1 Product Description..............................................................................................................1 1.2 Test Methodology.................................................................................................................1 1.3 Test Facility ...................................................................................................................1 2. DEFINITION AND LIMITS....................................................................................................2 2.1 Definition ...................................................................................................................2 2.2 Restricted Bands of Operation.............................................................................................2 2.3 Limitation ...................................................................................................................2 2.4 Labeling Requirement..........................................................................................................3 2.5 User Information ...................................................................................................................3 3. SYSTEM TEST CONFIGURATION.....................................................................................4 3.1 Justification ...................................................................................................................4 3.2 Devices for Tested System...................................................................................................4 4 RADIATED EMISSION MEASUREMENT..........................................................................5 4.1 Applicable Standard..............................................................................................................5 4.2 Measurement Procedure.......................................................................................................5 4.3 Measuring Instrument...........................................................................................................7 4.4 Test Data ...................................................................................................................8 4.5 Field Strength Calculation..................................................................................................10 4.6 Radiated Measurement Photos..........................................................................................11 5 CONDUCTED EMISSION MEASUREMENT...................................................................12 5.1 Standard Applicable............................................................................................................12 6 ANTENNA REQUIREMENT...............................................................................................13 6.1 Standard Applicable............................................................................................................13 6.2 Antenna Construction.........................................................................................................13 7 EMISSION BAND MEASUREMENT..................................................................................14 7.1 Standard Applicable............................................................................................................14 7.2 Measurement Procedure.....................................................................................................14 7.3 Measurement Equipment....................................................................................................14 7.4 Measurement Data..............................................................................................................14 ETC Report No.: 10-04-RBF-104-02 Sheet 1 of 18 Sheets FCC ID.: ATI9R3OHM91002 Rev. No 2.0 1. GENERAL INFORMATION 1.1 Product Description a) Type of EUT : FM Transmitter (built-in 10.2” OVERHEAD LCD MONITOR) b) Trade Name : AUDIOVOX, ADVENT, AXTION c) Model No. : VOH10PFR, VOH10SFR, ADVM10PFR, ADVM10SFR, …

Text truncated - open the document above for the full version.

ETC Report No.: 10-04-RBF-104-02 Sheet 11 of 18 Sheets FCC ID.: ATI9R3OHM91002 Rev. No 2.0 4.6 Radiated Measurement Photos
