FCC Laboratory Feb. 29, 2008 7435 Oakland Mills Road Columbia, MD 21046 Attention: Application Examiner / Reviewing Engineer Re: Confirmation Letter for FM Transmitter Applicant: ACTION ELECTRONICS CO., LTD., FCC ID: ATI9R3VOD111 To whom it may concern, We, Electronics Testing Center, Taiwan, would like to answer following questions for requesting by the TCB, Compliance Certification Services Inc on behalf of our customer, ACTION ELECTRONICS CO., LTD. 1. How does this device operate? Î The device is operated from 88.1MHz to 91.1 MHz. It was installed inside a DVD player with 11” LCD monitor. It transmits the audio signal of DVD player and the audio signal can be received by a common FM broadcasting radio which is tuned to same transmitted frequency of the FM transmitter and regenerate the transmitted signal through the FM broadcasting radio. 2. Provide information on the device and its antenna Î The device is a simple audio FM transmitter tuned from 88.1MHz to 91.1 MHz to transmit an audio source to a FM broadcasting radio. The block diagram and circuit diagram are attached for your reference. The antenna is an integrated antenna. 3. How is it installed? Î The EUT works as a radio station which converts the audio signal from a DVD player with 11” LCD monitor into a radio signal and sends it to nearby radios. Before active the device, tuning the FM broadcasting radio to the frequencies which do not occupied by other FM broadcasted channel. After that, tuning the FM transmitter to that frequency, the audio signal from the DVD player will be heard. 4. What test procedure was used? Î ANSI C 63.4: 2003 5. If tested in a car, how was it configured/tested? Î It was not tested in a car, but it was tested in an open area test site, because the device does not have external antenna input port. 6. Was the tuning range properly verified? Î Yes, the low channel is 88.1MHz, and the highest channel is 91.1MHz. The tuning controls were manually adjusted. 7. Was the bandwidth properly tested with maximum audio input? Î The EUT was installed inside a DVD player with 11” LCD monitor, so the input of this device was connected internally to this DVD player and played a real DVD. The volume control of the DVD player was set to maximum. If you have questions or need further information, please contact the undersigned. Sincerely, Will Yauo / Manager of EMC Testing Department II Electronics Testing Center, Taiwan

Federal Communications Commission FCC ID: ATI9R3VOD111 Product Name: DVD PLAYER WITH 11” LCD MONITOR Model Name: VOD111, ADV41, JMV111, MMD11, ODM71101 Trade Name: AUDIOVOX, ADVENT, JENSEN, MOVIE 2 GO, AXION Dear Sir: In accordance with 47 C.F.R. Section 0.459, we would like to request confidentiality on some exhibits we submitted for above application for the reason of trade secret. If those exhibits are available for public inspection, any person who once gets the information contained in those exhibits will be able to design and to make the same products very easily. This is a very serious problem and huge loss for us, because we did invest so much on it. Please be not made the Exhibit Types listed below routinely available for public inspection: Block Diagram and Schematics. By: By: LL TAN (Signature) (Printed) Title : RD ASSISTANT MANAGER Applicant : ACTION ELECTRONICS CO., LTD. Address : 198, CHUNG YUAN ROAD, CHUNG LI IND. ZONE, CHUNG LI, TAIWAN, R.O.C. Tel : +886 3 4515494 Fax:+886 3 4629341 Date : Jan. 04, 2008 910805 1

Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize ELECTRONICS TESTING CENTER, TAIWAN, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by ELECTRONICS TESTING CENTER, TAIWAN on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing ELECTRONICS TESTING CENTER, TAIWAN as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding 910805 2 our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, (signature) LL TAN / RD ASSISTANT MANAGER ACTION ELECTRONICS CO., LTD. 910805 3

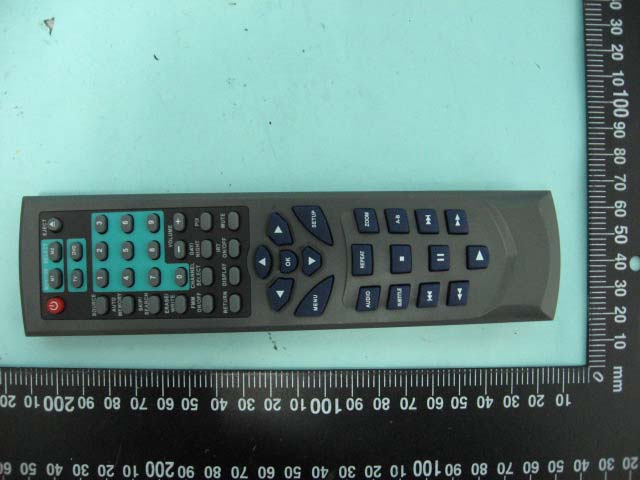

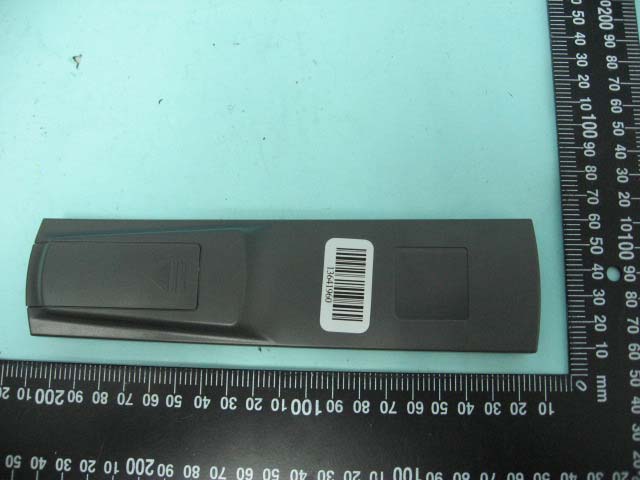

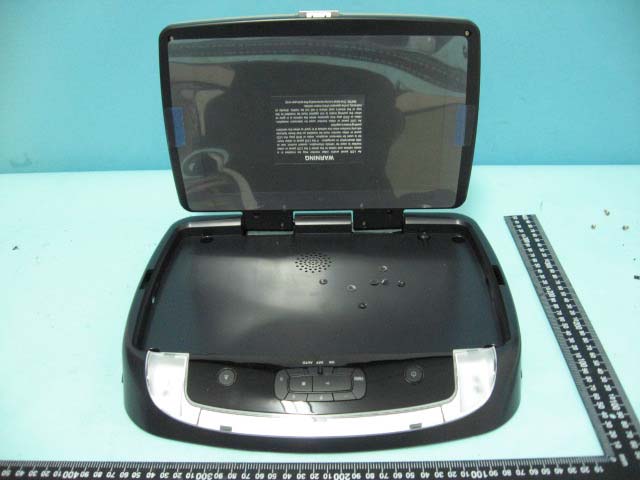

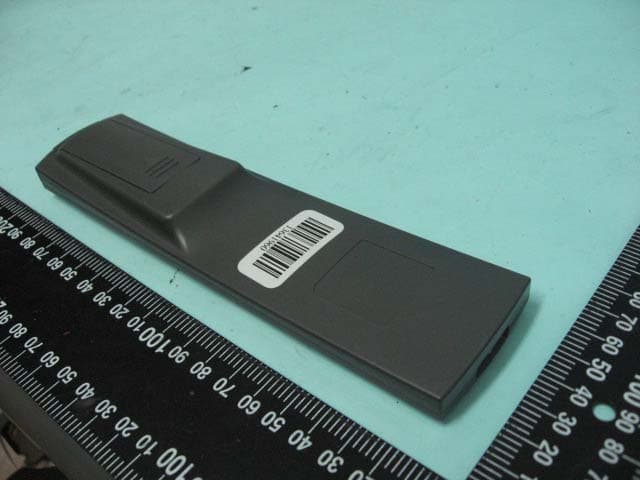

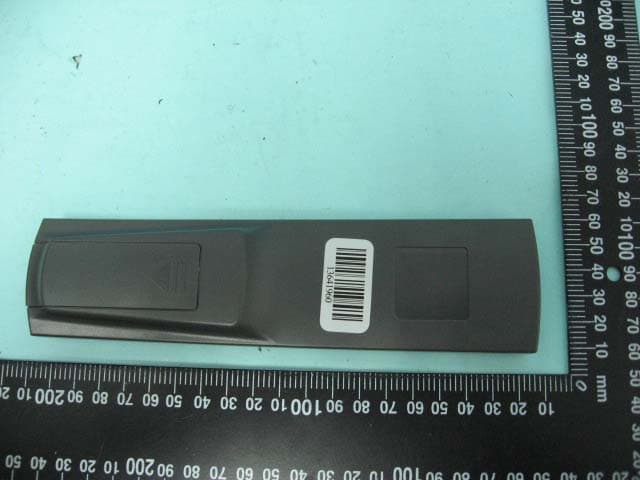

ETC Report No.:07-12-RBF-058-01 FCC ID.: ATI9R3VOD111 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Top View of EUT Front View of EUT ETC Report No.:07-12-RBF-058-01 FCC ID.: ATI9R3VOD111 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Side View of EUT Rear View of EUT ETC Report No.:07-12-RBF-058-01 FCC ID.: ATI9R3VOD111 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Side View of EUT Open View of EUT ETC Report No.:07-12-RBF-058-01 FCC ID.: ATI9R3VOD111 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Top of Remote Controller Side View of Remote Controller ETC Report No.:07-12-RBF-058-01 FCC ID.: ATI9R3VOD111 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Side View of Remote Controller Bottom View of Remote Controller

CUSTOMER : REVISION : MODEL : DESCRIPTION : LABEL LOCATION FOR PRODUCTNEW DATE: PAGE: OF 512 20/11/07 JMV111AUDIOVOX_JENSEN 2. FCC / FDA / Class 1 Laser Label (45 x 30mm) P/N: 90-KQ-02010G This device complies with FCC Rules Part 15. Operation is subject to the following two conditions : (1) This device may not cause harmful interference and (2) This device must accept any interference that may be received, including interference that may cause undesired operation. This product is Class 1 Laser Product and complies with FDA Rules 21 CFR Chapter 1, Subchapter J. BACK VIEW 4 3 2 1 5 1. CHASSIS LABEL _JMV111 (52 x 42mm) P/N: 50-GC-10030G 3. PATENT LABEL (44 x 7mm) P/N: 90-NH-09010G Licensed under one or more of the following patents, Patent NOS. 5,775,762 and 5,927,784 4. FCC ID LABEL (44 x 7mm) P/N: 90-GC-01010G FCC ID : ATI9R3VOD111 5. BC S/N LBL 136-4642-POD (P/N: 90-GC-07030G) 070700000113644220 WARRANTY VOID IF LABEL REMOVED 070700000013646420 Made in Malaysia 132-7491 To 2-Pin Connector 12-Pin Harness LAMP-AUTO VIO/BRN BLK/RED RED/BLK RED (RCA) WHITE (RCA) YELLOW (RCA) LAMP-COMMON LAMP-ON LINE OUT-RIGHT LINE OUT-LEFT VIDEO OUTPUT Signal Name Color RED BLACK POWER +12v (SW) POWER GROUND Inspected By : MODEL No.: JMV111 150 Marcus Blvd., Hauppauge, NY 11788 Technical Assistance: 1-800-225-6074 ® FRONT PANEL ON OFF AUTO FMM S P ––++ 8 WARNING 8. WARNING LABEL (90 x 70mm) P/N: 90-X1-09010G 7. LOGO PLATE_JENSEN (32.0 x 6.5mm) P/N: 51-NG-00010G 7 6 6. HOLE PLATE Black Colour Beige Colour P/N: 51-1A-00130G P/N: 51-1A-00220G Dimension : D 8mm X 0.25t Location: Front Cab = 8pcs * Hole Plate colour control by production (REFER MO)

ETC Report No.:07-12-RBF-058-01 FCC ID.: ATI9R3VOD111 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Bottom View of EUT Internal View of EUT ETC Report No.:07-12-RBF-058-01 FCC ID.: ATI9R3VOD111 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Internal View of EUT Internal View of EUT ETC Report No.:07-12-RBF-058-01 FCC ID.: ATI9R3VOD111 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Internal View of EUT ETC Report No.:07-12-RBF-058-01 FCC ID.: ATI9R3VOD111 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Component View of PCB Solder View of PCB ETC Report No.:07-12-RBF-058-01 FCC ID.: ATI9R3VOD111 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Component View of PCB Solder View of PCB ETC Report No.:07-12-RBF-058-01 FCC ID.: ATI9R3VOD111 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Component View of PCB Solder View of PCB ETC Report No.:07-12-RBF-058-01 FCC ID.: ATI9R3VOD111 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Internal View of Remote Controller’s PCB

Tentative Product Definition of VOD111 / ADV41 / JMV111/ODM71101 Over-Head LCD Monitor with DVD Player Rev: 0 Date: 28/09/2007 Application In-car over-head roof mount LCD TV for rear seat entertainment Main Features TFT LCD Display DVD Player Audio/Video Input AUX Input Audio/Video Output Wireless FM Modulator 1 CH. IR. Transmitter (for wireless headphone) Single remote IR Sensor Total Page: 8 Prepared By: SL TEOH Display 1. Screen Size: ÿ 11” Wide screen Sharp panel. 2. Aspect Ratio: 16: 9. 3. Screen Format: ÿ 16: 9 or 4:3 selectable. ÿ Selectable via inside the System (Main) Menu. ÿ Default is at 16: 9. ÿ Every time the unit is turned OFF and turned ON again it will go back to 16: 9 mode. 4. Color System (Video Input): NTSC and PAL auto detection. 5. Picture Control: ÿ NTSC: Brightness, Contrast, Color, Tint adjustable. ÿ PAL: Brightness, Contrast, Color adjustable. ÿ Picture adjustment via Local key and Remote Control. ÿ With Last Memory. ÿ Default (factory setting) at 50% level. ÿ When selected RESET all picture setting will go back to 50% level. ÿ Individual PIX key on Remote Control and Local key to select NBRIGHTNESS > CONTRAST > COLOR > TINT > RESETO in sequence rotation. ÿ Common use with – or + key to decrease and increase the level and select RESET. 6. On Screen Display (OSD): Full Function. 7. OSD Language: Multilingual. ÿ English, French, Spanish, German selectable. ÿ OSD language selectable via inside the System (Main) Menu. ÿ Selected OSD language with Last Memory. ÿ Language will set at English during production. 8. Day/Night Screen: No. 9. Screen Backlight Auto Cut OFF: Yes (when screen is in closed position). 10. Picture Control UI and On Screen Display: ÿ Press PIX key one time OSD will show 0 ~ 32 BRIGHTNESS ÿ Press PIX key two time OSD will show 0 ~ 32 CONTRAST ÿ Press PIX key three time OSD will show 0 ~ 32 COLOR ÿ Press PIX key four time OSD will show -16 ~ +16 TINT ÿ Press PIX key five time OSD will show RESET ÿ Press PIX key six time will exit picture control. ÿ PIX key will function in sequence rotation. ÿ Use - and + key to decrease and increase the level and for select RESET. ÿ Number will jump from 0 ~ 32 when it increase the level of Brightness, Contrast, Color and jump from 32 ~ 0 when it decrease the level of Brightness, Contrast, Color. 50% level is at 16. ÿ Number will jump from –16 ~ +16 when it increase the level of Tint and jump from +16 ~ -16 when it decrease the level of Tint. 50% level is at 0. ÿ When selected RESET all picture setting will go back to 50% level. 11. System (Main) Menu UI and On Screen Display: Main Page Sub Page SCREEN MODE OSD LANGUAGE SOURCE DEFAULT DVD 16 : 9 4 : 3 SCREEN MODE OSD LANGUAGE SOURCE DEFAULT DVD ENGLISH SPANISH FRENCH GERMAN SCREEN MODE OSD LANGUAGE SOURCE DEFAULT DVD ON OFF Note: System (Main) Menu Function: 11.1 Press MENU key, Main Page will appear on screen. 11.2 Use Navigation up/down to select item in the main page and press Navigation Enter key for selection. 11.3 Selected item in main page the sub page will appear on screen. 11.4 Use Navigation up/down key to select item in the sub page and press Navigation Enter key for selection. 11.5 After selected item in the sub page by pressed on the Enter key it will automatic go back to main page for other selection. 11.6 Press Menu key to exit System Menu. 11.7 Selected item in the System Menu with Last Memory. 11.8 System Menu can be control via Remote Control only. 12. Power ON OSD: FMM OFF DVD M1 IRT OFF This OSD show the unit is at: 1. FMM - at FMM OFF mode. 2. IRT - at IRT OFF mode. 3. Source - at DVD mode. 4. Monitor - at M1 mode. 5. OSD will appear on screen 5 seconds before it disappear. FMM CH2 88.3MHz AUX M1 IRT ON This OSD show the unit is at: 1. FMM - is ON at FMM 88.3MHz mode. 2. IRT - at IRT ON mode. 3. Source - at AUX mode. 4. Monitor - at M1 mode. OSD will appear on screen 5 seconds before it disappear. Electrical Features 1. Source: DVD, AUX, AV1. ÿ Source On Screen Display: DVD AUX AV1 ÿ Source selected is in sequence rotation: NDVD > AUX> AV1O ÿ Source is selectable via Local Control key and Remote Control (individual key). ÿ Source selected with Last Position Memory. ÿ Option for selectable to default to DVD source (via System Menu). Note: 1.1 If selected default to DVD source every time the unit is power OFF and then power ON again it will be at DVD source. 1.2 If selected at Last Memory (Default DVD OFF) every time the unit is power OFF and then power ON again it will be at the source when it is turn OFF. 1.3 Unit will set at Last Memory DVD source during production. 1.4 Source default at DVD ON or OFF is selectable via inside the System Menu only. DVD Source: ÿ Built-in DVD player (slot-in type). ÿ Disc Played: DVD, DVD -/+R, DVD -/+RW, Audio CD, CD-R, CD-RW, MP3 CD, WMA CD and Picture CD (Kodak/JPEG). ÿ Disc playback with Last Position Memory. Note: Disc play is depending on various recording format. Some recording format may not be able to play. DVD splash screen is up-grade able with a Disc. 2. AUX Source: ÿ Input via 3 RCA Jack. 3. AV1 Source: ÿ Input via 9 Pin Connector. 4. AV Output: 1. ÿ Output via 3 RCA Jack Pigtail (1 feet) via the 12 Pin Connector. 5. FM Modulator: ÿ Type: PLL, 16 channels Wireless. ÿ Frequency: 88.1MHz, 88.3MHz, 88.5MHz, 88.7MHz, 88.9MHz, 89.1MHz, 89.3MHz, 89.5MHz, 89.7MHz, 89.9MHz, 90.1MHz, 90.3MHz, 90.5MHz, 90.7MHz, 90.9MHz, 91.1MHz. ÿ With RF Output for FMM Relay Box. ÿ RF Output via 3.5mm Jack. ÿ Frequency selects via Local key, OSD: N FMM OFF > FMM CH1 88.1MHz > FMM CH2 88.3MHz > FMM CH3 88.5MHz > FMM CH4 88.7MHz > FMM CH5 88.9MHz > FMM CH6 89.1MHz > FMM CH7 89.3MHz > FMM CH8 89.5MHz > FMM CH9 89.7MHz > FMM CH10 89.9MHz > FMM CH11 90.1MHz > FMM CH12 90.3MHz > FMM CH13 90.5MHz > FMM CH14 90.7MHz > FMM CH15 90.9MHz > FMM CH16 91.1MHz O ÿ Frequency selects via Remote Control Ch. Selected Key, OSD: N FMM CH1 88.1MHz > FMM CH2 88.3MHz > FMM CH3 88.5MHz > FMM CH4 88.7MHz > FMM CH5 88.9MHz > FMM CH6 89.1MHz > FMM CH7 …

Text truncated - open the document above for the full version.

Rev. No 2.0 FCC Part 15 Subpart C TEST REPORT of E.U.T. : FM TRANSMITTER of DVD PLAYER WITH 11”LCD MONITOR FCC ID. : ATI9R3VOD111 MODEL : VOD111,ADV41,JMV111, MMD11,ODM71101 Working Frequency : 88.1~91.1 MHz for APPLICANT : ACTION ELECTRONICS CO., LTD. ADDRESS : 198, CHUNG YUAN ROAD, CHUNG LI IND. ZONE, CHUNG LI, TAIWAN, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5. DINGFU TSUEN, LINKOU SHIANG TAIPEI COUNTY, TAIWAN, 24442, R.O.C. http://www.etc.org.tw ; e-mail : [email protected] Tel:(02)26023052 Fax:(02)26010910 Report Number: 07-12-RBF-058-01 ETC Report No.:07-12-RBF-058-01 FCC ID.: ATI9R3VOD111 Rev. No 2.0 TEST REPORT CERTIFICATION Applicant : ACTION ELECTRONICS CO., LTD. 198, CHUNG YUAN ROAD, CHUNG LI IND. ZONE, CHUNG LI, TAIWAN, R.O.C. Manufacture : ACTION INDUSTRIES (M) SDN BHD 2480, TINGKAT PERUSAHAAN ENAM, PRAI FREE TRADE ZONE, 13600, PERAI, PENANG, MALAYSIA Description of EUT : a) Type of EUT : FM TRANSMITTER of DVD PLAYER WITH 11”LCD MONITOR b) Trade Name : AUDIOVOX , ADVENT , JENSEN, MOVIE 2 GO, AXION c) Model No : VOD111, ADV41, JMV111, MMD11,ODM71101 d) Working Frequency : 88.1~91.1 MHz e ) Power Supply : DC 12V Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2007) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Issued Date : Jan. 11, 2008 Test Engineer : ( Vincent Chang ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:07-12-RBF-058-01 FCC ID.: ATI9R3VOD111 Rev. No 2.0 Table of Contents 1. GENERAL INFORMATION .................................................................................................. 1 1.1 Product Description ................................................................................................................................1 1.2 Test Methodology ..................................................................................................................................1 1.3 Test Facility............................................................................................................................................1 2. DEFINITION AND LIMITS.................................................................................................... 2 2.1 Definition ...............................................................................................................................................2 2.2 Restricted Bands of Operation ...............................................................................................................2 2.3 Limitation ...............................................................................................................................................2 2.4 Labeling Requirement ............................................................................................................................3 2.5 User Information ....................................................................................................................................3 3. SYSTEM TEST CONFIGURATION ..................................................................................... 4 3.1 Justification ............................................................................................................................................4 3.2 Devices for Tested System .....................................................................................................................4 4 RADIATED EMISSION MEASUREMENT.......................................................................... 5 4.1 Applicable Standard ...............................................................................................................................5 4.2 Measurement Procedure .........................................................................................................................5 4.3 Measuring Instrument.............................................................................................................................7 4.4 Test Data ................................................................................................................................................8 4.5 Field Strength Calculation....................................................................................................................10 4.6 Radiated Measurement Photos .............................................................................................................11 5 CONDUCTED EMISSION MEASUREMENT ................................................................... 12 5.1 Standard Applicable .............................................................................................................................12 6 ANTENNA REQUIREMENT ............................................................................................... 13 6.1 Standard Applicable .............................................................................................................................13 6.2 Antenna Construction...........................................................................................................................13 7 EMISSION BAND MEASUREMENT.................................................................................. 14 7.1 Standard Applicable .............................................................................................................................14 7.2 Measurement Procedure .......................................................................................................................14 7.3 Measurement Equipment......................................................................................................................14 7.4 Measurement Data.................................................…

Text truncated - open the document above for the full version.

ETC Report No.:07-12-RBF-058-01 FCC ID.: ATI9R3VOD111 Rev. No 2.0 Radiated Measurement Photos
