ATI9R3VOD128DVD PLAYER (FM transmitter)

OPERATION MANUAL 128-7935 ® Important Notice An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle is in “park” or when the vehicle’s parking brake is applied. An LCD panel or video monitor used for television reception, video or DVD play that operates when the vehicle is in gear or when the parking brake is not applied must be installed to the rear of the driver’s seat where it will not be visible, directly or indirectly, to the operator of the motor vehicle. Warnings •Do not use any solvents or cleaning materials when cleaning the video monitor. •Do not use any abrasive cleaners, they may scratch the screen. •Use only a lightly dampened lint free cloth to wipe the screen if it is dirty. •Lock the LCD screen in the fully closed position when not in use. •Before putting on headphones always adjust the volume setting to the lowest position. •Remember to leave the dome light switch in the off or auto positions when the vehicle is unattended, as the dome lights, if left on, can drain the vehicle’s battery. •Do not put pressure on the screen. •Caution children to avoid touching or scratching the screen, as it may become dirty or damaged. Licensed under one or more of the following patents, Patent NOS. 5,775,762 and 5,927,784 Television Reception This entertainment system is designed primarily for viewing prerecorded movies or playing video games. If this system has the optional TV Tuner (PODTVT2) installed: Television reception in a moving vehicle will be limited and in some areas will not be possible due to weak and variable signal strength. Television viewing in a stationary vehicle will result in an improvement, but may still be marginal due to signal strength. The quality of the picture will not be consistent with home TV reception. Reception may be affected by weather and distance from TV station. A weak signal may cause the picture to roll, be snowy, or cause some color loss. •12.1" TFT (Thin Film Transistor) Active Matrix LCD (Liquid Crystal Display) Monitor •Built-in DVD Player *Auto On with Disc insertion •Selectable (M1 and M2) IR Receive and Transmit Codes •Multi-Lingual OSD (On Screen Display) for Control of Picture Quality and Functions •Switchable Channel Infrared Transmitter for use with IR Wireless Headphones •Four Audio / Video Source Inputs (DVD, VIDEO 1, VIDEO 2, VIDEO 3 ) •Dome Lights with Built-in Three Way Switch •Built-in 16 Channel Frequency Wireless FM Modulator •Last Position Memory for DVD •Headphone Jack •Screen Mode Selection (16:9, 4:3) •Wireless Game Controller •Full Function Remote Control •Backlit Controls •Day / Night Picture Modes •AV Output •Pause To Talk Feature *Optional TV tuner (P/N PODTVT2) 3 FEATURES Congratulations on your purchase of the Audiovox VOD128 DVD Player with Drop-Down Video / Monitor. The VOD128 has been designed to give you and your family many years of video entertainment in the mobile environment. Please read the directions that follow to familiarize yourself with the product to ensure that you obtain the best results from your equipment. Please note: Installation options vary, see the individual owner’s manuals for each component in your system to obtain a full understanding of each component’s operation. Safety Precaution For safety reasons, when changing video media it is recommended that the vehicle is not in motion, and that you do not allow children to unfasten seat-belts to change video media or make any adjustments to the system. System adjustments can be accomplished using the remote control, while seat-belts remain fastened. Enjoy your Audiovox entertainment system but remember the safety of all passengers remains the number one priority. 4 CONTROLS AND INDICATORS DIAGRAM (FRONT VIEW) 12345678 9 10 11 12 13 14 15 16 17 18 1.EJECT (Å) Button This Button is used for ejecting discs from the disc Compartment. (Note: Disc can be ejected with the unit turned Off. Vehicle has to running or in ACC position). After the Disc is removed the unit will turn Off after 15-20 seconds. 2.STOP (n) Button This button is used to stop playback. 3.Source Select Use to select one of the four sources: DVD, VIDEO 1, VIDEO 2, VIDEO 3. 4.Volume (+) To increase the volume of wired headphones and increase the level of selected picture controls. 5.Picture Select Button Allows the user to enter the picture adjustment mode. 6.Volume (–) To decrease the volume of wired headphones and decrease the level of selected picture controls. 7.FMM Source Select Switch Used to select the frequency in sequence rotation: FM OFF, CH1 88.1MHz, CH2 88.3MHz, CH3 88.5MHz, CH4 88.7MHz, CH5 88.9MHz, CH6 89.1MHz, CH7 89.3MHz, CH8 89.5MHz, CH9 89.7MHz, CH10 89.9MHz, CH11 90.1MHz, CH12 90.3MHz, CH13 90.5MHz, CH14 90.7MHz, CH15 90.9MHz, CH16 91.1Mhz. 8.PLAY (u) Button This button is used to start playback of a disc. 5 CONTROL FUNCTION DESCRIPTION (FRONT VIEW) 9.POWER ( ) Button Used to turn the system on/off. 10.Dome Lights Provide additional interior illumination. 11.Infrared Transmitter and Sensor Use to transmit audio the wireless headphone. Also allows the remote control to operate the VOD128 and to control other accessories in the system. 12.Three Position Dome Light Switch ON – Turns on the dome lights. OFF – The dome lights will not turn on in this position. AUTO – Automatically switches on the dome lights in conjunction with the vehicle's interior illumination. 13.Ventilation Openings 14.LCD Cut Off Switch Used to turn off the LCD panel monitor when in the closed position. 15.LCD Panel 16.Screen Release Press to release the screen. 17.USB 1.1 INPUT FOR USB PEN DRIVE 18.SD Card Reader - Allow to read the contents (Audio,…

Text truncated - open the document above for the full version.

910805 2 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize ELECTRONICS TESTING CENTER, TAIWAN, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by ELECTRONICS TESTING CENTER, TAIWAN on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing ELECTRONICS TESTING CENTER, TAIWAN as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; 910805 3 e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, (signature) LL TAN / RD ASSISTANT MANAGER ACTION ELECTRONICS CO., LTD.

910805 1 Federal Communications Commission FCC ID: ATI9R3VOD128 Product Name: DVD PLAYER WITH 12.1” LCD MONITOR / USB / SD / I-POD Model Name: VOD128, ADV48, JMV128 Trade Name: AUDIOVOX, ADVENT, JENSEN Dear Sir: In accordance with 47 C.F.R. Section 0.459, we would like to request confidentiality on some exhibits we submitted for above application for the reason of trade secret. If those exhibits are available for public inspection, any person who once gets the information contained in those exhibits will be able to design and to make the same products very easily. This is a very serious problem and huge loss for us, because we did invest so much on it. Please be not made the Exhibit Types listed below routinely available for public inspection: Block Diagram and Schematics. By: By: LL TAN (Signature) (Printed) Title : RD ASSISTANT MANAGER Applicant : ACTION ELECTRONICS CO., LTD. Address : 198, CHUNG YUAN ROAD, CHUNG LI IND. ZONE, CHUNG LI, TAIWAN, R.O.C. Tel : +886 3 4515494 Fax: +886 3 4629341 Date : Nov. 08, 2006

FCC Laboratory Nov. 07, 2007 7435 Oakland Mills Road Columbia, MD 21046 Attention: Application Examiner / Reviewing Engineer Re: Confirmation Letter for FM Transmitter Applicant: ACTION INDUSTRIES (M) SDN BHD., FCC ID: ATI9R3VOD128 To whom it may concern, We, Electronics Testing Center, Taiwan, would like to answer following questions for requesting by the TCB, Compliance Certification Services Inc on behalf of our customer, ACTION INDUSTRIES (M) SDN BHD. 1. How does this device operate? Î The device is operated from 88.1MHz to 91.1 MHz. It was installed inside a DVD player with 12.1” LCD monitor. It transmits the audio signal of DVD player and the audio signal can be received by a common FM broadcasting radio which is tuned to same transmitted frequency of the FM transmitter and regenerate the transmitted signal through the FM broadcasting radio. 2. Provide information on the device and its antenna Î The device is a simple audio FM transmitter tuned from 88.1MHz to 91.1 MHz to transmit an audio source to a FM broadcasting radio. The block diagram and circuit diagram are attached for your reference. The antenna is an integrated antenna. 3. How is it installed? Î The EUT works as a radio station which converts the audio signal from a DVD player with 12.1” LCD monitor into a radio signal and sends it to nearby radios. Before active the device, tuning the FM broadcasting radio to the frequencies which do not occupied by other FM broadcasted channel. After that, tuning the FM transmitter to that frequency, the audio signal from the DVD player will be heard. 4. What test procedure was used? Î ANSI C 63.4: 2003 5. If tested in a car, how was it configured/tested? Î It was not tested in a car, but it was tested in an open area test site, because the device does not have external antenna input port. 6. Was the tuning range properly verified? Î Yes, the low channel is 88.1MHz, and the highest channel is 91.1MHz. The tuning controls were manually adjusted. 7. Was the bandwidth properly tested with maximum audio input? Î The EUT was installed inside a DVD player with 12.1” LCD monitor, so the input of this device was connected internally to this DVD player and played a real DVD. The volume control of the DVD player was set to maximum. If you have questions or need further information, please contact the undersigned. Sincerely, Will Yauo / Manager of EMC Testing Department II Electronics Testing Center, Taiwan

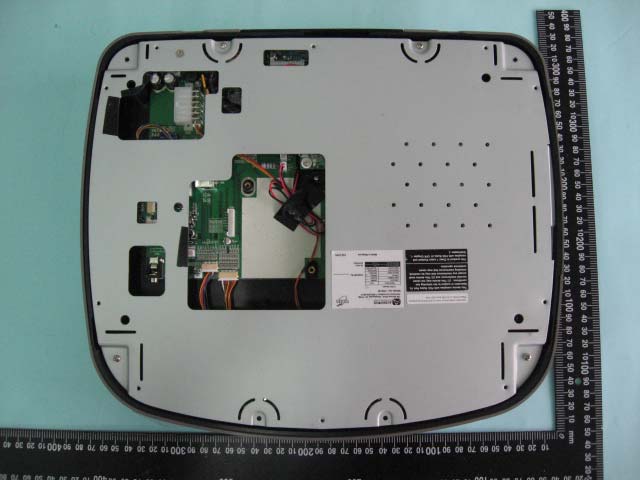

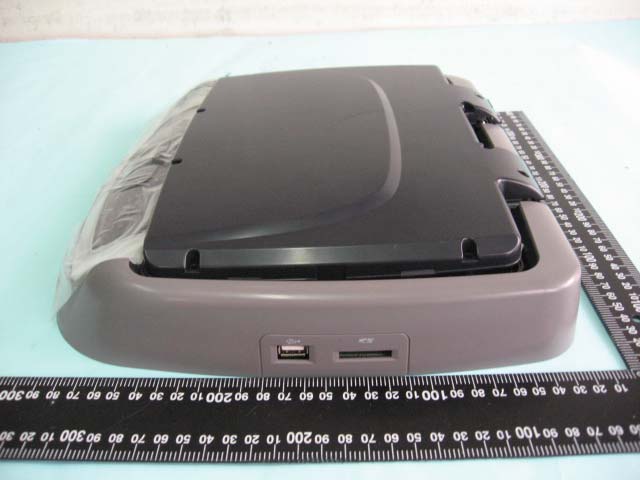

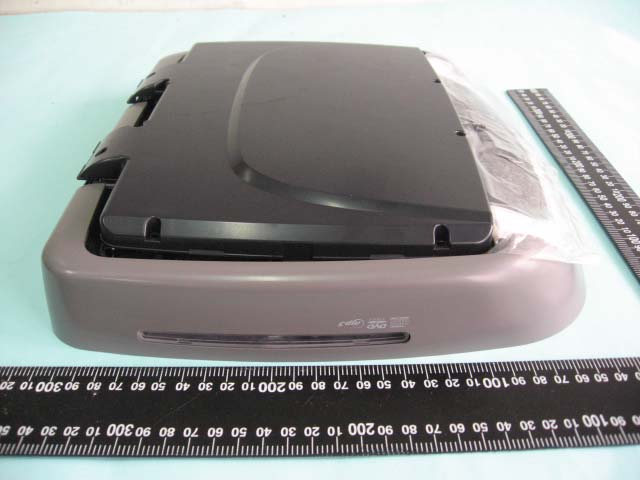

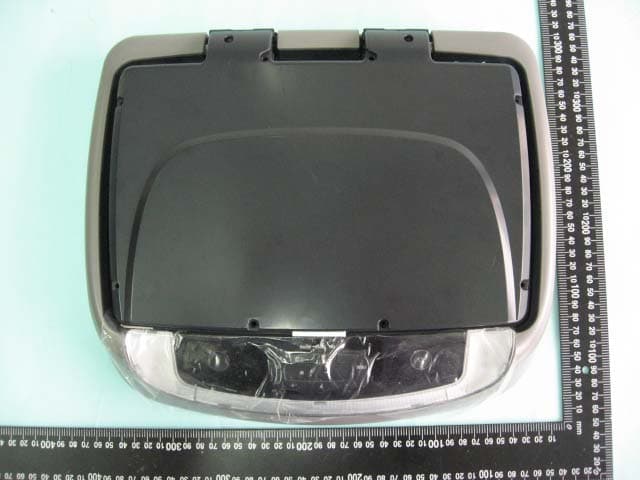

ETC Report No.:07-09-RBF-016-02 Sheet 1 of 14 Sheets FCC ID.: ATI9R3VOD128 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 1. Top View of EUT 2. Front View of EUT ETC Report No.:07-09-RBF-016-02 Sheet 2 of 14 Sheets FCC ID.: ATI9R3VOD128 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 3. Side View of EUT 4. Rear View of EUT ETC Report No.:07-09-RBF-016-02 Sheet 3 of 14 Sheets FCC ID.: ATI9R3VOD128 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 5. Side View of EUT 6. Open View of EUT ETC Report No.:07-09-RBF-016-02 Sheet 4 of 14 Sheets FCC ID.: ATI9R3VOD128 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 7. Bottom View of EUT

NEW VOD128 5 7 CUSTOMER : REVISION : DATE: PAGE: MODEL: DESCRIPTION : AUDIOVOX OF UNIT LABEL LOCATION WARNING 7 WARNING LABEL P/N: 90-X1-09010G (90 x 70mm) FRONT PANEL 5 BC S/N LBL 136-4422-POD ON OFF AUTO FMM S P –+ 7 2 P/N: 90-KQ-02010G (45 x 30mm) FCC / FDA / Class 1 Laser Label This device complies with FCC Rules Part 15. Operation is subject to the following two conditions : (1) This device may not cause harmful interference and (2) This device must accept any interference that may be received, including interference that may cause undesired operation. This product is Class 1 Laser Product and complies with FDA Rules 21 CFR Chapter 1, Subchapter J. 3 PATENT LABEL P/N: 90-NH-09010G (44 x 7mm) Licensed under one or more of the following patents, Patent NOS. 5,775,762 and 5,927,784 4 FCC ID LABEL (44 x 7mm) 1 CHASSIS LABEL (52 x 42mm) Made in Malaysia 132-7419 To 2-Pin Connector 12-Pin Harness LAMP-AUTO VIO/BRN BLK/RED RED/BLK RED (RCA) WHITE (RCA) YELLOW (RCA) LAMP-COMMON LAMP-ON LINE OUT-RIGHT LINE OUT-LEFT VIDEO OUTPUT Signal Name Color RED BLACK POWER +12v (SW) POWER GROUND Inspected By : MODEL No.: VOD128 150 Marcus Blvd., Hauppauge, NY 11788 Technical Assistance: 1-800-225-6074 ELECTRONICS CORP . ® BACK VIEW 4 3 2 1 5 6 WARNING LABEL P/N: 51-NH-06010G (32.0 x 6.5mm) 6 ® P/N: 90-AC-01010G (44 x 7mm) P/N: 50-AC-10010G 070700000113644220 WARRANTY VOID IF LABEL REMOVED F C C I D : ATI9R3VOD128 10/07/07

ETC Report No.:07-09-RBF-016-02 Sheet 5 of 14 Sheets FCC ID.: ATI9R3VOD128 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 8. Internal View of EUT 9. Internal View of EUT ETC Report No.:07-09-RBF-016-02 Sheet 6 of 14 Sheets FCC ID.: ATI9R3VOD128 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 10. Internal View of EUT 11. Internal View of EUT ETC Report No.:07-09-RBF-016-02 Sheet 7 of 14 Sheets FCC ID.: ATI9R3VOD128 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 12. Component View of PCB 13. Solder View of PCB ETC Report No.:07-09-RBF-016-02 Sheet 8 of 14 Sheets FCC ID.: ATI9R3VOD128 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 14. Component View of PCB 15. Solder View of PCB ETC Report No.:07-09-RBF-016-02 Sheet 9 of 14 Sheets FCC ID.: ATI9R3VOD128 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 16. Component View of PCB 17. Solder View of PCB ETC Report No.:07-09-RBF-016-02 Sheet 10 of 14 Sheets FCC ID.: ATI9R3VOD128 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 18. Component View of PCB 19. Solder View of PCB ETC Report No.:07-09-RBF-016-02 Sheet 11 of 14 Sheets FCC ID.: ATI9R3VOD128 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 20. Component View of PCB 21. Solder View of PCB ETC Report No.:07-09-RBF-016-02 Sheet 12 of 14 Sheets FCC ID.: ATI9R3VOD128 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 22. Top of Remote Controller 23. Side View of Remote Controller ETC Report No.:07-09-RBF-016-02 Sheet 13 of 14 Sheets FCC ID.: ATI9R3VOD128 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 24. Side View of Remote Controller 25. Internal View of Remote Controller ETC Report No.:07-09-RBF-016-02 Sheet 14 of 14 Sheets FCC ID.: ATI9R3VOD128 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 26. Component View of Remote Controller’s PCB 27. Solder View of Remote Controller’s PCB

The EUT is a 16- channel FM transmitter designed to transmit audio signals over the FM frequency band to enable users to listen to audio from an independent video system over the existing car audio system via the radio. The frequencies are 88.1, 88.3, 88.5, 88.7, 88 .9, 89.1, 89.3, 89.5, 89.7, 89.9,

Rev. No 2.0 FCC Part 15 Subpart C TEST REPORT of E.U.T. : FM TRANSMITTER of DVD PLAYER WITH 12.1” LCD MONITOR / USB / SD/ I-POD FCC ID. : ATI9R3VOD128 MODEL : VOD128,ADV48,JMV128 Working Frequency : 88.1~91.1 MHz for APPLICANT : ACTION ELECTRONICS CO., LTD. ADDRESS : 198, CHUNG YUNG ROAD, CHUNG LI IND. ZONE, CHUNG LI, TAIWAN, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5. DINGFU TSUEN, LINKOU SHIANG TAIPEI COUNTY, TAIWAN, 24442, R.O.C. http://www.etc.org.tw ; e-mail : [email protected] Tel:(02)26023052 Fax:(02)26010910 Report Number: 07-09-RBF-016-02 ETC Report No.:07-09-RBF-016-02 FCC ID.: ATI9R3VOD128 Rev. No 2.0 TEST REPORT CERTIFICATION Applicant : ACTION ELECTRONICS CO., LTD. 198, CHUNG YUNG ROAD, CHUNG LI IND. ZONE, CHUNG LI, TAIWAN, R.O.C. Manufacture : ACTION INDUSTRIES (M) SDN BHD . 2480, TINGKAT PERUSAHAAN ENAM, PRAI FREE TRADE ZONE PRAIFREE TRADE ZONE, 13600 PERAI PENANG Description of EUT : a) Type of EUT : FM TRANSMITTER of DVD PLAYER WITH 12.1”LCD MONITOR / USB / SD / I-POD b) Trade Name : AUDIOVOX , ADVENT , JENSEN c) Model No : VOD128, ADV48, JMV128 d) Working Frequency : 88.1~91.1 MHz e ) Power Supply : DC 12V Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2007) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Issued Date : Oct. 01, 2007 Test Engineer : ( Vincent Chang ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:07-09-RBF-016-02 FCC ID.: ATI9R3VOD128 Rev. No 2.0 Table of Contents Page 1. GENERAL INFORMATION .................................................................................................. 1 1.1 Product Description.................................................................................................................. 1 1.2 Test Methodology .................................................................................................................... 1 1.3 Test Facility.............................................................................................................................. 1 2. DEFINITION AND LIMITS.................................................................................................... 2 2.1 Definition ................................................................................................................................. 2 2.2 Restricted Bands of Operation ................................................................................................. 2 2.3 Limitation ................................................................................................................................. 2 2.4 Labeling Requirement .............................................................................................................. 3 2.5 User Information ...................................................................................................................... 3 3. SYSTEM TEST CONFIGURATION ..................................................................................... 4 3.1 Justification .............................................................................................................................. 4 3.2 Devices for Tested System ....................................................................................................... 4 4 RADIATED EMISSION MEASUREMENT.......................................................................... 5 4.1 Applicable Standard ................................................................................................................. 5 4.2 Measurement Procedure ........................................................................................................... 5 4.3 Measuring Instrument .............................................................................................................. 7 4.4 Test Data .................................................................................................................................. 8 4.5 Field Strength Calculation...................................................................................................... 11 4.6 Radiated Measurement Photos ...............................................................................................12 5 CONDUCTED EMISSION MEASUREMENT ................................................................... 13 5.1 Standard Applicable ............................................................................................................... 13 6 ANTENNA REQUIREMENT ............................................................................................... 14 6.1 Standard Applicable ............................................................................................................... 14 6.2 Antenna Construction............................................................................................................. 14 7 EMISSION BAND MEASUREMENT.................................................................................. 15 7.1 Standard Applicable ............................................................................................................... 15 7.2 Measurement Procedure ......................................................................................................... 15 7.3 Measurement Equipment........................................................................................................ 15 7.4 Measurement Data.................................................................................................................. 15 ETC Report No.:07-09-RBF-016-02 Sheet 1 of 20 Sheets FCC ID.: ATI9R3VOD128 Rev. No 2.0 1. GENERAL INFORMATION 1.1 Product Description a) Type of EUT : FM TRANSMITTER of DVD PLAYER WITH 12.1” LCD MONITOR / USB / SD…

Text truncated - open the document above for the full version.

ETC Report No.:07-09-RBF-016-02 Sheet 12 of 20 Sheets FCC ID.: ATI9R3VOD128 Rev. No 2.0 4.6 Radiated Measurement Photos
