AUSCR7023AV2SERENADE 8-IN-1 RECORED PLAYER

CR7023A Serenade 8 in 1 Turntable Instruction Manual Questions, problems, missing parts? Before returning to the store, call Customer Service 8 a.m. – 6 p.m., EST, Monday – Friday 1-888-CROSLEY www.crosleyradio.com English 2 Safety Instructions Read and understand this entire manual before using this product. Keep these instructions for future reference. 1. Do not use this product near water. 2. This product should be operated only by the type of power source indicated on the marking label or in this instruction manual. 3. Do not defeat the safety purpose of the polarized plug. A polarized plug has two blades with one blade wider than the other. This plug will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet try reversing the plug. If the plug should still fail to fit, contact your electrician. 4. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product. 5. Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock. 6. Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. 7. Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. 8. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 9. Do not use attachments not recommended by the product manufacturer as they may cause hazards. 10. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn. 11. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating. Do not block or cover these openings. 12. Unplug the product during lightning storms or when unused for long periods of time. English 3 Items in this package Before throwing away any packaging materials, please check thoroughly and make sure you find the following items that come along with this package: • Turntable • 45 RPM adapter • Power adapter • 4 Legs • RCA Cable Please contact Crosley customer service if there is any accessory missing from the package. Retain the original packaging materials for exchange or return purposes. Specifications Power AC power adaptor, DC output 12V 1A Power consumption 12W Speaker 3”, 4Ω, 5W x 2 Turntable speed 33 1 / 3 , 45, 78 RPM Replacement needle Crosley NP10 Frequency Range AM 530 – 1700 KHz FM 88 – 108 MHz Note: • Design and specifications are subject to change without notice. • To help save power consumption, some models will comply with ERP energy saving standard. When there is no audio input for 20 minutes, their powers will automatically cut-off. To turn power back on and resume playing, you will need to turn off the power and turn it on again. English 4 Product Description 1. Speakers 2. Dial Scale 3. Mode Button 4. Backward Skip Button 5. Tuning Knob 6. Forward Skip Button 7. LED Display 8. Headphone Jack 9. Aux In Jack 10. CD Tray 11. CD Door Open/Close Button 12. Stop Button 13. On/Off Volume Knob 14. Play/Pause Button 15. Turntable Platter 16. Turntable Spindle 17. 45 RPM Adapter 18. Tonearm Lever 19. Tonearm 20. Auto-stop Switch 21. Speed Switch 22. Hold Down Clip 23. Tonearm Rest English 5 24. Speaker Jacks 25. Power Jack 26. External Antenna 27. Cassette Eject/Fast Forward Button 28. Cassette Door English 6 Initial Setup Essential Setup 1. Turn the turntable on its side and remove plastic pieces from the underside. 2. Insert the legs into the underside of the turntable and tighten. 3. Place the unit on a flat and level surface. The selected location should be stable and free from vibration. 4. Remove the tie-wrap that is holding the tonearm. 5. Connect power adaptor to the Power Jack of the unit. Stereo System Connection RCA Jacks • The RCA Jacks output analog line-level signals and could be connected directly with a pair of active/powered speakers or the appropriate input of your stereo system. • The Red plug connects with the Right channel and the White plug connects with the Left channel. Note: The RCA Jacks are not designed to be connected directly to the passive/unpowered speakers. If connected to the passive speakers, the volume level will be very low. Aux Input Connection You can connect an audio device to this unit and play your music through its speakers. To do this, press the Mode Button repeatedly to select Aux mode, connect the 3.5mm auxiliary cable (not included) between your audio device and the Aux In Jack of this unit and start playing the music. Note: The LED display will show “Line” Bluetooth Operation 1. Press the Mode Button repeatedly to select Bluetooth mode. Note: The LED display will flash “blue” 2. Turn on the Bluetooth feature of your audio device, search for “CROSLEY CR7023A” and pair. 3. Once your device is successfully paired with the unit, you will hear a short confirmation sound from the unit. 4. Play and stream music from your device to the unit. Note: • Bluetooth version – 5.0 English 7 Turntable Operation 1. Press the Mode Button repeatedly to select Phono mode. Note: The LED display will show “Phon” 2. Set the Speed Switch accordingly. 3. Place the record on the turntable. Use the 45 RPM Adapter if necessary. 4. Remove the stylus protector from the stylus assembly. Note: To avoid stylus damage, make certain the included stylus guard is in place whenever the turntable is being moved or cleaned. 5. Release the tonearm Hold Down Clip. Note: When the turntable is not in use, remember to lock back the hol…

Text truncated - open the document above for the full version.

Modern Marketing Concepts, Inc. Covered Equipment Certification Attestation Letter 9/3/2026 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: AUSCR7023AV2 Modern Marketing Concepts, Inc. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. This includes certifying that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Modern Marketing Concepts, Inc. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: Scott McWhorter Title: Director of Engineering Company Name: Modern Marketing Concepts, Inc. Date: 9/3/2026

Modern Marketing Concepts, Inc. * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter 7/22/2026 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: AUSCR7023AV2 Applicant of FRN: 0021475454 Per section 2.911(d)(7) of the FCC rules, Modern Marketing Concepts, Inc. (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: Modern Marketing Concepts, Inc. FCC Registration Number (FRN): 0021475454 Physical U.S. Company Address: 1220 E Oak, St., Louisville, Kentucky, United States Contact Person: Scott McWhorter Telephone Number: +1-502-212-4291 Agent Email Address: [email protected] The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant/Agent Signed: Signed: Printed name: Scott McWhorter Title: Director of Engineering Company Name: Modern Marketing Concepts, Inc. Date: 7/22/2026

Modern Marketing Concepts, Inc. I, the signer, Scott McWhorter The only differences between these models are model name. Their enclosure/form factor, internal circuitry/PCB components and hardware/software are identical. Model name difference is for market and commercial purpose. Item Name ：SERNADE 8-IN-1 RECORED PLAYER Model Number: CR7023A-WA Additional Model: CR7023A-X, CR7023X-XX (XX-XXXX.. can be replaced by letter from “A” to “Z” number from “0” to “9” or blank) Name: Scott McWhorter Title: Director of Engineering Company: Modern Marketing Concepts, Inc.

Modern Marketing Concepts, Inc. September 8, 2026 Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 REQUEST FOR CONFIDENTIALITY - FCC FCC ID: AUSCR7023AV2 Pursuant to Sections 0.457(d) and 0.459 of the Commission’s Rules and FCC Guidance document 726920, we hereby request permanent confidential treatment of exhibits identified as such in the table below and request they are permanently withheld from public review based on the documents containing trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjustified benefits to its competitors. Exhibit Type of Confidentiality Requested Block Diagrams ☒ Permanent ☐ Short Term External Photos ------------------ ☐ Short Term Internal Photos ☐ Permanent* ☐ Short Term Operation Description ☒ Permanent ☐ Short Term Parts List & Placement/BOM ☐ Permanent ☐ Short Term Tune-Up Procedure ☐ Permanent ☐ Short Term Schematic Diagrams ☒ Permanent ☐ Short Term Test Setup Photos ------------------ ☐ Short Term User’s Manual ☐ Permanent* ☐ Short Term The asterisked items (*) require further information to be provided in this justification letter before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. Note: any documents held under the Short-Term confidentiality will automatically become public after the requested time if an appropriate extension request has not been received. Any exhibits (i.e., schematic diagrams) that may have already been requested to have “Permanent” confidentiality as shown above need not be repeated under Short-Term confidentiality request. Sincerely, Signed: Printed name: Scott McWhorter Title: Director of Engineering Company Name: Modern Marketing Concepts, Inc.

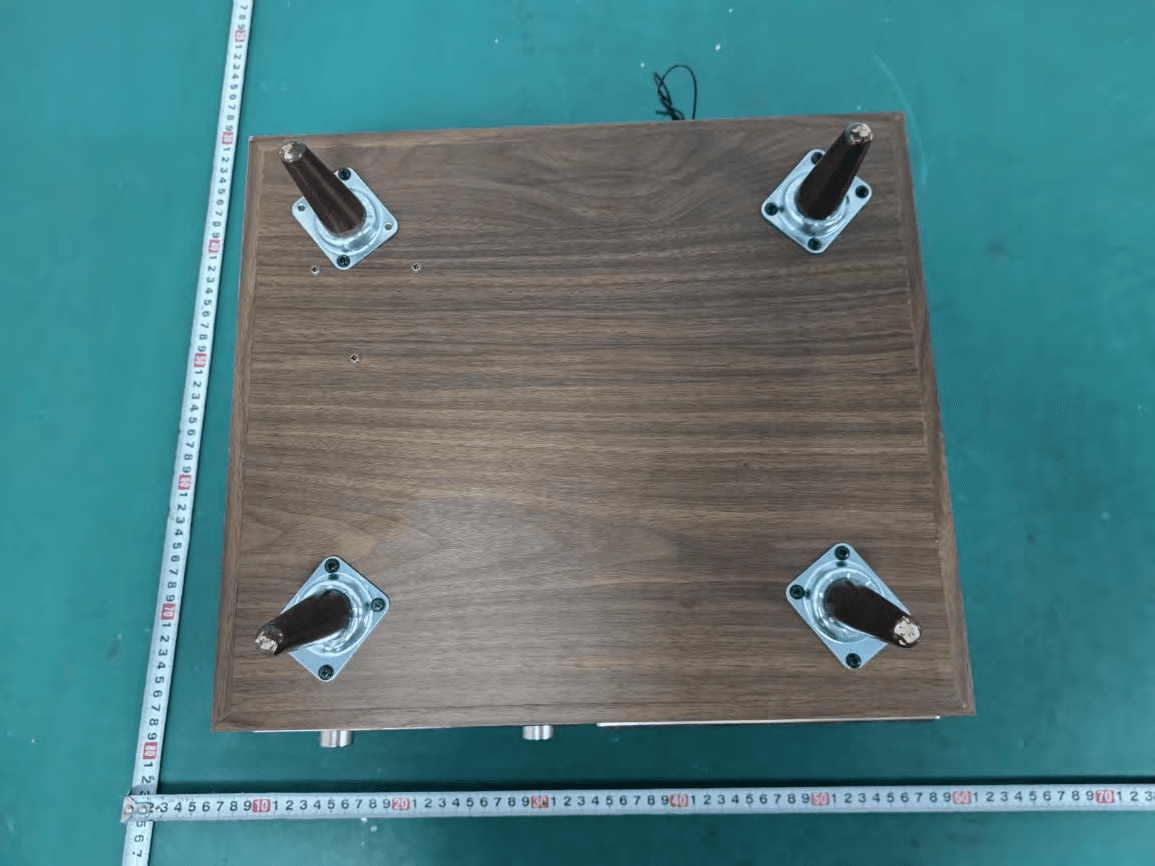

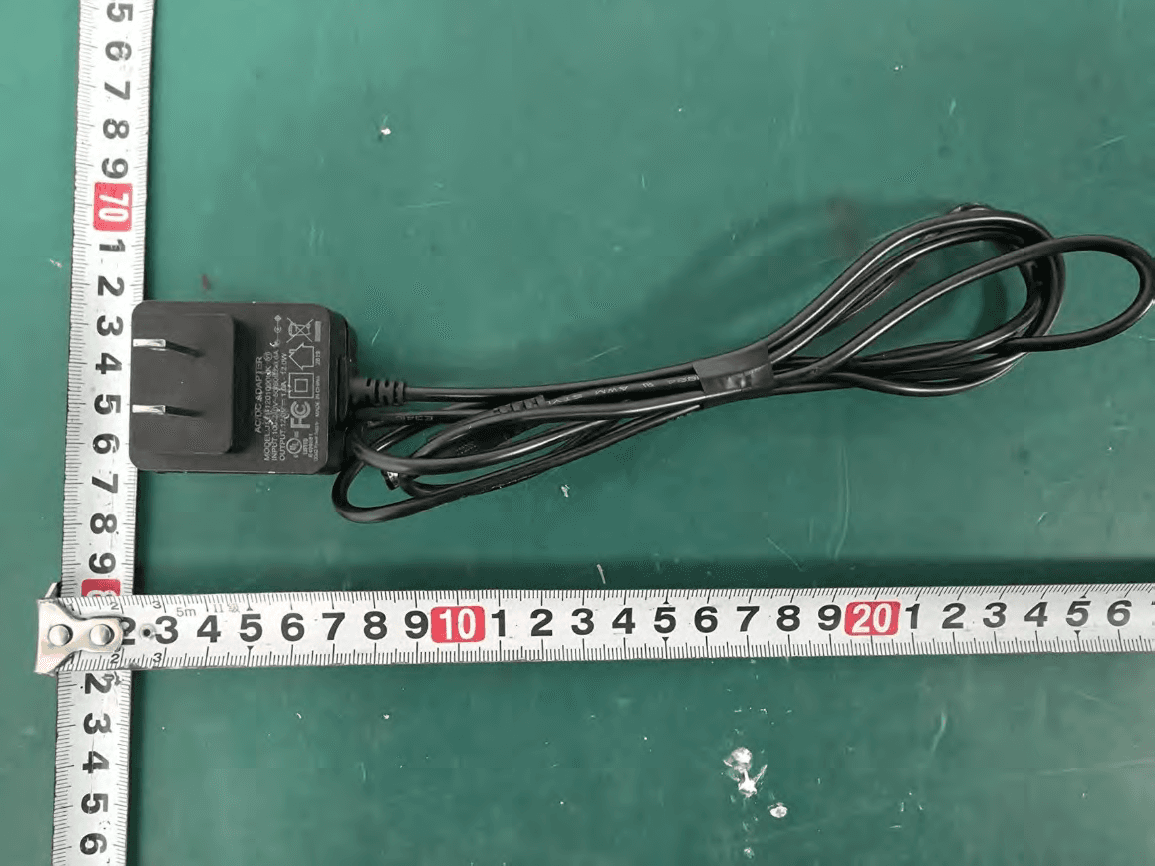

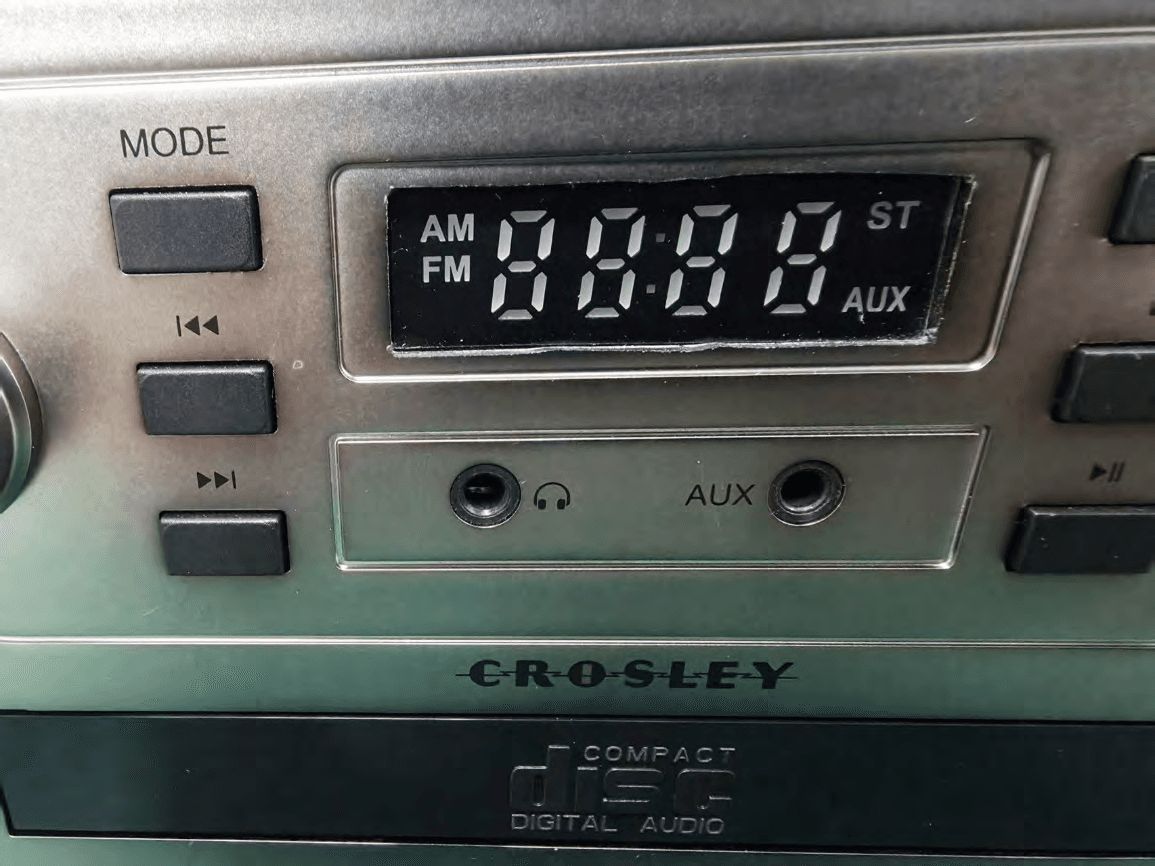

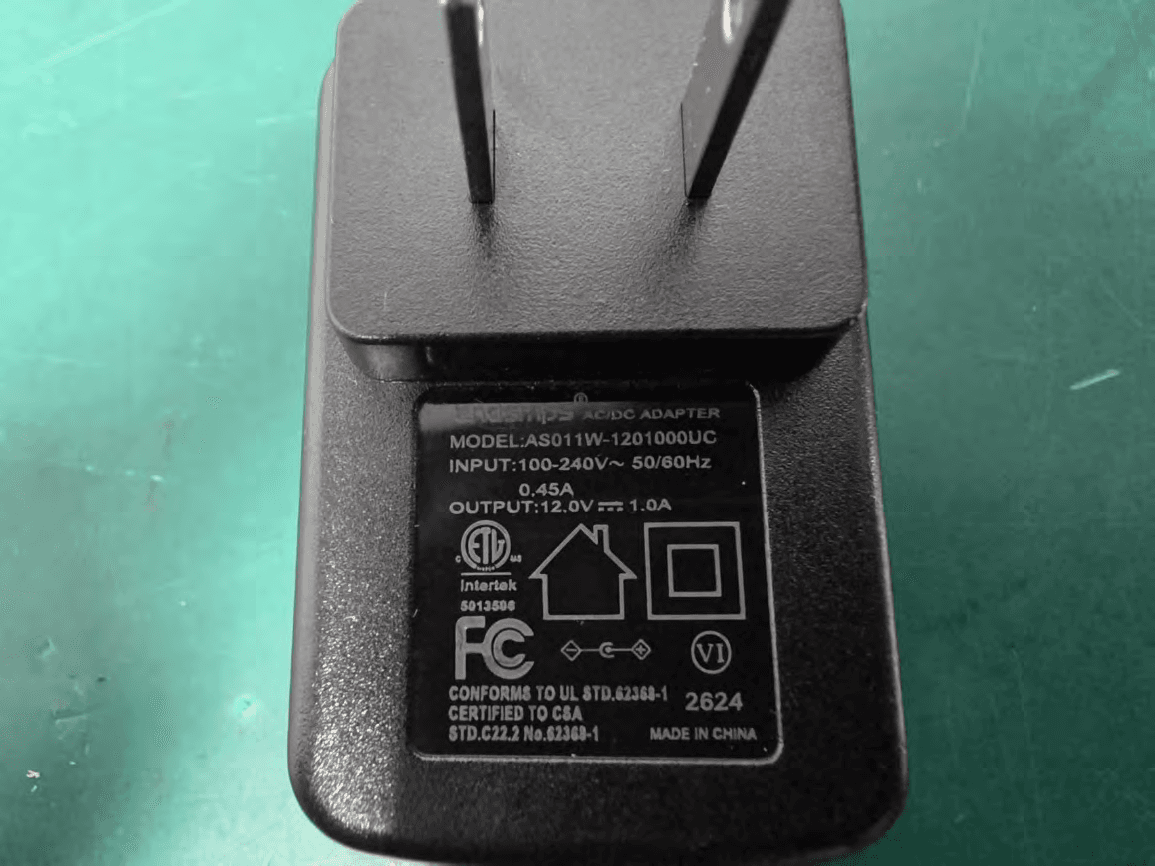

External Photos M/N: CR7023A-WA External Photos M/N: CR7023A-WA External Photos M/N: CR7023A-WA External Photos M/N: CR7023A-WA External Photos M/N: CR7023A-WA External Photos M/N: CR7023A-WA External Photos M/N: CR7023A-WA External Photos M/N: CR7023A-WA

Internal Photos M/N: CR7023A-WA Internal Photos M/N: CR7023A-WA Internal Photos M/N: CR7023A-WA Internal Photos M/N: CR7023A-WA Internal Photos M/N: CR7023A-WA Internal Photos M/N: CR7023A-WA Internal Photos M/N: CR7023A-WA Internal Photos M/N: CR7023A-WA Bluetooth Antenna

Page 1 of 5 Report No. ESTE-R2607247 FCC 47 CFR MPE REPORT Modern Marketing Concepts, Inc. SERENADE 8-IN-1 RECORD PLAYER Model Number: CR7023A-WA Additional Model: CR7023A-X, CR7023X-XX (XX-XXXX.. can be replaced by letter from “A” to “Z” number from “0” to “9” or blank) FCC ID: AUSCR7023AV2 Applicant: Modern Marketing Concepts, Inc. Address: 1220 East Oak Street, Louisville, Kentucky 40204 United States Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2607247 Date of Test: Jun. 01, 2026 to Jul. 09, 2026 Date of Report: Jul. 17, 2026 Page 2 of 5 Report No. ESTE-R2607247 Maximum Permissible Exposure 1. Applicable Standards Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 & KDB 447498 D04 V01 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. 1.1. Limits for Maximum Permissible Exposure (MPE) (a) Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-10000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-10000 1.o 30 Note: f=frequency in MHz; *Plane-wave equivalent power density Page 3 of 5 Report No. ESTE-R2607247 1.2. MPE Calculation Method E (V/m) = d G × P × 30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d × 377 G × P × 30 From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained Page 4 of 5 Report No. ESTE-R2607247 2. Conducted Power Result Mode Frequency (MHz) Peak output power (dBm) Peak output power (mW) GFSK 2402 -3.73 0.424 2441 -3.03 0.498 2480 -3.09 0.491 π/4-DQPSK 2402 -3.01 0.500 2441 -2.29 0.590 2480 -2.25 0.596 BLE 1M 2402 0.98 1.253 2440 1.59 1.442 2480 1.44 1.393 BLE 2M 2402 1.23 1.327 2440 1.83 1.524 2480 1.7 1.479 Page 5 of 5 Report No. ESTE-R2607247 3. Calculated Result and Limit Mode Peak output power (dBm) Target power （dBm ） MAX Target power （dBm ） Antenna gain Power Density (S) (mW /cm2) Limited of Power Density (S) (mW /cm2) Test Result (dBi) (Linear ) 2.4G Band GFSK -3.03 -3±1 -2 -0.58 0.875 0.00011 1 Complies π/4-DQPSK -2.25 -2±1 -1 -0.58 0.875 0.00014 1 Complies BLE 1M 1.59 1±1 2 -0.58 0.875 0.00028 1 Complies BLE 2M 1.83 1±1 2 -0.58 0.875 0.00028 1 Complies End of Test Report

Inverted F Antenna Specification Summary ITEMANT SPEC Model Name 2.4G ANT HorizontalVertical 2400MHz 2400MHz2500MHz2400MHz2400MHz 2500MHz Center Frequency -1.26-0.76-0.58-5.25-2.46-1.86 MAX. Gain -0.58dBi PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Length 38.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) No. 333, Kexing Road, Nanping Town, Xiangzhou District, Zhuhai City Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

Page 1 of 42 Report No.ESTE-R2607246 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Modern Marketing Concepts, Inc. SERENADE 8-IN-1 RECORD PLAYER Model Number: CR7023A-WA Additional Model: CR7023A-X, CR7023X-XX (XX-XXXX.. can be replaced by letter from “A” to “Z” number from “0” to “9” or blank) FCC ID: AUSCR7023AV2 Applicant: Modern Marketing Concepts, Inc. Address: 1220 East Oak Street, Louisville, Kentucky 40204 United States Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2607246 Date of Test: Jun. 01, 2026 to Jul. 09, 2026 Date of Report: Jul. 17, 2026 Page 2 of 42 Report No.ESTE-R2607246 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION .......................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................... 5 1.1. Description of Device (EUT) ............................................................................................................ 5 1.2. Antenna Information ......................................................................................................................... 5 1.3. Information of RF Cable ................................................................................................................... 5 2. SUMMARY OF TEST ........................................................................................................................... 6 2.1. Summary of test result ..................................................................................................................... 6 2.2. Test Facilities ..................................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................................ 8 2.4. Assistant equipment used for test .................................................................................................. 8 2.5. Block Diagram ................................................................................................................................... 8 2.6. Test Mode .......................................................................................................................................... 9 2.7. Power Setting of Test Software ...................................................................................................... 9 2.8. Duty Cycle .......................................................................................................................................... 9 2.9. Channel List ..................................................................................................................................... 10 2.10. Test Equipment List ...................................................................................................................... 11 3. 6DB BANDWIDTH ............................................................................................................................ 15 3.1. Limit ................................................................................................................................................... 15 3.2. Test Setup ........................................................................................................................................ 15 3.3. Spectrum Analyzer Setting ............................................................................................................ 15 3.4. Test Procedure ................................................................................................................................ 15 3.5. Test Result ....................................................................................................................................... 15 4. MAXIMUM PEAK OUTPUT POWER .................................................................................................. 16 4.1. Limit ................................................................................................................................................... 16 4.2. Test Setup ........................................................................................................................................ 16 4.3. Spectrum Analyzer Setting ............................................................................................................ 16 4.4. Test Procedure ................................................................................................................................ 16 4.5. Test Result ....................................................................................................................................... 16 5. POWER SPECTRAL DENSITY .......................................................................................................... 17 5.1. Limit ................................................................................................................................................... 17 5.2. Test Setup ........................................................................................................................................ 17 5.3. Spectrum Analyzer Setting ............................................................................................................ 17 5.4. Test Procedure ................................................................................................................................ 17 5.5. Test Result ....................................................................................................................................... 17 6. CONDUCTED BAND EDGE .............................................................................................................. 18 6.1. Limit .........................…

Text truncated - open the document above for the full version.

Page 1 of 25 Report No. ESTE-R2607246 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.681 2401.664 2402.345 0.5 PASS BLE_1M Ant1 2440 0.660 2439.670 2440.330 0.5 PASS BLE_1M Ant1 2480 0.672 2479.664 2480.336 0.5 PASS BLE_2M Ant1 2402 1.170 2401.418 2402.588 0.5 PASS BLE_2M Ant1 2440 1.152 2439.436 2440.588 0.5 PASS BLE_2M Ant1 2480 1.254 2479.388 2480.642 0.5 PASS Page 2 of 25 Report No. ESTE-R2607246 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS BLE_1M-Ant1-2480-PASS Page 3 of 25 Report No. ESTE-R2607246 BLE_2M-Ant1-2402-PASS BLE_2M-Ant1-2440-PASS Page 4 of 25 Report No. ESTE-R2607246 BLE_2M-Ant1-2480-PASS Page 5 of 25 Report No. ESTE-R2607246 Appendix B: Maximum conducted output power Test Result Peak TestMode Antenna Frequency[MHz] Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant1 2402 0.98 ≤30 PASS BLE_1M Ant1 2440 1.59 ≤30 PASS BLE_1M Ant1 2480 1.44 ≤30 PASS BLE_2M Ant1 2402 1.23 ≤30 PASS BLE_2M Ant1 2440 1.83 ≤30 PASS BLE_2M Ant1 2480 1.70 ≤30 PASS Test Graphs Peak BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS Page 6 of 25 Report No. ESTE-R2607246 BLE_1M-Ant1-2480-PASS BLE_2M-Ant1-2402-PASS Page 7 of 25 Report No. ESTE-R2607246 BLE_2M-Ant1-2440-PASS BLE_2M-Ant1-2480-PASS Page 8 of 25 Report No. ESTE-R2607246 Page 9 of 25 Report No. ESTE-R2607246 Appendix C: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -15.13 ≤8.00 PASS BLE_1M Ant1 2440 -14.61 ≤8.00 PASS BLE_1M Ant1 2480 -14.63 ≤8.00 PASS BLE_2M Ant1 2402 -18.18 ≤8.00 PASS BLE_2M Ant1 2440 -17.69 ≤8.00 PASS BLE_2M Ant1 2480 -17.82 ≤8.00 PASS Page 10 of 25 Report No. ESTE-R2607246 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS BLE_1M-Ant1-2480-PASS Page 11 of 25 Report No. ESTE-R2607246 BLE_2M-Ant1-2402-PASS BLE_2M-Ant1-2440-PASS Page 12 of 25 Report No. ESTE-R2607246 BLE_2M-Ant1-2480-PASS Page 13 of 25 Report No. ESTE-R2607246 Appendix D: Reference level measurement Test Result TestMode Antenna Freq(MHz) Max.Point[MHz] Result[dBm] BLE_1M Ant1 2402 2402.26 0.66 BLE_1M Ant1 2440 2440.00 0.70 BLE_1M Ant1 2480 2480.24 1.06 BLE_2M Ant1 2402 2402.49 -0.26 BLE_2M Ant1 2440 2440.01 0.68 BLE_2M Ant1 2480 2480.01 0.48 Page 14 of 25 Report No. ESTE-R2607246 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS BLE_1M-Ant1-2480-PASS Page 15 of 25 Report No. ESTE-R2607246 BLE_2M-Ant1-2402-PASS BLE_2M-Ant1-2440-PASS Page 16 of 25 Report No. ESTE-R2607246 BLE_2M-Ant1-2480-PASS Page 17 of 25 Report No. ESTE-R2607246 Appendix E: Band edge measurements Test Result TestMod e Antenn a ChNam e Frequency[MHz ] RefLevel[dBm ] Result[dBm ] Limit[dBm ] Verdic t BLE_1M Ant1 Low 2402 0.66 -34.96 ≤-19.34 PASS BLE_1M Ant1 High 2480 1.06 -39.39 ≤-18.94 PASS BLE_2M Ant1 Low 2402 -0.26 -32.71 ≤-20.26 PASS BLE_2M Ant1 High 2480 0.48 -39.18 ≤-19.52 PASS Page 18 of 25 Report No. ESTE-R2607246 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2480-PASS BLE_2M-Ant1-2402-PASS Page 19 of 25 Report No. ESTE-R2607246 BLE_2M-Ant1-2480-PASS Page 20 of 25 Report No. ESTE-R2607246 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 30~26500 0.66 -42.67 ≤-19.34 PASS BLE_1M Ant1 2440 30~26500 0.70 -41.84 ≤-19.3 PASS BLE_1M Ant1 2480 30~26500 1.06 -41.97 ≤-18.94 PASS BLE_2M Ant1 2402 30~26500 -0.26 -42.07 ≤-20.26 PASS BLE_2M Ant1 2440 30~26500 0.68 -41.57 ≤-19.32 PASS BLE_2M Ant1 2480 30~26500 0.48 -42.68 ≤-19.52 PASS Page 21 of 25 Report No. ESTE-R2607246 Test Graphs BLE_1M-Ant1-2402-30~26500-PASS BLE_1M-Ant1-2440-30~26500-PASS BLE_1M-Ant1-2480-30~26500-PASS Page 22 of 25 Report No. ESTE-R2607246 BLE_2M-Ant1-2402-30~26500-PASS BLE_2M-Ant1-2440-30~26500-PASS Page 23 of 25 Report No. ESTE-R2607246 BLE_2M-Ant1-2480-30~26500-PASS Page 24 of 25 Report No. ESTE-R2607246 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] ON Time [ms] Period [ms] Duty Cycle [%] Duty Cycle Factor[dB] BLE_1M Ant1 2440 2.13 2.50 85.20 0.70 BLE_2M Ant1 2440 1.08 2.51 43.03 3.66 Page 25 of 25 Report No. ESTE-R2607246 Test Graphs NTNV-BLE_1M-Ant1-2440 NTNV-BLE_2M-Ant1-2440

Radiated emission test: Below 1GHz Radiated emission test: Above 1GHz Conducted emission test:
