AVP-TRUCKTRACKERVEHICLE TRACKER

Blue Sun Solutions, LLC
VEHICLE TRACKER - FCC ID AVP-TRUCKTRACKER - Blue Sun Solutions, LLC
Click to zoom

Application Details

Equipment Class
PCB - PCS Licensed Transmitter
Date of Grant
Feb 29, 2012
Application Purpose
Original Equipment
Date of Application
Feb 29, 2012
Equipment Note
VEHICLE TRACKER
Frequency Range
1850.20000000 - 1909.80000000
Company
Blue Sun Solutions, LLC
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗

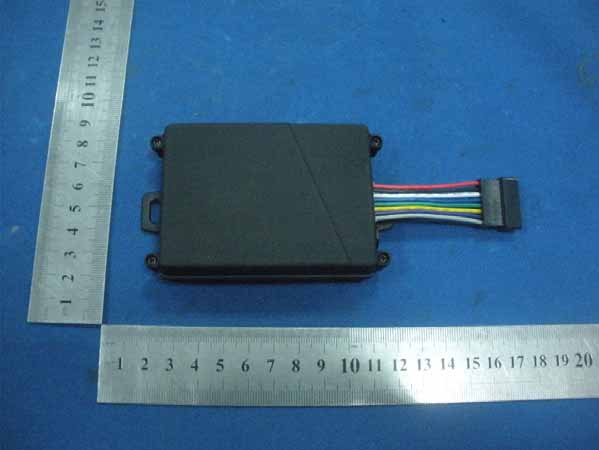

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Redview GPS www.redview.net - 1 -Page 1 of 30 VT-200 Automatic Vehicle Locator User Manual Version 2.0 Add: Room 702,Building A,Tsing Hua high tech park, Nan Shan District,Shenzhen,China TEL: 0755- 88846144 0755 - 26030340 FAX: 0755- 26030441 WEB: www.redview.net Redview GPS Copyright © Jan. 20, 2006 Redview Inc. All rights reserved. Redview Document Printed in China Redview Inc. www.redview.net - 2 -Page 2 of 30 Add: Room 702,Building A, Tsing Hua High tech park, Nan Shan District, Shenzhen, China TEL: 0755-26030340 0755-88846144 FAX: 0755-26030441 WEB: www.redview.net Notice This manual, as well as the software described in it, is furnished under license and may be used or copied only in accordance with the terms of such license. The content of this manual is furnished for informational use only, is subject to change without notice, and should not be construed as a commitment by Redview Inc. Redview Inc. assumes no responsibility or liability for any inaccuracies that may appear in this book. RedView Inc. reserves the right to make changes to specifications at any time and without notice. The information furnished by RedView Inc. in this publication is believed to be accurate and reliable; however, RedView Inc. assumes no responsibility for its use, or for infringements of patents or other rights of third parties resulting from its use. No license will be granted under any patents or patent rights owned by RedView Inc. Redview GPS Revision History www.redview.net - 3 -Page 3 of 30 Revision Date Nov 11, 2009 Dec 15,2010 Author Henry Xu Henry Xu Revision Version 1.0 2.0 Description Initial draft Redview GPS www.redview.net - 4 -Page 4 of 30 Table of Contents Version 2.0 ..............................................................................................................................1 A Working Directions.............................................................................................................5 B. System Introduction............................................................................................................6 C. Wiring Installation..............................................................................................................8 1. Product Parts List..............................................................................................................8 2. Precaution before Installation ...........................................................................................9 3.INSTALLATION..............................................................................................................111 3.1 Step 1: Install SIM Card ..........................................................................................111 3.2 Step 2: Connect power charging.............................................................................133 4. Wiring Description ..........................................................................................................16 5. Inspection Item after Installation.................................................... 错误!未定义书签。 D. Operating Instructions .....................................................................................................16 1. Position Report Function.................................................................................................16 2. Tracking Function ...........................................................................................................16 E. Hardware Specifications...................................................................................................17 F. More Professional SMS Instruction ..............................................................................22 G. GPRS communication setting.........................................................................................22 K Trouble shooting ................................................................................................................25 Attachment :Worldwide APN (Access Point Name) List ..............................................26 Redview GPS www.redview.net - 5 -Page 5 of 30 A Working Directions Thank you for your purchase of VT200 Automatic Vehicle Tracker. In order to realize the full functions of this product, please read this manual carefully before starting to use the product. 1. This product can only be maintained and repaired by qualified professional service personnel. If you detach this product for maintenance or repair, your warranty will be invalidated. 2. When connecting the other devices, read carefully their instruction manuals ,so as to carry out correct installation; do not connect incompatible device. 3. As this product is a high-tech product, please read carefully this manual before starting to use the product, so as to avoid inappropriate operation. 4. Drivers should not operate this product while driving a vehicle, thereby ,affecting safe driving. 5. This product can work properly only when GSM communication is in good condition. 6. Please reduce electromagnetic wave interference to the product; and use it properly. 7. GPS communication is liable to be affected by environmental shielding; may fail to carry out positioning during certain circumstances. It will resume the positioning function as soon as it leaves the shielding environment. This is normal. Please do not worry when encountering such problem. 8. Each signal sent out from the system will be confirmed for successful transmission in the base station of the mobile operator. However, if system stoppage occurs or if the mobile telephone is preset to a switch off state by the customer, it cannot ensure successful transmission. 9. For safety reason, do not tell the other people your VT200 mobile number ,without taking precautions. Otherwise, your privacy may be compromised along with other safety problem. Redview GPS www.redview.net - 6 -Page 6 of 30 B. System Introduction VT200 is a high-tech product through cooperation with mobile operators. It co…

Text truncated - open the document above for the full version.

Cover Letter(s)

SCS-F19: Confidentiality Request Letter Page 1 of 1 Rev 2.0 Blue Sun Solutions, LLC February 21, 2012 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: AVP-TRUCKTRACKER We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic - PCB - BOM The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature: Client’s name / title: Mickael Sun/ Secretary Contact information / address: 927 S. Azusa Ave. City of Industry, Los Angeles, CA 91748, USA

ID Label/Location Info

FCC Certification Label FCC ID: AVP-TRUCKTRACKER Label Location on EUT EUT View/ FCC ID Label Location

Internal Photos

GSM Antenna GPS Antenna

RF Exposure Info

MPE Evaluation Report 1. §1.1310, §2.1093 – RF EXPOSURE (MPE) 1.1. Standard Applicable According to 1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Radio frequency radiation exposure was calculated based on § 1.1310 limits. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3–3.0 614 1.63 *(100) 30 3.0–30 824/f 2.19/f *(180/f2) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density 1.2. Test Data Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG* Duty factor / 4πR² S: Power density, in mW/cm² P: Power input to the antenna, in mW G: numeric gain of the antenna R: distance to the center of the antenna, in cm Duty factor: 1/4 The maximum power density for GSM850 is shown as below: Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Duty fator The maximum sourced based time-averaged transmit power (mW) Calculated RF Exposure (mW/cm2) Limit (mW/cm2) 1.2 1.32 33.3 2137.96 1/4 534.49 0.14 0.55 The maximum power density for PCS1900 is shown as below: Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Duty fator The maximum sourced based time-averaged transmit power (mW) Calculated RF Exposure (mW/cm2) Limit (mW/cm2) 1.2 1.32 30.7 1174.90 1/4 293.73 0.08 1 1.3. Test Result This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, Human proximity to the antenna shall not be less than 20cm(8 inches) during normal operation.

Test Report

EMI MEASUREMENT AND TEST REPORT For Blue Sun Solutions, LLC 927 S. Azusa Ave. City of Industry, Los Angeles, CA 91748, USA FCC ID: AVP-TRUCKTRACKER February 20, 2012 This Report Concerns: Original Report Equipment Type: Vehicle Tracker Test Engineer: Eric Li Report No.: BST12010156Y-1ER-3 Receive EUT Date/Test Date: February 06, 2012/ February 07-18, 2012 Reviewed By: Christina Prepared By: Shenzhen BST Technology Co.,Ltd. 3F,Weames Technology Building, No. 10 Kefa Road,Science Park, Nanshan District,Shenzhen,Guangdong,China Tel: 0755-267477513 Fax: 0755-267477513 ext.826 Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Shenzhen BST Technology Co.,Ltd. This report must not be used by the client to claim product certification,approval,or endorsement by NVLAP, NIST or any agency of the US Government. Blue Sun Solutions, LLC FCC ID: AVP-TRUCKTRACKER FCC ID REPORT: BST12010156Y-1ER-3 Page 2/27 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................3 1.1. Report infor mation ...........................................................................................................3 1.2. Measurement Uncertainty .................................................................................................3 2. PRODUCT DESCRIPTION ......................................................................................................4 2.1. EUT Description ...............................................................................................................4 2.2. Block Diagram of EUT Configuration..............................................................................4 2.3. Test Conditions .................................................................................................................4 3. FCC ID LABEL...........................................................................................................................5 4. TEST RESULTS SUMMARY ...................................................................................................6 Modifications ................................................................................................................................6 5. TEST EQUIPMENT USED .......................................................................................................7 6. §15.107 CONDUCTED EMISSION TEST ...............................................................................8 6.1. Applicable Standard..........................................................................................................8 6.2. Test Procedure ..................................................................................................................8 6.3. Test Setup..........................................................................................................................8 6.4. Test Data ...........................................................................................................................9 7. §15.109 RADIATION EMISSIONS TEST .............................................................................10 7.1. Applicable Standard........................................................................................................10 7.2. Test Procedure ................................................................................................................10 7.3. Test Setup........................................................................................................................10 7.4. Test Data .........................................................................................................................11 8. §2.1046, §22.913 (A), §24.232(B) - RF OUTPUT POWER ...................................................13 8.1. Applicable Standard........................................................................................................13 8.2. Test Procedure ................................................................................................................13 8.3. Test Data .........................................................................................................................14 9. §2.1049 - OCCUPIED BANDWIDTH.....................................................................................16 9.1. Applicable Standards ......................................................................................................16 9.2. Test Procedure ................................................................................................................16 9.3. Test Data .........................................................................................................................16 10. §2.1051, §22.917(A), §24.238(A) - SPURIOUS EMISSIONS AT ANTENNA TERMINALS 18 10.1. Applicable Standards ......................................................................................................18 10.2. Test Procedure ................................................................................................................18 10.3. Test Data .........................................................................................................................18 11. §2.1053, §22.917(A), §24.238(A) - SPURIOUS RADIATED EMISSIONS..........................23 11.1. Applicable Standards ......................................................................................................23 11.2. Test Procedure ................................................................................................................23 11.3. Test Data .........................................................................................................................23 12. §2.1055, §22.355, §24.235 - FREQUENCY STABILITY ......................................................26 12.1. Applicable Standard.................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Radiated emissions test

Contact Information

Applicant

Michael Sun(Secretary)
[email protected]626 - 964 8384Fax: 626 - 964 8384

Test Firm

SinTek Laboratory Co., Ltd.Eric Lin
[email protected]86-755-27608353Fax: 86-755-27608359

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
224E1.85 GHz - 1.91 GHz150.00 mW247KGXW66 Hz
Confidentiality
Long Term
Grant Notes
Power output is ERP for this Part 22 and EIRP for Part 24. The antenna installation and operating configurations of this device, including any applicable source-based time-averaging duty factor, antenna gain and cable loss must satisfy MPE categorical Exclusion Requirements of �2.1091. The antenna(s) used for this device must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device contains functions that are not operational in U.S. Territories. This filing is only applicable for U.S. operations.
