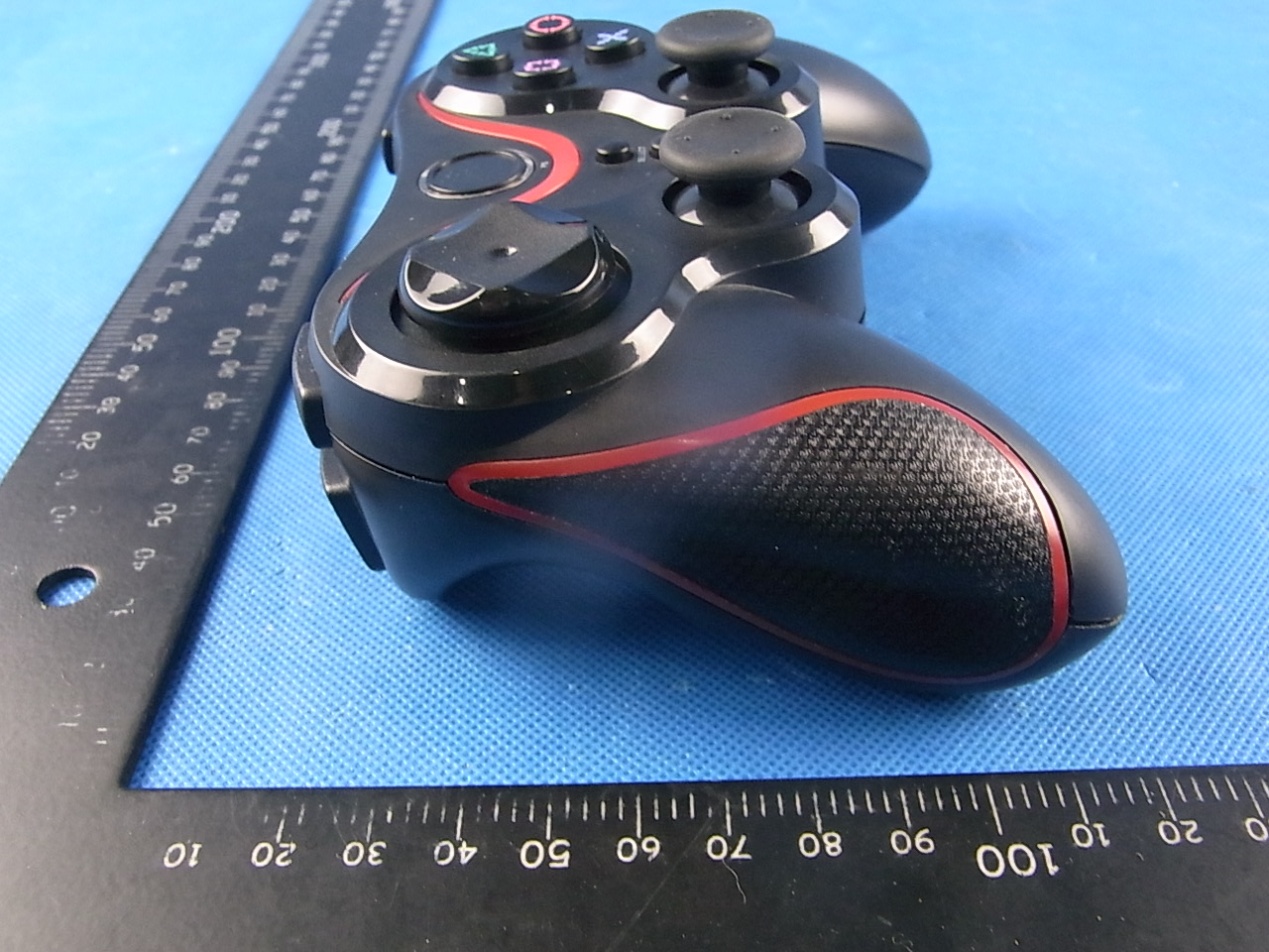

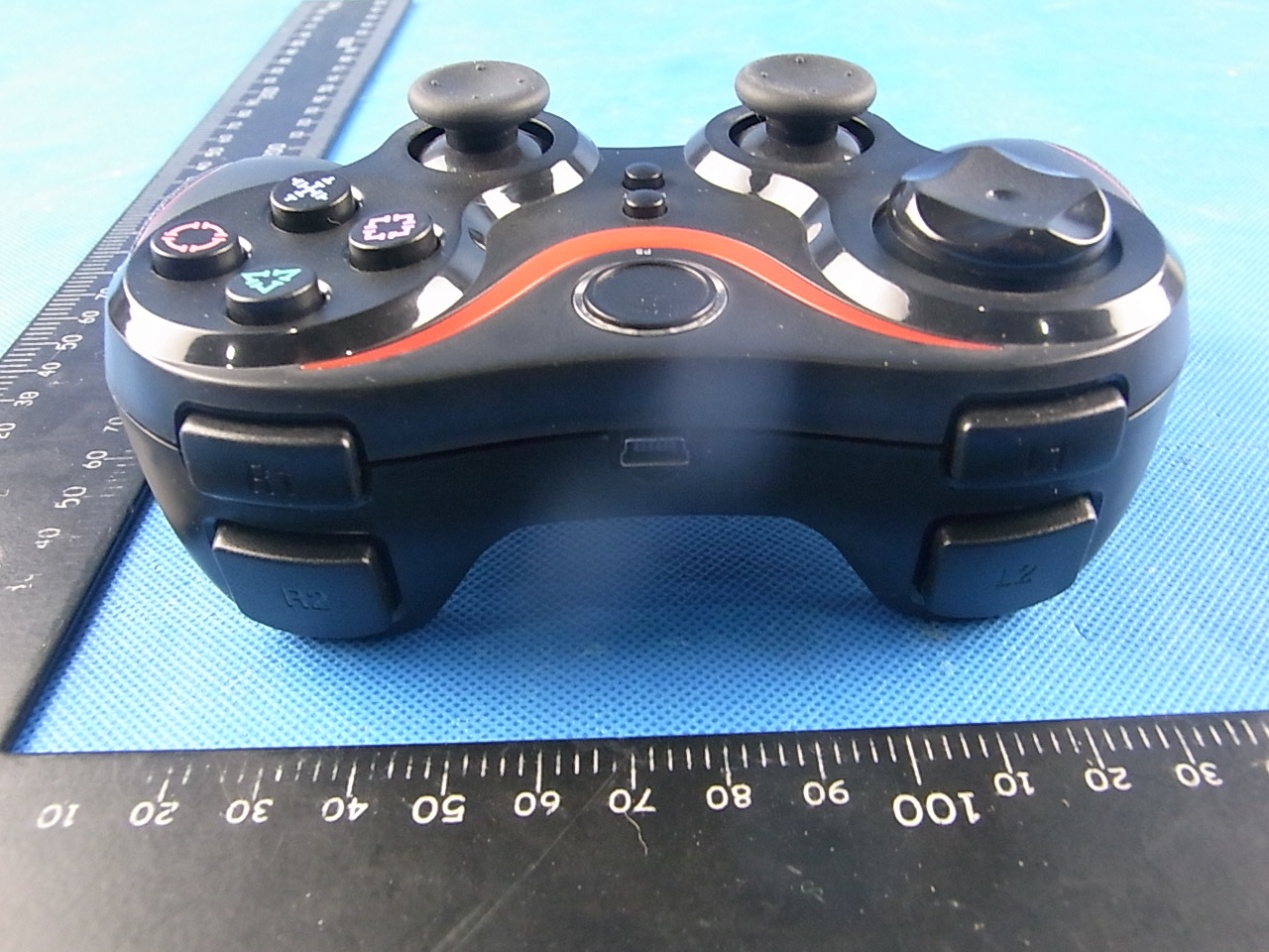

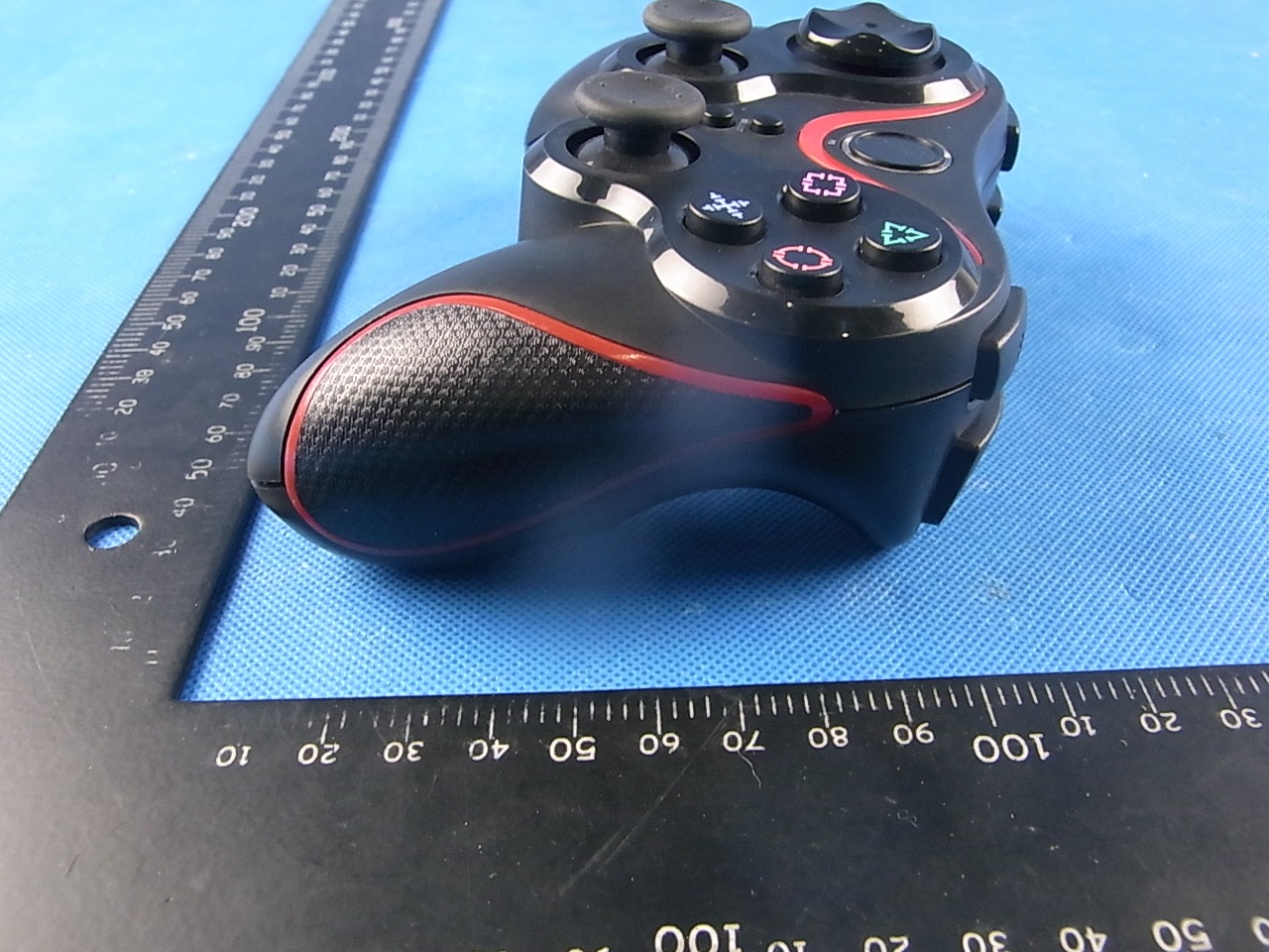

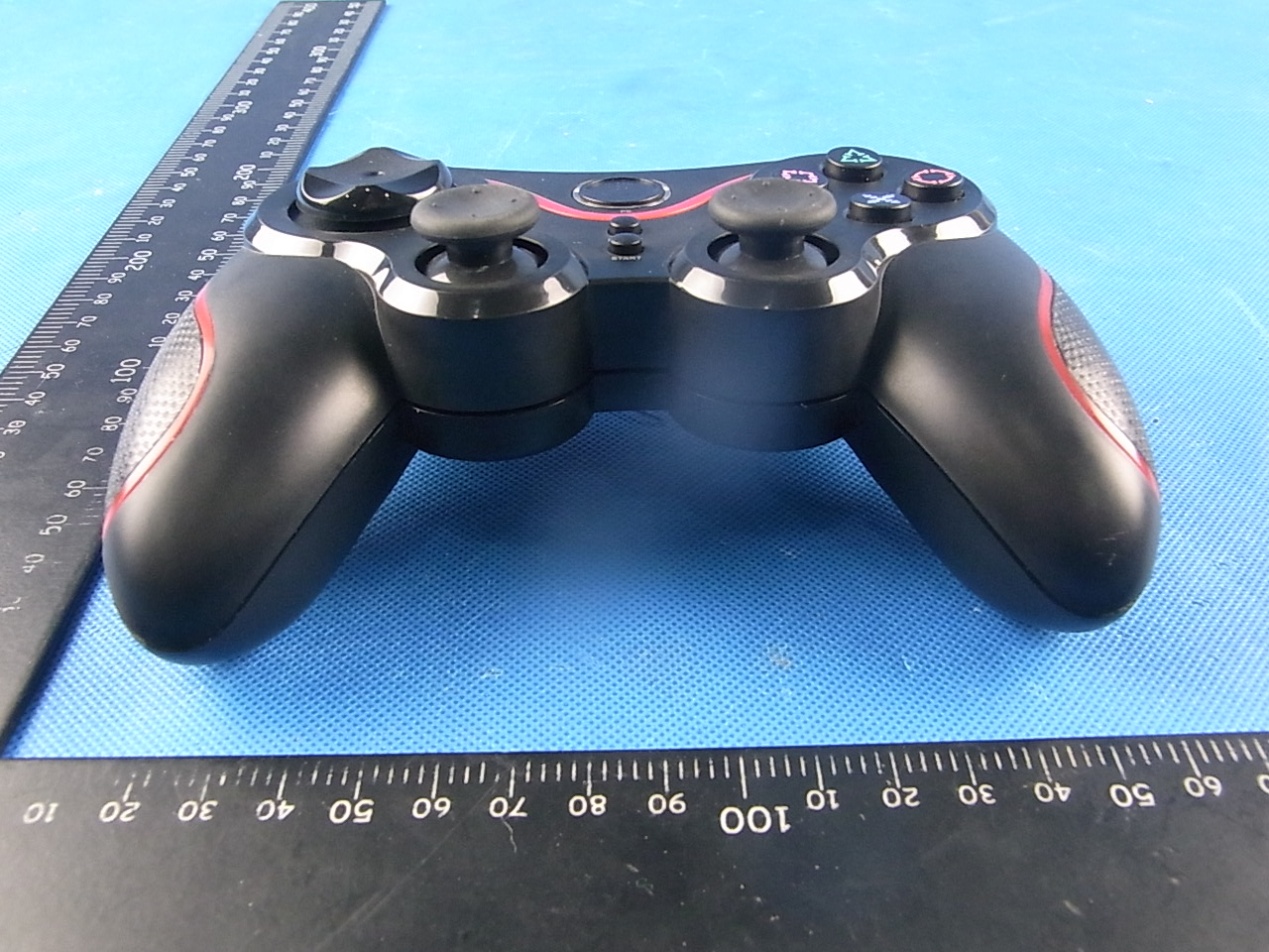

AWFSZ-906PS3 Bluetooth Wireless dual shock 6-axis gamepad

SPECIFICATIONS  SPECIFICATIONS FOR PRODUCT  SPECIFICATIONS FOR SAMPLE Note 1) The following information of the specification will be updated any time without notice. Please check the latest version of the specification before using it. 2) We will not be responsible due to the mistake or improper use for the circuit. Product Name PS3 blueteeth wireless dual shock 6-axis gamepad Product No. SZ-906 PAGE 1 of 30 VER V1.0 DATE PREPARED CHECKED APPROVED 2012-2-1 Shenzhen My-Power Technology Co., Ltd. PRODUCT SPEC. 1/8 RECORDS OF REVISION DA TE REVISED NO. REVISED D ESCRIPTIO NS PREPARED CHECKED APPROVED 2012-2-1 V1.0 The first version. Shenzhen My-Power Technology Co., Ltd. PRODUCT SPEC. 2/8 CONTENTS 1. General Description ······································································································································· 3 2. Features ··························································································································································· 3 3. Function ·························································································································································· 3 4. Upgrade process Online Operation ·············································································································· 6 5 Electrical parameters ································································································································· 11 6 SZ-906 information ································································································································· 12 Shenzhen My-Power Technology Co., Ltd. PRODUCT SPEC. 4/8 ii. Six-axis description: X axis: acceleration motion X+/X- is: left  right, right  left, refer to ‘NBA07’ Y axis: acceleration motion Y+/Y- is: front  later, later  front, refer to ”NBA07” Z axis: acceleration motion Z+/Z- is: up  down, down up, refer to ‘NBA07’ Roll axis(left/right tilt): Y axis is tilting center: level  left tilt, level  fight tilt, refer to ‘BLAZING ANG’’ ‘TONY HAWK’S’,‘GENJI’,‘RIDGE RACER Pitch axis(front/later tilt): X axis is tilting center: level  front tilt, level  later tilt, refer to ‘BLAZING ANG’ ‘TONY HAWK’S’ ‘GENJI’ Yaw axis(left/right rotation): Z axis is rotation center: level  left rotation, level  fight rotation, refer to ‘NBA07’ ‘TONY HAWK’S’. 3.2 Standard-PS3 operation mode 3.2.1 When select Standard PS3 operation mode, gamepad can achieve any game functions on PS3 host, which include basic digital and analog keys, 6-axis SENSOR, channel LED display, also support vibration for specific game in PS3 software V2.0, at the same time, when testing will be display a logo that virtual 4-axis 19 keys device in PC, and the gamepad can’t operated only after installed driver software, the device view please look following. 3.2.2 The default operated mode interface of 4-axis 17KEY 1POV in Windows: Shenzhen My-Power Technology Co., Ltd. PRODUCT SPEC. 5/8 3.3 Turbo and Clear setting 3.3.1 Turbo setting Press Turbo + one key, the key enter Turbo station, BU O BR X BDBL L1 R1 L2 R2 which these eight can set Turbo function. 3.3.2 Turbo station clear, there have three modes to select:  Pressing Turbo+ key can clear Turbo function;  Pressing Turbo + Select can clear all of the Turbo function;  Pressing the Clear mode key also can all of the Turbo function. 3.4 Sensor calibration Product must be calibrated in order to ensure sensor effect of consistency; Calibration mode: adjust gamepad position(face up and horizontal) , first, press two keys MENU+SELECT ,four channel LEDs light in the same time, then press Start key, the LEDs light off 3s light  light off, and automatically go into connecting status, it is suggested that SENSOR successfully calibrated. 3.5 TURBO_LED indication After Gamepad connected, when set TURBO OK, T urbo LED flash twelve one second. 3.6 Online communication instructions The gamepad will be enter sleeping during 30s that gamepad search and can’t communicated to host, and gamepad also enter sleeping status when no press, no 3D move during ten minutes in connecting station; press Menu can wake up the gamepad. 3.7 BT online mode 3.7.1 When the handle is not connected with the current PS3 console and the other had, or has been connected t o the host, needs and current host connection, you first need to first with a USB cable for wired communication with the PS3 console. Communication process in the program automatically on the code, then you can use Bluetooth in wireless communication. 3.7.2 PS3 host only support seven BT device, the total number of BT device or gamepad are seven; the maximum number of BT device in PS3 host: one remote, one MIC, three gamepads, and three wire gamepad. 3.8 Standard _PS3 and PC keys correspondence PS3&PC key s table PS3 䕴  X  L2 R2 L1 R1 SELEC T STAR T L3 R3 MENU PC 1 2 3 4 5 6 7 8 9 10 11 12 13 Shenzhen My-Power Technology Co., Ltd. PRODUCT SPEC. 6/8 4. Upgrade process Online Operation 1) Press select + R3 button, and then plug in the USB, until the 4 LED Steady into the Update mode. 2) Go into the computer Device Manager, right-click Properties, as shown below. View detailed information, to ensure the VID / PID as shown below. Shenzhen My-Power Technology Co., Ltd. PRODUCT SPEC. 7/8 3) Right-click the Update Driver, as shown below. Choose from a list or specific location, click Next. Shenzhen My-Power Technology Co., Ltd. PRODUCT SPEC. 8/8 Select do not search, I will choose the driver to install, the next step. Select Disk. Shenzhen My-Power Technology Co., Ltd. PRODUCT SPEC. 9/8 Select the installation file, determined and click Next. Shenzhen My-Power Technology Co., Ltd. PRODUCT SPEC. 1 1 /8 5) Open the installed driver: UpdateTool.exe, select the process and download. 5 Electrical parameters 1) MTB0418 electrical parameters Reference: GND, ambient temperature:25 Parameter Symbol Condition MIN TYP MAX UNI…

Text truncated - open the document above for the full version.

FCC Confidentiality Request To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name ShenZhen SenZe Electronics Co.,Ltd. Addresss 4F,Block B,2nd industrial Zone,San Wei,XiXiang,BaoAn, City ShenZhen Country China request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: AWF SZ-906 of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) x Operational Description x Block Diagrams x Schematics Diagrams Bill of Materials Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date:Name: (this must be a person) Function:Signature: (or official company stamp) shenzhen 2012/1/10 Guihua.zhou General Manager

Model Difference SZ-906, SZ-903,SZ-902,SZ-904, different models named for different colors, other are same. Guihua.zhou / General Manager 2012/1/10
