AZK-PCDL012.4GHz PC Wireless Module

Page 1 of 3 MS-PCDL01 Series User Manual 1. Description MS-PCDL01 is designed for receiving wireless data from MEET’s wireless products. It fully supports Windows ® ‘Plug and Play’ function and USB2.0 standard. 2. How To Use Plug the MS-PCDL01 into the PC’s USB socket, LED will light up for approx. 1 second, which means MS-PCDL01 is connected to Windows ® software and it is ready to use. Note : Remove the MS-PCDL01 from PC if not use it for a long time. 3. Software Support MS-PCDL01 only works with MEET communication software. Other Windows® utilities must be compatible with MEET communication protocol. 4. Specification Frequency : 2.401 ~ 2.479GHz (GFSK) Channel : 79 Sensitivity : -93dbm Power Supply：3.3V(Typical) * Subject to change without any notice. * Windows® is registered by Microsoft Inc. Page 2 of 3 5. Detail About This Device MS-PCDL01 is a digital wireless RF2.4G USB HID adapter. The RF IC is a low-power, high-integrated single chip RF transceiver using 0.18μm mixed-mode CMOS process optimized for ISM 2.4GHz wireless systems. MS-PCDL01 contains receiver, transmitter, voltage-controlled oscillator(VCO) and phase-locked loop (PLL). The device is expressly designed for low power consumption. Specific expertise has been applied to save current consumption and thus to extend the battery life, which is of most importance to the portable wireless consumer applications. Power saving mode has also been implemented to further reduce the power consumption. The receiver contains a low-noise amplifier (LNA), a high-frequency mixer, a received signal strength indicator (RSSI), a channel select filter, a limiting amplifier, a demodulator and a data slicer with clock recovery. MS-PCDL01 have antenna in PCB. Transmission power: 0dBm (1mW) .And Transmission Distance is 0 ~ 20m. MS-PCDL01 can also transmit data signal to other MEET's equipment which have wireless device MS-RF005. 6. FCC warning statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Page 3 of 3 ‧ Reorient or relocate the receiving antenna. ‧ Increase the separation between the equipment and receiver. ‧ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‧ Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 0700

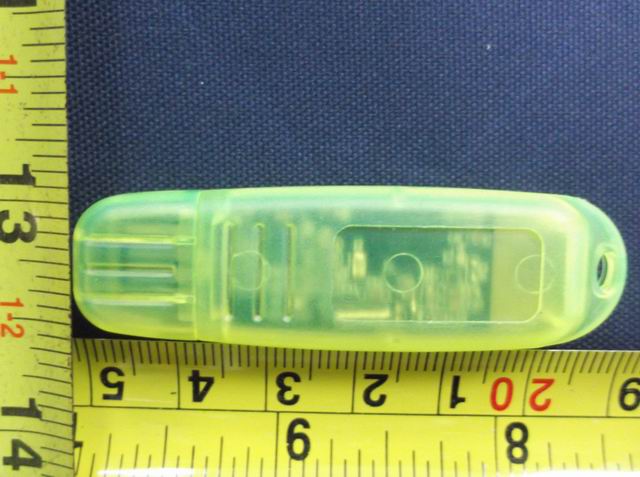

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:AZK-PCDL01 Report No.:LCS1112233658F This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. .Page 1 of 1 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:AZK-PCDL01 Report No.:LCS1112233658F This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. .Page 1 of 25 FCC CFR47 PART 15 SUBPART C(15.249) CERTIFICATION TEST REPORT FOR Meet (China) Ltd. 2.4GHz PC Wireless Module Model No.: MS-PCDL01 Prepared for : Meet (China) Ltd. Address : Flat C, 11/F., China Trade Centre, 122-124 Wai Yip St., Kwun Tong, Kowloon, Hong Kong Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1F., Xingyuan Industrial Park, Tongda Road, Bao’an Blvd., Bao’an District, Shenzhen, Guangdong, China Date of receipt of test sample : December 23, 2011 Number of tested samples : 1 Serial number : Prototype Date of Test : December 23, 2011 - February 17, 2012 Date of Report : February 17, 2012 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:AZK-PCDL01 Report No.:LCS1112233658F This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. .Page 2 of 25 TEST REPORT FCC CFR 47 PART 15 C(15.249) Report Reference No. ............... : LCS1112233658F Date of issue ................................. : February 17, 2012 Testing Laboratory Name.......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ......................................... : 1F., Xingyuan Industrial Park, Tongda Road, Bao’an Blvd., Bao’an District, Shenzhen, Guangdong, China Testing location/ procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s name ........................ : Meet (China) Ltd. Address ......................................... : Flat C, 11/F., China Trade Centre, 122-124 Wai Yip St., Kwun Tong, Kowloon, Hong Kong Test specification Standard ........................................ : FCC CFR 47 PART 15 Subpart C: 2011, ANSI C63.4-2009 Test Report Form No. ................ : LCSEMC-1.0 TRF Originator ............................. : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF................................... : Dated 2011-03 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description. ................. : 2.4GHz PC Wireless Module Trade Mark ................................... : MEET Manufacturer ................................ : Meet (China) Ltd. Model/Type reference .................. : MS-PCDL01 Ratings .......................................... : DC 5V Result .......................................... : Positive Compiled by: Supervised by: Approved by: Bobo Li/ File administrators Vito Cao/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:AZK-PCDL01 Report No.:LCS1112233658F This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. .Page 3 of 25 EMC -- TEST REPORT Test Result: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS1112233658F February 17, 2012 Date of issue Type / Model........................... : MS-PCDL01 EUT......................................... : 2.4GHz PC Wireless Module Applicant............................... : Meet (China) Ltd. Address.................................. : Flat C, 11/F., China Trade Centre, 122-124 Wai Yip St., Kwun Tong, Kowloon, Hong Kong Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Meet (China) Ltd. Address................................... : Flat C, 11/F., China Trade Centre, 122-124 Wai Yip St., Kwun Tong, Kowloon, Hong Kong Telephone............................... : / Fax.......................................... : / Factory................................... : / Address................................... : / Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:AZK-PCDL01 Report No.:LCS1112233658F This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. .Page 4 of 25 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ............................................................................................... 5 1.1. Description of Device (EUT)........................................................................................................ 5 1.2. Description of Test Facility .......................................................................................................... 5 1.3. Statement of the measurement uncertainty ...................................................................................5 1.4. Measurement Uncertainty............................................................................................................. 5 2. TEST METHODOLOGY ..................................................................................................... 6 2.1. EUT Configuration ....................................................................................................................... 6 2.2. EUT Exercise................................................................................................................................ 6 2.3. General Test Procedures ............................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:AZK-PCDL01 Report No.:LCS1112233658F This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. .Page 1 of 2 1. PHOTOGRAPH 1.1. Photo of Radiated Emission Measurement Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:AZK-PCDL01 Report No.:LCS1112233658F This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. .Page 2 of 2 Fig.3 Fig.4
