AZP-FDK02TUCOMMUNICATION SYSTEM LEAKY COAX

Instruction Manual This instruction manual contains important notices and how to use this product safely. Please be sure to read this instruction manual before you use this product. Please understand the following symbols that are used in this manual before reading this instruction manual. The symbols are defined as follows: Indicates a hazard that can cause severe personal injury, death, or substantial property damage if the warning is ignored. Indicates a hazard that will or can cause minor personal injury, or property damage if the caution is ignored. WARNING CAUTION FUTABA Ni04-008-1 rev 4.0 FUTABA Ni04-008-1 rev 4.0 The following eight are extremely important warnings. 1. The user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 2. This equipment has been tested and found to comply with the limit for a Class B digital device,pursuant to part 15 of the FCC rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,uses and can radiate radio frequency energy and,if not installed and use in accordance with the instructions,may cause harmful interference to radio communications.However,there is no guarantee that interference will not occur in a particular installation.If this equipment dose cause harmful interference to radio or television reception,which can be determind by turming the equipment off andon,the user is encouraged to try to correct the interference by one or more of the following measure: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipmentinto an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. 3. Be sure to use this product within its specification; otherwise it may cause failures and malfunctions. Especially, pay great attention to temperature range and power source voltage. 4. Do not install this product to the sites where the product is disposed under the direct sunlight and/or under the high temperature. Prior to use this product, please make sure the temperature around the site where you are planning to use this product, because this product is guaranteed at the limited ranges in operating temperature and storage temperature. Operating the product beyond the guaranteed temperature range may cause failure of this product. 5. Do not install this product in a high humidity area. A drop of water on the circuit inside of this product may cause failure of this product. 6. Avoid this product from being watered. If water enters inside this product, it may cause failure of this product 7. The specification of the external interface of this product is different from ordinary one. Please make sure the wire identifications before connecting external equipment. 8. Be sure to confirm that the power switches are off before connecting or disconnecting connectors. Connecting and disconnecting connectors while any power is on may cause failures and malfunctions. WA R N I N G FUTABA Ni04-008-1 rev 4.0 The following three are very important cautions in handling this product. 1. This product is designed specially for industrial applications. If you are planning to use this product in the area where the use of electromagnetic wave is restricted because medical equipment and airplanes are used near its area, please confirm that this product does not interfere with those before you use this product. Please do not use this product unless you can confirm that this product does not interfere with those medical equipment and airplanes near the site. 2. Please pay attentions to the electromagnetic conditions around this product. This product uses electromagnetic wave as a communication method. Consequently, if there is a strong source of electromagnetic wave near this product, this product may not able to fully achieve its performance. Please check the electromagnetic conditions around the site where you are planning to use this product prior to use this product. 3. This instruction manual is protected by the law of copyright protects. Futaba Co. is not responsible to any problem and incident that are caused from reprinting this instruction manual by somebody other than Futaba. CAUTION FUTABA Ni04-008-1 rev 4.0 Contents 1. INTRODUCTION 1-1. Special Featuresp.1 1-2. Names and functions of parts of the mobile stationp.1 1-3. Names and functions of parts of the coupler unitp.3 2. Power 2-1. Before turning on the powerp.3 2-2. Voltage of the power sourcep.3 2-3. Connector for the power sourcep.3 2-4. Power switchp.4 3. Coupler unit 3-1. Connecting the mobile station and the coupler unitp.5 3-2. Installment of coupler unitp.5 3-3. Distance between the coupler unit and feeder cablep.6 4. Connecting communication cable 4-1. Connector for RS-232C/RS-422/RS-485p.7 5. Setting switchesp.8 6. Communication commandp.10 7. Control commandp.11 8. Addressp.13 9. Communication with mobile stationsp.13 10. Indicatorsp.14 11. External Resetp.14 12. Product specificationp.14 13. Frequency channelp.15 p.1FUTABA Ni04-008-1 rev 4.0 1. INTRODUCTION 1-1. Special Features 1FDK02TU mobile station communicates with the modem FDK01TU fixed station through coupler FZE02TJ010 and 200-ohm feeder cable. 2Communication speed is 100Kbps across the feeder wires. 3FDK has a function to carry out error correction by the combination of ARQ Automatic Retransmission Request and FEC of BCH 15,7 . 4In this system, multiple mobile stations can be allocated to the single feeder cable. And each mobile station can have individual address that can be set externally. As a result, a single fixed station and multiple mobile stations can establish a communication network. 5The interface between the external controller and the fixed station or the one between the external controller and the m…

Text truncated - open the document above for the full version.

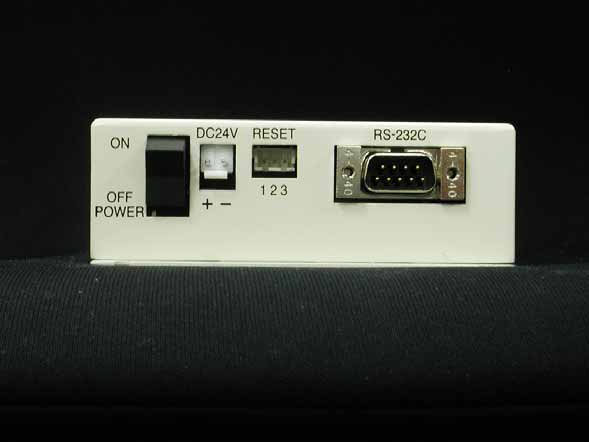

External Photo 1 Model FDK02TU External Photo 2 Model FDK02TU External Photo 3 Model FDK02TU

Internal Photo Model FDK02TU

1-1 SCOPE This document applies mobile modem system of 200 ohm feeder cable communication system for FUTABA’s customer. 1-2 Communication system and equipment characteristics 1) This system is a mobile middle distance communication system which employs 200 ohm feeder cable as a communication medium. 2) Achieve communication performance that suits the regulation of Part15.209 FCC. Also it complies Japanese very weak radiation radio specification. Furthermore, it complies ETSI 300 220-3 of EU and will be trying to comply Taiwanese radio standard. Other standards are also in the future plan. 3) Feeder communication block contains Auto Repeat Request (ARQ) and Forward Error Collection, BCH (15.7) coding schemes, to improve error robustness. 2 OVERVIEW 2-1 Whole of the system This system is a “non-mechanical-contact”, kind of wireless, communication system which transfers data between mobile station and feeder cable. Feeder cable communication part (block) of the system uses multiplexing signals to single feeder cable both downlink (base station to mobile modem station direction) and uplink ( mobile modem station to base station direction). The frequencys of the uplink, 151MHz to 156MHz are used. Downlink of that is 230MHz to 235MHz. Frequency channel of the each up and downlink is divided into 50 channels and 50 channels are assigned as a physical channel. Communication rate is 100kbps, fixed rate. Data transmission is performed with packet data transmission scheme and both ARQ and error-collection functions are included. On the feeder cable communication part (block), it performs communications not only between base station and mobile modem station but also between mobile modems. Also broadcast communication is possible with limiting cover area using various destination address designation method. External interface between controller and the system, RS232C, RS422 and RS485 are prepared. Communication rate of 4800bps to 115.2kbps can be set. Communication format is packet base communication that is FUTABA’s locally specified standard. Each of the modem displays receiving signal strength on the LED array, therefore, it is easy to confirm operation status and condition of the modem. It is also possible to issue a command from controller. The command requests the modem to reply receiving signal strength and other information of the modem. 2-2 Mobile Modem The mobile modem is a communication radio equipment which is embedded to Automated Guided Vehicle (AGV), i.e. moving cart used in a factory. It is connected with coupling unit (explained below) and is communicate with the base station. External interface between controller and the modem, RS232C, RS422 and RS485 are prepared. Communication scheme between base station and mobile modem station through the feeder is 100kbps fixed speed packet transmission and employs ARQ and error collection of BCH code. 2-3 Coupling unit The coupling unit roles receiver functions which receives signals that leaked from the feeder cable, and transmitter functions which transmits and feed the signals (the output of the mobile modem) to the feeder. Two coupling unit can be equipped to single mobile modem. Switching of the coupling unit is performed by a command from the external controller equipment. 3 SPECIFICATIONS 3-1 Feeder line communication Uplink frequency band 151 to 156MHz Downlink frequency band 230 to 235MHz Bandwidth of one channel 100KHz Channel separation 100KHz # of channels 50 Complies standard Spec A: Japanese very weak radio standard Spec B: FCC Part15.209 Sensitivity -85dBm(100kbps, BER=10E-4) Address setting of mobile modem 201(hex) to 6ff(hex) Communication rate 100kbps Communication mode full duplex packet transmission 3-2 Mobile modem Connector D-sub 9 pin Interface RS232C, RS422, RS485 (Pin assignment is not referred to that of the standard) Communication rate 4800 to 115.2kbps Communication mode RS232C and RS422: full duplex packet transmission RS485 half duplex packet transmission Misc. Open/connection setting of the signal. Open/Termination setting of RS422 and 485 3-3 Mobile modem, others Power supply DC24V +/-5% Power dispassion 0.24W Dimension 102(H) x 1116(W) x 35(H) mm Weight 550g Temp. range (Operate) -10 to +50 C Temp. range (Storage) -20 to +70 C Humidity (Operate) 35 to 95% RH Humidity (Storage) 35 to 95% RH 3-4 Coupling unit allocation tolerance to feeder Vertical (X) 20mm Horizontal (Y) +/-15mm Connector BNC x 2 (for up and downlink) Dimension 100(H) x 100(W) x 35(H) mm Temp. range (Operate) -10 to +50 C Temp. range (Storage) -20 to +70 C Humidity (Operate) 35 to 95% RH Humidity (Storage) 35 to 95% RH 3-5 Incremental position tolerance between the coupling unit and feeder cable, additional information The coupling unit and feeder cable must be faced and coupled as: the surface of the coupling unit and wide side of the feeder cable is faced in opposite. It is shown in the figure below. Fig.3-5 Incremental position tolerance between the coupling unit and feeder 3-6. Distance between the coupler unit and feeder cable Install coupler units and feeder cables in the shadowed area in the figure 3-3, otherwise communication cannot be carried out. Figure 3-6

(FDK02TU) Test set-up photo (FDK02TU) Test set-up photo

8.1a Setup with the Maximized RFI Field Strength Emission Level (Semi Anechoic Chamber) 8.1b Setup with the Maximized RFI Field Strength Emission Level (Semi Anechoic Chamber) 8.2a Setup with the Maximized RFI Field Strength Emission Level (Open Field Test Site No.1) 8.2b Setup with the Maximized RFI Field Strength Emission Level (Open Field Test Site No.1) 8.3a Setup with the Maximized RFI Field Strength Emission Level (Open Field Test Site No.6) 8.3b Setup with the Maximized RFI Field Strength Emission Level (Open Field Test Site No.6)
