AZP-FDP022.4GHz Embedded Type Wirelss Modem

I WIRELESS DATA COMMUNICATION MODEM FDP02TJ010 2.4GHz Embedded Type Wireless Modem Instruction Manual Futaba Corporation Industrial Radio Control Ver.1.1 2 I Notice This device complies with pa rt 15 of the FCC rules. Operation is subject to the f ollowing two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has be en tested and found to comply with the lim its for a Class A digital device, pursuant to part 15 of the FCC Rules. These lim its are designed to provide reasonable protection against harm ful interference when the equipm ent is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instru ction manual, may cause harmful interference to radio communications. Operation of this equipment in a re sidential area is likely to cause harmful interference in which case the user will b e required to correct the interference at her/his own expense. Any unauthorized changes or m odifications to this device not expressly approved by Futaba Corporation could void the user’s author ity to opera te th e device and possibly result in damage to the equipm ent and/or cause serious or f atal injuries to th e operato r or nearb y personnel. This device is intended to be installed and used in accordance with the instructions contained in this manual. Failure to comply with these instructions could void the user’s authority to operate the device and possibly result in dam age to the equipm ent and/or cause serious or fatal injuries to the operator or nearby personnel. II Important Safety Information The list of dangers, warnings and cautions in this section contain important information that will help en sure safe op eration of the system. Please read carefully and understand all of these items. All installers, operators and maintenance personnel should read and understand this information before installation, use, or maintenance of the FDP02TJ010. The FDP02TJ010 system by itself is not inherently dangerous. HOWEVER, WHEN THE FDP02TJ010 IS CONNECTED TO OTHER EQUIPMENT FOR THE PURPOSE OF CONTROL, SAFETY AND ALL POSSIBLE ASSOCIATED DANGERS MUST ALWAYS BE GIVEN THE UTMOST CONSIDERATION DURING SYSTEM INTEGRATION, DESIGN, INSTALLATION, AND USE. The FDP02TJ010 m ay be used in virtually unlim ited applications. Many of these associated s ystems can, by them selves, pose a mechanical, electrical or o ther hazard to operators and other persons or equipm ent. To address all possible applications and associated safety hazards in this manual would be im possible. The warnings below and throughout this manual give information th at will allow safe installatio n and use the m odem system applications. If you have questions regarding the safety of your specific application, please contact th e ap propriate people for help. Your Futaba sales representative, representatives of the equipment being controlled, and the technical support staff at local branch of F utaba Corporation are among those who can provide assistance with your safety concerns. The following warnings are included in the lists that follow but warrant repetition here: In installations where the FDP02TJ010 is used to control motion or operation of potentially dangerous equipment, it is imperative for safety that all operators and installers be thoroughly trained in the normal function of that equipment before attempting to control it remotely with the FDP02TJ010. Ver.1.1 3 To help ensure safe operation of the equipment, the FDP02TJ010 must be connected so that it will operate in a fail-safe way. In other words, the equipment being controlled should stop or return to its saf est state in the abs ence of a control signal or total loss of RF transmission from the FDP02TJ010. Our system uses one of the m ost reliable m ethods available to transmit data using radio signals. Many factors can affect a radio signal that m ay block it or interfere enough to disrupt regular transmission. Because of this, equipm ent motion or dangerous electrical current, for ex ample, that continues during a loss-of-signal condition could be very dangerous. Ver.1.1 4 Four symbols are used in the m argin of the following section and throughout the m anual to indicate the level of hazard or information listed. The symbols are defined as follows: Indicates a hazard that will cause severe personal injury, death, or substantial property damage if the warning is ignored. Indicates a hazard that can cause severe personal injury, death, or substantial property damage if the warning is ignored. Indicates a hazard that will o r ca n cause m inor person al inju ry, or property damage if the warning is ignored. Indicates installation, operation, or maintenance inform ation that is important but not hazard-related. Please read the following safety inform ation carefully. Som e of these notice s are duplicated throughout the manual, in areas of associated content, for your benefit. II.I General Safety Hazards and Notes Improper installation and/or operation of the FDP02TJ010 can cause serious or fatal injuries to the operator or nearby persons and cause damage to the FDP02TJ010, and any equipment it is used to control. Please read and understand this manual completely and the manual of all equipment being controlled before attempting to operate or install this system. Always keep this m anual at a location read ily accessib le to anyone operating the system and related equipment. Ensure that all operators have read and understood this manual, especially all safety and operation procedures contained in it. Please refer to the section in this manual titled How to Obtain Help for the contact that can supply additional manuals or answers to questions not covered in this m anual. If this product is passed on to a different user, be sure that th…

Text truncated - open the document above for the full version.

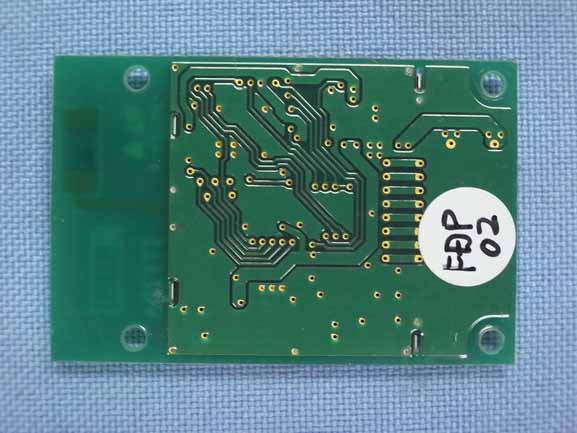

Futaba Corporation 2.4GHz Embedded Type Wireless ModemFCC ID. : AZP-FDP02 EUT External Photos Figure 1 General Appearance (Front View) Figure 2 General Appearance (Back View)

Futaba Corporation 2.4GHz Embedded Type Wireless ModemFCC ID. : AZP-FDP02 FCC ID Label Location z Label Placement Location and Label Format FCC Label Placement Location FCC Label Format

Futaba Corporation 2.4GHz Embedded Type Wireless ModemFCC ID. : AZP-FDP02 EUT Internal Photos Figure 3 PCB View

Declaration of Compliance FCC ID : AZP-FDP02 Product Name : 2.4GHz Embedded Type Wireless Modem Model Number : FDP02 Futaba Corporation declares that the product described above has been evaluated and found to comply with the RF exposure limits for humans, as specified based on ANSI/FCC recommendation. Based on safety distance 20cm, the antenna gain is 0dBi , and the power output is 0.946mW, the power density is 0.00019mW/cm^2. RF Exposure Calculations: S = (P * G) / (4* π * r^2) or r = (P * G) / (4 * π * S) Where S = Power Density in mW/cm^2 P = -0.24dBm = 0.946mW G = 0dBi = 1.0 Numerical r = 20cm S = 0.946*1 / 4*π* 20^2 =0.946/5026.56= 0.00019mW/cm^2 Limit MPE < 1mW/cm^2 Result: Passed Signature: _______________________________________ Soichi Shinya Deputy General-Manager Electronic Systems Division Futaba Corporation

FCC ID. AZP-FDP02 Page 1 of 42 AUDIX Technology Corporation Report No. EM-F990536 APPLICATION FOR CERTIFICATION On Behalf of Futaba Corporation 2.4GHz Embedded Type Wireless Modem Model No.FDP02 FCC IDAZP-FDP02 Brand: Futaba Prepared for : Futaba Corporation 1080 Yabutsuka Chosei-son Chosei-gun Chiba, 299-4395 Japan. Prepared by : AUDIX Technology Corporation EMC Department No. 53-11, Tin-Fu Tsun, Lin-Kou Hsiang, Taipei Hsien, Taiwan Tel : (02) 2609-9301, 2609-2133 Fax: (02) 2609-9303 File Number C1M1005109 Report Number EM-F990536 Date of Test May 14 ~ Jun. 02, 2010 Date of Report Jun. 02, 2010 FCC ID. AZP-FDP02 Page 2 of 42 AUDIX Technology Corporation Report No. EM-F990536 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION .......................................................................................................4 1. GENERAL INFORMATION .......................................................................................................5 1.1. Description of Device (EUT).................................................................................................................. 5 1.2. Tested Supporting System Details .......................................................................................................... 6 1.3. Description of Test Facility .................................................................................................................... 6 1.4. Measurement Uncertainty....................................................................................................................... 7 2. POWERLINE CONDUCTED EMISSION MEASUREMET...................................................8 2.1. Test Equipment ....................................................................................................................................... 8 2.2. Block Diagram of Test Setup.................................................................................................................. 8 2.3. Powerline Conducted Emission Limit .................................................................................................... 8 2.4. Operating Condition of EUT .................................................................................................................. 9 2.5. Test Procedure ........................................................................................................................................ 9 2.6. Powerline Conducted Emission Measurement Results........................................................................... 9 3. RADIATED EMISSION MEASUREMENT ............................................................................12 3.1. Test Equipment ..................................................................................................................................... 12 3.2. Test Setup ............................................................................................................................................. 12 3.3. Radiated Emission Limits (§15.209) .................................................................................................... 14 3.4. Operating Condition of EUT ................................................................................................................ 14 3.5. Test Procedure ...................................................................................................................................... 14 3.6. Radiated Emission Measurement Results............................................................................................. 15 4. 6dB BANDWIDTH MEASUREMENT .....................................................................................24 4.1. Test Equipment ..................................................................................................................................... 24 4.2. Block Diagram of Test Setup................................................................................................................ 24 4.3. Specification Limits (§15.247(a)(2)) .................................................................................................... 24 4.4. Operating Condition of EUT ................................................................................................................ 24 4.5. Test Procedure ...................................................................................................................................... 24 4.6. Test Results........................................................................................................................................... 25 5. MAXIMUM PEAK OUTPUT POWER MEASUREMENT ...................................................27 5.1. Test Equipment ..................................................................................................................................... 27 5.2. Block Diagram of Test Setup................................................................................................................ 27 5.3. Specification Limits (§15.247(b)-(3))................................................................................................... 27 5.4. Operating Condition of EUT ................................................................................................................ 27 5.5. Test Procedure ...................................................................................................................................... 27 5.6. Test Results........................................................................................................................................... 28 6. EMISSION LIMITATIONS MEASUREMENT ......................................................................29 6.1. Test Equipment ..................................................................................................................................... 29 6.2. Block Diagram of Test Setup............................................................................…

Text truncated - open the document above for the full version.

FCC ID. AZP-FDP02 Page 38 of 42 AUDIX Technology Corporation Report No. EM-F990536 10. PHOTOGRAPHS 10.1. Photos of Conducted Emission Measurement FRONT VIEW OF CONDUCTED MEASUREMENT BACK VIEW OF CONDUCTED MEASUREMENT FCC ID. AZP-FDP02 Page 39 of 42 AUDIX Technology Corporation Report No. EM-F990536 10.2. Photos of Radiated Emission Measurement at Semi-Anechoic Chamber 10.2.1.Frequency Range 30MHz~1GHz 10.2.2.Frequency Range Above 1GHz FCC ID. AZP-FDP02 Page 40 of 42 AUDIX Technology Corporation Report No. EM-F990536 10.3. Photo of 6dB Bandwidth Measurement 10.4. Photo of Maximum Peak Output Measurement FCC ID. AZP-FDP02 Page 41 of 42 AUDIX Technology Corporation Report No. EM-F990536 10.5. Photo of Emission Limitations Measurement 10.6. Photo of Band Edges Measurement FCC ID. AZP-FDP02 Page 42 of 42 AUDIX Technology Corporation Report No. EM-F990536 10.7. Photo of Power Spectral Density Measurement

Radiated Spurious Emission zoom in photo: AC Conduction zoom in set up photo:
