AZP-FEX02TRadio Control Module

Tentative 1 FEX02TB (Increase Data) 2.4GHz FH-SS RF-module Instruction Manual Tentative 2 1 Overview ................................................................................ 3 2 General Specification ................................................................... 3 2.1 High-frequency portion ................................................................ 3 2.2 External interface .................................................................... 3 2.3 Power supply .......................................................................... 4 2.4 Environmental specifications .......................................................... 4 2.5 Others ................................................................................ 4 2.6 External Terminal ..................................................................... 5 2.7 Reset terminal ........................................................................ 6 2.8 Initialization time ................................................................... 6 2.9 Appearance ............................................................................ 6 2.10 Antennas ............................................................................. 7 3 Communication Method .................................................................... 8 3.1 Frequency hopping ..................................................................... 8 3.2 Synchronization ....................................................................... 8 4 Communication procedure ................................................................. 9 4.1 Overview .............................................................................. 9 4.2 Send command .......................................................................... 9 4.3 Received data ......................................................................... 9 4.4 Master communication procedure ....................................................... 10 4.5 Slave communication procedure ........................................................ 10 4.6 Communication time ................................................................... 10 5 Other functions ........................................................................ 11 5.1 ID Registration ...................................................................... 11 6 Commands ............................................................................... 12 6.1 List of commands ..................................................................... 12 6.2 How to use commands .................................................................. 12 6.3 Command responses .................................................................... 12 6.3.1 Types of command responses ....................................................... 12 6.4 Details of the command functions ..................................................... 13 7 Memory register ........................................................................ 18 7.1 Memory register list ................................................................. 18 7.2 Memory register function detail ...................................................... 19 8 FCC&IC Warning ......................................................................... 23 8.1 FCC Label Compliance Statement ....................................................... 23 8.2 To assure continued FCC compliance ................................................... 23 8.3 Exposure to Radio Frequency Radiation ................................................ 23 Tentative 3 1 Overview (1) 2.4 GHz band FH (frequency hopping) type wireless module. (2) This module has adopted a communication protocol that is intended to be used as a wireless controller. (3) Using the UART, it is set by the command input, and performs input and output operational data. Table 1：FEX02TB Appearance photo 2 General Specification 2.1 High-frequency portion ・Technical standards ：ARIB STD-T66 ：FCC Part15.247 ：EN 300 328 ・RF Output Power ：12～26mW ・Communication method ：Spread spectrum FH system ・Spread bandwidth ：60MHz ・Radio frequency band ：2407.5MHz～2467.5MHz ・Frequency control ：frequency hopping (31 patterns, 31 waves) ・Data modulation rate ：128.143kbps ・Coverage area ：outdoors 365m [TBD] (according to an external antenna, sight distance, and our measurement method) ・Antenna terminal ：U.FL connector ・Antenna ：diversity (Tx/Rx) ・Error detection function ：CRC-CCITT（16bits） 2.2 External interface ・Physical interface ：molex 53780-1490(14pin) Mating connector 51146-1400 ・Interface ：RS-232C（DCE-mode） input 3.3V CMOS-level（with hysteresis） output 3.3V CMOS-level ・Communication method : full duplex ・Synchronization method : start-stop synchronization method ・Baud rate ：115200bps ・Flow control ：none ・Data length ：7 bit/8 bit Tentative 4 ・Stop bit ：1 bit/2 bit ・Parity ：even/odd/none 2.3 Power supply ・Source voltage ：DC 3.8V～8.5V ・Consumption current ：transmission 300mA or less reception 35mA or less average at communication 200 mA or less [TBD] 2.4 Environmental specifications ・Temperature conditions ：Operating temperature limits ambient temperature；-20 to +60°C Storage temperature range ambient temperature；-30 to +70°C ・Operating humidity limits ：90%RH or less (no condensing) ・Storage humidity range ：90%RH or less (no condensing) ・Anti-vibration ：50m/s 2 (JIS-C-60068-2-6) ・Anti-shock ：500m/s 2 (JIS-C-60068-2-27) 2.5 Others ・External dimensions ：63(W)×35(D)×3(H) mm ・Weight ：about 14g Tentative 5 2.6 External Terminal Table 1：Terminal function No. Terminal name I/O Function Internal terminal processing 1 NC － 2 RxD OUT UART RxD (Response Output) 3 TxD IN UART TxD (Command Input) 4 NC － 5 GND － signal ground 6 CLK IN reserved Pull-down 7 STE IN reserved Pull-down 8 SDA IN reserved Pull-down 9 SCL IN Reserved Pull-down 10 VCC － Power DC 3.8～8.5Ｖ 11 RST IN CPU reset 12 3.3V OUT Test 13 Reserved OUT Reserved Low 14 TEST IN Test Tentative 6 2.7 Reset terminal Resetting with the Reset termin…

Text truncated - open the document above for the full version.

THIS MUST BE SIGNED BY THE APPLICANT/AGENT AND SHOULD BE PLACED ON APPROPRIATE LETTERHEAD 053019-02a Request for Modular/Limited Modular Approval Date: May 20, 2020 Subject: Manufacturer‟s Declaration for ☒ - Modular Approval ☐ - Split Modular Approval ☐ - Limited Modular Approval ☐ - Limited Split Modular Approval Confidentiality Request for: ______AZP-FEX02T______ 8 Basic Requirements – FCC Part 15.212(a)(1) For Items Marked “NO(*)”, the Limited Module Description Must be Filled Out on the Following Pages Modular Approval Requirement Requirement Met 1. The modular transmitter must have its own RF shielding. This is intended to ensure that the module does not have to rely upon the shielding provided by the device into which it is installed in order for all modular transmitter emissions to comply with FCC limits. It is also intended to prevent coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. Such coupling may result in non-compliant operation. The physical crystal and tuning capacitors may be located external to the shielded radio elements. 15.212(a)(1)(i) ☒ - YES ☐ - NO(*) Details: The module contains a metal shield which covers all RF components and circuitry. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with FCC requirements under conditions of excessive data rates or over-modulation. 15.212(a)(1)(ii) ☒ - YES ☐ - NO(*) Details: All inputs to the modules are buffered through logic or microprocessor inputs. 3. The modular transmitter must have its own power supply regulation on the module. This is intended to ensure that the module will comply with FCC requirements regardless of the design of the power supplying circuitry in the device into which the module is installed. 15.212(a)(1)(iii) ☒ - YES ☐ - NO(*) Details: The module contains its own power supply regulation. Please refer to schematic filed with this application 4. The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b), 15.204(c), 15.212(a), and 2.929(b). The antenna must either be permanently attached or employ a „„unique‟‟ antenna coupler (at all connections between the module and the antenna, including the cable). The „„professional installation‟‟ provision of § 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph 15.212(b). 15.212(a)(1)(iv) ☒ - YES ☐ - NO(*) Details: The module connects to its antenna using a TNC MALE REVERSE POLARITY/SMA/I-PEX connector which is considered a non-standard connector. A list of antennas tested and approved with this device may be found in user manual provided with the application 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified or commercially available (see Section 15.31(i)). 15.212(a)(1)(v) ☒ - YES ☐ - NO(*) Details: The module was tested stand-alone as shown in test setup photographs filed with this application THIS MUST BE SIGNED BY THE APPLICANT/AGENT AND SHOULD BE PLACED ON APPROPRIATE LETTERHEAD 053019-02a Modular Approval Requirement Requirement Met 6. The modular transmitter must be labeled with its own FCC ID number, or use an electron display (see KDB Publication 784748). If using a permanently affixed label with its own FCC ID number, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. 15.212(a)(1)(vi) ☒ - YES ☐ - NO(*) Details: There is a label on the module as shown in the labeling exhibit filed with this application. Host specific labeling instructions are shown in the installation manual filed with this application. 7. The modular transmitter must…

Text truncated - open the document above for the full version.

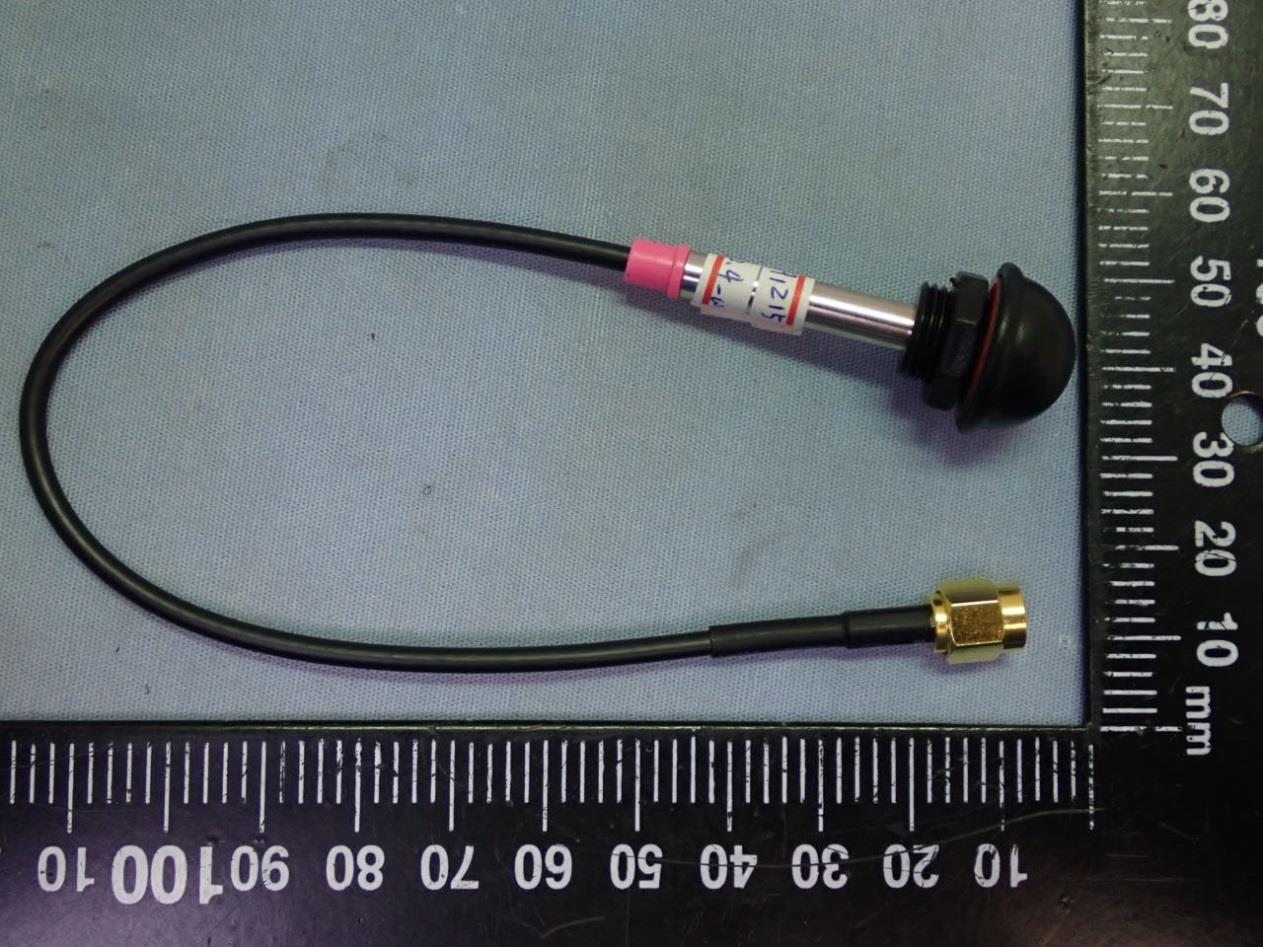

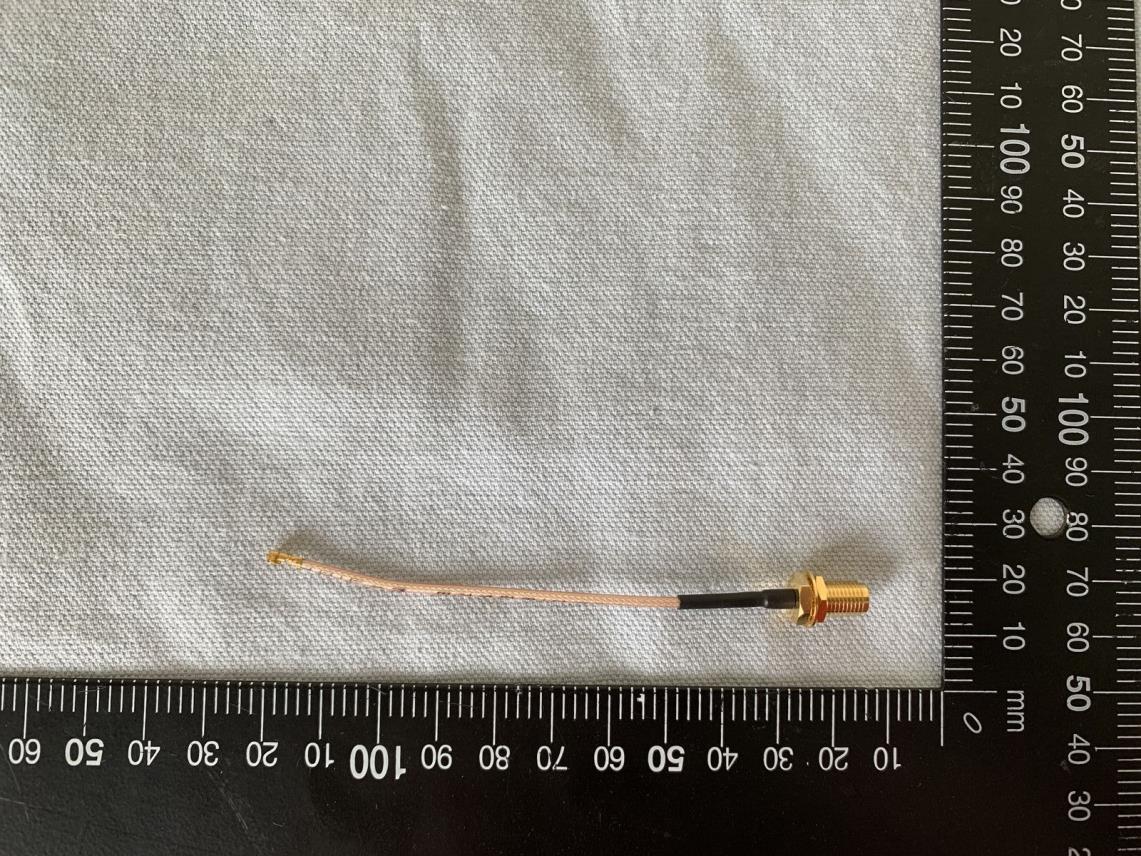

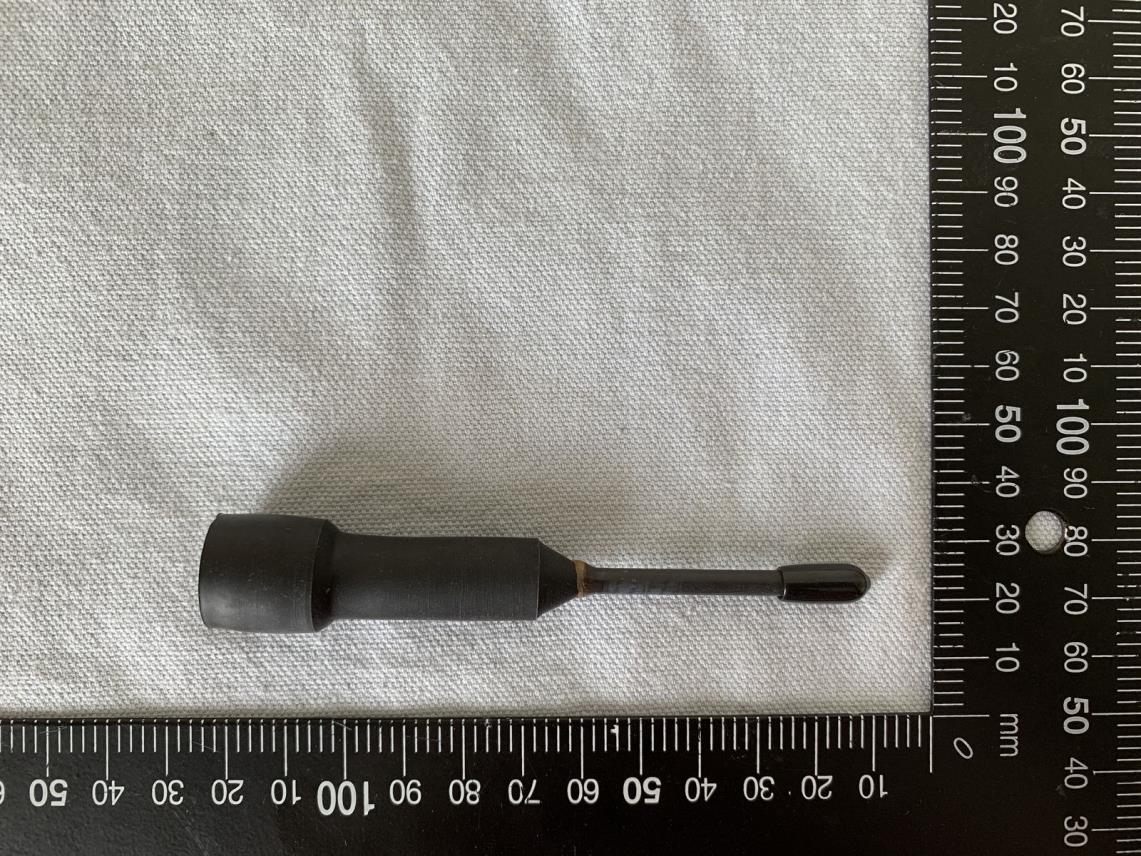

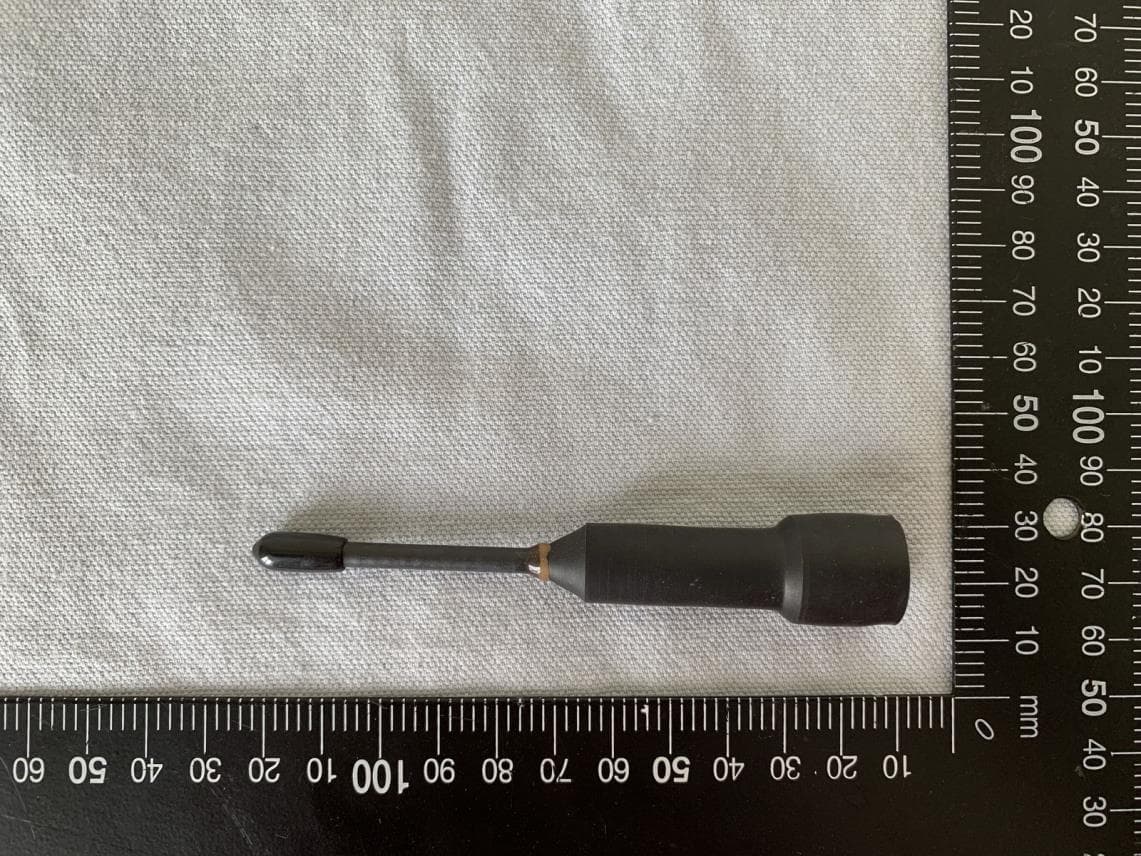

FUTABA Corporation Radio Control Module Model : FEX02TB EUT External Photos Figure 1 General Appearance, Front View Figure 2 General Appearance, Back View FUTABA Corporation Radio Control Module Model : FEX02TB Figure 3 ANT-2.4-CW-RH-RPS Antenna (View) Figure 4 ANT-2.4-CW-RH-RPS Antenna (View) FUTABA Corporation Radio Control Module Model : FEX02TB Figure 5 ANT-2.4-CW-RH-RPS Antenna (Connector Type View) Figure 6 ANT-2.4-WRT-RPS Antenna (View) FUTABA Corporation Radio Control Module Model : FEX02TB Figure 7 ANT-2.4-WRT-RPS Antenna (Connector Type View) Figure 8 TNHW 2450 RP Antenna (View) FUTABA Corporation Radio Control Module Model : FEX02TB Figure 9 TNHW 2450 RP Antenna (View) Figure 10 TNHW 2450 RP Antenna (Connector Type View) FUTABA Corporation Radio Control Module Model : FEX02TB Figure 11 ANTB24-073A0 Antenna (View) Figure 12 ANTB24-073A0 Antenna (View) FUTABA Corporation Radio Control Module Model : FEX02TB Figure 13 i-PEX to TNC reverse Cable Figure 14 i-PEX to TNC reverse Cable (Connector Type View) FUTABA Corporation Radio Control Module Model : FEX02TB Figure 15 i-PEX to RP-SMA Cable Figure 16 i-PEX to RP-SMA Cable (Connector Type View)

FUTABA Corporation Radio Control Module Model : FEX02TB FCC ID/IC Label Location  FCC ID/IC Label Placement Location FCC ID/IC Label Placement Location  FCC ID/IC Label Format

FUTABA Corporation Radio Control Module Model : FEX02TB EUT Internal Photos Figure 4 Internal View (Removed Cover) Figure 5 Internal View

Maximum Permissive Exposure FCC ID: AZP-FEX02T Product Name: Radio Control Module Model No: FEX02TB 1. According to FCC CFR 47 §1.1310, the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b). Table 1 Limits for Maximum Permissible Exposure 2. MPE Calculation FUTABA Corporation declares that the product described above has been evaluated and found to comply with the RF exposure limits for humans, as specified based on ANSI/FCC recommendation. Based on safety distance 20cm, the maximum antenna gain is 3.5dBi, and the power output is 45.994mW, the power density is 0.011189mW/cm 2 RF Exposure Calculations: S = (P * G) / (4* π * r^2) or r = (P * G) / (4 * π * S) Where : Based on safety distance (r)= 20 cm Highest Power Output (P)= 14 dBm = 25.119 mW Antenna Gain (G)= 3.5 dBi = 2.239 Numerical MPE (S) = (P*G) / (4*π*r 2 ) = = (25.119*2.239)/(4*π*20 2 )= 0.011189 mW/cm 2 Sincerely Yours, ____________________________________ Mr. Ben Cheng Manager AUDIX Technology Corporation

Page 1 of 27 Audix Technology Corp. Tel: +886 2 26099301 No. 53-11, Dingfu, Linkou, Dist., Fax: +886 2 26099303 New Taipei City244,Taiwan File Number: C1M1912154 Report Number: EM-F200207 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. Personnel. Any changes will be noted in the document history section of the report. FCC 15.247 & RSS-247 2.4GHz Test Report for FUTABA Corporation 1080 YabutsukaChosei-son Chosei-gun Chiba, 299-4395 Japan. Brand : Futaba Product Name : Radio Control Module Model Name : FEX02TB FCC ID : AZP-FEX02T IC : 2914D-FEX02T Prepared by: : AUDIX Technology Corporation, EMC Department TESTING NVLAP LAB CODE 200077-0 The test report is based on a single evaluation of one sample of the above-mentioned products. It does not imply an assessment of the whole production and does not permit the use of the test lab logo. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the U.S. Government. Page 2 of 27 Audix Technology Corp. Tel: +886 2 26099301 No. 53-11, Dingfu, Linkou, Dist., Fax: +886 2 26099303 New Taipei City244,Taiwan File Number: C1M1912154 Report Number: EM-F200207 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. Personnel. Any changes will be noted in the document history section of the report. TABLE OF CONTENTS Description Page TEST REPORT ................................................................................................................................... 4 1. REVISION RECORD OF TEST REPORT ............................................................................ 5 2. SUMMARY OF TEST RESULTS ........................................................................................... 6 3. GENERAL INFORMATION ................................................................................................... 7 3.1. Description of Application .............................................................................................................. 7 3.2. Description of Application .............................................................................................................. 7 3.3. Antenna Information ....................................................................................................................... 8 3.4. EUT Specifications Assessed in Current Report ............................................................................. 8 3.5. Test Configuration ........................................................................................................................... 9 3.6. Tested Supporting System List ...................................................................................................... 10 3.7. Setup Configuration ....................................................................................................................... 10 3.8. Operating Condition of EUT ......................................................................................................... 11 3.9. Description of Test Facility ........................................................................................................... 11 3.10. Measurement Uncertainty ............................................................................................................. 12 4. MEASUREMENT EQUIPMENTLIST ................................................................................. 13 4.1. Conducted Emission Measurement ............................................................................................... 13 4.2. Radiated Emission Measurement .................................................................................................. 13 4.3. RF Conducted Measurement ......................................................................................................... 14 5. CONDUCTED EMISSION ..................................................................................................... 15 5.1. Block Diagram of Test Setup ........................................................................................................ 15 5.2. Conducted Emission Limit ............................................................................................................ 15 5.3. Test Procedure ............................................................................................................................... 15 5.4. Test Results ................................................................................................................................... 16 6. RADIATED EMISSION ......................................................................................................... 17 6.1. Block Diagram of Test Setup ........................................................................................................ 17 6.2. Radiated Emission Limits .............................................................................................................. 18 6.3. Test Procedure ............................................................................................................................... 19 6.4. Measurement Result Explanation .................................................................................................. 20 6.5. Test Results ................................................................................................................................... 20 7. 20dB/OCCUPIED BANDWIDTH .......................................................................................... 21 7.1. Block Diagram of Test Setup ........................................................................................................ 21 7.2. Specification Limits ....................................................................................................................... 21 7.3. Test Procedure ............................................................…

Text truncated - open the document above for the full version.

APPENDIX B-Page 1 of 9 AUDIX Technology Corp. Tel: +886 2 26099301 No. 53-11, Dingfu, Linkou, Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M1912154 Report Number: EM-F2000207 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. B.1 Conducted Emission Measurement FRONT VIEW BACK VIEW APPENDIX B-Page 2 of 9 AUDIX Technology Corp. Tel: +886 2 26099301 No. 53-11, Dingfu, Linkou, Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M1912154 Report Number: EM-F2000207 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. Zoom View APPENDIX B-Page 3 of 9 AUDIX Technology Corp. Tel: +886 2 26099301 No. 53-11, Dingfu, Linkou, Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M1912154 Report Number: EM-F2000207 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. B.2 Radiated Measurement at Chamber Frequency below 1GHz For ANT-2.4-CW-RH-RPS Antenna EUT on Lie, Zoom View APPENDIX B-Page 4 of 9 AUDIX Technology Corp. Tel: +886 2 26099301 No. 53-11, Dingfu, Linkou, Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M1912154 Report Number: EM-F2000207 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. For ANT-2.4-WRT-RPS Antenna For TNHW 2450 RP Antenna APPENDIX B-Page 5 of 9 AUDIX Technology Corp. Tel: +886 2 26099301 No. 53-11, Dingfu, Linkou, Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M1912154 Report Number: EM-F2000207 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. For ANTB24-073A0 Antenna EUT on Lie, Zoom View APPENDIX B-Page 6 of 9 AUDIX Technology Corp. Tel: +886 2 26099301 No. 53-11, Dingfu, Linkou, Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M1912154 Report Number: EM-F2000207 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. Frequency above 1GHz For ANT-2.4-CW-RH-RPS Antenna EUT on Lie, Zoom View APPENDIX B-Page 7 of 9 AUDIX Technology Corp. Tel: +886 2 26099301 No. 53-11, Dingfu, Linkou, Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M1912154 Report Number: EM-F2000207 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. For ANT-2.4-WRT-RPS Antenna For TNHW 2450 RP Antenna APPENDIX B-Page 8 of 9 AUDIX Technology Corp. Tel: +886 2 26099301 No. 53-11, Dingfu, Linkou, Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M1912154 Report Number: EM-F2000207 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. For ANTB24-073A0 Antenna EUT on Lie, Zoom View APPENDIX B-Page 9 of 9 AUDIX Technology Corp. Tel: +886 2 26099301 No. 53-11, Dingfu, Linkou, Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M1912154 Report Number: EM-F2000207 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. B.3 RF Conducted Measurement
