AZP-FEX12TRadio Control Module

FEX12TB 2.4GHz band module Instruction Manual FCC Warning CAUTION: To assure continued FCC compliance: 1. Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. 2. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. i. When used in stationary receivers, This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. ii. When used in remote control devices, This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FCC Label Compliance Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This radio transmitter has been approved by the Federal Communications Commission (FCC) to operate with the antenna types listed below, with the maximum permissible gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device. No. Parts Code Model Manufacturer Type Max. Gain 1 9M99Z15001 STDANTEMD-013 Sansei 1/2λ dipole type +1.9dBi FCC INTEGRATION INSTRUCTIONS No. Item Details 1 List of applicable FCC rules FCC Part15.247 (2400-2483.5MHz, Frequency hopping systems) 2 Summarize the specific operational use conditions Only the antennas listed in the table on the previous page may be used. 3 Limited module procedures Not applicable. 4 Trace antenna designs Not applicable. 5 RF exposure considerations ・This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. i. When used in stationary receivers, This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. ii. When used in remote control devices, This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. ・Please include the above statement in the end user product manual. 6 Antennas Only the antennas listed in the table on the previous page may be used. 7 Label and compliance information The final end product must be labeled in a visible area with the following: “Contains FCC ID: AZP-FEX12T”. The grantee's FCC ID can be used only when all FCC compliance requirements are met. 8 Information on test modes and additional testing requirements Since documents related to test modes and test procedures contain our confidential information, please contact us at the address below. FUTABA Corporation of America Customer Service Desk [email protected] 9 Additional testing, Part 15 Subpart B disclaimer The final host product still requires Part 15 Subpart B compliance testing with the modular transmitter installed.6 10 Note EMI Considerations Note that a host manufacture is recommended RF design engineering testing and evaluation in case non-linear interactions generate additional non-compliant limits due to module placement to host components or properties. 11 How to make changes If a permissive change, such as the addition of an antenna, is required, please contact us at the address below. FUTABA Corporation of America Customer Service Desk [email protected] Please note that we may not be able to accommodate your request depending on the nature of the inquiry. ISED Warning This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. i. When used in stationary receivers, This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. ii. When used in remote control devices, This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. French: Cet appareil radio est conforme au CNR-210 d’Industrie Canada. L’utilisation de ce dispositif est autorisée seulement aux deux conditions suivantes : (1) il ne doit pas produire de brouillage, et (2) l’utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif. Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé. i. Lorsqu’il est utilisé dans des récepteurs fixes, Cet équipement doit être installé et utilisé avec une distance minimale de 20 cm entre la source de rayonnement et votre corps. ii. Lorsqu’il est utilisé dans des dispositifs de télécommande, Ce transmetteur ne doit pas être installé ou utilisé en association avec une autre antenne ou un autre transmetteur. This radio transmitter [IC:2914D-FEX12T] has been approved by Innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum permissible gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device. No. Parts Code Model Manufacturer Type Max. Gain 1 9M99Z15001 STDANTEMD-013 Sansei 1/2λ dipole type +1.9dBi The final end product must be labeled in a visible area with the following: “contains IC: 2914D-FEX12T”. The grantee's IC ID can be used only when all ISED compliance requirements are met. FCC Notice This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (…

Text truncated - open the document above for the full version.

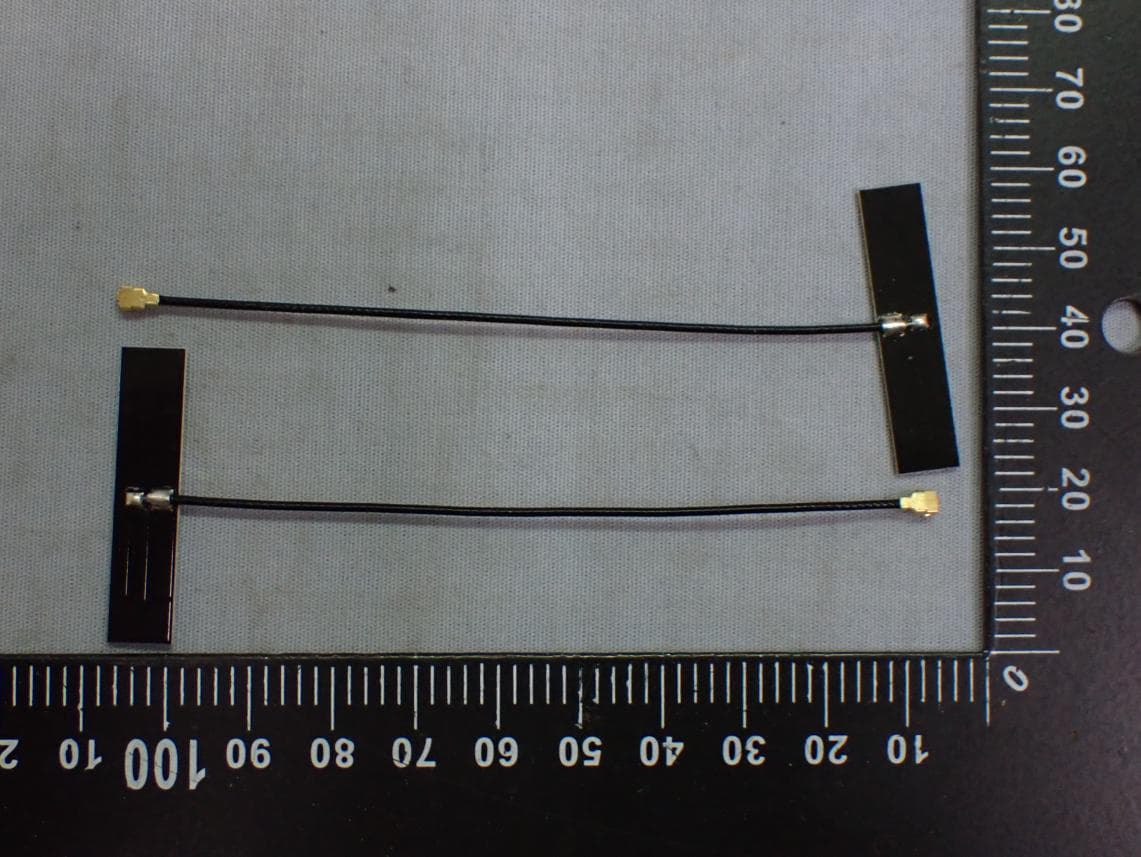

Futaba Corporation Radio Control Module Model : FEX12TB Figure 9 General Appearance (Antennas, Back View) Figure 10 General Appearance (Antennas, Front View)

Futaba Corporation Radio Control Module Model : FEX12TB Label Location  Label Placement Location (Front View)  Label Format Label Placement Location

Futaba Corporation Radio Control Module Model : FEX12TB EUT Internal Photos Figure 11 Internal View (Removed Shielded Case) Figure 12 Internal View (Front View) Futaba Corporation Radio Control Module Model : FEX12TB Figure 13 Internal View (RF Chip)

SAR Test Exclusion Evaluation FCC ID: AZP-FEX12T Product Name: Radio Control Module Model No: FEX12TB The standalone SAR test exclusion shall be refer to FCC § 1.1307 (b)(3)(i)(B) SAR-Based exemption which device determined the distance from antenna to user/bystander. The formula is P th (mW) = ERP 20cm (d / 20) X for distance d ≤ 20cm P th (mW) = ERP 20cm for distance 20cm < d ≤ 40cm where X= - log10 () ERP 20cm (mW) 0.3 GHz ≤ f < 1.5 GHz: 2040f 1.5 GHz ≤ f ≤ 6 GHz: 3060 F = GHz P th (mW) = available maximum time-average power(matched conducted) or effective radiated power, whichever is greater. D = the separation distance (cm) Pursuant to KDB 447498 D04 Interim General RF Exposure Guidance v01 that SAR testing is not required when EUT has output power related to distance satisfy with following table. Centre Frequency (MHz) 5 10 15 20 25 Distance(mm) 2450 3.000 10.000 22.000 38.000 59.000 Power(mW) 5200 2.000 6.000 15.000 26.000 42.000 5500 1.000 6.000 14.000 26.000 41.000 5800 1.000 6.000 14.000 25.000 40.000 30 35 40 45 50 Distance(mm) 2450 83.000 111.000 143.000 179.000 219.000 Power(mW) 5200 61.000 84.000 110.000 110.000 110.000 5500 59.000 82.000 108.000 108.000 108.000 5800 58.000 80.000 106.000 106.000 106.000 7 10 15 20 25 Distance(cm) 2450 415.000 819.000 1770.000 3060.000 3060.000 Power(mW) 5200 350.000 731.000 1689.000 3060.000 3060.000 5500 345.000 725.000 1683.000 3060.000 3060.000 5800 341.000 719.000 1678.000 3060.000 3060.000 30 33 35 37 40 Distance(cm) 2450 3060.000 3060.000 3060.000 3060.000 3060.000 Power(mW) 5200 3060.000 3060.000 3060.000 3060.000 3060.000 5500 3060.000 3060.000 3060.000 3060.000 3060.000 5800 3060.000 3060.000 3060.000 3060.000 3060.000 Frequency (GHz) Tune-up max power (mW) Min. distance (cm) Exclusion Power(mW) 2.4075 50.1 20 3060 Since the exclusion threshold calculated is <3060, thus SAR test is exclusion. Sincerely Yours, Mr. Johnny Hsueh Deputy Manager AUDIX Technology Corporation

No.23-019-2SD アンテナ特性データ ページ 内 容 1...... 表紙（本紙） 2...... 製品名、仕様、最大利得測定結果 3...... VSWR、測定座標軸 4～12 ...... 指向特性 13 ...... 外形図 三省電機株式会社 〒142-0063 東京都品川区荏原5-11-13 TEL 03-3784-5103 http://www.sansei-e.co.jp/ STDANTEMD-013 1 Antenna characteristic data Directivity Outline drawing Measurement coordinate axis model name, Specification, Maximum gain measurement result Front cover (this document) page contents λ/2 ダイポールタイプアンテナタイプ 2400～2500MHz／5150～5850MHz／5925～7125MHz周波数範囲 50 Ωインピーダンス 1.9dBi2400～2500MHz 最大利得（※）2.8dBi5150～5850MHz 1.4dBi5925～7125MHz 直線偏波偏波 36x8mmアンテナサイズ MHFコネクタ 2. 仕様 1. 製品名 STDANTEMD-013 3．最大利得測定結果 ※厚み2mmのABS板上で測定 2 ※厚み2mmのABS板上で測定 周波数[MHz] 2400 2450 2500 最大利得[dBi] 0.9 0.2 1.9 周波数[MHz] 5150 5250 5350 5450 5550 5650 5750 5850 最大利得[dBi] 2.5 2.8 2.1 1.9 1.7 1.5 2.7 1.9 周波数[MHz] 5925 6025 6125 6175 6325 6425 6525 6675 最大利得[dBi] 0.7 0.7 1.4 0.2 -0.2 0.8 0.8 1.3 周波数[MHz] 6775 6875 6925 7025 7125 最大利得[dBi] 0.4 1.0 0.5 0.7 1.3 No.23-019-2SD model name Specification Antenna Type λ/2 dipole type Frequency Range Impedance PolarizationLinear polarization Size Connector Measured on a 2 mm thick ABS plate. Maximum gain measurement result Maximum gain Maximum gain Frequency Frequency Frequency Frequency Maximum gain Maximum gain Maximum gain Measured on a 2 mm thick ABS plate. 4. VSWR +X+Y +Z 5.測定座標軸 3 No.23-019-2SD Measurement coordinate axis 4 6-1. 指向特性 .... 2450MHz Z- Xplane +X +Z -X -Z +X +Z -X -Z +Y +Z -Z -Y -Z +Z -Y +X +Y -X -Y +X +Y -X 水平偏波 Z- Y plane X- Y plane 垂直偏波 -Y +Y -45.0 -40.5 -35.9 -31.4 -26.8 -22.3 -17.7 -13.2 -8.6 -4.1 0.5 5.0 [deg] 0 30 60 90 120 150 180 210 240 270 300 330 -45.0 -40.5 -35.9 -31.4 -26.8 -22.3 -17.7 -13.2 -8.6 -4.1 0.5 5.0 [deg] 0 30 60 90 120 150 180 210 240 270 300 330 -45.0 -40.5 -35.9 -31.4 -26.8 -22.3 -17.7 -13.2 -8.6 -4.1 0.5 5.0 [deg] 0 30 60 90 120 150 180 210 240 270 300 330 -45.0 -40.5 -35.9 -31.4 -26.8 -22.3 -17.7 -13.2 -8.6 -4.1 0.5 5.0 [deg] 0 30 60 90 120 150 180 210 240 270 300 330 -45.0 -40.5 -35.9 -31.4 -26.8 -22.3 -17.7 -13.2 -8.6 -4.1 0.5 5.0 [deg] 0 30 60 90 120 150 180 210 240 270 300 330 -45.0 -40.5 -35.9 -31.4 -26.8 -22.3 -17.7 -13.2 -8.6 -4.1 0.5 5.0 [deg] 0 30 60 90 120 150 180 210 240 270 300 330 No.23-019-2SD Directivity Horizontal polarizationVertical polarization 5 6-1. 指向特性 .... 5150MHz Z- Xplane +X +Z -X -Z +X +Z -X -Z +Y +Z -Z -Y -Z +Z -Y +X +Y -X -Y +X +Y -X 水平偏波 Z- Y plane X- Y plane 垂直偏波 -Y +Y -45.0 -40.5 -35.9 -31.4 -26.8 -22.3 -17.7 -13.2 -8.6 -4.1 0.5 5.0 [deg] 0 30 60 90 120 150 180 210 240 270 300 330 -45.0 -40.5 -35.9 -31.4 -26.8 -22.3 -17.7 -13.2 -8.6 -4.1 0.5 5.0 [deg] 0 30 60 90 120 150 180 210 240 270 300 330 -45.0 -40.5 -35.9 -31.4 -26.8 -22.3 -17.7 -13.2 -8.6 -4.1 0.5 5.0 [deg] 0 30 60 90 120 150 180 210 240 270 300 330 -45.0 -40.5 -35.9 -31.4 -26.8 -22.3 -17.7 -13.2 -8.6 -4.1 0.5 5.0 [deg] 0 30 60 90 120 150 180 210 240 270 300 330 -45.0 -40.5 -35.9 -31.4 -26.8 -22.3 -17.7 -13.2 -8.6 -4.1 0.5 5.0 [deg] 0 30 60 90 120 150 180 210 240 270 300 330 -45.0 -40.5 -35.9 -31.4 -26.8 -22.3 -17.7 -13.2 -8.6 -4.1 0.5 5.0 [deg] 0 30 60 90 120 150 180 210 240 270 300 330 No.23-019-2SD Directivity Horizontal polarizationVertical polarization 6 6-1. 指向特性 .... 5350MHz Z- Xplane +X +Z -X -Z +X +Z -X -Z +Y +Z -Z -Y -Z +Z -Y +X +Y -X -Y +X +Y -X 水平偏波 Z- Y plane X- Y plane 垂直偏波 -Y +Y -45.0 -40.5 -35.9 -31.4 -26.8 -22.3 -17.7 -13.2 -8.6 -4.1 0.5 5.0 [deg] 0 30 60 90 120 150 180 210 240 270 300 330 -45.0 -40.5 -35.9 -31.4 -26.8 -22.3 -17.7 -13.2 -8.6 -4.1 0.5 5.0 [deg] 0 30 60 90 120 150 180 210 240 270 300 330 -45.0 -40.5 -35.9 -31.4 -26.8 -22.3 -17.7 -13.2 -8.6 -4.1 0.5 5.0 [deg] 0 30 60 90 120 150 180 210 240 270 300 330 -45.0 -40.5 -35.9 -31.4 -26.8 -22.3 -17.7 -13.2 -8.6 -4.1 0.5 5.0 [deg] 0 30 60 90 120 150 180 210 240 270 300 330 -45.0 -40.5 -35.9 -31.4 -26.8 -22.3 -17.7 -13.2 -8.6 -4.1 0.5 5.0 [deg] 0 30 60 90 120 150 180 210 240 270 300 330 -45.0 -40.5 -35.9 -31.4 -26.8 -22.3 -17.7 -13.2 -8.6 -4.1 0.5 5.0 [deg] 0 30 60 90 120 150 180 210 240 270 300 330 No.23-019-2SD Vertical polarization Horizontal polarization Directivity 7 6-1. 指向特性 .... 5650MHz Z- Xplane +X +Z -X -Z +X +Z -X -Z +Y +Z -Z -Y -Z +Z -Y +X +Y -X -Y +X +Y -X 水平偏波 Z- Y plane X- Y plane 垂直偏波 -Y +Y -45.0 -40.5 -35.9 -31.4 -26.8 -22.3 -17.7 -13.2 -8.6 -4.1 0.5 5.0 [deg] 0 30 60 90 120 150 180 210 240 270 300 330 -45.0 -40.5 -35.9 -31.4 -26.8 -22.3 -17.7 -13.2 -8.6 -4.1 0.5 5.0 [deg] 0 30 60 90 120 150 180 210 240 270 300 330 -45.0 -40.5 -35.9 -31.4 -26.8 -22.3 -17.7 -13.2 -8.6 -4.1 0.5 5.0 [deg] 0 30 60 90 120 150 180 210 240 270 300 330 -45.0 -40.5 -35.9 -31.4 -26.8 -22.3 -17.7 -13.2 -8.6 -4.1 0.5 5.0 [deg] 0 30 60 90 120 150 180 210 240 270 300 330 -45.0 -40.5 -35.9 -31.4 -26.8 -22.3 -17.7 -13.2 -8.6 -4.1 0.5 5.0 [deg] 0 30 60 90 120 150 180 210 240 270 300 330 -45.0 -40.5 -35.9 -31.4 -26.8 -22.3 -17.7 -13.2 -8.6 -4.1 0.5 5.0 [deg] 0 30 60 90 120 150 180 210 240 270 300 330 No.23-019-2SD Horizontal polarizationVertical polarization Directivity 8 6-1. 指向特性 .... 5850MHz Z- Xplane +X +Z -X -Z +X +Z -X -Z +Y +Z -Z -Y -Z +Z -Y +X +Y -X -Y +X +Y -X 水平偏波 Z- Y plane X- Y plane 垂直偏波 -Y +Y -45.0 -40.5 -35.9 -31.4 -26.8 -22.3 -17.7 -13.2 -8.6 -4.1 0.5 5.0 [deg] 0 30 60 90 120 150 180 210 240 270 300 330 -45.0 -40.5 -35.9 -31.4 -26.8 -22.3 -17.7 -13.2 -8.6 -4.1 0.5 5.0 [deg] 0 30 60 90 120 150 180 210 240 270 300 330 -45.0 -40.5 -35.9 -31.4 -26.8 -22.3 -17.7 -13.2 -8.6 -4.1 0.5 5.0 [deg] 0 30 60 90 120 150 180 210 240 270 300 330 -45.0 -40.5 -35.9 -31.4 -26.8 -22.3 -17.7 -13.2 -8.6 -4.1 0.5 5.0 [deg] 0 30 60 90 120 150 180 210 240 270 300 330 -45.0 -40.5 -35.9 -31.4 -26.8 -22.3 -17.7 -13.2 -8.6 -4.1 0.5 5.0 [deg] 0 30 60 90 120 150 180 210 240 270 300 330 -45.0 -40.5 -35.9 -31.4 -26.8 -22.3 -17.7 -13.2 -8.6 -4.1 0.5 5.0 [deg] 0 30 60 90 120 150 180 210 240 270 300 330 No.23-019-2SD Vertical polarization Horizontal polarization Directivity 9 6-1. 指向特性 .... 6125MHz Z- Xplane +X +Z -X -Z +X +Z -X -Z +Y +Z -Z -Y -Z +Z -Y +X +Y -X -Y +X +Y -X 水平偏波 Z- Y plane X- Y plane 垂直偏波 -Y +Y -45.0 …

Text truncated - open the document above for the full version.

Page 1 of 28 Audix Technology Corp. Tel: +886 2 26099301 No. 491, Zhongfu Rd., Linkou Dist., Fax: +886 2 26099303 New Taipei City244,Taiwan File Number: C1M2607074 Report Number: EM-F260405 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. FCC 15.247 & RSS-247 2.4GHz Test Report for FUTABA Corporation 1080 Yabutsuka Chosei-mura Chosei-gun, Chiba-ken, 299-4395 Japan Product Name : Radio Control Module Model Name : FEX12TB Brand : Futaba FCC ID : AZP-FEX12T IC : 2914D-FEX12T Prepared by: : AUDIX Technology Corporation, EMC Department The test report is based on a single evaluation of one sample of the above-mentioned products. It does not imply an assessment of the whole production and does not permit the use of the test lab logo. Page 2 of 28 Audix Technology Corp. Tel: +886 2 26099301 No. 491, Zhongfu Rd., Linkou Dist., Fax: +886 2 26099303 New Taipei City244,Taiwan File Number: C1M2607074 Report Number: EM-F260405 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. TABLE OF CONTENTS Description Page TEST REPORT ................................................................................................................................... 4 1. REVISION RECORD OF TEST REPORT ............................................................................ 5 2. Summary of TEST results ......................................................................................................... 6 3. GENERAL INFORMATION ................................................................................................... 7 3.1. Description of Application .............................................................................................................. 7 3.2. Description of EUT ......................................................................................................................... 8 3.3. Reference Test Guidance ................................................................................................................. 8 3.4. Antenna Information ....................................................................................................................... 9 3.5. UT Specifications Assessed in Current Report ............................................................................... 9 3.6. Description of Key Components ..................................................................................................... 9 3.7. Test Configuration ......................................................................................................................... 10 3.8. Output Power Setting .................................................................................................................... 11 3.9. Tested Supporting System List ...................................................................................................... 12 3.10. Setup Configuration ....................................................................................................................... 12 3.11. Operating Condition of EUT ......................................................................................................... 12 3.12. Description of Test Facility ........................................................................................................... 13 3.13. Measurement Uncertainty ............................................................................................................. 14 4. MEASUREMENT EQUIPMENTLIST ................................................................................. 16 4.1. Conducted Emission Measurement ............................................................................................... 16 4.2. Radiated Emission Measurement .................................................................................................. 16 4.3. RF Conducted Measurement ......................................................................................................... 16 5. CONDUCTED EMISSION ..................................................................................................... 17 5.1. Block Diagram of Test Setup ........................................................................................................ 17 5.2. Conducted Emission Limit ............................................................................................................ 17 5.3. Test Procedure ............................................................................................................................... 17 5.4. Test Results ................................................................................................................................... 17 6. RADIATED EMISSION ......................................................................................................... 18 6.1. Block Diagram of Test Setup ........................................................................................................ 18 6.2. Radiated Emission Limits .............................................................................................................. 19 6.3. Test Procedure ............................................................................................................................... 20 6.4. Measurement Result Explanation .................................................................................................. 21 6.5. Test Results ................................................................................................................................... 21 7. 20dB/Occupied Bandwidth ..................................................................................................... 22 7.1. Block Diagram of Test Setup ..................................................…

Text truncated - open the document above for the full version.

APPENDIX A-Page 1 of 34 Audix Technology Corp. Tel: +886 2 26099301 No. 491, Zhongfu Rd., Linkou Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M2607074 Report Number: EM-F260405 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. TABLE OF CONTENTS A.1 CONDUCTED EMISSION ...................................................................................................... 2 A.2 RADIATED EMISSION .......................................................................................................... 4 A.2.1 Emissions within Restricted Frequency Bands ............................................................................. 4 A.2.2 Emissions outside the frequency band ........................................................................................ 14 A.2.3 Emissions in Non-restricted Frequency Bands ........................................................................... 21 A.3 20dB BANDWIDTH ............................................................................................................... 22 A.3.1 20dB Bandwidth Result .............................................................................................................. 22 A.3.2 Measurement Plots ..................................................................................................................... 23 A.4 CARRIER FREQUENCY SEPARATION .......................................................................... 24 A.5 TIME OF OCCUPANCY ....................................................................................................... 26 A.5.1 Time of Occupancy .................................................................................................................... 26 A.6 NUMBER OF HOPPING CHANNELS ............................................................................... 29 A.7 MAXIMUM PEAK OUTPUT POWER ............................................................................... 30 A.7.1 Maximum Peak Output Power .................................................................................................... 30 A.8 EMISSION LIMITATIONS MEASUREMENT ................................................................. 32 A.8.1 Band Edge................................................................................................................................... 32 A.8.2 Spurious Emission ...................................................................................................................... 34 APPENDIX A-Page 2 of 34 Audix Technology Corp. Tel: +886 2 26099301 No. 491, Zhongfu Rd., Linkou Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M2607074 Report Number: EM-F260405 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. A.1 CONDUCTED EMISSION Test Date 2026/07/28 Temp./Hum. 25°C/57% Test Voltage DC 5V (Through jig via DC Power Supply) Tested By Jemy Wang APPENDIX A-Page 3 of 34 Audix Technology Corp. Tel: +886 2 26099301 No. 491, Zhongfu Rd., Linkou Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M2607074 Report Number: EM-F260405 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. Test Date 2026/07/28 Temp./Hum. 25°C/57% Test Voltage DC 5V (Through jig via DC Power Supply) Tested By Jemy Wang APPENDIX A-Page 4 of 34 Audix Technology Corp. Tel: +886 2 26099301 No. 491, Zhongfu Rd., Linkou Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M2607074 Report Number: EM-F260405 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. A.2 RADIATED EMISSION Test Date 2026/07/20~08/21 Temp./Hum. 23.6~25°C/39~49% Test Voltage DC 5V (Through jig via DC Power Supply) Tested By Harry Huang A.2.1 Emissions within Restricted Frequency Bands A.2.1.1 Frequency 9kHz~30MHz The emissions (9kHz~30MHz) not reported for there is no emission be found. A.2.1.2 Frequency Below 1GHz Antenna A Frequency TX 2407.5MHz Antenna at Horizontal Polarization Emission Frequency Antenna Factor Cable Loss Preamp Gain Reading level Emission Level Limits Margin Detector (MHz) (dB/m) (dB) (dB) (dBV) (dBV/m) (dBV/m) (dB) 102.000 17.42 2.59 26.26 32.43 26.19 43.50 17.31 Peak 168.000 16.17 3.39 25.91 40.40 34.04 43.50 9.46 Peak 253.000 18.82 4.21 25.68 33.55 30.90 46.00 15.10 Peak 397.000 22.04 6.02 26.39 33.07 34.74 46.00 11.26 Peak 540.000 24.08 7.02 27.21 36.61 40.50 46.00 5.50 Peak 624.000 24.82 7.26 27.39 28.43 33.12 46.00 12.88 Peak Antenna at Vertical Polarization Emission Frequency Antenna Factor Cable Loss Preamp Gain Reading level Emission Level Limits Margin Detector (MHz) (dB/m) (dB) (dB) (dBV) (dBV/m) (dBV/m) (dB) 81.000 13.65 2.34 26.32 37.33 27.00 40.00 13.00 Peak 196.000 15.77 3.64 25.80 34.18 27.79 43.50 15.71 Peak 324.000 20.25 5.05 25.82 29.30 28.78 46.00 17.22 Peak 406.000 22.20 6.12 26.45 32.27 34.13 46.00 11.87 Peak 540.000 24.08 7.02 27.21 36.63 40.52 46.00 5.48 Peak 664.000 24.98 7.47 27.40 28.50 33.54 46.00 12.46 Peak APPENDIX A-Page 5 of 34 Audix Technology Corp. Tel: +886 2 26099301 No. 491, Zhongfu Rd., Linkou Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M2607074 Report Number: EM-F260405 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. Antenna B Frequency TX 2407.5MHz Antenna at Horizontal Polarization Emission Frequency Antenna Factor Cable Loss Preamp Gain Reading l…

Text truncated - open the document above for the full version.

APPENDIX B-Page 1 of 5 AUDIX Technology Corp. Tel: +886 2 26099301 No. 491, Zhongfu Rd., Linkou Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M2607074 Report Number: EM-F260405 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. B.1 Conducted Emission Measurement FRONT VIEW BACK VIEW APPENDIX B-Page 2 of 5 AUDIX Technology Corp. Tel: +886 2 26099301 No. 491, Zhongfu Rd., Linkou Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M2607074 Report Number: EM-F260405 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. B.2 Radiated Measurement at Chamber Frequency Below to 1GHz Test Position: Stand Test Position: Lie APPENDIX B-Page 3 of 5 AUDIX Technology Corp. Tel: +886 2 26099301 No. 491, Zhongfu Rd., Linkou Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M2607074 Report Number: EM-F260405 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. Test Position: Side Frequency Above to 1GHz Test Position: Stand APPENDIX B-Page 4 of 5 AUDIX Technology Corp. Tel: +886 2 26099301 No. 491, Zhongfu Rd., Linkou Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M2607074 Report Number: EM-F260405 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. Test Position: Lie Test Position: Side APPENDIX B-Page 5 of 5 AUDIX Technology Corp. Tel: +886 2 26099301 No. 491, Zhongfu Rd., Linkou Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M2607074 Report Number: EM-F260405 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. B.3 RF Conducted Measurement
