AZPFMT01-24GRadio Control

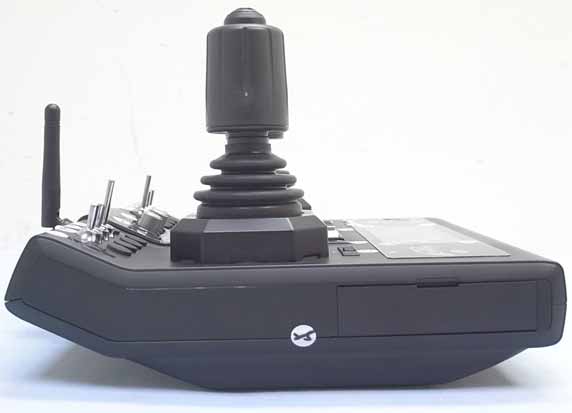

Futaba Corporation Radio Control FCC ID. : AZPFMT01-24G EUT External Photos Figure 1 General Appearance (Front View) Figure 2 General Appearance (Back View) Antenna Futaba Corporation Radio Control FCC ID. : AZPFMT01-24G Figure 3 General Appearance (Side View) Figure 4 General Appearance (Side View)

Futaba Corporation Radio Control FCC ID. : AZPFMT01-24G FCC ID Label Location z Label Placement Location z FCC ID Label Format FCC ID Label Placement Location

Futaba Corporation Radio Control FCC ID. : AZPFMT01-24G EUT Internal Photos Figure 5 Internal View (Removed Cover) Figure 6 Internal View (Removed Battery) Futaba Corporation Radio Control FCC ID. : AZPFMT01-24G Figure 7 Internal View (Battery View) Figure 8 Internal View Futaba Corporation Radio Control FCC ID. : AZPFMT01-24G Figure 9 Internal View Figure 10 Internal View Futaba Corporation Radio Control FCC ID. : AZPFMT01-24G Figure 11 Internal View (Panel, Front View) Figure 12 Internal View (Panel, Back View) Futaba Corporation Radio Control FCC ID. : AZPFMT01-24G Figure 13 Internal View (Control Board, Front View) Figure 14 Internal View (Control Board, Back View) Futaba Corporation Radio Control FCC ID. : AZPFMT01-24G Figure 15 Internal View (Control Board, Front View) Figure 16 Internal View (Control Board, Back View) Futaba Corporation Radio Control FCC ID. : AZPFMT01-24G Figure 17 Internal View (Control Board, Front View) Figure 18 Internal View (Control Board, Back View) Futaba Corporation Radio Control FCC ID. : AZPFMT01-24G Figure 19 Internal View (Control Board, Front View) Figure 20 Internal View (Control Board, Back View) Futaba Corporation Radio Control FCC ID. : AZPFMT01-24G Figure 21 Internal View (Control Board, Removed Metal Cover) Figure 22 Internal View (Control Board) Futaba Corporation Radio Control FCC ID. : AZPFMT01-24G Figure 23 Internal View (RF Board, , Removed Metal Cover, Front View) Figure 24 Internal View (RF Board, , Removed Metal Cover, Back View) Futaba Corporation Radio Control FCC ID. : AZPFMT01-24G Figure 25 Internal View (Control Board, Front View) Figure 26 Internal View (Control Board, Back View)

Maximum Permissive Exposure FCC ID: AZPFMT01-24G Product Name: Radio Control Model No: FMT-01 1. According to FCC CFR 47 §1.1310, the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b). Table 1 Limits for Maximum Permissible Exposure 2. MPE Calculation Futaba Corporation declares that the product described above has been evaluated and found to comply with the RF exposure limits for humans, as specified based on ANSI/FCC recommendation. In Radio Technology: FASST Modulation Based on safety distance (r) 20cm, the antenna gain (G) is 1.413 Numerical, and the highest power output (P) is 50.038mW, the power density (S) is 0.014066mW/cm^2. RF Exposure Calculations: S = (P * G) / (4* * r^2) or r = (P * G) / (4 * * S) Where : Based on safety distance (r)= 20cm Highest Power Output (P)= 16.993 dBm = 50.038mW Antenna Gain (G)= 1.5 dBi = 1.413Numerical MPE (S) = (P*G) / (4*π*r 2 ) = = (50.038*1.413)/(4*4*π*20 2 )= 0.014066 mW/cm 2 Sincerely Yours, ____________________________________ Mr. Ben Cheng Manager AUDIX Technology Corporation

FCC ID: AZPFMT01-24G Page 1 of 48 AUDIX Technology Corporation Report No. EM-F150096 FCC 15.247 for DSSS System Report On Behalf of FUTABA Corporation Radio Control Model No. : FMT-01 FCC ID : AZPFMT01-24G Brand: Futaba Prepared for : FUTABA Corporation 1080 Yabutsuka Chosei-mura Chosei-gun Chiba-ken, 299-4395 Japan. Prepared by : AUDIX Technology Corporation EMC Department No. 53-11, Dingfu, Linkou Dist., New Taipei City 244, Taiwan Tel : (02) 2609-9301, 2609-2133 Fax: (02) 2609-9303 File Number C1M1502072 Report Number EM-F150096 Date of Test 2015. 02. 10 ~ 11 Date of Report 2015. 02. 25 FCC ID: AZPFMT01-24G Page 2 of 48 AUDIX Technology Corporation Report No. EM-F150096 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION ............................................................................................. 4 1. DESCRIPTION OF REVISION HISTORY .......................................................................... 5 2. GENERAL INFORMATION .................................................................................................. 6 2.1. Description of Device (EUT) ........................................................................................................... 6 2.2. Description of Test Facility ............................................................................................................. 7 2.3. Measurement Uncertainty ................................................................................................................ 7 3. CONDUCTED EMISSION MEASUREMET ........................................................................ 8 4. RADIATED EMISSION MEASUREMENT ......................................................................... 9 4.1. Test Equipment ................................................................................................................................ 9 4.2. Test Setup ........................................................................................................................................ 9 4.3. Radiated Emission Limits (§15.209) ............................................................................................. 11 4.4. Operating Condition of EUT ......................................................................................................... 11 4.5. Test Procedure ............................................................................................................................... 12 4.6. Test Results .................................................................................................................................... 13 5. 6dB BANDWIDTH MEASUREMENT ................................................................................ 26 5.1. Test Equipment .............................................................................................................................. 26 5.2. Block Diagram of Test Setup......................................................................................................... 26 5.3. Specification Limits [§15.247(a)(2)] ............................................................................................. 26 5.4. Operating Condition of EUT ......................................................................................................... 26 5.5. Test Procedure ............................................................................................................................... 26 5.6. Test Results .................................................................................................................................... 26 6. MAXIMUM PEAK OUTPUT POWER MEASUREMENT .............................................. 28 6.1. Test Equipment .............................................................................................................................. 28 6.2. Block Diagram of Test Setup......................................................................................................... 28 6.3. Specification Limits (§15.247(b)-(3)) ............................................................................................ 28 6.4. Operating Condition of EUT ......................................................................................................... 28 6.5. Test Procedure ............................................................................................................................... 28 6.6. Test Results .................................................................................................................................... 28 7. REFERENCE LEVEL ........................................................................................................... 30 7.1. Test Equipment .............................................................................................................................. 30 7.2. Block Diagram of Test Setup......................................................................................................... 30 7.3. Operating Condition of EUT ......................................................................................................... 30 7.4. Test Procedure ............................................................................................................................... 30 7.5. Test Results .................................................................................................................................... 30 8. EMISSION LIMITATIONS MEASUREMENT ................................................................. 32 8.1. Test Equipment .............................................................................................................................. 32 8.2. Block Diagram of Test Setup......................................................................................................... 32 8.3. Specification Limits [§15.247(c)] .................................................................................................. 32 8.4. Operating Condition o…

Text truncated - open the document above for the full version.

FCC ID: AZPFMT01-24G Page 45 of 48 AUDIX Technology Corporation Report No. EM-F150096 12. PHOTOGRAPHS 12.1.Photos of Radiated Measurement at Semi-Anechoic Chamber 12.1.1.Frequency Range 30MHz~1GHz, Test Position: Stand Test Position: Side FCC ID: AZPFMT01-24G Page 46 of 48 AUDIX Technology Corporation Report No. EM-F150096 Test Position: Lie 12.1.2.Frequency Range Above 1GHz Test Position: Stand FCC ID: AZPFMT01-24G Page 47 of 48 AUDIX Technology Corporation Report No. EM-F150096 Test Position: Side Test Position: Lie FCC ID: AZPFMT01-24G Page 48 of 48 AUDIX Technology Corporation Report No. EM-F150096 12.2.Photo of Section RF Conducted Measurement
