AZPFP-T3FR-F72Remote Control

Thank you for purchasing a Futaba 2PH/2PHKA. Before using your 2PH/2PHKA, read this manual carefully and use your R/C set safely. After reading this manual, store it in a safe place. -No part of this manual may be reproduced in any form without prior permission. -The contents of this manual are subject to change without prior notice. -This manual has been carefully written. Please write to Futaba if you feel that any corrections or clarifications should be made. -Futaba is not responsible for the use of this product. APPLICATION, EXPORT, AND RECONSTRUCTION 1. This product may be used for models only. The product described in this manual is subject to regulations of the Ministry of Radio/Telecommu- nications and is restricted under Japanese law to such purposes. 2. Exportation precautions (a) When this product is exported from Japan, its use is to be approved by the Radio Law of the country of destination. (b) Use of this product with other than models may be restricted by Export and Trade Control Regu- lations. An application for export approval must be submitted. 3. Modification, adjustment, and replacement of parts Futaba is not responsible for unauthorized modification, adjustment, and replacement of parts of this product. THE FOLLOWING STATEMENT APPLIES TO THE RECEIVER (FOR U.S.A.) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. THE RBRC TM SEAL (FOR U.S.A.) The RBRC TM SEAL on the (easily removable) nickel-cadmium battery contained in Futaba products indicates that Futaba Corporation of America is voluntarily participating in an industry program to collect and recycle these batteries at the end of their useful lives, when taken out of service within the United States. The RBRC TM program provides a convenient alternative to placing used nickel-cad- mium batteries into the trash or municipal waste which is illegal in some areas. Futaba Corporation of America's payments to RBRC TM makes it easy for you to return the spent bat- tery to Futaba for recycling purposes. You may also contact your local recycling center for informa- tion on where to return the spent battery. Please call 1-800-8-BATTERY for information on Ni-Cd battery recycling in your area. Futaba Corporation of America's involvement in this program is part of its commitment to protecting our environment and conserving natural resources. NOTE: Our instruction manuals need to encourage our customers to return spent batteries to Futaba or a local recycling center in order to keep a healthy environment. RBRC TM is a trademark of the Rechargeable Battery Recycling Corporation. Warning: This product contains a chemical known to cause cancer and birth defects (or other reproductive harm). 1 Before Operation ........................................................................ 6 System Contents.............................................................................................................................6 Nomenclature / Handling.............................................................................................................7 Assembly / Adjustment .............................................................. 9 Receiver And Servo Connection.................................................................................................9 Assembly Precautions.................................................................................................................10 Digital Proportional Adjustment..............................................................................................12 Safety Precautions ...................................................................... 2 Definition Of Symbols....................................................................................................................2 Running Preparations Safety Precautions................................................................................2 Running Safety Precautions.........................................................................................................3 Storage And Disposal Safety Precautions................................................................................4 Other Safety Precautions.............................................................................................................5 Description Of Functions ......................................................... 13 Steering Trim................................................................................................................................13 Throttle Trim................................................................................................................................13 Servo Reverse................................................................................................................................13 Steering EPA..................................................................................................................................14 Throttle EPA.................................................................................................................................14 Steering D/R...................................................................................................................................14 MC230CR/MC330CR....................................................................................................................15 Reference ................................................................................... 16 Ratings.............................................................................................................................................16 Troubleshooting............................................................................................................................17 Table Of C…

Text truncated - open the document above for the full version.

Request for Confidentiality December 11, 2001 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID:AZPFP-T3FR-F72 Please be advised that the following information is to be held confidential and behalf of Futaba Corporation: • Block Diagram • Schematics • Description of Operation The application contains technical information which Futaba Corporation deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Signatory Johann Roidt

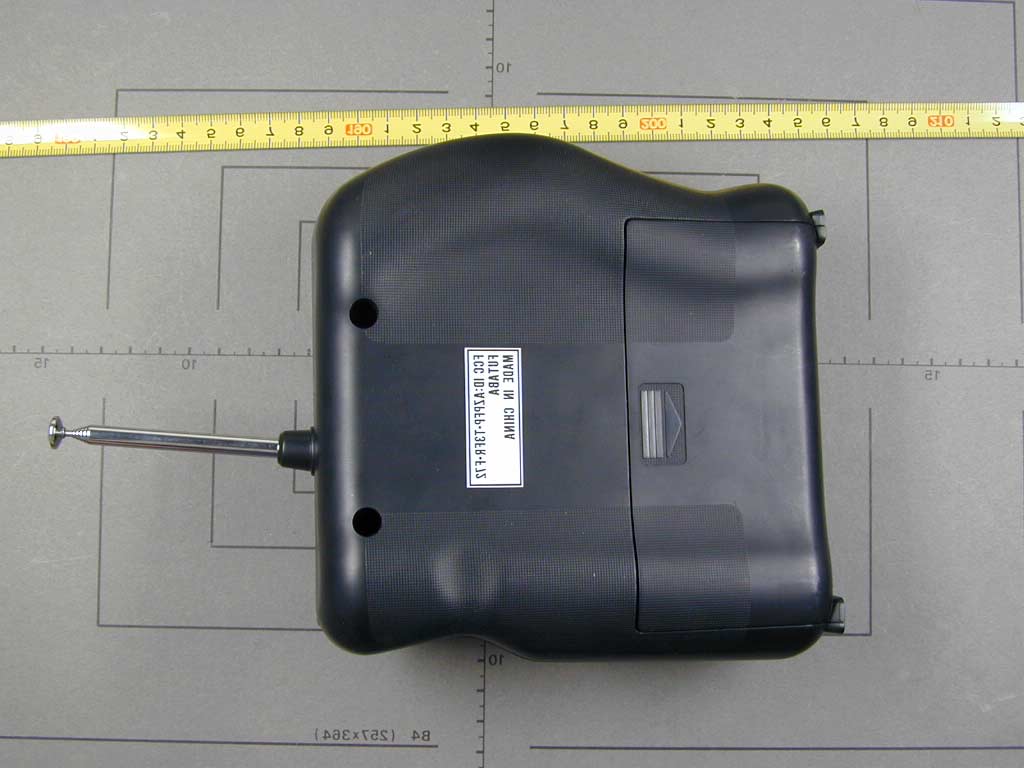

FCC ID: AZPFP-T3FR-F72External Photos Page 1 of 2 FCC ID AZPFP-T3FR-F72 External Photographs FCC ID: AZPFP-T3FR-F72External Photos Page 2 of 2

EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC ID: AZPFP-T3FR-F72 Label Information

FCC ID: AZPFP-T3FR-F72Internal Photos Page 1 of 3 FCC ID AZPFP-T3FR-F72 Internal Photographs FCC ID: AZPFP-T3FR-F72Internal Photos Page 2 of 3 FCC ID: AZPFP-T3FR-F72Internal Photos Page 3 of 3

EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: AZPFP-T3FR-F72Test Report No. 55503-10615-1 Page 1 of 53 Pages Straubing, July 30, 2001 T E S T - R E P O R T No. 55503-10615-1 for T3FR-FM (72.550 MHz) R/C Transmitter Applicant:Futaba Corporation Purpose of testing:To show compliance with - FCC Code of Federal Regulations, CFR 47, Part 95 - FCC Code of Federal Regulations, CFR 47, Part 2, Subpart J Note: The test data of this report relate only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: AZPFP-T3FR-F72Test Report No. 55503-10615-1 Page 2 of 53 Pages Table of Contents 1. Administrative Data ..............................................................................................3 2. Identification of Test Laboratory ...........................................................................4 3. Summary of Test Results.....................................................................................5 4. Operation Mode of EUT .......................................................................................6 5. Configuration of EUT and Peripheral Devices ......................................................7 6. Measuring Methods..............................................................................................8 6.1. Maximum Transmitter Power (ß95.639) ........................................................8 6.2. Frequency tolerance (ß95.623) ...................................................................10 6.3. Emission Bandwidth (ß95.633) ....................................................................12 6.4. Unwanted Emission 30 MHz - 1 GHz (ß95.635, ß95.639) ...........................13 7. Equipment List ...................................................................................................15 8. Referenced Regulations.....................................................................................17 9. List of Measurements.........................................................................................18 10. List of Measurements.........................................................................................19 11. Additional Results ..............................................................................................29 EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: AZPFP-T3FR-F72Test Report No. 55503-10615-1 Page 3 of 53 Pages 1.Administrative Data Equipment Under Test (EUT):T3FR-FM (72.550 MHz) Serial number(s):01001 Type of equipment:R/C Transmitter Type of emission:F1D Parts/accessories:--- FCC-ID:AZPFP-T3FR-F72 Applicant:Futaba Corporation (full address)R/C Engineering Unit 1 1080, Yabutsuka Chosei-son, Chosei-gun, Chiba-ken, 299-4395 Japan Contract identification:--- Contact person:Mr. Nobumitsu Kanetsuna Manufacturer:Futaba Corporation Receipt of EUT:September 14, 2001 Dates of test:September to November, 2001 Note:--- Responsible for testing:Thomas Eberl Responsible for test report:Thomas Eberl (cj) EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: AZPFP-T3FR-F72Test Report No. 55503-10615-1 Page 4 of 53 Pages 2.Identification of Test Laboratory Test Laboratory:Senton GmbH EMI/EMC Test Center (full address):Aeussere Fruehlingstrasse 45 D-94315 Straubing Germany Contact person:Mr. Johann Roidt Communication:Telephone(+49) 0 94 21 / 55 22-0 Fax (+49) 0 94 21 / 55 22-99 eMail:[email protected] FCC registration number:90926 Industry Canada file number:IC 3050 EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: AZPFP-T3FR-F72Test Report No. 55503-10615-1 Page 5 of 53 Pages 3.Summary of Test Results The tested sample complies with the requirements for set forth in the The Code of Federal Regulations 47, Part 95, Subpart C & E and The Code of Federal Regulations 47 Part 2, Subpart J. of the Federal Communication Commission (FCC). Johann RoidtThomas Eberl Technical ManagerTest Engineer EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: AZPFP-T3FR-F72Test Report No. 55503-10615-1 Page 6 of 53 Pages 4.Operation Mode of EUT • transmitting continuously 1 • with battery supply nominal 12.0 V DC (8 x 1.5 AA cel) 2 • antenna extended to maximum 3 • operating with f = 72.550 MHz For conducted measurements a dummy load was used as delivered by applicant. A short description of the circuit and the method to stop modulation can be found in the following figure. 1 Modulation as indicated on appropriate test record 2 For conducted measurements replaced by external DC supply 3 For radiated emissions only EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: AZPFP-T3FR-F72Test Report No. 55503-10615-1 Page 7 of 53 Pages 5.Configuration of EUT and Peripheral Devices EUT is configured as stand-alone device Configuration of cables of EUT Not applicable Configuration of peripheral devices connected to EUT Not applicable EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: AZPFP-T3FR-F72Test Report No. 55503-10615-1 Page 8 of 53 Pages 6.Measuring Methods 6.1. Maximum Transmitter Power (ß95.639) The maximum transmitter power was measured conducted and radiated. 6.1.1.Conducted Maximum Transmitter Power A spectrum analyzer / EMI test receiver was connected to the output of the transmitter power amplifier (conducted measurement) via dummy load while EUT was operating in transmit mode using the assigned frequency. The trace mode of the spectrum analyzer was set to max hold with: RBW = 100 kHz, VBW = 100 kHz, span = 1 MHz, sweep = 20 ms (auto mode) See figure 1 for the measurement setup. Test equipment used (see equipment list for details): 02, 18, 51, 69, 70, 71 5 8 3 1 6 4 7 2 Figure 1: Measurement setup for testing on antenna connector 1 Transmitter (EUT) 5 Test cable 2 Dummy load 6 DC-block 3 Wooden table 7 Attenuator 4 DC power supply 8 Spectrum analyzer EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: AZPFP-T3FR-F72Test Report No. 55503-10615-1 Page 9 of 53 Pages 6.1.2.Radiated Maximum Transmitter Power Radiated Maximum Transmit…

Text truncated - open the document above for the full version.

FCC ID: AZPFP-T3FR-F72 Test Setup Photos Page 1 of 2 FCC ID AZPFP-T3FR-F72 Test Setup Photos FCC ID: AZPFP-T3FR-F72 Test Setup Photos Page 2 of 2
