AZPFRH-SD06TULow Power Radio Modem

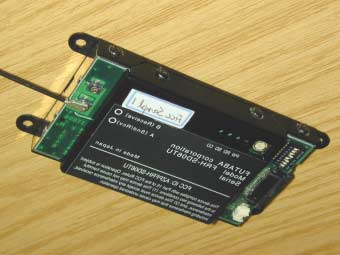

FCC ID: AZPFRH-SD06TU External Photographs

FCC ID: AZPFRH-SD06TU Label Information

FCC ID: AZPFRH-SD06TU Internal Photographs

FRH-SDO6TU Theory of Operation 24 th Mar 2000 Radio Control Equipment Group Futaba Corporation -- Outline FRH-SDO6TU is a 2.4GHz radio modem using modern digital modulation technology. . Data Terminal Equipment (DTE) interface is RS-232C(TTL), best fit for industrial use data communication. Communication speed is from 300bps to 38400bps. Two basic communication mode over the radio link, data transparency mode and packet transmission mode, are available. The data transparency mode acts just like two terminal being connected by wire. No needs to be aware of the existence of the radio link or radio modem. The packet transmission mode uses a command to send a message to specified destination modem. The command can control the packet transmission operation, therefore, N to M terminal multiple communication can be achievable. The system has 24 individual channels to be able to operate among different communication systems in same area without effecting each other. Each channel can be operate at a group mode. Pair of modem communicate on a channel where channel condition is cood. Once conditions goes bad, the modem searches the frequency in the group where condition is good. Each channel allocates in the space of 2MHz. -- Applications Main application of the modem is industrial use data transferring such as Automated Guided Vehicle (AGV), item picking cart system in a warehouse, between CAD terminal and Numeric Controlled (NC) tooling, machine, production line processing schedule and result information etc.. -- Transmission Power The modem peak output power is within the requirements of section 15.249 of the FCC Rules. The modem is already approved under other standard, e.g. RCR-STD33 (Japan). --System circuitry operation (The system diagram figtire is attached) 1 Transmission Path Modulation data generated from control micro processor is fed to modulation processing LSI. This digital signal will be transmission radio signal at lst IF frequency by modulate the local oscillator, in the FSK Modulation directly by the digital signal. The transmission signal goes through the buffer amplifier and transmission power control circuit and is converted at frequency mixer section with lst local signal to 2.4GHz. This 2.4GHz signal is amplified and finally radiated from the antenna. 2 Receive Path Receive path consist of TX/RX common-use antenna circuit and reception-use antenna circuit. These two antenna circuits are configured to be able to use the diversity reception function. Received signal, good reception condition is selected by ihe diversity function, is fed to low noise amplifier. The amplified signal is converted into lst IF. The lst IF signal is again filtered and amplified and fed into FM demodulation IC which operates both 2nd IF amplifier operation and demodulation operation. In the demodulation IC, after the signal is amplified, the signal is lead to the limiting amplifier and is demodulated by the quadrature FM demodulation circuit. 3 Control The microprocessor handles all of the operation include RF control and serial (RS232C) control. Especially, in the RF circuit control, the processing of the microprocessor is mainly PLL frequency sett ing and transmission and receive data generation and control. -2- FRH-SDO6TU TWO-WAY WIRELESS COMMUNICATION SYSTEM Radio Control Equipment Dept., FUTABA Corp. FEATURES 1 The operating distance is approximately 200 feet indoors and 1000 feet outdoors(line of sight with no obstructions) 2 The transmitter operates in the 2.4GHz frequency band, and uses modern digital modulation technology. This technology is suitable for withstanding noise interference or multi-path fading channels. 3 The FRH-SDO6TU is approved under RCR STD-33, the Japanese regulation rules. 4 The Time-divided half duplex packet communication enables full duplex two-way communication between two terminals. 5 The FRH-SDO6TU has 24 individual channels . Up to 24channels can be used in one area. 6 The software command function enables the N to M terminal communication application. 7 External interface conforming to RS-232C(TTL level interface), can interface PC directly. Supports DTE speed up to 3840Obps. 8 Small sized 3.3x2x0.5inches 9 Wide range of power supply from 3.3V to 10V DC. SPECIFICATIONS 1 Radio Characteristics Regulation RCR-STD33 (Japanese version) FCC Rules Part 15.249 (U.S. version) Radio Communication Half Duplex Frequency Range 2472MHz - 2595MHz (Japanese version) Channel 24 Frequency control Crystal controlied frequency synthesizer Antenna configuration RX antenna diversity Operating Distance 200 feet indoors 1000 feet outdoors: Line of sight, no obstructions 2 Radio communication control Error checking CRC-CCITT Error handling ARQ (Automatic Resend Query) Multi access function Connect at good channel in channel group 3 Data terminal interface Data interface RS 232 C (TTL Serial) Physical interface Flat cable connector Communication Half Duplex / Full Duplex Synchronization Asynchronous Data buffers TX, RX Baud rate up to 38400 bps Data flow control XON/XOFF, RTS/CTS Data length 7 or 8 bit Stop bit 1 or 2 Parity bit Odd, Even or None 4 General Power source DC 3.3 - 10V) Operating Temperature -100°C to +50°C Storage Temperature -2°C to +60°C Humidity Up to 90% RH, no-condensing Indicator 2 color LED Control connector Monitor output, Reset input Case Black anodized aluminum Dimensions 3.3 x 2 x 0.5 inches excluding antenna Weight Approximately 3.5oz, lOOg

FCC-ID: AZPFRH-SD06TUTest Report No. 55503-00169 Page 1 of 90 Pages


   Straubing, July 21, 2000 T E S T - R E P O R T No. 55503-00192 for RF-Modem Module FRH-SD06TU Applicant:Futaba Corporation of America Purpose of testing:To show compliance with FCC Code of Federal Regulations, Part 15 Subpart C, Section §15.249 Note: The test data of this report relate only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. FCC-ID: AZPFRH-SD06TUTest Report No. 55503-00169 Page 2 of 90 Pages


   Table of Contents 1. Administrative Data3 2. Summary of Test Results4 3. Operation Mode of EUT5 4. Changes made to the EUT during this certification test6 5. Configuration of EUT and Peripheral Devices7 6. Measuring Methods8 7. Photographs Taken During Testing14 8. List of Measurements17 9. Test Results18 Field Strength of Emissions according to FCC Rules, Part 15, Subpart C, Section 15.249 (a)19 Field Strength of Emissions according to FCC Rules, Part 15, Subpart C, Section 15.249 (c) Calculation of final result using the duty cycle correction factor20 Requirements for Approval of Modular Transmitters according to Public Notice DA 00-140721 Field Strength of Emissions according to FCC Rules, Part 15, Subpart C, Section 15.209 - Receive Mode -22 10. Equipment List23 11. Charts Taken During Testing25 FCC-ID: AZPFRH-SD06TUTest Report No. 55503-00169 Page 3 of 90 Pages


   1.Administrative Data Equipment Under Test (EUT):FRH-SD06TU Type of equipment:RF Modem Module Parts/accessories:--- Serial number:FCC Sample 01 Version of EUT:As delivered FCC-ID:AZPFRH-SD06TU Applicant: (full address) Futaba Corporation of America Industrial Radio Control Department 1605 Penny Lane Schaumburg, IL 60173, USA Contract identification:N/A Contact person:Mr. Satoru Ishii Manufacturer:Futaba Corporation, Japan Receipt of EUT:March 27, 2000 Date of test:April 2000 Responsible for testing:Mr. Johann Roidt Responsible for test report:Mr. Johann Roidt FCC-ID: AZPFRH-SD06TUTest Report No. 55503-00169 Page 4 of 90 Pages


   2.Summary of Test Results The tested sample fully complies with the requirements for intentional radiators set forth in the Code of Federal Regulations CFR 47 Part 15 Subpart C, Section §15.249 of the Federal Communication Commission (FCC). Johann Roidt Technical Manager FCC-ID: AZPFRH-SD06TUTest Report No. 55503-00169 Page 5 of 90 Pages


   3.Operation Mode of EUT During all test the EUT was operated on a dedicated interface board on which the level conversion from RS 232 to TTL is done. The EUT was operated in test modi to give access to individual RF channels and RX or TX mode. The EUT was modulated with internal test modulation. All radiated emission tests were made with antennae supplied by the applicant connected to the EUT. The EUT was powered from an external DC power supply. Assembly of parts including antennae FCC-ID: AZPFRH-SD06TUTest Report No. 55503-00169 Page 6 of 90 Pages


   4.Changes made to the EUT during this certification test No changes have been made to the EUT during this certification test. FCC-ID: AZPFRH-SD06TUTest Report No. 55503-00169 Page 7 of 90 Pages


   5.Configuration of EUT and Peripheral Devices Configuration of cables of EUT Not applicable Configuration of peripheral devices connected to EUT Not applicable FCC-ID: AZPFRH-SD06TUTest Report No. 55503-00169 Page 8 of 90 Pages


   6.Measuring Methods 6.1.Transmitter Parameter Tests (§ 15.249 (a)). All transmitter parameter tests were performed at a test-distance of 3 meters in a semi-anechoic room (radiated). During the tests the EUT was rotated all around and the receiving-antenna was raised and lowered from 1 meter to 4 meters to find the maximum levels of emissions. Cables and equipment were placed and moved within the range of position likely to find their maximum emissions. Measurements were made in horizontal and vertical polarization. EUT was operating in transmit mode at the appropriate frequency with its internal modulation. The bandwidth of the emission was measured with a spectrum analyzer. Resolution (RBW) and video bandwidth (VBW) were set to 10 kHz (RBW and VBW) Wooden turntable 70 cm high Test fixture with EUT Semi-anechoic chamber Test distance 3 meter Measuring antenna Spectrum analyzer FCC-ID: AZPFRH-SD06TUTest Report No. 55503-00169 Page 9 of 90 Pages


   6.2.Radiated Emissions 30 MHz - 1 GHz (§15.209, §15.249) Radiated emissions were measured over the frequency range from 30 MHz to 1 GHz. The bandwidth of the EMI-receiver was set to 100 kHz and the detector- function was set to CISPR quasi-peak. The test setup was made in accordance with ANSI C63.4-1992. Measurements were made in horizontal and vertical polarization. Preliminary scans were taken in a semi-anechoic room using a spectrum analyzer with the detector function set to peak. All tests were performed at a test-distance of 3 meters. For final testing an open-area test-site was used. During the tests the EUT was rotated all around and the receiving-antenna was raised and lowered from 1 meter to 4 meters to find the maximum levels of emissions. Cables and equipment were placed and moved within the range of position likely to find their maximum emissions. test-distance 3 meters Receiving antenna Spectrum analyzer Wooden Turntable 80 cm high Test fixture with EUT FCC-ID: AZPFRH-SD06TUTest Report No. 55503-00169 Page 10 of 90 Pages


   6.3.Radiated Emissions above 1 GHz Radiated emissions were measured in the frequency range 1 GHz to 3.15 GHz in transmit mode .The resolution bandwidth and the video bandwidth of the spectrum analyzer was set to 1 MHz. Prescans with video bandwidth 1 MHz (peak mode) were taken to ch…

Text truncated - open the document above for the full version.

Model: Serial No.: Applicant: Mode: Ref.Level 5 dBmATT 20 dB 10 dB/Div. RBW 1 MHzVBW 1 MHzSWP 20 ms Start 2.423022222 GHzStop 2.443022222 GHz 1 Multi Marker List No. 12.433022 GHz5.20 dBm FRH-SD06TU FCC Sample 1 Futaba Corporation Conducted measurement on antenna output No modulation Johann Roidt October 25, 2000 Tested by: Date: Project-No.: Page of pages Senton GmbH / EMI/EMC Test Center / Aeussere Fruehlingstrasse 45 / 94315 Straubing / Tel. +49 9421 55220

Model: Serial No.: Applicant: Mode: Ref.Level 5 dBmATT 20 dB 10 dB/Div. RBW 1 MHzVBW 1 MHzSWP 20 ms Start 2.423022222 GHzStop 2.443022222 GHz 1 Multi Marker List No. 12.433022 GHz5.48 dBm FRH-SD06TU FCC Sample 1 Futaba Corporation Conducted measurement on antenna output Internal modulation, TX continously on (test mode) Johann Roidt October 25, 2000 Tested by: Date: Project-No.: Page of pages Senton GmbH / EMI/EMC Test Center / Aeussere Fruehlingstrasse 45 / 94315 Straubing / Tel. +49 9421 55220

Model: Serial No.: Applicant: Mode: Ref.Level 5 dBmATT 20 dB 10 dB/Div. RBW 10 kHzVBW 10 kHzSWP 160 ms Start 2.430522222 GHzStop 2.435522222 GHz 1 2 3 Multi Marker List No. 12.432444 GHz-29.15 dBm No. 22.433022 GHz-15.46 dBm No. 32.433544 GHz-31.87 dBm FRH-SD06TU FCC Sample 1 Futaba Corporation Conducted measurement on antenna output Internal modulation, TX continously on (test mode) Johann Roidt October 25, 2000 Tested by: Date: Project-No.: Page of pages Senton GmbH / EMI/EMC Test Center / Aeussere Fruehlingstrasse 45 / 94315 Straubing / Tel. +49 9421 55220
