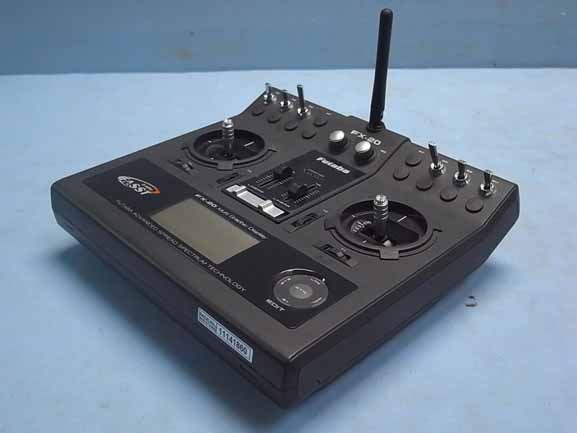

FUTABA Corporation Radio Control FCC ID. : AZPFX-20-24G EUT External Photos Figure 1 General Appearance (Front & Side View) Figure 2 General Appearance (Back and Side View) FUTABA Corporation Radio Control FCC ID. : AZPFX-20-24G Figure 3 General Appearance (Front View) Figure 4 General Appearance (Back View)

FUTABA Corporation Radio Control FCC ID. : AZPFX-20-24G FCC ID Label Location z Label Placement Location z FCC ID Format FCC ID Label Placement Location

FUTABA Corporation Radio Control FCC ID. : AZPFX-20-24G EUT Internal Photos Figure 5 Internal View (Removed Back Cover) Figure 6 Internal View (Ni-MH Battery) FUTABA Corporation Radio Control FCC ID. : AZPFX-20-24G Figure 7 Internal View (Antenna) Figure 8 Internal View (Removed Cover) FUTABA Corporation Radio Control FCC ID. : AZPFX-20-24G Figure 9 Internal View (Removed Top Cover) Figure 10 Internal View (Removed PCBs) FUTABA Corporation Radio Control FCC ID. : AZPFX-20-24G Figure 11 Internal View (Control Board, Back View) Figure 12 Internal View (Control Board, Front View) FUTABA Corporation Radio Control FCC ID. : AZPFX-20-24G Figure 13 Internal View (SD & DC In Connect Board, Back View) Figure 14 Internal View (SD & DC In Connect Board, Front View) FUTABA Corporation Radio Control FCC ID. : AZPFX-20-24G Figure 15 Internal View (DSC Connect Board, Back View) Figure 16 Internal View (DSC Connect Board, Front View) FUTABA Corporation Radio Control FCC ID. : AZPFX-20-24G Figure 17 Internal View (LCD Panel, Back View) Figure 18 Internal View (LCD Panel, Front View) FUTABA Corporation Radio Control FCC ID. : AZPFX-20-24G Figure 19 Internal View (Main Board, Front View) Figure 20 Internal View (Main Board, Back View) FUTABA Corporation Radio Control FCC ID. : AZPFX-20-24G Figure 21 Internal View (Control Board, Front View) Figure 22 Internal View (Control Board, Back View) FUTABA Corporation Radio Control FCC ID. : AZPFX-20-24G Figure 23 Internal View (RF Board, Back View) Figure 24 Internal View (RF Board Removed Cover, Front View) FUTABA Corporation Radio Control FCC ID. : AZPFX-20-24G Figure 25 Internal View (Control Board, Front View) Figure 26 Internal View (Control Unit, Side View) FUTABA Corporation Radio Control FCC ID. : AZPFX-20-24G Figure 27 Internal View (Control Board, Front View) Figure 28 Internal View (Control Board, Back View)

Maximum Permissive Exposure FCC ID: AZPFX-20-24G Product Name: Radio Control Model No: FX-20 Futaba Corporation declares that the product described above has been evaluated and found to comply with the RF exposure limits for humans, as specified based on ANSI/FCC recommendation. Based on safety distance 20cm, the antenna gain is 1.5dBi, and the power output is 39.90mW, the power density is 0.0112mW/cm^2. RF Exposure Calculations: S = (P * G) / (4* π * r^2) or r = (P * G) / (4 * π * S) Where S = Power Density in mW/cm^2 P = 16.01dBm =39.90mW G = 1.5dBi = 1.412 Numerical r = 20cm S = 1.6527*2.238 / 4*π* 20^2 = 0.0112mW/cm^2 Sincerely Yours, ____________________________________ Mr. Ben Cheng Manager AUDIX Technology Corporation

FCC ID. AZPFX-20-24G Page 1 of 40 AUDIX Technology Corporation Report No. EM-F1011003 APPLICATION FOR CERTIFICATION On Behalf of FUTABA Corporation Radio Control Model No.FX-20 FCC IDAZPFX-20-24G Brand: Futaba Prepared for : FUTABA Corporation 1080 Yabutsuka Chosei-son Chosei-gun Chiba, 299-4395 Japan. Prepared by : AUDIX Technology Corporation EMC Department No. 53-11, Dingfu, Linkou Dist., New Taipei City 244, Taiwan, R.O.C. Tel : (02) 2609-9301, 2609-2133 Fax: (02) 2609-9303 File Number C1M1211004 Report Number EM-F1011003 Date of Test Nov. 28 ~ Dec. 24, 2012 Date of Report Dec. 26, 2012 FCC ID. AZPFX-20-24G Page 2 of 40 AUDIX Technology Corporation Report No. EM-F1011003 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION .......................................................................................................4 1. GENERAL INFORMATION .......................................................................................................4 1.1. Description of Device (EUT).................................................................................................................. 4 1.2. Description of Test Facility .................................................................................................................... 5 1.3. Measurement Uncertainty....................................................................................................................... 5 2. CONDUCTED EMISSION MEASUREMET.............................................................................6 3. RADIATED EMISSION MEASUREMENT ..............................................................................7 3.1. Test Equipment ....................................................................................................................................... 7 3.2. Test Setup ............................................................................................................................................... 7 3.3. Radiated Emission Limits (§15.209) ...................................................................................................... 9 3.4. Operating Condition of EUT .................................................................................................................. 9 3.5. Test Procedure ........................................................................................................................................ 9 3.6. Radiated Emission Measurement Results............................................................................................. 10 4. 6dB BANDWIDTH MEASUREMENT .....................................................................................25 4.1. Test Equipment ..................................................................................................................................... 25 4.2. Block Diagram of Test Setup................................................................................................................ 25 4.3. Specification Limits (§15.247(a)(2)) .................................................................................................... 25 4.4. Operating Condition of EUT ................................................................................................................ 25 4.5. Test Procedure ...................................................................................................................................... 25 4.6. Test Results........................................................................................................................................... 25 5. MAXIMUM PEAK OUTPUT POWER MEASUREMENT ...................................................28 5.1. Test Equipment ..................................................................................................................................... 28 5.2. Block Diagram of Test Setup................................................................................................................ 28 5.3. Specification Limits (§15.247(b)-(3))................................................................................................... 28 5.4. Operating Condition of EUT ................................................................................................................ 28 5.5. Test Procedure ...................................................................................................................................... 28 5.6. Test Results........................................................................................................................................... 28 6. EMISSION LIMITATIONS MEASUREMENT ......................................................................29 7. BAND EDGES MEASUREMENT.............................................................................................30 7.1. Test Equipment ..................................................................................................................................... 30 7.2. Block Diagram of Test Setup................................................................................................................ 30 7.3. Specification Limits (§15.247(c))......................................................................................................... 30 7.4. Operating Condition of EUT ................................................................................................................ 30 7.5. Test Procedure ...................................................................................................................................... 30 7.6. Reference Level .................................................................................................................................... 31 7.7. Test Results........................................................................................................................................... 32 8. POWER SPECTRAL DENSITY MEASUREMENT ..............................................…

Text truncated - open the document above for the full version.

FCC ID. AZPFX-20-24G Page 37 of 40 AUDIX Technology Corporation Report No. EM-F1011003 10. PHOTOGRAPHS 10.1. Photos of Radiated Measurement at Semi-Anechoic Chamber 10.1.1.Frequency Range 30MHz~1GHz, Stand 10.1.2.Frequency Range 30MHz~1GHz, Side FCC ID. AZPFX-20-24G Page 38 of 40 AUDIX Technology Corporation Report No. EM-F1011003 10.1.3.Frequency Range 30MHz~1GHz, Lie 10.1.4.Frequency Range Above 1GHz, Stand FCC ID. AZPFX-20-24G Page 39 of 40 AUDIX Technology Corporation Report No. EM-F1011003 10.1.5.Frequency Range Above 1GHz, Side 10.1.6.Frequency Range Above 1GHz, Lie FCC ID. AZPFX-20-24G Page 40 of 40 AUDIX Technology Corporation Report No. EM-F1011003 10.2. Photo of Maximum Peak Output Power Measurement 10.3. Photo of RF Conducted Measurement
