AZPMZ-FM7272MHz Synthesized Module

Request for Confidentiality 10 November 2004 EMCCert DR. RAŠEK - Certification Institute- Boelwiese 5 D-91320 Ebermannstadt RE: Certification Application FCC ID: AZPMZ-FM72 Please be advised that the following information is to be held confidential on behalf of Futaba Corporation: • Schematics • Parts List • Block Diagram • Technical Description The application contains technical information which Futaba Corporation deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter.

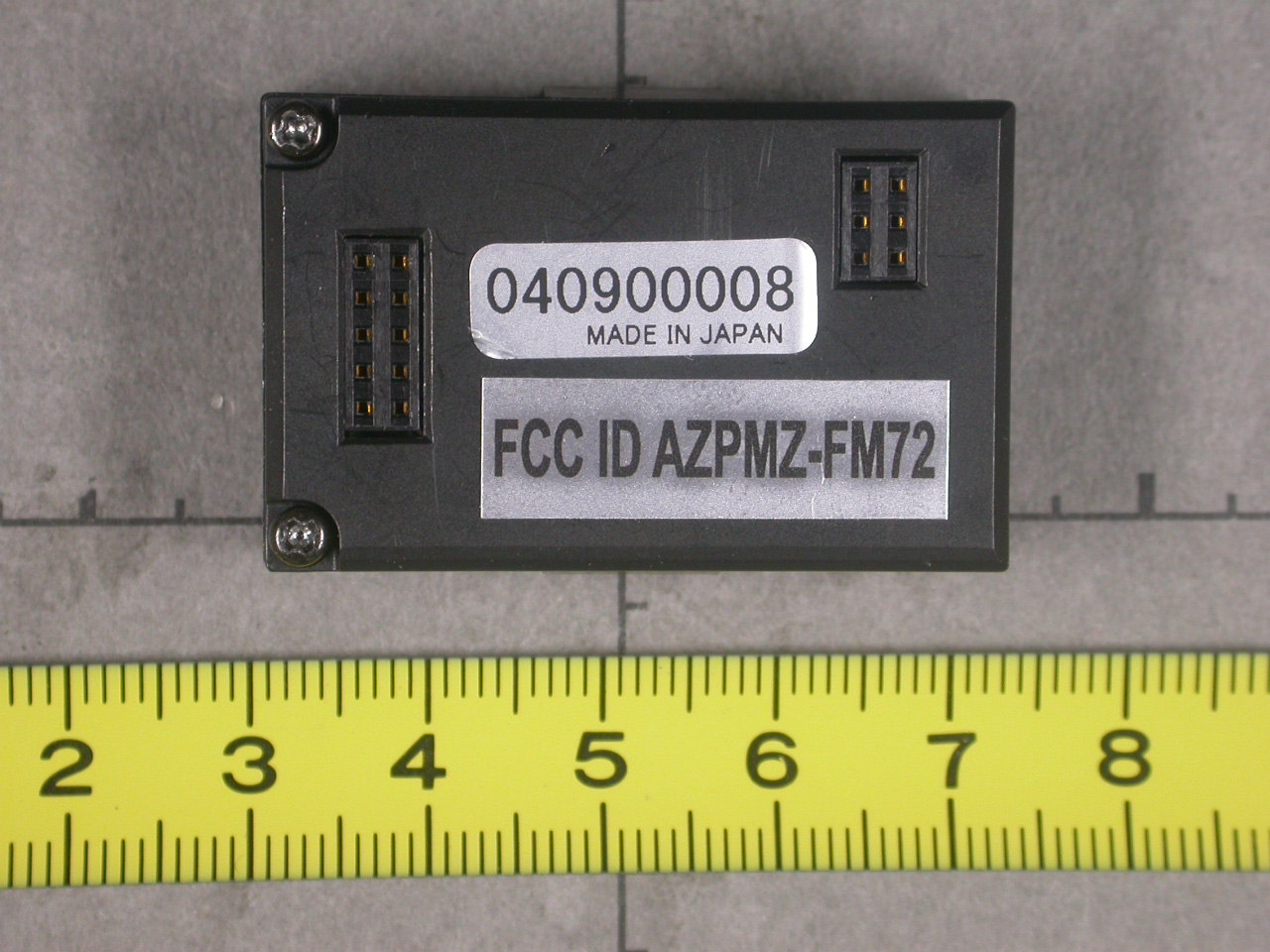

FCC ID AZPMZ-FM72 FCC ID AZPMZ-FM72

FCC ID AZPMZ-FM72

FCC ID AZPMZ-FM72 FCC ID AZPMZ-FM72

EMV-Prüfzentrum EMI/EMC-Testcenter FCC-ID: AZPMZ-FM72 Test Report No. 55503-40794 Page 1 of 38 Pages Straubing, 24 November 2004 T E S T - R E P O R T No. 55503-40794 for MZ-FM R/C Transmitter Applicant: Futaba Corporation Purpose of testing: To show compliance with - FCC Code of Federal Regulations, CFR 47, Part 95 - FCC Code of Federal Regulations, CFR 47, Part 2, Subpart J Note: The test data of this report relate only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. EMV-Prüfzentrum EMI/EMC-Testcenter FCC-ID: AZPMZ-FM72 Test Report No. 55503-40794 Page 2 of 38 Pages Table of Contents 1. Administrative Data ..............................................................................................3 2. Identification of Test Laboratory ...........................................................................4 3. Summary of Test Results.....................................................................................5 4. Operation Mode of EUT .......................................................................................6 5. Configuration of EUT and Peripheral Devices ......................................................7 6. Measuring Methods..............................................................................................8 6.1. Maximum Transmitter Power (§95.639) ........................................................8 6.2. Frequency tolerance (§95.623) ...................................................................10 6.3. Emission Bandwidth (§95.633) ....................................................................12 6.4. Unwanted Emission 30 MHz - 1 GHz (§95.635, §95.639) ...........................13 7. Photographs of Test Setups...............................................................................15 8. Equipment List ...................................................................................................18 9. Referenced Regulations.....................................................................................20 10. List of Measurements.........................................................................................21 11. Test Results .......................................................................................................22 12. Additional Information supplementary to the Test Report ...................................38 EMV-Prüfzentrum EMI/EMC-Testcenter FCC-ID: AZPMZ-FM72 Test Report No. 55503-40794 Page 3 of 38 Pages 1. Administrative Data Equipment Under Test (EUT): MZ-FM Serial number(s): 001 Type of equipment: R/C Transmitter Type of emission: 5k50F1D Parts/accessories: T14MZ FCC-ID: AZPMZ-FM72 Applicant: Futaba Corporation (full address) R/C Engineering Unit 1 1080, Yabutsuka Chosei-son, Chosei-gun, Chiba-ken, 299-4395 Japan Contract identification: --- Contact person: Mr. Yamamoto Manufacturer: Futaba Corporation Receipt of EUT: 8 November 2004 Dates of test: November 2004 Note: --- Responsible for testing: Martin Steindl Responsible for test report: Martin Steindl EMV-Prüfzentrum EMI/EMC-Testcenter FCC-ID: AZPMZ-FM72 Test Report No. 55503-40794 Page 4 of 38 Pages 2. Identification of Test Laboratory Test Laboratory: Senton GmbH EMI/EMC Test Center (full address): Aeussere Fruehlingstrasse 45 D-94315 Straubing Germany Contact person: Mr. Johann Roidt Communication: Telephone (+49) 0 94 21 / 55 22-0 Fax (+49) 0 94 21 / 55 22-99 eMail: [email protected] FCC registration number: 90926 Industry Canada file number: IC 3050 EMV-Prüfzentrum EMI/EMC-Testcenter FCC-ID: AZPMZ-FM72 Test Report No. 55503-40794 Page 5 of 38 Pages 3. Summary of Test Results The tested sample complies with the requirements for R/C Transmitters set forth in the The Code of Federal Regulations 47, Part 95, Subpart C & E and The Code of Federal Regulations 47 Part 2, Subpart J. of the Federal Communication Commission (FCC). Johann Roidt Martin Steindl Laboratory Manager Test Engineer EMV-Prüfzentrum EMI/EMC-Testcenter FCC-ID: AZPMZ-FM72 Test Report No. 55503-40794 Page 6 of 38 Pages 4. Operation Mode of EUT • transmitting continuously 1 • with battery supply nominal 7.4V DC) 2 • antenna extended to maximum 3 • operating with f 1 = 72.010 MHz, f 2 = 72.550 MHz, f 3 = 72.990 MHz 1 Modulation as indicated on appropriate test record 2 For conducted measurements replaced by external DC supply 3 For radiated emissions only EMV-Prüfzentrum EMI/EMC-Testcenter FCC-ID: AZPMZ-FM72 Test Report No. 55503-40794 Page 7 of 38 Pages 5. Configuration of EUT and Peripheral Devices EUT is configured as stand-alone device Configuration of cables of EUT Not applicable Configuration of peripheral devices connected to EUT Not applicable EMV-Prüfzentrum EMI/EMC-Testcenter FCC-ID: AZPMZ-FM72 Test Report No. 55503-40794 Page 8 of 38 Pages 6. Measuring Methods 6.1. Maximum Transmitter Power (§95.639) The maximum transmitter power was measured conducted and radiated. 6.1.1. Conducted Maximum Transmitter Power A spectrum analyzer / EMI test receiver was connected to the output of the transmitter power amplifier (conducted measurement) via dummy load while EUT was operating in transmit mode using the assigned frequency. The trace mode of the spectrum analyzer was set to max hold with: RBW = 100 kHz, VBW = 100 kHz, span = 1 MHz, sweep = 20 ms (auto mode) See figure 1 for the measurement setup. Test equipment used (see equipment list for details): 02, 18, 51, 69, 70, 71 5 8 3 1 6 4 7 2 Figure 1: Measurement setup for testing on antenna connector 1 Transmitter (EUT) 5 Test cable 2 Dummy load 6 DC-block 3 Wooden table 7 Attenuator 4 DC power supply 8 Spectrum analyzer EMV-Prüfzentrum EMI/EMC-Testcenter FCC-ID: AZPMZ-FM72 Test Report No. 55503-40794 Page 9 of 38 Pages 6.1.2. Radiated Maximum Transmitter Power Radiated Maximum Transmitter Power was measured with detector-function of the spectrum analyzer set to positive peak and trace mode max hold: RBW =…

Text truncated - open the document above for the full version.

EMV-Prüfzentrum EMI/EMC-Testcenter FCC-ID: AZPMZ-FM72 Test Report No. 55503-40794 Page 16 of 38 Pages Test setup unwanted radiation 30 MHz - 1 GHz EMV-Prüfzentrum EMI/EMC-Testcenter FCC-ID: AZPMZ-FM72 Test Report No. 55503-40794 Page 17 of 38 Pages Test setup unwanted radiation 30 MHz - 1 GHz (continued)
