AZPR304SB-24GRadio Control

Link ProcedureEach transmitter has an individually assigned, unique ID code. In order to start operation, the receiver must be linked with the ID code of the transmitter with which it is being paired. Once the link is made, the ID code is stored in the receiver and no further linking is necessary unless the receiver is to be used with another transmitter. 1 Place the transmitter and the receiver close to each other within half (0.5) meter. 2 Place the transmitter into the linking mode, and turn on the receiver. 3 During countdown, push the receiver tact switch for approximately 2 seconds. The LED will begin to blink red. After the receiver LED switches from blinking red to green red steady light, If the transmitter and receiver are linked normally, set the power switch to the OFF position and then return it to the PWR ON position. If the receiver LED lights green, linking was successful. Actually check servo operation. *Please refer to the table below for LED status and receiver condition. *Refer to the transmitters operation manual for complete details on how to place the transmitter into the linking mode. *If there are many T-FHSS systems turned on in close proximity, your receiver might have difficulty establishing a link to your transmitter. This is a rare occurrence. However, should another T-FHSS transmitter/receiver be linking at the same time, your receiver could link to the wrong transmitter. This is very dangerous if you do not notice this situation. In order to avoid the problem,we strongly recommend you to double check whether your receiver is really under control by your transmitter.  WARNING ￸ After the linking is done, please cycle receiver power and check if the receiver to be linked is really under the control by the transmitter to be linked.  Do not perform the linking procedure with motor's main wire connected or with the engine operating as it may result in serious injury. Link switch LED S.BUS2 / (Battery) CH output (1 to 4) / (Battery) Operating Precautions:Once the R304SB detects the T-FHSS normal mode or T-FHSS high speed mode , the detected mode is locked as long as the power is ON. When need to change the mode, please cycle power. Note: The R304SB is compatible with the T-FHSS system transmitters.The receiver type setting of the transmitter is set in T-FHSS. *Futaba T-FHSS system does not work with current Futaba S-FHSS/FHSS/FASST- est/FASST system. Usage condition on "High Speed mode"  CAUTION ￸ When using the high-speed mode, use a Futaba digital servo (including brushless servo). Analog servos cannot be used. s4HEUSEOFANALOGSERVOSMAYCAUSESERVOTROUBLE 1M23N28502 T-FHSS-2.4GHz SystemS.BUS2, 4-Channel Receiver for Model Car Thank you for purchasing the R304SB receiver. The R304SB is designed for use with the Futaba T-FHSS system transmitter. The R304SB receiver has adopted the newly developed bidirectional communication system " T-FHSS ". s4ELEMETRYSYSTEMWith the telemetry system , the running status can be displayed at the transmitter. The telemetry data can be checked at the transmitter by connecting the telemetry sensor sold separately to the S.BUS2 connector of the R304SB receiver. s.ORMALMODE(IGH3PEEDMODEThe "Normal mode" accepts any type of servos or the peripheral. The "High Speed mode" only accepts the digital servos, including BLS series, and most peripheral equipments such as the brushless ESCs. Please pay special attention to the information contained within this manual and transmitter's manual in order to have a pleasant running experience. R304SB  WARNING  NEVER use dry batteries for the power supply of the R304SB as this may cause difficulties with the receiver's operation. ￸ Wrap the receiver with something soft,such as foam rubber,to avoid vibration. Do not splash water over the receiver. ￸ Since the receiver generates a certain amount of heat, install the place with good ventilation. No signal recep-tion LED: Red Receiving signals LED: Green Unrecover-able failure (EEPROM,etc.) LED: Red and Green turn on alter-nately 1 FUTABA CORPORATION 1080 Yabutsuka, Chosei-mura, Chosei-gun, Chiba-ken, 299-4395, Japan Phone: +81 475 32 6982, Facsimile: +81 475 32 6983 ©FUTABA CORPORATION 2013, 4 (1) Compliance Information Statement (for U.S.A.) This device, trade name Futaba Corporation of America, model number R304SB, complies with part15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and(2) This device must accept any interference received, including interference that may cause undesired operation.(3) This module meets the requirements for a mobile device that may be used at separation distances of more than 20cm from human body.To meet the RF exposure requirements of the FCC this device shall not be co-located with another transmitting device.The responsible party of this device compliance is:Futaba Service Center3002 N Apollo Drive Suite 1, Champaign, IL 61822 U.S.A.TEL (217)398-8970 or E-mail: [email protected] (Support) R304SB Specifications:( T-FHSS system, S.BUS2 , 4-channel receiver) s 2ECEIVINGON'(ZBANDs 3YSTEM T-FHSS system At Normal/High speed mode (auto detection)s Power requirement Rated voltage: 4.8V-7.4V / Usable voltage: 3.5-8.4V s &3AND"ATTERY&3FUNCTION)TISSETACCORDINGTOTHETRANS MITTERUSED s "ATTERY&3VOLTAGE3ETITWITHTHETRANSMITTERARBITRARILY s 3IZEXXvXXMM s 7EIGHTOZG 2 Receiver HUB Temperature sensor RPM sensor Voltage sensor Switch Battery Telemetry sensors (Option) Steering servo Throttle servo CH4 CH1 Collect many telemetry sensors by HUB and connect them to S.BUS2 port. S.BUS2 CH2 ,WFRQQHFWVZLWKSRUWZKLFKLVQRWXVHGك *When all the ports are used, connect a battery using HUB or Y-harness. The Example of Connection This device, trade name Futaba Corporation of America, model number R304SB, complies with part15 of the FCC Rules. Operation is subject to th…

Text truncated - open the document above for the full version.

Authority to Act as Agent Date: Mar. 12, 2013 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: ____ AUDIX Technology Corporation _____ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: _____ Mar. 12, 2013_____ By: __________________________ _____ Kazunori Fujita ___________ (Signature) (Print name) Title: __________________________ On behalf of: ____ Futaba Corporation ________________ (Company Name) Telephone: __+81-475-32-6019__ _______________

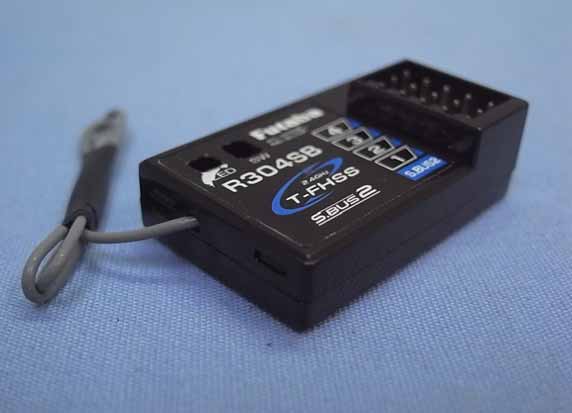

FUTABA Corporation Radio Control FCC ID. : AZPR304SB-24G EUT External Photos Figure 1 General Appearance (Front View) Figure 2 General Appearance (Back View)

FUTABA Corporation Radio Control FCC ID. : AZPR304SB-24G FCC ID Label Location z Label Placement Location z FCC ID Format FCC ID Label Placement Location FCC ID AZPR304SB-24G

FUTABA Corporation Radio Control FCC ID. : AZPR304SB-24G EUT Internal Photos Photo 3 Internal View (Removed Cover) Figure 4 Internal View (Main Board, Front View) FUTABA Corporation Radio Control FCC ID. : AZPR304SB-24G Figure 5 Internal View (Main Board, Back View)

FCC ID: AZPR304SB-24G Page 1 of 33 AUDIX Technology Corporation Report No.: EM-F1020194 APPLICATION FOR CERTIFICATION On Behalf of FUTABA Corporation Radio Control Model No.R304SB FCC IDAZPR304SB-24G Brand: Futaba Prepared for : FUTABA Corporation 1080 Yabutsuka Chosei-son Chosei-gun Chiba, 299-4395 Japan. Prepared by : AUDIX Technology Corporation EMC Department No. 53-11, Dingfu, Linkou Dist., New Taipei City 244, Taiwan Tel : (02) 2609-9301, 2609-2133 Fax: (02) 2609-9303 File Number C1M1302135 Report Number EM-F1020194 Date of Test Feb. 27 ~ Mar. 07, 2013 Date of Report Mar. 15, 2013 FCC ID: AZPR304SB-24G Page 2 of 33 AUDIX Technology Corporation Report No.: EM-F1020194 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION .......................................................................................................3 1. GENERAL INFORMATION .........................................................................................................4 1.1. Description of Device (EUT).................................................................................................................. 4 1.2. Tested Supporting System Details .......................................................................................................... 5 1.3. Description of Test Facility .................................................................................................................... 6 1.4. Measurement Uncertainty....................................................................................................................... 6 2. CONDUCTED EMISSION MEASUREMENT ............................................................................7 3. RADIATED EMISSION MEASUREMENT ................................................................................8 3.1. Test Equipment ....................................................................................................................................... 8 3.2. Block Diagram of Test Setup.................................................................................................................. 8 3.3. Radiated Emission Limits (§15.209) .................................................................................................... 10 3.4. Fundamental Frequency Limits [§15.249(a)] .......................................................................................10 3.5. Operating Condition of EUT ................................................................................................................ 10 3.6. Test Procedure ...................................................................................................................................... 11 3.7. Radiated Emission Measurement Test Results .....................................................................................12 4. DUTY CYCLE CORRECTION FACTOR .................................................................................29 4.1. Test Equipment ..................................................................................................................................... 29 4.2. Block Diagram of Test Setup................................................................................................................ 29 4.3. Test Results........................................................................................................................................... 30 5. DEVIATION TO TEST SPECIFICATIONS..............................................................................31 6. PHOTOGRAPHS...........................................................................................................................32 6.1. Photos of Radiated Emission Measurement at Semi-Anechoic Chamber ............................................ 32 FCC ID: AZPR304SB-24G Page 3 of 33 AUDIX Technology Corporation Report No.: EM-F1020194 TEST REPORT CERTIFICATION Applicant FUTABA Corporation Manufacturer FUTABA Corporation EUT Description Radio Control FCC ID AZPR304SB-24G (A) Model No. R304SB (B) Serial No. N/A (C) Brand Futaba (D) Power Supply DC 6V (E) Test Voltage DC 6V (Via Batteries) Measurement Procedure Used: FCC RULES AND REGULATIONS PART 15 SUBPART C, October 2012 (FCC CFR 47 Part 15C, §15.207, §15.249, §15.209) AND ANSI C63.4/2003 The device described above was tested by AUDIX Technology Corporation to determine the maximum emission levels emanating from the device. The maximum emission levels were compared to the FCC Part 15 subpart C limits. The measurement results are contained in this test report and AUDIX Technology Corporation is assumed full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT to be technically compliant with the requirements of FCC standards. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of AUDIX Technology Corporation. Date of Test : Feb. 27 ~ Mar. 07, 2013 Date of Report : Mar. 15, 2013 Producer : (Tina Huang/Administrator) Signatory: (Leon Liu/Deputy General Manager) FCC ID: AZPR304SB-24G Page 4 of 33 AUDIX Technology Corporation Report No.: EM-F1020194 1. GENERAL INFORMATION 1.1. Description of Device (EUT) Description Radio Control Model Number R304SB Serial Number N/A FCC ID AZPR304SB-24G Applicant FUTABA Corporation 1080 Yabutsuka Chosei-son Chosei-gun Chiba, 299-4395 Japan. Manufacturer FUTABA Corporation 1080 Yabutsuka Chosei-son Chosei-gun Chiba, 299-4395 Japan. Modulation FHSS Frequency Band 2407.500MHz ~ 2467.500MHz Tested Frequency 2407.500MHz (Channel 1) 2435.500MHz (Channel 15) 2467.500MHz (Channel 31) Frequency Channel 31 channels Antenna (mono-pole type) Antenna Gain: -5.16dBi Date of Receipt of Sample Feb. 25, 2013 Date of Test Feb. 27 ~ Mar. 07, 2013 FCC ID: AZPR304SB-24G Page 5 of 33 AUDIX Technology Corporation Report No.: EM-F1020194 1.2. Tested Supporting System Details 1.2.1. NOTEBOOK PC Model Number N20 Serial Number N/A FCC ID By DoC…

Text truncated - open the document above for the full version.

FCC ID: AZPR304SB-24G Page 32 of 33 AUDIX Technology Corporation Report No.: EM-F1020194 6. PHOTOGRAPHS 6.1. Photos of Radiated Emission Measurement at Semi-Anechoic Chamber 6.1.1. For Frequency Range 30MHz~1GHz FRONT VIEW OF RADIATED MEASUREMENT BACK VIEW OF RADIATED MEASUREMENT FCC ID: AZPR304SB-24G Page 33 of 33 AUDIX Technology Corporation Report No.: EM-F1020194 6.1.2. For Frequency Above 1GHz FRONT VIEW OF RADIATED MEASUREMENT BACK VIEW OF RADIATED MEASUREMENT
