AZPRRC-T11Remote Control and Receiver

1M23N18503 1 User’s Guide for Starting RBT-1 Please read through this guide carefully first. You’ll need a personal computer to operate this product. The operation manual is written assuming that you can manage basic computer operation. However, please note that we can’t answer questions concerning your personal computer and its operating system. What you need to provide separately ★ Personal computer ･OS Windows® XP ･CPU Pentium®3 with more than 800MHz (Pentium®4 with more than 1.6GHz is recommended.) ･Main memory 256MB or more (more than 512MB recommended) ･Video memory (VRAM) 8MB or more (more than 16MB recommended) ･HDD available capacity 30MB or more ･CD-ROM drive Indispensable ･RS232C port One port(*) ･Display Monitor that can display with XGA (Monitor that can display with the resolution of more than 1024×768 dots) ･Graphics chip or graphics card that uses DirectX9.0c or higher, and graphic driver (*) If there is no RS232C port in your PC, it is possible to connect to the USB port using a commercially available USB-serial converter. However, please note that some USB ports or serial converters reduce communication speed or make communication impossible. ★ Tools You need a Phillips screwdriver for M2.0 mm Phillips screws to maintain or to reassemble this product. The following additional tools are also recommended for the easiest assembly. A pair of tweezers, a straight slot screwdriver, a cutter, and a printer for printing manuals and instructions. 1M23N18503 2 Display Manuals The CD menu (see the screen on the right) appears automatically when you insert the CD-ROM provided with the product into the CD-ROM drive of your PC. If the menu does not appear automatically, select “CD-ROM drive” from “My Computer”, and execute “Autorun.exe”. If you have Acrobat Reader installed, click the display of the manual. If not, click [Install Acrobat Reader] on the screen and install it. Please read and follow these instructions thoroughly. Caution about the operating environment Since the motion editor of RBT-1 uses 3D graphics with MicrosoftⓇ DirectXⓇ technology, the graphics operating environment requires attention. Please make sure of your computer’s specifications, and ask the hardware manufacturers about how to use technology after DirectXⓇ9.0c Even if your computer is equipped with the operating environment required, we cannot guarantee that all computer operations can be performed without problems. RPU11 may not work properly on notebook PCs, small-footprint PCs and all-in-one PCs. Also, the motion speed of the real robot may vary from that of the robot on the motion editor, depending on the performance of your PC and the operating conditions. How to inquire about problems and concerns ★ If the CD has scratches, your computer cannot read the CD properly, or the product does not move, please send your letter, FAX or e-mail with a detailed description of the problem to the store where you purchased the product. After they find the cause, they will inform you of it. Please note that they may not be able to answer your questions promptly by telephone. * Please note that the specifications are subject to change without prior notice for upgrading. 1M23N18503 3 “Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.” Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ・ Reorient or relocate the receiving antenna. ・ Increase the separation between the equipment and receiver. ・ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ・ Consult the dealer or an experienced radio/TV technician for help. FCC ID: AZPRRC-T11 MADE IN CHINA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: AZPRRC-R11 MADE IN CHINA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

1234 A B C D 4321 D C B A POWER circuit MOTOR circuit CPU 2.4G RF DG-2812-TX SCH

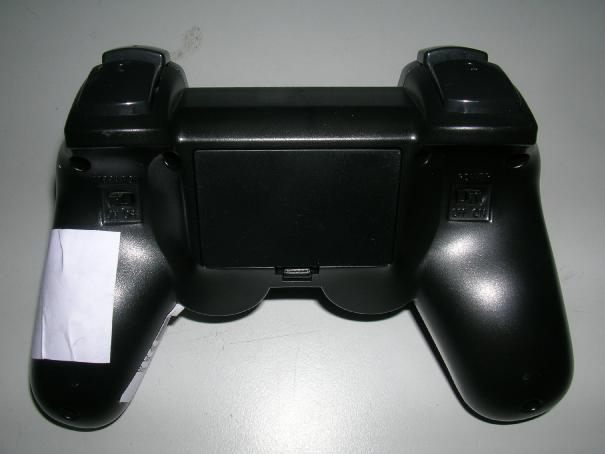

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT REAR VIEW OF THE PRODUCT

LABEL LOCATION BOTTOM VIEW OF THE DEVICE WITH FCC ID LABEL FCC ID AZPRRC-T11 FUTABA MADE IN CHINA

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT

2. Controller side MCS 243-01A 12MHz Crystal PCB embedded antenna CHIPCON CC2500 26MHz Crystal DATA Buttons Joystick Motors 3-AAA Size battery 3.0V Regulator Circuit Description The 12MHz crystal oscillator drives the Host MCU to control the joystick’s buttons and motors working. And the 26MHz crystal oscillator modulate IC (CC2500) to transmit the 2.4G signal to connect with receiver. Antenna, Ground and Power Source The antenna consists of a 2cm long of the printed mass copper board. There is no external ground connection. The ground is only that of the printed circuit board. 4 AAA size batteries supply the 6V power and through regulator output 3V voltage for IC working.

PARTS LIST Model:DG-2812TX (SMD) S/N Description specification Mark QTY 1 RESISTOR 0603(SMD) 2.7K R16 1PCS 2 RESISTOR 0603(SMD) 20K R3 1PCS 3 RESISTOR 0603(SMD) 100K R6 1PCS 4 RESISTOR 0603(SMD) 1K R13 1PCS 5 RESISTOR 0603(SMD) 10K R8,R9,R12 3PCS 6 RESISTOR 0603(SMD) 100K 1% R2 1PCS 7 RESISTOR 0603(SMD) 15K R1 1PCS 8 RESISTOR 0603(SMD) 39K R7 1PCS PARTS LIST Model:DG-2812TX (SMD) S/N Description specification Mark QTY 9 CAPACITOR 0603(SMD) 104PF C1.C6. C9.C10.C14 5PCS 10 CAPACITOR 0603(SMD) 22PF C12,C13 2PCS 11 CAPACITOR 0603(SMD) 103PF C11 1PCS 12 TRANSISTOR S8550 SOT-23 Q1,Q3 2PCS 13 TRANSISTOR S8050 SOT-23 Q2 1PCS 14 IC IC MCS-243- 02A QEP44 U4 1PCS 15 IC IC HT7530 SO-89 U2 1PCS 16 IC IC ATMEL93C46 SO-8 U5 1PCS 17 IC SNAD01C U3 1PCS PARTS LIST Model: DG-2812TX (DIP) S/N component specification Mark QTY 1 CAPACITOR 47UF/16V, 4*7 C4、C8 2PCS 2 RESISTOR 100R 1/4W R30 1PCS 3 3D VR 10K 35° MIDDLE6° VR1,VR2 2PCS 4 OSCILLATOR 12 MHz ±40PPM 49/S Y1 1PCS 5 LED RED LED 2*5*7 LED4 1PCS 6 SWITCH SS-12F37G2LT SW1,SW2 2PCS 7 RF MAR105P 1PCS

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 8-Jun-2007 Sheet of File: F:\ \DG-2806\DG-2806RX REV1.DDB Drawn By: 1.1 GND 1 VIN 2 VOUT 3 U2HT7530 VSS 41 /INT 42 DATA(P75,7) 43 CLK(P74,6) 44 P90 1 P91 2 P92(SDI) 3 P93(SDO) 4 P94(SCK) 5 P95(/SS) 6 P50 7 P51 8 P52 9 P53 10 P54 11 P55 12 P56 13 P57 14 P80 15 P81 16 P82 18 P83 19 P84 20 P85 21 P86 22 P87 23 P60 24 P61 25 P62 26 P63 27 P64 28 P65 29 P66 30 P67 31 P72 32 P71 33 P70 34 VDD 38 R-OSCI 39 OSCO 40 NC 17 NC 35 NC 36 NC 37 U4 MCS-243-02A QEP44 C847uF Y1 12M C12 22p C13 22p VCC K4 Right K5 Up K11 R2 K6 Left K2L2 K3 Down K7 Cross K8 Circle K9 Triangle K10 Square S2Select S3 Start S7 L3 S6R3 R1 15K R2 100K R739KR6100K R810K Low Voltage Detect VSS 9 VDD 10 DIO 11 CLK 12 START 13 AVDD 14 AVSS 15 VREF 16 CH0 1 CH1 2 CH2 3 CH3 4 CH4 5 CH5 6 CH6 7 CH7 8 U3SNAD01 C11103p AD_CH0AD_CH1AD_CH2AD_CH3 VCCVCC VCC_O C9104p VCC AD_STARTAD_CLKAD_DATA LVD_IN LVD_IN R16 2.7K VCC_O P1 Battery Vbat C6104p C447uF VCC Vbat C10104p VCC K12 R1 K1 L1 AD_DATAAD_CLKAD_START VCC R12 10K VCC VCC Q3S8550 Q1S8550 Q2S8050 SW2 Power switch LEFT_MOTORRIGHT_MOTOR VCC_O R320K C14104p VCC CS 1 CLK 2 DI 3 DO 4 VSS 5 ORG 6 NC 7 VCC 8 U593C46-A VCC EECS S5 F2 S4 F1 EECSP91P92P93P94 LED4 Link/Low power R14 1K VCC P91P92P93 P95 VR1LX VR1LY VR2RX VR2RY AD_CH0 AD_CH1 AD_CH2 AD_CH3 Up-GND Right-VDD VCC_O GDO2 4 SO/GDO1 5 SCLK 6 SI 7 VCC 8 GDO0 2 CS 1 GND 3 2mm GND 9 CON1MAR105P S1 Mode C1104p ANTENNA

STC Test Report Date : 2007-06-01 Page 1 of 18 No. : HM158788 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant (STS002): Futaba Corporation 629 Oshiba , Mobara, Chiba Prefecture 297-8588, Japan Manufacturer: Dongang Electronic Co., Ltd. 3 rd Floor, No. 48, GongHe Industry Road, GongLe, Xixiang Town, BaoAn Area, Shenzhen City Description of Samples: Model Name: Remote Controller and Receiver Brand Name: Futaba Model Number: RCC-T11 FCC ID: AZPRRC-T11 Date Samples Received: 2007-05-14 Date Tested: 2007-05-18 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2006 and ANSI C63.4:2003 for FCC Certification. Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- LEE Kam Chuen, ElectroMagnetic Compatibility Department For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2007-06-01 Page 2 of 18 No. : HM158788 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 18 Content Page 2-3 of 18 1.0 General Details 1.1 Test Laboratory Page 4 of 18 1.2 Applicant Details Page 4 of 18 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 18 Description of EUT operation 1.4 Date of Order Page 5 of 18 1.5 Submitted Sample Page 5 of 18 1.6 Test Duration Page 5 of 18 1.7 Country of Origin Page 5 of 18 2.0 Technical Details 2.1 Investigations Requested Page 6 of 18 2.2 Test Standards and Results Summary Page 6 of 18 3.0 Test Results 3.1 Radiated Emission Page 7-14 of 18 3.2 Conducted Emission Page 15 of 18 STC Test Report Date : 2007-06-01 Page 3 of 18 No. : HM158788 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 16 of 18 Appendix B Photographs Page 17-18 of 18 STC Test Report Date : 2007-06-01 Page 4 of 18 No. : HM158788 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong 1.2 Applicant Details Applicant Futaba Corporation 629 Oshiba , Mobara, Chiba Prefecture 297-8588, Japan Manufacturer Dongang Electronic Co., Ltd. 3 rd Floor, No. 48, GongHe Industry Road, GongLe, Xixiang Town, BaoAn Area, Shenzhen City STC Test Report Date : 2007-06-01 Page 5 of 18 No. : HM158788 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.3 Equipment Under Test [EUT] Description of Sample Model Name: Remote Controller and Receiver Manufacturer: Dongang Electronic Co., Ltd. Brand Name: Futaba Model Number: RCC-T11 Input Voltage: 6Vd.c. (“AAA” size battery x 4) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a Futaba Corporation, Remote Controller and Receiver, the transmission signal is frequency hopping with channel frequency range 2.410-2.470 GHz. 1.4 Date of Order 2007-05-14 1.5 Submitted Sample(s): 1 Sample 1.6 Test Duration 2007-05-18 1.7 Country of Origin China STC Test Report Date : 2007-06-01 Page 6 of 18 No. : HM158788 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform Electromagnetic Interference measurements in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 Regulations and ANSI C63.4:2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Fail N/A Field Strength of Fundamental & Harmonics Emissions FCC 47CFR 15.249 ANSI C…

Text truncated - open the document above for the full version.

PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
