AZPT18SZ-24GRadio Control

1M23N00000 INTRODUCTION...............................................4 ●Support and Service .........................................4 ●Application, Export, and Modification ...........5 ●Definitions of Symbols ......................................6 ●Safety Precautions (do not operate without reading) .............................................................6 BEFORE USE ...................................................10 ●Features of T18SZ .........................................10 ●Contents and technical specifications ...........11 ●Accessories .......................................................12 ●Transmitter controls .......................................13 Cautions on handling antenna ......................14 LED monitor ...................................................14 Switch (SA-SH) ...............................................15 Digital trim (T1-T4) .......................................15 Volume (LD, RD) ............................................15 Home/Exit, U.menu/Mon. Button .................15 Touch sensor ...................................................16 Stick adjustment .............................................17 SD card ............................................................18 How to remove a rear case ............................19 Connector/Plug ...............................................20 Installation and removal of the battery ........21 ●Receiver nomenclature ...................................22 ●Receiver's antenna installation ......................24 ●Safety precautions when installing servos ...25 ●S.BUS/S.BUS2 Installation ............................26 ●S.BUS Wiring example ...................................27 ●S.BUS2 System ................................................28 ●S.BUS/S.BUS2 Devicesetting .........................29 ●Telemetry System ............................................30 BASIC OPERATION .......................................31 ●Battery Charging ............................................31 How to charge the NiMH Battery .................31 ●How to turn ON/OFF the transmitter ..........32 When turning on ............................................32 When turning off ............................................32 ●Registration of the user's name .....................32 ●Home screen ....................................................33 ●Screen lock.......................................................35 ●Link procedure ..............................................36 ●Range testing your R/C system......................38 FUNCTIONS OF SYSTEM MENU ................39 Display .............................................................40 System Timer ..................................................41 User Name .......................................................42 Sound ...............................................................43 H/W Setting .....................................................44 Information ....................................................46 Range Check ..................................................47 S.BUS Servo ...................................................48 Model Basic Setting Procedure ........................51 Airplane/Glider ..............................................51 Helicopter ........................................................53 Receiver and Servos Connection ...................57 Servo Connection by Model Type .................58 FUNCTIONS OF LINKAGE MENU .............63 Linkage Menu functions table ......................63 Servo Monitor .................................................64 Model Select ....................................................65 Model Type......................................................67 System Type ....................................................70 Function ..........................................................73 Sub-Trim .........................................................75 Servo Reverse .................................................76 Fail Safe ...........................................................77 End Point ........................................................78 Throttle Cut (Air/Heli only) ..........................79 Idle Down (Air/Heli only) ..............................80 Swash Ring (Heli only) ..................................81 Swash (Heli only, except H-1) ........................82 TABLE OF CONTENTS TABLE OF CONTENTS Timer ...............................................................84 T1-T6 Setting ..................................................86 Multiprop ........................................................87 Function Name ...............................................88 Telemetry.........................................................89 Telemetry:receiver [battery] .........................90 Telemetry:receiver [ext-batt] .........................91 Telemetry:temperature ..................................92 Telemetry:rpm sensor ....................................93 Telemetry:altitude ..........................................94 Telemetry:altitude [variometer] ....................95 Telemetry:voltage [battery] ...........................96 Telemetry:voltage [ext-batt] ..........................97 Telemetry:GPS [distance] ..............................98 Telemetry:GPS [speed] ................................100 Telemetry:GPS [ altitude,variometer,position ] ...101 Sensor ............................................................102 Sensor:reload ................................................103 Sensor:register ..............................................103 Sensor:change slot ........................................104 Tele. Setting ...................................................105 Warning .........................................................106 Trainer ...........................................................107 Data Reset .....................................................110 Cond. Hold ...........................................…

Text truncated - open the document above for the full version.

39 <Functions of System Menu> SYSTEM MENU System Menu functions table [DISPLAY]: LCD contrast and back light adjustment. [SYSTEM TIMER]: Resets the accumulated timer for each model. [USER NAME]: User name registration. [SOUND]: Various volume control and low battery setting. [H/W SETTING]: H/W reverse, stick mode, stick calibration, and switch position. [INFORMATION]: Displays the program version, SD card information, and language selection. [RANGE CHECK]: A transmitting output is lowered and the check before a flight is carried out. [S.BUS SERVO]: S.BUS servo setting. The System Menu sets up functions of the transmitter: This does not set up any model data. ● Select [SYSTEM] at the home screen and call the system menu shown below by touching the RTN button. ● Scrolling the touch sensor to select the function you want to set and call the setup screen by touching the RTN button. ● Select the function name and return to the System menu by touching the RTN button or pushing the Home/Exit button. <SensorTouch™> ●Access setup screen Scrolling ● Moving cursor 40 <Functions of System Menu> ● Select the function name and return to the System menu by touching the RTN button or pushing the Home/Exit button. <SensorTouch™> LCD contrast adjustment 1. Scrolling the touch sensor to select "LCD CONTRAST" and touch the RTN button to switch to the data input mode and adjust the contrast by turning the touch sensor to the left and right. Setting range: (Lighter) 0 to 30 (Darker) Initial value: 15 Touch the RTN button to end adjustment and return to the cursol move mode. *Adjust to the contrast while watching the screen display. *When you want to reset the contrast to the initial state, select "LCD CONTRAST" and touch the RTN button for 1 second. Backlight brightness adjustment 1. Scrolling the touch sensor to select "BACKLIGHT BRIGHTNESS" and touch the RTN button to switch to the data input mode and adjust the contrast by turning the touch sensor to the left and right. Setting range: (Darker) 0 to 30 (Lighter) Initial value: 10 Touch the RTN button to end adjustment and return to the cursol move mode. *Adjust to the brightness while watching the screen display. *When you want to reset the contrast to the initial state, select "BACKLIGHT BRIGHTNESS" and touch the RTN button for 1 second. Back-light off-timer 1. Select "Back-light timer" and touch the RTN button to switch to the data input mode and adjust the back-light off-timer by scrolling the touch sensor. "OFF TIMER": Adjust the time when the back- DISPLAY LCD contrast adjustment and automatic key lock The following LCD screen adjustments and auto power off setting are possible: ● Backlighting brightness adjustment ● Backlighting off timer adjustment ● Automatic key lock setup light turns off after operating the touch sensor. Setting range: 10 to 240 sec (each 10 sec), OFF (always on) Initial value: 10 sec *When you want to reset the value to the initial state, touch the RTN button for one second. 2. Touch the RTN button to end adjustment and return to the cursor mode. *If the back light is on for a long time, consumption current will increase. Start lock Auto Lock functions automatically when the model changes or power is turned on. *To temporarily allow access to the T18SZ programming press and hold the S1 button for one second. Please note, the Auto Lock function timer will resume immediately once again. 1. Select "STARTUP LOCK" and touch the RTN button to switch to the data input mode and adjust the ON or OFF by scrolling the touch sensor. Setting range: ON or OFF Initial value: OFF Automatic lock Auto Lock functions automatically when there is no operation from the HOME screen display for a chosen number of seconds. 1. Scrolling the touch sensor to select "AUTOMATIC LOCK" and touch the RTN button to switch to the data input mode and adjust the time by turning the touch sensor to the left and right. Setting range: INH, 0 to 120 (s) Initial value: INH ● Select [DISPLAY] at the system menu and call the setup screen shown below by touching the RTN button. Scrolling ● Moving cursor ● Selecting mode ● Adjusting value 41 <Functions of System Menu> ● Select the function name and return to the System menu by touching the RTN button or pushing the Home/Exit button. <SensorTouch™> Timer selection 1.Move the cursor to the [MODE] item and touch the RTN button to switch to the data input mode. Select the mode by scrolling the touch sensor and touch the RTN button. TOTAL: Displays the total timer on the home screen. MODEL timer: Displays the model timer on the home screen. SYSTEM TIMER Resets the accumulated timer. This function resets the system timer displayed on the home screen. ● T18SZ has two type system timers. TOTAL timer: Displays the total accumulated time on the transmitter from the last time the timer was reset. MODEL timer: Displays the total accumulated time on each model from the last time the timer was reset. ● System timer displayed on the home screen can be selected. ● Select [SYSTEM TIMER] at the system menu and call the setup screen shown below by touching the RTN button. Timer reset 1.Move the cursor to the [SYSTEM TIMER] item and reset the timer to "00:00:00" by touching the RTN button for 1 second. After reset, the timer restarts from "00:00:00". Scrolling ● Moving cursor ● Selecting mode 42 <Functions of System Menu> ● Select the function name and return to the System menu by touching the RTN button or pushing the Home/Exit button. <SensorTouch™> USER NAME User name registration This function registers the T18SZ user name. *A name of up to 12 characters can be entered as the user name. (Space is also counted as 1 character.) User name registration 1. Change the user name as described below: [Moving cursor in input box] Select [←] or [→], and touch the RTN button. [Deleting a character] When [DELETE] is selected and the RTN button is touched, the character immediately after the cursor is deleted. [Adding a character] When a candidate charac…

Text truncated - open the document above for the full version.

100 <Functions of Linkage Menu> ● Select the function name and return to the Linkage menu by touching the RTN button or pushing the Home/Exit button. <SensorTouch™> TELEMETRY : GPS [SPEED] Displaying data from the speed The speed screen displays and sets the speed data from an SBS-01G (GPS sensor) sold separately. The speed of the aircraft during flight can be displayed. After flight, the maximum speed during flight can be viewed. Because this speed is based on position data from a GPS satellite, the ground speed is displayed instead of air speed. Consequently, with a head wind, the displayed speed decreases and with a tail wind, the displayed speed increases. *The GPS sensor is necessary, and is sold separately. Mount and connect the sensor in accordance with the sensor instruction manual. *It cannot be used in FASST mode and S-FHSS mode. *Only receiver voltage and EXT voltage can be used in FASSTest12CH mode. *The FASSTest18CH mode can use all the telemetry functions . *A GPS sensor must be installed in the aircraft. ●This indicates the receiving accuracy from a GPS Satellite. When three bars are displayed, the GPS is ready for use. ● Select [GPS] in the TELEMETRY screen and access the setup screen shown below by touching the RTN button. Scrolling ● Moving cursor ● Speed ● ↓ A downward arrow indicates the alarm will sound when the speed reaches below your set value. ● ↑ An upward arrow indicates the alarm will sound when the speed reaches above your set value. ●Select [SPEED](small font display) in the TEMPERATURE screen and access the setup screen shown below by touching the RTN button. ● The maximum and the minimum when powering ON are shown. It will be preset, if a cursor is moved to this place and the RTN button is pushed for 1 second. ●The ON/OFF switch of SPEECH is chosen. ●It links with the "DISTACE" display. ●Pushing [PRESET] sets the current aircraft position as the starting point. Alarm setting when speed increases 1. Move the cursor to the ↑ALARM item, and it chooses from BUZZER, VOICE, INHIBIT, and pushes RTN. 2. When not operating vibrator, it is " VIBRATOR" to INHIBIT. TYPE1-3 will be chosen if it is made to operate. 3. Move the cursor to the LIMIT [km/h] item and touch the RTN button to switch to the data input mode. 4. Ajust the rate by scrolling the touch sensor. Initial value: 200km/h Adjustment range 0km/h~500km/h (↑LIMIT ≧ ↓LIMIT) *When the RTN button is touched for one second, the rate is reset to the initial value. 5. Touch the RTN button. (To terminate the input and return to the original state, touch the Home/Exit button.) Alarm setting when speed decreases 1. Move the cursor to the ↓ALARM item, and it chooses from BUZZER, VOICE, INHIBIT, and pushes RTN. 2. When not operating vibrator, it is " VIBRATOR" to INHIBIT. TYPE1-3 will be chosen if it is made to operate. 3. Move the cursor to the LIMIT [km/h] item and touch the RTN button to switch to the data input mode. 4. Ajust the rate by scrolling the touch sensor. Initial value: 0km/h Adjustment range 0km/h~500km/h (↑LIMIT ≧ ↓LIMIT) *When the RTN button is touched for one second, the rate is reset to the initial value. 5. Touch the RTN button. (To terminate the input and return to the original state, touch the Home/Exit button.) *Speed alarm precaution Since the GPS speed sensor displays the ground speed, it cannot be used as a stall alarm. For example, an aircraft that stalls at 50km/h will stall if the tailwind is 5km/h or greater even through 55km/h is displayed by ground speed. In addition, with an aircraft that will disintegrate in midflight at 400km/h at an over-speed alarm, when the headwind reaches 30km/h the airplane will disintegrate in midair due to over speeding even at a ground speed of 370km/h. TYPE 1 TYPE 2 TYPE 3 "VIBRATOR" type If the following types are selected, the transmitter will vibrate during the warning. 101 <Functions of Linkage Menu> ● Select the function name and return to the Linkage menu by touching the RTN button or pushing the Home/Exit button. <SensorTouch™> TELEMETRY : GPS [ALTITUDE, VARIOMETER, POSITION] The altitude, variometer, position screen displays and sets the data from an SBS-01G (GPS sensor) sold separately. *The GPS sensor is necessary, and is sold separately. Mount and connect the sensor in accordance with the sensor instruction manual. *It cannot be used in FASST mode and S-FHSS mode. *Only receiver voltage and EXT voltage can be used in FASSTest12CH mode. *The FASSTest18CH mode can use all the telemetry functions. *A GPS sensor must be installed in the aircraft. ●This indicates the receiving accuracy from a GPS Satellite. When three bars are displayed, the GPS is ready for use. ● Select [GPS] in the TELEMETRY screen and access the setup screen shown below by touching the RTN button. ● Push S1 button to advance to next page. ● Refer to the former page for a setup about ALTITUDE and VARIOMETER. ● Push S1 button to advance to next page. ● The position of the present model is displayed. Scrolling ● Moving cursor ● To next page 102 <Functions of Linkage Menu> ● Select the function name and return to the Linkage menu by touching the RTN button or pushing the Home/Exit button. <SensorTouch™> SENSOR Various telemetry sensors setting This screen registers the telemetry sensors used with the transmitter. When only one of a certain type of sensor is used, this setting is unnecessary and the sensor can be used by simply connecting it to the S.BUS2 port of the transmitter. When using 2 or more of the same kind of sensor, they must be registered here. ● Select [SENSOR] in the Linkage menu and access the setup screen shown below by touching the RTN button. ● As shown in the table below, an altimeter requires 3 contiguous slots and a GPS sensor requires 8 contiguous slots. In addition, since the GPS (SBS-01G) start slots are 8, 16, and 24. ＜ Assignable slot ＞ *Altimeter, GPS, and other sensors that display a large amount of data require multiple slots. *Depending on the type of sens…

Text truncated - open the document above for the full version.

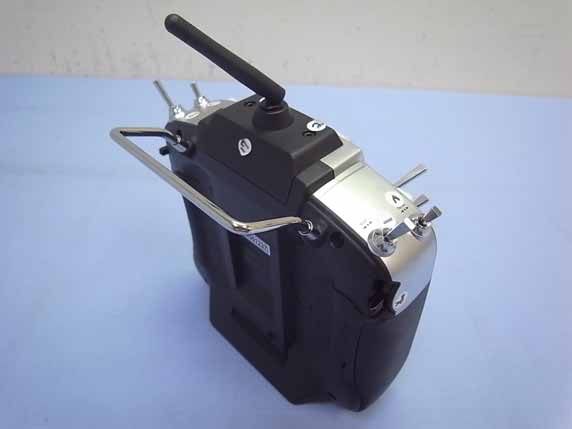

Futaba Corporation Radio Control FCC ID. : AZPT18SZ-24G EUT External Photos Figure 1 General Appearance (Front and Side View) Figure 2 General Appearance (Back and Side View)

Futaba Corporation Radio Control FCC ID. : AZPT18SZ-24G FCC ID Label Location z Label Placement Location FCC ID Label Placement Location FCC ID Format

Futaba Corporation Radio Control FCC ID. : AZPT18SZ-24G EUT Internal Photos Figure 3 Internal View (Removed Battery Cover) Figure 4 Internal View (Battery, Front and Side View) Futaba Corporation Radio Control FCC ID. : AZPT18SZ-24G Figure 5 Internal View (Battery, Back and Side View) Figure 6 Internal View Futaba Corporation Radio Control FCC ID. : AZPT18SZ-24G Figure 7 Internal View (Removed TB77B Board) Figure 8 Internal View (TB77B Board, Front View) Futaba Corporation Radio Control FCC ID. : AZPT18SZ-24G Figure 9 Internal View (TB77B Board, Back View) Figure 10 Internal View (RF Board, Front View) Futaba Corporation Radio Control FCC ID. : AZPT18SZ-24G Figure 11 Internal View (RF Board, Back View) Figure 12 Internal View (Removed Control Boards) Futaba Corporation Radio Control FCC ID. : AZPT18SZ-24G Figure 13 Internal View Figure 14 Internal View Futaba Corporation Radio Control FCC ID. : AZPT18SZ-24G Figure 15 Internal View (Control Boards) Figure 16 Internal View (TC05A-1 Board, Front View) Futaba Corporation Radio Control FCC ID. : AZPT18SZ-24G Figure 17 Internal View (TC05A-1 Board, Back View) Figure 18 Internal View (LCD Display, Front View) Futaba Corporation Radio Control FCC ID. : AZPT18SZ-24G Figure 19 Internal View (LCD Display, Back View)

Maximum Permissive Exposure FCC ID:AZPT18SZ-24G Product Name: Radio Control Model No: T18SZ Pursuant to KDB 447498 D01 v05r02 that SAR testing is not required when EUT has output power related to distance satisfy with following table. This application FCC ID:AZPT18SZ-24Gis equipped a Pencil type antenna . Thus themost closely distance from antenna to user is 40 mm(indicates in next page) and the max output power (e.i.r.p.) is 17.252 dBm(53.11 mW) which is satisfy with the exclusion level 77 mW. Max Output Power(dBm) Antenna Gain (dBi) e.i.r.p. in dBm e.i.r.p. in mW 15.112 2.14 17.252 53.11 Sincerely Yours, ____________________________________ Mr. Ben Cheng Manager AUDIX Technology Corporation 210 mm 260 mm 40 mm

Page 1 of 52 AUDIX Technology Corp. Tel: +886 2 26099301 No. 53-11, Dingfu, Linkou, Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M1506247 Report Number: EM-F150473 This test report may be reproduced in full only. The document may only be updated by AUDIX Technology Corp. personnel Any changes will be noted in the Document History section of the report. FCC 15.247 DTS 2.4 GHz Report for FUTABA Corporation 1080 Yabutsuka Chosei-son Chosei-gun Chiba, 299-4395 Japan. Brand : Futaba Product Name : Radio Control Model Name : T18SZ FCC ID : AZPT18SZ-24G Page 2 of 52 AUDIX Technology Corp. Tel: +886 2 26099301 No. 53-11, Dingfu, Linkou, Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M1506247 Report Number: EM-F150473 This test report may be reproduced in full only. The document may only be updated by AUDIX Technology Corp. personnel Any changes will be noted in the Document History section of the report. TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION ............................................................................................ 4 1. REPORT HISTORY............................................................................................................. 5 2. SUMMARY OF TEST RESULTS ...................................................................................... 6 3. GENERAL INFORMATION .............................................................................................. 7 3.1. Description of EUT .................................................................................................................... 7 3.2. EUT Specifications Assessed in Current Report ..................................................................... 8 3.3. Antenna Information ................................................................................................................. 9 3.4. Test Configuration ................................................................................................................... 10 3.5. Tested Supporting System List ............................................................................................... 11 3.6. Setup Configuration ................................................................................................................ 12 3.7. Operating Condition of EUT .................................................................................................. 12 3.8. Description of Test Facility ..................................................................................................... 12 3.9. Measurement Uncertainty ...................................................................................................... 13 4. MEASUREMENT EQUIPMENT LIST ........................................................................... 14 4.1. Radiated Emission Measurement ........................................................................................... 14 4.2. RF Conducted Measurement .................................................................................................. 14 5. CONDUCTED EMISSION MEASUREMET .................................................................. 15 6. RADIATED EMISSION MEASUREMENT ................................................................... 16 6.1. Block Diagram of Test Setup .................................................................................................. 16 6.2. Radiated Emission Limits ....................................................................................................... 17 6.3. Test Procedure ......................................................................................................................... 17 6.4. Measurement Result Explanation .......................................................................................... 18 6.5. Test Results ............................................................................................................................... 18 7. 6dB BANDWIDTH MEASUREMENT ............................................................................ 37 7.1. Block Diagram of Test Setup .................................................................................................. 37 7.2. Specification Limits ................................................................................................................. 37 7.3. Test Procedure ......................................................................................................................... 37 7.4. Test Results ............................................................................................................................... 37 8. MAXIMUM PEAK OUTPUT POWER MEASUREMENT .......................................... 39 8.1. Block Diagram of Test Setup .................................................................................................. 39 8.2. Specification Limits ................................................................................................................. 39 8.3. Test Procedure ......................................................................................................................... 39 8.4. Test Results ............................................................................................................................... 40 9. EMISSION LIMITATIONS MEASUREMENT ............................................................. 43 9.1. Block Diagram of Test Setup .................................................................................................. 43 9.2. Specification Limits ................................................................................................................. 43 9.3. Test Procedure ......................................................................................................................... 43 9.4. Test Results ............................................................................................................................... 44 1…
