AZPT2PG-75Remote Control Transmitter

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 February 8, 2001 Dear Mr. Heller, I have given your application a brief examination and find the following deficiencies: This is a Licensed service and not an Unlicensed band. The documentation and Exhibit requirements are somewhat different than that found in Part 15. Please refer to 2.1033 (c)(1) to (14) for the proper documentation to be supplied with this application. 1.) There is no emission designator description supplied with this Application. See 2.202 for examples and instructions. 2.) Tune up procedures were not supplied. 3.) The block diagram supplied is of little value because no frequency paths are noted. As a guide use the description in 2.1033(a)(5). 4.) No tune up procedure is supplied. 5.) The Technical Description file does not meet the requirements of 2.1033(c)(10). 6.) A digital modulation description per 2.1033(c)(13) is required. 7.) Please attest to how the label will be permanently attached per 2.925(d). 8.) FYI: For licensed services a photograph of the test setup is not required. Within the test report, the applicable standards claimed include ANSI C63.4. This is in error. The correct standard to be used as a guide for this AM transmitter system is TIA/EIA 603. 9.) Emission Bandwidth (Occupied Bandwidth) is performed incorrectly. Using the standard rule of thumb, the RBW should be set as close to, but not less than 1% of the 99% power bandwidth. Please correct. 10.) Unwanted emissions are not to be performed using a quasi-peak adaptor. These are to be performed in peak mode using the dipole substitution method as described in TIA/EIA 603. Please correct. FYI: Use of the dipole substitution method allows the use of sites not normally suitable for C63.4 work. 11.) In addition to conducted power output, please provide radiated power output in ERP as well. 12.) Please provide demodulated oscilloscope presentations of the data train. 13.) Frequency multipliers are notoriously “dirty”. Please be sure emissions at multiples of 1/3 the carrier frequency are within specification. The limit in 95.635 is 56 + 10 log(P) [-26dBm ERP]. If you have any questions, please do not hesitate to call. William H. Graff Examining Engineer Vice President of Engineering The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal pursuant to Section 2.917(c). Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not reply to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must attach your answers to email correspondence. Reply to the examiner at the email address shown below. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

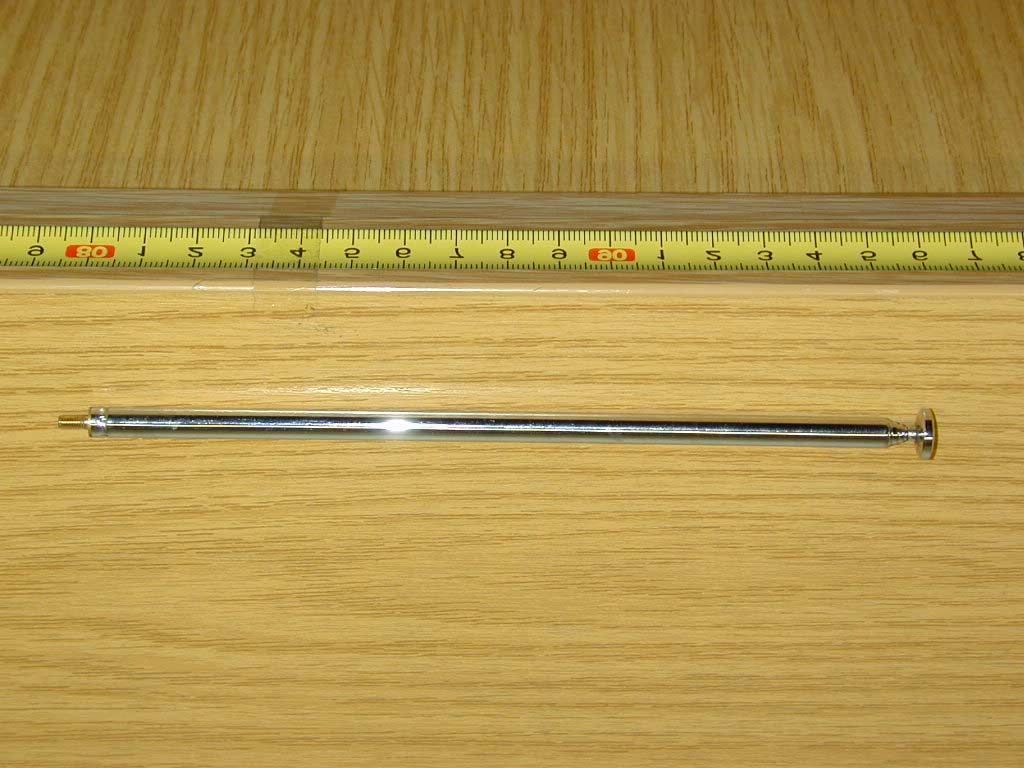

EMV-PrüfzentrumEMI/EMC-Testcenter FCC-ID: AZPT2PG-75Annex B to Test Report No. 55503-00742-1 Page 1 of 7 Pages Annex B to Test Report No. 55503-00742-1 External Photographs of EUT EMV-PrüfzentrumEMI/EMC-Testcenter FCC-ID: AZPT2PG-75Annex B to Test Report No. 55503-00742-1 Page 2 of 7 Pages Photo No. B1 Front view of EUT with antenna extended to maximum EMV-PrüfzentrumEMI/EMC-Testcenter FCC-ID: AZPT2PG-75Annex B to Test Report No. 55503-00742-1 Page 3 of 7 Pages Photo No. B2 Front view of EUT EMV-PrüfzentrumEMI/EMC-Testcenter FCC-ID: AZPT2PG-75Annex B to Test Report No. 55503-00742-1 Page 4 of 7 Pages Photo No. B3 Rear view of EUT EMV-PrüfzentrumEMI/EMC-Testcenter FCC-ID: AZPT2PG-75Annex B to Test Report No. 55503-00742-1 Page 5 of 7 Pages Photo No. B4 Label on rear of EUT EMV-PrüfzentrumEMI/EMC-Testcenter FCC-ID: AZPT2PG-75Annex B to Test Report No. 55503-00742-1 Page 6 of 7 Pages Photo No. B5 Top view of antenna extended to maximum EMV-PrüfzentrumEMI/EMC-Testcenter FCC-ID: AZPT2PG-75Annex B to Test Report No. 55503-00742-1 Page 7 of 7 Pages Photo No. B6 Top view of antenna set to minimum length

EMV-PrüfzentrumEMI/EMC-Testcenter FCC-ID: AZPT2PG-75Annex C to Test Report No. 55503-00742-1 Page 1 of 5 Pages Annex C to Test Report No. 55503-00742-1 Internal Photographs of EUT EMV-PrüfzentrumEMI/EMC-Testcenter FCC-ID: AZPT2PG-75Annex C to Test Report No. 55503-00742-1 Page 2 of 5 Pages Photo No. C1 Top view of disassembled EUT EMV-PrüfzentrumEMI/EMC-Testcenter FCC-ID: AZPT2PG-75Annex C to Test Report No. 55503-00742-1 Page 3 of 5 Pages Photo No. C2 Top view of disassembled EUT with battery block EMV-PrüfzentrumEMI/EMC-Testcenter FCC-ID: AZPT2PG-75Annex C to Test Report No. 55503-00742-1 Page 4 of 5 Pages Photo No. C3 Top view of printed board of EUT EMV-PrüfzentrumEMI/EMC-Testcenter FCC-ID: AZPT2PG-75Annex C to Test Report No. 55503-00742-1 Page 5 of 5 Pages Photo No. C4 Bottom view of printed board of EUT

EMV-PrüfzentrumEMI/EMC-Testcenter Page 1 of 70 Pages Straubing, February 28, 2001 T E S T - R E P O R T No. 55503-00742-1 for T2PG75MHz R/C Transmitter Applicant:Futaba Corporation Purpose of testing:To show compliance with - FCC Code of Federal Regulations, CFR 47, Part 95 - FCC Code of Federal Regulations, CFR 47, Part 2, Subpart J Note: The test data of this report relate only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. EMV-PrüfzentrumEMI/EMC-Testcenter FCC-ID: AZPT2PG-75Test Report No. 55503-00742-1 Page 2 of 70 Pages Table of Contents 1. Administrative Data..............................................................................................3 2. Identification of Test Laboratory ..........................................................................4 3. Summary of Test Results.....................................................................................5 4. Operation Mode of EUT .......................................................................................6 5. Configuration of EUT and Peripheral Devices .....................................................7 6. Measuring Methods .............................................................................................8 6.1. Maximum Transmitter Power (§95.639) ........................................................8 6.2. Frequency tolerance (§95.623) ...................................................................10 6.3. Emission Bandwidth (§95.633) ...................................................................12 6.4. Unwanted Emission 30 MHz - 1 GHz (§95.635, §95.639)...........................13 7. Equipment List ...................................................................................................15 8. Referenced Regulations ....................................................................................17 9. List of Measurements.........................................................................................18 10. Test Results.......................................................................................................19 11. Additional Results ..............................................................................................54 EMV-PrüfzentrumEMI/EMC-Testcenter FCC-ID: AZPT2PG-75Test Report No. 55503-00742-1 Page 3 of 70 Pages 1.Administrative Data Equipment Under Test (EUT):T2PG75MHz Serial number(s):Sample 2000.12.14 Type of equipment:R/C Transmitter Type of emission:A1D Parts/accessories:--- FCC-ID:AZPT2PG-75 Applicant:Futaba Corporation (full address)R/C Engineering Unit 1 1080, Yabutsuka Chosei-mura Chosei-gun, Chiba-ken 299-4395 Japan Contract identification:--- Contact person:Mr. Nobumitsu Kanetsuna Manufacturer:Futaba Corporation Receipt of EUT:December 19, 2000 Dates of test:January 8 to 16, 2001 February 19, 2001 Note:--- Responsible for testing:Rainer Heller Responsible for test report:Rainer Heller EMV-PrüfzentrumEMI/EMC-Testcenter FCC-ID: AZPT2PG-75Test Report No. 55503-00742-1 Page 4 of 70 Pages 2.Identification of Test Laboratory Test Laboratory:Senton GmbH EMI/EMC Test Center (full address):Aeussere Fruehlingstrasse 45 D-94315 Straubing Germany Contact person:Mr. Johann Roidt Communication:Telephone(+49) 0 94 21 / 55 22-0 Fax (+49) 0 94 21 / 55 22-99 eMail:[email protected] FCC registration number:90926 Industry Canada file number:IC 3050 EMV-PrüfzentrumEMI/EMC-Testcenter FCC-ID: AZPT2PG-75Test Report No. 55503-00742-1 Page 5 of 70 Pages 3.Summary of Test Results The tested sample complies with the requirements for set forth in the The Code of Federal Regulations 47, Part 95, Subpart C & E and The Code of Federal Regulations 47 Part 2, Subpart J. of the Federal Communication Commission (FCC). Johann RoidtRainer Heller Technical ManagerTest Engineer EMV-PrüfzentrumEMI/EMC-Testcenter FCC-ID: AZPT2PG-75Test Report No. 55503-00742-1 Page 6 of 70 Pages 4.Operation Mode of EUT • transmitting continuously 1 • with battery supply nominal 12.0 V DC (8 x 1.5 AA cel) 2 • antenna extended to maximum 3 • operating with f = 75.590 MHz For conducted measurements a dummy load was used as delivered by applicant. A short description of the circuit and the method to stop modulation can be found in the following figure. 1 Modulation as indicated on appropriate test record 2 For conducted measurements replaced by external DC supply 3 For radiated emissions only EMV-PrüfzentrumEMI/EMC-Testcenter FCC-ID: AZPT2PG-75Test Report No. 55503-00742-1 Page 7 of 70 Pages 5.Configuration of EUT and Peripheral Devices EUT is configured as stand-alone device Configuration of cables of EUT Not applicable Configuration of peripheral devices connected to EUT Not applicable EMV-PrüfzentrumEMI/EMC-Testcenter FCC-ID: AZPT2PG-75Test Report No. 55503-00742-1 Page 8 of 70 Pages 6.Measuring Methods 6.1. Maximum Transmitter Power (§95.639) The maximum transmitter power was measured conducted and radiated. 6.1.1. Conducted Maximum Transmitter Power A spectrum analyzer / EMI test receiver was connected to the output of the transmitter power amplifier (conducted measurement) via dummy load while EUT was operating in transmit mode using the assigned frequency. The trace mode of the spectrum analyzer was set to max hold with: RBW = 100 kHz, VBW = 100 kHz, span = 1 MHz, sweep = 20 ms (auto mode) See figure 1 for the measurement setup. Test equipment used (see equipment list for details): 02, 18, 51, 69, 70, 71 5 8 3 1 6 4 7 2 Figure 1: Measurement setup for testing on antenna connector 1 Transmitter (EUT) 5 Test cable 2 Dummy load 6 DC-block 3 Wooden table 7 Attenuator 4 DC power supply 8 Spectrum analyzer EMV-PrüfzentrumEMI/EMC-Testcenter FCC-ID: AZPT2PG-75Test Report No. 55503-00742-1 Page 9 of 70 Pages 6.1.2. Radiated Maximum Transmitter Power Radiated Maximum Transmitter Power was measured with detector-function of the spectrum analyzer set to positive peak and trace…

Text truncated - open the document above for the full version.

EMV-PrüfzentrumEMI/EMC-Testcenter FCC-ID: AZPT2PG-75Annex A to Test Report No. 55503-00742-1 Page 1 of 8 Pages Annex A to Test Report No. 55503-00742-1 Photographs of Test Setups EMV-PrüfzentrumEMI/EMC-Testcenter FCC-ID: AZPT2PG-75Annex A to Test Report No. 55503-00742-1 Page 2 of 8 Pages Photo No. A1 Test setup for carrier power parameters (conducted) EMV-PrüfzentrumEMI/EMC-Testcenter FCC-ID: AZPT2PG-75Annex A to Test Report No. 55503-00742-1 Page 3 of 8 Pages Photo No. A2 Test setup for radiated emission pre-test 30 MHz - 1 GHz (semi anechoic room) EUT in vertical position, antenna to the top EMV-PrüfzentrumEMI/EMC-Testcenter FCC-ID: AZPT2PG-75Annex A to Test Report No. 55503-00742-1 Page 4 of 8 Pages Photo No. A3 Test setup for radiated emission pre-test 30 MHz - 1 GHz (semi anechoic room) EUT in horizontal position, antenna to right hand side EMV-PrüfzentrumEMI/EMC-Testcenter FCC-ID: AZPT2PG-75Annex A to Test Report No. 55503-00742-1 Page 5 of 8 Pages Photo No. A4 Test setup for radiated emission pre-test 30 MHz - 1 GHz (semi anechoic room) EUT in horizontal position with back side on table EMV-PrüfzentrumEMI/EMC-Testcenter FCC-ID: AZPT2PG-75Annex A to Test Report No. 55503-00742-1 Page 6 of 8 Pages Photo No. A5 Test setup for radiated emission final test 30 MHz - 1 GHz (open area test-site) EUT in vertical position, antenna to the top EMV-PrüfzentrumEMI/EMC-Testcenter FCC-ID: AZPT2PG-75Annex A to Test Report No. 55503-00742-1 Page 7 of 8 Pages Photo No. A6 Test setup for radiated emission final test 30 MHz - 1 GHz (open area test-site) EUT in horizontal position, antenna to right hand side EMV-PrüfzentrumEMI/EMC-Testcenter FCC-ID: AZPT2PG-75Annex A to Test Report No. 55503-00742-1 Page 8 of 8 Pages Photo No. A7 Test setup for radiated emission final test 30 MHz - 1 GHz (open area test-site) EUT in horizontal position with back side on table
