AZPT3PM-24GRadio Control(Transmitter)

• No part of this manual may be reproduced in any form without prior permission. • The contents of this manual are subject to change without prior notice. • This manual has been carefully written. Please write to Futaba if you feel that any corrections or clarifications should be made. Before using your new 3PM 2.4GHz system, please read this manual thoroughly and use the system properly and safely. After reading this manual, store it in a safe place. About this guide This manual is supplement to the separate "3PM INSTRUCTION MANUAL". Refer to the "3PM INSTRUCTION MANUAL" for the basic operating instructions. In the pro- gramming mode, refer to the programming instructions of the 3PM-FM system. This guide describes the new functions and the safety precautions of the 3PM 2.4GHz system. 1M23N13512 Contents and Technical Specifications Your 3PM 2.4GHz system includes the following components; Installing the T3PK-2.4G/R603FS [Specification] • Communication method: One-way operation system • Mode: PPM, HRS (Auto-detect) • Maximum operating range: 80m (Optimum condition) • For safety: F/S, B-F/S, ID (About 4billion ways of pair identifications) Transmitter T3PM-2.4G; (Wheel system, 3 channels) • Transmitting frequency: 2.4GHz band • Power requirement: (NiCd battery) NT8F700B(9.6V), (Dry cell battery) Penlight x 8(12V) • Current drain: 250mA or less • Transmission antenna: 1/2λ mono-pole Receiver R603FS; • Reception antenna: Diversity type (Two antennas: internal and external) • Power requirement: 6V Nicd battery • DSC function available • RS232C port: (for factory use only) • Size: 39x26x14mm (excluding a projection part) • Weight: 14.1g 3PM 2.4GHz System Thank you for purchasing a 3PM 2.4GHz system. This system is based on the combination of the newly developed 2.4GHz transmitter and its correspondent receiver. The system utilizes the 2.4GHz-SS radio communication and an ultra small antenna. In addition, the system inherits Futaba's unique HRS (High Response System). Features 2.4GHzSS (Spread Spectrum) radio communication system Frequency channel setting unnecessary: Sifting the channels within the 2.4GHz band automatically, this system minimizes the interference from other 2.4GHz system. Accepts no unwanted signals by using ID code The function “Auto-Detect” is utilized to automatically determine which mode is active, HRS or PPM mode. (R603FS) Short and small antenna (T3PK-2.4G)/Diversity antenna (R603FS) • • • • • Install and adjust the T3PK-2.4G transmitter and R603FS receiver as described below. Adjustment of the antenna direction  WARNING  Adjust the antenna vertically to the ground. Otherwise, the oper- ating range may become shorter. Antenna (Antenna Moving Range) I NSTRUCTION M ANUAL For cars only 3PM 2.4GHz system Transmitter T3PM-2.4G Receiver R603FS Servo-------- Miscellaneous Transmitter battery holder Receiver switch Mini screwdriver Instruction manual Usage Precaution  WARNING  Special attention should be paid before turning on the system while other cars are running or other airplanes are flying be- cause the 2.4GHz RC system could potentially affect them.  WARNING  Be sure to set the Fail Safe function. Repair Service Before requesting repair, read this instruction manual again and recheck your system. Should the problem continue, request repair service as follows: Describe the problem in as much detail as possible and send it with a detailed packing list together with the parts that require service. • Symptom (Including when the problem occurred) • System(Transmitter, Receiver, Servo's and model numbers) • Model (Model name) • Model Numbers and Quantity • Your Name, Address, and Telephone Number. If you have any questions regarding this product, please consult your local hobby dealer or contact the Futaba Service Center. FUTABA CORPORATION Phone: (043) 296-5118 Facsimile: (043) 296-5124 Makuhari Techno Garden Bldg., B6F 1-3 Nakase, Mihama-ku, Chiba 261-8555, Japan ©FUTABA CORPORATION 2006, 10 (1) Receiver installation R603FS Receiver Antenna tube Antenna Coaxial cable R603FS 1 Install the R603FS receiver on the car as follow; Note: The operating range may become shorter, although depending on where the receiver and the antenna are mounted.  WARNING  Install the antenna in the higher place as shown in the figure.  Do not cut the antenna.  Keep the antenna away from the motor, ESC and other noise sources as pos- sible as you can.  Put the antenna in the antenna tube to protect it.  Do not bend the coaxial cable. It causes damage.  Wrap the receiver with something soft such as foam rubber to avoid vibration. If there is a chance of getting wet, put the receiv- er in a waterproof bag or balloon to avoid water.  CAUTION  Always use R603FS under the following conditions; Power supply; 6V Nicd battery (PPM/HRS mode) Servo; 6V type Futaba Digital Servo (HRS mode) * If the conditions are different, control is impossible or the servo may be damaged. How to turn on the power A certain ID number is given to the receiver automatically. Identifying this ID number, the system will minimize the interference from other transmitters. 1 Bring the transmitter and the receiver close to each other within one meter. 2 Turn on the transmitter. LED and F/S switch Note: Check the LED on the rear of the transmitter. Parameter check for 0.5 seconds after power-on Red: On Transmitting signalsGreen: On F/S is activated by the F/S switch of the transmit- ter. (PPM mode) Green: Blink Unrecoverable failure (EEPROM, etc.) Red and Green turn on alternatively. 3 Turn on the receiver. 4 Push the tactile switch of the receiver. Note: Check the LED of the receiver. No signal receptionRed : On Receiving signalsGreen: On Receiving signals, but ID is unmatched. Green: Blink Unrecoverable failure (EEPROM, etc.) Red and Green turn on alternatively. How to Set the F/S Position PPM mode only: *HRS mode: Set the F/S function by the fail safe function menu. 1 Move and hold the throttle trigger (stick) to the…

Text truncated - open the document above for the full version.

Thank you for purchasing a Futaba 3PM. Before using your 3PM, read this manual carefully and use your R/C set safely. After reading this manual, store it in a safe place. Application, Export, and Modification 1. This product may be used for models only. It is not intended for use in any application other than the control of models for hobby and recreational purposes. The product is subject to regulations of the Ministry of Radio/Telecommunications and is restricted under Japanese law to such purposes. 2. Exportation precautions: (a) When this product is exported from the country of manufacture, its use is to be approved by the laws govern- ing the country of destination which govern devices that emit radio frequencies. If this product is then re- exported to other countries, it may be subject to restrictions on such export. Prior approval of the appropriate goverment authorities may be required. If you have purchased this product from an exporter outside your coun- try, and not the authorized Futaba distributor in your country, please contact the seller immediately to determine if such export regulations have been met. (b) Use of this product with other than models may be restricted by Export and Trade Control Regulations, and an application for export approval must be submitted. In the US, use of 72MHz (aircraft only), 75MHz (ground models only) and 27MHz (both) frequency bands are strictly regulated by the FCC. This equipment must not be utilized to operate equipment other than radio controlled models. Similarly, other frequencies (except 50MHz, for HAM operators) must not be used to operate models. 3. Modification, adjustment, and replacement of parts: Futaba is not responsible for unauthorized modification, adjustment, and replacement of parts on this product. Any such changes may void the warranty. Compliance Information Statement (for U.S.A.) This device, trade name Futaba Corporation of America, model number R133F and R303FS comply with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. The responsible party of this device compliance is; Futaba Corporation of America 2865 Wall Triana Highway, Huntsville, Alabama 35824, U.S.A. TEL (256) 461 - 7348 Battery Recycling (for U.S.A.) The RBRC TM SEAL on the (easily removable) nickel-cadmium battery contained in Futaba products indicates that Futaba Corporation of America is voluntarily participating in an industry program to collect and recycle these batteries at the end of their useful lives, when taken out of service within the United States. The RBRC TM program provides a convenient alternative to placing used nickel-cadmium batteries into the trash or mu- nicipal waste system, which is illegal in some areas. You may contact your local recycling center for information on where to return the spent battery. Please call 1-800-8-BATTERY for information on Ni-Cd battery recycling in your area. Futaba Cor- poration of America's involvement in this program is part of its commitment to protecting our environ- ment and conserving natural resources. NOTE: Our instruction manuals encourage our customers to return spent batteries to a local recycling center in order to keep a healthy environment. RBRC TM is a trademark of the Rechargeable Battery Recycling Corporation. Warning: This product contains a chemical known to cause cancer and birth defects (or other reproductive harm). •No part of this manual may be reproduced in any form without prior permission. •The contents of this manual are subject to change without prior notice. •This manual has been carefully written. Please write to Futaba if you feel that any corrections or clarifications should be made. •Futaba is not responsible for the use of this product. 4 For Your Safety As Well As That Of Others ........... 6 Explanation of Symbols ................................................................................ 6 High Response System (H.R.S) Precautions .............................................. 6 Operation Precautions .................................................................................. 7 NiCd Battery Handling Precautions ............................................................. 9 Storage and Disposal Precautions ............................................................ 10 Other Precautions ....................................................................................... 11 Table Of Contents Before Using ........................................................... 12 Features ........................................................................................................ 12 Set Contents ................................................................................................ 14 Nomenclature (Transmitter/Receiver/Servo) ............................................ 15 Installation .............................................................. 22 Receiver and Servo Connections .............................................................. 22 Installation Safety Precautions .................................................................. 23 Initial Set-Up ........................................................... 24 Preparations (Transmitter) ......................................................................... 24 Functions ................................................................ 30 End Point Adjuster ...................................................................................... 30 Steering Speed ............................................................................................ 33 Steering EXP / Throttle EXP ....................................................................... 34 A.B.S. Function ............................................................................................ 36 Throttle Acceleration .....…

Text truncated - open the document above for the full version.

1 Helen Zhao From: cherry Sent: Thursday, November 16, 2006 5:07 AM To: Helen Zhao Subject: Re: TCB New Application for Futaba, FCC ID: AZPT3PM-24G Assessment No.: AN06T6303 Importance: High Dear Helen. Thanks for your e-mail, the answers please see the below "blue word" under your Questions. Best Regards, Cherry Wang -----Original Message----- Sent: Monday, November 13, 2006 5:43 PM Subject: Futaba Corporation, FCC ID: AZPT3PM-24G, Assessment NO.: AN06T6303, Notice#1 Question #1: The manual in the filing indicates "for basic operation, please refer to separate 3PM Instruction Manual". Please submit "3PM Instruction Manual". Ans: The 3PM Instruction Manual is attached , please see the file"3PM Manual.pdf" Question #2: Please address 15.247(i) RF exposure requirement. The max. power output is 69.5mW, which is above low threshold specified in TCB exclusion list 2002. If the device falls in portable category (less than 20cm from the antenna to human body), you may need to perform SAR. If the device falls in mobile category (greater than 20cm from the antenna to human body), then you need to provide MPE calculation in the report. Also please update the user manual to add the following statements: Caution: Exposure to Radio Frequency Radiation. To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. This device must not be co-located or operating in conjunction with any other antenna or transmitter. Ans: Futaba have signed "declaration of compliance", please see the attached file. The caution added on page 3 of 3PM 2.4GHz User Manual, please see the attached file. Best Regards, Helen Zhao The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

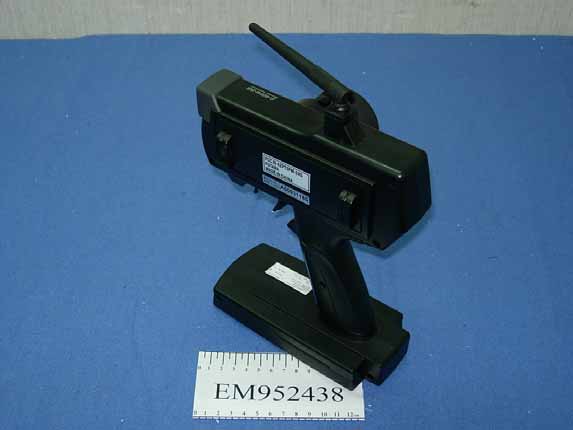

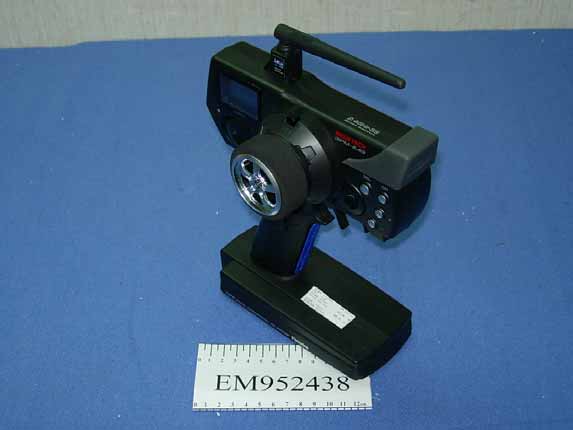

Futaba Corporation Radio Control FCC ID. : AZPT3PM-24G EUT External Photos Figure 1 General Appearance (Front & Side View) Figure 2 General Appearance (Back & Side View) Futaba Corporation Radio Control FCC ID. : AZPT3PM-24G Figure 3 General Appearance (Bottom View)

Futaba Corporation Radio Control FCC ID. : AZPT3PM-24G FCC ID Label Location z Label Placement Location z FCC Label Format FCC Label Placement Location

Futaba Corporation Radio Control FCC ID. : AZPT3PM-24G EUT Internal Photos Figure 4 Internal View (Removed Battery Cover) Figure 5 Internal View (Removed Cover) Futaba Corporation Radio Control FCC ID. : AZPT3PM-24G Figure 6 Internal View (Antenna View) Figure 7 Internal View (RF Board, Front View) Futaba Corporation Radio Control FCC ID. : AZPT3PM-24G Figure 8 Internal View (RF Board, Back View) Figure 9 Internal View (Control Board, Front View) Futaba Corporation Radio Control FCC ID. : AZPT3PM-24G Figure 10 Internal View (Control Board, Back View) Figure 11 Internal View (Main Board, Back View) Futaba Corporation Radio Control FCC ID. : AZPT3PM-24G Figure 12 Internal View (Main Board, Front View) Figure 13 Internal View (Control Boards, Back View) Futaba Corporation Radio Control FCC ID. : AZPT3PM-24G Figure 14 Internal View (Control Boards, Front View) Figure 15 Internal View (Control Board, Back View) Futaba Corporation Radio Control FCC ID. : AZPT3PM-24G Figure 16 Internal View (Control Board, Front View)

FCC ID. AZPT3PM-24G Page 1 of 57 Audix Corporation Report No. EM-F950450 APPLICATION FOR CERTIFICATION On Behalf of Futaba Corporation Radio Control Model No.T3PM-2.4G FCC IDAZPT3PM-24G Brand : Futaba Prepared for : Futaba Corporation 1080 Yabutsuka Chosei-son Chosei-gun Chiba, 299-4395 Japan. Prepared by : Audix Technology Corporation EMC Department No. 53-11, Tin-Fu Tsun, Lin-Kou, Taipei, Taiwan Tel : (02) 2609-9301, 2609-2133 Fax: (02) 2609-9303 File Number EM952438 Report Number EM-F950450 Date of Test Oct. 26 ~ 27, 2006 Date of Report Nov. 03, 2006 FCC ID. AZPT3PM-24G Page 2 of 57 Audix Corporation Report No. EM-F950450 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION .......................................................................................................4 1. GENERAL INFORMATION .........................................................................................................5 1.1. Description of Device (EUT).................................................................................................................. 5 1.2. Tested Supporting System Details .......................................................................................................... 6 1.3. Description of Test Facility .................................................................................................................... 7 1.4. Measurement Uncertainty....................................................................................................................... 8 2. CONDUCTED EMISSION MEASUREMET...............................................................................9 3. RADIATED EMISSION MEASUREMENT ..............................................................................10 3.1. Test Equipment ..................................................................................................................................... 10 3.2. Test Setup ............................................................................................................................................. 10 3.3. Radiated Emission Limits (§15.209) .................................................................................................... 12 3.4. Operating Condition of EUT ................................................................................................................ 12 3.5. Test Procedure ...................................................................................................................................... 12 3.6. Test Results........................................................................................................................................... 13 4. 6dB BANDWIDTH MEASUREMENT .......................................................................................33 4.1. Test Equipment ..................................................................................................................................... 33 4.2. Block Diagram of Test Setup................................................................................................................ 33 4.3. Specification Limits (§15.247(a)(2)) .................................................................................................... 33 4.4. Operating Condition of EUT ................................................................................................................ 33 4.5. Test Procedure ...................................................................................................................................... 33 4.6. Test Results........................................................................................................................................... 34 5. MAXIMUM PEAK OUTPUT POWER MEASUREMENT .....................................................37 5.1. Test Equipment ..................................................................................................................................... 37 5.2. Block Diagram of Test Setup................................................................................................................ 37 5.3. Specification Limits (§15.247(b)-(3))................................................................................................... 37 5.4. Operating Condition of EUT ................................................................................................................ 37 5.5. Test Procedure ...................................................................................................................................... 37 5.6. Test Results........................................................................................................................................... 38 6. EMISSION LIMITATIONS MEASUREMENT ........................................................................39 6.1. Test Equipment ..................................................................................................................................... 39 6.2. Block Diagram of Test Setup................................................................................................................ 39 6.3. Specification Limits (§15.247(c))......................................................................................................... 39 6.4. Operating Condition of EUT ................................................................................................................ 39 6.5. Test Procedure ...................................................................................................................................... 39 6.6. Test Results........................................................................................................................................... 40 7. BAND EDGES MEASUREMENT...............................................................................................43 7.1. Test Equipment ................................................................................................…

Text truncated - open the document above for the full version.

FCC ID. AZPT3PM-24G Page 49 of 57 Audix Corporation Report No. EM-F950450 10. PHOTOGRAPHS 10.1. Photos of Radiated Measurement at Semi-Anechoic Chamber 10.1.1. Frequency Range 30MHz~1GHz Position: Stand FRONT VIEW OF RADIATED MEASUREMENT BACK VIEW OF RADIATED MEASUREMENT FCC ID. AZPT3PM-24G Page 50 of 57 Audix Corporation Report No. EM-F950450 Position: Side FRONT VIEW OF RADIATED MEASUREMENT BACK VIEW OF RADIATED MEASUREMENT FCC ID. AZPT3PM-24G Page 51 of 57 Audix Corporation Report No. EM-F950450 Position: Lie FRONT VIEW OF RADIATED MEASUREMENT BACK VIEW OF RADIATED MEASUREMENT FCC ID. AZPT3PM-24G Page 52 of 57 Audix Corporation Report No. EM-F950450 10.1.2. Frequency Above 1GHz Position: Stand FRONT VIEW OF RADIATED MEASUREMENT BACK VIEW OF RADIATED MEASUREMENT FCC ID. AZPT3PM-24G Page 53 of 57 Audix Corporation Report No. EM-F950450 Position: Side FRONT VIEW OF RADIATED MEASUREMENT BACK VIEW OF RADIATED MEASUREMENT FCC ID. AZPT3PM-24G Page 54 of 57 Audix Corporation Report No. EM-F950450 Position: Lie FRONT VIEW OF RADIATED MEASUREMENT BACK VIEW OF RADIATED MEASUREMENT FCC ID. AZPT3PM-24G Page 55 of 57 Audix Corporation Report No. EM-F950450 10.2. Photo of 6dB Bandwidth Measurement 10.3. Photo of Maximum Peak Output Measurement FCC ID. AZPT3PM-24G Page 56 of 57 Audix Corporation Report No. EM-F950450 10.4. Photo of Emission Limitations Measurement 10.5. Photo of Band Edges Measurement FCC ID. AZPT3PM-24G Page 57 of 57 Audix Corporation Report No. EM-F950450 10.6. Photo of Power Spectral Density Measurement
