AZPT3PM-75Radio Control Transmitter

Thank you for purchasing a Futaba 3PM. Before using your 3PM, read this manual carefully and use your R/C set safely. After reading this manual, store it in a safe place. Application, Export, and Modification 1. This product may be used for models only. It is not intended for use in any application other than the control of models for hobby and recreational purposes. The product is subject to regulations of the Ministry of Radio/Telecommunications and is restricted under Japanese law to such purposes. 2. Exportation precautions: (a) When this product is exported from the country of manufacture, its use is to be approved by the laws govern- ing the country of destination which govern devices that emit radio frequencies. If this product is then re- exported to other countries, it may be subject to restrictions on such export. Prior approval of the appropriate goverment authorities may be required. If you have purchased this product from an exporter outside your coun- try, and not the authorized Futaba distributor in your country, please contact the seller immediately to determine if such export regulations have been met. (b) Use of this product with other than models may be restricted by Export and Trade Control Regulations, and an application for export approval must be submitted. In the US, use of 72MHz (aircraft only), 75MHz (ground models only) and 27MHz (both) frequency bands are strictly regulated by the FCC. This equipment must not be utilized to operate equipment other than radio controlled models. Similarly, other frequencies (except 50MHz, for HAM operators) must not be used to operate models. 3. Modification, adjustment, and replacement of parts: Futaba is not responsible for unauthorized modification, adjustment, and replacement of parts on this product. Any such changes may void the warranty. Compliance Information Statement (for U.S.A.) This device, trade name Futaba Corporation of America, model number R133F and R303FS comply with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. The responsible party of this device compliance is; Futaba Corporation of America 2865 Wall Triana Highway, Huntsville, Alabama 35824, U.S.A. TEL (256) 461 - 7348 Battery Recycling (for U.S.A.) The RBRC TM SEAL on the (easily removable) nickel-cadmium battery contained in Futaba products indicates that Futaba Corporation of America is voluntarily participating in an industry program to collect and recycle these batteries at the end of their useful lives, when taken out of service within the United States. The RBRC TM program provides a convenient alternative to placing used nickel-cadmium batteries into the trash or mu- nicipal waste system, which is illegal in some areas. You may contact your local recycling center for information on where to return the spent battery. Please call 1-800-8-BATTERY for information on Ni-Cd battery recycling in your area. Futaba Cor- poration of America's involvement in this program is part of its commitment to protecting our environ- ment and conserving natural resources. NOTE: Our instruction manuals encourage our customers to return spent batteries to a local recycling center in order to keep a healthy environment. RBRC TM is a trademark of the Rechargeable Battery Recycling Corporation. Warning: This product contains a chemical known to cause cancer and birth defects (or other reproductive harm). •No part of this manual may be reproduced in any form without prior permission. •The contents of this manual are subject to change without prior notice. •This manual has been carefully written. Please write to Futaba if you feel that any corrections or clarifications should be made. •Futaba is not responsible for the use of this product. 4 For Your Safety As Well As That Of Others ........... 6 Explanation of Symbols ................................................................................ 6 High Response System (H.R.S) Precautions .............................................. 6 Operation Precautions .................................................................................. 7 NiCd Battery Handling Precautions ............................................................. 9 Storage and Disposal Precautions ............................................................ 10 Other Precautions ....................................................................................... 11 Table Of Contents Before Using ........................................................... 12 Features ........................................................................................................ 12 Set Contents ................................................................................................ 14 Nomenclature (Transmitter/Receiver/Servo) ............................................ 15 Installation .............................................................. 22 Receiver and Servo Connections .............................................................. 22 Installation Safety Precautions .................................................................. 23 Initial Set-Up ........................................................... 24 Preparations (Transmitter) ......................................................................... 24 Functions ................................................................ 30 End Point Adjuster ...................................................................................... 30 Steering Speed ............................................................................................ 33 Steering EXP / Throttle EXP ....................................................................... 34 A.B.S. Function ............................................................................................ 36 Throttle Acceleration .....…

Text truncated - open the document above for the full version.

Request for Confidentiality 30 January 2004 EMCCert DR. RAŠEK - Certification Institute- Boelwiese 5 D-91320 Ebermannstadt RE: Certification Application FCC ID: AZPT3PM-75 Please be advised that the following information is to be held confidential on behalf of Futaba Corporation: • Schematics • Parts List • Block Diagram • Technical Description The application contains technical information which Futaba Corporation deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter.

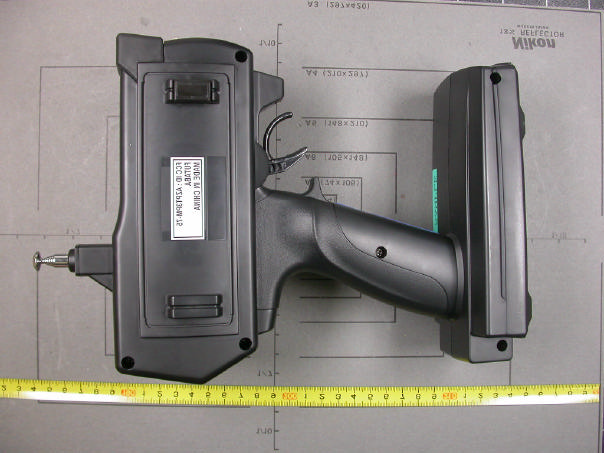

FCC ID: AZPT3PM-75 External Photos Page 1 of 5 FCC ID: AZPT3PM-75 External Photos Page 2 of 5 FCC ID: AZPT3PM-75 External Photos Page 3 of 5 FCC ID: AZPT3PM-75 External Photos Page 4 of 5 FCC ID: AZPT3PM-75 External Photos Page 5 of 5

FCC ID: AZPT3PM-75 Internal Photos Page 1 of 5 FCC ID: AZPT3PM-75 Internal Photos Page 2 of 5 FCC ID: AZPT3PM-75 Internal Photos Page 3 of 5 FCC ID: AZPT3PM-75 Internal Photos Page 4 of 5 FCC ID: AZPT3PM-75 Internal Photos Page 5 of 5

EMV-PrüfzentrumEMI/EMC-Testcenter Page 1 of 32 Pages Straubing, 8 January 2004 T E S T - R E P O R T No. 55503-30809 for T3PM FM 75 MHz R/C Transmitter Applicant: Futaba Corporation Purpose of testing: To show compliance with - FCC Code of Federal Regulations, CFR 47, Part 95 - FCC Code of Federal Regulations, CFR 47, Part 2, Subpart J Note: The test data of this report relate only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. EMV-PrüfzentrumEMI/EMC-Testcenter FCC-ID: AZPT3PM-75 Test Report No. 55503-30809 Page 2 of 32 Pages Table of Contents 1. Administrative Data..............................................................................................3 2. Identification of Test Laboratory...........................................................................4 3. Summary of Test Results.....................................................................................5 4. Operation Mode of EUT.......................................................................................6 5. Configuration of EUT and Peripheral Devices......................................................7 6. Measuring Methods.............................................................................................8 6.1. Maximum Transmitter Power (§95.639)........................................................8 6.2. Frequency tolerance (§95.623)...................................................................10 6.3. Emission Bandwidth (§95.633)....................................................................12 6.4. Unwanted Emission 30 MHz - 1 GHz (§95.635, §95.639)...........................13 7. Photographs of Test Setups..............................................................................15 8. Equipment List...................................................................................................18 9. Referenced Regulations....................................................................................20 10. List of Measurements.........................................................................................21 11. Test Results.......................................................................................................22 12. Additional Information supplementary to the Test Report...................................32 EMV-PrüfzentrumEMI/EMC-Testcenter FCC-ID: AZPT3PM-75 Test Report No. 55503-30809 Page 3 of 32 Pages 1. Administrative Data Equipment Under Test (EUT): T3PM FM 75 MHz Serial number(s): 001 Type of equipment: R/C Transmitter Type of emission: 6K50F1D Parts/accessories: --- FCC-ID: AZPT3PM-75 Applicant: Futaba Corporation (full address) R/C Engineering Unit 1 1080, Yabutsuka Chosei-son, Chosei-gun, Chiba-ken, 299-4395 Japan Contract identification: --- Contact person: Mr. Fujita Manufacturer: Futaba Corporation Receipt of EUT: December 15, 2003 Dates of test: January 2004 Note: --- Responsible for testing: Thomas Eberl Responsible for test report: Thomas Eberl EMV-PrüfzentrumEMI/EMC-Testcenter FCC-ID: AZPT3PM-75 Test Report No. 55503-30809 Page 4 of 32 Pages 2. Identification of Test Laboratory Test Laboratory: Senton GmbH EMI/EMC Test Center (full address): Aeussere Fruehlingstrasse 45 D-94315 Straubing Germany Contact person: Mr. Johann Roidt Communication: Telephone (+49) 0 94 21 / 55 22-0 Fax (+49) 0 94 21 / 55 22-99 eMail: [email protected] FCC registration number: 90926 Industry Canada file number: IC 3050 EMV-PrüfzentrumEMI/EMC-Testcenter FCC-ID: AZPT3PM-75 Test Report No. 55503-30809 Page 5 of 32 Pages 3. Summary of Test Results The tested sample complies with the requirements for R/C Transmitters set forth in the The Code of Federal Regulations 47, Part 95, Subpart C & E and The Code of Federal Regulations 47 Part 2, Subpart J. of the Federal Communication Commission (FCC). Johann Roidt Thomas Eberl Laboratory Manager Test Engineer EMV-PrüfzentrumEMI/EMC-Testcenter FCC-ID: AZPT3PM-75 Test Report No. 55503-30809 Page 6 of 32 Pages 4. Operation Mode of EUT • transmitting continuously 1 • with battery supply nominal 12.0 V DC) 2 • antenna extended to maximum 3 • operating with f = 75.710 MHz For conducted measurements a dummy load was used as delivered by applicant. A short description of the circuit can be found in the following figure. 1 Modulation as indicated on appropriate test record 2 For conducted measurements replaced by external DC supply 3 For radiated emissions only EMV-PrüfzentrumEMI/EMC-Testcenter FCC-ID: AZPT3PM-75 Test Report No. 55503-30809 Page 7 of 32 Pages 5. Configuration of EUT and Peripheral Devices EUT is configured as stand-alone device Configuration of cables of EUT Not applicable Configuration of peripheral devices connected to EUT Not applicable EMV-PrüfzentrumEMI/EMC-Testcenter FCC-ID: AZPT3PM-75 Test Report No. 55503-30809 Page 8 of 32 Pages 6. Measuring Methods 6.1. Maximum Transmitter Power (§95.639) The maximum transmitter power was measured conducted and radiated. 6.1.1. Conducted Maximum Transmitter Power A spectrum analyzer / EMI test receiver was connected to the output of the transmitter power amplifier (conducted measurement) via dummy load while EUT was operating in transmit mode using the assigned frequency. The trace mode of the spectrum analyzer was set to max hold with: RBW = 100 kHz, VBW = 100 kHz, span = 1 MHz, sweep = 20 ms (auto mode) See figure 1 for the measurement setup. Test equipment used (see equipment list for details): 02, 18, 51, 69, 70, 71 5 8 3 1 6 4 7 2 Figure 1: Measurement setup for testing on antenna connector 1 Transmitter (EUT) 5 Test cable 2 Dummy load 6 DC-block 3 Wooden table 7 Attenuator 4 DC power supply 8 Spectrum analyzer EMV-PrüfzentrumEMI/EMC-Testcenter FCC-ID: AZPT3PM-75 Test Report No. 55503-30809 Page 9 of 32 Pages 6.1.2. Radiated Maximum Transmitter Power Radiated Maximum Transmitter Power was measured with detector-function of the spectrum analyzer s…

Text truncated - open the document above for the full version.

EMV-PrüfzentrumEMI/EMC-Testcenter FCC-ID: AZPT3PM-75 Test Report No. 55503-30809 Page 16 of 32 Pages Test setup unwanted radiation 30 MHz - 1 GHz EMV-PrüfzentrumEMI/EMC-Testcenter FCC-ID: AZPT3PM-75 Test Report No. 55503-30809 Page 17 of 32 Pages Test setup unwanted radiation 30 MHz - 1 GHz (continued)
