Thank you for purchasing a Futaba 4GRS-2.4GHz system. Before using your 4GRS-2.4GHz system, read this manual carefully in order to use your R/C set safely. After reading this manual, store it in a safe place. IN NORTH AMERICA Please feel free to contact the Futaba Service Center for assistance in operation, use and programming. Please be sure to regularly visit the 4GRS Frequently Asked Questions web site at www.futaba-rc.com/faq/. This page includes extensive programming, use, set up and safety information on the 4GRS radio system and is updated regularly. Any technical updates and US manual corrections will be available on this web page. If you do not find the answers to your questions there, please see the end of our F.A.Q. area for information on contacting us via email for the most rapid and convenient response. Don’t have Internet access? Internet access is available at no charge at most public li - braries, schools, and other public resources. We find internet support to be a fabulous reference for many modelers as items can be printed and saved for future reference, and can be accessed at any hour of the day, night, weekend or holiday. If you do not wish to access the internet for information, however, don’t worry. Our support teams are avail - able Monday through Friday 8-5 Central time to assist you. Application, Export, and Modification 1. This product may be used for models only. It is not intended for use in any application other than the control of models for hobby and recreational purposes. OUTSIDE NORTH AMERICA Please contact your Futaba importer in your region of the world to assist you with any questions, problems or service needs. Please recognize that all information in this manual, and all support availability, is based upon the systems sold in North America only. Products purchased elsewhere may vary. Always contact your region’s support center for assistance. FOR SERVICE ONLY: Futaba Service Center 3002 N. Apollo Drive, Suite 1 Champaign, IL 61822 Phone: 217-398-0007 www.futaba-rc.com/service.html Email: [email protected] FOR SUPPORT : (PROGRAMMING AND USER QUESTIONS) Please start here for answers to most questions: www.futaba-rc.com/faq/ Fax: 217-398-7721 Phone: 217-398-8970 option 2 3 • No part of this manual may be reproduced in any form without prior permission. • The contents of this manual are subject to change without prior notice. • This manual has been carefully written. Please write to Futaba if you feel that any corrections or clarifica- tions should be made. • Futaba is not responsible for the use of this product. Battery Recycling (for U.S.A.) The RBRC™ SEAL on the (easily removable) nickel-cadmium battery and nickel-metal-hydride battery contained in Futaba products indicates that Fu - taba Corporation is voluntarily participating in an industry program to col- lect and recycle these batteries at the end of their useful lives, when taken out of service within the United States. The RBRC™ program provides a convenient alternative to placing used nickel-cadmium batteries and nickel-metal-hy - dride batteries into the trash or municipal waste system, which is illegal in some areas. You may contact your local recycling center for information on where to return the spent battery. Please call 1-800-8-BATTERY for information on NiCd/NiMH battery recycling in your area. Futaba Corporation's involvement in this program is part of its commitment to protecting our environment and conserving natural resources. NOTE: Our instruction manuals encourage our customers to return spent batteries to a local recycling center in order to keep a healthy environment. RBRC™ is a trademark of the Rechargeable Battery Recycling Corporation. 2. Exportation precautions: (a) When this product is exported from the country of manufacture, its use is to be ap - proved by the laws governing the country of destination for devices that emit radio fre- quencies. If this product is then re-exported to other countries, it may be subject to re- strictions on such export. Prior approval of the appropriate government authorities may be required. If you have purchased this product from an exporter outside your country, and not the authorized Futaba distributor in your country, please contact the seller im - mediately to determine if such export regulations have been met. (b) Use of this product with other than models may be restricted by Export and Trade Control Regulations, and an application for export approval must be submitted. 3. Modification, adjustment, and replacement of parts: Futaba is not responsible for unauthorized modification, adjustment, and replacement of parts on this product. Any such changes may void the warranty. 4 Table Of Contents For Your Safety As Well As That Of Others .........................8 Explanation Of Symbols ...............................................................8 2.4GHz System Precautions .........................................................8 Receiver Mode Precautions .........................................................8 Operation Precautions ..................................................................9 NiMH/NiCd Battery Handling Precautions ................................10 Storage And Disposal Precautions ...........................................10 Other Precautions .......................................................................11 Installation ..........................................................................33 Receiver and Servo Connections .............................................33 Installation Safety Precautions ..................................................34 Before Using ......................................................................12 Features ......................................................................................12 Set Contents ...............................................................................14 Transmitter T4GRS ...........................................…

Text truncated - open the document above for the full version.

Example: Select the chan- nel to be changed at the REVERSE screen by (JOG) button up or down operation, and set the servo direction by selecting "NOR" or "REV" with the (+) button or (-) but- ton. Example: When changing the left side travel of the steering servo at the END POINT screen, select LFT of the STR setting item by (JOG) but- ton up, down, left, or right operation, and set the steering servo counterclock- wise travel with the (+) or (-) button. On the MENU1 screen, move the cursor to "END POINT" (END POINT screen) Press (JOG)button down operation (JOG)button up operation Move the cursor When this is displayed, the setting can also be changed by (JOG) button left or right operation. 44 Function Map Value Of Each Function And Changing The Set Value Values, settings, and other data on all the function setting screens are changed with the (+) and (-) but tons. Selecting Items On The Menu Screen The item indicated by the highlighted cursor on the screen is selected. The cursor is moved using the (JOG) button in up or down movements. The cursor PRYHPHQW¿JXUHVKRZQEHORZLVDQH[DPSOHRIWKH0(18VFUHHQ+RZHYHUPRYH - ment of the cursor is the same in all of the screens. For instance, if the (JOG) button is pressed when the cursor is at the end point (EPA) on WKH0(18VFUHHQWKHHQGSRLQW (1'32,17 IXQFWLRQVHWWLQJVFUHHQDSSHDUV "KATAKANA" characters Alphabetic characters EXP SPEED TH A.B.S TH A.B.S TH ACCEL END POINT TRIM REVERSE D/R ATLD/R ATL FAIL SFE CH3 /CH4CH3 /CH4 MODEL MDL NAME MIXBRAKE MIX PROG MIX PROG MIX 4WS 4WS ESCDUAL ESC MIXGYRO MIX CPSMIXCPSMIX THTH MODE SW/SW/DIAL TIMER LAP LIST SYSTEM ADJUSTER (MENU 2 screen) (MENU 1 screen) (SYSTEM screen) CONTRA LHT-TM BK-LHT SYSTEM [ RT ] LHT-PW BATT DRY4 OPE-TM BUZZER MENU TH-STK DISP 0 ALL 10s 15 65 OFF TLMTR 5 5 崓崲 CONTRA LHT-TM BK-LHT SYSTEM [ RT ] LHT-PW BATT DRY4 OPE-TM BUZZER MENU TH-STK DISP 0 ALL 10s 15 65 OFF TLMTR 5 5 ENG (HOME screen) Call the MENU2 screen from the HOME screen by the (JOG) but- ton up, down, left or right opera- tion and press the (+) button. On the MENU2 screen, move the cursor to "SYSTEM" by the (JOG) button up or down op- eration and press the button. (MENU 2 screen) 45 Function Map Basic Menu Japanese Katakana Character Display On the system menu, the basic menu screen shown below can be displayed in Japanese katakana characters. On the SYSTEM screen, select MENU by pressing the (JOG) button and select "ENG" or "" by pressing the (+) or (-) button. Changing the character After changing the setting, return to the MENU2 screen by pressing the (JOG) button or return to the HOME screen by se- lecting [RT] and pressing the (JOG) button. 46 Function Map RX MODE 5HFHLYHUW\SHVHOHFWLRQOLQNLQJZLWKWHOHPHWU\W\SH7)+66V\VWHPUHFHLYHU MODEL 0RGHOPHPRU\VHOHFW0RGHOPHPRU\FRS\0RGHOPHPRU\UHVHW MDL NAME 0RGHOPHPRU\QDPHVHWPRGLI\XVHUQDPHVHWPRGLI\ REVERSE Servo reversing SUBTRIM 6HUYRFHQWHUSRVLWLRQ¿QHDGMXVWPHQW END POINT (QGSRLQWDGMXVWPHQW FAIL SAFE Fail safe, battery fail safe EXP 6WHHULQJFXUYHDGMXVWPHQW7KURWWOHFXUYHDGMXVWPHQW SPEED Steering servo delay/ Throttle servo delay TH ACCEL Reduces the "lag time" of the throttle from the neutral position. TH A.B.S Pulsing brake CH3/CH4 Channel 3&4 servos operation position set/check D/R ATL 6WHHULQJDQJOHDGMXVWPHQWZKLOHUXQQLQJ%UDNHVLGHDGMXVWPHQW SW/DIAL Selection of functions operated by switch, digital dial and digital trim BRAKE MIX )URQWDQGUHDULQGHSHQGHQWEUDNHFRQWUROIRU*3FDUHWF PROG MIX 3URJUDPPDEOHPL[LQJEHWZHHQVSHFL¿FFKDQQHOV 4WS MIX :6PL[LQJ DUAL ESC )URQWDQGUHDU(6&VPL[LQJ GYRO ESC 7KHVHQVLWLYLW\RI)XWDEDFDUUDWHJ\URVFDQEHDGMXVWHG CPS ESC 7KH&36RI)XWDED/('FRQWUROOHUFDQEHDGMXVWHG TH MODE Throttle servo forward side and brake side operation rate setting/ Neutral brake/ Idle up at engine start/ engine cut off by switch MC LINK 0&&&&5&5&5&5/LQNVRIWZDUHVHWWLQJIXQFWLRQ MDL TRANS Data copy from T4GRS to another T4GRS TIMER 8SGRZQRUODSWLPHU LAP LIST /DSWLPHUGDWD ODSWLPHWRWDOWLPH FKHFN SYSTEM /&'FRQWUDVWEDFNOLJKW%DWWHU\W\SHEX]]HUSRZHUOHIW³21 ́DODUP%DVLFPHQXFKDUDFWHU GLVSOD\7KURWWOHVWLFNDGMXVWPHQW+20(VFUHHQGLVSOD\PRGH ADJUSTR Steering stick and throttle stick correction TELEMETRY Displays the status during operation, of each sensor unit and records the status in a data log. Function List Current model # and model name ID of T-HSS receiver linked last at this model Model copy function. Model reset function. Model selection function. When a T-FHSS receiver is not linked with a model whose RX type is set to T-FHSS, (NO LINK) is displayed. When RX type is set to S-FHSS or FHSS other than T-FHSS, nothing is displayed here Press Press (HOME screen) (MENU 2 screen) (MODEL screen) Press (MENU 1 screen) Press Select "MODEL" Setting item SELECT:Model selection COPY:Model copy RESET:Model reset 47 Function Function Model "MODEL" Model "MODEL" Forty model data (data for 40 R/C cars) can be saved in the T4GRS transmitter. This menu selects the model, copies data between models. Model Menu Display The MENU 1 screen is displayed using (JOG) button up, down, left, or right operation at the HOME screen. The display can be switched to the MODEL screen by selecting "MODEL" and using (JOG) button up or down operation. The display can be switched to the HOME screen by switching from the MODEL menu screen to the MENU 1 screen by pressing the (JOG) button and then pressing the (-) but - ton at the MENU 1 screen. When the (JOG) button is pressed from the MODEL menu screen, the display switches to the MENU1 screen and can then be switched to the HOME screen by pressing the (-) button from the MENU1 screen. Move the cursor to select mod- el # with the (JOG) button. Model #. 01~40 Select model # with the (+) or (-) button. Modified model # and model name "COMPLETE!" is displayed. 48 Function Model Selection"SELECT" Forty model data (model data for …

Text truncated - open the document above for the full version.

Press Press Press (HOME screen) (MENU 1 screen) (CPS MIX screen) (MENU 2 screen) Press Select "CPS MIX" 86 Function Gyro mixing "CPS MIX" Display "CPS MIX" screen by the following method: This function controls the Futaba CPS-1 channel power switch. Normally, when using the CPS-1 unit to power the vehicle lights etc (LED) the CPS- 1 unit with LED connected is connected to a vacant switch channel and the LEDs are turned on and off by the switch while the vehicle is running. However, when the CPS- 1 mixing (CPS MIX) function is used, the LED can be turned on and off and flashed in step with steering and throttle operation, as well as being turned on and off by switch. The flashing speed (cycle) can also be set. For instance, the LED can be flashed as a brake light when the brakes are operated. CPS Mixing "CPS MIX" When the 4th CH was set to ACT at Brake Mixing or when Dual ESC Mixing is used, CPS mixing cannot be used. Setting Special mixings (Preparation) - Connect the CPS-1 to the 4th CH of the receiver. - When the LEDs are turned on and off by switch, use the function select switch dial function to set the switch to be used. CPS mixing adjustment Function SW CH4 Setup items MODE : Function ON/OFF, control mode POSI : ON/OFF position TYPE : ON/OFF type TCYCL : Flashing speed ON/OFF Position (POSI) 5 ~ 95 Initial value: 50 Shows the ON/OFF state 87 Function Gyro mixing "CPS MIX" 1 (Control system setup) Operate the (JOG) button up and down and select the setting item "CTRL". Use the (+) or (-) button and select the function. "INH" : Function OFF "CH4 FUNC" : ON/OFF by switch set at the 4th CH "STR NT" : ON at steering neutral "STR END" : ON at both sides of steering "THR NT" : ON at throttle neutral "THR FWD" : ON at throttle forward side "THR BRK" : ON at throttle back (brake) side "TH NT+BK" : ON at throttle neutral and back (brake) sides 2 (ON/OFF switching position selection) Select the setting item "POSI" using the (JOG) button up or down operation. Use the (+) or (-) button and select the ON/OFF position. Since the ON/OFF state is displayed at the right side of the setting item "CTRL", setting can be confirmed while operating the function to be controlled (for example, throttle). 3 (ON/OFF type setup) Select the setting item "TYPE" using the (JOG) button up or down operation. Use the (+) or (-) button and select the type of LED lighting. Normal ON/Off type or flashing can be se- lected. "NORMAL" : Normal ON/OFF type "FLASH" : Flashing display 4 (Flashing cycle setting) When flashing type "FLASH" was selected at the setting item "TYPE" the flashing speed (cycle) can be set. Select the setting item "CYCL" using the (JOG) button up or down operation. Use the (+) or (-) button and select the flash- ing speed (cycle). 5 When completed, return to the MENU2 screen by pressing the (JOG) button. Select button - Select with the (+) or (-) but- tons. Adjust button - Use the (+) and (-) buttons to make adjustments. - Return to the initial value by pressing the (+) and (-) but- tons simultaneously for about 1 second. Select button - Select with the (+) or (-) but- tons. Function selection (MODE) INH, CH4 FUNC, STR NTR, STR END, THR NT, THR FWD, THR BRK, TH NT+BK Function selection (TYPE) NORMAL, FLASH Flashing cycle (CYCL) 1 ~ 100 Initial value:50 5 : 5 7 : 3 F5/B5F7/B3 Forward sideBrake sideForward sideBrake side Press Press Press (HOME screen) (MENU 1 screen) (TH MODE screen) (MENU 2 screen) Press Select "TH MODE" 88 Function Throttle Mode "TH MODE" This menu has the following 4 functions: - Servo neutral mode, which sets the throttle neutral ratio to 7:3 or 5:5 - Idle up, which raises the idling speed when starting the engine to improve engine start - ing performance of a gasoline car (boat) - Neutral brake, which applies the brakes at the neutral position of the throttle stick - Throttle off (engine cut), which stops the engine of a boat, etc. by operating the throttle servo to the low side regardless of the position of the throttle stick. Throttle servo neutral position "SXNT" -This function allows selection of the forward side and brake (reverse) side operation ra- tio from 7:3 or 5:5 by changing the neutral position of the throttle servo. Throttle Mode "TH MODE" (Throttle system) 1 (Mode selection) Select the setting item "SXNT" by (JOG) button. Select "F5/ B5" or "F7/B3" by (+) or (-) button. "F5/B5" =Forward 50% : Back50% "F7/B3" =Forward 70% : Back30% 2 When completed, return to the MENU screen by moving the cursor to the positions other than SW/DIAL and pressing the (JOG) button. Selecting the throttle servo neutral position Mode selection (SXNT) F5/B5, F7/B3 Display "TH MODE" screen by the following method: Select button - Select with the (+) or (-) but- tons. Setup items SXNT ： Throttle servo neutral position IDLUP ： Idle-Up rate NTBRK ： Neutral brake rate THOFF ： Throttle off (engine cut) position *This function is not available in "TH-STK : F10 mode". Warning display The function select switch dial screen can be dis- played from this screen. < NO SW > If function’s ON/OFF switch is not selected, <NO SW> is displayed. 89 Function Throttle Mode "TH MODE" Idle-Up "IDLUP" This is a function select switch dial function. The idle up switch must be set. This function is used to improve engine starting performance by raising the idling speed when starting the engine of a gasoline car (boat). It is also effective when you want to eliminate any braking effect when the power is turned off during running, due to the effect of your gear ratio setting and choice of motor when operating an electric car. However, considering safety, and to prevent the motor from rotating instantly when the power was turned on, the MC950CR, MC851C, MC602C, MC402CR, and other Futaba MC (Motor Controllers) will not enter the operation mode if the neutral position is not confirmed. When using the MC950CR, MC851C, MC602C, MC402CR, or other Futaba MC, confirm that the MC is in the neutral position and the set is in the…

Text truncated - open the document above for the full version.

Request for Confidentiality Date: Sep. 16, 2014 Federal Communications Commission Authorization and Evaluation Division Subject: Confidentiality Request regarding Application for certification of FCC ID: AZPT4GRS-24G Gentlemen: Pursuant to Section 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: ‹ Functional Block Diagram ‹ Operational Description (theory of operation) ‹ Schematic Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Satoshi Inokoshi Group Manager Futaba Corporation

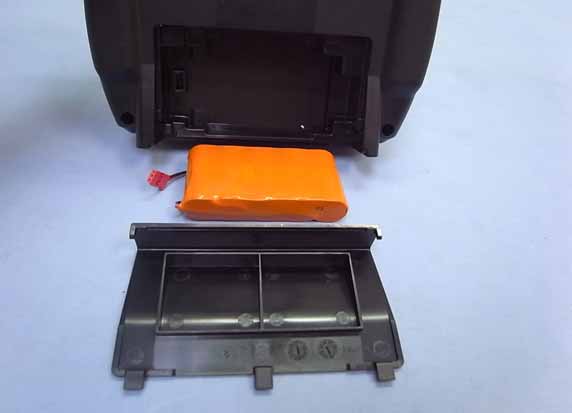

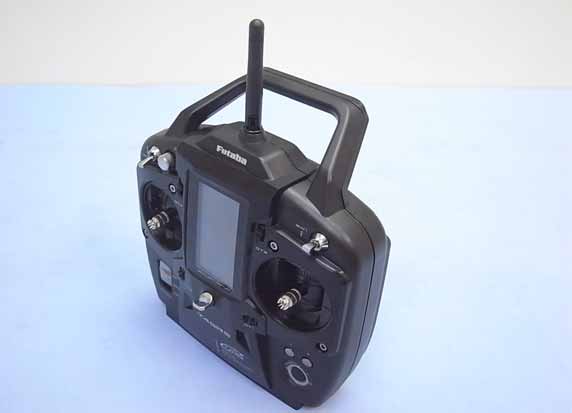

FUTABA Corporation Radio Control FCC ID. : AZPT4GRS-24G EUT External Photos Figure 1 General Appearance (Front & Side View) Figure 2 General Appearance (Back & Side View) FUTABA Corporation Radio Control FCC ID. : AZPT4GRS-24G Figure 3 General Appearance (Top View) Figure 4 General Appearance (Bottom View) FUTABA Corporation Radio Control FCC ID. : AZPT4GRS-24G Figure 5 General Appearance (IO Port) Figure 6 General Appearance (Removed Battery Cover)

FUTABA Corporation Radio Control FCC ID. : AZPT4GRS-24G FCC ID Label Location z Label Placement Location z FCC ID Format FCC ID Label Placement Location

FUTABA Corporation Radio Control FCC ID. : AZPT4GRS-24G EUT Internal Photos Figure 7 Internal View (Removed Cover) Figure 8 Internal View FUTABA Corporation Radio Control FCC ID. : AZPT4GRS-24G Figure 9 Internal View (TB96A-1 Board, Front View) Figure 10 Internal View (TB96A-1 Board, Back View+ RF Board, Front View) FUTABA Corporation Radio Control FCC ID. : AZPT4GRS-24G Figure 11 Internal View (TB96A-1 Board, Back View+ RF Board, Back View) Figure 12 Internal View (RF Board, Removed Cover) FUTABA Corporation Radio Control FCC ID. : AZPT4GRS-24G Figure 13 Internal View (TB96A-2 Board, Front View) Figure 14 Internal View (TB96A-2 Board, Back View) FUTABA Corporation Radio Control FCC ID. : AZPT4GRS-24G Figure 15 Internal View (TB96A-3 Board, Front View) Figure 16 Internal View (TB96A-3 Board, Back View) FUTABA Corporation Radio Control FCC ID. : AZPT4GRS-24G Figure 17 Internal View (TB96A-4 Board, Front View) Figure 18 Internal View (TB96A-4 Board, Back View) FUTABA Corporation Radio Control FCC ID. : AZPT4GRS-24G Figure 19 Internal View (TB96A-5 Board, Front View) Figure 20 Internal View (TB96A-5 Board, Back View) FUTABA Corporation Radio Control FCC ID. : AZPT4GRS-24G Figure 21 Internal View (Fountain Board, Front View) Figure 22 Internal View (Fountain Board, Back View) FUTABA Corporation Radio Control FCC ID. : AZPT4GRS-24G Figure 23 Internal View Figure 24 Internal View FUTABA Corporation Radio Control FCC ID. : AZPT4GRS-24G Figure 25 Internal View (Battery Front & Side View) Figure 26 Internal View (Battery Front & Side View)

Maximum Permissive Exposure FCC ID: AZPT4GRS-24G Product Name: Radio Control Model No: T4GRS Pursuant to KDB 447498 D01 v05r02 that SAR testing is not required when EUT has output power related to distance satisfy with following table. This application FCC ID: AZPT4GRS-24G is equipped a swivel antenna from 0 degree to 90 degree. Thus the most closely distance from antenna to user is 30 mm(indicates in next page) and the max output power (e.i.r.p.) is 16.189 dBm(41.58 mW) which is satisfy with the exclusion level 57 mW. Max Output Power(dBm) Antenna Gain (dBi) e.i.r.p. in dBm e.i.r.p. in mW 14.049 2.14 16.189 41.58 Sincerely Yours, ____________________________________ Mr. Ben Cheng Manager AUDIX Technology Corporation 30 mm 190 mm Swivel antenna from 0 to 90 degree. 90 mm 250 mm 50 mm

FCC ID. AZPT4GRS-24G Page 1 of 83 AUDIX Technology Corporation Report No. EM-F140632 APPLICATION FOR CERTIFICATION On Behalf of FUTABA Corporation Radio Control Model No.T4GRS FCC IDAZPT4GRS-24G Brand: Futaba Prepared for : FUTABA Corporation 1080 Yabutsuka Chosei-son Chosei-gun Chiba, 299-4395 Japan. Prepared by : AUDIX Technology Corporation EMC Department No. 53-11, Dingfu, Linkou Dist., New Taipei City 244, Taiwan Tel : (02) 2609-9301, 2609-2133 Fax: (02) 2609-9303 File Number C1M1409019 Report Number EM-F140632 Date of Test 2014. 10. 13 ~ 12. 26 Date of Report 2014. 12. 26 FCC ID. AZPT4GRS-24G Page 2 of 83 AUDIX Technology Corporation Report No. EM-F140632 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION .......................................................................................................4 1. DESCRIPTION OF VERSION ....................................................................................................5 2. GENERAL INFORMATION .......................................................................................................6 2.1. Description of Device (EUT) .................................................................................................................. 6 2.2. Tested Supporting System Details .......................................................................................................... 7 2.3. Description of Test Facility .................................................................................................................... 8 2.4. Measurement Uncertainty ....................................................................................................................... 8 3. CONDUCTED EMISSION MEASUREMET .............................................................................9 4. RADIATED EMISSION MEASUREMENT ............................................................................10 4.1. Test Equipment ..................................................................................................................................... 10 4.2. Test Setup ............................................................................................................................................. 10 4.3. Radiated Emission Limits (§15.209) .................................................................................................... 12 4.4. Operating Condition of EUT ................................................................................................................ 12 4.5. Test Procedure ...................................................................................................................................... 13 4.6. Radiated Emission Measurement Results ............................................................................................. 14 5. 20dB BANDWIDTH MEASUREMENT ...................................................................................37 5.1. Test Equipment ..................................................................................................................................... 37 5.2. Block Diagram of Test Setup................................................................................................................ 37 5.3. Specification Limits (§15.247(a)(1)) .................................................................................................... 37 5.4. Operating Condition of EUT ................................................................................................................ 37 5.5. Test Procedure ...................................................................................................................................... 37 5.6. Test Results ........................................................................................................................................... 38 6. CARRIER FREQUENCY SEPARATION MEASUREMENT ..............................................40 6.1. Test Equipment ..................................................................................................................................... 40 6.2. Block Diagram of Test Setup................................................................................................................ 40 6.3. Specification Limits (§15.247(a)(1)) .................................................................................................... 40 6.4. Operating Condition of EUT ................................................................................................................ 40 6.5. Test Procedure ...................................................................................................................................... 40 6.6. Test Results ........................................................................................................................................... 41 7. TIME OF OCCUPANCY MEASUREMENT ..........................................................................47 7.1. Test Equipment ..................................................................................................................................... 47 7.2. Block Diagram of Test Setup................................................................................................................ 47 7.3. Specification Limits (§15.247(a)(1)(iii)) .............................................................................................. 47 7.4. Operating Condition of EUT ................................................................................................................ 47 7.5. Test Procedure ...................................................................................................................................... 47 7.6. Test Results ........................................................................................................................................... 48 8. NUMBER OF HOPPING CHANNELS MEASUREMENT ...................................................56 8.1. Te…
