2 Thank you for purchasing a Futaba 4PX-2.4GHz system. Before using your 4PX-2.4GHz system, read this manual carefully in order to use your R/C set safely. After reading this manual, store it in a safe place. IN NORTH AMERICA Please feel free to contact the Futaba Service Center for assistance in operation, use and programming. Please be sure to regularly visit the 4PX Frequently Asked Questions web site at www.futaba-rc.com/faq/. This page includes extensive programming, use, set up and safety information on the 4PX radio system and is updated regularly. Any technical updates DQG86PDQXDOFRUUHFWLRQVZLOOEHDYDLODEOHRQWKLVZHESDJH,I\RXGRQRW¿QGWKHDQ - swers to your questions there, please see the end of our F.A.Q. area for information on con- tacting us via email for the most rapid and convenient response. Don’t have Internet access? Internet access is available at no charge at most public libraries, VFKRROVDQGRWKHUSXEOLFUHVRXUFHV:H¿QGLQWHUQHWVXSSRUWWREHDIDEXORXVUHIHUHQFHIRU many modelers as items can be printed and saved for future reference, and can be accessed at any hour of the day, night, weekend or holiday. If you do not wish to access the internet for information, however, don’t worry. Our support teams are available Monday through Friday 8-5 Central time to assist you. OUTSIDE NORTH AMERICA Please contact your Futaba importer in your region of the world to assist you with any ques- tions, problems or service needs. Please recognize that all information in this manual, and all support availability, is based upon the systems sold in North America only. Products purchased elsewhere may vary. Al - ways contact your region’s support center for assistance. FOR SERVICE ONLY: Futaba Service Center 3002 N. Apollo Drive, Suite 1 Champaign, IL 61822 Phone: 217-398-0007 www.futaba-rc.com/service.html Email: [email protected] FOR SUPPORT : (PROGRAMMING AND USER QUESTIONS) Please start here for answers to most questions: www.futaba-rc.com/faq/ Fa x: 217-398-7721 Phone: 217-398-8970 option 2 E-mail: [email protected] 4PX-Eng-01-P2-3.indd 22014/07/18 12:56:04 3 • No part of this manual may be reproduced in any form without prior permission. • The contents of this manual are subject to change without prior notice. ‡7KLVPDQXDOKDVEHHQFDUHIXOO\ZULWWHQ3OHDVHZULWHWR)XWDEDLI\RXIHHOWKDWDQ\FRUUHFWLRQVRUFODUL¿FDWLRQVVKRXOG be made. • Futaba is not responsible for the use of this product. Battery Recycling (for U.S.A.) The RBRC. SEAL on the nickel-cadmium battery contained in Futaba products indicates that Futaba Corporation is voluntarily participating in an industry- wide program to collect and recycle these batteries at the end of their useful lives, when taken out of service within the United States. The RBRC. program provides a convenient alternative to placing used nickel-cadmium batteries into the trash or municipal waste system, which is illegal in some areas. (for USA) You may contact your local recycling center for information on where to return the spent battery. Please call 1-800-8BATTERY for information on NiCd battery recycling in your area. Futaba Corporation involvement in this program is part of its commitment to protect - ing our environment and conserving natural resources. RBRC™ is a trademark of the Rechargeable Battery Recycling Corporation. $SSOLFDWLRQ([SRUWDQG0RGL¿FDWLRQ 1. This product may be used for models only. It is not intended for use in any application other than the control of models for hobby and recreational purposes. 2. Exportation precautions: (a) When this product is exported from the country of manufacture, its use is to be approved by the laws governing the country of destination for devices that emit radio frequencies. If this product is then re-exported to other countries, it may be subject to restrictions on such export. Prior approval of the appropriate government authorities may be required. If you have purchased this product from an exporter outside your country, and not the authorized Futaba distributor in your country, please contact the seller immediately to determine if such export regulations have been met. (b) Use of this product with other than models may be restricted by Export and Trade Con - trol Regulations, and an application for export approval must be submitted. 3. Modification, adjustment, and replacement of parts: Futaba is not responsible for un- DXWKRUL]HGPRGL¿FDWLRQDGMXVWPHQWDQGUHSODFHPHQWRISDUWVRQWKLVSURGXFW$Q\VXFK changes may void the warranty. 4PX-Eng-01-P2-3.indd 32014/07/18 12:56:04 4 Table Of Contents For Your Safety As Well As That Of Others.........................8 Explanation of Symbols................................................................8 2.4GHz System Precautions .........................................................8 High Speed Mode Precautions.....................................................8 Operation Precautions ..................................................................9 Battery Handling Precautions ....................................................10 Storage and Disposal Precautions ............................................11 Other Precautions .......................................................................11 Installation ..........................................................................32 Receiver and Servo Connections ..............................................32 Installation Safety Precautions ..................................................33 Before Using ......................................................................12 Features .......................................................................................12 Set Contents ................................................................................14 Transmitter T4PX .........................................................................15 T4PX Nomenclature.................................................................…

Text truncated - open the document above for the full version.

HOME screen MENU 2 screen or MENU 1 screen Press Press Press The rate of the current channel is displayed in blue. Pre Press 52 Function Acceleration (Throttle Acceleration) Caburetor Brake side Servo horn Clearance FWRD Servo travel BRAKE 0% 50% 100% 0% 50% 100% Setup item Forward side acceleration amount Brake side acceleration amount - Operation near the throt- tle trigger neutral position becomes a sharp rise. - The forward and brake sides can be set separate- ly. - When the brake mixing function (p.80) is set, the CH3/CH4 brake can also be set. Operation Acceleration (Throttle Acceleration) (Throttle system) The servo will jump to the input position at its maximum possible speed. Unlike exponen- tial, which adjusts the whole throttle movement into a curve, throttle acceleration simply "jumps" away from neutral and then leaves the remaining response linear. The standard value (100% point) of this setup affects the operation amount set by throttle end point function. Set value For gasoline engine cars, the linkage must have a clearance because one servo controls the engine carburetor and brake. Thus, there is a noticeable time delay at both the forward and brake sides. Sharp response comparable to that of electric mo- tor cars is obtained by reducing this clearance at the transmitter side. Convenient usage method 4PX-Eng-08-Function-46-65.indd 522014/07/18 17:14:51 Brake2Brake3Brake2 & 3 53 Function Acceleration (Throttle Acceleration) (Preparation) - Select the setting item "Forward" by (JOG) button up or down operation and make the following adjustments: 1 (Forward acceleration amount adjustment) Use the (+) and (-) buttons to adjust the acceleration amount. "0":No acceleration "100": Maximum acceleration (Approximately 1/2 of the forward side throttle angle) 2 (Brake side acceleration amount adjustment) Select the setting item "Brake1" by (JOG) button up or down operation and use the (+) and (-) buttons to adjust the accel- eration amount. "0":No acceleration "100":Maximum acceleration (Brake side maximum throttle angle) 3 (3rd & 4th channel brake side acceleration amount adjustment) If the "Brake Mixing Function" (p.80) is being set, the 3rd or 4th channel brake side acceleration will become adjustable. Select the setting item "Brake 2" or "Brake3" by (JOG) button up or down operation and adjust acceleration amount by (+) or (-) button. "0":No acceleration "100":Maximum acceleration (Brake side maximum throttle angle) Throttle acceleration adjustment The throttle acceleration adjustment amount (Forward), (Brake1), 3rd channel and 4th channel (Brake2, Brake3) can be controlled with digital trim DT1-DT6 or digital dial DL1 etc. with the function select dial function. (p.101) Dial / Trim Setting Adjustment buttons Adjust with the (+) and (-) but- tons. - Return to the initial value "0" by pressing the (+) and (-) buttons simultaneously for about 1 sec- ond. Forward acceleration amount (Forward) 0~100 Initial value: 0 Brake side acceleration amount (Brake1) 0~100 Initial value: 0 3rd/4th channel brake side accelerationamount (Brake2),(Brake3) 0~100 Initial value: 0 When Trigger Ratio (p.66) was set to 100:0, brake operation is stopped and the throttle (brake side) cannot be adjusted. Caution 4 When ending setting, return to the menu screen by pressing the (END) button. 4PX-Eng-08-Function-46-65.indd 532014/07/18 17:14:52 Receiver setting FASST Receiver setting T-FHSS / S -FHSS HOME screen MENU 2 screen or MENU 1 screen Press Press Press * When fail safe is set, that servo position is displayed. Mode Pre Press 54 Function Fail Safe/Battery Fail Safe Function Fail Safe/Battery Fail Safe Function (All channel) This function sets the servo operation position when transmitter signals cannot be received by the receiver for some reason or the battery voltage has dropped. -Fail safe mode This function moves each servo to a preset position when the receiver cannot receive the signals from the transmitter for some reason. *The fail safe data is transferred from the transmitter to the receiver 10 seconds after the transmitter power was turned on. The data is transferred every 10 seconds after that. Be careful because normally the trans- PLWWHUSRZHULVWXUQHGRQ¿UVWDQGWKHUHFHLYHUSRZHULVWXUQHGRQQH[WDQGWKHUHLVQR data transfer for about 10 seconds after the receiver power is turned on. *For gasoline engine cars, for safety we recommend that this fail safe function be used to set the throttle channel in the di- rection in which the brakes are applied. - Hold mode This function holds the receiver in its position immediately before reception was lost. - Off mode (OFF) This function stops output of signals to the servos and places the servos into the free state when the receiver cannot receive. The F/S, HOLD, and OFF modes are automatically reset when signals from the transmit - ter can be received again - Battery fail safe function (B-F/S) If the receiver battery voltage drops below a certain value when this function is enabled, the throttle servo moves to the position set by fail safe function. When the battery voltage ecovers, the battery fail safe function is automatically reset. *This function cannot be used when the channel is not set to fail safe. *When the receiver setting (P36) is "FASST", only CH2 (throttle) can use this function. 4PX-Eng-08-Function-46-65.indd 542014/07/18 17:14:52 Fail safe mode selection - Select with the (+) or (-) but- tons. Battery fail safe function OFF, ON Initial value: OFF Setup item selection - Select by (JOG) button up or down operation. Fail safe position setup button - The (JOG) button are pressed simultaneously for about 1 sec- ond. Fail safe mode Off, Hold, Fail-safe 55 Function Fail Safe/Battery Fail Safe Function 1 (Battery fail safe function ON/OFF) Select "OFF" or "ON" of "B-F/S" by (JOG) button opera- tion. Set B-F/S function ON/OFF by (+) or (-) button. 2 (Battery fail safe voltage setting) Select battery fail safe **V at the bot- tom of th…

Text truncated - open the document above for the full version.

HOME screen or MENU 1 screen MENU 2 screen Press 112 Function Model Select Current model # is blue Model #. M1~M40 Model selection button - Select the model by (JOG) button up or downt operation. Select the model by (JOG) button operation Model Select Forty model data (model data for 40 R/C cars) can be saved in the T4PX transmitter and used when the relevant model data is called. Current model name 1 (Model No. selection) Select the model by (JOG) button up or down operation. When the (JOG) button up operation is performed from the cursor position on the top row or the (JOG) button down op- eration is performed from the cursor position on the bottom row, the page changes. 2 (Model selection execution) When the model was selected, press the (JOG) button. The confirmation message "Are you sure?" appears. To execute selection, select "Yes" and press the (JOG) button and to cancel Using the model selection function Model selection set button - The (JOG) button are pressed. selection, select "No" and press the (JOG) button. 3 When ending setting, return to the menu screen by pressing the (END) button. Press Press Press Press Press 4PX-Eng-08-Function-104-156.indd 1122014/07/18 17:36:10 or MENU 1 screen HOME screen MENU 2 screen 113 Function Model Name Model name 1 (Moving the cursor to the character you want to change.) Move the cursor to the model name character you want to set or change by pressing the (+) or (-) button. The selected character blinks. Setting the model name and user name Character select/set button - Select the character by (JOG) button up, down, left, or right operation and enter the char- acter by pressing the (JOG) button. Model Name This function allows you to assign a ten character name to each model memory. Select the character with the (JOG) button. Clear:All characters of the model name are deleted. Back Space:The character at the left of the cursor is deleted. "Katakana" of the Japanese character is displayed on page 2. 2 (Selecting the character to be used) Move the cursor by (JOG) button up, down, left, or right op- eration, and select the characters to be used from the char- acter list at the bottom of the screen. After deciding the char- acters to be used, press the (JOG) button. The characters are selected and the model name character string moves to the right. When "Back space" on the center row is selected and the (JOG) button is pressed, the character at the left of the vertical cursor is deleted. When "Clear" is selected and the (JOG) button is pressed, all the characters are deleted. Press Press Press Press 3 When ending setting, return to the menu screen by pressing the (END) button. Pre Press Pre Press 4PX-Eng-08-Function-104-156.indd 1132014/07/18 17:36:10 HOME screen or MENU 1 screen MENU 2 screen T4PX transmitter or microSD card selection 114 Function Selects the copy source model and copy destination model data. Model Copy Model Copy The contents of the model memory can be copied to another model memory. The contents can also be saved or stored in a microSD card for copying to another T4PX. Model copying Setup item selection - Select by (JOG) button up or down operation. Model number selection - The (JOG) button are pressed Press Press Press Press Press 1 (Copy source model selection) Select the setting item "Copy source" by (JOG) button up or down operation. Press the (JOG) button. A list of the models stored in the T4PX transmit- ter is displayed. Select the model by (JOG) button up or down operation, and press the (JOG) button. When a microSD card is installed in the T4PX, a screen for selecting T4PX model memory (Internal memory) or microSD card is displayed. After selecting either T4PX model memory or microSD card by (JOG) button, select the model. Pre Press 4PX-Eng-08-Function-104-156.indd 1142014/07/18 17:36:11 T4PX transmitter or microSD card selection 115 Function microSD card storage destination When a microSD card is installed in the T4PX, a folder called "Futaba" is created, and folders called "LOG" and "MODEL" are created in it. The "MODEL" folder contains the model data. When the T4PX model data is copied, and the copy source data is selected from the model data stored in the microSD, a model list like that shown at the left is displayed. Model data Model Copy 4 When ending setting, return to the menu screen by pressing the (END) button. Setup item selection - Select by (JOG) button up or down operation. Model number selection - The (JOG) button are pressed 2 (Copy destination model selection) Select the setting item "Copy Source" by (JOG) button up or down opera- tion, and press the (JOG) button. A list of the model numbers saved in the T4PX transmitter is displayed. Select the model by (JOG) button up or down operation, and press the (JOG) button. When a microSD card is installed in the T4PX transmitter, a screen for se- lecting the models in the T4PX trans- mitter (Internal memory) or the models in the microSD card is displayed. After selecting the screen by (JOG) button, select the model. -The model currently in use cannot be selected. -Since the copy destination cannot be overwritten when it is in a microSD card, a models list is not displayed and the model is saved directly to the microSD card. 3 (Copy execution) After checking that the copy source and copy destination models are cor- rect, select the setting item "Copy ex- ecution" by (JOG) button up or down operation, and press the (JOG) button. The confirmation message "Are you sure" appears. To execute copy, select "Yes" and to cancel copy, select "No" by (JOG) button. When the copy destination model name becomes the same name as the copy source, copying is complete. 4PX-Eng-08-Function-104-156.indd 1152014/07/18 17:36:11 HOME screen or MENU 1 screen MENU 2 screen 116 Function Data Reset Data Reset Select the reset type by (JOG) button up or down operation and press the (JOG) button. 1 (Reset execution) Press the (JOG) button. The "Are you sure?" confirmation message appears…

Text truncated - open the document above for the full version.

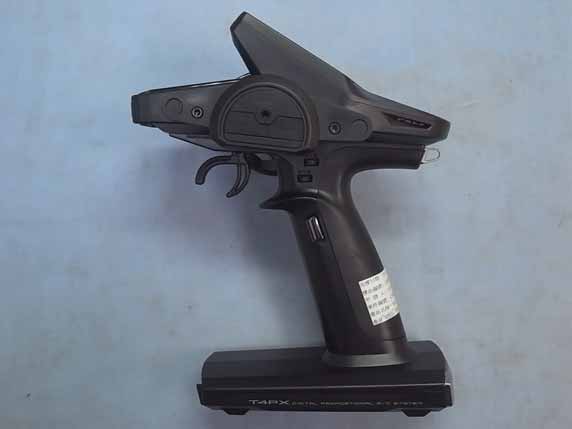

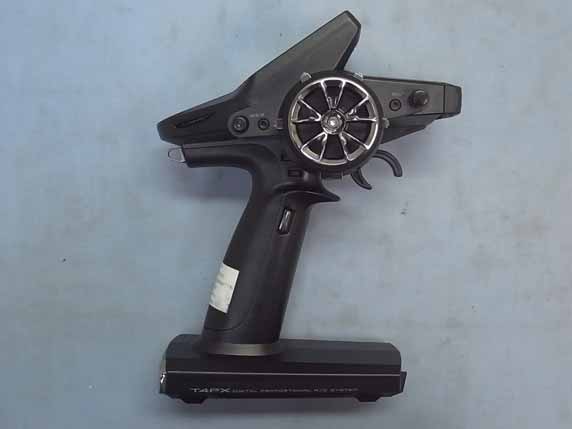

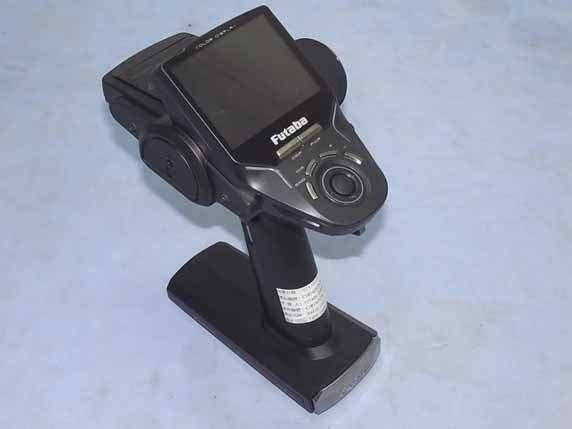

Futaba Corporation Radio Control FCC ID. : AZPT4PX-24G EUT External Photos Figure 1 General Appearance (Front & Side View) Figure 2 General Appearance (Back & Side View) Antenna Futaba Corporation Radio Control FCC ID. : AZPT4PX-24G Figure 3 General Appearance (Side View) Figure 4 General Appearance (Side View) Futaba Corporation Radio Control FCC ID. : AZPT4PX-24G Figure 5 General Appearance (Bottom View)

Futaba Corporation Radio Control FCC ID. : AZPT4PX-24G FCC ID Label Location z Label Placement Location z FCC ID Label Format FCC ID Label Placement Location

Futaba Corporation Radio Control FCC ID. : AZPT4PX-24G EUT Internal Photos Figure 6 Internal View (Open Battery Cover) Figure 7 Internal View (Battery View) Futaba Corporation Radio Control FCC ID. : AZPT4PX-24G Figure 8 Internal View (Removed Cover) Figure 9 Internal View (Control Board, Front View) Futaba Corporation Radio Control FCC ID. : AZPT4PX-24G Figure 10 Internal View (Control Board, Back View) Figure 11 Internal View (Removed Cover) Futaba Corporation Radio Control FCC ID. : AZPT4PX-24G Figure 12 Internal View (Function Control Board, Front View) Figure 13 Internal View (Function Control Board, Back View) Futaba Corporation Radio Control FCC ID. : AZPT4PX-24G Figure 14 Internal View Figure 15 Internal View Futaba Corporation Radio Control FCC ID. : AZPT4PX-24G Figure 16 Internal View (Removed Control Board) Figure 17 Internal View (Control Board, Front View) Futaba Corporation Radio Control FCC ID. : AZPT4PX-24G Figure 18 Internal View (Control Board, Back View) Figure 19 Internal View Futaba Corporation Radio Control FCC ID. : AZPT4PX-24G Figure 20 Internal View (Function Control Board, Front View) Figure 21 Internal View (Function Control Board, Back View) Futaba Corporation Radio Control FCC ID. : AZPT4PX-24G Figure 22 Internal View (Control Board, Front View) Figure 23 Internal View (Control Board, Back View) Futaba Corporation Radio Control FCC ID. : AZPT4PX-24G Figure 24 Internal View (Main Board, Front View) Figure 25 Internal View (Removed Metal Cover, Main Board/Front View) Futaba Corporation Radio Control FCC ID. : AZPT4PX-24G Figure 26 Internal View (RF Board, Front View) Figure 27 Internal View (RF Board, Back View) Futaba Corporation Radio Control FCC ID. : AZPT4PX-24G Figure 28 Internal View (Main Board, Back View) Figure 29 Internal View of Antenna Antenna

Maximum Permissive Exposure FCC ID: AZPT4PX-24G Product Name: Radio Control Model No: T4PX 1. According to FCC CFR 47 §1.1310, the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b). Table 1 Limits for Maximum Permissible Exposure 2. MPE Calculation Futaba Corporation declares that the product described above has been evaluated and found to comply with the RF exposure limits for humans, as specified based on ANSI/FCC recommendation. In Radio Technology: T-FHSS Modulation Based on safety distance 20cm, the antenna gain is 2.14 dBi, and the power output is 49.705mW, the power density is 0.0162mW/cm 2 RF Exposure Calculations: S = (P * G) / (4* π * r^2) or r = (P * G) / (4 * π * S) Where S = Power Density in mW/cm^2 P=16.964dBm=49.705mw G =2.14 dBi=1.637 Numerical r = 20cm S = 49.705*1.637/ 4*π* 20^2=0.0162 mW/cm 2 In Radio Technology: S-FHSS Modulation Based on safety distance 20cm, the antenna gain is 2.14 dBi, and the power output is 38.098mW, the power density is 0.0124mW/cm 2 RF Exposure Calculations: S = (P * G) / (4* π * r^2) or r = (P * G) / (4 * π * S) Where S = Power Density in mW/cm^2 P=15.809dBm=38.098mw G =2.14 dBi=1.637 Numerical r = 20cm S = 38.098*1.637/ 4*π* 20^2=0.0124 mW/cm 2 In Radio Technology: FASST Modulation Based on safety distance 20cm, the antenna gain is 2.14 dBi, and the power output is 28.642mW, the power density is 0.0093mW/cm 2 RF Exposure Calculations: S = (P * G) / (4* π * r^2) or r = (P * G) / (4 * π * S) Where S = Power Density in mW/cm^2 P=14.57dBm=28.642mw G =2.14 dBi=1.637 Numerical r = 20cm S = 28.642*1.637/ 4*π* 20^2=0.0093 mW/cm 2 Sincerely Yours, ____________________________________ Mr. Ben Cheng Manager AUDIX Technology Corporation

FCC ID. AZPT4PX-24G Page 1 of 83 AUDIX Technology Corporation Report No. EM-F140436 FCC 15.247 for FHSS System Report On Behalf of FUTABA Corporation Radio Control Model No.T4PX FCC IDAZPT4PX-24G Brand: Futaba Prepared for : FUTABA Corporation 1080 Yabutsuka Chosei-mura Chosei-gun Chiba-ken, 299-4395 Japan. Prepared by : AUDIX Technology Corporation EMC Department No. 53-11, Dingfu, Linkou Dist., New Taipei City 244, Taiwan, R.O.C. Tel : (02) 2609-9301, 2609-2133 Fax: (02) 2609-9303 File Number C1M1405229 Report Number EM-F140436 Date of Test 2014. 06. 03 ~ 07. 29 Date of Report 2014. 07. 29 FCC ID. AZPT4PX-24G Page 2 of 83 AUDIX Technology Corporation Report No. EM-F140436 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION ............................................................................................. 4 1. DESCRIPTION OF REVISION HISTORY ..................................................................... 5 2. GENERAL INFORMATION ............................................................................................. 6 2.1. Description of Device (EUT)........................................................................................................6 2.2. Description of Test Facility ..........................................................................................................7 2.3. Measurement Uncertainty.............................................................................................................7 3. CONDUCTED EMISSION MEASUREMET................................................................... 8 4. RADIATED EMISSION MEASUREMENT .................................................................... 9 4.1. Test Equipment .............................................................................................................................9 4.2. Test Setup .....................................................................................................................................9 4.3. Radiated Emission Limits (§15.209) ..........................................................................................11 4.4. Operating Condition of EUT ......................................................................................................11 4.5. Test Procedure ............................................................................................................................11 4.6. Radiated Emission Measurement Results...................................................................................12 5. 20dB BANDWIDTH MEASUREMENT ......................................................................... 35 5.1. Test Equipment ...........................................................................................................................35 5.2. Block Diagram of Test Setup......................................................................................................35 5.3. Specification Limits (§15.247(a)(1)) ..........................................................................................35 5.4. Operating Condition of EUT ......................................................................................................35 5.5. Test Procedure ............................................................................................................................35 5.6. Test Results.................................................................................................................................36 6. CARRIER FREQUENCY SEPARATION MEASUREMENT .................................... 40 6.1. Test Equipment ...........................................................................................................................40 6.2. Block Diagram of Test Setup......................................................................................................40 6.3. Specification Limits (§15.247(a)(1)) ..........................................................................................40 6.4. Operating Condition of EUT ......................................................................................................40 6.5. Test Procedure ............................................................................................................................40 6.6. Test Results.................................................................................................................................41 7. TIME OF OCCUPANCY MEASUREMENT ................................................................ 47 7.1. Test Equipment ...........................................................................................................................47 7.2. Block Diagram of Test Setup......................................................................................................47 7.3. Specification Limits (§15.247(a)(1)(iii)) ....................................................................................47 7.4. Operating Condition of EUT ......................................................................................................47 7.5. Test Procedure ............................................................................................................................47 7.6. Test Results.................................................................................................................................48 8. NUMBER OF HOPPING CHANNELS MEASUREMENT ......................................... 56 8.1. Test Equipment ...........................................................................................................................56 8.2. Block Diagram of Test Setup......................................................................................................56 8.3. Specification Limits (§15.247(a)(1)(iii)) ....................................................................................56 8.4. Operating Condition of EUT ......................................................................................…
