AZPT6EX2-72Radio Control Transmitter

INSTRUCTION MANUALINSTRUCTION MANUAL for Futaba 6EXAPfor Futaba 6EXAP 6-channel, PCM/PPM(FM) selectable Radio control system for aircraft Futaba Corporation Technical updates available at: http://www.futaba-rc.com Entire Contents © Copyright 2005 FUTZ8563 V1.0 1M23N12007 2 INTRODUCTION INTRODUCTION Thank you for purchasing the Futaba ® 6EXAP digital proportional R/C aircraft system. If this is your first “computer” radio, rest assured that it is designed to make initial setup and field-tuning of your airplane easier and more accurate than would be if using a “non-computer” radio. Although this is a beginner or sport system with the requirements of those flyers in mind, in order to make the best use of your Futaba 6EXAP and to operate it safely, you must carefully read all of the instructions. Suggestion: Suggestion: If, while reading the instructions, you are unclear of some of the procedures or functions and become “stuck,” continue to read on anyway. Often, the function or procedure will be explained again later in a different way providing another perspective from which to understand it. Another suggestion is to connect the battery, switch and servos to the receiver and actually operate the radio on your workbench as you make programming changes. Then, you ’ll be able to see the effects of your programming inputs. SERVICESERVICE (in USA) If any difficulties are encountered while setting up or operating your system, please consult the instruction manual first. For further assistance you may also refer to your hobby dealer, or contact the Futaba Service Center at the web site, fax number or telephone number below: www.futaba-rrc.comwww.futaba-rrc.com Fax: (217) 398-7721Fax: (217) 398-7721 Telephone (8:00 am to 5:00 pm Central time Monday through Friday): (217) 398-8970, extension 2Telephone (8:00 am to 5:00 pm Central time Monday through Friday): (217) 398-8970, extension 2 If unable to resolve the problem, pack the system in its original container with a note enclosed and a thorough, accurate description of the problem(s). Include the following in your note: • Symptoms. • Any unusual mounting conditions. • An inventory of items enclosed. • The items that require repair. • Your name, address, and telephone number. • Include the warranty card if warranty service is requested. Send your system to the authorized Futaba R/C Service Center at the address below: Futaba Service Center Futaba Service Center 3002 N Apollo Drive Suite 1 3002 N Apollo Drive Suite 1 Champaign, IL 61822 Champaign, IL 61822 This product is to be used for sport and recreational flying of radio-control models only. Futaba is not responsible for the results of use of this product by the customer or for any alteration of this product, including modification or incorporation into other devices by third parties. Modification will void any warranty and is done at the owner’s risk. (USA only)(USA only) Protect the environment by disposing of rechargeable batteries responsibly. Throwing rechargeable batteries into the trash or municipal waste system is illegal in some areas. Call 1-800-8-BATTERY for information about Ni-Cd battery recycling in your area. TABLE OF CONTENTSTABLE OF CONTENTS Introduction..............................................................................2 Service......................................................................................2 Contents and specifications .............................................3 Glossary ...................................................................................3 Introduction to the 6EXAP system....................................4 Transmitter controls and descriptions .............................4 Radio installation .................................................................5 Receiver and servo connections ......................................7 Charging the Ni-Cd batteries ..............................................7 LCD and Programming controls........................................8 Programming the T6EXAP radio ........................................9 Model select / Data reset / Modulation select / Model name...............................10 Servo reversing ...............................................................11 Dual rates ........................................................................11 Exponentials.....................................................................12 End Point Adjustments.................................................12 Tr i m s..................................................................................13 Programmable Mixer.....................................................13 Flaperon mixing.............................................................14 Flap trim ...........................................................................15 V-tail mixing...................................................................16 Elevon mixing................................................................17 Fail safe..........................................................................18 Flow chart........................................................................19 Other T6EXAP functions ......................................................20 Trainer switch..................................................................20 Flap control lever............................................................20 Adjustable-length control sticks ....................................21 Changing the stick mode...............................................21 Flying safety guidelines ...................................................21 Flight preparation ..............................................................22 Model Data Recording Sheets .........................................23 Futaba Accessories...........................................................24 33 GLOSSARYGLOSSARY It will be helpful to understand the following terms before reading the rest of the manual. The terms are not in…

Text truncated - open the document above for the full version.

Request for Confidentiality 27 January 2005 EMCCert DR. RAŠEK - Certification Institute - Boelwiese 5 D-91320 Ebermannstadt RE: Certification Application FCC ID: AZPT6EX2-72 Please be advised that the following information is to be held confidential on behalf of Futaba Corporation: • Schematics • Parts List • Block Diagram • Technical Description The application contains technical information which Futaba Corporation deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter.

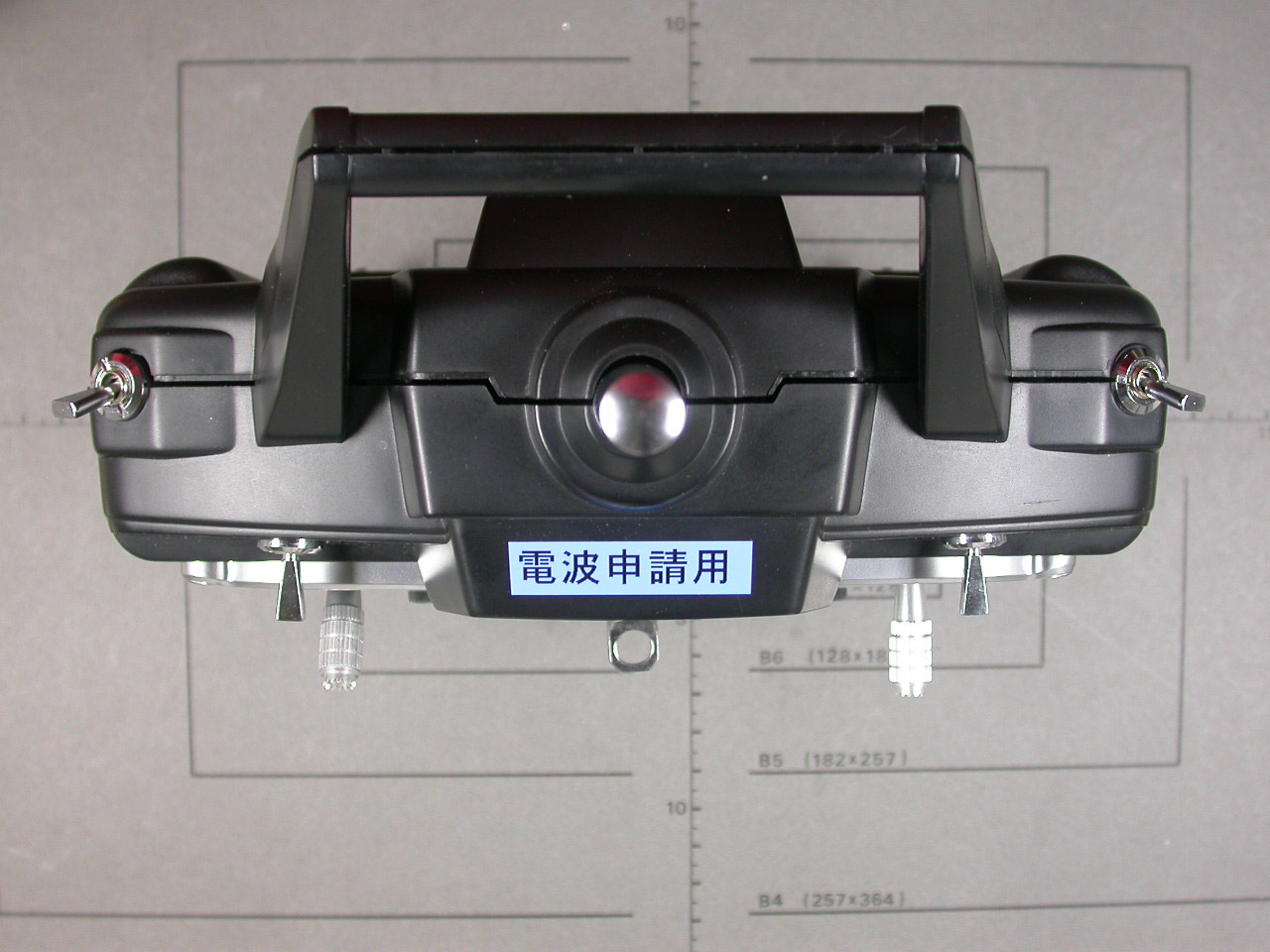

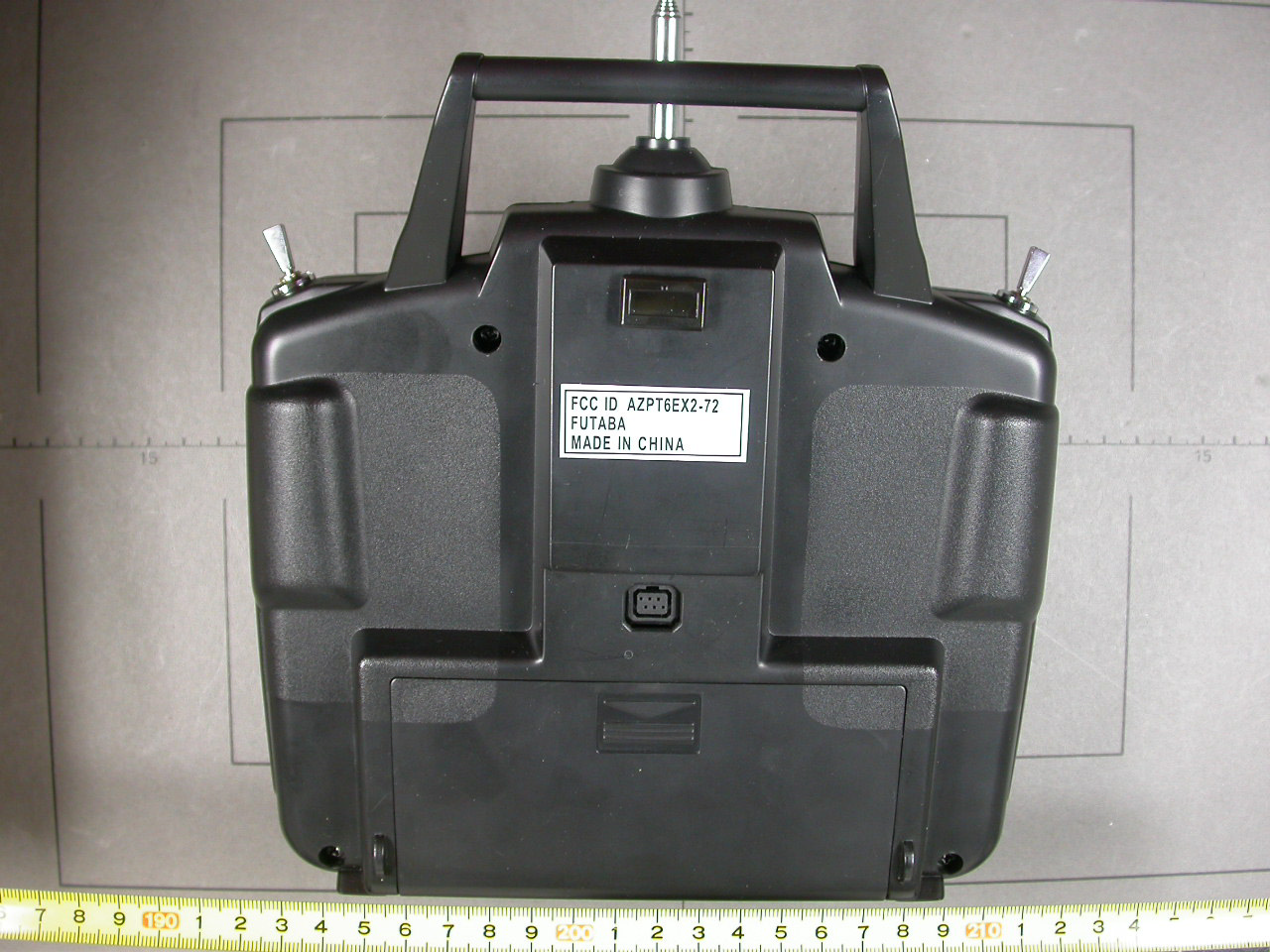

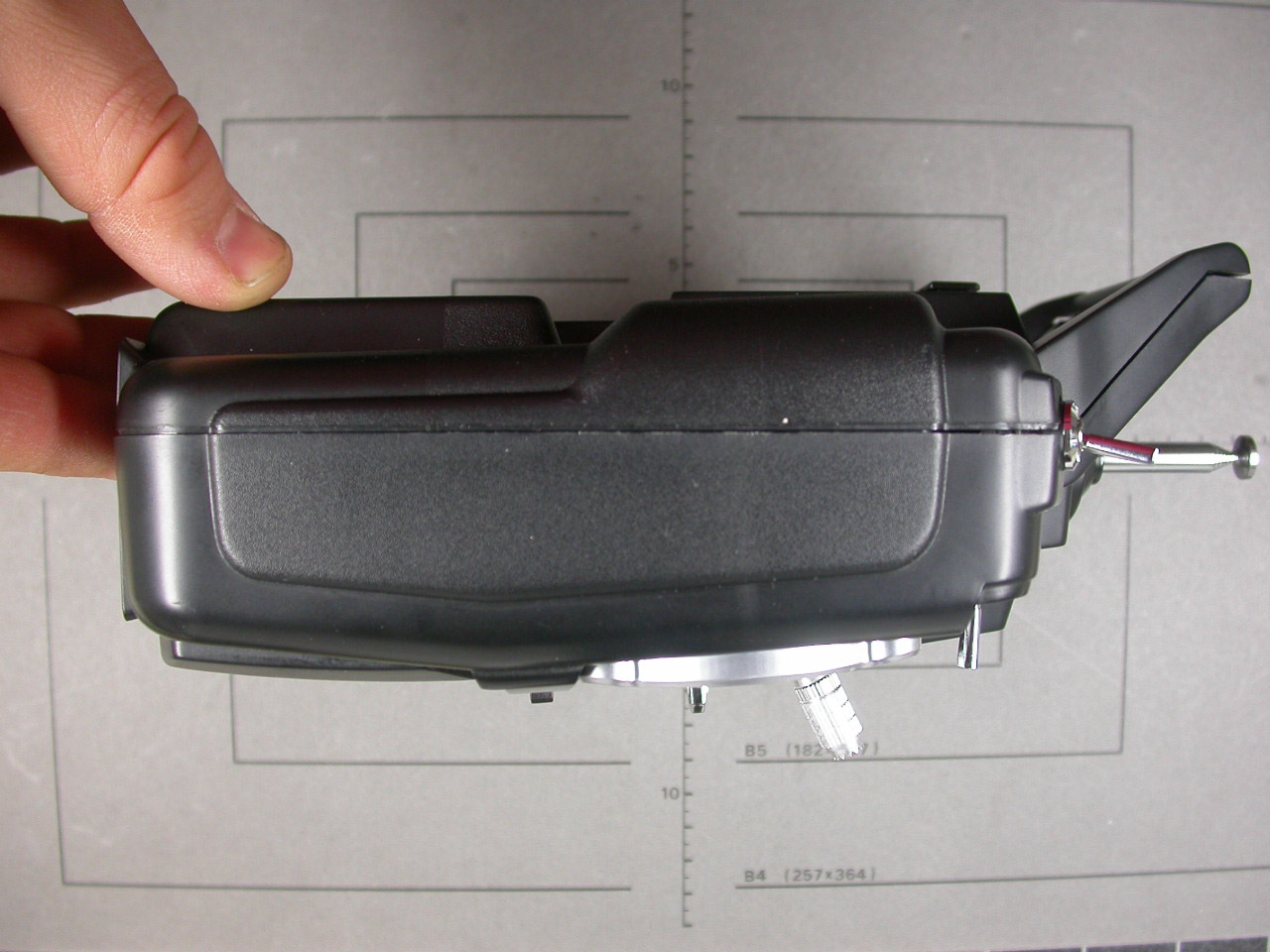

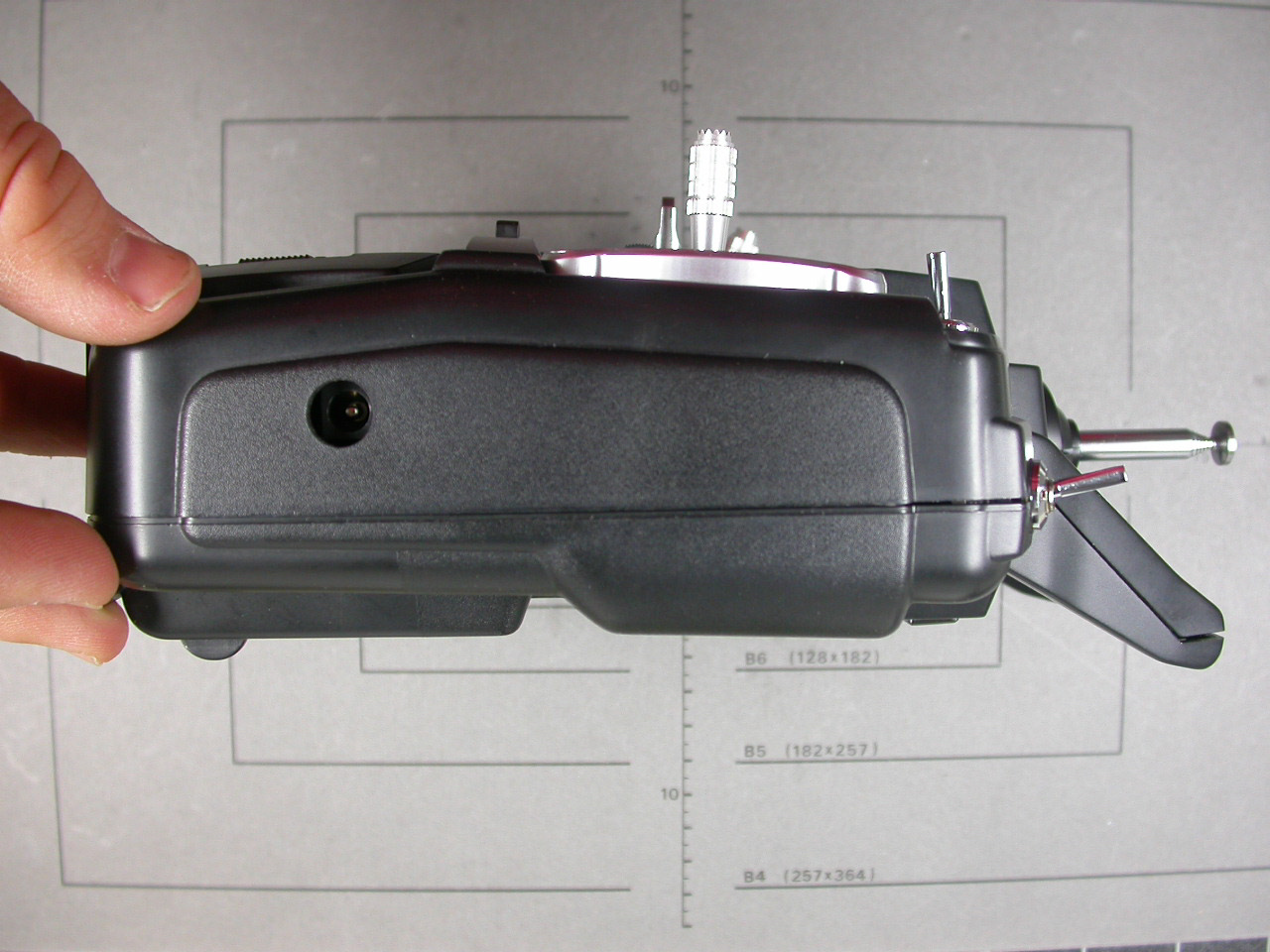

FCC ID AZPT6EX2-72 FCC ID AZPT6EX2-72 FCC ID AZPT6EX2-72 FCC ID AZPT6EX2-72 FCC ID AZPT6EX2-72 FCC ID AZPT6EX2-72

FCC ID AZPT6EX2-72 FCC ID AZPT6EX2-72 FCC ID AZPT6EX2-72

EMV-Prüfzentrum EMI/EMC-Testcenter Page 1 of 32 Pages Straubing, 25 January 2005 T E S T - R E P O R T No. 55503-40885 for T6EX2 72 MHz R/C Transmitter Applicant: Futaba Corporation Purpose of testing: To show compliance with - FCC Code of Federal Regulations, CFR 47, Part 95 - FCC Code of Federal Regulations, CFR 47, Part 2, Subpart J Note: The test data of this report relate only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. EMV-Prüfzentrum EMI/EMC-Testcenter FCC-ID: AZPT6EX2-72 Test Report No. 55503-40885 Page 2 of 32 Pages Table of Contents 1. Administrative Data ..............................................................................................3 2. Identification of Test Laboratory ...........................................................................4 3. Summary of Test Results.....................................................................................5 4. Operation Mode of EUT .......................................................................................6 5. Configuration of EUT and Peripheral Devices ......................................................7 6. Measuring Methods..............................................................................................8 6.1. Maximum Transmitter Power (§95.639) ........................................................8 6.2. Frequency tolerance (§95.623) ...................................................................10 6.3. Emission Bandwidth (§95.633) ....................................................................12 6.4. Unwanted Emission 30 MHz - 1 GHz (§95.635, §95.639) ...........................13 7. Photographs of Test Setups...............................................................................15 8. Equipment List ...................................................................................................18 9. Referenced Regulations.....................................................................................20 10. List of Measurements.........................................................................................21 11. Test Results .......................................................................................................22 12. Additional Information supplementary to the Test Report ...................................32 EMV-Prüfzentrum EMI/EMC-Testcenter FCC-ID: AZPT6EX2-72 Test Report No. 55503-40885 Page 3 of 32 Pages 1. Administrative Data Equipment Under Test (EUT): T6EX2 72 MHz Serial number(s): 001 Type of equipment: R/C Transmitter Type of emission: 5K50F1D Parts/accessories: --- FCC-ID: AZPT6EX2-72 Applicant: Futaba Corporation (full address) R/C Engineering Unit 1 1080, Yabutsuka Chosei-son, Chosei-gun, Chiba-ken, 299-4395 Japan Contract identification: --- Contact person: Mr. Fujita Manufacturer: Futaba Corporation Receipt of EUT: 13 December 2004 Dates of test: January 2005 Note: --- Responsible for testing: Martin Steindl Responsible for test report: Martin Steindl EMV-Prüfzentrum EMI/EMC-Testcenter FCC-ID: AZPT6EX2-72 Test Report No. 55503-40885 Page 4 of 32 Pages 2. Identification of Test Laboratory Test Laboratory: Senton GmbH EMI/EMC Test Center (full address): Aeussere Fruehlingstrasse 45 D-94315 Straubing Germany Contact person: Mr. Johann Roidt Communication: Telephone (+49) 0 94 21 / 55 22-0 Fax (+49) 0 94 21 / 55 22-99 eMail: [email protected] FCC registration number: 90926 Industry Canada file number: IC 3050 EMV-Prüfzentrum EMI/EMC-Testcenter FCC-ID: AZPT6EX2-72 Test Report No. 55503-40885 Page 5 of 32 Pages 3. Summary of Test Results The tested sample complies with the requirements for R/C Transmitters set forth in the The Code of Federal Regulations 47, Part 95, Subpart C & E and The Code of Federal Regulations 47 Part 2, Subpart J. of the Federal Communication Commission (FCC). Johann Roidt Martin Steindl Laboratory Manager Test Engineer EMV-Prüfzentrum EMI/EMC-Testcenter FCC-ID: AZPT6EX2-72 Test Report No. 55503-40885 Page 6 of 32 Pages 4. Operation Mode of EUT • transmitting continuously 1 • with battery supply nominal 9.6 V DC) 2 • antenna extended to maximum 3 • operating with f = 72.550 MHz For conducted measurements a dummy load was used as delivered by applicant. A short description of the circuit and the method to stop modulation can be found in the following figure. 1 Modulation as indicated on appropriate test record 2 For conducted measurements replaced by external DC supply 3 For radiated emissions only EMV-Prüfzentrum EMI/EMC-Testcenter FCC-ID: AZPT6EX2-72 Test Report No. 55503-40885 Page 7 of 32 Pages 5. Configuration of EUT and Peripheral Devices EUT is configured as stand-alone device Configuration of cables of EUT Not applicable Configuration of peripheral devices connected to EUT Not applicable EMV-Prüfzentrum EMI/EMC-Testcenter FCC-ID: AZPT6EX2-72 Test Report No. 55503-40885 Page 8 of 32 Pages 6. Measuring Methods 6.1. Maximum Transmitter Power (§95.639) The maximum transmitter power was measured conducted and radiated. 6.1.1. Conducted Maximum Transmitter Power A spectrum analyzer / EMI test receiver was connected to the output of the transmitter power amplifier (conducted measurement) via dummy load while EUT was operating in transmit mode using the assigned frequency. The trace mode of the spectrum analyzer was set to max hold with: RBW = 100 kHz, VBW = 100 kHz, span = 1 MHz, sweep = 20 ms (auto mode) See figure 1 for the measurement setup. Test equipment used (see equipment list for details): 02, 18, 51, 69, 70, 71 5 8 3 1 6 4 7 2 Figure 1: Measurement setup for testing on antenna connector 1 Transmitter (EUT) 5 Test cable 2 Dummy load 6 DC-block 3 Wooden table 7 Attenuator 4 DC power supply 8 Spectrum analyzer EMV-Prüfzentrum EMI/EMC-Testcenter FCC-ID: AZPT6EX2-72 Test Report No. 55503-40885 Page 9 of 32 Pages 6.1.2. Radiated Maximum Transmitter Power Radiated Maximum Transmitter P…
